DM50 Explanation of symbols
11
Please read this operating manual carefully before starting the device.
Keep it in a safe place for future reference. If the device is passed on to
another person, this operating manual must be handed over to the user
along with it.
The manufacturer cannot be held liable for damage resulting from
improper usage or incorrect operation.
Contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4 Proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
9 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
10 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
1 Explanation of symbols
!
!
WARNING!
Safety instruction: Failure to observe this instruction can cause
fatal or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to
injury.

EN
Safety instructions DM50
12
A
I
➤Action: This symbol indicates that action is required on your part. The
required action is described step-by-step.
✓This symbol describes the result of an action.
Fig. 15, page 3: This refers to an element in an illustration. In this case,
item 5 in figure 1 on page 3.
2 Safety instructions
2.1 General safety
!WARNING!
Do not operate the device if it is visibly damaged.
This device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
This device can be used by children aged 8 years and above as
well as persons with reduced physical, sensory or mental capa-
bilities or lack of experience and knowledge, if they are super-
vised or have been instructed to safely use the device and if
they understand the hazards resulting out of it.
Cleaning and user maintenance must not be carried out by chil-
dren without supervision.
Always keep and use the device out of the reach of children
under the age of 8 years.
Children must be supervised to ensure that they do not play with
the device.
If this device's power cable is damaged, it must be replaced by
the manufacturer, customer service or a similarly qualified
person in order to prevent safety hazards.
Do not store any explosive substances such as spray cans with
a flammable propellant in the device.
NOTICE!
Failure to observe this instruction can cause material damage and
impair the function of the product.
NOTE
Supplementary information for operating the product.

EN
DM50 Safety instructions
13
!CAUTION!
Disconnect the device from the mains
– before each cleaning and maintenance
– after every use
Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
Connect the device with the 230 V connection cable to the
230 V AC mains supply.
Check that the voltage specification on the type plate
corresponds to that of the energy supply.
The cooling device is not suitable for transporting caustic
materials or materials containing solvents.
Never pull the plug out of the socket by the cable.
2.2 Operating the device safely
ANOTICE!
Do not use electrical devices inside the cooler unless they are
recommended by the manufacturer for the purpose.
Do not place the device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).
Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the
heat that arises during operation does not build up. Make sure
that the device is sufficiently far away from walls and other
objects so that the air can circulate.
Ensure that the ventilation openings are not covered.
Do not fill the inner container with ice or fluid.
Never immerse the device in water.
Protect the device and the cable against heat and moisture.

EN
Scope of delivery DM50
14
3 Scope of delivery
The following main alternatives are obtainable:
Minibar DM50D with door panel, without lock
Minibar DM50D with door panel, with lock
Minibar DM50F without door panel, without lock
Minibar DM50F without door panel, with lock
Quantity Description
1 Minibar
1 Cable for 230 Vwconnection
4 Screw ø4 x 45 mm (Installation)
4 Plug (Installation)
1 Handle DM50D only
2 Plug (Handle installation) DM50D only
1 Inlet filter
6 Screw ø3 x 12 mm(Filter installation)
2 Plug (Wooden panel) DM50F wooden version
only
1 Lock decor (Wooden panel) DM50F wooden version
with lock only
2 Key Lock version only
1 Installation and Operating manual

EN
DM50 Proper use
15
4 Proper use
The Dometic Minibars DM50D and DM50F are designed for use inside a
piece of furniture and are suitable for cooling beverages and food.
The device is designed for use with a 230 V AC mains supply.
The cooling device is intended to be used in household and similar
applications such as
staff kitchen areas in shops, offices and other working environments
farm houses
clients in hotels, motels and other residential type environments
bed and breakfast type environments
catering and similar non-retail applications
!
5 Technical description
The minibar has a main drawer for bottles and cans as well as a mini drawer
for miniatures and snacks. The main drawer has room for 33 bottles with a
maximum height of 30 cm.
The minibar DM50D comes with a anthracite panel and pull handle.
The minibar DM50F is delivered without panel and is prepared for fitting the
hotel's own door decor.
Its cooling system is a non-wearing Peltier cooling system with the heat
discharged by a fan.
A lock is optionally available.
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for
storing the food or medicine you wish to cool.

EN
Technical description DM50
16
5.1 Description of the device
Front panel
Rear side
Control panel (inside the device)
No in
fig. 1, page 3 Description
1 Lock (optional)
2 Handle (DM50D only)
3 Door panel (DM50D only)
No in
fig. 2, page 3 and
fig. 3, page 4
Description
1 Mains adaptor
2 12 Vgsocket
3 Cooling unit cover
4 Ventillation openings
5 Drip tray
No in
fig. 4, page 4 Description
1 Lamp
2 Error LED
3 Power Status LED
4 Setting button

EN
DM50 Installation
17
Main drawer
Mini drawer
6 Installation
6.1 Notes on mounting into furniture
You can mount the minibar in four ways into furniture. Choose your favoured
alternative according to fig. 7, page 6.
Observe the following:
The cut-out dimensions H x W x D are:
– DM50D: 428 x 570 x 485 mm
– DM50F: 428 x 570 x (485 + d) mm
d is the thickness of the hotel‘s own decor
The clearance between the minibar‘s back and the furniture wall should
be approx. 5 mm.
The ventilation openings for the chosen alternative have to be produced
as shown in fig. 7, page 6.
Air passing through the inlet air duct must not be heated by any heat
sources (heaters, direct sunlight, gas ovens etc.).

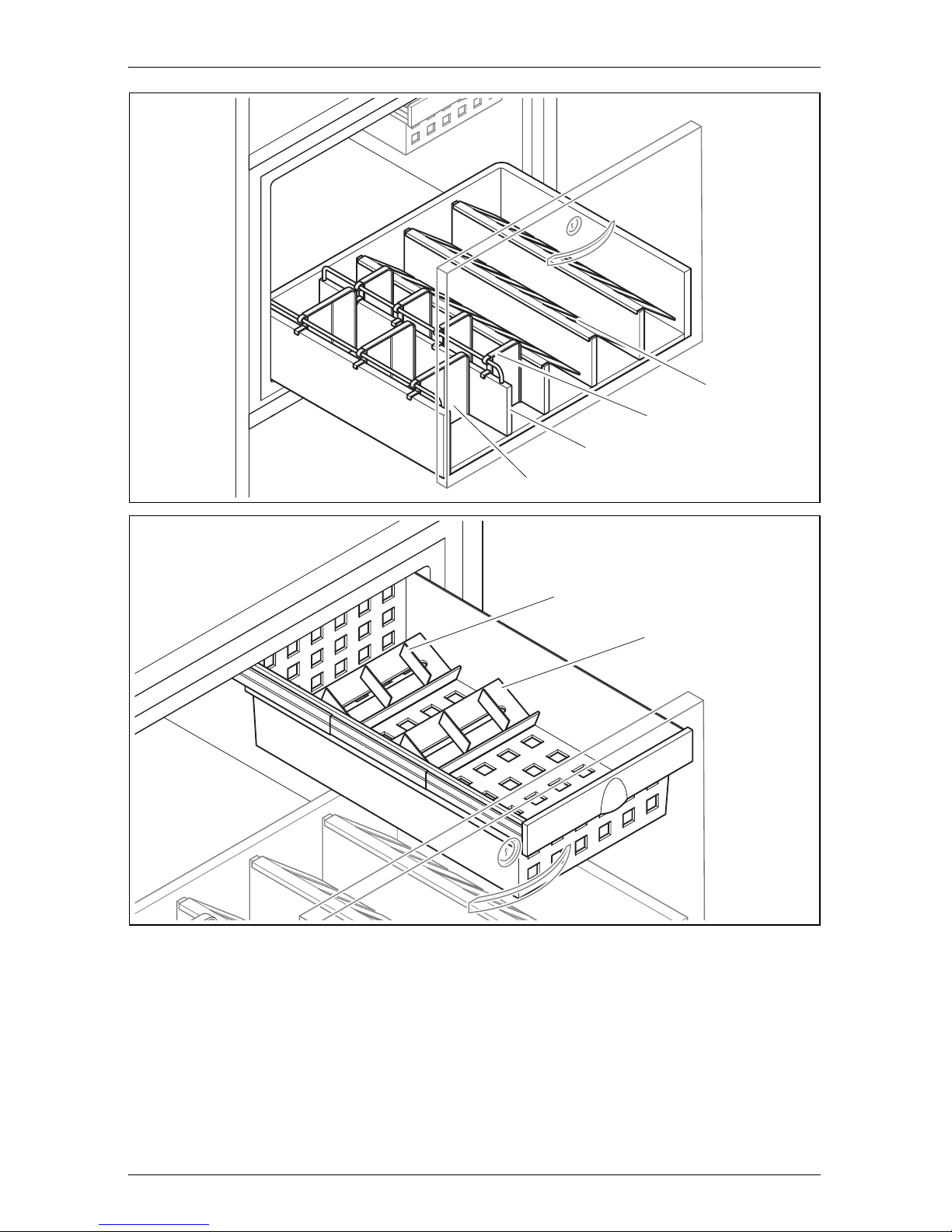

No in
fig. 5, page 5 Description
1 Wide divider
2 Separator
3 Small divider
4 Bottle finger
No in
fig. 6, page 5 Description
1 Rotatable divider
2 Miniature bottle holder

EN
Installation DM50
18
6.2 Pressing out the ventilation opening

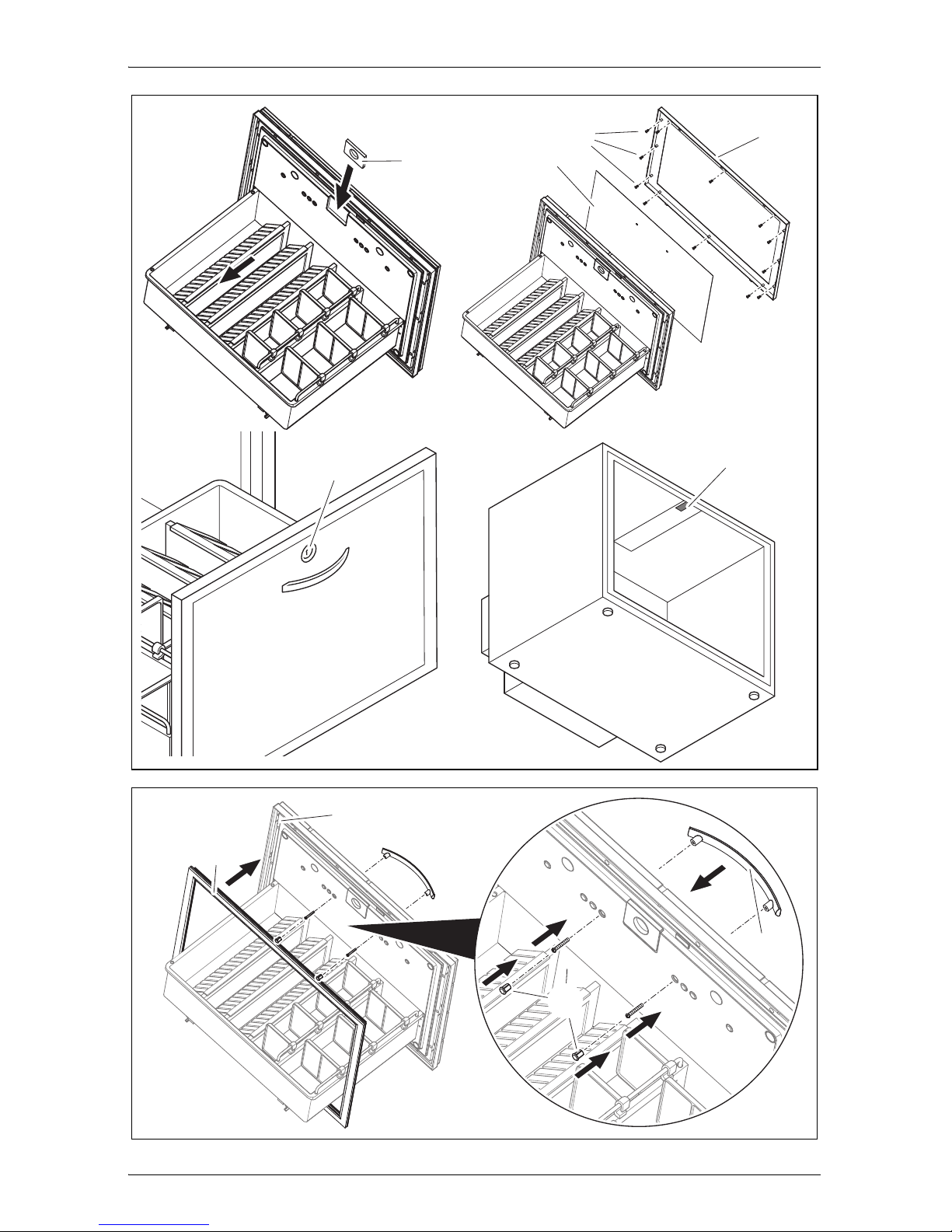

fig. 9, page 7
➤Produce a ventilation opening of 30 x 300 mm in the bottom of the
furniture into which you place the minibar.
Measure the distance of 470 mm from the minibar‘s door front excluding
any own decor.
6.3 Mounting the minibar into a piece of furniture
➤Fasten the minibar with the four screws ø4 x 45 mm (fig. 01, page 7).
➤Insert the four plugs (fig. 02, page 7) into the boring.
➤Fasten the inlet filter (fig. 05, page 7) with the six screws ø3 x 12 mm
(fig. 06, page 7) to ventilation opening (fig. 04, page 7) of the furni-
ture (fig. 03, page 7).
6.4 Connecting the minibar electrically
➤Plug the 230 V connection cable into the AC voltage socket and connect
it to the 230 V AC mains supply.
✓The Power Status LED lights up.
✓The lamp lights up and the minibar starts cooling the interior.
No in
fig. 0, page 7 Description
1 Screw ø4 x 45 mm
2Plug
3Furniture
4 Ventilation opening
5Filter
6 Screw ø3 x 12 mm

EN
DM50 Installation
19
6.5 Mounting hotel's own door decor (DM50F only)
The hotel's own door decor has to comply with the following requirements:
Maximum weight: 2 kg
Maximum thickness: 14 mm
➤Fasten the decor with four screws.
6.6 Mounting the lock (lock version only)
➤Drill a hole with a diameter of 35 mm into the decor.
➤Mount the lock together with the lock decor.
6.7 Mounting the lock (no lock version only)
Disassembling the drawer (fig. a, page 8)
➤Open the drawer completely (A).
➤Press the rail lock (A 1).
➤Pull the drawer out of the cabinet (B).
Only for DM50D:
➤Remove the two plugs (C 1) from the screws (C 2) of the door
handle (C 3).
➤Unscrew the two screws (C 2) of the door handle.
➤Remove the door handle (C 3).
➤Remove the gasket.
➤Remove the lock cover.
Drilling the holes (fig. b, page 8)
➤Drill a hole (A 1) with a diameter of 23.6 mm through the decor (only
DM50D) and the door.
➤Unscrew the twelve screws (B 1) of the decor frame (B 2) (only DM50D).
➤Remove the decor frame (only DM50D).

EN
Operation DM50
20
Assembling the lock (fig. c, page 9)
➤Put the new lock cover (A 1) into place.
➤Put the decor (B 1) into the decor frame.
➤Screw (B 2) the decor frame (B 3) onto the door.
➤Install the door lock (C 1).
➤Install the lock catch (D 1) in the cabinet.
Assembling the drawer (fig. d, page 9)
➤Push the gasket (1) on the decor frame (2).
➤Screw the door handle (4) onto the door.
➤Push the plugs (3) on the screws of the door handle (4).
➤Push the drawer into the cabinet.
7 Operation
7.1 Energy saving tips
Do not open the cooling device more often than necessary.
Do not leave the cooler unit open for longer than necessary.
7.2 Using the minibar
The minibar starts cooling when connected to power. During normal
operation the Power Status LED is glowing. If an error occurs the Error LED
is blinking (see chapter “Troubleshooting” on page 22).
