Dometic HC302D User manual

HC302D, HC502D
Health care refrigerator
Installation and Operating Manual. . . . . . . 10
Kühlschrank für medizinische
Produkte
Montage- und Bedienungsanleitung . . . . .29
Réfrigérateur de soins de santé
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .47
Medische koelkast
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . . .66
EN
DE
FR
NL
PROFESSIONAL COOLING
PHARMACEUTICAL
HC302D-502D-IO-WEST.book Seite 1 Freitag, 17. März 2017 2:15 14

HC302D-502D-IO-WEST.book Seite 2 Freitag, 17. März 2017 2:15 14

HC302D, HC502D
3
2
1
5
7
8
6
HC302DFS
HC502DFS
HC302DBIU
HC502DBIU
3
3
4
1
HC302D-502D-IO-WEST.book Seite 3 Freitag, 17. März 2017 2:15 14

HC302D, HC502D
4
5
6
7
8
431 2
2
1
2
1
1
1
2
2
2
ADCB
3
HC302D-502D-IO-WEST.book Seite 4 Freitag, 17. März 2017 2:15 14

HC302D, HC502D
5
~ 50 mm
4
~ 50 mm
5
HC302D-502D-IO-WEST.book Seite 5 Freitag, 17. März 2017 2:15 14

HC302D, HC502D
6
m
i
n
.
1
0
0
°
6
1.
2.
3.
7
HC302D-502D-IO-WEST.book Seite 6 Freitag, 17. März 2017 2:15 14

HC302D, HC502D
7
4.
1.
1.
3.
2.
8
1
2
3
4
12
34
9
HC302D-502D-IO-WEST.book Seite 7 Freitag, 17. März 2017 2:15 14

HC302D, HC502D
8
CD
AB
0
820
422 FS: 450; BIU: 440
540
580
HC302D
a
HC302D-502D-IO-WEST.book Seite 8 Freitag, 17. März 2017 2:15 14

HC302D, HC502D
9
HC502D
948
486 FS: 494; BIU: 484
552
592
b
HC302D-502D-IO-WEST.book Seite 9 Freitag, 17. März 2017 2:15 14

EN
HC302D, HC502D
10
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
6 Installing and connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . .17
7 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
HC302D-502D-IO-WEST.book Seite 10 Freitag, 17. März 2017 2:15 14

EN
HC302D, HC502D Explanation of symbols
11
1 Explanation of symbols
D
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or
serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
HC302D-502D-IO-WEST.book Seite 11 Freitag, 17. März 2017 2:15 14

EN
Safety instructions HC302D, HC502D
12
2.1 General safety
!WARNING!
•Do not operate the device if it is visibly damaged.
•If this device's power cable is damaged, it must be replaced by
customer service or a similarly qualified person in order to prevent
safety hazards.
•This device should be repaired by qualified person only. Inadequate
repairs may cause serious hazards.
•This device can be used by children aged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised, or
have been taught how to use the device safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not be carried out by children
without supervision.
•Children must be supervised to ensure that they do not play with the
device.
•Always keep and use the device out of the reach of children under
8 years of age.
•Do not store any explosive substances, such as spray cans with
propellants, in the device.
ANOTICE!
•Check that the voltage specification on the type plate is the same as
that of the power supply.
•Never pull the plug out of the socket by the connection cable.
•The refrigerator is not suitable for storing substances which are caustic
or contain solvents.
•Keep the drainage outlet clean at all times.
•Do not open the refrigerant circuit under any circumstances.
•Never transport the device in a horizontal position, so that no oil can
leak out of the compressor.
•Make sure that the refrigerator circuit is not damaged during
transportation.
•Set up the device in a dry location where it is protected against
splashing water.
HC302D-502D-IO-WEST.book Seite 12 Freitag, 17. März 2017 2:15 14

EN
HC302D, HC502D Scope of delivery
13
2.2 Operating the device safely
DDANGER!
•Do not touch exposed cables.
!CAUTION!
•Before starting the device, ensure that the power supply line and the
plug are dry.
ANOTICE!
•Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for that purpose.
•Do not place it near naked flames or other heat sources (heaters, direct
sunlight, gas ovens etc.)
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the device is sufficiently far
away from walls and other objects so that the air can circulate (fig. 3,
page 4).
•Ensure that the ventilation vents are not covered.
•The device shall not be exposed to rain.
•Never immerse the appliance in water.
•Protect the appliance and power cable against heat and moisture.
•Make sure that the stored substances do not touch the walls of the
cooling area.
3Scopeofdelivery
Quantity Description
1 Refrigerator
1 Handle
1 Installation and operating manual
HC302D-502D-IO-WEST.book Seite 13 Freitag, 17. März 2017 2:15 14

EN
Intended use HC302D, HC502D
14
4 Intended use
The refrigerator is designed to store medicines and medicinal products (according
to DIN 58345) which should be stored at temperatures between +2 °C and +8 °C.
!
5 Technical description
5.1 Function description
All materials used in the refrigerator are compatible for use with medicines and
medicinal products.
The refrigerant circuit is maintenance-free.
The refrigerator is available as freestanding version (FS) and as built-in version (BIU).
The freestanding version is intended for freestanding use. The cooling unit cover
protects the warm parts of the cooling units. The foot frame with ventilation openings
ensure sufficient ventilation. By removing the foot frame and cooling unit cover the
refrigerator can be used as a built-in version.
The built-in version is intended to be mounted into furniture. It doesn‘t have a foot
frame or cooling unit cover.
The digital thermometer shows and stores the minimum and maximum inner
temperatures from the last reset so that you can check whether the medicinal
products have been stored at the appropriate temperatures.
CAUTION!
The refrigerator is not suitable for the storage of blood.
HC302D-502D-IO-WEST.book Seite 14 Freitag, 17. März 2017 2:15 14

EN
HC302D, HC502D Technical description
15
5.2 Control elements
Key to fig. 2, page 4
5.3 Safety thermostat
The device is fitted with a safety thermostat. This thermostat switches off the
compressor as soon as the inside temperature falls below +2 °C preventing the
medicinal products from being harmed by freezing.
No. in
fig. 1,
page 3
Explanation
1Doorlock
2Door
3 Digital thermometer (see fig. 2, page 4)
4 Cooling unit cover
5Drawers
6 Interior light
7Fan
8 Foot frame
No. Explanation
1 Power button
2Mutebutton
3 Current inner temperature
4 Minimum inner temperature
5 Reset button
6 Maximum inner temperature
7 LED (red) for alarms
8 LED (green) for power presence
HC302D-502D-IO-WEST.book Seite 15 Freitag, 17. März 2017 2:15 14

EN
Technical description HC302D, HC502D
16
5.4 Rechargeable battery
In case the power supply is interrupted, the monitoring functions of the electronics
are maintained by an integrated rechargeable battery for at least 12 hours.
The battery is automatically charged if the device is connected to the mains and
switched on.
At the first starting up of the device the error message “E3” may appear. The
message will disappear as soon as the battery is charged.
If the capacity of the battery is no longer sufficient to take over the monitoring
functions the error message “E3” appears on the display.
A
5.5 Internal ventilation
The device is fitted with an internal ventilation.
The fan is operating when the door is closed.
A
To prevent warm outside air from being unnecessarily sucked in, the fan
automatically switches off when the door is opened.

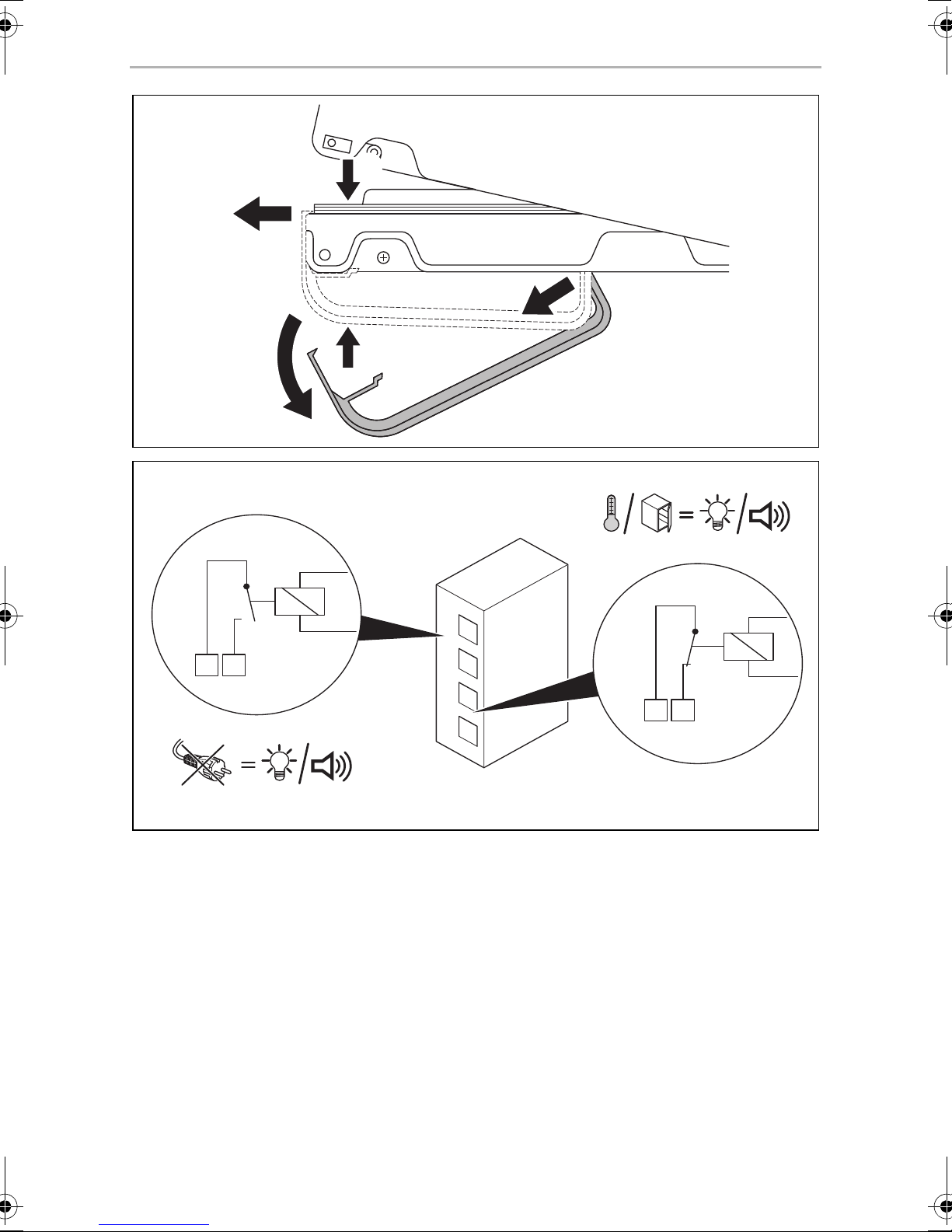

5.6 External alarm function
There are two terminals with two floating contacts on the back of the device that can
be used to trigger an additional external alarm (acoustical or visual).
NOTICE!
The battery should be precautionary replaced every 2 years.
This replacement must be carried out by qualified personnel.
NOTICE!
The airflow to the fan must never be impeded by blocking or covering
the ventilation slots.
HC302D-502D-IO-WEST.book Seite 16 Freitag, 17. März 2017 2:15 14

EN
HC302D, HC502D Installing and connecting the refrigerator
17
6 Installing and connecting the
refrigerator
6.1 Unpacking the refrigerator
➤Check that the packaging is not damaged.
➤Remove the cardboard packaging.
➤Check that the refrigerator is not damaged.
If you find damage on the packaging or at the refrigerator resulting from
transport, report it immediately to the transportation firm.
6.2 Installing freestanding version
Observe the following instructions when installing:
•Install the refrigerator so that the warm air produced can easily flow away, either
upwards or to the sides.
➤Place the refrigerator at the chosen place.
➤Leave the refrigerator to stand for at least four hours before you connect it to the
power supply so that the refrigerant can flow back into the compressor.
HC302D-502D-IO-WEST.book Seite 17 Freitag, 17. März 2017 2:15 14

EN
Installing and connecting the refrigerator HC302D, HC502D
18
6.3 Installing built-in version
!
Observe the following instructions when installing:
•Install the refrigerator so that the warm air produced can easily flow away (either
upwards or to the front, fig. 3, page 4).
Key to fig. 3, page 4
•Make sure that the refrigerator door is able to open at least 100°. Otherwise the
drawers cannot be used.
➤Check the dimensions of the device (fig. a, page 8 or fig. b, page 9).
➤Place the device according to fig. 4, page 5 or fig. 5, page 5.
➤Mount the device tothe furniture by two screws through the fittings at thebottom
(fig. 6, page 6).
➤Leave the device to stand for at least four hours before you connect it to the
power supply so that the refrigerant can flow back into the compressor.
CAUTION!
Ensure the shelf is adequate to carry the total weight of the refrigerator
and the medicinal products to be stored.
No. Explanation
1 Cold intake air
2 Hot waste air
HC302D-502D-IO-WEST.book Seite 18 Freitag, 17. März 2017 2:15 14

EN
HC302D, HC502D Installing and connecting the refrigerator
19
6.4 Connecting the refrigerator to the power supply
A
➤Connect the plug of the connection cable into the mains.
✓The green power LED lights up (fig. 22, page 4).
➤Press the button.
✓The display turns on.
For the first two seconds the display will not show temperature values; it shows
“--.-”. Then the temperature read from the sensor is shown.
6.5 Mounting and removing the door handle
➤Mount the handle as shown (fig. 7, page 6).
➤Remove the handle as shown (fig. 8, page 7).
NOTICE!
•Connect the device to a separate circuit to prevent malfunctioning
due to problems with other electrical equipment. Never connect the
device to a single socket with other electrical equipment by means
of a multi-socket.
•UK only: The refrigerator is supplied with a plug fitted with 3 A fuse.
In case this fuse has to be to changed, a 3 A ASTA approved
(BS 1362) fuse must be used.
HC302D-502D-IO-WEST.book Seite 19 Freitag, 17. März 2017 2:15 14

EN
Using the refrigerator HC302D, HC502D
20
6.6 Installing an external alarm
Use the floating contacts at the back of the device as follows:
•The upper contacts correspond to the power fail alarm (fig. 91 and 2, page 7).
•The lower contacts correspond to the temperature alarm (fig. 93 and 4,
page 7).
A voltage between 12 V and 250 V can be connected at the contacts. The maximum
load must not exceed 8 A. The minimum power rating is 100 mA/5 V.
I
7 Using the refrigerator
I
7.1 Energy saving tips
•Choose a well ventilated location which is protected from direct sunlight.
•Do not open the refrigerator more often than necessary.
•Do not leave the doors open for longer than necessary.
•Defrost your refrigerator as soon as a layer of ice forms.
NOTE
The external alarm signal can only be switched off by eliminating the
cause of the alarm.
NOTE
•Before starting your new refrigerator for the first time, you should
clean it inside and outside with a damp cloth for hygienic reasons
(please refer to the chapter “Cleaning and maintenance” on
page 25).
•Always leave some space between the medicinal products in the
refrigerator to ensure efficient and even cooling. If the drawers are
packed too tightly there may be unacceptable temperature values.
•Keep these operating instructions ready at hand and leave them with
the device, so that all users can find out about the functions and
safety regulations.
HC302D-502D-IO-WEST.book Seite 20 Freitag, 17. März 2017 2:15 14
