Dometic COOLMATIC Series User manual

HDC275
Compressor refrigerator
Installation and Operating Manual. . . . . . . 11
Kompressor-Kühlschrank
Montage- und Bedienungsanleitung . . . . .32
Réfrigérateur à compression
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .54
Compressorkoelkast
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . . .76
EN
DE
FR
NL
REFRIGERATION
COOLMATIC
HDC275-IO-West.book Seite 1 Dienstag, 14. März 2017 8:41 20

HDC275-IO-West.book Seite 2 Dienstag, 14. März 2017 8:41 20

HDC275
3
6
7
9
8
4
1
5
3
2
1
1
3
2
2
1
2
3
HDC275-IO-West.book Seite 3 Dienstag, 14. März 2017 8:41 20

HDC275
4
1
4
1
3
2
ca. 50 mm
5
HDC275-IO-West.book Seite 4 Dienstag, 14. März 2017 8:41 20

HDC275
5
x
x
6
1.
2.
7
4 mm
44 mm
1
8
9
12
0
HDC275-IO-West.book Seite 5 Dienstag, 14. März 2017 8:41 20

HDC275
6
SX
DX 1.
2.
3.
a
b
1.
2.
c
d
1. 2.
e
1.
2.
f

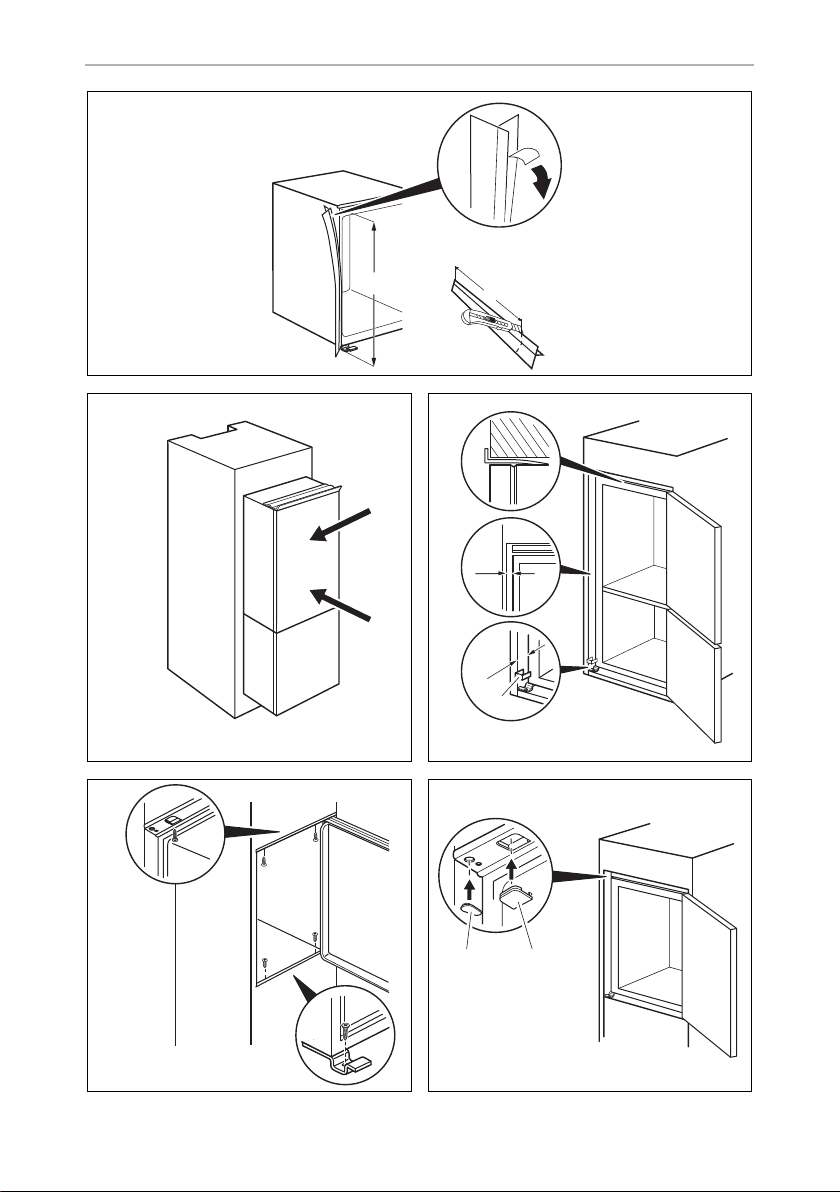

HDC275-IO-West.book Seite 6 Dienstag, 14. März 2017 8:41 20

HDC275
7
g
90°
90°
21 mm
~50 mm
~50 mm
21 mm
h
i
8 mm
j
k
l
HDC275-IO-West.book Seite 7 Dienstag, 14. März 2017 8:41 20

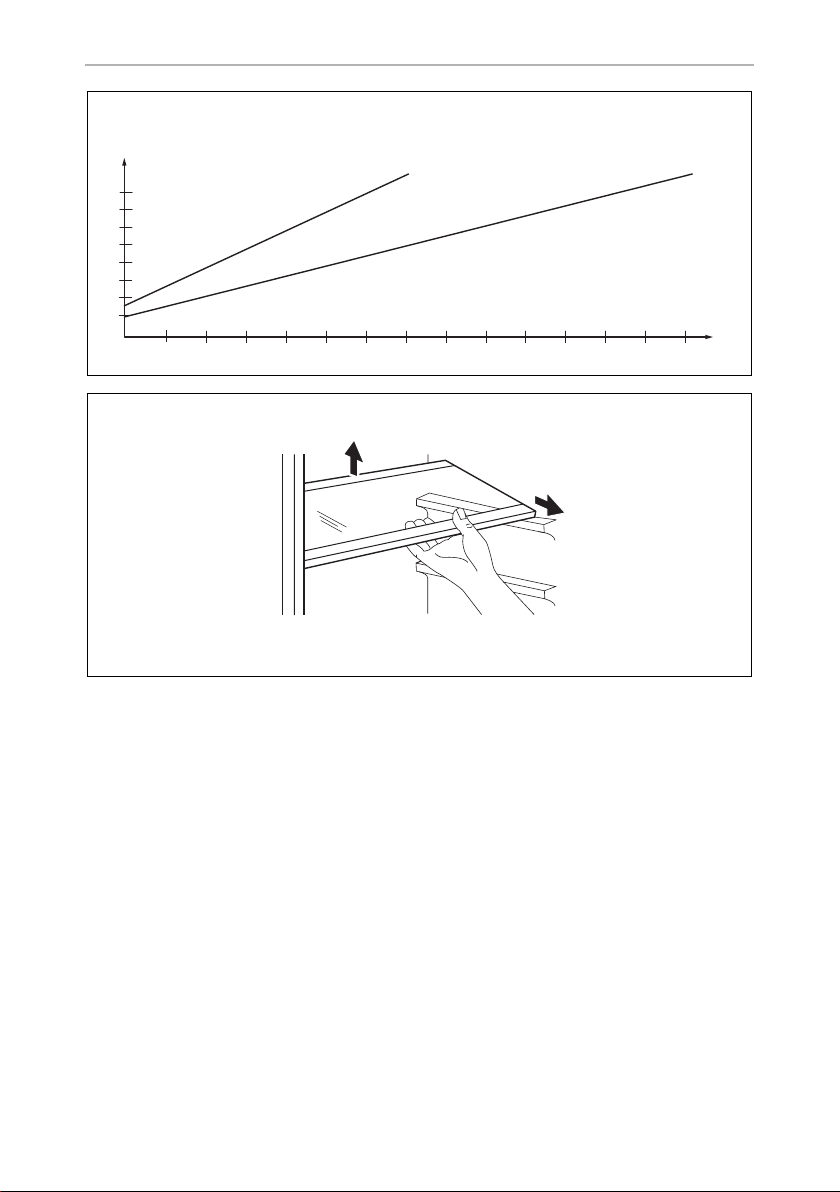

HDC275
8
Ø/mm²
l/m
12 V 24 V
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28
0
2
6
10
14
m
1.
2.
n
HDC275-IO-West.book Seite 8 Dienstag, 14. März 2017 8:41 20

HDC275
9
1
2
2
o
1
p
HDC275-IO-West.book Seite 9 Dienstag, 14. März 2017 8:41 20

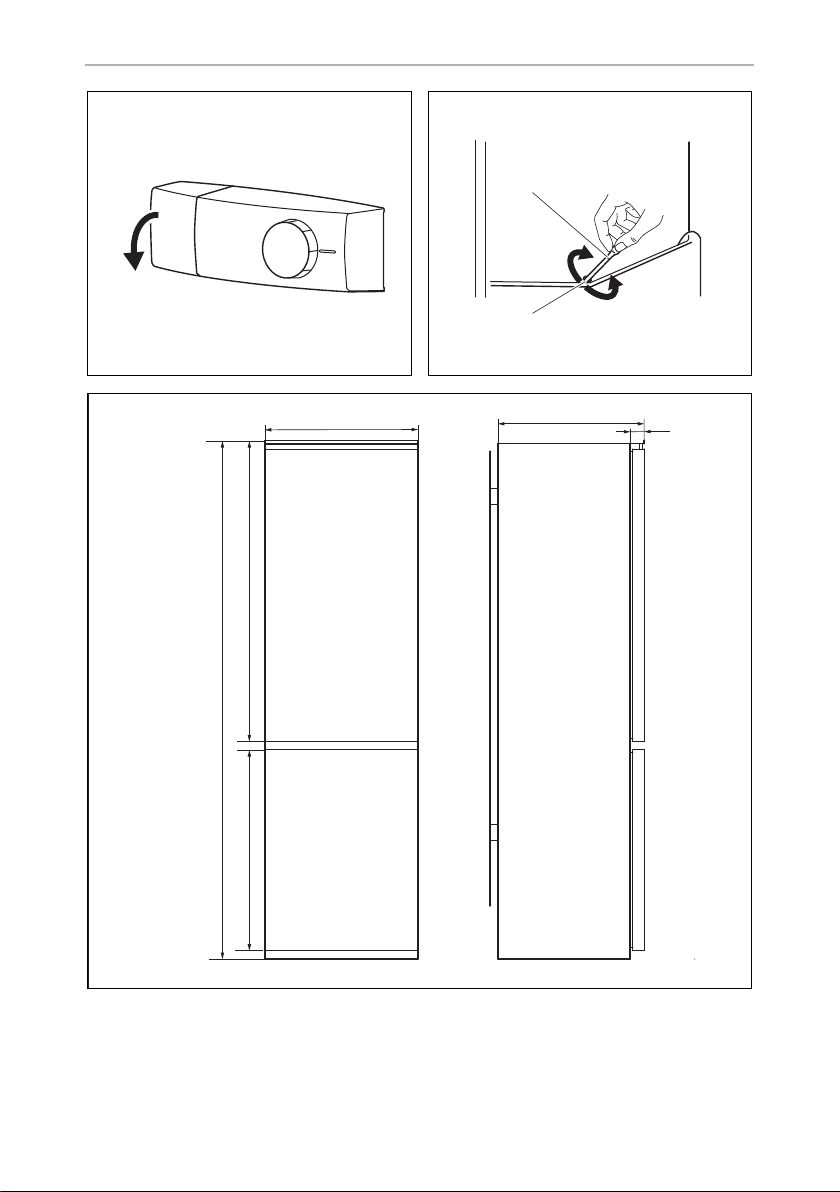

HDC275
10
q
1
2
r
540 550 40
1030
1775
650
s
HDC275-IO-West.book Seite 10 Dienstag, 14. März 2017 8:41 20

EN
HDC275
11
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
7 Installing and connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . .17
8 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
9 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
HDC275-IO-West.book Seite 11 Dienstag, 14. März 2017 8:41 20

EN
Explanation of symbols HDC275
12
1 Explanation of symbols
D
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
2.1 General safety
!WARNING!
•Have a qualified technician perform the installation in wet rooms.
•Do not operate the device if it is visibly damaged.
•If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or
serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
HDC275-IO-West.book Seite 12 Dienstag, 14. März 2017 8:41 20

EN
HDC275 Safety instructions
13
•This device may only be repaired by qualified personnel. Inadequate
repairs may cause serious hazards.
•This device can be used by childrenaged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised, or
have been taught how to use the device safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not be carried out by children
without supervision.
•Children must be supervised to ensure that they do not play with the
device.
•Always keep and use the device out of the reach of children under
8 years of age.
•Do not store any explosive substances, such as spray cans with
propellants, in the device.
!CAUTION!
•Danger of crushing! Do not put your fingers into the hinge.
•Foodstuff may only be stored in its original packaging or in suitable
containers.
ANOTICE!
•Check that the voltage specification on the type plate is the same as
that of the power supply.
•Never pull the plug out of the socket by the connection cable.
•Disconnect the refrigerator and other electric consumers from the bat-
tery before connecting the quick charging device.
•Disconnect the refrigerator or switch it off when you turn off the
engine. Otherwise you may discharge the battery.
•The refrigerator is not suitable for storing substances which are caustic
or contain solvents.
•Keep the drainage outlet clean at all times.
•Do not open the refrigerant circuit under any circumstances.
•Never transport the device in a horizontal position, so that no oil can
leak out of the compressor.
HDC275-IO-West.book Seite 13 Dienstag, 14. März 2017 8:41 20

EN
Safety instructions HDC275
14
•Make sure that the refrigerator circuit is not damaged during transpor-
tation. The refrigerant in the refrigerator circuit is highly flammable.
In the event of any damage to the refrigerator circuit:
– Avoid naked flames and sparks.
– Air the room well.
•Set up the device in a dry location where it is protected against splash-
ing water.
2.2 Operating the device safely
DDANGER!
•Do not touch exposed cables with your bare hands.
!CAUTION!
•Before starting the device, ensure that the power supply line and the
plug are dry.
•If you connect the device to a battery, make sure that no food comes
into contact with the battery acid.
ANOTICE!
•Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for that purpose.
•Do not place it near naked flames or other heat sources (heaters, direct
sunlight, gas ovens etc.)
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the device is sufficiently far
away from walls and other objects so that the air can circulate.
•Ensure that the ventilation vents are not covered.
•Do not fill the inner container with ice or fluid.
•Never immerse the appliance in water.
•Protect the appliance and the cable against heat and moisture.
•Make sure that foodstuffs do not touch the walls of the cooling area.
HDC275-IO-West.book Seite 14 Dienstag, 14. März 2017 8:41 20

EN
HDC275 Scope of delivery
15
3Scopeofdelivery
4Accessories
Available as accessories (not included in the scope of delivery):
5 Intended use
The HDC275 refrigerator (ref. no. 9105204439) is suitable for refrigerating food-
stuffs and storing frozen foodstuffs.
The device is also suitable for use on boats.
!
Quantity Description
1 Refrigerator
1 Assembly kit for changing the door hinge
1 Operating manual
Description Ref. no.
MPS80 mains adapter 9600000442
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
HDC275-IO-West.book Seite 15 Dienstag, 14. März 2017 8:41 20

EN
Technical description HDC275
16
6 Technical description
6.1 Function description
The refrigerator is suitable for use with a 12 V or 24 V DC voltage and can therefore
also be used e.g. for camping or on boats.
When used on boats the refrigerator can be subjected to a constant inclination
of 30°.
The refrigerator can chill products down to +0 °C to +10 °C and keep them cool. In
the freezer compartment, frozen items can be stored at –18 °C to 0 °C. You can use
the adjustable temperature control to set the desired temperature.
All materials used in the refrigerator are compatible for use with foodstuffs. The refrig-
erant circuit is maintenance-free.
6.2 Control elements
No. in
fig. 1, page 3 Description
1Shelf
2 Type plate (inside)
3 Fruit and vegetable compartment
4 Freezer compartment
5 Condenser and compressor (on the back)
6Bottleholder
7 Door compartment
8 Inner lighting
9 Temperature controller
HDC275-IO-West.book Seite 16 Dienstag, 14. März 2017 8:41 20

EN
HDC275 Installing and connecting the refrigerator
17
7 Installing and connecting the
refrigerator
Please note the following instructions for installation on boats:
D
A
7.1 Changing the door hinge
You can also change the hinge of the doors, so that the doors open to the left rather
than the right.
➤Unscrew and remove the top bolts (fig. 21, page 3).
➤Remove the upper door (fig. 22page 3).
➤Remove the spacer (fig. 23, page 3).
➤Remove the middle hinge (fig. 31, page 3).
➤Remove the lower door (fig. 32page 3).

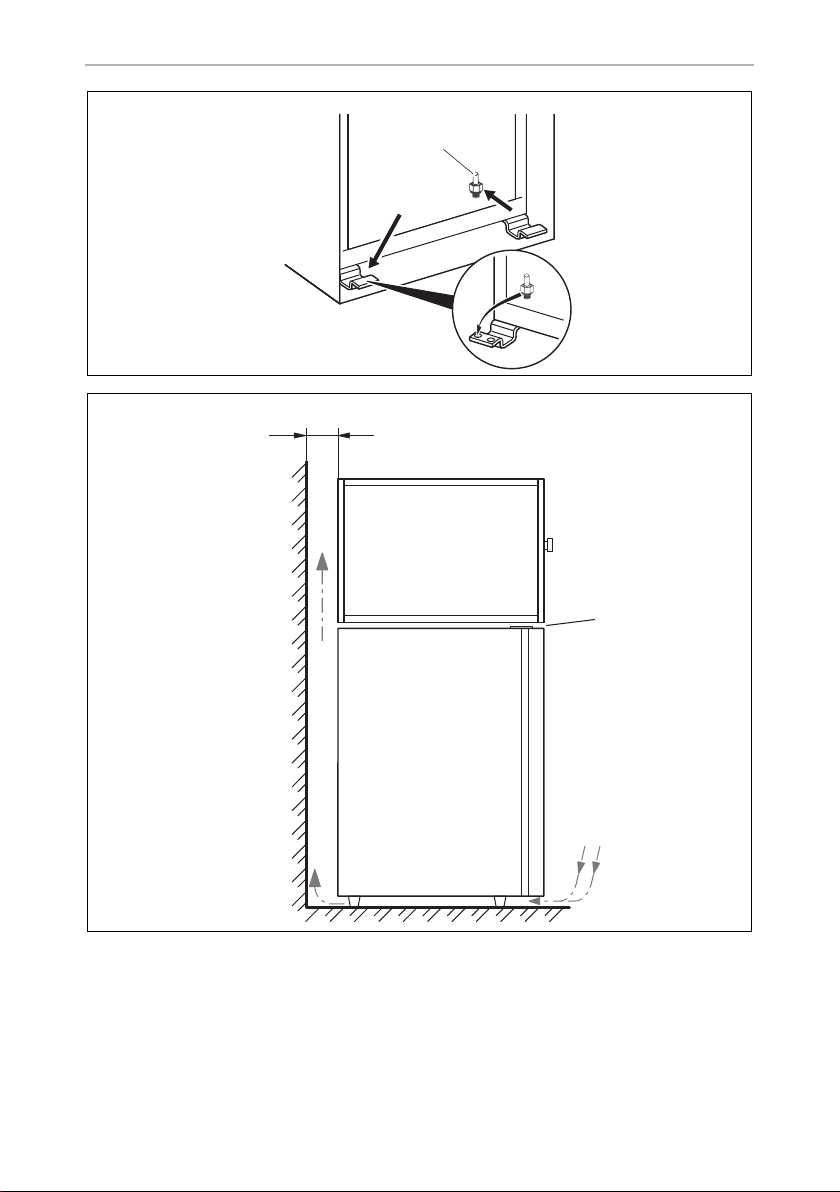

➤Unscrew and remove the bottom bolts (fig. 41, page 4).
On the opposite side:
➤Fasten the bottom bolts.
➤Attach the lower door.
➤Fasten the middle hinge firmly.
➤Fit the spacer.
➤Attach the upper door.
➤Fasten the top bolts.
DANGER!
If the device is powered by the mains, ensure that the power supply has
a residual current circuit breaker.
NOTICE!
The device can be tilted sideways up to 30°. When setting up the
refrigerator, note that it must be fastened to take account of this. If you
have any questions regarding installation, consult your specialist dealer.
HDC275-IO-West.book Seite 17 Dienstag, 14. März 2017 8:41 20

EN
Installing and connecting the refrigerator HDC275
18
7.2 Installing the refrigerator
Observe the following instructions when installing:
•Install the refrigerator so that the warm air produced can easily flow away (either
upwards or to the sides, fig. 5, page 4).
Key for fig. 5, page 4
•Leave the device to stand for at least four hours before you connect it to the
power supply so that the oil can flow back into the compressor.
Proceed as follows to install the refrigerator:
➤Shorten the sealing strip if required and fit it on the refrigerator (fig. 6, page 5).
➤Install the refrigerator as shown in the illustrations (fig. 7, page 5 to fig. f,
page 6).
Please note the following:
–fig.8, page 5: You can make sure that the space between the refrigerator
and the installation opening is right by using the bottom hinge cover.
–fig.a, page 6: Remove the DX part for right-hand hinges and the SX part for
left-hand hinges.
➤Fix the cover panel to the refrigerator door as shown in the illustrations (fig. g,
page 7 to fig. l, page 7).
No. Explanation
1 Cold intake air
2 Hot waste air
3 Spacing above the refrigerator if there is not sufficient air to circulate
above or at the side.
HDC275-IO-West.book Seite 18 Dienstag, 14. März 2017 8:41 20

EN
HDC275 Installing and connecting the refrigerator
19
7.3 Connecting the refrigerator to the power supply
A
The refrigerator can be operated with a 12 Vgor 24 Vgvoltage supply.
For safety reasons, the refrigerator is equipped with an electronic system to prevent
the polarity being reversed. This protects the refrigerator against reversed polarity
when connecting to a battery and against short circuiting.
To protect the battery, the refrigerator switches off automatically if the voltage is
insufficient (see table below).
➤Determine the required cross section of the cable in relation to the cable length
according to fig. m, page 8.
Key for fig. m, page 8
A
➤Before starting up the device for the first time, check whether the operating
voltage and the battery voltage match (see type plate).
NOTICE!
•To avoid voltage drops and loss of performance, keep the
connection cable as short as possible and not be interrupted.
Therefore avoid additional switches, plugs or power strips.
•Disconnect the cooling device and other electric consumers from
the battery before you connect the battery to a quick charging
device.
Overvoltage can damage the electronics of the device.
12 V 24 V
Cut-off voltage 10.4 V 22.8 V
Cut-in voltage 11.7 V 24.2 V
Coordinate axis Meaning Unit
l Cable length m
∅Cable cross section mm²
NOTICE!
Make sure the polarity is correct.
HDC275-IO-West.book Seite 19 Dienstag, 14. März 2017 8:41 20

EN
Using the refrigerator HDC275
20
➤Connect the refrigerator
– as directly as possible to the poles of the battery or
– to a plug socket which is fuse protected with at least 15 A (at 12 V) or 7.5 A
(at 24 V).
8 Using the refrigerator
I
8.1 Energy saving tips
•Choose a well ventilated location which is protected from direct sunlight.
•Allow warm food to cool down first before placing it in the device to keep cool.
•Do not open the refrigerator more often than necessary.
•Do not leave the doors open for longer than necessary.
•Defrost your refrigerator as soon as a layer of ice forms.
•Avoid unnecessarily low temperature settings.
•Clean dust and dirt from the condenser at regular intervals.
NOTE
Before starting your new refrigerator for the first time, you should clean
it inside and outside with a damp cloth for hygienic reasons (please also
refer to the chapter “Cleaning and maintenance” on page 26).
HDC275-IO-West.book Seite 20 Dienstag, 14. März 2017 8:41 20
