Dometic CV1004 User manual

CV1004
Central vacuum cleaner
Installation and Operating Manual. . . . . . . . 8
Zentralstaubsauger
Montage- und Bedienungsanleitung . . . . .20
Aspirateur central
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .32
Aspirador central
Instrucciones de montaje y de uso . . . . . . .44
Aspirador central
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Aspirapolvere centralizzato
Istruzioni di montaggio e d’uso . . . . . . . . .68
Centrale stofzuiger
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . . .80
Centralstøvsuger
Monterings- og betjeningsvejledning . . . .92
Centraldammsugare
Monterings- och bruksanvisning . . . . . . .103
Sentralstøvsuger
Monterings- og bruksanvisning . . . . . . . . 114
Keskuspölynimuri
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 125
Центральный пылесос
Инструкция по монтажу и эксплуатации 137
Odkurzacz centralny
Instrukcja montażu i obsługi. . . . . . . . . . . 150
Centrálny vysávač
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 162
Centrální vysavač
Návod k montáži a obsluze . . . . . . . . . . . 173
Központi porszívó
Szerelési és használati útmutató . . . . . . . 184
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
CLEANING
VACUUM & CLEANERS
CV1004-IO-16s.book Seite 1 Montag, 8. August 2016 2:00 14

CV1004-IO-16s.book Seite 2 Montag, 8. August 2016 2:00 14

CV1004
3
12
34
5
6
7
12
8
11
9
10
1
3
1
2
4
2
CV1004-IO-16s.book Seite 3 Montag, 8. August 2016 2:00 14

CV1004
4
3
2
1 1
2
min. 10 mm
max. 25 mm
280 mm
153 mm
4
2.
1.
5
6
7
CV1004-IO-16s.book Seite 4 Montag, 8. August 2016 2:00 14

CV1004
5
8
9
0
Ø 60 mm
a
b
CV1004-IO-16s.book Seite 5 Montag, 8. August 2016 2:00 14

CV1004
6
c
d
e
f
1.
2.
g
h
CV1004-IO-16s.book Seite 6 Montag, 8. August 2016 2:00 14

CV1004
7
i
j
k
l
m
n
CV1004-IO-16s.book Seite 7 Montag, 8. August 2016 2:00 14

EN
CV1004
8
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
7 Installing the vacuum cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
8 Using the vacuum cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
9 Maintaining and cleaning the vacuum cleaner . . . . . . . . . . . . . . . . . . . . . . .17
10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
11 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
12 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
CV1004-IO-16s.book Seite 8 Montag, 8. August 2016 2:00 14

EN
CV1004 Explanation of symbols
9
1 Explanation of symbols
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
2.1 General safety
!WARNING!
•Before you use the device for the first time, check that the operating
voltage matches the mains voltage (see type plate).
•Do not operate the appliance if it is visibly damaged.
•This device may only be repaired by qualified personnel. Inadequate
repairs may cause serious hazards.
Should your appliance need to be repaired, please contact customer
service.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
CV1004-IO-16s.book Seite 9 Montag, 8. August 2016 2:00 14

EN
Safety instructions CV1004
10
•This appliance can be used by children aged 8 years orover, aswell as
by persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised, or
have been taught how to use the appliance safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not carried out by unsupervised
children.
•Children must not play with the device.
•Children must be supervised to ensure that they do not play with the
device.
•Always keep and use the device out of the reach of children under
8 years of age.
•Never expose the device to moisture.
•Do not use accessories that have not been recommended by the
manufacturer. This can lead to injury and material damage.
•Only use accessories recommended by the manufacturer.
•Do not lean any objects against the vacuum cleaner.
2.2 Operating the device safely
!CAUTION!
•Never pull the plug out of the socket by the connection cable.
•Remove the power plug from the socket if you plan to carry out
maintenance work.
•Never use the device in rooms where flammable materials are stored
or flammable gases have built up. Sparks from the motor could ignite
them.
•Keep the nozzles away from eyes, ears and face while operating.
Ensure that hair, loose clothing and fingers do not get in the outlets or
moving parts.
•Keep children and animals at a safe distance when operating the
device.
•Do not use the device with wet hands.
CV1004-IO-16s.book Seite 10 Montag, 8. August 2016 2:00 14

EN
CV1004 Scope of delivery
11
ANOTICE!
•Do not vacuum any
– wet objects
– solvents or caustic liquids
– hot, glowing, hard or sharp objects
–poisonousmaterials
These could damage the device or the filter.
•Do not vacuum any large objects, suchas waste paper or cloths. These
could block the hose.
•If the motor filter is dirty, rinse it in warm water or insert a new filter.
Only insert filters that are completely dry.
•Only use the device indoors, never outside.
•Make sure that none of the vents are blocked. If necessary, clean the
vents before you use the device.
•Do not use the device without a filter or a dust bag.
•Do not tread on the hose and do not pull too tightly on it.
3Scopeofdelivery

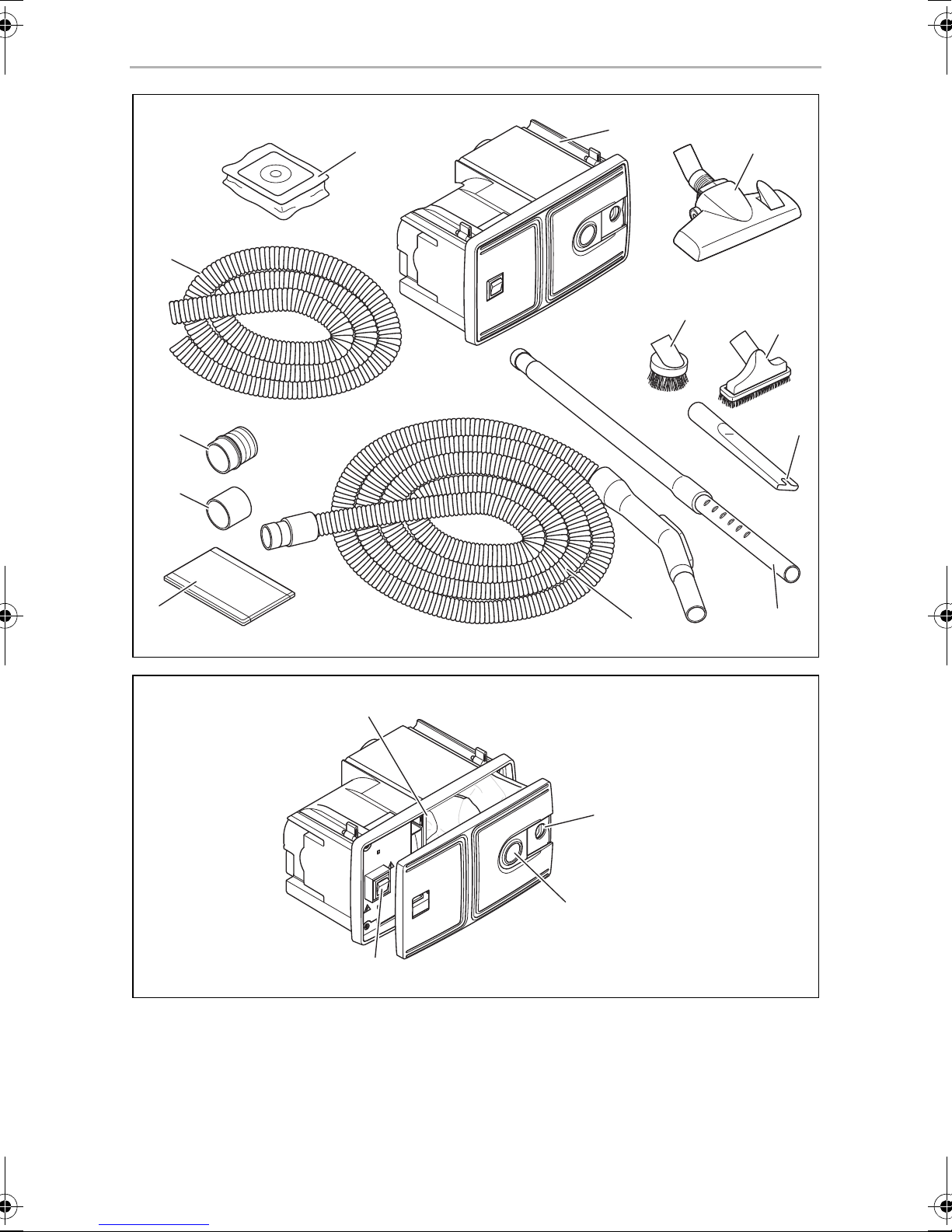

No. in
fig. 1, page 3 Quantity Designation
1 1 Central vacuum cleaner
2 1 Floor nozzle
3 1 Attachment brush
41Dustnozzle
5 1 Crevice nozzle
6 1 Telescopic tube
7 1 Suction hose
8 1 Hose socket
9 2 Screw connector (black)
10 2 Mounting connector (white)
11 1 Connection hose (2 m)
12 2 Dust bag
CV1004-IO-16s.book Seite 11 Montag, 8. August 2016 2:00 14

EN
Accessories CV1004
12
4Accessories
Available as accessories (not included in the scope of delivery):
5 Intended use
The CV1004 central vacuum cleaner (ref. no. 9103501126) is a vacuum cleaner for
installation in a suitable cavity wall or in existing fixtures in caravans, motorhomes or
boats. This device is not intended for commercial use. It may not be used outdoors.
6 Technical description
The central vacuum cleaner's suction hose can be connected directly to the device
or to an external hose socket.
The suction hose must be turned on and off using the switch when using it while
connected to the central vacuum cleaner. The device has automatic suction which is
activated when the suction hose is inserted into the hose socket.
The vacuum cleaner system can be extended using the VacPort (not included in the
scope of delivery). This automatic dust pan can be fitted, for example, in the entrance
or kitchen area in order to suck away dirt which has been swept up there using the
permanently installed nozzle.
Designation Ref. no.
New dust bag (pack of 5 incl a motor filter) 9103501128
VacPort automatic dust pan 9103501127
CV1004-IO-16s.book Seite 12 Montag, 8. August 2016 2:00 14

EN
CV1004 Installing the vacuum cleaner
13
6.1 Control elements
7 Installing the vacuum cleaner
!
A
➤Ensure that the dust bag and the motor filter are in place.
➤Check the vacuum cleaner works prior to installation.
No. in
fig. 2, page 3 Description Explanation
1 I/O switch Switches the vacuum cleaner on or off
whenever the suction hose is connected to
the central vacuum cleaner.
2 Sliding cover Closes up the hose connection on the
device. Closing increases the suction when
working from an external hose socket.
3 Slider Opens the front of the device (e.g. for
changing the dust bag)
4 Motor filter Protects the motor from contamination
WARNING! Danger of electrocution and serious injury.
Beware of electrical cables in the wall when drilling and sawing.
NOTICE!
•Mount the vacuum cleaner in a dry place.
•Do not mount the vacuum cleaner in an area which is subject to high
temperatures.
•Do not bend the connection cable round sharp edges or corners.
Keep the connection cable away from heated surfaces.
•To install the vacuum cleaner, the wall thickness must be a minimum
of 10 mm and a maximum of 25 mm.
•Ensure there is a socket nearby which can be used to supply the
vacuum cleaner with power. Do not use extension cables.
•If the vacuum cleaner is being installed in small spaces with poor
ventilation (e.g. cabinet), then an air outlet and an air outlet grille with
across-section of 70 mmmust be installed in order totransport warm
air generated by the device outside.
CV1004-IO-16s.book Seite 13 Montag, 8. August 2016 2:00 14

EN
Using the vacuum cleaner CV1004
14
A

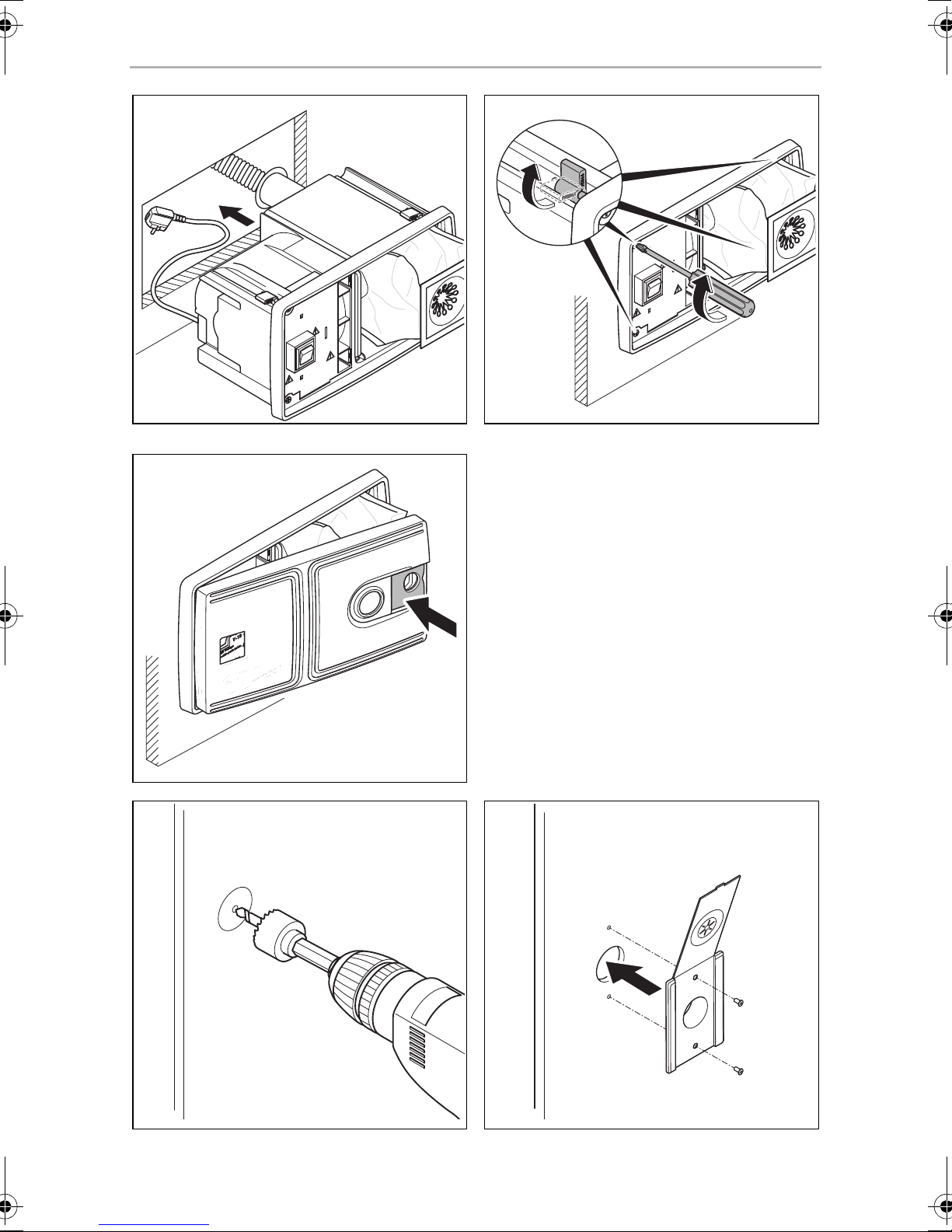

➤Mount the vacuum cleaner (fig. 4, page 4 to fig. 0, page 5).
I
➤Mount the hose socket and route the connection hose (fig. a, page 5, and
fig. b, page 5).
Connecting electrical power to the vacuum cleaner
➤Connect the orange-coloured 24 Vgcables on the rear of the device to the
contacts on the hose socket (fig. c, page 6).
!
➤Connect the 230 V connection cable to a suitable socket (fig. d, page 6).
8 Using the vacuum cleaner
A
NOTICE!
The bolts on the housing must not be screwed out completely because
they are fitted with a spring mechanism.
NOTE
The mounting connectors (fig. 31, page 4) need to be glued on the
device-side using a standard adhesive. The screw connectors (fig. 32,
page 4) are screwed into the connection hose and inserted into the
mounting connectors.
WARNING!
Danger of electrocution and serious injury.
Only use the 230 V connection cable supplied.
NOTICE!
•Do not use the vacuum cleaner without a dust bag or motor filter.
•Only use spare parts and accessories recommended by the
manufacturer.
CV1004-IO-16s.book Seite 14 Montag, 8. August 2016 2:00 14

EN
CV1004 Using the vacuum cleaner
15
8.1 Vacuuming using the central vacuum cleaner
➤Open the sliding cover (fig. 22, page 3) by sliding it to the right.
➤Insert the hose into the hose connection on the device.
➤Set the switch to position “I” (fig. 21, page 3) to switch on the device.
✓The vacuum cleaner switches on.
➤Set the switch to position “O” (fig. 21, page 3) to switch off the device.
➤Disconnect the hose from the hose connection on the device.
➤Close the sliding cover (fig. 22, page 3) by sliding it to the left.
8.2 Vacuuming using the hose socket
I
➤To switch on, connect the hose to the external hose socket.
✓The vacuum cleaner switches on automatically.
➤To switch off, disconnect the hose from the external hose socket.
✓The vacuum cleaner switches off automatically.
NOTE
Use the sliding cover to close up the hose connection on the front of the
device if you are vacuuming from the external hose socket. This
increases the level of suction.
CV1004-IO-16s.book Seite 15 Montag, 8. August 2016 2:00 14

EN
Using the vacuum cleaner CV1004
16
8.3 Changing the dust bag
A
I

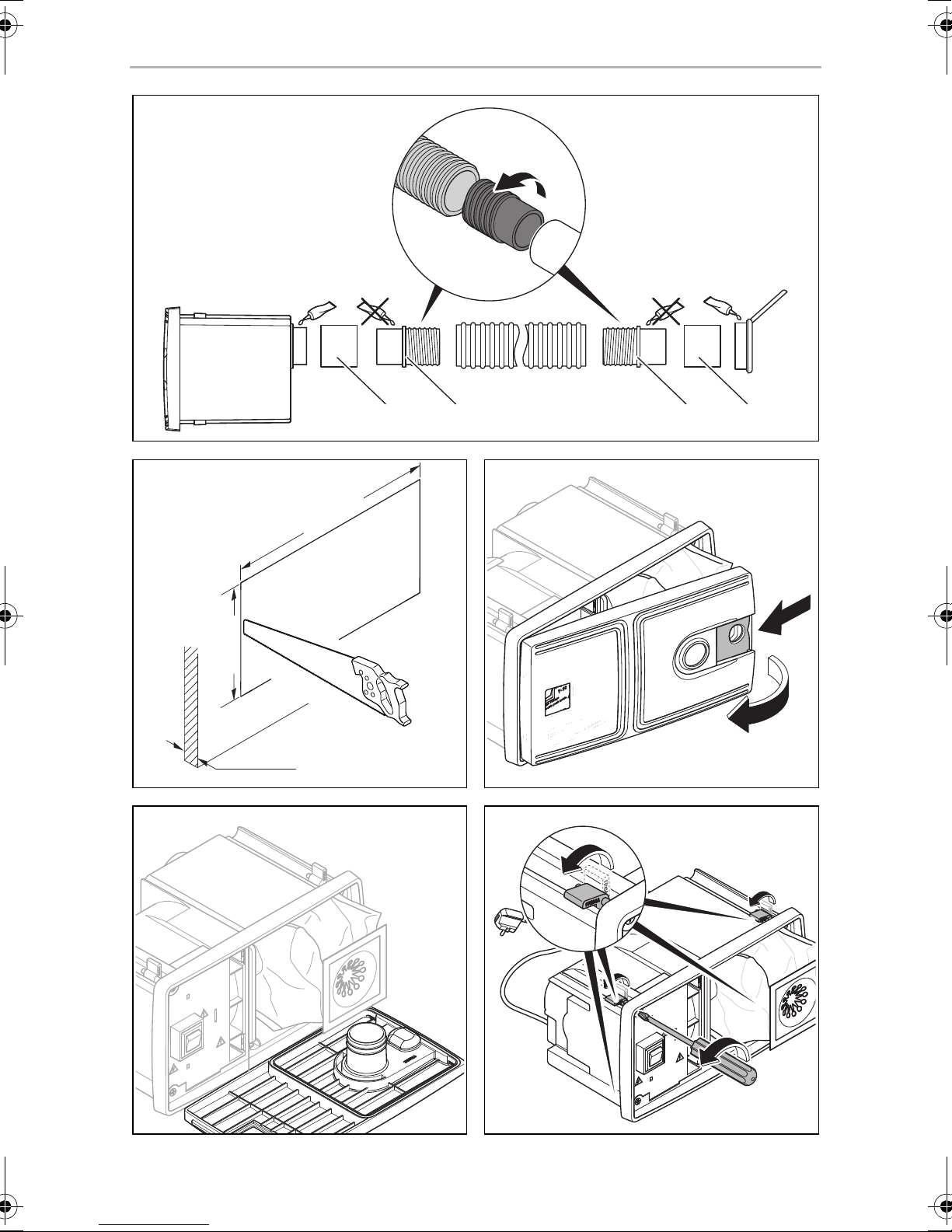

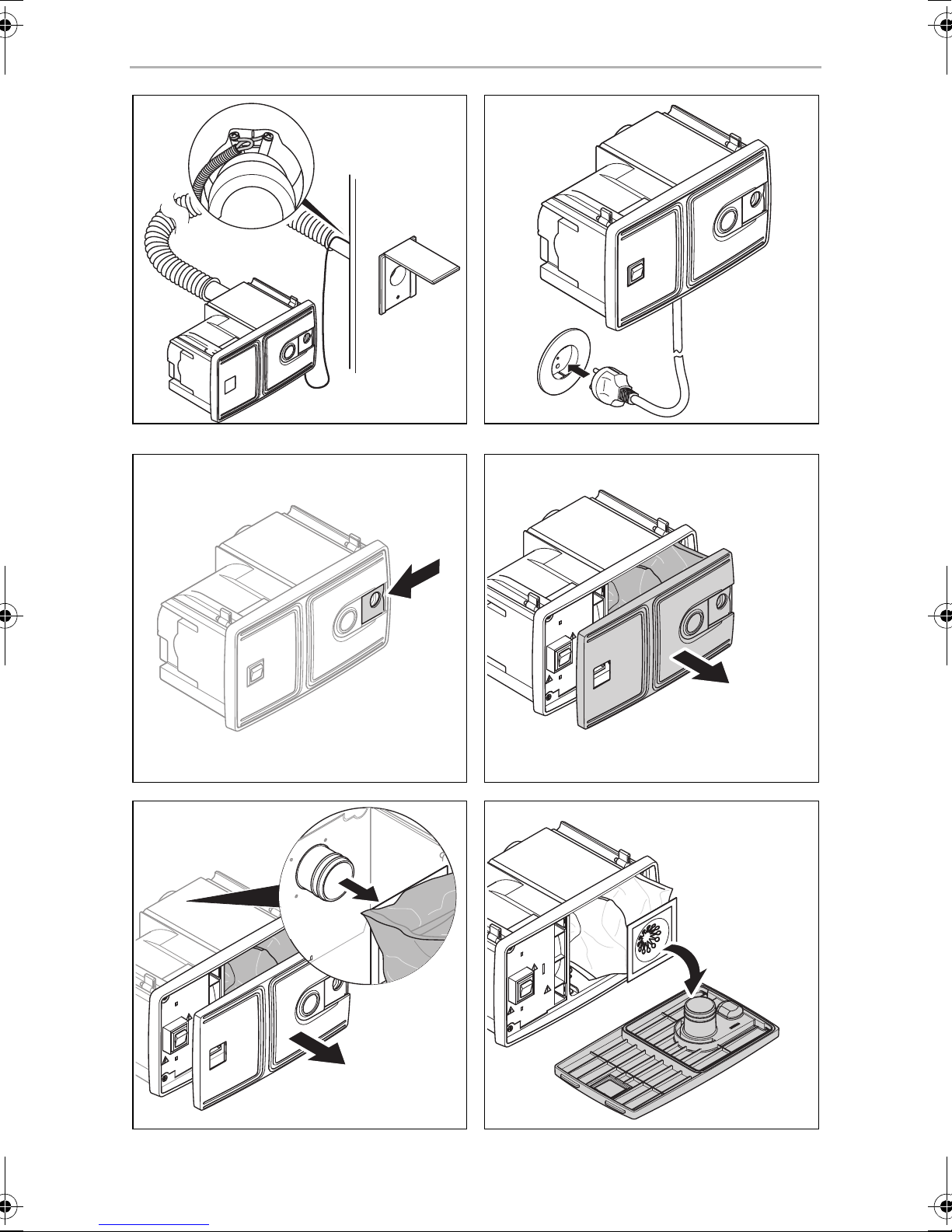

➤Change the dust bag (fig. e, page 6, to fig. l, page 7).
8.4 Replacing and cleaning the motor filter
I
➤Remove the motor filter and insert a new one or reinsert the cleaned motor filter
(fig. m, page 7 and fig. n, page 7).
NOTICE!
It is important for vacuum cleaner suction that the dust bag is fitted
correctly. Please follow the instructions carefully, see fig. e, page 6 to
fig. l, page 7.
NOTE
•The dust bag has two openings. One of the two ends has two
arrows. This end must be attached on the device with the arrows
pointing upwards (fig. j, page 7). Make sure the dust bag is fitted
in the correct position.
•Firstly remove the opening from the connecting nozzle in the device
and then remove the other opening from the connecting nozzle on
the front of the device. Hold the openings upwards to prevent any
dust falling out.
•Replace or clean the motor filter after you have changed the dust bag
five times.
NOTE
Replace or clean the motor filter after you have changed the dust bag
five times or if it is heavily soiled.
You can wash the motor filter by hand in mild soapy water. Do not wash
it in a washing machine or with hard objects. Leave it to dry before fitting
it in the vacuum cleaner in the direction of the arrows.
CV1004-IO-16s.book Seite 16 Montag, 8. August 2016 2:00 14

EN
CV1004 Maintaining and cleaning the vacuum cleaner
17
9 Maintaining and cleaning the vacuum
cleaner
A
➤Occasionally clean the product with a damp cloth.
10 Troubleshooting
I
If the motor stops, switch off the vacuum cleaner and proceed as follows:
➤Check whether the suction hose is blocked.
Hold the suction hose up and drop a small coin in from above. If the coin does
not fall through the hose, it is blocked. Push the dirt ball through the hose using
a long rod.
➤Check the dust bag.
If a large amount of dirt which is not household dust (plasterboard dust,
fine sawdust etc.) is vacuumed up, the pores in the dust bag can get blocked.
Insert a new dust bag.
NOTICE!
Do not use sharp or hard objects or cleaning agents for cleaning as these
may damage the product.
NOTE
The vacuum cleaner is equipped with a thermal overload protection
which prevents the motor from overheating.
If the motor stops, switch the device off by setting the switch to position
“O” or disconnecting the suction hose from the external hose socket.
Let the device cool down for around 1 hour. If this fault still occurs
following the troubleshooting measures described below, then please
contact the manufacturer or your dealer.
CV1004-IO-16s.book Seite 17 Montag, 8. August 2016 2:00 14

EN
Warranty CV1004
18
➤Clean the suction hose if it is heavily soiled.
– Hold the ends of the suction hose up high.
– Pour liquid detergent into both ends.
– Fill up with water while holding both ends up.
– Shake the suction hose to and fro to loosen the dirt.
– Pull the suction hose apart as far as possible.
– Rinse out the dirt.
– Repeat this procedure until the suction hose is clean.
– Hang the suction hose up from the middle and leave it to dry before using it
again.
➤Check whether the floor nozzle is blocked.
Clean the floor nozzle.
➤Check the motor filter.
Clean or replace the motor filter.
11 Warranty
The statutory warranty period applies. If the product is defective, please contact the
manufacturer's branch in your country (see the back of the instruction manual for the
addresses) or your retailer.
For repair and guarantee processing, please include the following documents when
you send in the device:
•A copy of the receipt with purchasing date
•A reason for the claim or description of the fault
12 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
CV1004-IO-16s.book Seite 18 Montag, 8. August 2016 2:00 14

EN
CV1004 Technical data
19
13 Technical data
CV1004
Ref. no.: 9103501126
Input voltage: 220 - 240 Vw
Power consumption: 950 W
Current: 4.5 A
Suction power: 2500 mm water column
Operating temperature: –15 °C to +40 °C
Dimensions W x H x D: 298 x 171 x 175 mm
Weight: 2.7 kg
Certificate:
CV1004-IO-16s.book Seite 19 Montag, 8. August 2016 2:00 14

DE
CV1004
20
Bitte lesen Sie diese Anleitung vor Einbau und Inbetriebnahme sorgfältig
durch und bewahren Sie sie auf. Geben Sie sie im Falle einer Weitergabe
des Produktes an den Nutzer weiter.
Inhaltsverzeichnis
1 Erklärung der Symbole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
2 Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
3 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4 Zubehör. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7 Staubsauger montieren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
8 Staubsauger benutzen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9 Staubsauger pflegen und reinigen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
10 Störungsbeseitigung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
11 Gewährleistung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
12 Entsorgung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
13 Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
CV1004-IO-16s.book Seite 20 Montag, 8. August 2016 2:00 14
