Installation Guide
P903074 3µm Chassis Mount Diesel Fuel Filter Kit
Suitable for flow rates up to 379lph
Micron Rating: 3um @ 99% efficient
Operating Temperature: -40oC to 121oC
Operating Pressure: 80 psi / 550 kPa / 5.5 bar
Kit contents:
1x P562261 1/2”-18 NPT Ports
2x P553207 spin-on filter (one spare)
1x P569758 Drain Bowl (optional use)
2x ENBRSTBBTM-0608 Straight Fitting
Installation
We recommend that additional filtration should be considered as the primary filter and installed before the
factory filter, which should be retained as originally fitted. It can also be installed as a final filter. Identify a
suitable location to mount the filter assembly that:
• The filter head should be securely fixed
vertically to a chassis rail, bulkhead or mounting
bracket using two suitable 1/4”-20 UNC machine
screws or bolts, ensuring they insert a maximum
of 10mm into the threaded mounting holes.
• Install the threaded fuel line fittings into the
head, noting the direction of flow marked on
the head assembly. Use a fuel resistant thread
sealant to ensure a leak free seal. Tighten firmly
with a suitable tool. Do not over tighten!
• Run the fuel supply line (from the fuel tank) and
fit onto the inlet side of the filter head fuel fitting.
Secure with a suitable hose clamp.
• Run the fuel feed line (to the engine) and
connect to the outlet side of the filter head
assembly. Secure with a suitable hose clamp.
• Check there are no tight bends or kinks in the
fuel lines, and route them away from heat
sources and sharp surfaces. Secure fuel lines to
prevent excessive movement.
• Allows access to replace the filter
• Allows access to the twist and drain valve, to
drain separated water
• Provides visibility of the clear water
collection bowl
• Is located away from heat sources

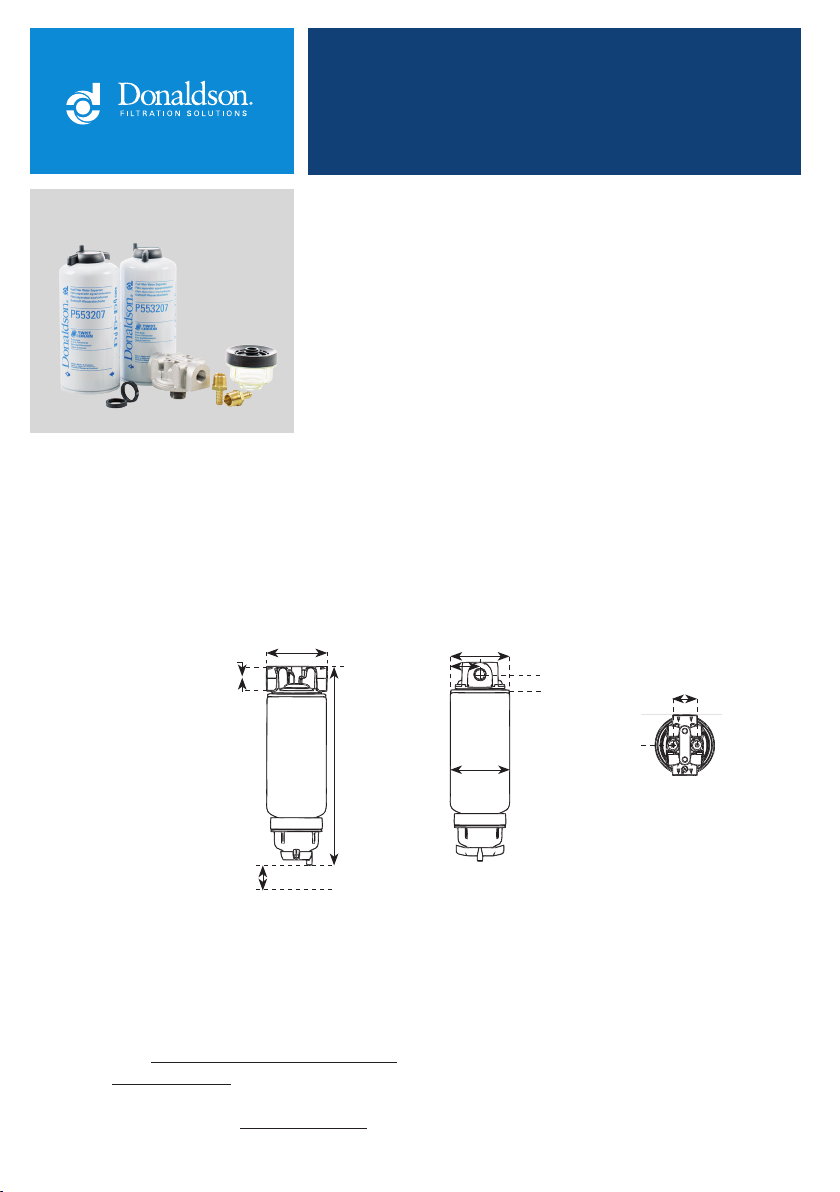

Necessary
Mounting
Dimensions:
95mm
313mm
41mm 39mm
23mm
93mm
78mm
38mm
13mm
25mm min clearance
to remove filter

Brochure Part Number: P506194 04/21
Installation Guide
This manual is the property of the owner. Donaldson Company reserves the right to change design and specifications without prior notice. Do not make any
system modifications or adjustments that would alter the original design. Modifications may result in denial of warranty coverage. Consult your Donaldson
dealer if you have questions regarding the assembly, operation, maintenance or warranty. Illustrations are for reference only as actual product may vary.
Servicing Guide
shop.donaldson.com
1. Lubricate the threads.
Lubricate threads of filter head
with clean oil or fuel
Failure to do this could result
in thread galling.
2. Apply thin film of clean
motor oil or fuel to gasket.
Lubricate seal(s) with clean oil.
Do not use grease or rubber grease.
3. Align threads. Spin filter
until gasket contacts.
Spin the new filter on until
the top of the gasket first contacts the
sealing surface.
4. Hand tighten the filter.
Tighten per the guidance of
the icons which appear on the
filter element. Do not over-tighten.
Ensure the drain valve is firm hand
tight.
5. Install water collection
bowl (if applicable)
Unscrew the Twist&Drain valve
from the base of the filter. Screw the
water collection bowl into the base of
the filter and tension firm hand tight,
then refit the Twist&Drain valve into
the base of the bowl and tension firm
hand tight.
6. Prime fuel system
As per the manufactures
recommendation
7. Start engine and check
for leaks
Starting may take longer than
normal for the first start.
8. Stop engine
Stop engine and recheck for
leaks
9. Drain water daily
1/4 twist of the Twist&Drain
valve. Once any water has
been drained, re-tighten the valve until
firm hand tight. A tube may be pushed
over the drain spigot to aid collection of
drained fluid.
