Doosan P185WJD-FX-T4i User manual

COMPRESSOR MODEL
P185WJD-T4i (D75)
P185WJD-FX-T4i (F05)
Doosan Infracore Portable Power
1293 Glenway Drive
Statesville, N.C. 28625
DoosanPortablePower.com
P/N: 46490694 (9-2013) Rev E
This manual contains important safety information.
Do not destroy this manual.
This manual must be available to the personnel who operate and maintain this compressor.
OPERATION and MAINTENANCE
MANUAL

2

1 - 1
TABLE OF CONTENTS
Manual-Name
TITLE PAGE
FOREWORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Foreword. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
DRAWBAR NOTICE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
NOISE EMISSION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
Noise Emission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
This section pertains only to machines distributed within the United States. . . . . . . . . . . . . . . . . . . 2-22
Noise Emission Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23
GENERAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27
General Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28
Unit Model: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28
FLUID CAPACITIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28
RUNNING GEAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28
UNITS MEASUREMENTS WEIGHTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28
EXPENDABLE SERVICE PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29
OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31
BEFORE TOWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32
TOWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . 4-33
CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-33
LUBRICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-39
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-40
Portable Compressor Fluid Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-40

1 - 2
TABLE OF CONTENTS
Manual-Name
TITLE PAGE
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-41
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-42
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-42
Scheduled Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-42
Compressor Oil Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-42
Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-43
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-43
Fuel Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-43
Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-43
Fasteners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-44
Radiator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-44
Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-44
Compressor Oil Cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-46
Compressor Oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-46
Receiver-Separator Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-47
Scavenge Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-48
Exterior Finish Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-48
MAINTENANCE SCHEDULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-50
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52
Action Plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52
Trouble Shooting Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-53

3
Foreword

Operating & Maintenance Manual Foreword
4
Foreword
The contents of this manual are considered to be proprietary and confidential to Doosan
Infracore Portable Power (herein referred to as “Portable Power”), and should not be
reproduced without the prior written permission of Portable Power.
Nothing contained in this document is intended to extend any promise, warranty or
representation, expressed or implied, regarding the Portable Power products described
herein. Any such warranties or other terms and conditions of sale of products shall be in
accordance with the standard terms and conditions of sale for such products, which are
available upon request.
This manual contains instructions and technical data to cover all routine operation and
scheduled maintenance tasks by operation and maintenance staff. Major overhauls are
outside the scope of this manual and should be referred to an authorized Portable Power
Service department.
All components, accessories, pipes and connectors added to the compressed air system
should be:
• of good quality, procured from a reputable manufacturer and, wherever possible, be
of a type approved by Portable Power.
• clearlyrated for apressure at leastequal tothe machinemaximum allowableworking
pressure.
• compatible with the compressor lubricant/coolant.
• accompanied with instructions for safe installation, operation and maintenance.
Details of approved equipment are available from the Portable Power Service departments.
The use of repair parts other than those included within the approved parts list may create
hazardous conditions over which Portable Power has no control. Therefore, Portable Power
cannot be held responsible for equipment in which non-approved repair parts are installed.
Portable Power reserves the right to make changes and improvements to products without
notice and without incurring any obligation to make such changes or add such improvements
to products sold previously.
The intended uses of this machine are outlined below and examplesof unapproved usage are
also given. However, Portable Power cannot anticipate every application or work situation that
may arise. If in doubt, consult supervision.
This machine has been designed and supplied for above ground operation to be used for
compression of normal ambient air containing no additional gases, vapors or particles within
the ambient temperature range specified in the general data section of this manual.

Foreword Operating & Maintenance Manual
5
This machine should not be used:
A. For direct or indirect human consumption of the compressed air.
B. Outside the ambient temperature range specified in the general data section of
this manual.
C. When an actual or foreseeable risk of hazardous levels of flammable gases or
vapors exists.
D. With other than Portable Power approved components.
E. With guards, or controls or switches missing or disabled.
F. For storage or transportation of materials inside or on the enclosure.
This company accepts no responsibility for errors in translation of this manual from the original
English version.
You as the customer are expected to provide certain service and maintenance items. Your
Portable Power dealer will provide all other more detailed service and maintenance items on
a special preventive maintenance schedule for each machine. It is very important that the
minimumservice and maintenancerequirements explained inthis manual beperformed atthe
required intervals. Exceeding these intervals may reduce the reliability of the machine.
The purpose of this manual is to train the operator with functions, operation, and basic service
and maintenance requirements of the compressor. During the preparation of this manual,
every effort was made to ensure the adequacy and accuracy of the contents.
Your Portable Power dealer will assist with setup and initial startup of the compressor. He will
also provide brief operating and service instructions and will insure that a copy of this manual
is included with the machine. Before starting the compressor, this manual and instructions
should be carefully read to obtain a thorough knowledge of the duties to be performed. Please
take pride in the compressor, keep it clean, and in good mechanical condition.

Operating & Maintenance Manual Foreword
6

7
DRAWBAR NOTICE

Operating & Maintenance Manual DRAWBAR NOTICE
8
DRAWBAR NOTICE (Important)
This machine may have been shipped from
the factory with the drawbar positioned
upright.
To Convert From Shipping Position to
Towing Position
The following tools are required:
Ratchet
13mm socket to fit ratchet
Torque wrench set to 68 foot pounds (9.4 kg-
meters)
16mm socket to fit torque wrench
5 inch extension for torque wrench
Hardware Included:
(4) 12mm bolts with pre-applied thread lock
(2) 8mm Taptite Bolts
(2) Washers
(2) Safety Chains
1. Remove hardware box from compressor
toolbox.
2. Open box and remove the bag containing
hardware, safety chains and assembly
instructions.
3.Using the jack, raise the front of the unit so
that the legs are approximately 1” above the
ground.
4.Remove the temporary retaining bolts from
both sides of the frame at the drawbar

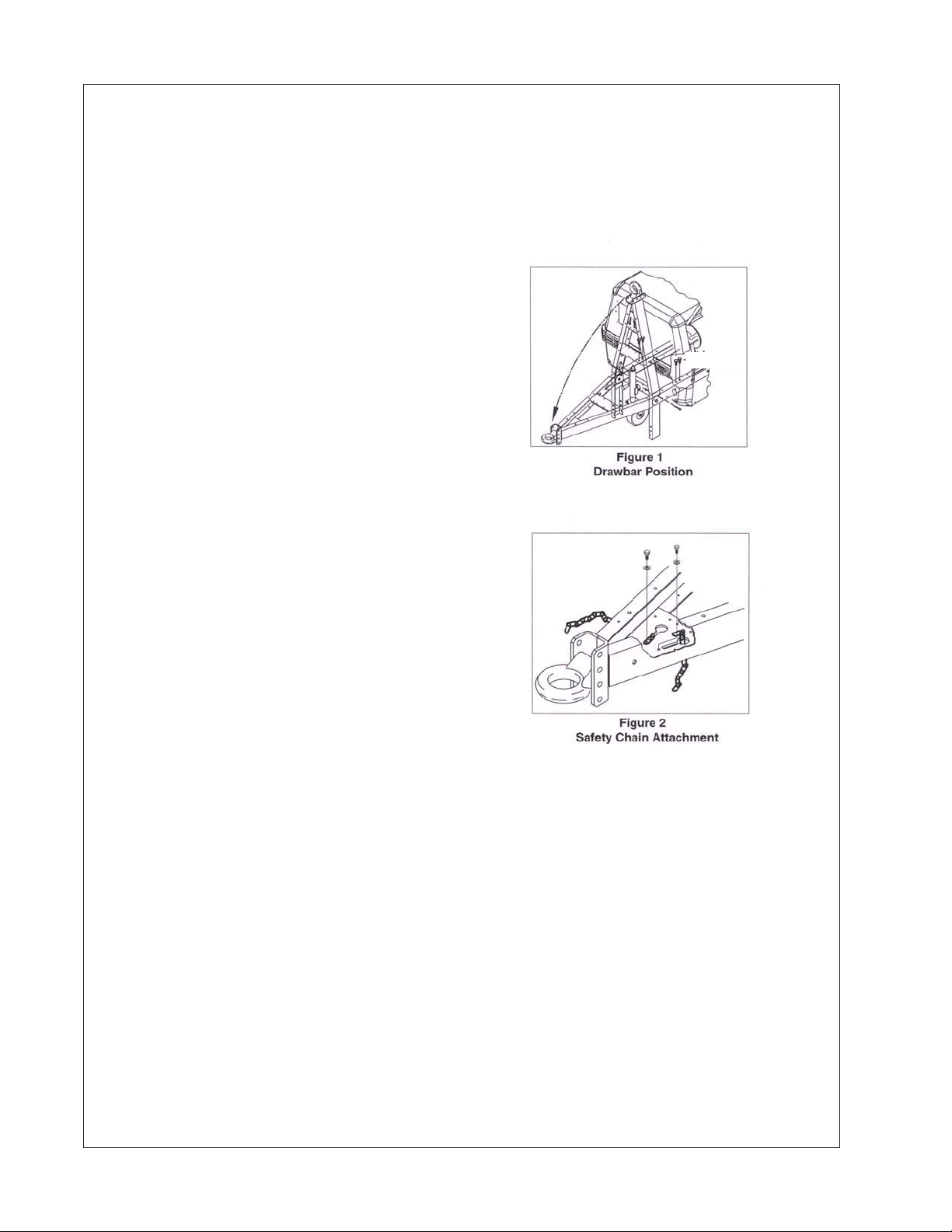

connection (See Figure 1).
5.Carefully lower drawbar to the Level
Position.
6.Install the four bolts (with pre-applied
thread lock) to the four points inside the
enclosure and torque to 68 ft. lbs.(9.4kg-m)
(See Figure 2).
7.Install safety chains by sliding the second
link of one chain into the slot in drawbar
plate. Fasten chain to plate using taptite and
washer. Repeat for the other chain (See
Sketch).
8. Temporarily support drawbar and move
jack from front of compressor to side of
drawbar.

DRAWBAR NOTICE Operating & Maintenance Manual
9

Operating & Maintenance Manual DRAWBAR NOTICE
10

11
Safety

Operating & Maintenance Manual Safety
12
Safety Precautions
General
Ensure that the operator reads and understands the decals and consults the manuals before
maintenance or operation.
Ensure that the Operation and Maintenance manual, and manual holder if equipped, are not
removed permanently from the machine.
Ensure that maintenance personnel are adequately trained, competent and have read the
manuals. Make sure that all protective covers are in place and that the canopy/doors are
closed during operation.
The specification of this machine is such that the machine is not suitable for use in flammable
gas risk areas. If such an application is required then all local regulations, codes of practice
and site rules must be observed. To ensure that machine can operate in a safe and reliable
manner, additional equipment such as gas detection, exhaust spark arrestors, and intake
(shut-off) valves may be required, dependent on local regulations or the degree of risk
involved.
Air discharged from this machine may contain carbon monoxide or other contaminants which
will cause serious injury or death. Do not breathe this air.
Compressed air can be dangerous if incorrectly handled. Before doing any work on the unit,
ensure that all pressure is vented from the system and that the machine cannot be started
accidentally.
Ensure that the machine is operating at the rated pressure and that the rated pressure is
known to all relevant personnel.
All air pressure equipment installed in or connected to the machine must have safe working
pressure ratings of at least the machine safety valve rating.
If more than one compressor is connected to one common downstream plant, effective check
valves and isolation valves must be fitted and controlled by work procedures, so that one
machine cannot accidentally be pressurized or over pressurized by another.
Compressed air must not be used for a feed to any form of breathing apparatus or mask.
The discharged air contains a very small percentage of compressor lubricating oil and care
should be taken to ensure that downstream equipment is compatible.
If the discharged air is to be ultimately released into a confined space, adequate ventilation
must be provided.
When using compressed air, always use appropriate personal protective equipment.
All pressure containing parts, especially flexible hoses and their couplings, must be regularly
inspected, be free from defects and be replaced according to the Manual instructions.
Avoid bodily contact with compressed air.
The safety valve located in the separator tank must be checked periodically for correct
operation.
Never operate unit without first observing all safety warnings and carefully reading the
operation and maintenance manual shipped from the factory with this machine.

Safety Operating & Maintenance Manual
13
Never operate the engine of this machine inside a building withoutadequate ventilation. Avoid
breathing exhaust fumes when working on or near the machine. Do not alter or modify this
machine.
A battery contains sulfuric acid and can give off gases which are corrosive and potentially
explosive. Avoid contact with skin, eyes and clothing. In case of contact, flush area
immediately with water.
Exercise extreme caution when using booster battery. To jump battery, connect ends of one
booster cable to the positive (+) terminal of each battery. Connect one end of other cable to
the negative (-) terminal of the booster battery and other end to a ground connection away
from dead battery (to avoid a spark occurring near any explosive gases that may be present).
After starting unit, always disconnect cables in reverse order.
High Pressure Air can cause serious injury or death. Relieve pressure before removing filler
plugs/caps, fittings or covers.
Air pressure can remain trapped in air supply line which can result in serious injury or death.
Always carefully vent air supply line at tool or vent valve before performing any service.
This machine produces loud noise with doors open or service valve vented. Extended
exposure to loud noise can cause hearing loss. Always wear hearing protection when doors
are open or service valve is vented.
Never inspect or service unit without first disconnecting battery cable(s) to prevent accidental
starting.
Do not remove the pressure cap from a HOT radiator. Allow radiator to cool down before
removing pressure cap.
Do not use petroleum products (solvents or fuels) under high pressure as this can penetrate
the skin and result in serious illness.
Wear eye protection while cleaning unit with compressed air to prevent debris from injuring
eye(s).
Disconnected air hoses whip and can cause serious injury or death. Always attach a safety
flow restrictor to each hose at the source of supply or branch line in accordance with OSHA
Regulation 29CFR Section 1926.302(b).
Rotating fan blade can cause serious injury. Do not operate without guard in place.
Use care to avoid contacting hot surfaces (engine exhaust manifold and piping, air receiver
and air discharge piping, etc.).
Ether is an extremely volatile, highly flammable gas. USE SPARINGLY! DO NOT use ETHER
if unit has GLOW Plug starting aid. Engine damage will result.
Never allow the unit to sit stopped with the pressure in receiver-separator system. As a
precaution, open manual blowdown valve.
Never operate unit with guards, covers or screens removed. Keep hands, hair, clothing, tools,
blow gun tips, etc. well away from moving parts.
Make sure wheels, tires and tow bar connectors are in safe operating condition and tow bar is
properly connected before towing.

Operating & Maintenance Manual Safety
14

Safety Operating & Maintenance Manual
15
Steps for determining correct load limit -
1. Locate the statement “The weight of cargo should never exceed xxx kg or xxx
lbs” on your vehicle’s placard.
2. This figure equals the available amount of cargo and luggage load capacity.
1. Determine the combined weight of luggage and cargo being loaded on the
vehicle. That weight may not safely exceed the available cargo.
Whenever the machine is stopped, air will flow back into the compressor system from devices
orsystemsdownstreamof themachineunlessthe servicevalveisclosed. Installacheckvalve
at the machine service valve to prevent reverse flow in the event of an unexpected shutdown
when the service valve is open. Stop machine to add fuel.
Hazardous Substance Precaution
The following substances are used in the manufacture of this machine and may be hazardous
to health if used incorrectly.Avoid ingestion, skin contact and breathing fumes for the following
substances:Antifreeze, Compressor Oil, Engine Lubricating Oil, Preservative Grease, Rust
Preventative, Diesel Fuel and Battery Electrolyte.

Operating & Maintenance Manual Safety
16

Safety Operating & Maintenance Manual
17

Operating & Maintenance Manual Safety
18
Look for these signs on machines shipped to markets in North America, which point out
potential hazards to the safety of you and others. Read and understand thoroughly. Heed
warnings and follow instructions. If you do not understand, inform your supervisor.
DANGER
!
DANGER (Red Background) indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING
!
WARNING (Orange Background) indicates a potentially hazardous
situation which, if not avoided, could result in death or serious injury.
CAUTION
!
CAUTION (Yellow Background) indicates a potentially hazardous
situation which, if not avoided, may result in minor or moderate injury.
NOTICE
NOTICE (Blue Background) indicates important set-up, operating or
maintenance information.
