Dorel PACIFIC CYCLE KT1246 User manual

KT1246
12V Conve ble
Ride-on Car
OWNER’S MANUAL
The owner’s manual contains assembly,
•The vehicle must be assembled by an
adult who has read and understands
•Keep the packaging away from children
and dispose of all packaging before use.
•
hard surfaces.
•Always use with adult supervision.
•
Age: 3+
Weight: Maximum, 90lbs (40.8 kgs)
Max Speed: 1.97-3.7 (MPH 3-6 KMH)
12 volt

2
1Safety
WARNING!
• Using the vehicle near streets, motor vehicles, drop-os such as:
steps, water (swimming pools) or other bodies of water, sloped
surfaces, hills, wet areas, ammable vapors, in alleys, at night or
in the dark could result in an unexpected accident. Always use
the vehicle in a safe, secure environment with connuous adult
supervision.
• Using the vehicle in unsafe condions such as snow, rain, loose
dirt, mud, sand or ne gravel may result in unexpected acon
such as p over and skidding, and damage to the electrical
system and baery.
• Using the vehicle in an unsafe manner. Examples include but are
not limited to:
a. Pulling the vehicle with another vehicle or similar
device
b. Allowing more than two riders
c. Pushing the user from the back
d. Traveling at an unsafe speed
Always use common sense and safe pracces when using the
vehicle.
This product contains or emits chemicals known to the state
of California to cause cancer or birth defects or other
reproducve harm.
The owner’s manual contains assembly, use and maintenance
instrucons. The vehicle must be assembled by an adult who has
read and understands the instrucons in this manual. Keep the
packaging away from children and dispose of all packaging before
use. Note: For best performance use on at, hard surfaces.
The following safety hazards may result in serious injury or death
to the user of the vehicle:
• This product contains small parts that are for adult assembly
only. Keep small children away when assembling. Remove and
dispose of all protecve material and poly bags before
assembly. Be sure to remove all packaging materials and parts
from underneath the vehicle body.
• Baery posts, terminals and related accessories contain lead
and lead compounds (acids) chemicals known to the state of
California to cause cancer, reproducve harm, and are toxic and
corrosive. Never open the baery.
• Body parts such as hands, legs, hair and clothing can get caught
in moving parts. Never place a body part near a moving part or
wear loose clothing while using the vehicle. Always wear shoes
when using the vehicle.

3
BATTERY WARNINGS
• Contact or exposure to baery leakage (lead acid) may
cause serious injury. If contact or exposure occurs
immediately call your physician. If the chemical is on the
skin or in the eyes, ush with cool water for 15 minutes.
If the chemical was swallowed, immediately give the
person water or milk. Do not give water or milk if the
paent is voming or has a decreased level of alertness.
Do not induce voming.
• Baery posts, terminals and related accessories contain
lead and lead compounds (acid), chemicals known to the
State of California to cause cancer, reproducve harm
and are toxic and corrosive. Never open the baery.
• Tampering or modifying the electric circuit system may
cause a shock, re or explosion and permanently
damage the system. Exposed wiring, circuitry in the
charger may cause electric shock. Always keep the
charger housing closed.
The following safety hazards may result in serious injury or death
to the user of the vehicle:
• Use of a baery or charger other than the supplied
Pacic Cycle 12V rechargeable baery and charger may
cause a re or explosion. Only use the supplied Pacic
Cycle 12V rechargeable baery and charger with the
vehicle.
• Using the Pacic Cycle 12V rechargeable baery and
charger for any other product may result in overheang,
re or explosion. Never use the 12V rechargeable
baery and charger with another product.
• Explosive gases are created during charging. Charge the
baery in a well venlated area. Do not charge the
baery near heat or ammable materials.
• Contact between the posive and negave terminals
may result in re or explosion. Avoid direct contact
between the terminals. Picking up the baery by the
wires or charger can cause damage to the baery and
may result in a re. Always pick up the baery by it’s
case or handles.
• Liquids on the baery may cause re or electric shock.
Always keep all liquids away from the baery and keep
the baery dry.
WARNING!

4
Age Range 3+
Weight 90lbs (40.8 kgs)
Speed 1.9-3.7mph / 3-6kmh
Baery 12 Volt
Charger Input AC 120V
Output DC 12V 1000mA
Charger Time 12 hours
USER REQUIREMENTS AND WARNINGS
Before using the vehicle the child should understand the vehicle
controls and safety issues. They must also demonstrate the
capability to handle the vehicle and operate its controls. It is the
responsibility of the adult to educate the child and supervise the
vehicles use. Read the following safety warnings to any child using
the vehicle before riding.
WARNING!
• Never leave child unaended. Always supervise the child.
• Always sit in the seat when using the vehicle.
• Keep your hands, hair and clothes away from moving parts.
• Always wear shoes when using the vehicle.
• Only two riders are allowed in the vehicle at a me.
• Children under 3 years of age cannot use the vehicle.
• Only drive on level ground.
• Do not go near swimming pools or other bodies of water,
drop-os or up and down steep inclines.
• Do not drive the vehicle into loose dirt, mud, sand or ne gravel.
• Do not drive the vehicle on streets or near cars.

5
CARE WARNINGS
RE-CHARGE INTERVAL AND TIME
Important!
•
•
•Park the vehicle indoors or cover it with a tarp to protect it
from wet weather.
•
fading may occur. Store in shade or cover with tarp.
•Do not wash the vehicle with a hose.
•Do not wash the vehicle with soap and water.
WARNING!
FCC WARNING
by the party responsible for compliance could void the user's
authority to operate the equipment.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
radio frequency energy and, if not installed and used in
to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•
•
from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician
for help.
WARNING!
12 hours, Only an adult who has read and understands the safety

6
2Parts

7

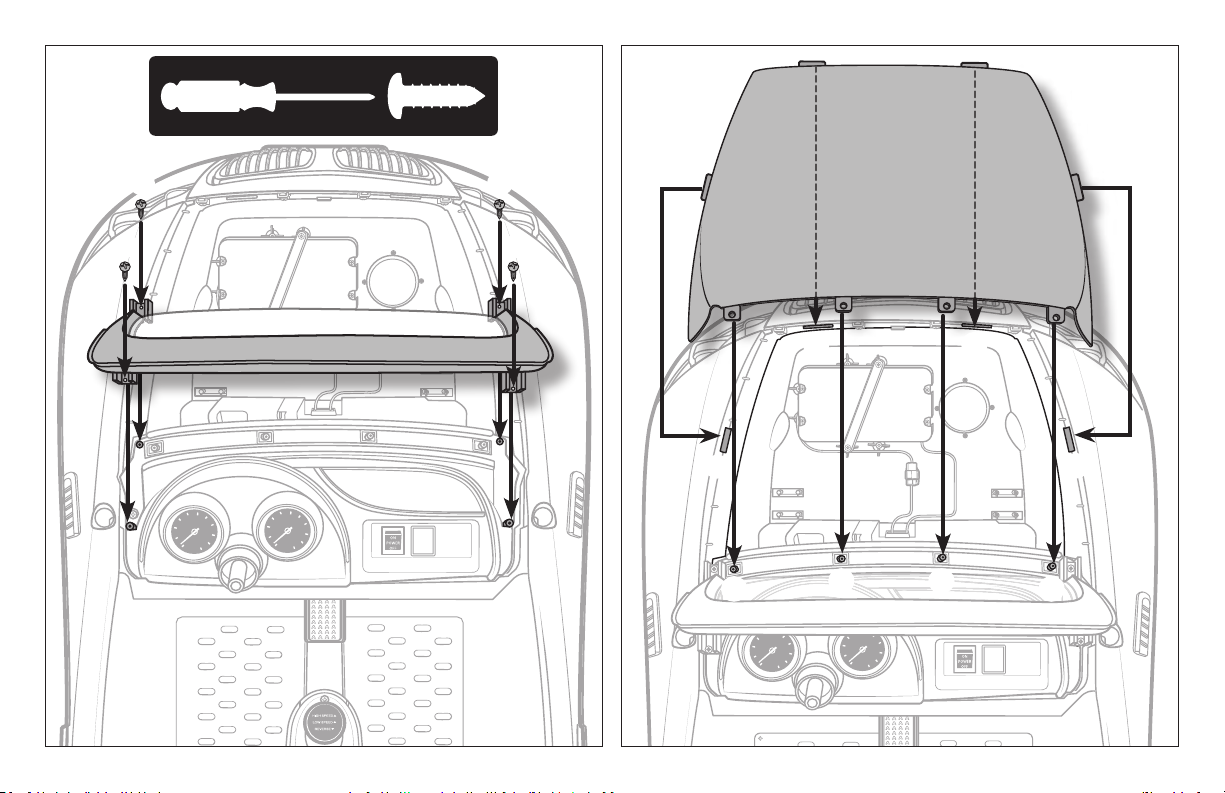

3Assembly
❺⓫ ❹❿ ❷❽ ❶❼ ❻⓬
❸❾

8
❶ ❸
❷
❽ ⓬❼ ⓫❻ ❿
❺ ❾
❹

9
❸
❶
❷

10
16 mm
❷
❶ ❸
❹
❻ ❻
❺
❼ ❼ ❼❼
❺

11
❽ ❾ ❿ ⓫
❶ ❷
12 mm

12
❶
❷ ❸

13
16 mm
12 mm
❶ ❷ ❸ ❹

14
4Use
12
15+
❸
❶
❷

15

16
5Maintenance
❻ ❻
❼
❺ ❺ ❺❺
❼
❶ ❷ ❸ ❹

17
฀
877-741-6154.

18Do not return this product to the place of purchase. If your vehicle
needs service, repairs or replacement parts, call:
Hours: 8:00 am – 5:00 pm (CST) Monday - Friday
Phone: [phone]
Email:
For service and repairs you will be directed to an authorized service
center. To order parts have the model and serial number, found
The following is a list of available replacement parts:
• Wheels
• Hardware bag
• Steering assembly
• Seat
The vehicle should be checked for damage, missing or badly worn
parts before use.
•
•
•
•Occasionally use lightweight oil to lubricate moving parts such as
•Store the vehicle indoors or cover it with a tarp to protect it from
the wet weather. Keep it away from sources of heat, such as
stoves and heaters.
•
parts, use a non-wax furniture polish. Do not use car wax,
abrasive cleaners or wash the vehicle with soap and water. Water
•
authorized service center for periodic maintenance and service.
877-741-6154 for an
authorized service center.
6Service

197
Problem Possible Cause Remedy
Vehicle does not run
Thermal fuse has tripped
other. If wires are loose around the motor call Consumer
877-741-6154 for an authorized service center
Electrical system is damaged 877-741-6154 for an authorized
service center
Motor is damaged 877-741-6154 for an authorized
service center
Vehicle does not run very
long
Loud grinding or clicking
noises coming from motor
or gear box
Motor or gears are damaged 877-741-6154 for an authorized
service center
877-741-6154
that you take the vehicle to an authorized service center for periodic maintenance and service. Call the number listed above for the closest
center to you.

20Problem Possible Cause Remedy
Vehicle runs sluggishly or
beeping occurs
Vehicle is overloaded Reduce weight on vehicle (see User Requirements and
Safety Warnings)
Vehicle is being used in harsh
Requirements and Safety Warnings)
Vehicle needs a push to
go forward
Poor contact of wires or connectors
877-741-6154 for an authorized service center
“Dead Spot” on motor A dead spot means the electric power is not being delivered to the
877-741-6154 for an authorized service center
recharge connector is loose
Charger not plugged in
Charger is not working (lights not
glowing)
877-741-6154 for an authorized
service center
when charging
This is normal and not a cause for
concern
Charger feels warm when
recharging
This is normal and not a cause for
concern
