D40
Owner’s manual

© DOSATRON INTERNATIONAL S.A.S / 2
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
.................................................................
.................................................................
.................................................................
.................................................................
.................................................................
.................................................................
.................................................................
.................................................................
.................................................................
.................................................................
.................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
NOTES

© DOSATRON INTERNATIONAL S.A.S / 2© DOSATRON INTERNATIONAL S.A.S / 3
You have just acquired a DOSATRON water-powered dosing pump.
Congratulations on your choice. This model was produced using over
40 years of experience.
Our engineers have placed the DOSATRON series at the forefront
of technical development in the field of DOSATRON water-powered
metering pumps.
Over time this DOSATRON will prove itself to be a most faithful ally.
A few regular maintenance operations will guarantee operation in which
the word “breakdown” will no longer be heard.
THEREFORE, PLEASE, READ THIS MANUAL CAREFULLY
BEFORE PUTTING THE APPLIANCE INTO SERVICE.
This document does not form a contractual obligation and is for information
only. DOSATRON INTERNATIONAL reserves the right to alter its appliances
at any time. © DOSATRON INTERNATIONAL S.A.S 2020
English
Important!
The complete reference and serial number of your DOSATRON is
shown on the pump body.
Please record these numbers in the space below and refer to
them when contacting your retailer or asking for information.
Ref.: ....................................................................................................
Serial No.: ..........................................................................................
Purchase Date: ..................................................................................

© DOSATRON INTERNATIONAL S.A.S / 4
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
.................................................................
.................................................................
.................................................................
.................................................................
.................................................................
.................................................................
.................................................................
.................................................................
.................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
NOTES

© DOSATRON INTERNATIONAL S.A.S / 4© DOSATRON INTERNATIONAL S.A.S / 5
MARKING/IDENTIFICATION/CHARACTERISTICS
Codification of the reference .................................................... 7
Characteristics .......................................................................... 8
Dimensions ............................................................................... 8
INSTALLATION
Precautions .............................................................................11
Installation of the Dosatron..................................................... 14
Changing the dosing scale ..................................................... 16
Connecting the suction hose D40MZ3000 model .................. 18
Connecting the suction hose D40MZ2/5 model ..................... 18
Installation tips ........................................................................ 19
Automatic device to prevent siphoning of the product ........... 21
PUTTING INTO SERVICE
Using for the first time............................................................. 22
Use.......................................................................................... 23
Adjusting the dosing rate ........................................................ 23
Dosing principle ...................................................................... 24
By-Pass option........................................................................ 24
Feet options ............................................................................ 25
MAINTENANCE
Recommandations .................................................................. 26
Draining the Dosatron............................................................. 27
Removing the suction hose .................................................... 28
Removing/Refitting the dosing part ........................................ 29
Changing seals in the dosing part D40MZ3000 model ................ 30
Changing seals in the dosing part D40MZ2/5 model ................... 32
Removing/Refitting the dosing piston
D40MZ3000 model ....... 34
Removing/Refitting the dosing piston
D40MZ2/5 model .......... 34
Cleaning and refitting the suction valve ................................. 35
Changing the motor piston ..................................................... 36
TROUBLESHOOTING ............................................................. 38
LIMITED WARRANTY .............................................................. 40
Contents

© DOSATRON INTERNATIONAL S.A.S / 6
Marking/Identification
Characteristics
Your dosing pump has 2 main marking zones enabling it to be identified in
detail:

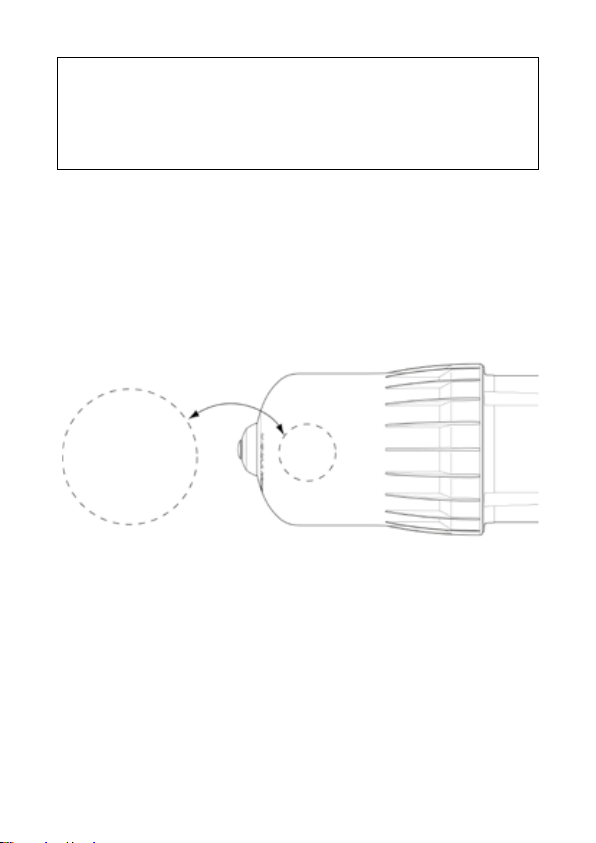

A 2-line engraving on the section of the top (see picture below), containing the
exact reference for the appliance and the serial number.
A technical label on each side of the dosing pump body indicating the technical
performances of the appliance.
REF.
D40MZ3000BPVFII
19110152
D40MZ3000BPVFII
19110152
Serial No.

© DOSATRON INTERNATIONAL S.A.S / 6© DOSATRON INTERNATIONAL S.A.S / 7
REF. : ............................................... Serial No.: .....................................
Example D40 MZ 3000 BP VF K
Dosatron Range
MZ : Adjustable
Dosing (ratio or %)
BP : Manual By-Pass option
Dosing Seals
VF: Acid additive - AF: Alkaline additive
K : Kalrez Diver Seal option for concentrated acid additive
CODIFICATION OF THE REFERENCE

© DOSATRON INTERNATIONAL S.A.S / 8
CHARACTERISTICS
D40MZ3000 D40MZ2 D40MZ5
Operating flow:
2.2 - 40 US gpm [500 l/h min. 9 m3/h max. ] .
Max. operating temperature: ............................ 104 °F [40 °C]
Operating pressure:
psi
bars
4.35 - 116
0,3 - 8
4.3 - 116
0,3 - 8
7.25 - 116
0,5 - 8
Dosing adjustable from the exterior:
Ratio
%
1:3 000 - 1:500
0,03 - 0,2
1/500 - 1/50
0,2 - 2
1/100 - 1/20
1 - 5
Concentrated product injection flow:
US Fl. oz/min - MIN.
US Fl. oz/min - MAX.
Min. l/h - Max. l/h
0.08
10.14
0,15 - 18
0.56
101.45
1 - 180
2.82
253.62
5 - 450
Connections (NPT/BSP male gas fittings): ............... 1 1/2” [Ø 40x49 mm].
Hydraulic motor capacity (every two clicks of the piston):
approx. 0.449 US Gallons [1,7 l]
IMPORTANT! The DOSATRON is not pre-set,
please refer to the paragraph ADJUSTING THE DOSING
DIMENSIONS
Diameter: " [cm] 6 9/10 [17,55] 6 9/10 [17,55]6 9/10 [17,55]
Total height: " [cm] 26 11/16
[67,82]
26 11/16
[67,82]
26 19/16
[70,15]
Overall width: "[cm]8 1/2 [21,8] 8 1/2 [21,8] 8 1/2 [21,8]
Weight: lbs [± kg] 7.3 [3,3] 7.3 [3,3] 7.3 [3,3]
PARCEL COMPOSITION: 1 DOSATRON/1 mounting bracket for
DOSATRON/1 suction hose for concentrate/1 strainer/
1 quick start guide
PACKAGING DIMENSIONS:
26 3/8”x 8 7/8”x 8 1/16” [67 x 22,5 x 20,5 cm]
PARCEL WEIGHT: ~ 12.1 US lbs [5,5 kg approx.]

© DOSATRON INTERNATIONAL S.A.S / 8© DOSATRON INTERNATIONAL S.A.S / 9
DOSATRON Technology
A unique technology associating all dosing functions
Installed on the water supply line, the Dosatron uses water pressure
as the only power source. Thus activated, it takes up the required
percentage dose of concentrate and then mixes it with the moving
water. The solution produced is then propelled downstream. The dose of
injected product is always proportional to the volume of water passing
through the Dosatron, regardless of variations in flow or pressure in the
water supply line.
Motor piston
Clear water Water solution
+ % product
Dosing piston
Dosing adjustment
(%) ratio
Concentrate
to be dosed

© DOSATRON INTERNATIONAL S.A.S / 10
MOTOR SECTIONDOSING PART
Bleed
Top
Mounting bracket
Pump body
Dosing piston
Dosing
sub-assembly
Suction
valve
Suction
valve
nut
Suction hose
+ strainer
+ ballast
Hose
nut
Motor piston

© DOSATRON INTERNATIONAL S.A.S / 10 © DOSATRON INTERNATIONAL S.A.S / 11
Installation
PRECAUTIONS
1-GENERAL POINTS
- When connecting a DOSATRON
either to the public water supply
line or to its own water source,
it is essential to adhere to the
standards concerning protection
and disconnection. DOSATRON
recommends a disconnector to
prevent contamination of the water
supply.
- When connecting the DOSATRON
to the water supply line, ensure that
the water flows in the direction of the
arrows shown on your appliance.
- In the case where upstream or
downstream water circuits are
higher than the Dosatron, there
is a possible risk of water and
concentrate flowing backwards.
Installing a non-return valve
downstream from the appliance is
therefore recommended.
- Placing an anti-siphoning valve
downstream of the dosing pump is
recommended in installations where
there is a risk of siphoning.
- Do not install the DOSATRON
above a container of acid or
aggressive product. Move the can
away and protect it from possible
product fumes with a cover.
- Store the DOSATRON away from
excessive heat sources and in winter
away from frost.
- Do not install the DOSATRON on
the water pump suction circuit (risk
of siphoning).
- It is the responsibility of the user
to replace the dosing part seals
annually to ensure accurate dosing.
- The adjustment of the Dosatron’s
dosing is the sole responsibility of
the user. The user must adhere
strictly to the recommendations of
the manufacturer of the chemicals.
WARNING
When installing, operating, and
maintaining the DOSATRON
water-powered dosing pump,
as a priority observe the safety
instructions. Use suitable tools,
protective clothing, and safety
glasses when working on the
equipment and install it with
a view to ensuring risk-free
operation.
Follow the instructions in this
manual and take safety measures
appropriate to the nature of the
suctioned liquid and the water
temperature.Be extremely careful
in the presence of hazardous
substances (corrosives, toxic
substances, solvents, acids,
caustics, flammable substances,
etc.).

© DOSATRON INTERNATIONAL S.A.S / 12
- For dosing these substances,
please consult your distributor
before use to confirm
compatibility with the dosing
pump.
IMPORTANT! The personnel in
charge of the installation, use and
maintenance of this equipment
must have perfect knowledge of
the content of this manual.
the content of this manual.
- Ensure that the water flow and
pressure of the installation are
compliant with the DOSATRON
characteristics.
- Adjustment of the dosing must be
made unpressurised. Turn off the
water supply and allow the pressure
to drop to zero.
- It is the sole responsibility of the
user to select the DOSATRON
adjustments to obtain the desired
dosing.
- An airtightness problem, an
impurity or a chemical attack on
the seal can interrupt the dosing
operation. Periodic checking that the
concentrate to be dosed is being
correctly drawn into the DOSATRON
is recommended.
- Change the DOSATRON suction
hose as soon as it seems damaged
by the concentrate being dosed.
- Release the pressure after use
(advised).
- Rinsing of the DOSATRON is
essential:
• whenever the product is changed
• before handling the DOSATRON,
to avoid any contact with aggressive
products.
- All assembly and tightening
should be done manually without
tools (outside tightening torque
recommendations).
2-WATER WITH HIGH PARTICLE
CONTENT
- If the water has a high abrasive
particle content which could cause
premature wear of the Dosatron, it
is essential to install an upstream
filter (e.g. 120 mesh - 130 microns
or finer).
3-WATER-HAMMER/OVERFLOW
- For installations subject to water
hammer, a water hammer protection
device must be fitted (pressure/flow
control system).
- For automated installations, it is
preferable to use slow opening and
slow closing solenoid valves.
- In the case where a DOSATRON
serves several sectors, activate
the solenoid valves simultaneously
(closure of one sector and opening
of another sector at the same time).
4-INSTALLATION LOCATION
- The DOSATRON and the product
to be dosed should be accessible.
- Their installation must under no
circumstances present a pollution or
contamination risk.
- It is recommended that all water
pipes are marked showing that the
water contains additives and with the
wording: “CAUTION! Non-potable
water”.
PRECAUTIONS (cont...)

© DOSATRON INTERNATIONAL S.A.S / 12 © DOSATRON INTERNATIONAL S.A.S / 13
5-MAINTENANCE
- After use, the aspiration of clear
water is recommended.
- Annual maintenance will optimise
the life of your DOSATRON.
Annually replace the dosing part
seals and the product suction hose.
6-SERVICE
- This DOSATRON was tested prior
to packaging.
- Repair sub-assemblies and
sachets of seals are available.
- Do not hesitate to call your
distributor or DOSATRON for any
after-sales services.

© DOSATRON INTERNATIONAL S.A.S / 14
INSTALLATION OF THE DOSATRON
W
a
t
e
r
d
i
r
e
c
t
i
o
n
Fig. 1

© DOSATRON INTERNATIONAL S.A.S / 14 © DOSATRON INTERNATIONAL S.A.S / 15

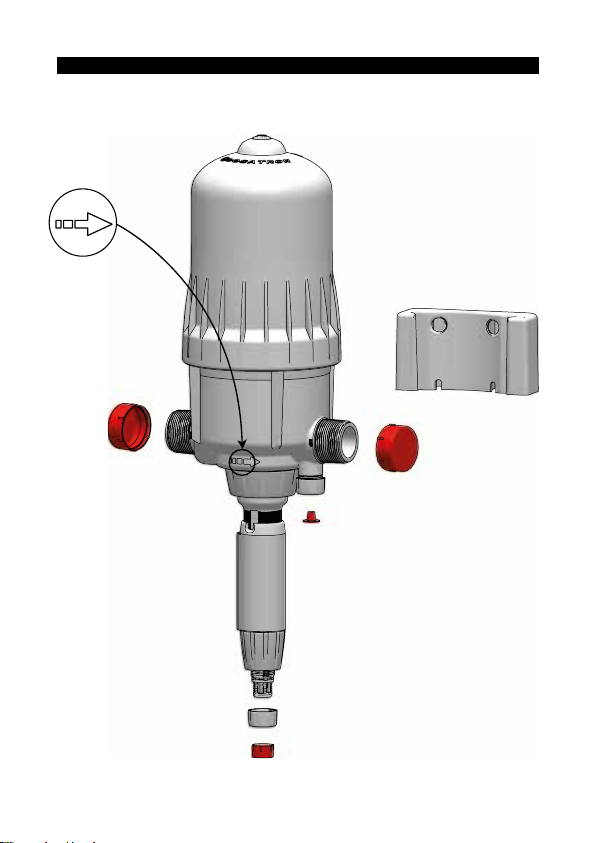

THE INSTALLATION ASSEMBLY SHOULD BE CARRIED OUT WITHOUT
TOOLS
The DOSATRON is delivered with:
- a mounting bracket,
- a suction hose with a strainer.
The bracket enables the DOSATRON to be mounted on a wall.
Engage the DOSATRON dovetails into the mounting bracket.
Remove the protective caps which block the openings in your DOSATRON,
before connecting it to the water supply line. (Fig. 1)
RECOMMENDATIONS
The DOSATRON can be connected to the water supply line by means of 40 mm
interior diameter flexible pipes fixed with swivel fittings 1 1/2” [Ø 40 x 49 mm].
Ensure that the water flows in the direction of the arrows (water direction) on the
appliance.
Whenever possible, install the Dosatron high enough for easy reading and
adjusting of the dosing on the graduated scale in % or ratio.
Tightening torque 30 N.m
i.e. 3 kg.m
(reminder: 1 N.m = 0.1 DaN.m)

© DOSATRON INTERNATIONAL S.A.S / 16

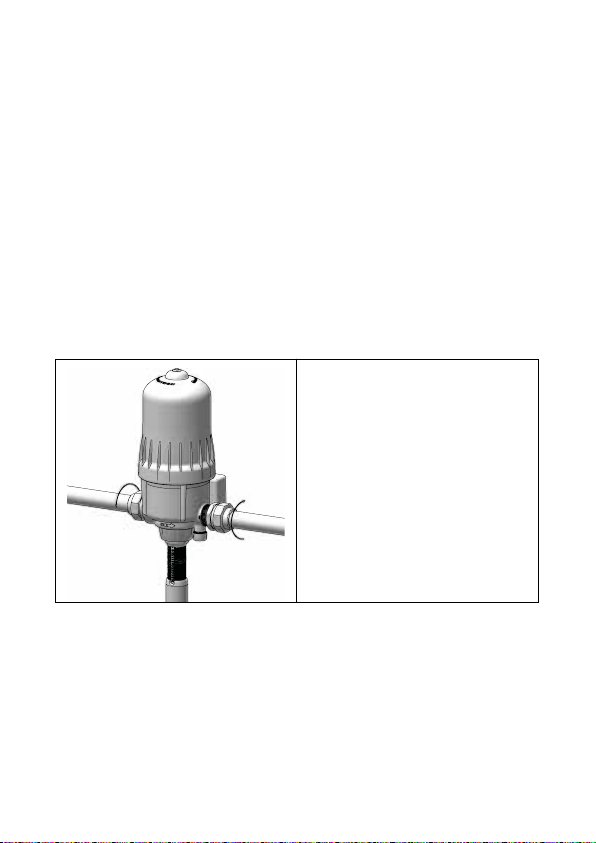

The DOSATRON dosing rate can be adjusted according to two scales:
percentages and ratios. These scales are positioned on either side of the
dosing part (Fig. 2).
Depending on the liquid circulation direction in the hydraulic installation, and
on the direction in which the dosing pump is mounted on its bracket, it may
be necessary to change the orientation of this scale.
CHANGING THE DOSING SCALE
- Unscrew the fixing nut on the dosing part by hand to release it by
pulling downwards and rotating half a turn to see the correct dosing
adjustment scale (Fig. 3).
Fig. 3Fig. 2

© DOSATRON INTERNATIONAL S.A.S / 16 © DOSATRON INTERNATIONAL S.A.S / 17

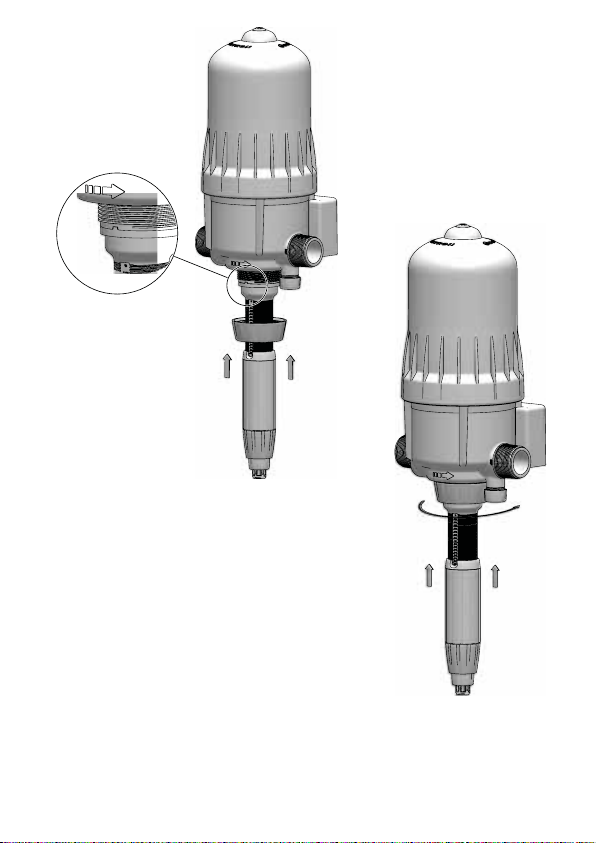

- If necessary, to see the pins better,
unscrew the dosing adjustment sleeve
as far as the middle of its travel.(Fig. 4)
- Manually retighten the fixing
nut on the dosing part(Fig. 5)
Fig. 5
Fig. 4

© DOSATRON INTERNATIONAL S.A.S / 18

The DOSATRON is delivered with a suction hose (to be adjusted as
necessary) enabling its use with a large capacity container. This hose must
be fitted with the strainer and ballast.
NOTE: The maximum suction height is 4 metres [13 ft].
The DOSATRON is delivered with a suction hose (to be adjusted as
necessary) enabling its use with a large capacity container. This hose must
be fitted with the strainer and ballast.
NOTE: The maximum suction height is 4 metres [13 ft].

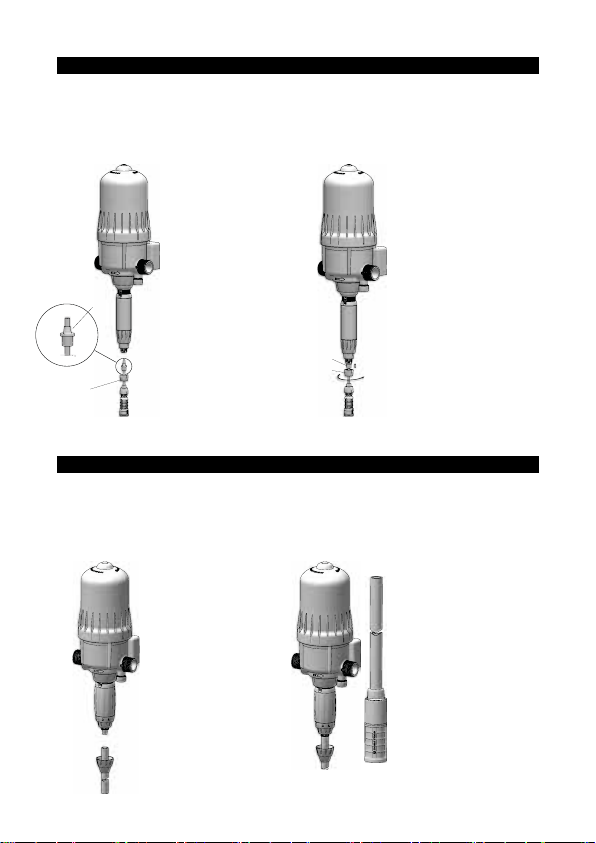

CONNECTING THE SUCTION HOSE D40MZ3000 MODEL
CONNECTING THE SUCTION HOSE D40MZ2/5 MODEL
- Push the hose into the
barbed fitting as far as it
will go and screw the nut
by hand (Fig. 7b).
- Assemble the strainer on
the other end of the hose
using the same method
- Immerse the strainer into
the solution to be dosed
- Push the hose into the
barbed fitting as far as it
will go and screw the nut
by hand (Fig. 7a).
- Assemble the strainer on
the other end of the hose
using the same method
- Immerse the strainer into
the solution to be dosed
- Fit the suction
hose into the
nut then the
ferrule (Fig. 6a).
Ferrule
Ferrule
Nut
Nut
Fig. 7aFig. 6a
- Unscrew the nut
(Fig. 6b) at the
bottom of the
dosing part and
thread the suction
hose into the nut.
Fig. 6b Fig. 7b

© DOSATRON INTERNATIONAL S.A.S / 18 © DOSATRON INTERNATIONAL S.A.S / 19
1
2
2
2
3
4
5
INSTALLATION TIPS
The DOSATRON must be assembled in by-pass as shown below (Fig. 8).
For installations using header tanks, make sure the minimum water pressure
is available for correct operation of the Dosatron (the lowest water level
height in relation to the drinking troughs).
If your flow is above DOSATRON limits, see the § OVERFLOW. To
prolong the service life of the DOSATRON, it is advisable to fit an upstream
filter (e.g. 300 microns - 60 mesh depending on your water quality). This
precaution is essential if the water contains impurities or particles, especially
if the water comes from a well or it is surface water.
The filter is recommended and necessary for the warranty to be valid.
Fig. 8
1
Filter
2
Valve
3
Non-return valve
4
Clear water valve:
stock solutions preparation
& rinsing of the tank
5
Fast priming valve/rinsing/
Dosatron test valve
