Doughpro DP1300 User manual

5HEXLOGLQJ3LVWRQ$VVHPEO\
DP
Air Driven
Automatic Dough Press
Proprocess Corporation
~et
Paramount, CA 90723
Phone [phone]
Toll Free [phone]
Fax [phone]
Website: www.doughpro.com
E-Mail: [email protected]
Listed:
20281 Harvill Ave
Perris, CA 92570
[phone]
[phone]

20281 Harvill Ave
Perris, CA 92570
Toll Free: [phone]
Fax: [phone]
20281 Harvill Ave, Perris, CA 92570 Toll Free: [phone] Fax: [phone] REBUILDING PISTON ASSEMBLY DP1300

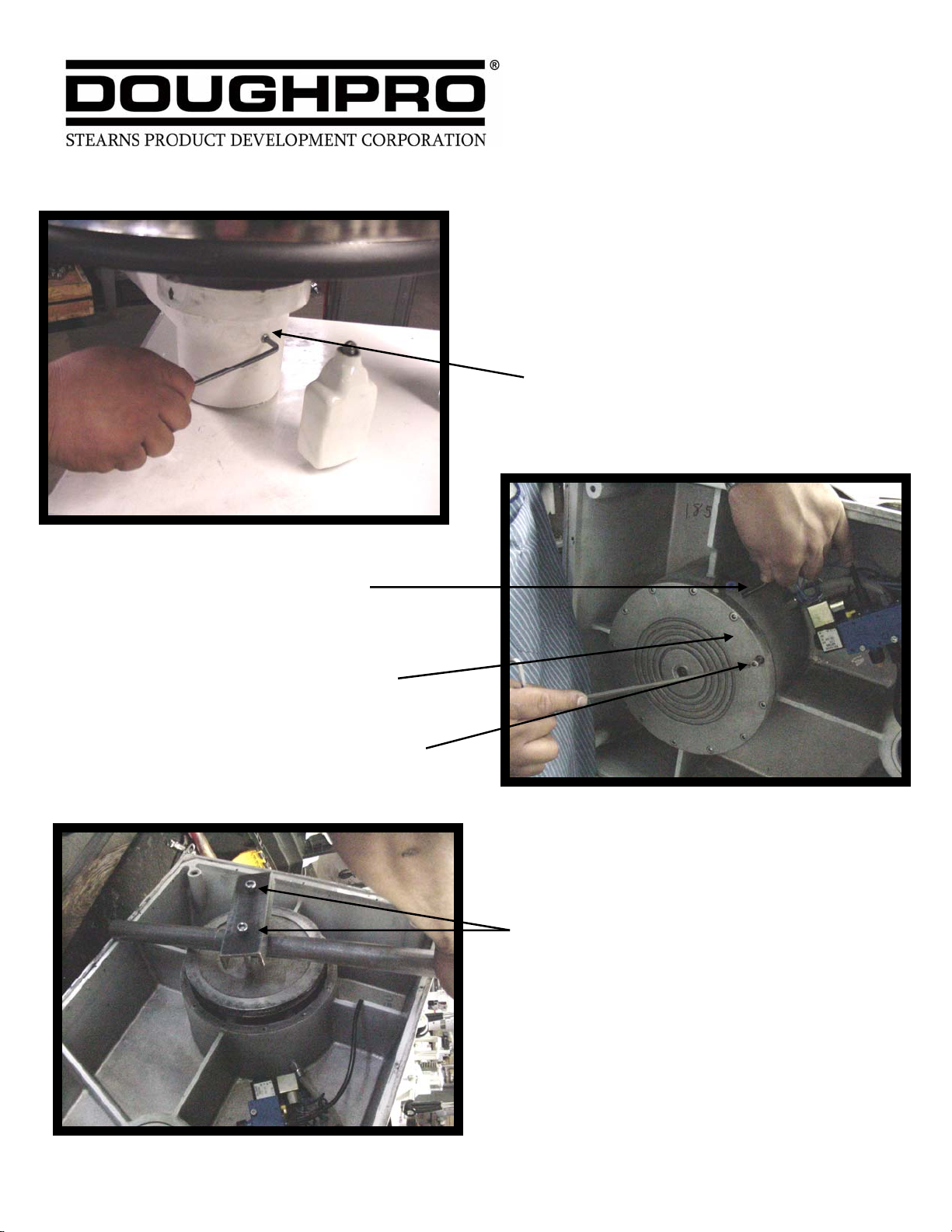

REBUILDING PISTON ASSEMBLY DP1300
1) IMPORTANT: DISCONNECT
ELECTRICAL AND AIR SUPPLY
PRIOR TO SERVICE.
2) REMOVE SILICONE
3) UNSCREW FOUR SET SCREWS ON
PIVOT ARM. (2 OUTER SCREWS & 2 INNER SCREWS)
INNER SCREWS LOCATED BEHIND OUTER SCREWS
3) REMOVE BLACK AIR HOSE
REMOVE CLEAR HOSE
4) MARK PISTON & PISTON COVER
TO LINE UP GUIDE WHEN
RE-ASSEMBLY WITH MARKER AS
SHOWN.
5) UNSCREW 12 SOCKET HEAD
SCREWS FROM PISTON COVER. ILS 1.2
ILS 1.1
ILS 1.3
6) UNSCREW LONG SOCKET HEAD
SCREW AT THE CENTER OF THE
PLATE.
7) USE 2 OF THE 3/8 SOCKET HEAD’S &
CHANNEL TO REMOVE PISTON’S
PLATE.
8) CLEAN ALL GREASE AND DIRT
OUT.
(USE WD-40 OR MINERAL SPIRITS)
9) CHECK FOR CRACKS, IF SO, NEED
TO REPLACE PART.

20281 Harvill Ave
Perris, CA 92570
Toll Free: [phone]
Fax: [phone]
20281 Harvill Ave, Perris, CA 92570 Toll Free: [phone] Fax: [phone] REBUILDING PISTON ASSEMBLY DP1300
10) INSTALL NEW SET OF O-RINGS
AND LUBRICATE WITH GREASE
PROVIDED.
11) LUBRICATE THE ENTIRE PISTON
AND CYLINDER WITH THE
PROVIDED GREASE
12) RE INSTALL PISTON PLATE
IMPORTANT: MAKE SURE GUIDE
POST GOES INTO BUSHING ON
PISTON.
13) REPLACE THE LONG SOCKET HEAD
SCREW. MAKE SURE IT IS TIGHT, BUT
DO NOT OVER TIGHTEN.THE HEX
BOLT WILL BREAK.
14) INSTALL PISTON’S COVER AND THE
12 SOCKET HEAD SCREWS.
ILS 2.1
ILS 2.2
ILS 2.3
15) RE-CONNECT AIR SUPPLY.
16) USE SOAP & WATER TO
CHECK FOR LEAKS.
17) RE-ATTACH COVER PLATE.
AFTER FOLLOWING ALL STEPS AND PISTON
STILL WONT COME OUT:
THE MACHINE NEEDS TO BE IN NORMAL
POSITION. THEN CONNECT THE AIR HOSE
DIRECTLY TO THE 3/8" FITTING
