Douglas D-Pro Max Series Quick start guide
1
ADJUSTABLE BASKETBALL SYSTEM
D-Pro Max Series
ASSEMBLY INSTRUCTIONS AND OWNER'S MANUAL
Douglas Industries, Inc.
3441 South 11th Ave. -Eldridge, IA 52748
Telephone: 1-800-553-8907
www.douglas-sports.com
Keep this instruction manual in case you have to contact the manufacturer for replacement parts.
!!
WARNING
FAILURE TO COMPLY WITH ANY OF
THE WARNINGS IN THESE INSTRUCTIONS
MAY RESULT IN SERIOUS PERSONAL
INJURY.
FAILURE TO COMPLY MAY ALSO
RESULT IN PROPERTY DAMAGE.
PLEASE HEED ALL WARNINGS AND
CAUTIONS TO ENSURE YOUR SAFETY.
DO NOT ATTEMPT TO ASSEMBLE
THIS SYSTEM WITHOUT CAREFULLY
READING AND FOLLOWING ALL
INSTRUCTIONS. BEGIN BY IDENTIFYING
AND TAKING INVENTORY OF ALL PARTS
USING THE PARTS LIST PROVIDED.
TOOLS AND MATERIALS REQUIRED FOR ASSEMBLY
(Not Included)
1. (2 ) Adjustable Wrenches
11. Concrete-1/2 yard or 14-16
2. Socket Set
4. 5/8" Wrench 12. Phillips Head Screwdriver
5. 1" Wrench
7. 15/16" Wrench
14. Carpenter's Level
15. Water Supply
8. Hammer or Mallet
9. Tape Measure
10. Shovel
**A MINIMUM OF 3 - 4 ADULTS IS
REQUIRED TO LIFT UNIT INTO PLACE**
STOP!
STOP!
STOP!
STOP!
BEFORE YOU START
A. Identify and inventory all parts using the checklist boxes in the parts list. Be sure to
keep the hardware bags and their contents separate. If any parts are missing call
our Customer Service Department (800-553-8907).
B. Test fit all Bolts by inserting them into the respective hole. If necessary, carefully
scrape away any excess powder coating buildup from inside the holes. Do not
scrape away all of the powder coating. Bare metal may rust.
!!
SAFETY INSTRUCTIONS
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE
AND WILL VOID THE WARRANTY. The owner must ensure that all players know and follow these rules to safely operate the
system. Proper and complete assembly, use and supervision is essential for proper operation and to reduce the risk
of accident or injury. A high probability of serious injury exists if this system is not installed, maintained, or operated
properly.
● If using a ladder during assembly, use extreme caution. Follow all warnings and cautions on the ladder carefully. ●
3-4 people are required to lift the unit into place. ● Before digging, contact the appropriate agency to locate underground
power cables, gas, and water lines. Do not install the system within 20 feet of overhead power lines. ● Climate, corrosion,
or misuse could result in system failure. ● If technical assistance is required, contact the manufacturer. ● Minimum
operational height is 5' to the Rim. Most injuries are caused by misuse and /or failure to follow instructions.
Use caution when using the system.
2
13. A minimum of (2) Ladders
6. 1-1/8" Wrench
3. 3/4" Wrench Bags, (80 lb. bags)
Verify all parts listed on packing list are present prior to installation. Contact our Customer
Service at 1-800-553-8907 for assistance with replacement of any parts missing or damaged.
3
Some Nylon washers may be
factory assembled.
ITEM QTY DESCRIPTION
A1
Main Post
B1Actuator
C 2 Spring-Assist Cartridge
D 1 Pole and guss et padding
E 1 Rim Height Sticker
F 1 Main Extension Arm
G2Upper Extension Arm
H 1 Backboar d
ITEM QTY DESCRIPTION
J 1 Sleeve for Spring Cartridge 1
2
Nylon Washer M18
K 1 Rim Height Indicator 2
7
Nylon Washer M16
L 1 Flex Rim (Separate pack)
34
Nylon Washer M12
M 1 Rim Pad (Pre- attach ed)
5 2 Hex Bolt M18 x 12.6”
6 1 Hex Bolt M16 x 11.6”
U1 1 Anchor Template 7
1
Hex Bolt M16 x 12.6”
U2 4
16mm Anchor J-bolts
8 1 He x Bolt M16 x 7.25”
U3 8 Thick washer for J -bo lt 9 1 He x Bolt M16 x 5.3”
U4 12
Hex nut M16
10 2 Hex Bolt M12 x 1.37”
U5 4 Anchor Rebar 36"L 11 4 W as her for M1 8 Bol t
U6 4
Lock Washer M16
12
8
Washer for M16 Bolt
13
8
Washer for M12 Bolt
R1 4
Carriage bolt M10x110mm
14 2 L ock Nu t M 18
R2 4 Washer M10 15
4
Lock Nut M16
R3 4 Flange nut M10 16
4
Lock Nut M12
UNDERGROUND PARTS

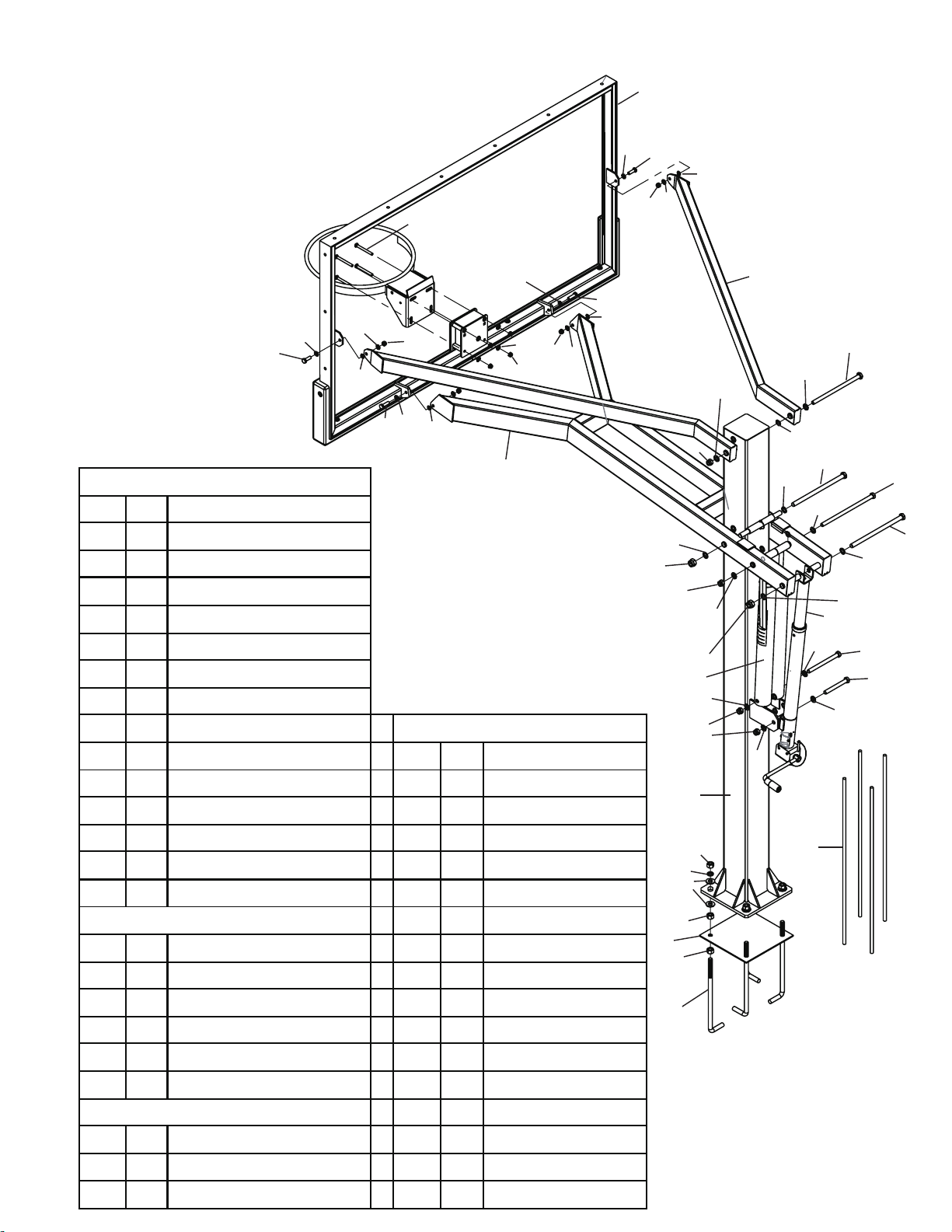

PARTS LIST
HARDWARE LIST
RIM HARDWARE
R1
H
13 10
16 13
3
10
13
3
13
16 R2
R3
413 3
1613
3
4
13 G
F
6
12
12
2
15 5
11
11
14
15
12
12
7
14
11
11
5
C
B
A
12
15
12
12
12 8
9
U4
U6
U3
U4
U1
U4
U2
U5
Hex Bolt M12 x 1.57”
2
4
a. Dig a hole 48" deep and 20"x 20"square . The edge of the hole
should be flush with the edge of the playing surface. If you live in an area
where heavy frost can occur, it may pose a problem, consult your local
building inspector to determine the appropriate hole depth.
b. Build a form before pouring the concrete pad, to ensure that the top
of the concrete remains straight and square. The form should
be placed about 1/2" above the playing surface to allow for water drainage.
c. Bell out the bottom of the hole.
20"SQ
20"
48"
NOTE: The hole must be at least 48" deep.
NOTE: A square hole prevents the rotation of the concrete.
NOTE: The area behind the playing surface must be cleared off by at least
3 feet to enable the user to stand behind the pole to adjust the Rim height.
NOTE: At rim height 10’, distance from the face of backboard to the
front of Main Post(A) is 48”, Choose the proper location to dig
for the concrete footing:
STEP B
STEP A
A. Thread a 16mm Hex Nut (U4) onto each of the 16mm J-Bolts
(U2).Securely tighten the Nuts all the way down to the end of the
threads.
B. Slide the threaded end of the J-Bolts through the holes
in the Anchor Template (U1) and secure each J-Bolt with a
16mm J-Bolt Hex Nuts(U4) as shown. Securely tighten all Nuts
at this time.
U2
U4
U1
U2
U2
U2
U4
U4 U4
U4
U2
NOTE: Make sure the curved“J”ends of the J-Bolts are
oriented in a rectangular pattern, as shown.
One, free easy call gets your utility lines marked
AND helps protect you from injury and expense
Utility Markings
Color Denition
Red Electric
Yellow Gas, Oil, Petroleum
Orange Communication, Phone, TV
Blue Portable Water, Irrigation
Green/Brown Sewer
White Proposed Dig
!"""" #$"
%"&'()*+!"
" "
,"" $"
"-./-./"
"
0""
122"
)*
-./"()#+2!
",
-./()3+-./"
4""-./"
" 5
" 2
"0
"
-./""
"-./
)"
2!",2
"
&*.6
%!
!
78)&'890%%:9%::%%%&5&/5788'8.
9%::&/57)%5:8':&0)557)')'.
%49%55&;&%%)8063:8)'%:)%5%&8'9
9&:'!&5589&%%8&5%08':8'8)'
9&'%4
<'):79%:8)085589%4:%4%')%80&%5)'8
085589&5580:%')%8&9&'%48)55&8'%8)'8&5%-)'7
8''8'7&&4&5%8&48
)#
)3
*
! !
WARNING
*BECAUSE OF THE SIZE AND WEIGHT OF THE SYSTEM, A MINIMUM OF
THREE ADULTS ARE REQUIRED FOR THE FOLLOWING STEPS*
STEP1
6
STEP2
A. Slide the Main Extension Arm(F) over the top of the Main Post (A)
and attach to the lower pivot tube with a M18 x 12.6” Hex Bolt (#5),
two M18 Flat Washers(#11), two Nylon Washers M18 (#1) and one
Lock nut M18 (#14).
Do not over tighten this bolt and nut.
Note: make sure Nylon washers locate between Main Extension Arm (F) and Post (A).
The Nylon washers may be factory-assembled.
Slide a 16mm Thick Washer (U3) over each of the J-Bolts (U2) as shown in FIGURE 1A.
Remove the Padding from Main Post (A). Place the Main Post (A) over the J-Bolts. Slide a
16mm Thick Washer (U3), a Lock washer 16mm (U6) and thread a 16mm Hex Nut (U4) to each
J-bolt. Tighten the Nuts only a few turns onto the J-Bolts as shown in FIGURE 1B.
If the Main Post (A) is not exactly vertical, adjust the 16mm J-Bolt Hex Nuts (U4) located under
the Post base. Tighten all of the Hex Nuts (U4) Above Post base when Main Post (A) is vertical.
NOTE: Face the Main Post (A) with Actuator Bracket facing away from playing court (as shown in FIGURE
1C).
A.
B.
C.
Nylon washer #1 may
be factory installed
U6
U3
U4
FIGURE 1B
Playing Court
Back
FIGURE 1C
FIGURE 1A
U3
U2
5
11
1
F
14 11
Rubber pad face up
B. Install stop pin through designated hole and secure with ring
7
A.
B.
C.
STEP 3
STEP 4
A.
B.
C.
STEP 5
A.
Slide Steel Sleeve (J) thru both tubes welded at the top end of Spring-
Assist Cartridge (C). Place the top of Spring-Assist between Main
extension (F), align the Steel Sleeve (J) with the second set of welded
tubes on the Main Extension Arm (F), place the Stainless steel Rim Height
Indicator (K) beside the Spring-Assist Cartridge (C).
Slide one Washer M16 (#12) over one Hex Bolt M16 x 12.6”
(#7), and slide this Bolt all the way thru Main Extension Arm (F), one
Nylon washer M16(#2), Steel Sleeve (J), Rim Height indicator (K),
another Nylon washer (#2) , and the other side of Main Extension Arm
(F). Secure it with one Flat Washer M16 (#12), one Lock nut M16 (#15).
Do not over tighten this bolt because this is the pivot point.
Make sure the Rim Height Indicator(K) hang freely along side of Spring-
Assist Cartridge (C).
Nylon washer locates between Steel sleeves (J) and Main Extension
Arm (F). They may be factory-assembled already.
Removable
crank handle
Connect Actuator to Main Extension arm.
Place the upper bracket of Actuator(B) between
the last set of welded tubes on the Main Extension
Arm (F), attach the two parts using Hex bolt M18 x 12.6”
(#5), two Flat Washers M18 (#11), one Lock nut (#14).
Connect Actuator(B) to the mounting bracket welded
in the middle of Post (A), using one Hex Bolt
M16 x 5.3” (#9), two flat Washers for M16 Bolt (#12),
two Nylon Washers (#2), and one Lock Nut for M16 bolt
(#15).
Note: make sure Nylon washers go between Actuator and
Mounting Bracket.
Attached Crank handle to the actuator. Slide Removable
Crank handle onto the shaft sticking out of Gear Box
(Actuator), lock it in place with attached pin.
Attach the bottom of Spring-assist Cartridges (C) to the Main post Bracket
by using a Hex Bolt M16 x 7.25” (#8), two Flat Washers M16 (#12), one
Nylon Washer M16 (#2) and one Hex Nut M16 (#15).
Note: Nylon washer goes between two Cartridges.
Remove and discard the Steel spreader bracket from the Spring-Assist
Cartridges.
Attach the Two Upper Extension Arms (G) to Main Post (A) with
one Hex Bolt M16 x 11.6” (#6), two Flat Washers M16 (#12),
two Nylon washers M16 (#2) and one Lock nut M16 (#15)
Note: the Nylon washers go between Upper extension arm and Main
Post.
Do not tighten at this time.
9
12
2
2
12
15
B
A
5
11
11
14
F
7
12
12
15
2
J
2
K
A
F
B
C
8
12
12
15
2
Spreader
bracket
G
A
F
6
G
15
12 2
2
12
8
STEP 6
B.
NOTE: Use a level to make sure rim is level side to side
before tightening nuts.
STEP 7
Crank the Main extension arm as low as possible.
Attach the Backboard to Main Extension Arm (F) by
using two Hex Bolt M12 x 1.57” (#4), four M12 Flat
Washers(#13), two Nylon washers (#3) and one Lock Nut
M12 (#16).
Note: Nylon washers go between Main extension arm Bracket
(F) and Backboard mounting bracket.
Connect Upper Extension Arms (G) to Backboard
(H), using 2 Hex bolts M12 x 1.37” (#10), 4 Flat
Washers M12 (#13), 2 Nylon washers M12 (#3) and
2 Lock nuts M12 (#16).
Note: Put Nylon washers between backboard plate and
Upper extension connecting plate.
A.
B.
Remove the screws on Rim spring box cover, open the Spring
box.
(Rim Spring Box cover may not be factory-assembled.)
Mount the rim to the Mounting bracket on Backboard (H)
using the hardware supplied in rim box.
Re-attach Spring box cover to the Rim with removed screws.
A.
C.
R1 R2 R3
L
H
STEP 8
A. After everything is square, make sure all nuts on the
system have been tightened.
NOTE: But do not over tighten the Nuts, make sure the unit
can be adjusted up and down.
B. To apply the Rim Height Sticker(In the manual pack), first use
a tape measure to crank rim up to exactly 10’ from the playing
surface. Use a pencil to make a mark on the Spring-assist
Cartridge(C) where the bottom of the Rim Height Indicator(K)
stops. Then, peel and apply Rim Height Sticker to outside
of Spring-assist Cartridge(C) lining up the pencil mark with the
10’ mark on the Rim Height Sticker. See detail A.
C. Attach Post Pad and Gusset Pad to Main Post(A) as shown. 10
DETAIL A A
Rim Height
Sticker
C
Table of contents
Other Douglas Accessories manuals
