Dowell 5005 Series User manual

5005 Series
LED Light Mirror with ALU frame
INSTALLATION GUIDE
All manuals and user guides at all-guides.com

5005 Series
LED Light Mirror with Black ALU frame
INSTALLATION GUIDE
Mirror Drawing
5005 1831 ML
5005 2431 ML
5005 3031 ML
page 2
16-1/8”(410mm) 16-1/8”(410mm)
31-1/2”(800mm)
28”(712mm)
1-1/4”
12-5/8”
(321mm)
27-5/8”(702mm)
25-3/4”(654mm)
5-1/2”(140mm)
4-3/8”
6-3/4”(171mm)
23-5/8”(600mm)
31-1/2”(800mm)
1-1/4”
25-3/4”(654mm)
28”(712mm)
20-1/8”(512mm)
3-3/4”
7-7/8”
5-7/8”(150mm)
17-7/8”(454mm)
7-1/8”
25-3/4”(654mm)
27-5/8”(702mm)
29-1/2”(750mm)
31-1/2”(800mm)
25-3/4”(654mm)
25-3/4”(654mm)
28”(712mm)
3-3/4”
13-3/4”
5-7/8”(150mm)
7-1/8”
1-1/4”
26-1/8”(661.5mm)
27-5/8”(702mm)
All manuals and user guides at all-guides.com

Mirror Drawing
page 3
5005 3631 ML
5005 4831 ML
5005 2060 ML
35-1/2”(900mm)
31-1/2”(800mm)
28”(712mm)
3-3/4”
19-3/4”(500mm)
5-7/8”
7-1/8”
1-1/4”
32”(811.5mm)
25-3/4”(654mm)
27-5/8”(702mm)
3-3/4”
7-1/8”
11-7/8”
5-3/4”
9-1/8”
47-1/4”(1200mm)
43-7/8”(1112mm)
6-5/8”(167mm)
31-1/2”(800mm)
28”(712mm)
3-3/4”
31-1/2”(800mm)
7-1/8”
1-1/4”
25-3/4”(654mm)
27-5/8”(702mm)
11-7/8”
3-3/4”
5-3/4”
9-1/8”
7-1/8”
6-3/4”
截面 AA-AA
20”(508mm)
16-1/2”(419mm)
6-5/8”
59”(1498.6mm)
55-1/2”(1409.6mm)
7-1/8”
1-1/4”
6-3/4”
55-1/8”(1400.6mm)
53-1/4”(1352.6mm)
12-5/8”
6-1/4”
5-1/2”
9-1/2”
32-7/8”(834mm)
9-1/2”
5005 Series
LED Light Mirror with Black ALU frame
INSTALLATION GUIDE
All manuals and user guides at all-guides.com

page 4
5005 Series
LED Light Mirror with Black ALU frame
INSTALLATION GUIDE
Warnings and Cautions
These are provided for your safety. It is very important you read
them completely before installing the mirror.
This LED mirror is intended for in accordance with the
Electric Code (NEC) and all local code
This is for indoor use only.
Use ONLY the supplied LED driver to power
Driver cable is not intended for use through or concealed behind walls, or
ceilings.
This LED is with wall dimmer switches.
INSTALLATION INSTRUCTION
Two people are recommended for each step duringassembly.
Tool required
All manuals and user guides at all-guides.com

page 5
5005 Series
LED Light Mirror with Black ALU frame
INSTALLATION GUIDE
1. JUNCTION BOX INSTALL:
-WHITE (NEUTRAL) MIRROR JUMPER WIRE TO THE WHITE SUPPLY
WIRE.
-BLACK (LIVE) MIRROR JUMPER WIRE TO THE BLACK SUPPLY WIRE.
-GREEN ORBARE COPPER MIRROR JUMPER WIRE TO THE BARE
COPPERSUPPLY .
Secure to Junction box
2. MOUNTING:
I. Mark the holes distance of mounting brackets according to below chart.
II. Use a 15/64 inch drill bit to drill pilot holes at the locations marked in above
step and inserts the wallanchors.
III. Pass the screws through oval holes in the mounting brackets and screw
into the wall anchors.
NOTE: Brackets should have the angled end facing up.
IV. Hang brackets on back of mirror onto the mounting brackets that are
attached to the wall.
All manuals and user guides at all-guides.com

Item No. Dimension Hole distance Hole distance2 Notes Watts Lumens CCT
5005 1831 ML 16-1/8"×1-1/4"×31-1/2" 4-3/8" (112mm) NA 24W 625LM 3000K
5005 2431 ML 23-5/8"×1-1/4"×31-1/2" 7-7/8" (200mm) NA 30W 780LM 3000K
5005 3031 ML 29-1/2"×1-1/4"×31-1/2" 13-3/4" (350mm) NA 32W 830LM 3000K
5005 3631 ML 35-1/2"×1-1/4"×31-1/2" 19-3/4" (500mm) 11-7/8" (300mm) 35W 850LM 3000K
5005 4831 ML 47-1/4"×1-1/4"×31-1/2" 31-1/2" (800mm) 11-7/8" (300mm) 42W 910LM 3000K
5005 6020 ML 59"×1-1/4"×20" 6-1/4" (160mm) 32-7/8" (834mm) 42W 910LM 3000K
page 6
5005 Series
LED Light Mirror with Black ALU frame
INSTALLATION GUIDE
Only can be
hung in one
direction
Can be hung
in two
directions

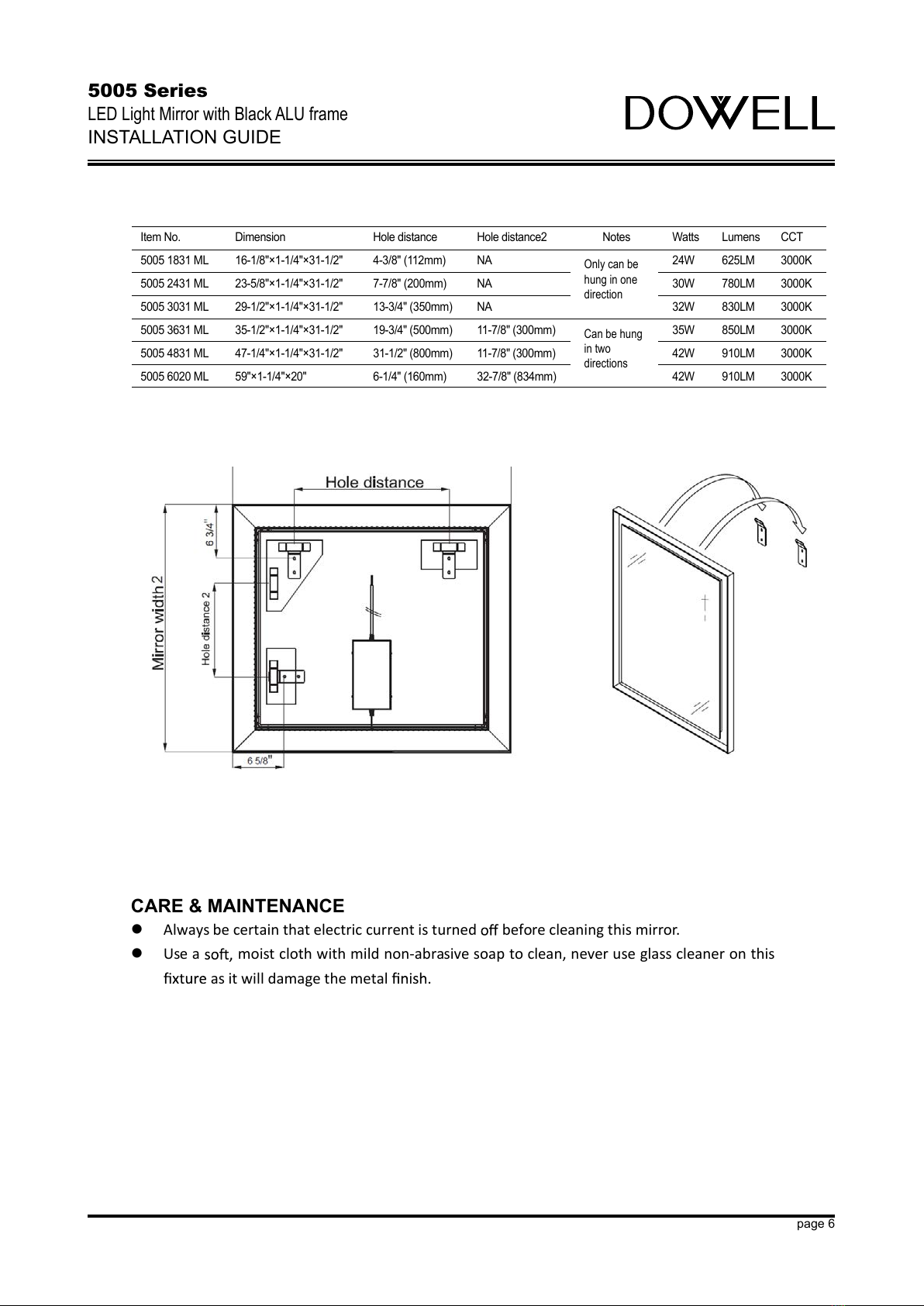

CARE & MAINTENANCE
Always be certain that electric current is turned before cleaning this mirror.
Use a moist cloth with mild non-abrasive soap to clean, never use glass cleaner on this
as it will damage the metal
