DQ Cassius User manual

Cassius Vertical Radiator Fixing Instructions
Please unpack your delivery carefully and inspect the radiator and contents –
any damages or shortages must be notified to your supplier within 3 days of
delivery of your goods.
SPECIFICATIONS FOR CASSIUS VERTICAL
Materials Mild Steel
Connections ½ “Flow and Return
Test Pressure 8 Bar
Testing Authority EN442
Max operation pressure 4 Bar
Max working temperature 95c
These can be cleaned using a soft damp cloth
with a non-abrasive cleaning product.
PLEASE NOTE: That in accordance with Part L1 2006 of the Building Regulations and BS7593:1992 code of practice for the
treatment of hot water and central heating systems, we recommend flushing the heating system before installation of new
radiators and then adding the correct quantity and type of inhibitor for use with the radiator and system to prevent corrosion.
Damage caused to systems not protected by a suitable inhibitor will not be covered by the manufacturer warranty. It is the
responsibility of the installer to ensure the correct use and suitability of the fixings provided. No liability for costs or damages
arising from failure to do so can be accepted.

2
Clean Cloth
Electric Drill
Spirit Level
PTFETape
Tape Measure
Glove
Rubber Hammer
Adjustable Wrench
Pencil
Screwdriver
CAUTION
1. Follow installation instructions carefully to ensure unit is properly attached to the wall.
2. To avoid a possible fire hazard, it is essential unit is mounted in accordance with
guidelines stated in the instruction.
3. Radiator is intended for indoor use only, do not place radiator inside a shower,
steam room, or wherever unit would be exposed to water.
4. These radiators can be very heavy products it is recommended you consult a
qualified person if you are unsure about the suitability of the wall they are to be
mounted on to take the weight.
It should only be filled with water and at a temperature below 100 °C(212°F). See table below for
installation requirements. If the temperature exceeds 48°C (or 120°F), please install a warning sign
near the product to avoid burning and scolding accidents.
Fill 3/4 Full: water only
Temperature: 0°C ＜ t ≤ 100°C
Comments: If ambient temperature drops below 1°C,
drain out the water to prevent freezing.
Important
Wipe the surface clean with a soft, damp cloth. Never use abrasive cleaners on this product as
they will damage the surface.

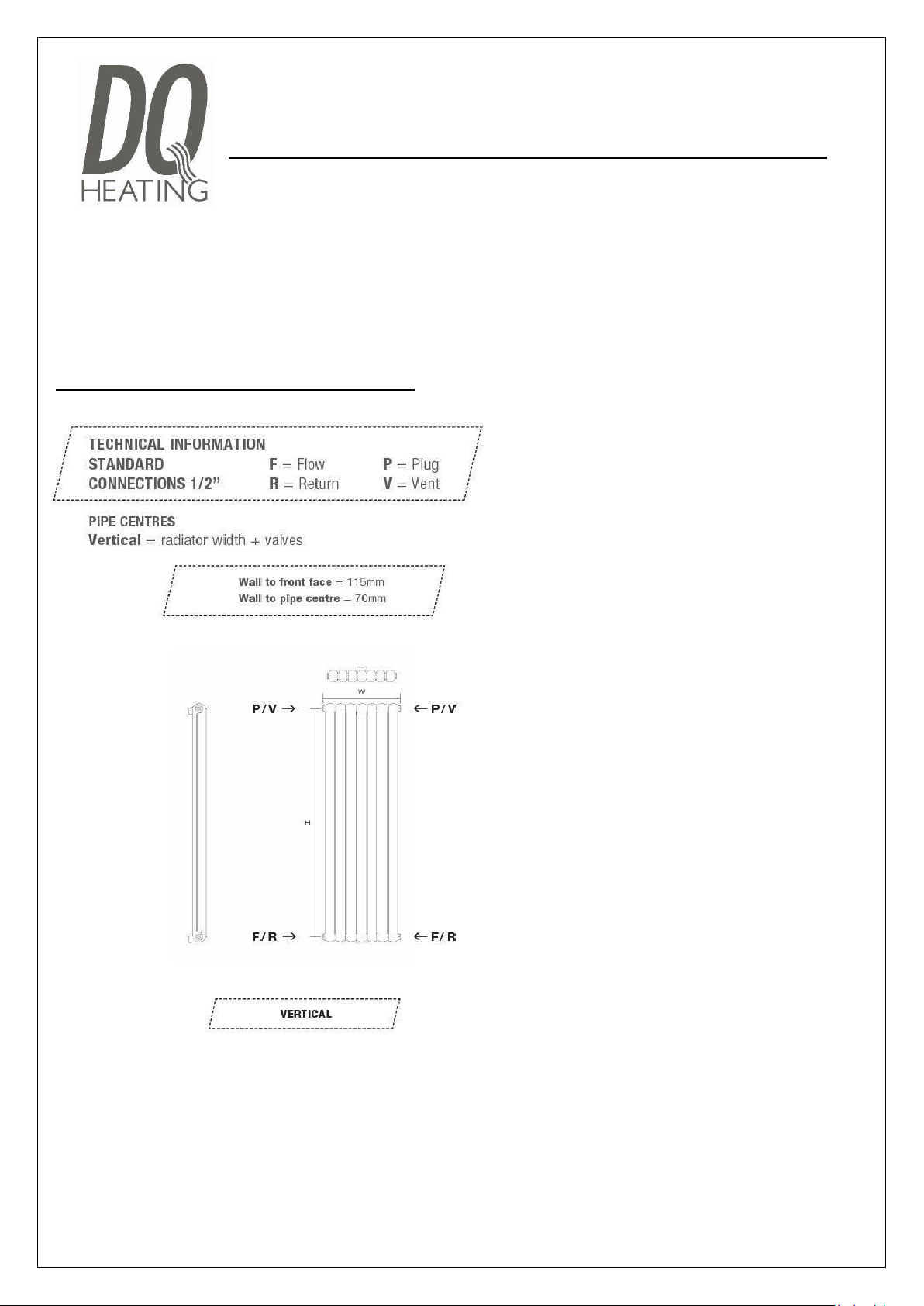

TECHNICAL DATA

3
Observe all local plumbing and building codes.
Shut off the main water supply.
Read these instructions carefully to ensure proper installation.
Check to make sure you have the following parts indicated below.
BEFORE INSTALLATION
IMPORTANT CHILD SAFETY NOTE
Important: Please note that you are 100% legally responsible for your own child’s safety at
home. Once the radiator is installed, it can become a hazard for children as a) This radiator
is not designed to support unreasonable extra weight, such as that of a child, and b) The
radiator becomes hot during use. Due to this, we must stress that you should not allow
children to climb/grab/play with the radiator or rails, as this can cause accident or injury
for the child from heat, falling or the radiator being pulled off the wall.
CAUTION
Please check you have alloftheseitemsinthebox.
NOTE:Accessory for bars ≤ 22( ＞ 22bar)
Body
x1
Spare Washer
x1
Air Vent
x1
Masonry
Wall Plug
x8(x12)
Blank Plug
x1
Screw
x8(x12)
Wall Bracket
x4(x6)

4
Position the towel rail in desired location check for level and mark four equal
positions for the brackets.
1

5
.
Drill holes in wall and insert wall plugs. N.B For false or studded walls different
fixings can be purchased from your local DIY store.
Fix the wall brackets to the wall with screws provided and ensure a secure
holding.
2
3

6
Wrap PTFE tape around blanking plug and bleeder valve and screw into top of
radiator tighten with a spanner.
Apply PTFE tape to valves and screw into bottom of radiator tighten with a
spanner.
5
Rest radiator onto brackets and connect valves to household supply.
4

7

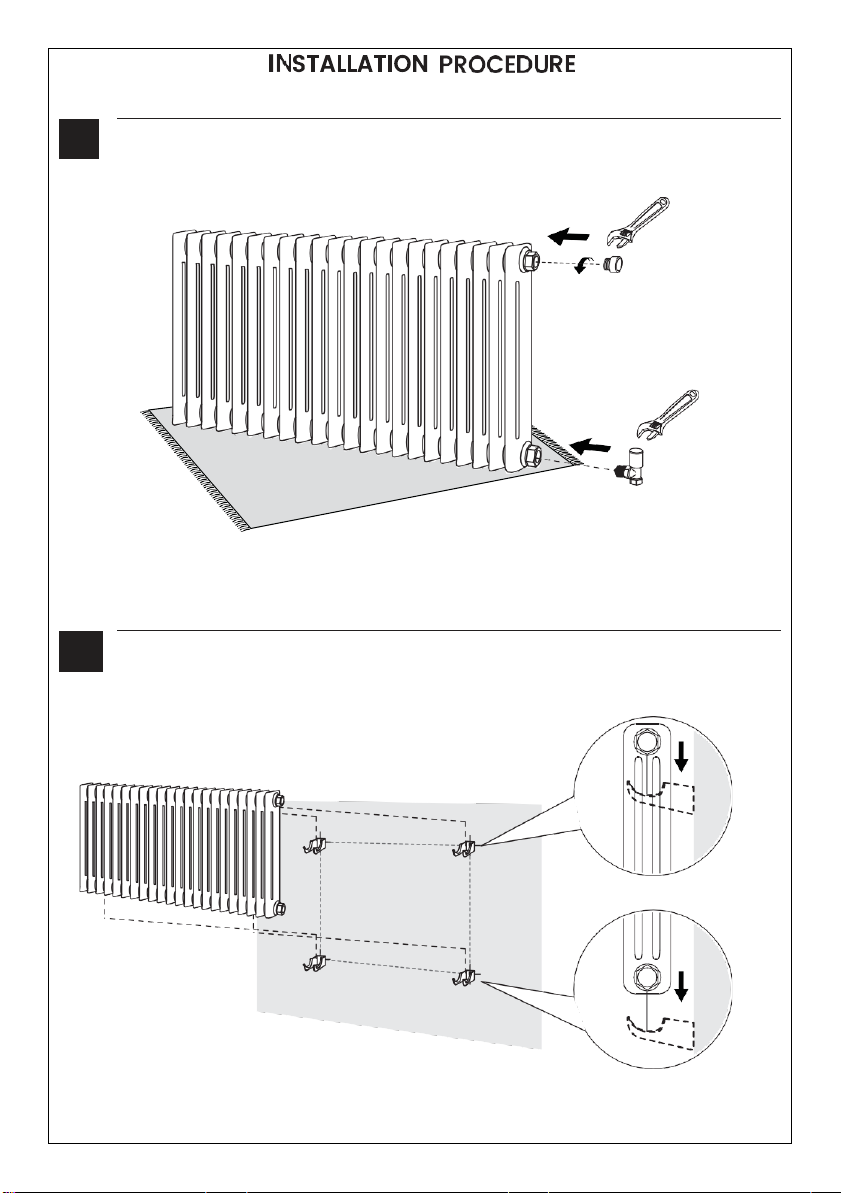

INSTALLATION PROCEDURE

8
CARE & CLEANING
Radiators are made from steel with plating and should not be cleaned with corrosive or
scouring cleaning agents.
TROUBLE SHOOTING
When your radiator doesn’t function, knowing basic radiator troubleshooting can save
you from the stress and the hassles of a non-functioning radiator. Here is a guide to
solve the most common problems associated with these radiators.
Problem
Cause
Action
Cold spots on the
radiator unit
-Water is not flowing
through radiator properly
1.Check to make sure there is no
trapped air inside the radiator.
“Bleed” the radiator to release air.
2.Make sure the valve is fully open
to allow water to run freely. Some
radiators may need diverter for
water to flow properly around the
unit.
Leak on the
radiator
-Valve nut isloose
-Welding problem
-Tighten the valve nut
-Replace radiator
Sound of whistling
or water whooshing
-Radiator was not
properly balanced
when it was installed
-Re-install
Clanking sound
-The radiator was
installed in a space
that doesn’t allow for
pipe expansion
-Re-install
Use a screwdriver to open the air vent, open the valve and let the water rush into the
radiator.
Check all connection for leaks.
Once water overflows from the air vent, there is no air in the tube.
Use a screwdriver to close the air vent, turn on the valve and the radiator is ready for
use.
AFTER INSTALLATION

9
