Dräger Babytherm 8004 User manual

Babytherm8004/8010
Infant Warmer System
Operating Instructions
1-214-94
D

Operating Instructions Babytherm 8004/8010, 2. ed.
NOTICE
Proprietary Information
This document contains information in which Dräger, Inc. claimed proprietary
rights. The information may not be reproduced in whole or in part except as
authorized in writing by Dräger. This information is the property of Dräger, Inc.,
it is provided solely for the use intended.
Repairs/Modifications
Repairs on this device shall be performed only by DrägerService or its Authorized
Service Centers. Information about repairs can be obtained from Dräger or
Authorized Dealers. Dräger, Inc. will not be responsible for injury to persons or
damage to property arising directly or indirectly out of unauthorized repairs or
modifications to this device. Furthermore, any unauthorized repairs or
modifications void any warranty extended by Dräger.
This document is provided for your information only. It will not be exchanged or updated
without request.
Trademarks
The Dräger name and logo, the name Babytherm and BabyLink are registered
trademarks of Drägerwerk Aktiengesellschaft.
ThermoView and ThermoMonitoring are trademarks of Drägerwerk
Aktiengesellschaft.
Dräger Medizintechnik GmbH 1997
All rights reserved, Subject to modifications

Contents
3
Operating Instructions Babytherm 8004/8010, 2. ed.
Page
Inspection and Maintenance............................... 52
Replacement of Parts............................................52
Preventive Maintenance Intervals.......................... 52
Troubleshooting.................................................. 53
General................................................................ 53
Radiant Heater......................................................53
Mattress Heater....................................................54
What's What........................................................ 55
Overview.............................................................. 55
Radiant Heater......................................................56
Controller............................................................. 57
Controller - Rear View.......................................... 59
Labels.................................................................. 60
Technical Data.....................................................61
Ordering Information...........................................65
Index ................................................................... 66
Contents
Page
Important Safety Information READ THIS FIRST.4
Operator's Responsibility for Patient Safety............ 4
Limitation of Liability............................................... 4
Warranty................................................................ 5
Definitions.............................................................. 6
General WARNINGS and CAUTIONS................... 7
Precautions During Preparation.............................. 8
Precautions During Operation ................................8
Precautions During Care.......................................11
Precautions During Maintenance...........................11
Intended Use.......................................................12
Theory of Operation............................................ 13
Description of System Components...................... 14
Alarm System....................................................... 15
Operating Concept...............................................16
Preparation..........................................................18
Preparing Column Accessories.............................18
Preparing the Bed.................................................19
Attaching Ventilator Circuit Support Arm...............21
Supplies Storage Options ....................................21
Adjusting the Height (Option) ...............................21
Preparing for Intra-Hospital Patient Transport .......22
Testing Readiness for Operation ....................... 23
Before First Use................................................... 23
Before Each Use.................................................. 23
Operation ........................................................... 26
Precautions During Patient Care.......................... 26
Using the Radiant Heater .................................... 28
Setting Heater Output Manually .......................... 28
Using Skin Temperature Control ......................... 30
ThermoMonitoring ............................................... 35
Switching Radiant Heater Off................................36
Using Mattress Heater (Babytherm 8010) ........... 37
Notes on Heater Settings .................................... 40
Using Phototherapy (Available Option).................. 43
Configuration Mode.............................................. 44
Switching Lighting On/Off.................................... 48
Central Alarm....................................................... 48
Taking X-Rays ..................................................... 49
Shutting Down......................................................49
Care .................................................................... 50
Disassembly......................................................... 50
Cleaning/Disinfecting/Sterilizing............................51
Before Next Use ................................................. 51

Limitation of Liability
Dräger, Inc.'s liability, whether arising out of or related
to manufacture and sale of the goods, their installation,
demonstration, sales representation, use, performance,
or otherwise, including any liability based upon Dräger,
Inc.'s Product Warranty, is subject to and limited to the
exclusive terms and conditions as set forth, whether
based upon breach of warranty or any other cause of
action whatsoever, regardless of any fault attributable
to Dräger, Inc. and regardless of the form of action
(including, without limitation, breach of warranty,
negligence, strict liability, or otherwise).
THE STATED EXPRESSED WARRANTlES ARE IN
LlEU OF ALL OTHER WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING, WITHOUT LIMITATION,
WARRANTlES OF MERCHANTABILITY, FITNESS
FOR ANY PARTICULAR PURPOSE, OR
NONINFRINGEMENT.
Dräger, Inc. shall not be liable for, nor shall buyer be
entitled to recover any special incidental, or
consequential damages or for any liability incurred by
buyer to any third party in any way arising out of or
relating to the goods.
Operator's Responsibility for Patient Safety
For correct and effective use of the product and in
order to avoid hazards it is mandatory to carefully
read and to observe all portions of this manual.
The design of the equipment, the accompanying
literature, and the labeling on the equipment take into
consideration that the purchase and use of the
equipment are restricted to trained professionals, and
that certain inherent characteristics of the equipment
are known to the trained operator. Instructions,
warnings, and caution statements are limited, therefore,
largely to the specifics of the Dräger design.
This publication excludes references to various hazards
which are obvious to a medical professional and
operator of this equipment, to the consequences of
product misuse, and to potentially adverse effects in
patients with abnormal conditions. Product modification
or misuse can be dangerous. Dräger, Inc. disclaims all
liability for the consequences of product alterations or
modifications, as well as for the consequences which
might result from the combination of this product with
other products whether supplied by Dräger or by other
manufacturers if such a combination is not endorsed by
Dräger, Inc.
Patient monitoring
The operators of the infant warmer system must
recognize their responsibility for choosing appropriate
safety monitoring that supplies adequate information on
equipment performance and patient condition. Patient
safety may be achieved through a wide variety of
different means ranging from electronic surveillance of
equipment performance and patient condition to simple,
direct observation of clinical signs. The responsibility
for the selection of the best level of patient monitoring
lies solely with the equipment operator.
Important Safety Information
Operator's Responsibility for Patient Safety
Limitation of Liability
4
Operating Instructions Babytherm 8004/8010, 2. ed.

Application of this warranty is subject to the following
conditions:
1. Dräger, Inc. or its authorized representative must
be promptly notified, in writing, upon detection of
the defective material or equipment.
2. Defective material or equipment must be returned,
shipping prepaid, to Dräger or its authorized
representative.
3. Examination by Dräger or its authorized
representative must confirm that the defect is
covered by the terms of this warranty.
4. Notification in writing, of defective material or
equipment must be received by Dräger or its
authorized representative no later than two (2)
weeks following expiration of this warranty.
In order to assure complete protection under this
warranty, the Customer Registration Card and/or
Periodic Manufacturer's Service Record (if applicable)
must be returned to Dräger within ten (10) days of
receipt of the equipment.
The above is the sole warranty provided by Dräger, Inc.
No other warranty expressed or implied is intended.
Representatives of Dräger are not authorized to modify
the terms of this warranty.
Dräger, Inc., Telford, PA
Warranty
All Dräger products are guaranteed to be free of
defects for a period of one year from date of delivery.
The following are exceptions to this warranty:
1. The defect shall be a result of workmanship or
material. Defects caused by misuse, mishandling,
tampering, or by modifications not authorized by
Dräger, Inc. or its representatives are not covered.
2. Rubber and plastic components and materials are
warranted to be free of defects at time of delivery.
Any product which proves to be defective in workman-
ship or material will be replaced, credited, or repaired
with Dräger, Inc. holding the option. Dräger, Inc. is not
responsible for deterioration, wear, or abuse. In any
case, Dräger, Inc. will not be liable beyond the original
selling price.
Important Safety Information
Warranty
5
Operating Instructions Babytherm 8004/8010, 2. ed.

Definitions
NOTE: A NOTE provides additional information
intended to avoid inconveniences during operation.
Inspection = examination of actual condition
Service = measures to maintain specified
condition
Repair = measures to restore specified
condition
Maintenance = inspection, service, and repair,
where necessary
Preventive = Maintenance measures at regular
Maintenance intervals
Typing conventions in this manual
Display messages are printed in bold type, e. g:
Battery discharged
Controller keys are designated as »Key Name«, e.g.
»man.«
CAUTION !
A CAUTION statement designates the possibility
of damage to equipment if disregarded.
WARNING !
A WARNING statement refers to conditions with
a possibility of personal injury if disregarded.
Important Safety Information
Definitions
6
Operating Instructions Babytherm 8004/8010, 2. ed.

CAUTION !
Maintenance
In case of malfunction of this device, contact
your local DrägerService or our Factory
Authorized Technical Service Center.
The device must be inspected and serviced
(preventive maintenance) by competent and
factory authorized technical service represen-
tatives at regular 2 year intervals. A record must
be kept on this preventive maintenance. We
recommend obtaining a service contract through
your vendor.
Maintenance or repair of the Babytherm
8004/8010 shall be performed only by Dräger
authorized technical service representatives.
CAUTION !
Restriction of Distribution
Federal Law and Regulations in the United
States and Canada restrict this device to sale
by or on the order of a physician.
Device for use only in health care facilities and
only used by persons with specific training and
experience in the use of the device.
WARNING !
Do not use skin temperature control for
infants with a high temperature. Their skin
temperature is significantly higher than normal
so that controlling skin temperature would lead
to hypothermia. We recommend to set heater
output manually when caring for patients with
such conditions.
WARNING !
Skin temperature control must not be used
with babies in shock. Because of reduced
peripheral blood flow the skin temperature of
these babies occasionally lies well below the
core body temperature. Using a skin tem-
perature control system could lead to over-
heating. We recommend to set heater output
manually when caring for patients with such
conditions.
General WARNINGS and CAUTIONS
WARNING !
Do not use cellular phones within 33 feet (10 m )
of the equipment.
Wireless phones may cause malfunction
in electromedical equipment.
WARNING !
DANGER, risk of explosion if used in the
presence of flammable anesthetics.
This device is neither approved nor certified for
use in areas where combustible or explosive
gas mixtures are likely.
WARNING !
This device is to be used only in rooms with
line power installations complying with
national safety standards for hospital patient
rooms. (e.g., IEC 601.1, "Safety of Medical
Equipment).
To maintain grounding integrity, connect only
to a "hospital grade" receptacle. Always
disconnect supply before servicing.
WARNING !
Strictly follow this Operator's Instruction
Manual
Any use of the product requires full
understanding and strict observation of all
portions of these instructions. The equipment
is only to be used for the purpose specified
under "Intended Use" (see page 12). Observe
all WARNINGS and CAUTIONS as rendered
throughout this manual and on labels on the
equipment.
Important Safety Information
General WARNINGS and CAUTIONS
7
Operating Instructions Babytherm 8004/8010, 2. ed.

Precautions During Operation
WARNING !
Patient Temperature Monitoring
Check the baby´s core temperature and skin
condition at regular intervals and adjust tem-
perature setting to individual patient needs.
Core temperature of the baby must be
monitored particularly carefully during
phototherapy or while the radiant heater is
used in conjunction with mattress heater.
Skin temperature monitoring is no substitute
for core temperature checks since the two
parameters do not always closely correlate.
WARNING !
All accessories used must comply with
national safety standards for electromedical
equipment used in patient rooms
(e.g. IEC 601.1).
WARNING !
Continuous or intermittent audible alarms
require immediate operator attention to avert
or to prevent development of situations with
the possibility of patient injury.
WARNING !
When folding up surrounding panels, take
care not to pinch patient body parts, circuits,
or other items, such as sheets.
WARNING !
For lively and greater babies use side panels
of 23 cm height and additional inner panels.
Supervise the baby corresponding to its
liveliness.
WARNING !
Never leave patient unattended when
surrounding panels are down. Risk of patient
injury by infant falling out of the bassinet.
Precautions During Preparation
CAUTION !
Never route patient circuits or lines over top of
panels – they may get pinched when folding up
panels or when installing cover.
CAUTION !
Do not place any objects above or underneath
bassinet where they might be damaged when
height adjustments are made.
CAUTION !

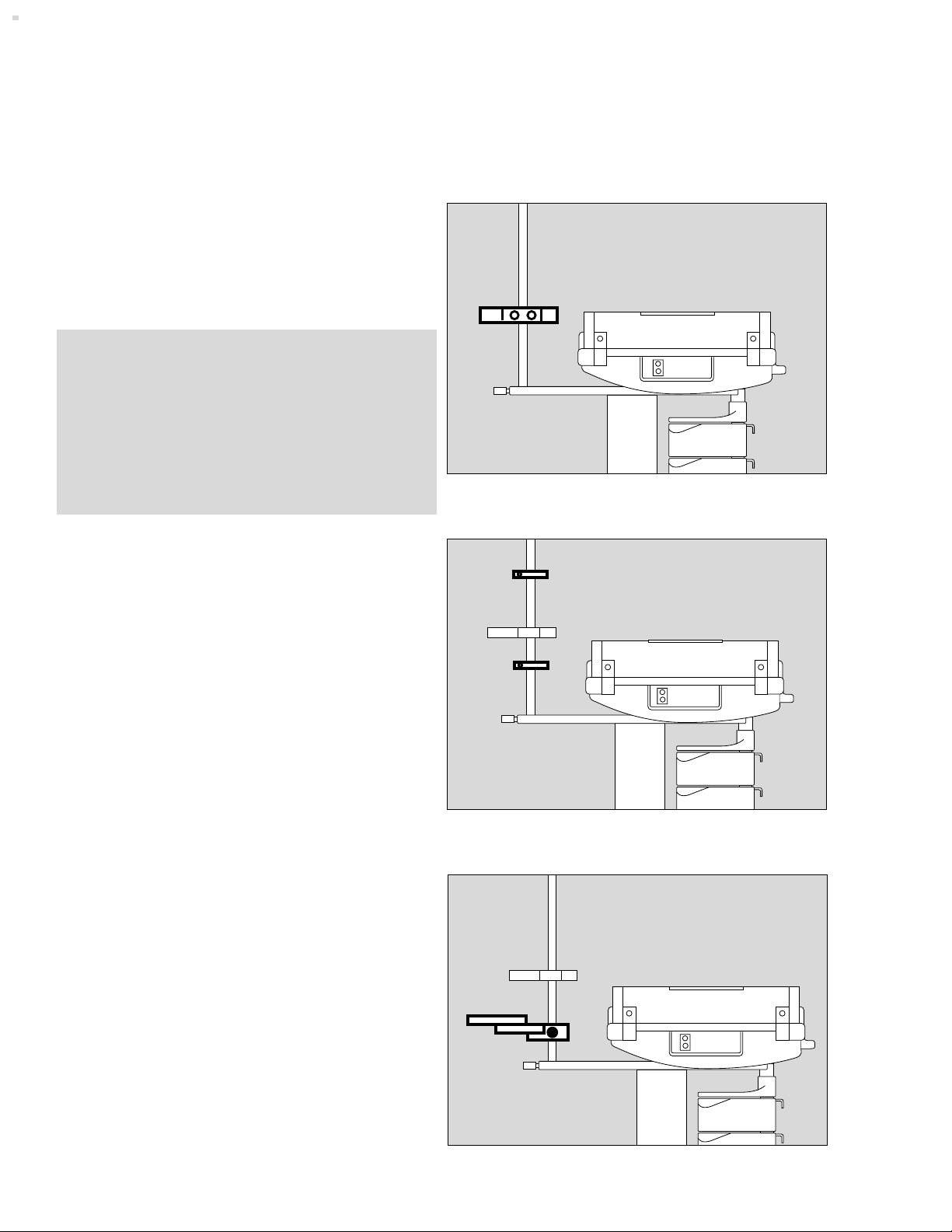

Always verify that monitor shelves and other
accessories are securely attached.
Always observe the following load limits
per shelf: not to exceed 20 kg (44 lbs).
total load on both columns: max. 30 kg (66 lbs).
For items attached to column on swivel shelves,
do not exceed load of 5 kg on that column.
WARNING !
To maintain grounding integrity, connect only
to a "hospital grade" receptacle.
WARNING !
Always select correct mattress type for
intended mode of operation (see page 20).
Important Safety Information
Precautions During Preparation
Precautions During Operation
8
Operating Instructions Babytherm 8004/8010, 2. ed.
CAUTION !
Always use circuits and patient lines with sufficient
length for secure connection at minimum and
maximum height.
CAUTION !
Always observe the load limit of 50 kg on the
electric height adjustment.

WARNING !
Fire Hazards from oxygen !
– No open flames or cigarettes !
Textiles, plastics, and oils readily ignite in
an oxygen enriched atmosphere and burn
with great intensity.
– Keep oxygen valves, connections, and seals
free from oil and grease.
– Open valves slowly
– Do not operate Babytherm in the presence
of flammable anesthetics or disinfectants
– Do not use or store flammable liquids such
as alcohol, ether, or acetone inside the
Babytherm bassinet.
– Do not use electrical equipment inside
hood with the exception of devices
approved for use in explosive environments.
WARNING !
Always operate phototherapy lights in combi-
nation with radiant heater. Otherwise risk of
hypothermia for the undressed infant.
Core temperature of the baby must be
monitored particularly carefully during
phototherapy because of the additional
transfer of thermal energy to the patient.
WARNING !
Do not use skin temperature control for
infants with a high temperature. Their skin
temperature is significantly higher than normal
so that controlling skin temperature would lead
to hypothermia. We recommend to set heater
output manually when caring for patients with
such conditions (see page 28).
WARNING !
Skin temperature control must not be used
with babies in thermic shock. Because of
reduced peripheral blood flow the skin
temperature of these babies occasionally lies
well below the core body temperature. Using
a skin temperature control system could lead
to overheating. We recommend to set heater
output manually when caring for patients with
such conditions (see page 28).
WARNING !
Do not put any medications or infusion
solutions in the heated area.
WARNING !
Never leave baby unattended while radiant
warmer is in operation!
Measure core temperature at regular intervals!
WARNING !
Do not use flammable detergents, or medi-
cations while radiant heater is in operation.
Fire hazard!
WARNING !
Do not touch top of radiant heater or
protective screen.
Danger of burn injuries!
WARNING !
Mattress Heater
(Babytherm 8010 only)
When mattress heating is used, the gel mat-
tress must be placed directly on the heated
tray surface.
The Dräger gel mattress (part no. 2M 20 827)
must not be used in any bassinets other than
the Babytherm. Heater plate temperatures
above 40 °C (104 °F) implicate the danger of
patient burns! Use of a gel mattress with
unheated bassinets will result in uncontrolled
patient cooling.
Always take into account warm-up time of the
mattress (approximately 1 hour) before
placing a patient in the bassinet.
Do not switch off Babytherm while a baby is
lying on the gel mattress as this will result in
uncontrolled cooling of patient .
Important Safety Information
Precautions During Operation
9
Operating Instructions Babytherm 8004/8010, 2. ed.

CAUTION !
Do not place any objects above or underneath
bassinet where they might be damaged when
height adjustments are made.
CAUTION !
Remove from mattress all objects with sharp
edges. The gel mattress could be damaged!
Do not fold gel mattress!
WARNING !
Check the baby´s core temperature at regular
intervals. Phototherapy increases heat
transfer to patient.
Measure patient's bilirubin level at regular
intervals
WARNING !
Always consider differentiated diagnosis for
patient so life sustaining measures are not
delayed.
WARNING !
Always use patient eye protection when using
phototherapy.
WARNING !
Use temperature settings in the lower exten-
ded temperature range only on the order of a
physician. Watch patient particularly carefully!
WARNING !
Always warm up mattress before placing
patient.
Do not switch off Babytherm while a baby is
lying on the gel mattress as this will result in
uncontrolled cooling of patient.
WARNING !
When using skin temperature control mode,
check infant skin condition at regular intervals
and verify that skin temperature probe is
securely attached. A detached probe will
measure air temperature and the baby might
become overheated.
WARNING !
Never use skin temperature probes for rectally
measuring core temperature !
Specifically, never use skin temperature probe
rectally for skin temperature control as this
would measure and use core instead of skin
temperature for control.
WARNING !
The sensor probe must never be placed under
the baby. It would be measuring and attemp-
ting to control core temperature rather than
skin temperature.
WARNING !
Always verify that sensor probe is specified
and approved for use with Dräger Babytherm
Radiant Warmer 8004/8010.
WARNING !
Physiological risks of oxygen !
– Oxygen therapy only on the order of a
physician
– Elevated oxygen concentrations must be
selected on the basis of arterially measured
oxygen partial pressure in the patient's
blood. Otherwise risk of hyperoxemia (eye
injuries with consequential blindness) or
hypoxemia (brain injuries).
– Monitor oxygen concentration at all times
during oxygen therapy.
Important Safety Information
Precautions During Operation
10
Operating Instructions Babytherm 8004/8010, 2. ed.

Precautions During Maintenance
WARNING !
Never operate the infant warmer system if it
has suffered physical damage or does not
seem to operate properly. In this case, always
refer servicing to properly trained and factory
authorized service personnel.
WARNING !
Always disconnect power supply before
servicing.
WARNING !
Maintenance work on the Babytherm 8004/
8010 may be performed by trained and factory
authorized staff only.
WARNING !
To avoid any risk of infection, clean and
disinfect bassinet and accessories before any
maintenance according to established
hospital procedures – this applies also when
returning units or parts for repair.
Precautions During Care
CAUTION !
Only use detergents/disinfectants with a
ph value of 7 to 9 for phototherapy lenses.
CAUTION !
Do not launder mattresses in an automatic
washing machine. Do not autoclave mattresses.
CAUTION !
Do not expose Babytherm 8004/8010 to high
levels of ultraviolet radiation. This may cause
cracks in the PMMA (acrylic glass) parts.
CAUTION !
Certain components of the bassinet consist of
materials that are sensitive to certain organic sol-
vents sometimes used for cleaning and disinfect-
ing (e.g., alcohols, phenols, halogen releasing
compounds, oxygen releasing compounds,
strong organic acids, etc.). Exposure to such
substances may cause damage that is not always
immediately recognized. Sterilization of the
bassinet itself with ethylene oxide (EtO) is also
not recommended.
CAUTION !
Do not fold gel mattress!
WARNING !
Always disconnect power supply before
cleaning and disinfecting.
WARNING !
Always follow accepted hospital procedures
for handling equipment contaminated with
body fluids.
Important Safety Information
Precautions During Care
Precautions During Maintenance
11
Operating Instructions Babytherm 8004/8010, 2. ed.

Babytherm 8004 warms with a radiant heater providing
both "manual control" and "skin temperature control"
modes.
Babytherm 8010 warms with a radiant heater providing
both "manual control" and "skin temperature control"
modes as well as with a heated gel mattress.
Therapy and nursing uses:
– Resuscitation table
– Bassinet for use in normal and intensive care
– Patient re-warming and prevention of heat loss
– Thermal stabilizing of a patient with mattress heater
(Babytherm 8010, only)
– Gentle warming therapy using the combination of
radiant and mattress heater (Babytherm 8010, only)
– Cooling patients with high temperatures (mattress
temperature below body temperature;
Babytherm 8010, only)
– ThermoMonitoring by tummy-toe temperature meas-
urement for improved feedback of the thermal
condition of a patient
– Trendelenburg and reverse Trendelenburg
positioning
– Weaning of incubator patients to standard
(unheated) bassinet
– Oxygen and aerosol inhalation therapy
with appropriate accessories
– Phototherapy for lowering of patient blood bilirubin
levels (with phototherapy option)
– X-Ray assistance
Options
– Power column for electric height adjustment
– One or two (with power column installed) swivel
cabinets
– Double (inner) walls
– IV-pole
– Phototherapy
– Hood
– Swivel tray
Optional accessories
– Bronchial suction equipment
–O2-management accessories (flowmeter,
headhood, monitor)
– Interface for data output
Intended Use
Babytherm 8004/8010 is an infant warmer system
intended as a therapeutic device providing warmth for
premature and full-term neonates and infants with a
weight up to16 lbs. It is intended for use in delivery
rooms, operating theatres, maternity and obstetric units,
neonatal wards, neonatal and paediatric intensive care
units. Both systems can be equipped with the optional
phototherapy system for treatment of hyperbilirubinemia.
CAUTION !
Restriction of Distribution
Federal Law and Regulations in the United
States and Canada restrict this device to sale
by or on the order of a physician.
Device for use only in health care facilities and
only used by persons with specific training and
experience in the use of the device.
WARNING !
DANGER, risk of explosion if used in the
presence of flammable anesthetics.
This device is neither approved nor certified
for use in areas where combustible or
explosive gas mixtures are likely.
WARNING !
This device is to be used only in rooms with
line power installations complying with
national safety standards for hospital patient
rooms. (e.g., IEC 601.1, "Safety of Medical
Equipment).
To maintain grounding integrity, connect only
to a "hospital grade" receptacle. Always
disconnect supply before servicing.
Intended Use
12
Operating Instructions Babytherm 8004/8010, 2. ed.

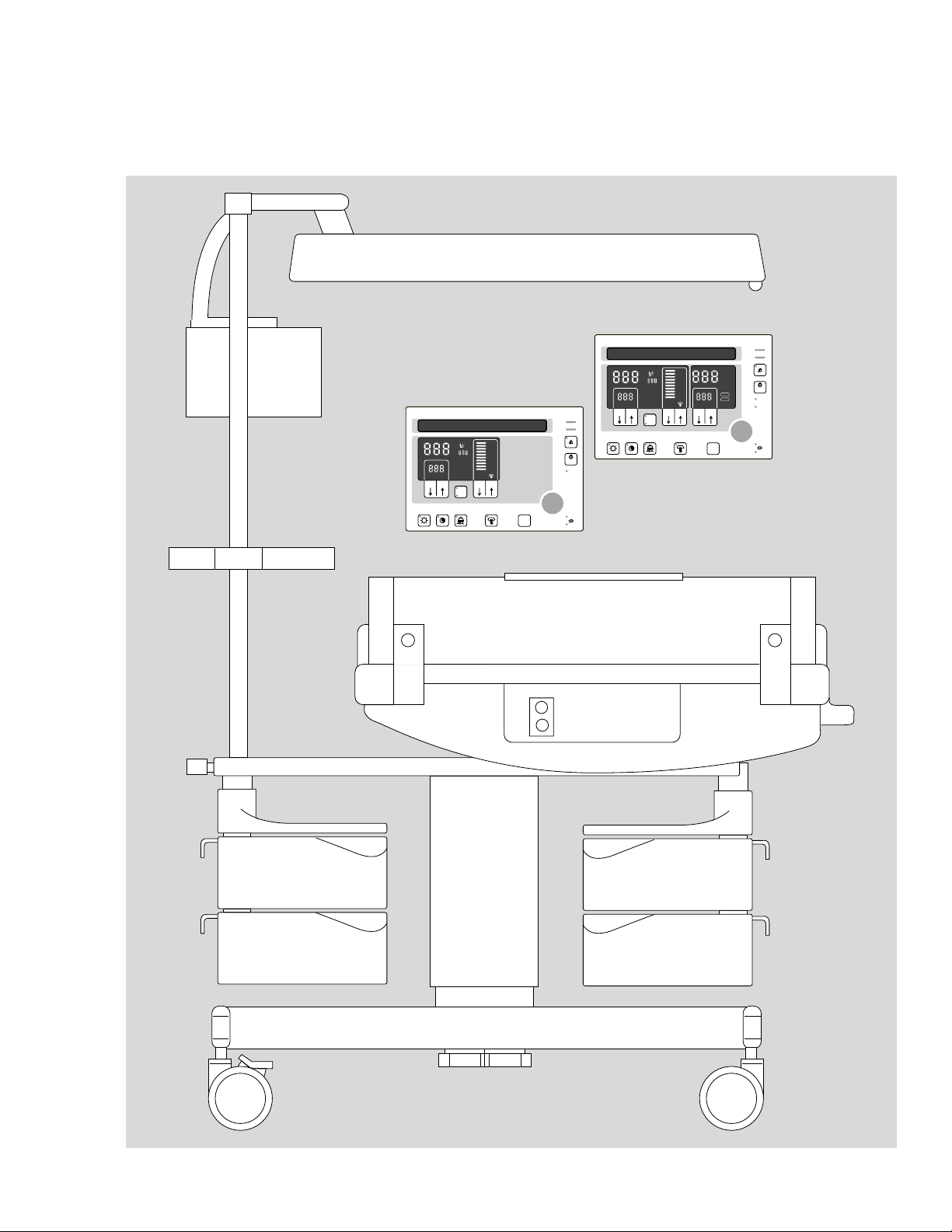

Overview
Operating Concept
Overview
13
Operating Instructions Babytherm 8004/8010, 2. ed.
Check
Inop.
Babytherm 8004
OK
1
5
10
°C
Skin
man.
Skin °C manual
D
Babytherm 8004 Check
Inop.
Babytherm 8010
OK
1
5
10
>38°C
<36°C
°C°C
Skin
man.
Skin °C manual Mattress °C
D
Babytherm 8010

Mattress heating
The Babytherm 8004/8010 features a mattress heating
system that uses conductive heat transfer to warm up
patients and to keep them warm.The system consists
of a gel mattress, an aluminum heating plate and an
electronic control and monitoring unit.
The gel mattress is made of a gel material with
excellent heat conducting properties, which won't dis-
locate even when the bed is tilted. The gel is enclosed
by a soft, skin compatible film.
The mattress molds itself to the body contours of the
patient lying on it, resulting in a large contact surface, a
property facilitating heat conduction to the patient and
avoiding pressure points (anti-decubitus effect). A cold
gel mattress, on the other hand, dissipates a patient's
thermal energy. The gel material has an excellent capa-
city for storing heat. When the power supply is discon-
nected (e.g. during a transport within the hospital), the
patient is kept warm for approximately 15 minutes if
sufficiently insulated (blanket, cover).
The aluminum heating plate consists of a 6 mm
(1/4 inch) thick aluminum plate and a heater element
attached below. It distributes heat evenly over the
entire bed area.
The mattress heater membrane keypad with its buttons
and display is located on the right-hand side of the
controller unit.
Mattress temperature is controlled according to the set
value entered. It adjusts in such a way that the set
temperature is reached (but not exceeded) in those
areas where the patient is in contact with the mattress.
System monitoring includes check routines and alarm
features.
Configuration mode
Configuration mode is a special operational mode of
the Babytherm 8004/8010 controller. In this mode,
information regarding software version and error log
cna be polled. The device can also be programmed
with user specific settings of skin temperature alarm
threshold, volume of audible alarms, as well as
language and contrast of the alphanumeric display. It
also serves to test the built-in nurse call and keys of the
operating panel.
Description of System Components
Babytherm consists of
– a mobile chassis with the attached infant bed
– a controller unit with operating panel
– a radiant heater, and
– a mattress heating system (Babytherm 8010 only)
Controller unit
The controller unit is located below the radiant warmer
between the two support columns at the head end of
the bed. The panel contains a membrane keypad and
display area. Integrated into the alphanumeric display
(2 x 40 characters) is a user guide for easier operation.
Radiant heater
The radiant warmer combines two infrared ceramic
heaters and 2 lights for illuminating the bed surface.
An integrated phototherapy light is optional.
The work light provides two settings, for daytime and
for nighttime lighting. The well balanced color spectrum
of the lamps used makes it easier to recognize diag-
nostically significant skin color nuances.
The radiant warmer can be operated in manual control
mode or skin temperature control mode.
"Manual" control mode provides fixed heater output
level settings from 1 through 10.
"Skin control" controls skin temperature according to a
preset value. Heater output is then automatically
controlled to patient needs.
Both modes of operation are monitored with check
routines and alarm schemes.
ThermoMonitoring
ThermoMonitoring is made possible with a secondary
skin temperature sensor. Skin temperatures taken
close to the body core and at the periphery (tummy-toe
temperature monitoring) are displayed on the controller
unit. They can be graphically represented on a PC via
optional serial interface (RS 232), using Dräger's
ThermoViewsoftware, improving diagnostic
possibilities.
Theory of Operation
Description of System Components
14
Operating Instructions Babytherm 8004/8010, 2. ed.

Phototherapy (available option)
Light from the halogen lamps contributes to photo-
chemical breakdown of bilirubin in the skin.
Dräger halogen lights emit very effectively at wave-
lengths around 460 nm without the blue light often
associated with phototherapy. They therefore provide
for good skin color representation.
Phototherapy is switched on the main controller panel.
Modes of heater operation Babytherm 8004
– Operation of radiant heater with preset heater output:
Heater output is controlled in "manual" mode and
therapy is time-limited for higher heater output
settings.
– Operation of radiant heater in "skin control" mode:
Skin temperature is monitored and controlled.
Modes of heater operation Babytherm 8010
– Operation of radiant heater with preset heater output:
Heater output is controlled in "manual" mode and
therapy time-limited for higher heater output settings.
– Operation of radiant heater in "skin control" mode:
Skin temperature is monitored and controlled.
– Mattress heater, independent of radiant heater:
Temperature of heating surface monitored and
controlled to maintain a preset temperature in the
contact area between infant and mattress.
Theory of Operation
Description of System Components
15
Operating Instructions Babytherm 8004/8010, 2. ed.

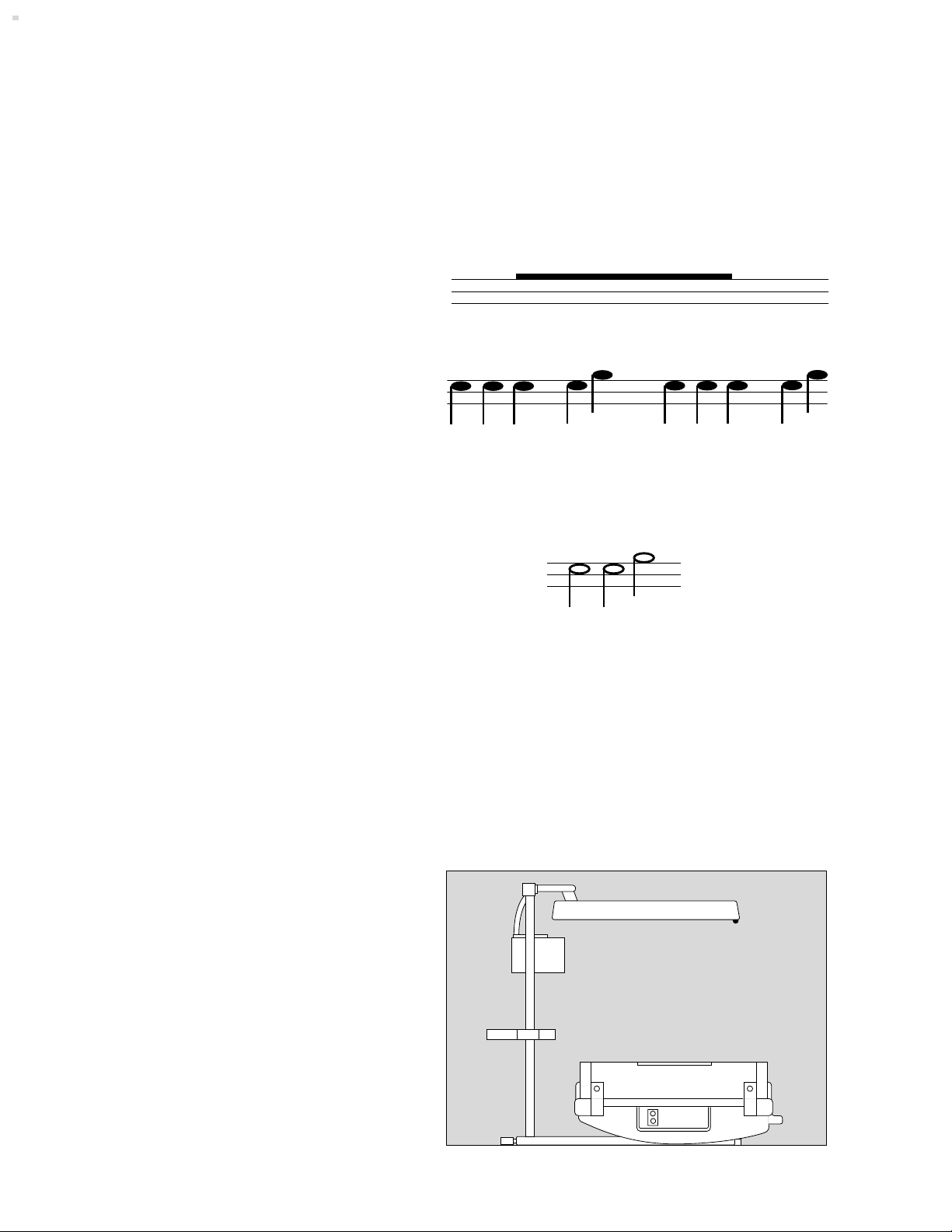

Alarm System
The Babytherm controller distinguishes three levels of
alarms.
High potential for patient risk
a continuous audible alarm (enunciator) that cannot be
silenced, for:
– device malfunction,
– power failure
an alarm tone sequence (loudspeaker) that can be
silenced in combination with flashing red LED, for:
– mattress heater sensor failure,
– mattress heater exceeding temperature limits,
– skin temperature sensor not connected during
skin control,
– sensor failure of tummy or toe skin temperature
sensor.
Medium potential for patient risk
an alarm tone sequence (can be silenced ) in
combination with flashing yellow LED, for:
– deviation between set and measured value for
skin or mattress temperature exceeding tolerance,
– 15-minute alarm (as a reminder to check core
temperature during manual mode with heater
levels higher than 3).
Low potential for patient risk
Display messages for:
– measured values out of measuring range,
– low battery voltage.
Any alarm that has not been acknowledged is indicated
by flashing red central alarm light on the radiant heater
unit.
The display shows a specific message for the alarm
activated.
NOTE: A new alarm being activated will always override
audible alarm silencing.
Central Alarm
1Red light on radiant heater starts flashing simul-
taneously with any audible alarms.
Acknowledging the alarm will switch light off.
Theory of Operation
Alarm System
16
Operating Instructions Babytherm 8004/8010, 2. ed.
1

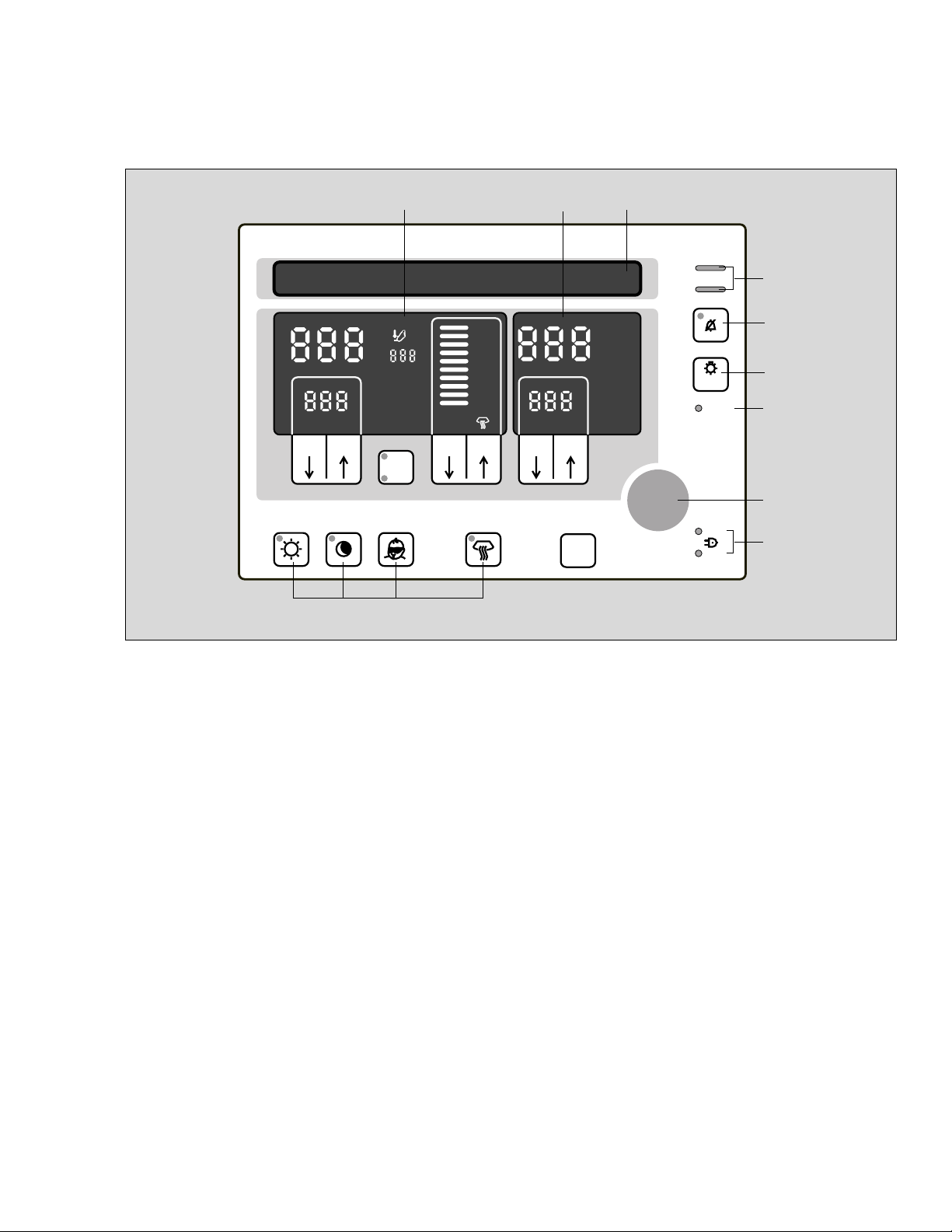

➈Display and keypad for radiant heater:
top: display for measured values of skin temperatures
close to core (tummy) and at periphery (toe);
bottom: Set value for skin temperature using keys for
changing set value and key for switching between
manual and skin temperature control mode. The
currently active mode is indicated by the respective
yellow LED;
Further to the right: bar graph for displaying heater
levels 1 through 10 for manual mode operation
Heater levels 1 to 3 = green bar elements,
Heater levels 4 to 10 = yellow bar elements,
and below, keys for setting heater levels.
➉On/Off keys for switching:
work light,
night light,
phototherapy (available option)
radiant heater.
The respective yellow LEDs are lit during operation.
Operating Concept
➀Status LEDs
Green LED continuously on during operation.
Red LED continuously on during power outages.
➁»OK« key for confirming settings and to acknowledge
alarms.
NOTE: If the »OK« key is not pressed within
10 seconds after changing a setting, the previous
settings will remain in effect!
➂Red indicator LED for "Inop." alarm.
➃Key for testing LEDs, displays, enunciator, and
audible alarm.
➄Key for silencing audible alarms.
➅Visual display of alarms:
Warning = red LED, Caution = yellow LED.
➆Text display, shows user messages and alerts.
➇Babytherm 8010 only – display and keypad for
operating mattress heater:
top: display of measured mattress temperature;
bottom: display of set value for mattress temperature
with keys for setting;
to the right: indicator for operation in extended range
high (>38 °C), low (<36 °C).
Theory of Operation
Operating Concept
17
Operating Instructions Babytherm 8004/8010, 2. ed.
Check
Inop.
Babytherm 8010
OK
1
5
10
>38°C
<36°C
°C°C
Skin
man.
Skin °C manual Mattress °C
➀
➁
➂
➃
➄
➅
➆
➇
➈
➉
D

Preparation
Preparing Column Accessories
Monitor shelf
Babytherm comes equipped with one monitor shelf.
Mounting rail elements (available option) to monitor shelf:
●Attach rail element to left and/or right of monitor shelf
with screws provided.
Compact rail
For placing smaller accessories, e.g. O2flowmeter,
O2monitor.
●Attach compact rail element to one of the columns
at a convenient height.
Instrument tray
For small instruments, maximum load capacity
3 kg (6.5 lbs).
●Put clamp of instrument tray on one of the columns
and tighten hand screw.
Recommended height: mattress level.
●Keep area clear for swiveling tray.
See above CAUTION for load limits to maintain a safe
level of stability against tipping over pursuant IEC
standards.
CAUTION !
Always verify that monitor shelves and other
accessories are securely attached.
Always observe the following load limits
per shelf: not to exceed 20 kg (44 lbs).
total load on both columns: max. 30 kg (66 lbs).
For items attached to column on swivel shelves,
do not exceed load of 5 kg on that column.
Preparation
Preparing Column Accessories
18
Operating Instructions Babytherm 8004/8010, 2. ed.

Preparing the Bed
The bed is surrounded by two side panels and two end
panels, which can be opened independently of each
other. End panels have cutouts with U-grommets for
routing circuits and patient cables.
Installing surrounding panels
1Insert lower pins on panel hinges into the left- and
right-hand slots in bassinet base.
●Position panel semi-upright.
2Press panel down firmly, until pins lock into position at
the bottom of slots.
●Tilt panel fully upright and let it slide into locking
position.
●Install all four panels in the same fashion.
Verify that the panels are seated correctly!
To open:
●Lift panel all the way up, until upper pins on hinge
brackets are out of their guide slots, then fold down.
Installing inside panels
Use inside panels to protect the baby from falling out
when side panels are open.
●Insert pins in tapered holes and press down slightly
until the inside panel is firmly seated.
●Repeat for second inner panel.
WARNING !
For lively and greater babies use side panels
of 23 cm height and additional inner panels.
Supervise the baby corresponding to its
liveliness.
Preparation
Preparing the Bed
19
Operating Instructions Babytherm 8004/8010, 2. ed.
11
22

Fitting a mattress
●Select mattress type:
– Operation with mattress heating
(Babytherm 8010 only):
Gel mattress 2M 20 827.
– Operation without mattress heating
(Babytherm 8004):
Foam rubber mattress 2M 21 012.
●Place the mattress in bassinet and cover it with a thin
sheet.
NOTE: Do not obstruct conductive heat transfer by
blankets or other insulating covers placed underneath the
patient.
Tilting the bed
1Pull handle of locking mechanism toward front.
2Push handle down = head-up position.
Pull handle up = head-down position.
●Release locking handle, the bed locks into position.
The bed can be tilted in increments of 0.5°.
Maximum tilt angles:
Trendelenburg position: 20°
Reverse Trendelenburg position: 15°
Preferred positions:
horizontal position,
10°Trendelenburg (head up) and
10°reverse Trendelenburg position (head down).
At max. tilt angle the mattress can slip from its position:
●In this case don't place sheet underneath the
mattress.
WARNING !
Always select correct mattress type for
intended mode of operation.
Preparation
Preparing the Bassinet
20
Operating Instructions Babytherm 8004/8010, 2. ed.
2
1
