Dräger GMS User manual

Instructions for Use
GMS Gateway
Data port
WARNING
For a full understanding of the
performance characteristics of this
medical device, the user should
carefully read these Instructions for
Use before use of the medical device.

2Instructions for Use GMS Gateway
Trademarks
Definition of Safety Notes
The safety notes in these Instructions for Use are
designed and defined as follows:
Abbreviations and Symbols
Please refer to the sections "Abbreviations and
Symbols" on page 9 for explanations.
Used trademark Owner of trademark
DrägerService®Drägerwerk AG & Co KGaA, Lübeck
VoluCountTM Drägerwerk AG & Co KGaA, Lübeck
LonWorks®Echelon Corp. San Diego, USA
WARNING
A WARNING statement provides important
information about a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION
A CAUTION statement provides important
information about a potentially hazardous
situation which, if not avoided, could result in
minor or moderate user or patient injury or in
damage to the medical device or other property.
NOTE
A NOTE provides additional information intended
to avoid inconvenience during operation.

Instructions for Use GMS Gateway 3
Table of Contents
Table of Contents
For Your Safety and that of Your Patients . . 5
Application . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Environment of Use . . . . . . . . . . . . . . . . . . . . . 6
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
LED Status Indicator GMS Gateway . . . . . . . . 7
Connection Plan GMS Gateway. . . . . . . . . . . . 8
Abbreviations and Symbols . . . . . . . . . . . . . . . 9
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
24 V LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Service LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . 10
States of the Service LEDs. . . . . . . . . . . . . . . . 11
Status DUO-LED of GMS side . . . . . . . . . . . . . 12
Status DUO-LED of LonWorks side . . . . . . . . . 12
Problem Solving . . . . . . . . . . . . . . . . . . . . . . . 13
Fault – Cause – Remedy . . . . . . . . . . . . . . . . . 13
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Safety Information . . . . . . . . . . . . . . . . . . . . . . 15
Disposal of the Medical Device . . . . . . . . . . . . 15
Acceptance and Handover to the Operator .16
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . 17
List of Accessories. . . . . . . . . . . . . . . . . . . . . 18

4Instructions for Use GMS Gateway
This page intentionally left blank.

Instructions for Use GMS Gateway 5
For Your Safety and that of Your Patients
For Your Safety and that of Your Patients
Strictly follow the Instructions for Use
Maintenance
Accessories
Not for use in areas of explosion hazard
General Safety Notes
The following WARNINGS and CAUTIONS apply to
general operation of the device.
WARNINGS and CAUTIONS specific to
subsystems or particular features appear with
those topics in later sections of these Instructions
for Use or in the Instructions for Use of any product
being used with this device.
WARNING
Any use of the device requires full
understanding and strict observation of all
portions of these Instructions for Use. The
device is only to be used for the purpose
specified under "Intended Use" on page 6.
Observe all WARNING and CAUTION
statements throughout these Instructions for
Use and all statements on device labels.
Failing to observe these instructions
constitutes a use of the device outside its
intended use.
WARNING
The medical device must be inspected and
serviced regularly by properly trained service
personnel. Repair of the device may also only
be carried out by properly trained personnel.
After each repair, a professional system check
must be performed. Dräger recommends that
a service contract be obtained with
DrägerService and that all repairs also be
carried out by them. Only authentic Dräger
spare parts may be used for maintenance.
Otherwise, this may impair correct
functioning of the device. Observe chapter
"Maintenance".
WARNING
Only the accessories indicated on the list of
accessories have been tested and approved
to be used with the device.
Accordingly, it is strongly recommended that
only these accessories be used in conjunction
with the specific device. Otherwise, this may
impair correct functioning of the device.
WARNING
The device is not approved for operation in
potentially explosive environments.
CAUTION
The operator of the medical supply unit is
responsible for the development of an emergency
plan in case of device failure (see ISO Standard
7396-1, Appendix F).

Application
6Instructions for Use GMS Gateway
Application
Intended Use
GMS gateway, data interface of the Dräger Alarm
Management System to external systems with a
LonWorks interface for the transfer of alarm and
operating signals from the central gas supply unit to
a visualization system (e.g. building control
systems).
Environment of Use
The GMS gateway can be used in non-medical
areas.
The GMS gateway is not intended to be used in
patient environment or medical environment. It is
not approved to be used in the area control unit.
Description
The GMS gateway is the data interface between
the Dräger Alarm Management System and a
LonWorks compatible external system.
The GMS gateway is part of the Dräger Alarm
Management System.
The GMS gateway has a status indicator with
5 LEDs that indicate the status of the data network.

Instructions for Use GMS Gateway 7
Overview
Overview
LED Status Indicator GMS Gateway
1Service LED, LonWorks side
2Service LED, GMS side
3Status DUO-LED, LonWorks side
4Status DUO-LED, GMS side
524 V LED
002
STATUS
SERVICE
GMSLonWorks 24V
GMS
Gateway
R
5
1
4
3
2

Overview
8Instructions for Use GMS Gateway

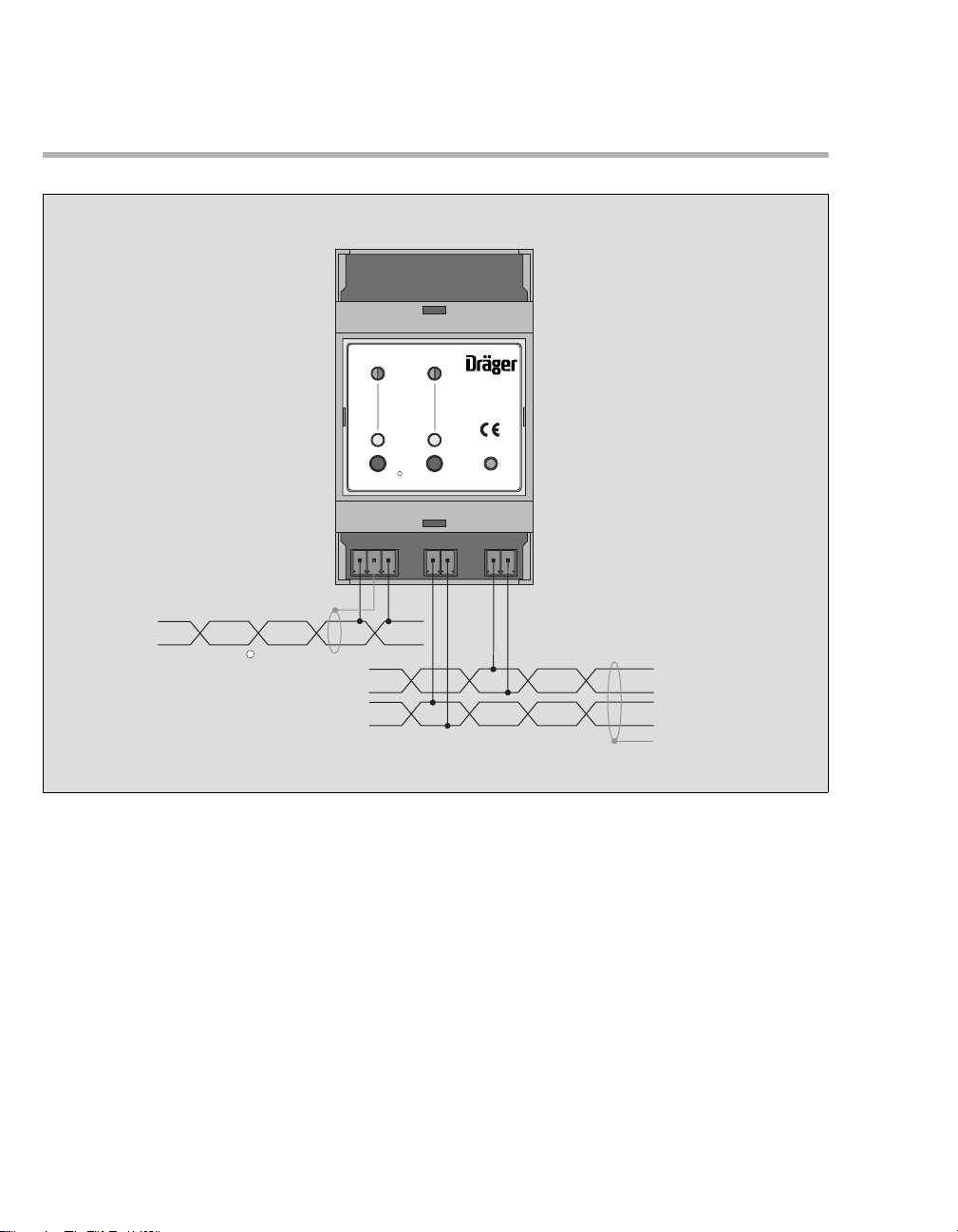

Connection Plan GMS Gateway
003
STATUS
SERVICE
GMSLonWorks 24V
GMS
Gateway
G51300
R
24V AC/DC
GMS
A
B
A
B
S
LonWorks
R
G 50 750

Instructions for Use GMS Gateway 9
Overview
Abbreviations and Symbols
Abbreviations
Symbols
1Front label
2Type plate (lateral, left)
3Label with Neuron IDs (lateral, right)
Layout:
Neuron ID xx:xx:xx:xx:xx:xx (GMS side)
Neuron ID xx:xx:xx:xx:xx:xx (LonWorks side)
Abbreviation Explanation
LON Local Operation Network
LED Light Emitting Diode
GMS Gas Management System
010
1
3
2
STATUS
SERVICE
GMSLonWorks 24V
GMS
Gateway
R

Operation
10 Instructions for Use GMS Gateway

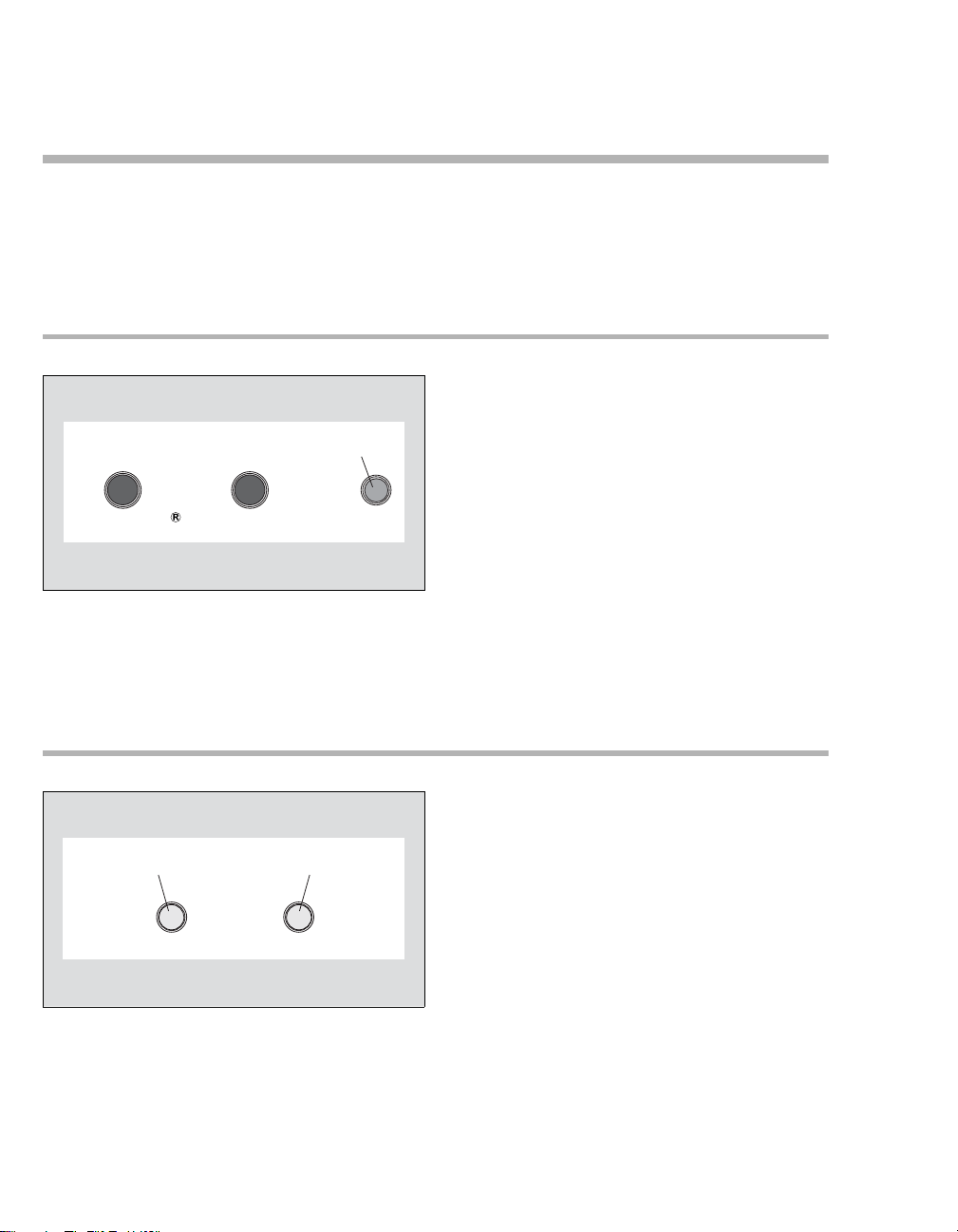

Operation
The GMS gateway has a status indicator with
5 LEDs that indicate the status of the data network.
24 V LED
124 V LED lights up green:
The device is operational.
Service LEDs
1Both controller boards have a service LED that
is controlled by Echelon firmware. After switch-
on, normal state is ON for 0.5 s and, then,
permanently OFF.
004
GMSLonWorks 24V
1
005
SERVICE
11

Instructions for Use GMS Gateway 11
Operation

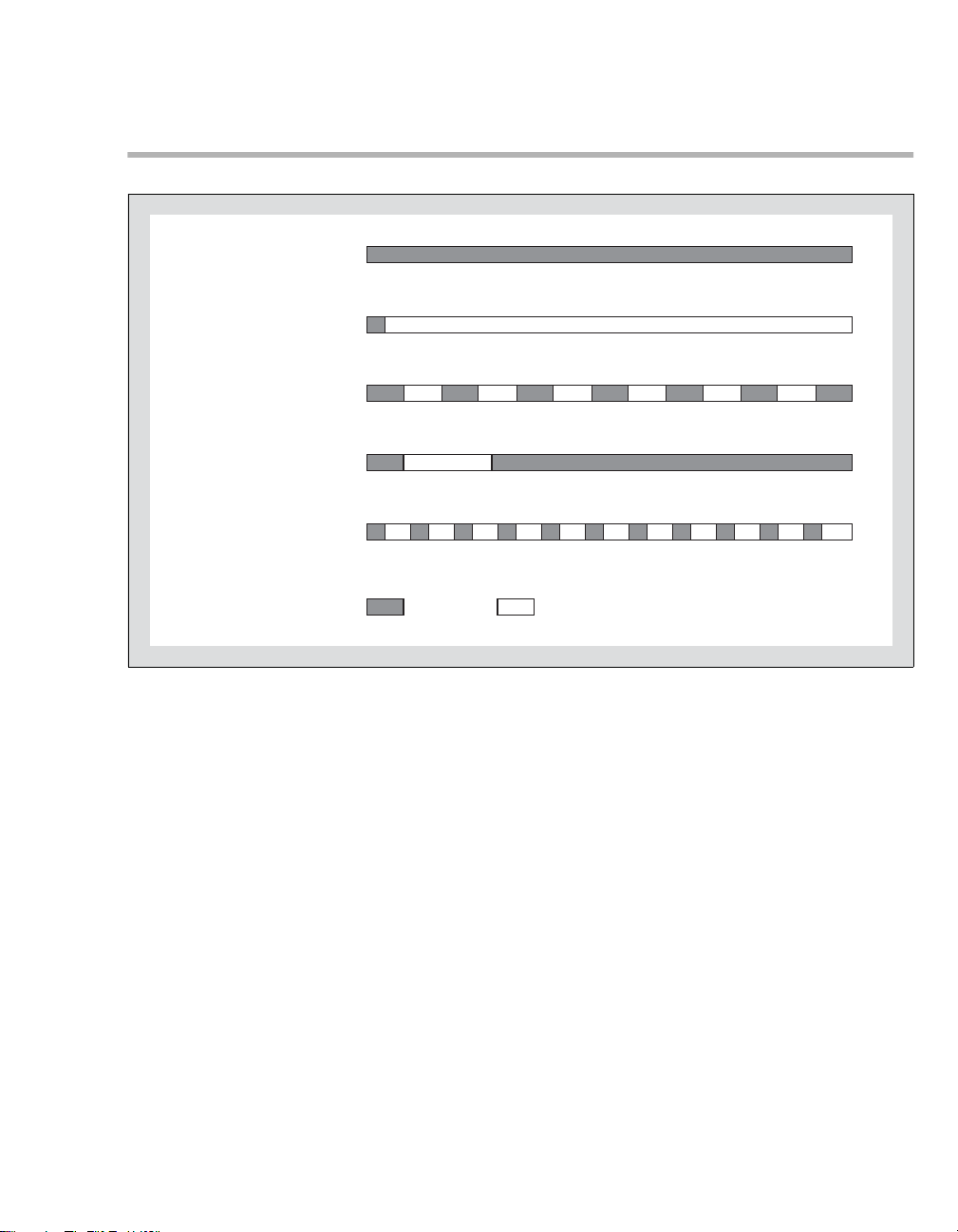

States of the Service LEDs
006
Permanently On or Off
Flashing with 1/2 Hz
On for 1 second, Off for 2 seconds, then permanently On
Repeating
On for 0.5 seconds, then permanently Off
LED On LED Off
Hardware defective
Configured state
(normal operation)
Non-configured state
Applicationless state
Watchdog Resets
(permanent resets)

Operation
12 Instructions for Use GMS Gateway
Status DUO-LED of GMS side
1The status DUO-LED indicates the following
operating states:
– Steady green:
Normal operating state. No errors, target state.
– Flashing green at 1 Hz:
At least one node in the GMS cannot be
reached through communications.
– Flashing red at 1 Hz:
No communication possible with the LonWorks
controller.
– Flashing yellow five times at 1 Hz:
Reaction to a LonWorks Wink.
Status DUO-LED of LonWorks side
1The status DUO-LED indicates the following
operating states:
– Steady green:
Normal operating state. No errors, target state.
– Flashing red:
No communication possible with the GMS
controller.
– Flashing yellow five times at 1 Hz:
Reaction to "Identify GMS".
007
STATUS
1
008
STATUS
1

Instructions for Use GMS Gateway 13
Problem Solving
Problem Solving
Fault – Cause – Remedy
Fault Cause Remedy
24 V LED does not light up
green.
Voltage supply interrupted. Have the voltage supply repaired by
trained service personnel.
Status LED on GMS side
continuously lights up red or
yellow.
Hardware defective. Have the hardware repaired by trained
service personnel.
Status LED on LonWork
side continuously lights up
red or yellow.
Hardware defective. Have the hardware repaired by trained
service personnel.
Status LED on LonWork
side lights up green.
Hardware defective. Have the hardware repaired by trained
service personnel.

Maintenance
14 Instructions for Use GMS Gateway
Maintenance
CAUTION
Repair only by Dräger trained personnel.
Only original Dräger spare parts may be used for
maintenance.
After each repair, a professional system function
check must be performed.
Interval Part Action
Daily Alarm Management System Visually check the entire Alarm Management
System for operational state.
Regularly,
every six month at the
latest.
Alarm Management System Function test and visual check of the Alarm
Management System by trained service personnel.
We recommend obtaining a service agreement with
DrägerService.

Instructions for Use GMS Gateway 15
Disposal
Disposal
Safety Information
For countries subject to EU Directive
2002/96/EC
This device is subject to EU Directive 2002/96/EC
(WEEE). In order to comply with its registration
according to this directive, it may not be disposed
of at municipal collection points for waste electrical
and electronic equipment. Dräger has authorized a
company to collect and dispose of this device. To
initiate take-back or for further information, visit us
on the Internet at www.draeger.com and go to the
DrägerService area where you will find a link to
"WEEE". If you have no access to our website,
contact your local Dräger Medical Organization.
Disposal of the Medical Device
When disposing of the medical device:
zConsult the relevant waste disposal company
for appropriate disposal.
zObserve the applicable local regulations.

Acceptance and Handover to the Operator
16 Instructions for Use GMS Gateway
Acceptance and Handover to the Operator
The GMS gateway is part of the Dräger Alarm
Management System.
After performed installation or repair work:
zHave trained personnel perform the test and
acceptance procedures.
This test is performed to ensure:
– that the safety requirements necessary to
protect the patient and personnel and
– that the performance characteristics of the
central supply unit and the Dräger Gas
Managements System have been met.
zTest results are recorded in writing.
After acceptance, the operational device and the
respective documents are handed over to the
operator and the operating personnel is instructed.
zThe documentation, Installation Instructions
and respective XIF file resulting from
programming the ASNetPro, must be handed
over to the operator of the medical supply unit
(for integration by the system immigrator).
zThe handover is recorded in the acceptance
protocol.
NOTE
The medical device may only be put into operation
after acceptance by experienced personnel.
Observe the national regulations!

Instructions for Use GMS Gateway 17
Technical Data
Technical Data
Ambient conditions
During operation:
Temperature +15 °C to +40 °C
Relative air humidity <95 % (no condensation)
Atmospheric pressure 700 hPa to 1060 hPa
During storage:
Temperature –20 °C to +60 °C
Relative air humidity <95 % (no condensation)
Atmospheric pressure 500 hPa to 1060 hPa
Operating data
Operating voltage 24 V (AC/DC)
Power consumption 60 mA
Data transfer LON
Communication rate 78 kBaud FT10
Line length depending on line type
Electrical characteristics acc. to Echelon FTT 10A Transceiver specifications

List of Accessories
18 Instructions for Use GMS Gateway
List of Accessories
Description Order No.
Grounded conductor clamp G41784
Power pack 30 Watt/DIN rail G50728
System cable GMS network G50750

Instructions for Use GMS Gateway 19
This page intentionally left blank.

Directive 93/42/EEC
concerning Medical Devices
Manufacturer
Dräger Medical GmbH
Moislinger Allee 53 – 55
D-23542 Lübeck
Germany
[phone]
FAX [phone]
http://www.draeger.com
90 52 449 – GA 6918.000 en
© Dräger Medical GmbH
Edition: 3 – 2015-01
Dräger reserves the right to make
modifications to the equipment without prior
notice. As of 2015-08:
Dräger Medical GmbH
changes to
Drägerwerk AG & Co. KGaA
