Dräger X-act 5000 User manual

WARNING
To properly use this product, read and
comply with these instructions for use.
!
Dräger X-act 5000
i
enUS Instructions for use
 3
de Gebrauchsanweisung
 28
fr Notice d‘utilisation
 53
es Instrucciones de uso
 80
pt Instruções de uso
 105
CAUTION
INVISIBLE LASER AVOID
DIRECTEYE EXPOSURE
LASER CLASS 3R

Dräger X-act 5000 3
Content
1 Content
1 For your safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 General safety statements . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Definition of the alert icons in the text . . . . . . . . . . . . . . . . . 5
2 Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 Product overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Function description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Reading bar code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.5 Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.6 Labeling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.7 Explanation of the icons . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3 Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.1 Preparation for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2 During use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.3 After use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.4 Power supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4 Errors and warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.1 Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.2 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.1 Maintenance table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.2 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.3 Maintenance tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7.1 Disposal in Europe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
8 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
9 Order list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
10 Dräger-Tube® for measurement
in technical gases. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

4 Dräger X-act 5000
For your safety
1 For your safety
1.1 General safety statements
Strictly follow the instructions for use. The user must fully
understand and strictly observe the instructions.
Use the Dräger X-act 5000 only for the purposes specified in
chap. 2.4 on page 11.
In addition, follow the instructions for use of the Dräger-Tube®,
hereafter referred to as tubes, as well as of the sampling tubes and
systems.
Do not dispose of the instructions for use. Ensure that they are
retained and appropriately used by the product user.
Only fully trained and competent users are permitted to use this
product.
Comply with all local and national rules and regulations associated
with this product (e. g. IEC 60079-14).
Only trained and competent personnel are permitted to inspect,
repair, and service the product as detailed in the Maintenance
section of this document. Dräger recommends a Dräger service
contract for all maintenance activities and that all repairs are
carried out by Dräger.
Only use genuine Dräger spare parts and accessories. Otherwise,
the proper functioning of the product may be impaired and there is
the risk of explosion. Furthermore, the approval will be invalid.
Do not substitute components of this product. Substitution of
components may impair intrinsic safety.
Do not use a faulty or incomplete product, and do not modify the
product.
Notify Dräger in the event of any component fault or failure.
When you use interfaces or make adjustments or perform
procedures that are not specified in these instructions for use, this
may result in hazardous radiation exposure.
To ensure continued laser safety, only use the power supply
specified in these instructions for use.
Only use equipment or components which have been tested and
approved according to the national regulations on electrical
equipment in rooms subject to explosion hazards and according to
the national mining regulations under the conditions specified in
the approval.
Prior to safety-relevant measurements, perform a leak test and
check the calibration.
The operation modes of tubes and Dräger pumps are harmonized.
Using pumps and tubes of different manufacturers can impair the
proper function of the pumps and/or tubes. This may result in
considerable measurement errors.
Condition of safe use: The measured capacitance of the exposed
metal screws is 5 pF.

Dräger X-act 5000 5
Description
1.2 Definition of the alert icons in the text
The following alert icons are used in this document to provide and
highlight areas of the associated text that require a greater awareness
by the user. A definition of the meaning of each icon is as follows:
2 Description
2.1 Product overview
1 Tube socket (gas inlet)
2 Tube
3 Handle insert
4 Clamp for extension hose
5 LED windows (green or red)
6 Bar code reader with alert icon
7"UP" key
8"OK" key
9"DOWN" key
10 IR interface (for service by Dräger only)
11 Display
WARNING
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not
avoided, could result in physical injury, or damage to the
product or environment. It may also be used to alert against
unsafe practices.
NOTICE
Indicates additional information on how to use the instrument.
!
!
i
i
X-act 5000
00121900.eps
1
5
11
678910
2 3
4
CAUTION
INVISIBLE LASER AVOID
DIRECT EYE EXPOSURE
LASER CLASS 3R

6 Dräger X-act 5000
Description
12 Shoulder strap hook
13 Tube swivel
14 SO3 filter door
15 Tube opener
16 Glass splinter reservoir
17 Battery charger connection
18 Power supply
19 Gas outlet
2.2 Function description
The Dräger X-act 5000 is an automatic pump. It is used with tubes or
sample-taking tubes and systems. The pump control provides the
required flow characteristics of the tubes. Tubes are used to determine
gases, vapors, and aerosols in air or technical gases. Sample-taking
tubes and systems are used for the active sampling of volatile organic
substances in the air at workplaces, indoor air, and environmental
areas.
The Dräger X-act 5000 is protected against the effects of common
workplace solvents.
The instrument is equipped with an SO3 filter. The filter refines SO3
exhaust gas, which can occur with some tubes during the
measurement.
The Dräger X-act 5000 has a bar code laser that is classified as a
Class 3R device in accordance with the requirements of IEC 60825-1.
Operation of the Dräger X-act 5000 is menu-driven. The following
operating modes are available:
Measurements using tubes
Air measurements
- "BARCODE OPERATION AIR"
- "MANUAL OPERATION AIR"
Measurements in technical gases
Sample taking
The user selects the operating mode at the beginning of the
measurement. For the short-term tube mode, tubes or simultaneous
test sets, which can be used to measure five substances
simultaneously, can be used. For the sample taking mode, sample
taking tubes and systems will be used.
01021900.eps
19
12
18
15
17
14
12
13
16

Dräger X-act 5000 7
Description
Bar code operation
INVISIBLE LASER RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
The NOHD safety distance (Nominal Ocular Hazard Distance) is
20 cm (8 in). For more information on the laser (see “Technical data”
on page 24).
Observe the rules and regulations concerning the use of Class 3R
lasers that are applicable at the operating location.
The "BARCODE OPERATION AIR" mode
is used to easily start a measurement. The
bar code is printed on the label on the
backside of the Dräger-tube box. The
Dräger X-act 5000 can indicate the number
of strokes, the name of the gas to be
measured, the measuring range
information related to the current number of
strokes, and give guidance messages to
the user based on the bar code information.
WARNING
Laser appliances belonging to laser class 3R are potentially
hazardous to the eye!
The Dräger X-act 5000 has a built-in bar code reader which
emits an invisible laser beam when in “BARCODE
OPERATION AIR” mode of operation.
The laser is switched on only during this mode of operation
and only for a maximum of 30 seconds.
Avoid looking directly into the laser.
!
00221900.eps
CH29401
5 .... 25°C
AE - 0571
www.draeger.com
Dräger Safety AG & Co.KGaA
Made in Germany
Barcode X - act 5000

8 Dräger X-act 5000
Description
2.3 Reading bar code
The following steps are required to activate the bar code reader:
2.3.1 Starting the laser activation
1. From the menu, select "START LASER ACTIVATION".
An alert icon is displayed in addition to the display text.
2. Press the "OK" key.
The countdown timer (5 seconds) is started, and the time
remaining until the laser is activated is displayed.
2.3.2 Reading bar code
Once the countdown timer has counted down, the laser is switched on
and the bar code can be scanned. The LED windows are constantly
illuminated in red. Do not look into the bar code reader during this time.
1. Then position the tube box on the ribs between the keys and slide
the entire bar code with a straight movement over the bar code
reader of the instrument.
Then, the bar code information is transferred to the instrument
and indicated on the display.
2.3.3 Automatic shut-down of the laser
The laser is shut down automatically, the red LED windows are off:
1 if a valid bar code was scanned,
2 if no valid bar code was scanned within 30 seconds.
If more than 30 seconds have passed, the bar code reader can be
activated again by pressing the "OK" key.
03321900.eps
START LASER ACTIVATION
03421900.eps
LASER ACTIVE IN:
03521900.eps
WARNING LASER BEAM
PLEASE SCAN BAR CODE

Dräger X-act 5000 9
Description
Measurements in technical gases
If the "MEASUREMENT TECHN. GAS" mode is selected, the user can
only manually operate the instrument. In this case, the user will be
prompted to start the measurement with a special operation procedure
needed for measurements in technical gases. This mode is used to
consider the different viscosity of a technical gas compared to the
viscosity of ambient air. Following the menu in this mode, the
Dräger X-act 5000 will automatically be adjusted to the needed flow
parameter. The measurement result can be read out directly at the
tube. The tubes listed in Chap. 10 can be used for measurement.
Password-protected menu
The Dräger X-act 5000 offers a password-protected menu. The
following items can be selected:
calibrate flow ("CALIBRATE FLOW")
change of the SO3 filter ("CHANGE SO3 FILTER")
The date for the filter change can be set. This date is for
information only.
select operating modes ("SELECT MEASURING MODE")
The operating modes can be activated or deactivated. At least one
operating mode must be activated. Default setting: All modes of
operation are activated.
Changing the sample time resolution ("SAMPLE TIME
RESOLUTION")
The default setting of the sample time resolution on delivery is in
steps of 15 minutes. This configuration can be changed to a
sample time resolution in steps of 1 minute.
select leak test interval ("MANDATORY LEAK TEST")
The duty to perform a leak test can be deactivated or can be
mandatory after a certain number of strokes. If it is mandatory, the
leak test will automatically prompt after the set number of strokes.
Default setting: Mandatory leak test after 1000 strokes (= 100 L).
update tube data base ("UPDATE TUBE DATA BASE")
The tube database can be updated by scanning a special bar code
with the bar code reader of the instrument. To do so, follow the
information printed in the instructions for use of a new or modified
tube.
change password ("CHANGE PASSWORD")
Select language ("SELECT LANGUAGE")
Default setting: The display language is set to English.
2.3.4 Keys
The green "OK" key will be used to
switch on the instrument,
acknowledge / confirm a selection, setting, prompt of error
indication or the indication of end of measurement,
start / stop / continue a measurement / a leak test / skip of a leak
test,
activate the display backlight,
deactivate the sleep mode.
The blue arrow keys will be used to
select a menu / option, a measuring mode / option, offered
prompts,
set a number of strokes,
set the flow rate and time,
switch OFF the instrument,
exit from a menu / option,
activate the display backlight,
deactivate the sleep mode.
The arrow keys will be disabled when a measurement is performed.

10 Dräger X-act 5000
Description
2.3.5 LEDs
2.3.6 Display
The display of the Dräger X-act 5000 consists of two parts: The upper
part is a segment display (1). It indicates the number of strokes, flow
rate and measuring time, volume units, error codes, and different
icons. The lower part is a matrix display that consists of two lines (2).
Menus and options will be displayed here. The user can select which
operation is to be performed.
The display prompts are available in different languages. The language can
be selected from the password-protected menu. The display has a
backlight. This backlight will be switched off after approx. 30 seconds. To
turn on the backlight, press any key.
2.3.7 Power supply
The Dräger X-act 5000 can only be used with a rechargeable battery
or an alkaline battery pack. The power supply is part of the Ex-
approval. Only the listed alkaline batteries, which are part of the Ex-
approval, shall be used (see chap. 9 on page 25). The display shows
that battery capacity. The information is continuously updated. For the
meaning of the icons, please refer to chap. 2.7 on page 12.
When the last measurement is finished and acknowledged with the
"OK" key and the empty battery icon is displayed, a new pump job
cannot be started until the power supply is charged or changed.
If the instrument is switched on, but no operation is performed, the
sleep mode will be activated after approx. 5 minutes. To deactivate the
sleep mode, press any key. The instrument will automatically return to
the operation screen.
CAUTION
Green flashing LEDs only indicate that the instrument has
finished an operation. They do not mean that the environment
is free from hazards.
LEDs Description
Red, constant The laser is switched on
Red, flash An error has occurred (e. g. leak test not passed).
The LEDs flash until the "OK" key is pressed.
Green, flash Measurement is finished. The LEDs flash until the
"OK" key is pressed.
Green, flash
twice
The bar code was correctly scanned.
!
Draeger X-act 5000
V 1.0
x100 mL
L / min
00521900.eps
1
2

Dräger X-act 5000 11
Description
2.4 Intended use
The Dräger X-act 5000 is used for spot check measurements with
tubes, simultaneous Test-Sets, and sampling with sampling tubes and
systems. It is designed to draw the gas, which is to be examined or to
be sampled, through the respective tube or sampling system.
2.5 Approvals
The Dräger X-act 5000 is an air sampling pump for use in hazardous
locations. It is approved as Model GEP-0100. It is intrinsically safe
when used with one of the approved power supplies (see chap. 9 on
page 25).
The Dräger X-act 5000 complies with the FDA performance standards
for laser products, except for deviations pursuant to Laser Notice
No 50, dated June 24, 2007.
Approval
CE marking Approved according to 2014/30/EC and 2014/34/
EC
Europe/IECEx I M1 / II 1G
Ex ia I Ma, Ex ia IIC T4 Ga
DEMKO 11 ATEX 1014422X
USA/Canada UL/cUL: Class I, Div. 1 Group A, B, C, D
Class II, Div. 1 Group F, G
+5 °C  Ta  +40 °C
4DC4
NOTICE
The following items are not covered by the ATEX/IECEx/UL/
cUL approvals:
extension hose
adapter for extension hose
shoulder strap
resistance tube
adapter for sampling tubes
wall-mount charger
in-cab charger
i
i

12 Dräger X-act 5000
Description
2.6 Labeling
2.6.1 Year of construction
The year of construction is given by the 3rd letter in the serial number
located on the nameplate: T = 2003, U = 2004, W = 2005, X = 2006,
Y = 2007, Z = 2008, A = 2009, B = 2010, C = 2011, D = 2012, etc.
Example: serial number ERUH-0054, the 3rd letter is U, so the year of
construction is 2004.

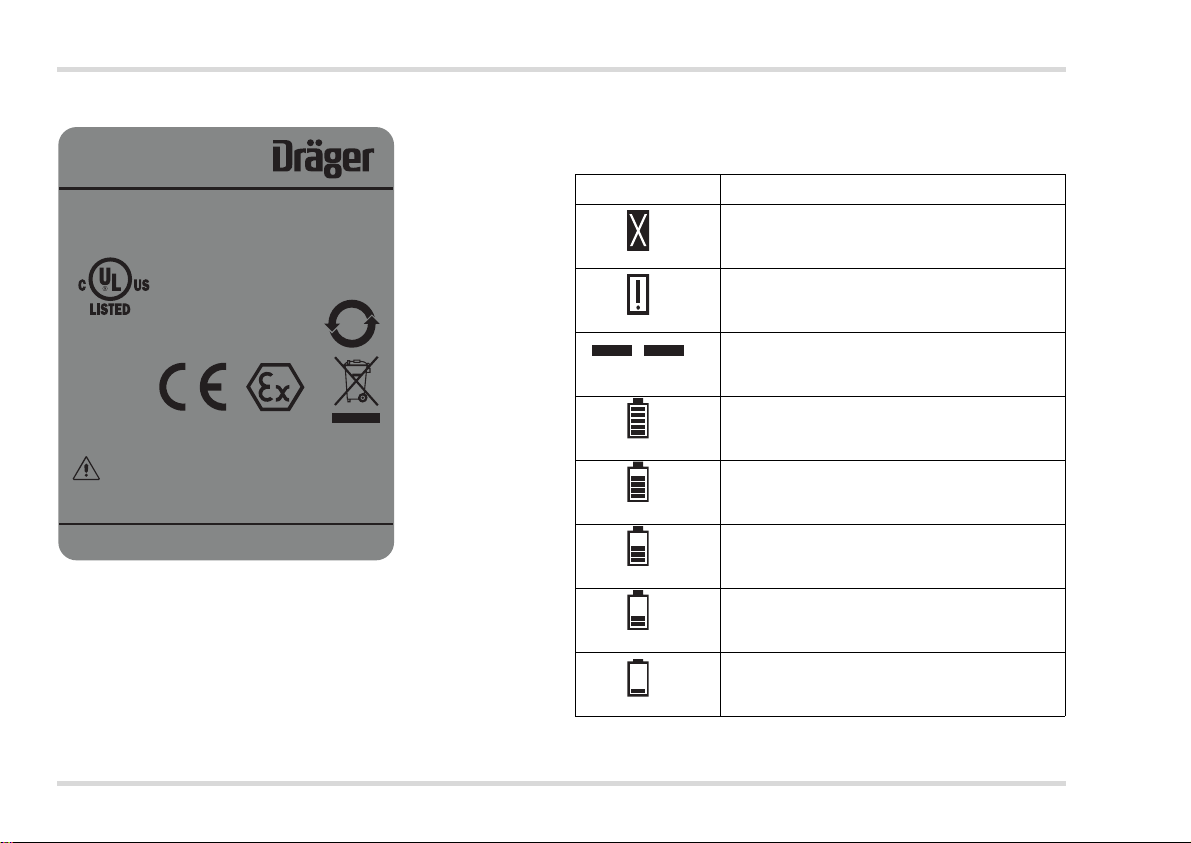

2.7 Explanation of the icons
The following icons are shown on the display:
GEP-0100
P/N: 4523500
Air sampling pump for use in hazardous locations.
Intrinsically safe when used with Draeger battery
pack Part nos. 4523525 or 4523520.
Class I, Div. 1, Gr. ABCD;
Class II, Div. 1, Gr. FG
Temp. Code T4, +5°C Ta +40°C
IECEx UL 11.0015X IP64
+5°C Ta +40°C
Ex ia IIC T4 Ga
Ex ia I Ma
DEMKO 11 ATEX 1014422X
See „Instructions for Use“ for approved battery types.
Alk Batt Pack, 6 cells. Rechargeable Batt Pack Um=15V
Warning: Do not change/charge batteries
in hazardous area. See manual for additional
warnings. Complies with FDA performance standards
for laser products except for deviations pursuant to
laser notice no. 50, dated June 24, 2007.
Dräger Safety AG & Co. KGaA
23560 Lübeck, Germany
0158 I M1 / II 1G
4DC4
Exia
10
Icon Description
"Error" icon; indicated together with an error
code or a written hint (e. g. "LEAK TEST
ERROR" etc.)
"Warning" icon; indicated with a written hint
(e. g. "ACTIVATION STROKE & START" etc.)
Moving bar; indicates something in progress
(e. g. leak test, sample taking, etc.)
Battery capacity 100 %
Battery capacity 83 %
Battery capacity 66 %
Battery capacity 50 %
Battery warning: capacity less than 33 %,
lowest segment of the battery icon begins to
flash

Dräger X-act 5000 13
Use
3Use
3.1 Preparation for use
3.1.1 Preparing the Dräger X-act 5000 for use
1. Make sure that the used battery pack is sufficiently charged:
Charge the rechargeable battery (see chap. 3.4.1 on page 18) or
insert alkaline batteries in the compartment of the alkaline battery
pack (see chap. 3.4.3 on page 20).
2. If necessary, connect a hose to the pump exhaust and make sure
that the waste gas is exhausted.
3.1.2 Switching on the Dräger X-act 5000
1. To switch on the Dräger X-act 5000 press the "OK" key until the
numbers 3 ... 2 ... 1 are displayed sequentially.
The firmware version is indicated on a startup screen. The Dräger
X-act 5000 automatically runs a self test.
After the self test, the instrument displays any errors or warnings
which occurred during startup.
2. Confirm if the leak test is to be carried out or not.
3. When the leak test is completed or skipped, select the measuring
mode.
When the Dräger X-act 5000 is switched on, the latest selected
operating mode including the set number of strokes or volume flow
rate will be preset.
Battery empty: capacity less than 16 %, the
battery icon begins to flash
"Ex" icon:
No measurement in areas of explosion hazard
because the tube will be heated due to the
chemical reaction.
The icon is indicated together with the
"Warning" icon in the "BARCODE OPERATION
AIR" mode of operation.
NOTICE
If the Dräger X-act 5000 is used for measurements in areas
that are difficult to access, an extension hose can be attached
to the tube on the instrument.
To achieve correct measurement results, only use the
standard extension hoses detailed in chap. 9 on page 25.
The Dräger X-act 5000 will identify the used hose during
measurement.
Icon Description
Ex
i
i

14 Dräger X-act 5000
Use
3.1.3 How to navigate the menu
The Dräger X-act 5000 offers two options in the bottom part of the
display. To highlight a menu or an option, press the "UP" or
"DOWN" key. To select the highlighted menu or option, press the
"OK" key.
To exit an option or to abort the password-protected menu, press
the "UP" and "DOWN" keys at the same time for 1 second. After
1 second, the display indicates the previous mode/option.
3.1.4 General settings of the password-protected menu
Select the password-protected menu and adapt the settings of the
Dräger X-act 5000 to your needs as follows:
1. Switch on the instrument.
2. When the self test is finished, press the "DOWN" key for more than
4 seconds.
The instrument will prompt the user to enter a password.
3. Use the arrow keys to set the digits of the password and confirm
each digit by pressing the "OK" key.
When the last digit is confirmed, the password-protected menu is
opened. If the entered password is invalid, an error message is
displayed.
4. Use the arrow keys to select an option and make the required
settings.
5. Use the "OK" key to confirm the selected settings.
In order to exit the selected option without changes, press the "UP"
and "DOWN" keys simultaneously for 1 second.
The instrument will switch back to the password-protected menu
or to the measurement mode.
6. Switch the Dräger X-act 5000 off and then on again.
Then, the instrument will use the changed settings. Otherwise, the
previous settings will be used.
NOTICE
The default password is "001". It can be changed in the
password-protected menu.
03621900.eps
LEAK TEST
NO LEAK TEST
i
i
NOTICE
The Dräger X-act 5000 includes an automatic abort function.
If the password-protected menu is activated and no key is
pressed, the Dräger X-act 5000 automatically returns to the
measuring mode after 1 minute.
Exception: The options "CALIBRATE FLOW" and "UPDATE
TUBE DATA BASE" will not be aborted until 15 minutes of
inactivity.
i
i

Dräger X-act 5000 15
Use
3.1.5 Leak test
Dräger strongly recommends performing a leak test prior to safety-
relevant measurements and recommends against use if a leak test
fails. There are two options for a leak test:
Every time when the instrument is switched on, the leak test will be
optionally offered.
The leak test can be mandatory if set in the password-protected
menu.
The setting of the delivered Dräger X-act 5000 is that the
mandatory leak test is to be performed after 1000 strokes
(=100 L).
If the leak test is mandatory, "LEAK TEST" is indicated in the upper row
of the matrix display and at the right side of the segment display the
icon ("Warning") is indicated. The Dräger X-act 5000 cannot be
used until the leak test is passed.
The user will be prompted to start the leak test every time the pump is
switched on. The leak test may be skipped unless it is required due to
the settings in the password-protected menu.
If the leak test is selected, the user will be prompted to insert a closed
tube and start the test. When the leak test is passed, the green LEDs
will flash. When the "OK" key is pressed, the modes of operation will
be offered.
3.2 During use
3.2.1 To be considered during use
The Dräger X-act 5000 guides the user via menus. To use the
instrument, follow the guidance notes on the display.
To switch back to a previous option, use the EXIT function of the
instrument as follows:
Press the "UP" and "DOWN" keys simultaneously for 1 second.
The EXIT function is not available in the following cases:
during a self test,
during a leak test,
during a measurement,
during a calibration in the password-protected menu,
during an update of the tube database in the password-protected
menu.
NOTICE
If the leak test failed, the measuring modes will be inactive.
The instrument will display "LEAK TEST ERROR" and the
icon ("Error"). The red LEDs will flash.
If the leak test failed, the user can
repeat the leak test,
replace the SO3 filter (see chap. 5.3.2 on page 23),
repair the instrument.
i
i

16 Dräger X-act 5000
Use
If quality parameters of the instrument are faulty, the instrument will
indicate that the measurement was invalid. Then, the icon
("Error") will be indicated and the red LED will flash until
acknowledged. If the measurement is finished without error, the green
LED will flash until acknowledged.
3.2.2 Making a measurement with a tube
1. Select "SHORT-TERM TUBE" from the menu.
2. Decide if air or technical gas is to be measured:
a. If air is to be measured, select "MEASUREMENT AIR".
b. If a technical gas is to be measured, select "MEASUREMENT
TECHN. GAS".
3. If "MEASUREMENT AIR" is selected, decide whether bar code
operation or manual operation will be used.
4. Follow the instructions on the display.
WARNING
Some tubes must not be used in areas subject to explosion
hazards. Follow the relevant instructions for use of the tubes.
When this type of tube is scanned in the "BARCODE
OPERATION AIR" mode of operation, the icon will be
indicated in the matrix display.
Caution when opening the tube, and be aware of any
detached glass splinters. The ends of the tube may have
sharp edges; risk of injury!
Do not look into the bar code reader and do not view the laser
output with optical instruments (e. g. eye loupes, magnifiers,
and microscopes), because this may pose an eye hazard.
CAUTION
Make sure that any detached glass splinters do not enter the
Dräger X-act 5000 to avoid a contaminated or clogged tube
socket (gas inlet). When you use interfaces or make
adjustments or perform procedures that are not specified in
these instructions for use, this may result in hazardous
radiation exposure.
!
Ex
!
CAUTION
For measurements in technical gases using tubes, only the
menu “MEASUREMENT TECHN. GAS” shall be used.
Otherwise it will result in considerable measurement errors.
NOTICE
The "MEASUREMENT TECHN. GAS" mode is designed to
consider the different viscosity of a technical gas compared to
the viscosity of ambient air. Prior to this measurement, the
user must adjust the volume flow needed for the
measurement in technical gases.
!
i
i

Dräger X-act 5000 17
Use
3.2.3 Measurement with tubes in technical gases
Perform the adjustment and measurement as follows:
1. Connect the resistance tube (6527562) to the tube socket (gas-
inlet) of the Dräger X-act 5000.
2. Connect the resistance tube to the technical gas using an
extension hose of max. 1 m (3 ft) length.
3. Follow the instructions on the display.
4. Remove the resistance tube after adjustment.
5. Connect the extension hose to the tube socket (gas-inlet) of the
Dräger X-act 5000.
6. Connect the tube to be used both to the extension hose (max. 1m
(3 ft)) and the technical gas.
7. Follow the instructions on the display.
For measurements in technical gases, the standard deviation (refer to
the instructions for use of the used tube) can be increased by
additionally approx. 10 to 15 %. The tubes listed in Chap. 10 can be
used for measurements in the technical gases.
3.2.4 Performing a sample taking measurement
1. Select "SAMPLE TAKING" from the menu.
2. Follow the instructions on the display.
3.2.5 Additional option to adjust the flow rate for a single
sample taking measurement
Additionally, it is possible to adjust the set flow rate for sample taking
if needed.
1. Connect the opened sample tube or system to the tube socket
(gas-inlet) of the Dräger X-act 5000.
2. Connect a flow meter to the sample tube or system.
3. Follow the instructions on the display.
4. When the “SET OK & START” prompt occurs on the display, press
the green “OK” key to start the measurement.
5. Compare the flow rate shown on the display with the flow rate
indicated on the external flow meter. If needed, adjust the flow rate
using the blue "UP" and "DOWN" keys.
The effects of the adjustment last only for the duration of the present
sample taking measurement. However, if the present sample taking
measurement is interrupted because the depleted battery must be
replaced, this set flow rate will be saved and restored along with the
other sample taking data that is already saved and restored until the
battery is replaced and the present sample taking measurement is
finished.
CAUTION
The tubes are calibrated for measurements in air. For
measurements in technical gases using tubes, only the menu
“MEASUREMENT TECHN. GAS” shall be used. Otherwise it
will result in considerable measurement errors.
NOTICE
The "MEASUREMENT TECHN. GAS" mode is designed to
consider the different viscosity of a technical gas compared to
the viscosity of ambient air. Prior to this measurement, the
user must adjust the volume flow needed for the
measurement in technical gases.
!
i
i

18 Dräger X-act 5000
Use
3.3 After use
3.3.1 Switching off the Dräger X-act 5000
When the instrument is switched off, it is automatically flushed to
remove any reactive gas, which may have been produced by the
chemical reaction of the tubes.
1. To switch off the instrument, press the "UP" and "DOWN" keys
simultaneously for 3 seconds until the numbers 3 ... 2 ... 1 are
displayed.
After this, a flush cycle will automatically be started. It will take
approximately 5 - 10 seconds until flushing is completed. A
countdown will be displayed.
Then the instrument will automatically be switched off.
3.4 Power supply
3.4.1 Charging the rechargeable battery
The rechargeable battery can either be charged while inside the
instrument or separately from the instrument.
Connect the charger to both
the battery charger connection
(1) and the mains supply.
NOTICE
The instrument cannot be turned off in the following cases:
during a self test,
during a leak test,
during a measurement,
when the password-protected menu is activated.
i
i
WARNING
To prevent ignition of flammable or combustible
atmospheres, and to avoid compromising intrinsic safety of
the instrument, read, understand, and adhere to the following
procedures. Only use a power supply detailed in the order list
(see chap. 9 on page 25). Otherwise, the approval will be
invalid and there is the risk of explosion.
WARNING
Do not charge the rechargeable battery in areas subject to
possible explosion. Use only charging power supplies
specified by Dräger.
NOTICE
The Dräger X-act 5000 does not function during charging.
!
!
i
i
00621900.eps
2
1

Dräger X-act 5000 19
Use
When the rechargeable battery is charged while inside the instrument,
the battery icon will be indicated on the display.
When the rechargeable battery is charged separately, the LED (2) will
light red during charging. The LED (2) will light green when the
rechargeable battery is completely charged. If the LED (2) blinks red
during charging, an error occurred.
If the LED (2) blinks red during charging, an error occurred. To clear
the error proceed as follows:
1. Disconnect the rechargeable battery from the charger for approx.
10 seconds.
2. Reconnect the charger.
3. If the LED (2) lights red, continue the charging procedure.
If the LED (2) alternates between green and red the rechargeable
battery is deeply discharged. In this case, proceed as follows:
1. Leave the rechargeable battery on the charger until the LED (2)
blinks red.
2. Disconnect the rechargeable battery from the charger for approx.
10 seconds.
3. Reconnect the charger.
4. If the LED (2) lights red, continue the charging procedure.
3.4.2 Replacing the rechargeable battery
1. Remove the 2 screws with an appropriate hex key.
2. Pull the rechargeable battery out of the Dräger X-act 5000.
3. Insert a charged NiMH battery into the Dräger X-act 5000.
4. Fasten the 2 screws with an appropriate hex key.
WARNING
Do not remove or replace the rechargeable battery in areas
subject to possible explosion.
!
00721900.eps

20 Dräger X-act 5000
Errors and warnings
3.4.3 Replacing the alkaline batteries
1. Remove the 2 screws (1) with an appropriate hex key.
2. Pull the alkaline pack out of the Dräger X-act 5000.
3. Remove the lid (3) from the alkaline pack.
4. Replace the alkaline batteries with new ones. Be sure to observe the
polarity of the batteries (marked inside the compartment (2) of the
alkaline pack).
5. Put the lid back on the alkaline pack.
6. Insert the alkaline pack into the Dräger X-act 5000.
7. Fasten the 2 screws with an appropriate hex key.
4 Errors and warnings
4.1 Errors
Errors will be displayed together with the corresponding icon and a
code number or a written hint. The red LEDs will flash until
acknowledged with the "OK" key.
WARNING
Do not remove or replace the alkaline batteries or the alkaline
pack in areas subject to possible explosion. Only use alkaline
batteries that are indicated on the alkaline pack, or else the
approval will become invalid and there is a risk of explosion.
!
1
3
2
00321900.eps
Text/Code Cause Remedy
LEAK TEST
ERROR
SO3 filter does not fit
correctly in the
instrument; or air path in
the instrument is leaky
Repeat leak test. If leak test
failed, check the SO3 filter
for correct seat or contact
DrägerService®.
SCAN
ERROR1)
Bar code on the tube box
is unknown (e. g. when
scanning a new tube).
Set strokes manually or
update tube database using
password- protected menu.
Bar code on the tube box
is destroyed
Set strokes manually.
Reader is damaged Contact DrägerService.
TUBE
BLOCKED
Inserted tube or sampling
system is clogged or air
path in the instrument is
clogged.
Use new tube or sampling
system or check that SO3
filter fits tight or contact
DrägerService.
BATTERY
ERROR
Rechargeable battery is
deeply discharged or the
type of charger is not
correct.
Wait for 1 minute and then
clear the error by pressing
the "OK" key or use correct
charger or contact
DrägerService.
Rechargeable battery is
defective
Replace rechargeable
battery.
