DR Power Equipment PTO POST HOLE DIGGER Quick start guide

DR®PTO POST HOLE DIGGER
SAFETY & OPERATING INSTRUCTIONS
Serial No.
Order No.
DR Power Equipment
Toll-free phone: 1-800-DR-OWNER (376-9637)
Fax: [phone]
Website: www.DRpower.com
Read and understand this manual and all instructions before operating the DR PTO Post Hole Digger.

2DR® PTO POST HOLE DIGGER
Table of Contents
Chapter 1: General Safety Rules............................................................................................................................................................ 3
Chapter 2: Setting Up The DR PTO Post Hole Digger ......................................................................................................................... 6
Chapter 3: Operating The DR PTO Post Hole Digger.......................................................................................................................... 10
Chapter 4: Maintaining The DR PTO Post Hole Digger ...................................................................................................................... 11
Chapter 6: Parts Lists and Schematic Diagrams.................................................................................................................................. 14
Conventions used in this manual
Serial Number and Order Number
A Serial Number is used to identify your machine and is located on the Serial Number Label on your machine. An Order Number
is used to check and maintain your order history and is located on the upper left portion of your packing slip. For your
convenience and ready reference, enter the Serial Number and Order Number in the space provided on the front cover of this
manual.
Additional Information and Potential Changes
DR Power Equipment reserves the right to discontinue, change, and improve its products at any time without notice or obligation
to the purchaser. The descriptions and specifications contained in this manual were in effect at printing. Equipment described
within this manual may be optional. Some illustrations may not be applicable to your machine.
This indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
This indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.
This information is important in the proper use of your machine. Failure to follow this instruction could result in damage
to your machine or property.
This indicates a hazardous situation, which, if not followed, will result in death or serious injury.

CONTACT US AT www.DRpower.com 3
Chapter 1: General Safety Rules
Labels
Your DR PTO Post Hole Digger carries prominent labels as reminders for its proper and safe use. Take a moment to study them
and make a note of their location on your DR PTO Post Hole Digger as you set up and before you operate the unit. Replace
damaged or missing safety and information labels immediately.
Tractor Safety Information
Safety for Children and Pets
Tragic accidents can occur if the operator is not alert to the presence of children and pets. Children are often attracted to the
machine and the digging activity. Never assume that children will remain where you last saw them. Always follow these
precautions:
•Keep children and pets out of the working area and under the watchful care of a responsible adult.
•Be alert and turn the machine off if children or pets enter the work area.
•Never allow children to operate the DR PTO Post Hole Digger.
•Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure your vision.
•Read the tractor owner’s manual for instructions on operation, attachment of 3-point equipment and safety before using this
Post Hole Digger.
•Read this Safety & Operating Instructions manual before you use the DR PTO Post Hole Digger. Become familiar with the
operation and service recommendations to ensure the best performance from your machine. If you have any questions or
need assistance, please contact us at www.DRpower.com or call toll-free 1-800-DR-OWNER (376-9637) and one of our
Technical Support Representatives will be happy to help you.
#400401
#400391
#400411
#400381
#400371
#400431
#400421
•YOUR DR PTO Post Hole Digger is driven by a PTO shaft that transfers power from your Tractor. The Tractor and PTO shaft
are extremely dangerous and will cause serious injury or death if not used properly. Read and understand all of the Warnings
and operating instructions that came with your Tractor and the PTO shaft to protect yourself from severe injury or death.
•Always check with authorities for underground utilities before digging a hole. Serious injury or death could result from contact
with gas or electric lines.
•NEVER operate the post hole digger with anyone near or in contact with any part of the implement, PTO driveline or auger.
Serious injury or death could result from entanglement with moving parts.

4DR® PTO POST HOLE DIGGER
Protecting yourself and those around you
Operating the Post Hole Digger Safely
This is a high-powered machine, with moving parts operating with high energy at high speeds. You must operate the machine
safely. Unsafe operation can create a number of hazards for you, as well as anyone else in the nearby area. Always take the
following precautions when using this machine:
•Know how to stop the Post Hole Digger quickly by disengaging the PTO Shaft and shutting down the tractor.
•Never allow people who are unfamiliar with these instructions to use the DR PTO Post Hole Digger. Allow only responsible
individuals who are familiar with these rules of safe operation to use your machine.
•Operate this Post Hole Digger from the tractor seat only. Make sure that the tractor engine is shut off and the PTO drive is
disengaged before leaving the tractor seat.
•ALWAYS make sure that the Tractor Brake is set before Digging a hole.
•NEVER move the tractor with the power-take-off in the ON position.
•Only one person should operate the Post Hole Digger.
•Make sure that the auger point and cutting edges are intact and in good working order before using this Post Hole Digger.
•Your DR PTO Post Hole Digger is a powerful tool, not a plaything. Exercise extreme caution at all times. The design of your
machine is for digging holes. Do not use it for any other purpose.
•Whenever you leave the operating position to make adjustments, maintain blades, or if you have to remove grass or debris
from the Auger, always disengage the PTO, shut down the Tractor Engine, remove the Key, wait for all moving parts to come
to a complete stop, disconnect the PTO shaft from the Tractor, then wait five minutes before performing any maintenance
procedure or inspection on the Post Hole Digger.
•This machine is designed to operate at 540 rpm PTO Shaft speed only! Never operate at a faster speed; doing so can cause
serious injury to the operator or bystanders and could cause damage to the machine that is not covered under warranty.
•NEVER operate the post hole digger with the auger point more than 6 inches above ground level. Operating the Post Hole
Digger in elevated positions may cause the PTO “U” joints to bind resulting in equipment damage and operator injury.
This is a high-powered machine, with moving parts operating with high energy at high speeds. You must operate the machine
safely. Unsafe operation can create a number of hazards for you, as well as anyone else in the nearby area. Always take the
following precautions when using this machine:
•Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people, their property, and
themselves.
•Always wear protective goggles or safety glasses with side shields while operating the Post Hole Digger to protect your eyes
from possible thrown debris.
•Avoid wearing loose clothing or jewelry, which can catch on the machine’s moving parts.
•Use ear protectors or ear plugs rated for at least 20 dba to protect your hearing.
•NEVER attach the post hole digger with the tractor engine running.
•Never tamper with safety devices. Check their proper operation regularly.
•Never operate the machine when under the influence of alcohol, drugs, or medication.

CONTACT US AT www.DRpower.com 5
Call 811 before you begin any digging project. A new, federally-mandated national "Call Before You Dig" number, 811 was created
to help protect you from unintentionally hitting underground utilities while working on digging projects. Every digging job requires
a call. If you hit an underground utility line while digging, you can harm yourself or those around you, disrupt service and
potentially be responsible for fines and repair costs.
•There may be buried power, gas, and/or telephone lines in the work area. Electric shock, death, or explosion may occur.
•Have the property or work area marked for buried lines and do not dig in marked areas.
California Proposition 65:
•This product contains or emits chemicals known to the state of California to cause cancer, birth defects, and other
reproductive harm.
Operating the Post Hole Digger Safely (continued)
Safety When Digging Near Utilities
California Proposition 65
A Note to All Users
No list of warnings and cautions can be all-inclusive. If situations occur that are not covered by this manual, the operator must
apply common sense and operate this DR PTO Post Hole Digger in a safe manner. Contact us at www.DRpower.com or call 1-
800-DR-OWNER (376-9637) for assistance.
•ALWAYS turn off the digger immediately if an immovable object is encountered to prevent damage to the gear box or
driveshaft and possible injury. A shear bolt is provided but may become welded to the input shaft if the driveshaft is left
running after being sheared.
•Do not transport people, animals, or objects on the Post Hole Digger.
•NEVER manually position the auger or manually force the auger into the ground.
•Be mindful of roll over hazards, changes in terrain, slopes, or wet conditions. Use care when backing up.
•Never, under any conditions, remove, bend, cut, fit, weld, or otherwise alter standard parts on the DR PTO Post Hole Digger.
This includes all shields and guards. Modifications to your machine could cause personal injuries and property damage and
will void your warranty.
•If the Auger strikes a foreign object or if your machine should start making an unusual noise or vibration, disengage the PTO,
shut down the Tractor Engine, remove the Key, wait for all moving parts to come to a complete stop, lower the Auger to the
ground, disconnect the PTO shaft from the Tractor, then wait five minutes before performing any maintenance procedure or
inspection on the Post Hole Digger. Vibration is generally a warning of trouble. Clean, repair, and/or replace damaged parts.
•While using the DR PTO Post Hole Digger, do not hurry or take things for granted. When in doubt about the equipment or
your surroundings, turn the tractor engine off, disengage the PTO drive and lower the auger point to the ground.
•Use the machine only in daylight.
•Be cautious when using your DR PTO Post Hole Digger around fencing, rocks, wires, ropes, and hoses. It is possible that
these and other debris can hit or become wound around the Auger, potentially damaging the machine or injuring you.
•Keep all nuts and bolts tight and keep the equipment in good operating condition.

6DR® PTO POST HOLE DIGGER
Chapter 2: Setting Up The DR PTO Post Hole Digger
It may be helpful to familiarize yourself with the controls and features of your DR PTO Post Hole Digger as shown in Figure 2
before beginning these procedures. If you have any questions at all, please feel free to contact us at www.DRpower.com.
DR PTO Post Hole Digger Features and Specifications
Tractor Requirements
3-Point Hitch, Category 1, and Category 2
PTO Speed
540 RPM
PTO Shaft Interface
6 Spline Quick Release Tractor Yoke
Auger Drive
Tractor PTO
Driveline Protection
Shear Bolt, 5/16" Grade 5
Digging Diameter
Compatible with 6", 9", and 12" Augers (Sold Seperately)
Digging Depth
Up to 40”
Number of Cutting Edges
2
Gearbox Ratio
3:1
Gearbox Oil
I.E. S.A.E. 80w/90 or S.A.E. 85w/140 Multi-purpose gear oil
A-Frame
2-7/8" High Strength Tubing
Boom
2-7/8" High Strength Tubing
Figure 1
PTO Shaft with Shear
Bolt Driveline Protection
User Manual
Capsule
Boom
Front Link
Rods
Gear Box
PTO Shaft
Auger
Replaceable
Cutting
Edged
Boom Height
Settings
A-Frame
Front Link
Rods

CONTACT US AT www.DRpower.com 7
Figure 3: Hardware Bag #1
Figure 4: Hardware Bag #1
7
1
6
8
1
6
9
1
6
10
16
11
16
Figure 2
Figure 3
1
1
5
2
2
1
5
2
3
1
5
2
4
1
5
2
5
1
5
2
Parts Box
152
6
1
5
2
Hardware
Bags
152
Figure 4: Hardware Bag #2
Figure 5: Hardware Bag #2
12
28
13
29
14
30
15
30
19
30
18
28
17
28
16
30

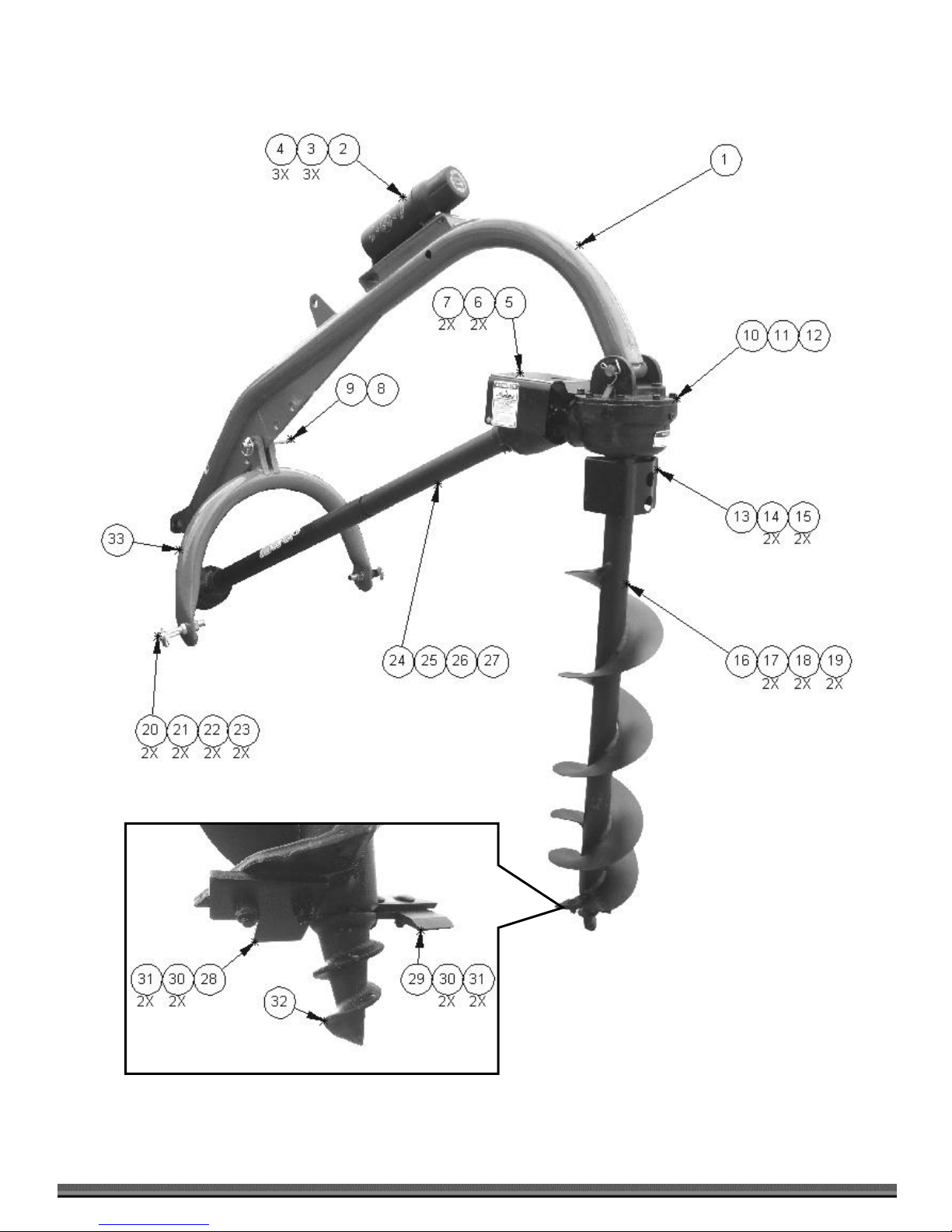

Assembling the DR PTO Post Hole Digger
Parts Supplied - (Figure 2 and list below):
Item # Part # Description Qty
1 ........... 10000032000 .. Shaft, PTO, Post Hole Digger.......................... 1
2 ........... 10000031967 .. A-Frame............................................................ 1
3 ........... 10000031946 .. Boom, Post Hole Digger.................................. 1
4 ........... N/A................. Auger (Shipped Seperately) ............................. 1
5 ........... N/A................. Gearbox Assembly, Post Hole Digger ............. 1
6 ........... 10000031899 .. Capsule, Manual .............................................. 1
Hardware Supplied in Hardware Bag #1 - (Figure 3 and list below):
Item # Part # Description Qty
7 ........... 10000031948 ....Pin, Linch........................................................ 3
8 ........... 10000031866 ....Pin, Bottom Link, PTO Class 1 ...................... 2
9 ........... 323791 ..............Washer, Lock, 7/8........................................... 2
10 ......... 10000032014 ....Nut, Hex, 7/8-14............................................. 2
11 ......... 10000031947 ....Pin, A Frame ................................................... 1
Hardware Supplied in Hardware Bag #2 - (Figure 4 and list below):
Item # Part # Description Qty
12 ......... 354711 ................. Bolt, 1/2"-13 X 3"........................................ 2
13 ......... 111411 ................. Bolt, 5/16"-18 X 3", Grade 5....................... 1
14 ......... 111581 ................. Bolt, 5/16"-18 X 1"...................................... 3
15 ......... 112411 ................. Washer, Flat, 5/16"..................................... 3
16 ......... 110761 ................. Nut, Nylon Lock, 5/16"-18 ......................... 1
17 ......... 112421 ................. Washer, Lock, 1/2" ..................................... 2
18 ......... 229101 ................. Nut, 1/2"-13" .............................................. 2
19 ......... 351841 ................. Screw, Set, ¼-20 X 3/8" .............................. 1
Compare the contents of the Shipping Crate with the “Parts Supplied” list
above. If you have any questions please contact us at www.DRpower.com or call
1-800-DR-OWNER (376-9637) for assistance.

8DR® PTO POST HOLE DIGGER
Tool and Supplies Needed:
•Pliers
•3/4" Socket with Extension
•3/4" Wrench
•1/2" Socket with Extension
•1/2" Wrench
•Large Adjustable Wrench
•Screwdriver
•1/8" Allen Wrench
•General Purpose Grease
1. Loosely install the Bottom Link Pins to the A-Frame using the, 7/8" Lock
Washers, and 7/8-14 Nuts (Figure 5). Use a Screwdriver in the Hole of the
Bottom Link Pin to hold it in place while you tighten the Nut using a Large
Adjustable Wrench.
2. Attach the A-Frame to the Tractor Lift Arms and secure it using two Linch
Pins (Figure 6).
Note: The Spherical end of the Boom has two hole options, one (smaller) for
Category One Tractors and another (larger) for Category Two Tractors. Use the hole
option that fits your tractor.
3. Remove the Top Link from the Top Link Bracket on your tractor. Position
the End of the Boom into the Top Link Bracket and secure it using your
Tractors Top Link Pin (Figure 7).
4. Rotate the A-Frame up and secure it to the Boom using the A-Frame Pin
and Linch Pin (Figure 8). The Hole on the Boom which the A-Frame is
secured to will depend on your tractors geometry and the Height Setting
desired. It may be changed later if needed.
5. Position the Gearbox on the Ground beneath the Boom with the Input Shaft
facing the Tractor (Figure 9). Lower the Lift Arms so that the end of the
Boom aligns with the Mounting Flanges on the Gearbox.
6. Secure the Gearbox to the Boom using the Gearbox Pin and two Cotter
Pins. Use Pliers to bend the Cotter Pins.
A-Frame
Pin and
Linch Pin
A-Frame
Boom
Figure 8
Mounting
Flanges
Input
Shaft
Gearbox
Pin and
Cotter Pins
Boom
Figure 9
Top Link
Bracket
Top Link
Pin
Boom
Figure 7
Figure 6
Lift
Arms
Linch
Pins
A-Frame
Lock Washers
and Nuts
Bottom Link Pins
Figure 5

CONTACT US AT www.DRpower.com 9
7. Raise the Boom by raising the Lift Arms on your Tractor. Position the Auger
onto the Output Shaft of the Gearbox (Figure 10).
8. Align the bolt holes in the Auger with the bolt holes on the Output Shaft and
install the two 1/2"-13 X 3" Bolts, Lock Washers and Nuts. Tighten the
Hardware using a 3/4" Socket with extension through the Access Holes on
the Output Shaft Guard and a 3/4" Wrench.
9. Position the PTO Shaft onto the Input Shaft of the Gearbox (Figure 11).
Align the Bolt Holes and install the 5/16"-18 X 3" Shear Bolt and Locknut.
Tighten the Hardware using a 1/2" Socket with extension through the Access
Hole on the Input Shaft Guard and a 1/2" Wrench.
10. Install the 1/4-20 Set Screw into the threaded hole on the PTO Shaft using a
1/8" Allen Wrench. Screw the Set Screw all the way in then loosen it one full
turn.
11. Attach the other end of the PTO Shaft to the tractor by pulling on the
Locking Collar and sliding onto the Tractor PTO.
12. Attach the Manual Capsule to the Top of the Boom with three 5/16-18 X 1"
Bolts and Flat Washers (Figure 12). Tighten the hardware using a 1/2"
Wrench.
Adding Oil to the Gearbox
Tool and Supplies Needed:
•S.A.E. 80W/90 or S.A.E. 85W/140 Multi-purpose Gear Oil
•10mm Allen Wrench
•6mm Allen Wrench
•Clean Rags
Note: Ensure that the Gearbox is Level when adding oil to ensure an accurate
reading.
1. Remove the Oil Fill Plug from the top of the Gearbox using a 10mm Allen
Wrench (Figure 13).
2. Remove the Overflow Plug from the side of the Gearbox using a 6mm Allen
Wrench
3. Slowly add oil to the top of the Gearbox until it starts draining from the
overflow hole. Allow a few seconds for the oil to settle to get an accurate
reading.
4. Reinstall the Overflow Plug into the side hole.
5. Reinstall the Gearbox Plug into the top of the Gearbox.
Figure 13
Oil Fill
Plug
Overflow
Plug
Figure 12
Manual
Capsule
Bolts, and Flat
Washers
Boom
Figure 11
Shear
Bolt
Access Hole
Input Shaft
Guard
Gearbox
Input Shaft
Set
Screw
Auger
Access
Holes
Output
Shaft Guard
Figure 10

10 DR® PTO POST HOLE DIGGER
Call 811 before you begin any digging project. A new, federally-mandated national "Call Before You Dig" number, 811 was created
to help protect you from unintentionally hitting underground utilities while working on digging projects. Every digging job requires
a call. If you hit an underground utility line while digging, you can harm yourself or those around you, disrupt service and
potentially be responsible for fines and repair costs.
•There may be buried power, gas, and/or telephone lines in the work area. Electric shock, death, or explosion may occur.
•Have the property or work area marked for buried lines and do not dig in marked areas.
Chapter 3: Operating The DR PTO Post Hole Digger
Operation Notes
•See the Owner’s Manual that came with your Tractor for all safety warnings and detailed information for operating your Tractor
properly.
•Always operate the Tractor PTO at 540 RPM when Digging.
•Always disengage the PTO, lock the Parking Brake and shut off the Tractor when leaving the Tractor Seat.
•Never transport the Post Hole Digger while the PTO is turning.
•Never operate the Post Hole Digger when the auger point is more than 6 in. above ground level. Operating the digger in
elevated positions may cause the PTO driveline “U” joints to bind resulting in equipment damage and operator injury.
•Remove any debris buildup from the Auger before every use of the Post Hole Digger.
Operation Steps
1. Lower the Auger Point slowly to the ground at the desired digging angle.
2. With the tractor throttle set to a slow speed, engage the PTO to begin turning the auger.
3. Slowly increase the throttle speed and lower the lift arms as the Auger begins to dig.
4. When the Auger has reached the desired depth, reduce the throttle speed and raise the lift arms.
5. Disengage the Tractor PTO before transporting to the next digging location.
•This machine is designed to operate at 540 rpm PTO Shaft speed only! Never operate at a faster speed; doing so can cause
serious injury to the operator or bystanders and could cause damage to the machine that is not covered under warranty.
•Read and understand your Tractor user’s manual and all Tractor safety Warnings for operating your Tractor safely before
operating this DR PTO Post Hole Digger.
•This machine is designed to operate at 540 rpm PTO Shaft speed only! Never operate at a faster speed; doing so can cause
serious injury to the operator or bystanders and could cause damage to the machine that is not covered under warranty.
•Read and understand your Tractor user’s manual and all Tractor safety Warnings for operating your Tractor safely before
operating this DR PTO Post Hole Digger.

CONTACT US AT www.DRpower.com 11
Chapter 4: Maintaining The DR PTO Post Hole Digger
Regular maintenance is the way to ensure the best performance and long life of your machine. Please refer to this manual for
maintenance procedures.
Regular Maintenance Checklist
Note: Consider that the service intervals shown are the maximum under normal operating conditions. Increase frequencies under
extremely dirty or dusty conditions. See the Owners Manual that came with the Tractor and with the PTO Shaft for Specific
Tractor and PTO Shaft maintenance.
PROCEDURE
BEFORE
EACH USE
EVERY 18-
20 HOURS
EVERY 50
HOURS
Check General Equipment Condition, e.g. Nuts, Bolts,
Welds, etc.

Clean all Debris from the machine.

Check the Auger point and Cutting Edges for
excessive dullness or damage.

Replace broken or damaged Auger point and Cutting
Edges.

Lubricate PTO Shaft Spline ends and center overlap

Check Gearbox Oil

Greasing the PTO U-Joints
Your PTO Shaft was greased at the Factory so it will not need grease until the
scheduled maintenance as listed at the beginning of this Chapter.
Tools and Supplies needed:
•Flexible hose grease gun
•Lithium grease
•Clean cloth
Note: The U-Joint Grease Fitting is sometimes located on the inside of the Joint.
The plastic Collar will need to be unclipped and pushed down to access the
Fitting for this type.
1. Wipe all dirt, etc., from the PTO Shaft grease fittings with a clean cloth.
2. Apply no more than three pumps of quality general-purpose lithium grease
with a hand-pumped grease gun to each of the two U-Joint Grease Fittings
(Figure 14).
U-Joint
Grease Fitting
U-Joint
Grease Fitting
Figure 14
Figure 38
Disengage PTO, shut down the Tractor Engine, remove the Key, wait for all moving parts to come to a complete stop, lower the
Auger to the ground, disconnect the PTO shaft from the Tractor, then wait five minutes for parts to cool before performing any
maintenance procedure or inspection on the Post Hole Digger.
Disengage PTO, shut down the Tractor Engine, remove the Key, wait for all moving parts to come to a complete stop, disconnect
the PTO shaft from the Tractor, then wait five minutes before performing any maintenance procedure or inspection on the Mower.

12 DR® PTO POST HOLE DIGGER
Adding Oil to the Gearbox
Tool and Supplies Needed:
•S.A.E. 80W/90 or S.A.E. 85W/140 Multi-purpose Gear Oil
•10mm Allen Wrench
•6mm Wrench
•Clean Rags
Note: Ensure that the Gearbox is Level when adding oil to ensure an accurate
reading.
1. Remove the Oil Fill Plug from the top of the Gearbox using a 10mm Allen
Wrench (Figure 15).
2. Remove the Overflow Plug from the side of the Gearbox using a 6mm Allen
Wrench
3. Slowly add oil to the top of the Gearbox until it starts draining from the
overflow hole. Allow a few seconds for the oil to settle to get an accurate
reading.
4. Reinstall the Overflow Plug into the side hole.
5. Reinstall the Gearbox Plug into the top of the Gearbox.
Replacing the Cutting Edges
Tools and Supplies Needed:
•9/16 Wrench
•Gloves
1. Clean any Dirt/Debris away from the damaged or Worn Cutting Edges.
2. Remove the two Carriage Bolts and Locknuts that secure each Cutting Edge
to the Auger using a 9/16" Wrench (Figure 16).
Note: 9" and 12" Augers have Inner and Outer Cutting Edges (one of each). 6”
Augers have two of the same Cutting Edges. For Best performance, always replace
both Cutting Edges at the same time.
3. Position the new Cutting Edge on the underside of the Auger with the
Beveled Edge facing up(Figure 16). Reinstall the two Carriage Bolts and
Locknuts and tighten them using a 9/16" Wrench.
4. Repeat Step 3 for the other Cutting Edge.
Figure 16
Inner Cutting
Edge
Outer Cutting
Edge
Carriage Bolts
and Locknuts
Figure 15
Oil Fill
Plug
Overflow
Plug

CONTACT US AT www.DRpower.com 13
DR®PTO Post Hole Digger
2-Year Limited Warranty
Terms and Conditions
The DRPTO Post Hole Digger is warranted for two (2) years against defects in materials or workmanship when put
to ordinary and normal consumer use; ninety (90) days for any other use.
For the purposes of all the above warranties, “ordinary and normal consumer use” refers to non-commercial
residential use and does not include misuse, accidents or damage due to inadequate maintenance.
DR Power Equipment certifies that the DRPTO Post Hole Digger is fit for ordinary purposes for which a product of
this type is used. DRPower Equipment however, limits the implied warranties of merchantability and fitness in
duration to a period of two (2) years in consumer use, ninety (90) days for any other use.
The 2-Year Limited Warranty on the DRPTO Post Hole Digger starts on the date the machine ships from our
factory. The 2-Year Limited Warranty is applicable only to the original owner.
The warranty holder is responsible for the performance of the required maintenance as defined by the manufacturer's
owner's manuals. The warranty holder is responsible for replacement of normally wearing parts such as the Cutting
Edges and PTO shaft. Accessories to the machine are not covered by this warranty.
During the warranty period, the warranty holder is responsible for the machine transportation charges, if required.
During the warranty period, warranty parts will be shipped by standard method at no charge to the warranty holder.
Expedited shipping of warranty parts is the responsibility of the warranty holder.
SOME STATES DO NOT ALLOW LIMITATIONS ON THE LENGTH OF IMPLIED WARRANTIES, SO THE ABOVE
LIMITATIONS MAY NOT APPLY TO YOU.
DRPower Equipment shall not be liable under any circumstances for any incidental or consequential damages or
expenses of any kind, including, but not limited to, cost of equipment rentals, loss of profit, or cost of hiring services
to perform tasks normally performed by the DRPTO Post Hole Digger.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE.

14 DR® PTO POST HOLE DIGGER
Chapter 6: Parts Lists and Schematic Diagrams
Parts List–Post Hole Digger Assembly
Note: Part numbers listed are available through DR Power Equipment.
Ref# Part# Description
1 10000031946 Boom, Post Hole Digger
2 10000031899 Manual Capsule
3 111581 Bolt, 5/16-18 X 1"
4 112411 Washer, Flat, 5/16"
5 10000031980 Guard, Gearbox, Input
6 150431 Bolt, 3/8-16 X 1-1/4"
7 222531 Washer, Lock, 3/8
8 10000031947 Pin, A-Frame
9 10000031948 Pin, Linch
10 10000031955 Gearbox, Post Hole Digger
11 10000031949 Pin, Gearbox
12 186551 Pin, Cotter, 3/16" x 2"
13 10000031991 Guard, Gearbox, Output
14 111521 Bolt, 3/8-16 X 1"
15 222531 Washer, Lock, 3/8
16 416521 Auger, 6”, Post Hole Digger
416531 Auger, 9”, Post Hole Digger
416541 Auger, 12”, Post Hole Digger
17 354711 Bolt, 1/2-13 X 3"
Ref# Part# Description
18 112421 Washer, Lock, 1/2"
19 229101 Nut, Hex, 1/2-13
20 10000031866 Pin, Bottom Link, Post Hole Digger
21 323791 Washer, Lock, 7/8
22 10000032014 Nut, Hex, 7/8-14
23 10000031948 Pin, Linch
24 10000032000 Shaft, PTO, Post Hole Digger
25 111411 Bolt, Shear, 5/16-18 X 3”. Grade 5
26 110761 Locknut, 5/16-18
27 351841 Screw, Set, 1/4-20 X 3/8"
28 10000031973 Cutting Edge, 6” Auger
10000031956 Cutting Edge, Inner, 9” Auger
10000031957 Cutting Edge, Inner, 12” Auger
29 10000031973 Cutting Edge, 6” Auger
10000032018 Cutting Edge, Outer, 9” Auger
10000031985 Cutting Edge, Outer, 12” Auger
30 384821 Bolt, Carriage, 3/8-16 X 1-1/4"
31 110751 Locknut, 3/8-16
32 10000031958 Tip, Auger
33 10000031967 A-Frame

CONTACT US AT www.DRpower.com 15
Schematic –Post Hole Digger Assembly

7 5 M E I G S R O A D , P . O . B O X 2 5 , V E R G E N N E S , V E R M O N T 0 5 4 9 1
©2018 Country Home Products, Inc. All rights reserved 10000031993
Daily Checklist for the DR PTO Post Hole Digger
To help maintain your DR PTO Post Hole Digger for optimum performance, we recommend you follow this checklist each time you use
your machine.
[ ] CUTTING EDGES: Replace damaged or overly worn Cutting Edges.
[ ] GENERAL CONDITION: Check the general condition of the machine, e.g.; nuts, bolts, welds etc.
End of Season and Storage
•Lubricate PTO Shaft Grease Fittings.
•Check the Cutting Edges for Damage or Wear. Replace as needed.
•Check the general condition of the machine, e.g.; nuts, bolts, welds, etc. Replace parts or tighten Hardware as needed.
•Store in a dry covered area to protect from moisture.
•Remove any stones, dirt, wrapped grass or weeds from the Auger.
Disengage PTO, shut down the Tractor Engine, remove the Key, wait for all moving parts to come to a complete stop, lower the
Auger to the ground, disconnect the PTO shaft from the Tractor, then wait five minutes for parts to cool before performing any
maintenance procedure or inspection on the Post Hole Digger.
Disengage PTO, shut down the Tractor Engine, remove the Key, wait for all moving parts to come to a complete stop, disconnect
the PTO shaft from the Tractor, then wait five minutes before performing any maintenance procedure or inspection on the
Trimmer.
Disengage PTO, shut down the Tractor Engine, remove the Key, wait for all moving parts to come to a complete stop, lower the
Auger to the ground, disconnect the PTO shaft from the Tractor, then wait five minutes for parts to cool before performing any
maintenance procedure or inspection on the Post Hole Digger.
Disengage PTO, shut down the Tractor Engine, remove the Key, wait for all moving parts to come to a complete stop, disconnect
the PTO shaft from the Tractor, then wait five minutes before performing any maintenance procedure or inspection on the
Trimmer.
