Draper AeroLift 25 User manual

Featuring:
Projection Screens
Lifts & Mounts for flat panel
displays and projectors
Window Shades
Home Theatre Products
Home Theatre Products

2
Gain 3.0
2.0
1.0
0.5
70˚ 60˚ 50˚ 40˚ 30˚ 20˚ 10˚ 0˚ 10˚ 20˚ 30˚ 40˚ 50˚ 60˚ 70˚
Viewing Angle
HiDef Grey
Draper is proud to present “Home Theatre Products” for your viewing pleasure. Our feature
presentation is a showcase of projection screens, projector lifts, monitor mounts and window
coverings for the home.
Whether you’re in the mood for a dedicated home theater or an entertainment system integrated
into your living room, Draper offers you reliable, affordable and innovative theater products.
So sit back, relax and enjoy the show!
Viewing Surfaces & Descriptions
M1300
The perfect matt white diffusing surface. Extremely broad light dispersion and spectral uniformity.
Panoramic viewing angle and true color rendition. Recommended for use with any type of projector in
rooms where the light level can be reasonably controlled. Washable. In a dedicated home theatre this
surface provides the logical choice. Available on all permanently tensioned and tab-tensioned screens.
HiDef Grey
A grey front projection surface that provides greater contrast and black reproduction than standard
surfaces, with a lower gain to handle today’s super-bright projectors. HiDef Grey is designed with a
low gain of 0.9 to meet the demands of today’s high-output video projectors. The grey color enhances
color contrast and black levels in the projected image and also allows for more ambient light in the
audience. Available on all tab-tensioned screens and in sizes through  diagonal HDTV (select
models), and permanently tensioned screens through  diagonal HDTV.
AT1200 & AT Grey
Draper exclusives, AT1200 and AT Grey are the most innovative and versatile acoustically trans-
parent screen materials available. Both surfaces are woven, not perforated. This revolutionary advance
allows the viewer (and listener) to position the center channel speaker directly behind the screen—
the optimum location for full range audio performance. AT1200 and AT Grey have the sound
transmission characteristics of high quality speaker grille cloth. See page 13 for more details.
AT1200 provides a uniform gain slightly superior to the standard one-gain material. AT Grey has
a lower gain, 0.8, for use with even the brightest projectors. They are washable, flame and mildew
resistant. Available on motorized screens and in sizes through  diagonal HDTV (select models),
and permanently tensioned screens through  diagonal HDTV. Not recommended for screens
smaller than  wide when used with LCD or DLP projectors.
Fiberglass Matt White
A matt white vinyl reflective surface laminated to tear-resistant woven fiberglass. Matt white diffuses
projected light in all directions, so the image can be seen from any angle. Provides accurate color
rendition as well as superior clarity. Recommended for use with all high light output projection
devices. Requires control of ambient light in the audience area. Washable, flame and mildew
resistant. Now available seamless in all standard sizes through  diagonal HDTV. Larger sizes
available with inconspicuous seam through  diagonal HDTV.
High Contrast Grey
Grey textile-backed surface offers excellent resolution while enhancing the blacks of LCD and DLP
projected images, even as whites and lighter colors are maintained. Performs well in ambient light.
Lower gain of . allows use with even the brightest projectors. Available on most non-tensioned
motorized and manual screens; seamless in all standard sizes through  diagonal HDTV. Larger
sizes available with inconspicuous seam through  diagonal HDTV.
M2500
A high-contrast front viewing surface with excellent resolution and high gain. Outstanding black
retention: ideal for data-graphics projectors producing up to 1000 ANSI lumens. M2500 tolerates a
significantly higher ambient light level than most other front projection screen surfaces. Available on
all permanently tensioned and tab-tensioned screens.
Cineflex
A neutral grey vinyl for rear projection. Cineflex has high resolution and excellent contrast,
even in lighted rooms. For use with any type of projection equipment.
* Gain charts depict gain values at various points, measured in degrees from projection axis. Gain is a measure of brightness as compared
to a block of magnesium carbonate, which serves as a standard for gain of 1.0. The charts also help in judging uniformity. The flatter
the curve in the portion of the viewing cone where viewers will be seated, the more consistent the image they will perceive.
Gain 3.0
2.0
1.0
0.5
70˚ 60˚ 50˚ 40˚ 30˚ 20˚ 10˚ 0˚ 10˚ 20˚ 30˚ 40˚ 50˚ 60˚ 70˚
Viewing Angle
Gain 3.0
2.0
1.0
0.5
60˚ 50˚ 40˚ 30˚ 20˚ 10˚ 0˚ 10˚ 20˚ 30˚ 40˚ 50˚ 60˚
Viewin
g
An
g
le
Gain 3.0
2.0
1.0
0.5
70˚ 60˚ 50˚ 40˚ 30˚ 20˚ 10˚ 0˚ 10˚ 20˚ 30˚ 40˚ 50˚ 60˚ 70˚
Viewing Angle
Gain 3.0
2.0
1.0
0.5
70˚ 60˚ 50˚ 40˚ 30˚ 20˚ 10˚ 0˚ 10˚ 20˚ 30˚ 40˚ 50˚ 60˚ 70˚
Viewing Angle
50˚ 40˚ 30˚ 20˚ 10˚ 0˚ 10˚ 20˚ 30˚ 40˚ 50˚
Viewin
g
An
g
le
Gain 3.0
2.0
1.0
0.5
AT1200
M2500
Cineflex
M1300
AT Grey & High Contrast Grey

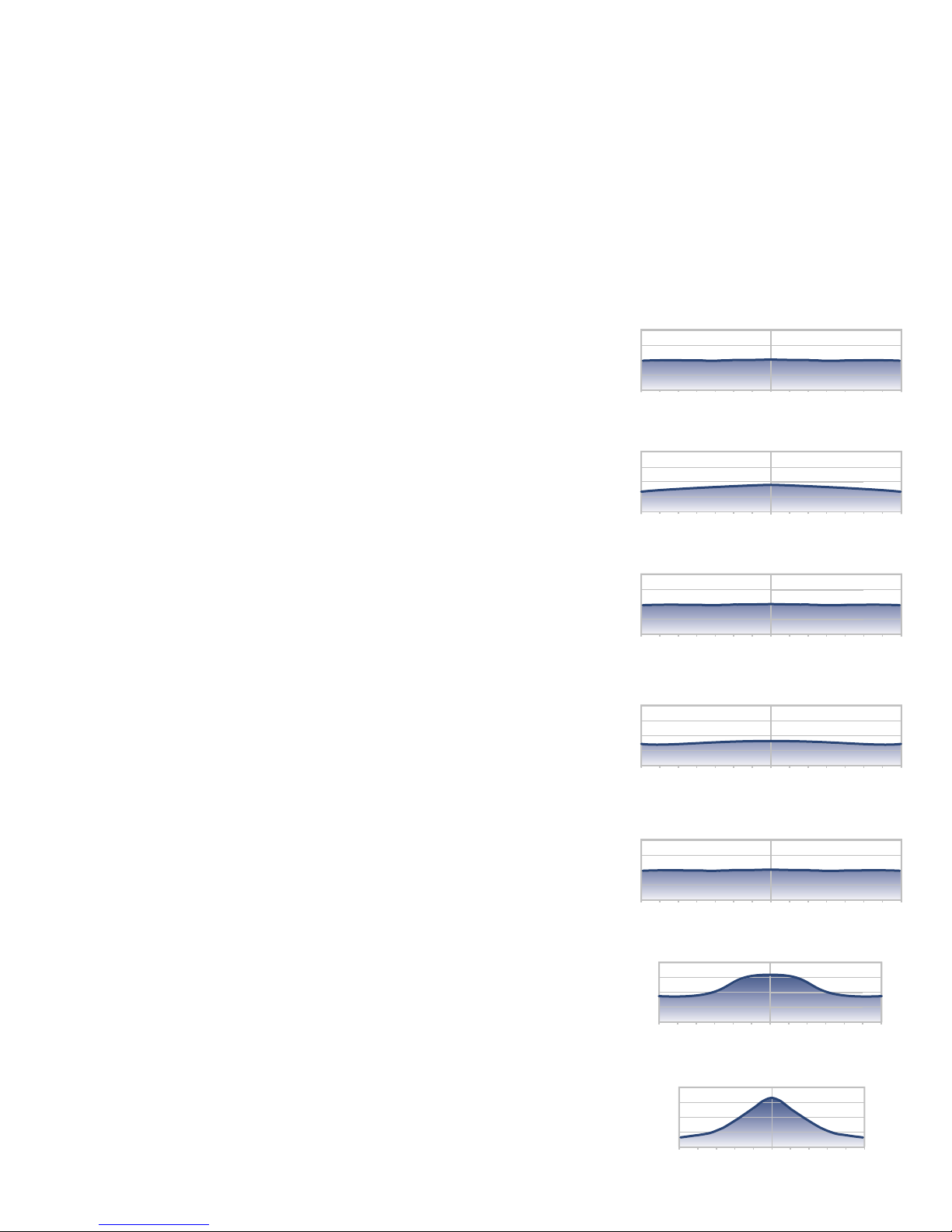

Gain Charts*
Gain 3.0
2.0
1.0
0.5
70˚ 60˚ 50˚ 40˚ 30˚ 20˚ 10˚ 0˚ 10˚ 20˚ 30˚ 40˚ 50˚ 60˚ 70˚
Viewing Angle
Fiberglass Matt White

3
Table of Contents
Ceiling-Recessed Electric Screens
Access Series .......................................................................................... 4-5
Ceiling-Recessed Electric Screens with Ceiling Closure
Ultimate Access Series, Signature Series, Envoy ..................................... 6-7
Wall-Mounted Electric Screens
Silhouette Series, Artisan Series, Salara, Baronet, Premier, Targa ............ 8-9

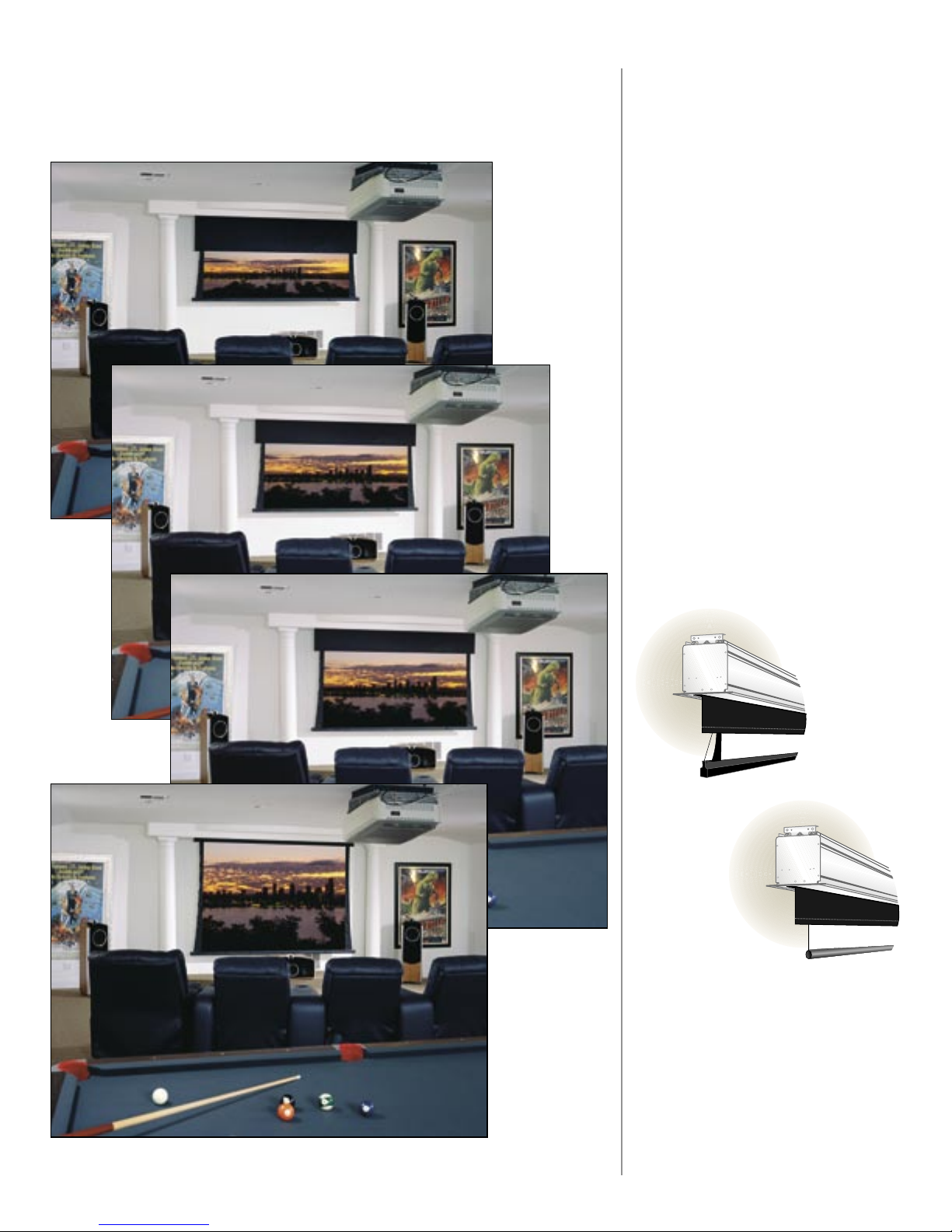

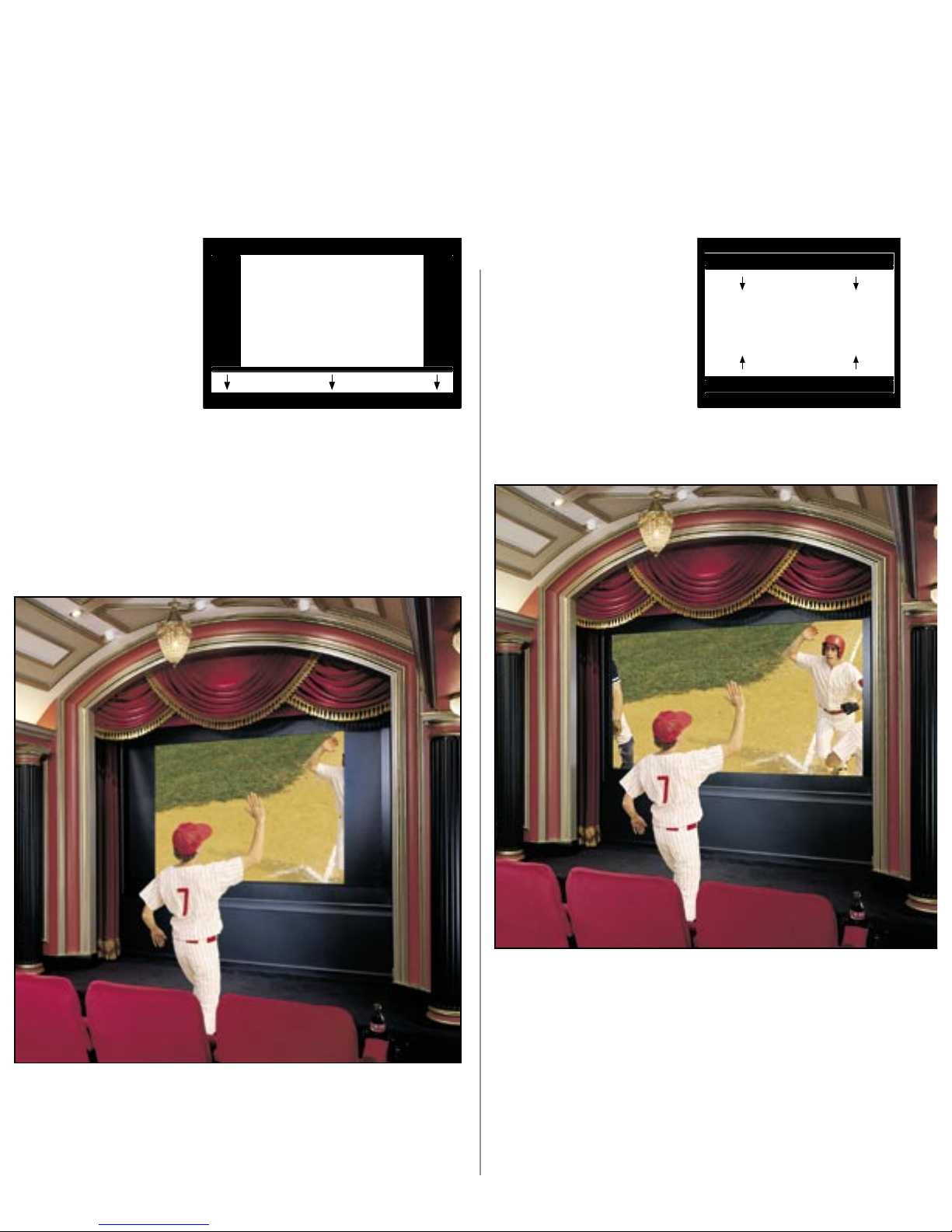

Electric Screens with Masking Systems
Access MultiView Series, Access Sonata .............................................. 10-11
Electric Screen Controls .........................................................................12
AT Projection Screen Surfaces ................................................................13
Wall-Mounted Permanently Tensioned Screens
Onyx, Clarion, ShadowBox Clarion, Cineperm,
WrapAround Clarion ......................................................................... 14-15
Eclipse Masking System for Permanently Tensioned Screens ...........16-17

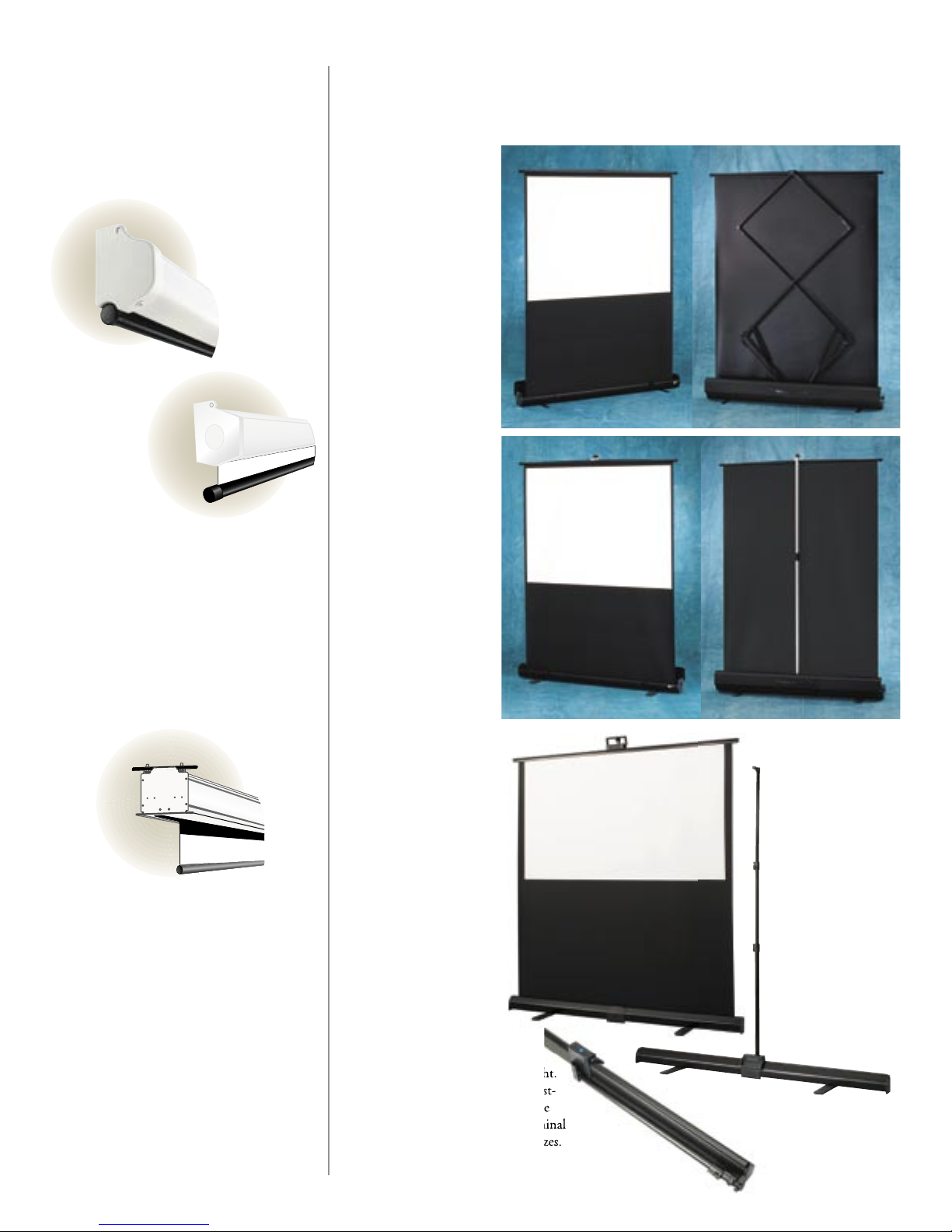

Manual Screens
Silhouette/M, Artisan/M, Salara, Luma, Luma 2, Access/M,
RoadWarrior, Traveller, Piper .............................................................. 18-19
1.48:1
Horizontal
35mm Slides
Draper motorized projection screen and light-filtering window shades.
Photography by Tony Frederick, C. S. Kern, Muncie, Indiana.
1.33:1
or 4:3
NTSC Video
1.78:1
or 16:9
HDTV
1.85:1
WideScreen
2.35:1
CinemaScope
Rear Projection Screens
Cinescreen, DiamondScreen, IRUS, RPX, RPX/Precision,
RPX/Complete ...................................................................................20-21
SMS Flatscreen Mounts ..........................................................................22
SMS Projector Mounts ...........................................................................23
Ceiling Lifts & Mounts for Video Projectors
AeroLift 25, LCD Lift, Orbiter, Phantom, Revelation,
MPL, Scissor Lift .............................................................................. 24-27
FlexShade Systems
Light-filtering and light-blocking window shades .............................. 28-31
Aspect Ratios of Common Projection Formats

4
Electric Screens
• Ceiling-Recessed
Access/V
Access/E
Access Screen Series
• Access/Series V & Series E
Attention architects, interior designers, building contractors, homeowners, Draper dealers
and especially installers: The Access Screen Series is now even more ideal for home
installations! We’ve shortened the height of the case and redesigned the hanging brackets—
making it easier to put the projection screen in just the right place.
Aside from these modifi cations, the Access Screen Series is still the great product you know
and demand.
The Access Screen Series is Draper’s thought ful so lu tion to the problems that have plagued
pro jec tion screen buyers for years. In cor rect size of screen or aspect ratio, choice of sur face and
job site damage during con struc tion—all can be avoided with the Access.
Case Now/Screen Later—The essence of the Access con cept is a ceiling-re cessed, ex trud ed-
alu mi num head box. The screen itself (view ing sur face and mo tor ized roller) can ei ther be
fur nished with the case or at any time thereafter. The Access or Ultimate Access screen
itself in stalls in min utes, and the only tool you need is a hex key.
Access Case
Easy Installation—Easy Access
It’s easy to see why the Access is so popular. Designed with solutions in
mind, the case features include:
• Redesigned hanging brackets that slide in channels on top of the
case, allowing unlimited adjustment to avoid interference with
confl icting structures above the ceiling. ❶
• A pre-wired junction box inside left end (of audience side) and a
cable exit hole on top. ❷
• Redesigned case with a smaller overall height. White fl ange around
the pe rim e ter of the case sup ports ceil ing tile or trims out rough
ceiling opening. ❸
• “Pin connector” electrical connection of screen to internal
junction box eliminates tools. ❹
• Bottom of case that forms a slot for fabric passage and is removable without tools
for installation or replacement of screen. ❺
The screen (motor-in-roller with fab ric at tached) comes with easy-to-install latch ing brack ets.
Latch ing brack ets slide along a track inside the top of the case, so the case can ac com mo date
differ ent sizes of screens. A large case al lows for maxi mum fl exibility.
Access Case
Need to install a projection
screen in front of a window?
Draper has a new approach to the problem of
projection screens in front of window openings.
With the Access Dual Roller FlexShade, you
can have a motorized window shade that covers
and seals the window light, plus a Series E
projection screen with your choice of format and
viewing surface, both in the same recessed Ac-
cess headbox. See page 28 for more information.
❺
❺
❹
Access Series
Eliminates your installation problems
Access/Series V—Motorized screen
available with the unparalleled performance
of our Tab Tensioning System in M1300,
M2500 and HiDef Grey front projection
surfaces, as well as the Cinefl ex rear projec-
tion surface.
Access/Series E—Motorized screen with
your choice of a conventional viewing sur-
face: in choice of fi berglass matt white, High
Contrast Grey or acoustically transparent
AT1200 or AT Grey.
❸
❶
❷

5

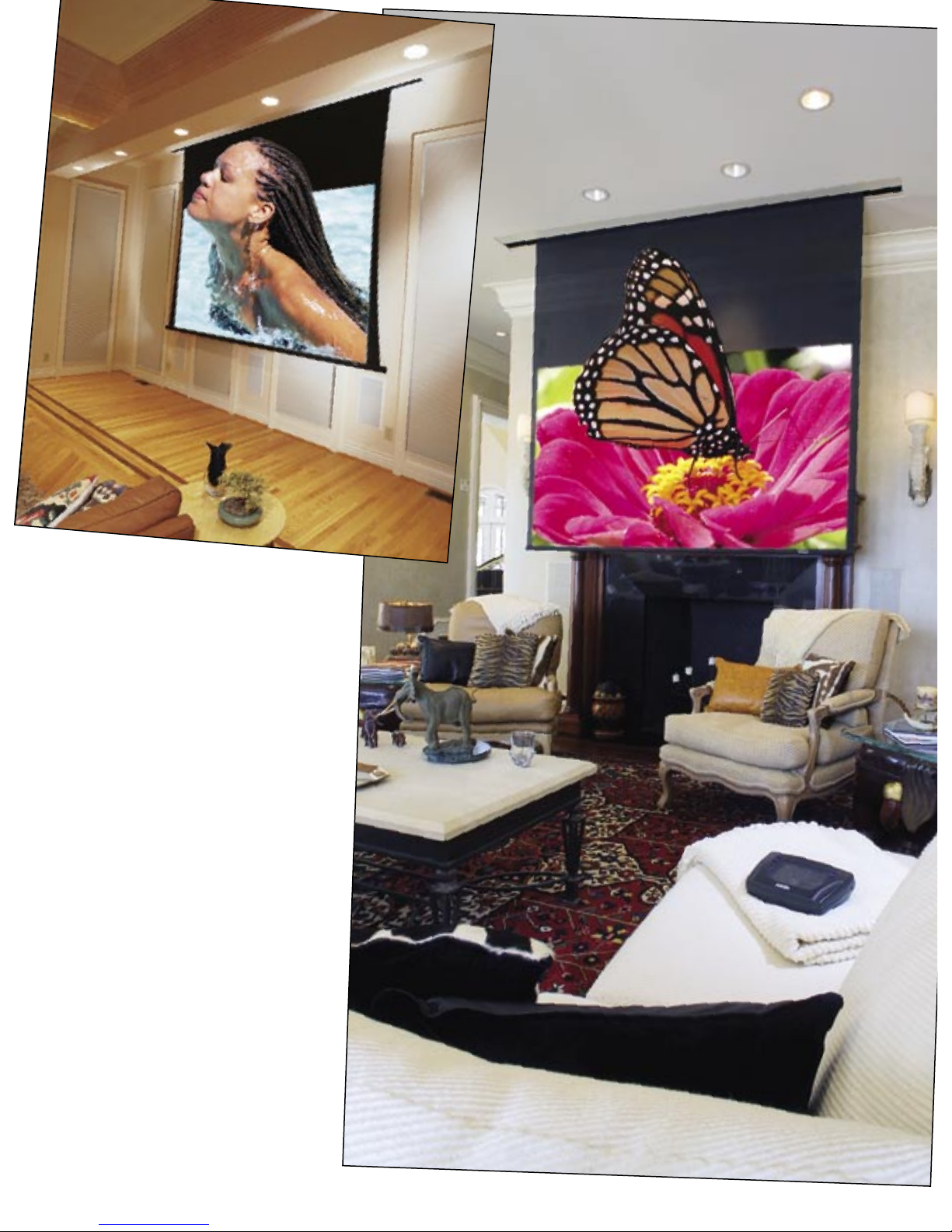

Above: Access/Series V projection screen. Installation
by Gene Crawford, Crawford Entertainment Systems,
Louisville, Kentucky. Photography by Walt Roycraft,
Nicholasville, Kentucky. At left: the screen is retracted
inside of its case.
At right: Signature/Series E projection screen
with an acoustically transparent viewing surface,
AT1200. Installation by Bill Maxey, Media
Design, Inc., Houston, Texas. Photography by
Michael Stravato, Houston, Texas.

6
Motorized
ceiling
closure
Motorized
ceiling
closure
Motorized
ceiling
closure
Motorized
ceiling
closure
Ultimate Access Series
No other projection screen gives you so many benefits. Experience the
rewards of installing the headbox while the ceiling contractor is on site, and
supplying power to the pre-wired junction box inside. The screen (motor-
in-roller with attached viewing surface) can be ordered, shipped and stored
independently of the headbox, and popped into place at a future date. This
eliminates job site damage. Want to update the format or type of viewing
surface as technology changes? The Ultimate Access Series gives you that
flexibility without extra electrical or ceiling work.
Flange trims the opening of any type of
ceiling. Plus, the independently motorized
ceiling closure disappears into the case when
the screen is lowered. When the screen
retracts into the ceiling, the closure quietly
returns to the closed position. Hinges are
completely concealed, and the closure is
supported for its entire length—no sag is
possible. Available in all projection formats
up to 12 wide.
Ultimate Access/Series V—available with
the unparalleled performance of our Tab
Tensioning System in M1300, M2500 and
HiDef Grey front projection surfaces, as
well as the Cineflex rear projection surface.
Ultimate Access/Series E—your choice
of a conventional viewing surface: fiberglass
matt white, High Contrast Grey, or
acoustically transparent AT1200 or AT Grey.
Electric Screens
• Ceiling-Recessed • Ceiling Closure
Ultimate Access/V
Ultimate Access/E
Signature/V
Signature/E
Signature Series
The Signature Series is practically invisible in your home theatre.
When activated, the independently motorized aluminum ceiling closure
disappears into the aluminum case when the screen is lowered. When the
screen retracts into the ceiling, the
closure quietly returns to the closed
position. Hinges are completely
concealed, and the closure is
supported for its entire length—no
sag is possible. These exclusive
features mean that the Signature is
one of the best concealed projection
screen you’ve ever seen. Screen
can be operated from any remote
position. Available in all projection
formats up to 16 wide.
Signature/Series V—available
with the unparalleled performance
of our Tab Tensioning System in
M1300, M2500 and HiDef Grey
front projection surfaces, as well as
the Cineflex rear projection surface.
Signature/Series E—your
choice of a conventional viewing
surface: fiberglass matt white, High
Contrast Grey, or acoustically
transparent AT1200 or AT Grey.

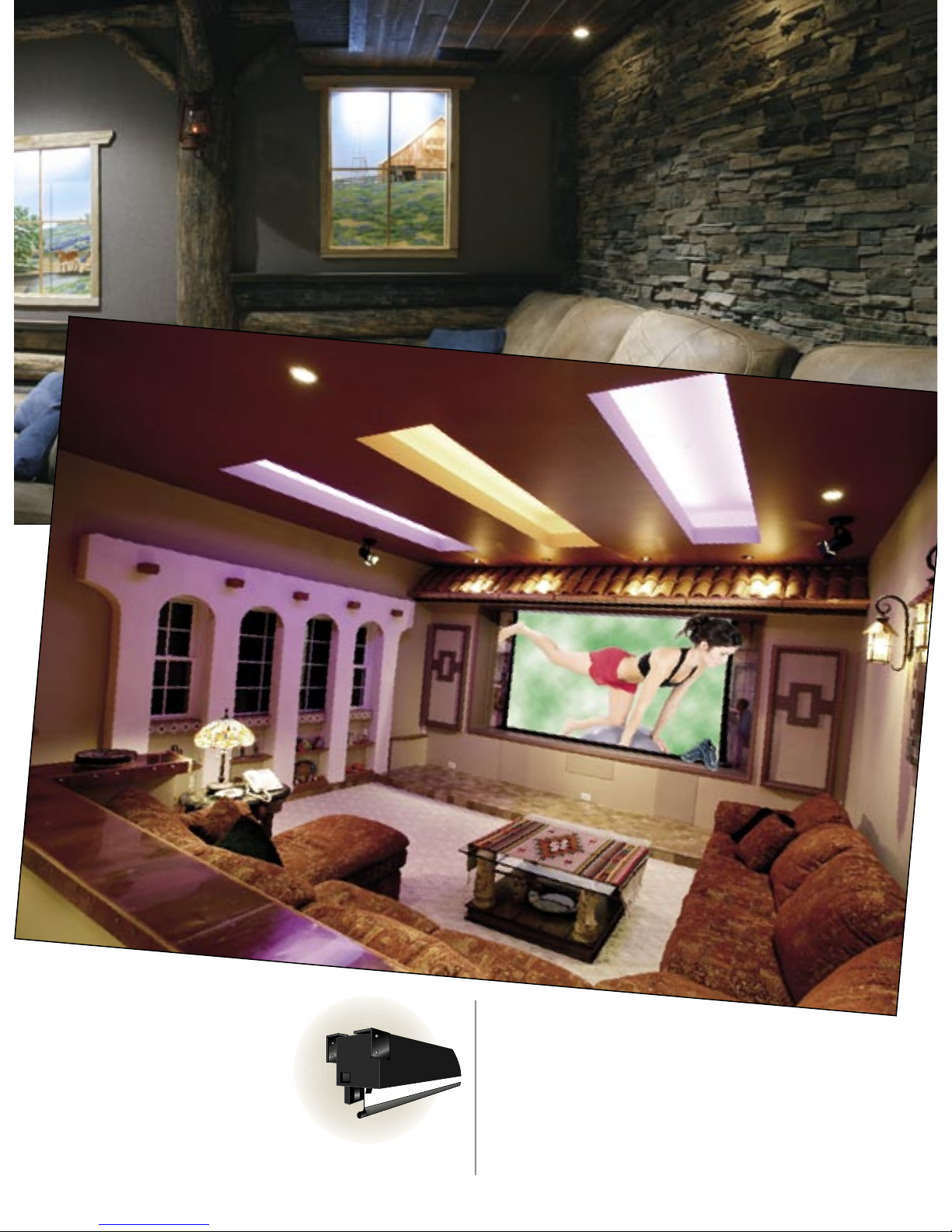

Panoramic View of Eric Anderson’s
theater, featuring a Draper
Access/V,  HDTV projection
screen with a HiDef Grey viewing
surface. Designed, constructed and
photography provided by Brooks
Gibbs of Visual Imagery LLC,
South Jordan, Utah.

7
Envoy
The Envoy adds a touch of class to any
home theatre. The screen’s slender profile
makes it easy to install above most ceilings.
The Envoy has an automatic ceiling closure
you can easily finish to match the ceiling.
Ideal for a living room/media room, or any
room with multiple functions—the screen
will go unnoticed when not in use. The Envoy
is available with a fiberglass matt white or High
Contrast Grey viewing surface in all projection formats up to  wide.
Black masking borders frame your projected image on all four sides.
Draper Premier,  HDTV projection screen with M1300
viewing surface. Design and installation by Peter B.
Hodson III, in his home and showroom for his business,
P3 Integration. Photography by Richard Anderson. Both of
Binghamton, New York.

8
Electric Screens

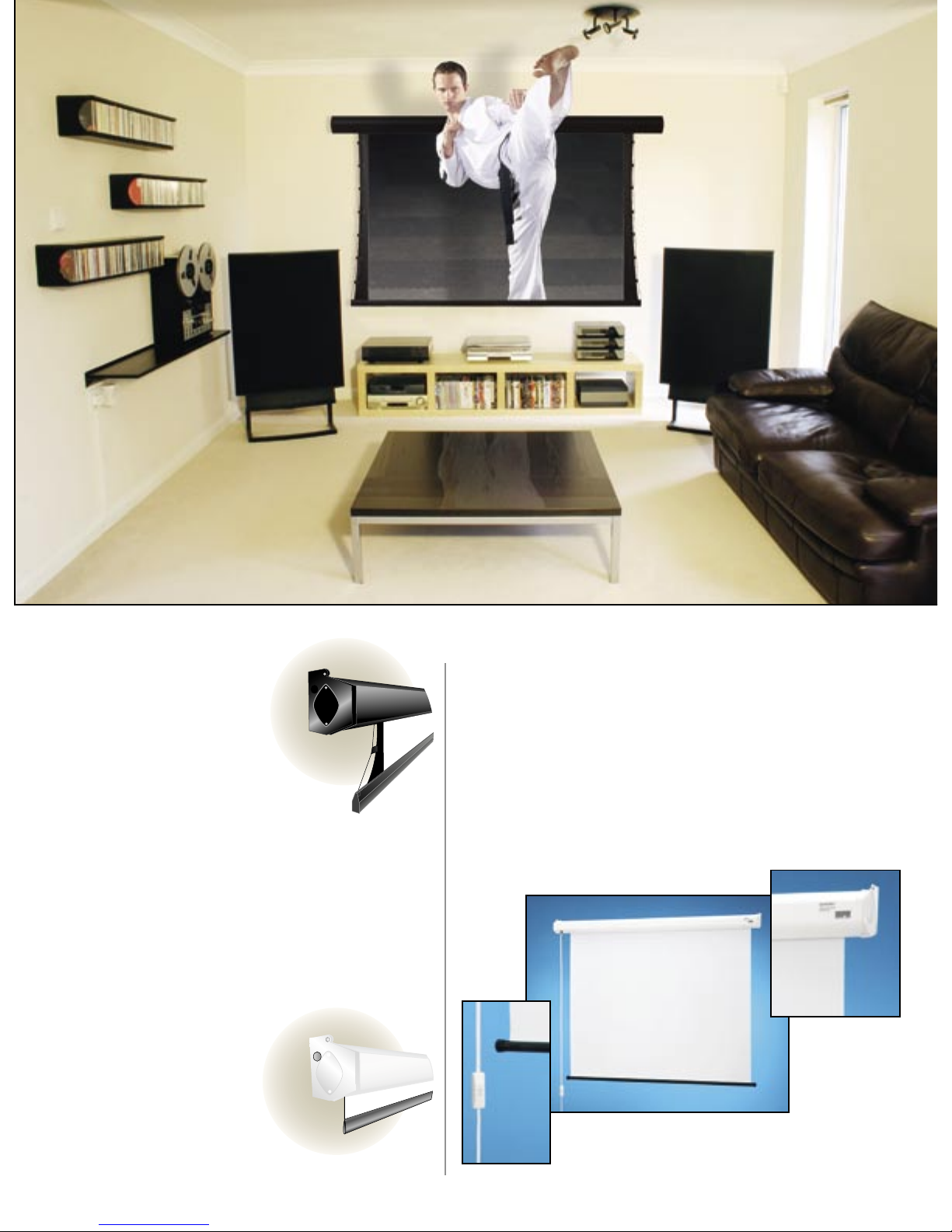

• Wall-Mounted
Silhouette/V
Silhouette/E
Artisan/V with Traditional style case
Artisan/E with Traditional style case
Silhouette
We’ve changed the shape of the future with a
revolutionary screen design. The Silhouette’s
case and endcaps are made of gently radiused
aluminum, with no exposed mounting fixtures
or fasteners. The screen retracts completely
inside the case, presenting a strikingly modern
appearance.
The Silhouette’s slender dimensions and
self-concealing brackets make it equally
attractive mounted to the wall or to the ceiling.
The conduit connection is located at back or
top, so all attachment points are invisible.
No need to conceal the Silhouette: its sleek
design will complement the other high tech
equipment in your room. Available in all
projection formats through  wide.
Silhouette/Series V—features Draper’s Tab
Tensioning System, with M1300, M2500 and
HiDef Grey front projection surfaces, as well as
the Cineflex rear projection surface.
Silhouette/Series E—Motorized screen with
your choice of a conventional viewing surface:
fiberglass matt white, High Contrast Grey,
AT1200* and AT Grey*.
Artisan Series
We designed the Artisan Series screens to
harmonize with your fine furniture. Solid
hardwood cases are hand–rubbed in your choice
of seven standard finishes (light or medium
oak, walnut, mahogany, natural or medium
cherry, natural maple) or customized to match
your existing woodwork. Hardwood cases are
available in four styles—traditional, bevel,
radius or rectilinear. Contemporary custom
plastic laminates are also available to match your
home theatre décor (rectilinear case style only).
Available in all projection formats up to 8 wide.
Artisan/Series V—available with the
unparalleled performance of our Tab
Tensioning System in M1300, M2500 and
HiDef Grey front projection surfaces, as well
as the Cineflex rear projection surface. The
Artisan/Series V is an elegant accent to any
home theatre designed for a wall-mounted
screen.
Artisan/Series E—Motorized screen with
your choice of a conventional viewing surface:
fiberglass matt white, High Contrast Grey,
AT1200* and AT Grey*.
Salara
The Salara makes a design statement in your
home. The Salara’s small, elliptical case and
domed endcaps are finished in solid white,
no need to hide it with extra carpentry work.
Quick and easy to install! Mounts to the wall
with floating brackets which can be positioned
along the back of the case. The result—the most
attractive high-quality, lower-cost motorized
screen you’ve ever seen.
Salara—Hardwired, motorized screen with
your choice of a conventional viewing surface:
fiberglass matt white, High Contrast Grey,
AT1200* and AT Grey*.
Salara/Plug & Play™—Motorized screen
with same viewing surface choices as the Salara
(above). The difference: with the Salara/Plug
& Play, you can have a remote controlled screen
on your wall in  minutes—no electrician
required, no hardwiring. Its  IEC cord plugs
into a socket in the back of the case and the
other end into the nearest wall outlet. Salara/
Plug & Play has a built-in controller and IR
receiver, and comes with a hand-held IR trans-
mitter. RS232 compatible.
Small, elliptical case and domed endcaps
finished in solid white
Wall-mounting brackets
Plug & Play™
cord
Built-in controller and IR receiver
* Acoustically transparent fabrics are not
recommended for screens smaller than  wide
when used with LCD or DLP projectors.

9
Premier
Targa
An in-line
operating
switch
controls the
Baronet
Baronet
The Baronet offers an excellent, lower-cost alternative to hardwired motorized
screens. No electrician is required with the Baronet. Just install the motorized
screen and plug it in. It’s that simple. Its  power cord plugs into the nearest
wall outlet. The Baronet is controlled by a 3-position, in-line operating switch.
Its attractive case fits in most spaces. Case measures only ¼ high x ¼ deep
and still houses a quiet, trouble-free motor. Endcaps form universal mounting
brackets making installation easy whether it is mounted on a wall, suspended or
recessed above the ceiling. Both brackets extend ½ above the case.
The Baronet’s pentagonal-shaped steel case has a scratch-resistant white polyes-
ter finish. Viewing surface choices are fiberglass matt white and High Contrast
Grey. Available in all projection formats up to  wide.
White endcaps
form universal
mounting brackets
Silhouette/Series V
Targa
The Targa is the perfect alternative
for the budget conscious home theatre
buyer. A one-piece steel case finished
in white houses the screen. The slim
case of the Targa fits wherever you
need it—on the wall, suspended from
the ceiling, or inside a soffit. Choose
from the following viewing surfaces:
fiberglass matt white, High Contrast
Grey, AT1200*, AT Grey*. Offered in
all projection formats up to 16 wide.
Premier
The Premier takes center stage in
many notable home theatres. The
Tab Tensioning System showcases
any projected image for the ultimate
viewing experience in your home.
The Premier is truly a versatile
performer—mount it to the wall,
suspend it from the ceiling, or recess
it in a soffit or existing cabinetry. The
case, bottom slat bar and side masking
borders are all flat black— to concentrate your focus on the projected
image. Additional black masking at the top of the viewing area is
available on request.
The Premier offers the choice of M1300, M2500 and HiDef Grey
front projection surfaces, as well as the Cineflex rear projection
surface. Available in all projection formats up to 13 wide.

10
Access MultiView
Access MultiView is a motorized screen and
independently motorized masking system that
provides dual format projection—all in a ceiling
recessed Access case.
Select a projection screen in HDTV or
WideScreen format up to  wide. A flat black
mask on a second motor-in-roller converts the
screen to a NTSC video format by masking the
right and left sides of the viewing surface. The
height of the viewing surface remains constant.
Access MultiView/Series V—Features
Draper’s Tab Tensioning System for a
perfectly flat projection surface. Choose M1300,
M2500 or HiDef Grey.
Access MultiView/Series E—Choose from
the following viewing surfaces: fiberglass matt
white, High Contrast Grey, AT1200* and
AT Grey*.
System Options
Extra Drop— black drop standard for
all screens in both Series. Extra black drop
available up to a total screen height of .
Control Options—Screen and mask are
independently controlled, each by a standard
3-position rocker switch. Options include a 24v,
6-button, single gang wall switch that controls
both motors; two wireless ir remote controls; or
two wall switches with built-in ir receivers and
one transmitter.

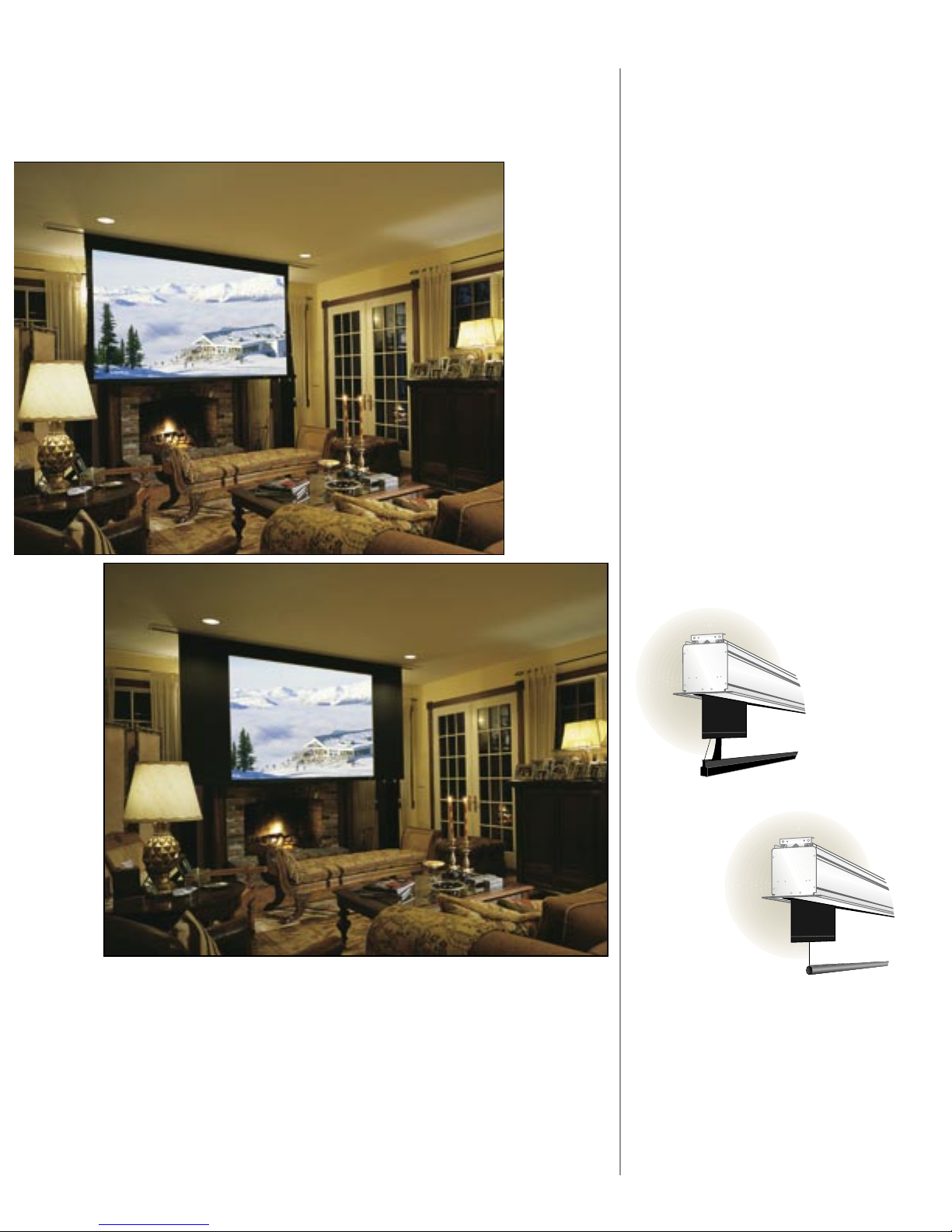

Top: Access MultiView/Series V projection screen in widescreen format with mask retracted. Bottom: mask in
down position converts the projection screen to a 4:3 NTSC video format image area. Photography by Phillip
H. Ennis, Bedford, New York.
Electric Screens
• One Screen—Two Formats
Access MultiView/E
Access MultiView/V
* Acoustically transparent fabrics are not
recommended for screens smaller than  wide
when used with LCD or DLP projectors.

11
Electric Screens
• One Screen—Four Formats
NTSC format
WideScreen format
HDTV format
CinemaScope format

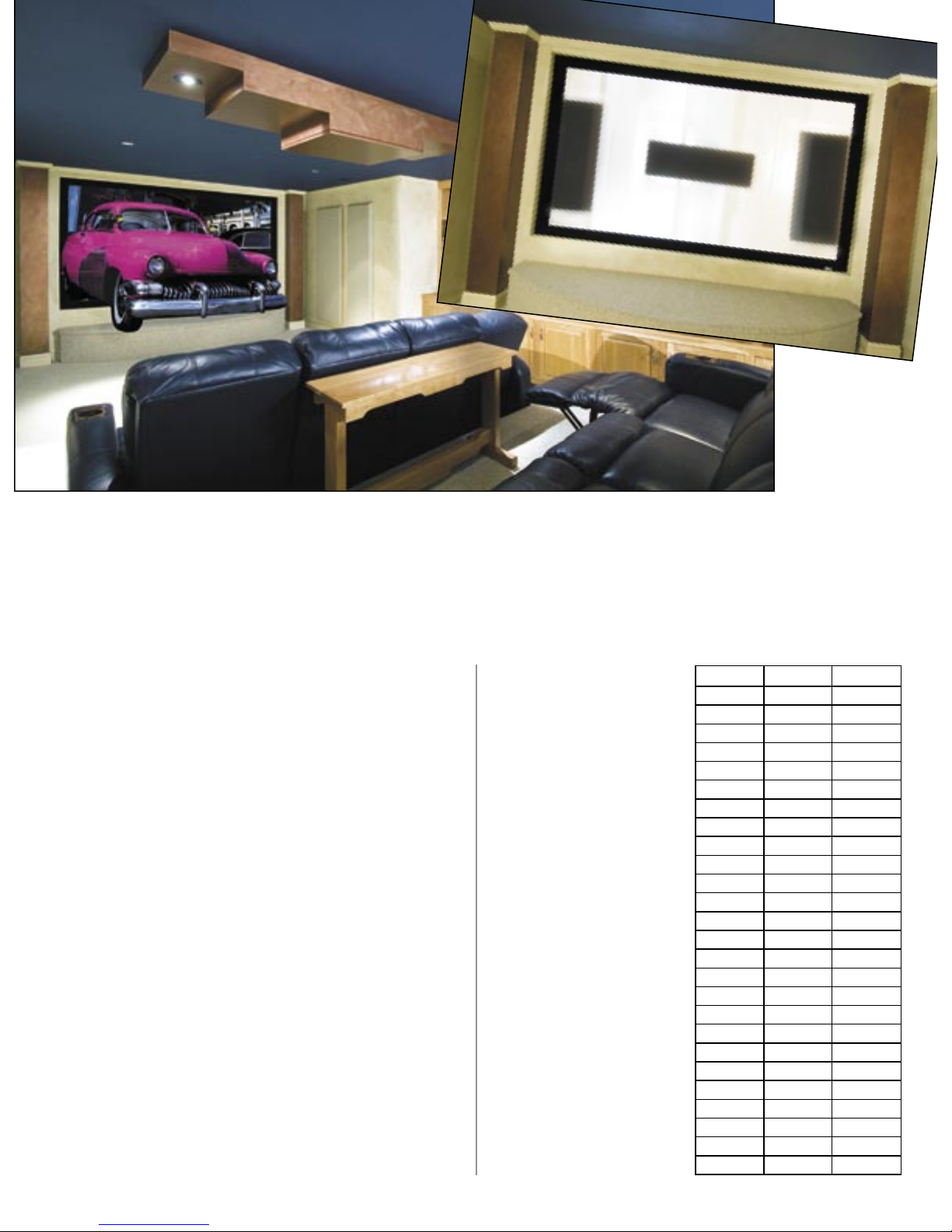

Access Sonata/Series V projection screen—one screen, four formats. Installation by
Audio Arts, Saratoga, California. Photography by Andrew McKinney,
San Francisco, California.
Access Sonata
Access Sonata is a motorized screen and mask-
ing system linked electronically to provide four
different projection formats at the touch of a
button—all in a ceiling recessed Access case.
A flat black mask on a second motor-in-roller
converts the projection screen to your choice of
four formats: 1.33:1 NTSC, 1.78:1 HDTV, 1.85:1
WideScreen and 2.35:1 CinemaScope.
During format changes, the center line and width
of the viewing surface remain constant while the
mask and projection screen move simultaneously
into their factory preset positions.
Access Sonata—one screen, four formats.
Unlimited possibilities.
Access Sonata/Series V—Features Draper’s
Tab Tensioning System for a perfectly flat pro-
jection surface. Choose M1300, M2500 or HiDef
Grey.
Access Sonata/Series E—Choose from the
following viewing surfaces: fiberglass matt white,
High Contrast Grey, AT1200*, AT Grey*.
System Options
Extra Drop— black drop standard for all
screens in both Series. Extra black drop available
up to a total screen height of .
Control Options—Single station 6-button wall
switch standard. Compatible with Sonata ir
remote control.
Access Sonata/E
Access Sonata/V

The following input devices (❸–❺) are compatible with Draper’s LVC-III
& MC1:
Low Voltage Wall Switch ❸
Dry contact 3-button wall switch lets you raise or lower screen
or adjust format at any point. No preset sequence—push any
button for desired function. Momentary action. Furnished
with cover plate. Connects into the Draper Low Voltage
Control unit ❷. The LVC-III has one data cable input
jack. LED switch also available. If using more than one LED
wall switch, RF receiver or IR eye, a splitter is required.
Splitter and power supply required when used with Draper’s
new MC1.
Infrared Remote Control ❹
Infrared “eye” receiver and one hand-held transmitter.
Single-channel remote control is clearly marked for intended
function. Only one button can be activated at a time. IR eye
is in a white box designed for wall mounting. Comes with 
of white modular cable. Additional length of up to  can be
determined at the job site. Fully compatible with “learnable” IR
master control systems. Receiver plugs into the Draper LVC-III.
If using more than one IR eye, RF receiver or LED wall switch,
a splitter is required.
RF Remote Control ❺
Radio frequency hand-held transmitter. 3-button control lets
you raise or lower screen or adjust format at any point. Single-
channel remote control is clearly marked for intended function;
only one button can be activated at a time. Receiver plugs into
the Draper LVC-III. If using more than one RF receiver,
IR eye or LED wall switch, a splitter is required.
Video Interface Control
Automatically lower screen once video projector is
turned on or the projector lift opens. Model vic115
integrates screen operation with equipment using a
115v switched outlet. Models vic12 and vic6 interface
screen operation with equipment featuring a 12v
switched outlet. The vic115, vic12 and vic6 may be
purchased with an override switch (vic–os), permitting
independent operation of the screen.
Any VIC can be factory installed inside the following screen cases—
Access/Series E, Access/Series V, Silhouette/Series E, Silhouette/
Series V
, Ultimate Access/Series E, Ultimate Access/Series V on the
motor end only.
A VIC is not compatible with an LVC-III on a single motor, built-in
or otherwise. Both may be used in an Access MultiView, which has two
independently controlled motors.
Single Station Control ❶
Standard with most Draper electrically operated screens. Our
3-position rocker switch accepts  current. Switch operation
is maintained contact. Complete with stainless steel cover
plate; white optional. UL listed.
Multiple Station Controls ❶
Identical in appearance to the Single Station Control, above,
but contains safe guards to prevent two signals from reaching
the motor at the same time. Also accepts  current.
Low Voltage Controls ❷
For low-voltage control of a single motor. Install
switches everywhere they’re needed, add a wireless
transmitter, a key-operated switch, or interface with
a master control system by choosing low voltage
controls. Supplied with brackets and mounted inside a double gang box.
UL approved. Wiring from control module to switches or receivers is
lightweight for 24 volt current. Optional for all Draper motorized screens,
except Salara/Plug & Play™, Access Sonata and Baronet.
LVC-III can be factory installed inside the following screen cases—
Access/Series E, Access/Series V, Silhouette/Series E, Silhouette/
Series V, Ultimate Access/Series E, Ultimate Access/Series V.
MC1: New Low Voltage Option with RS232
Draper’s MC1 Motor Control Board provides
multiple input options for a screen or lift motor. UL
approved. This simply designed but powerful control
board accepts 2-way serial communication, infrared
commands via IR receiver, and relay closures found
in home integration systems. Radio frequency is also
available. Connected to the optional IntelliFlex®
IPD-4 Ethernet Interface, the MC1 may also be
controlled remotely via a computer network in groups
of up to 4 systems, 60 motors each max. With 2-way
serial control, the MC1 may be polled to determine
a motor’s current position. Connectivity to multiple
control options allows the MC1 to receive commands
from a variety of sources, adding fl exibility to your installations. With the
MC1, you can program up to four intermediate stops for multiple format
masking. Available as an external option for all motorized screens, Aero-
Lifts, Micro Projector Lift and LCD Lifts.
MC1 can be factory installed inside the following screen cases—
Access/Series E, Access/Series V, Signature/Series E, Signature/
Series V, Silhouette/Series E, Silhouette/Series V, Ultimate Access/
Series E, Ultimate Access/Series V.
❷
❶
LVC-S
❸
SS-1R
IRT
WRT
❹
❺
VIC-115
VIC-6 or VIC-12
Control board
pictured above
without bracket and
double gang box
(supplied).
Motorized Screen Controls
All Draper motorized screens, except Salara/Plug & Play™, Baronet, Access Sonata and Access MultiView, come with one 110v-120v AC, 3-position switch.
Options listed below. For assistance in choosing the right control options, our Controls Planning Sheet is available on our Web site at www.draperinc.com/
moreinfo/controlplans.
LVC–III
12

Special lighting effects
show the silhouette
of the front and center
channel speakers
hidden behind the
Onyx with AT Grey
viewing surface.
13
Band AT1200 AT Grey
100 Hz -0.7 dB -0.9 dB
125 Hz -0.4 dB -0.4 dB
160 Hz 0.0 dB -0.3 dB
200 Hz -0.2 dB -0.3 dB
250 Hz -01 dB -0.3 dB
315 Hz -0.2 dB -0.4 dB
400 Hz -0.4 dB -0.5 dB
500 Hz -0.5 dB -0.6 dB
630 Hz -0.6 dB -0.8 dB
800 Hz -0.3 dB -0.5 dB
1000 Hz -0.2 dB -0.3 dB
1250 Hz -0.2 dB -0.2 dB
1600 Hz -0.7 dB -0.9 dB
2000 Hz -0.5 dB -0.7 dB
2500 Hz -0.4 dB -0.5 dB
3150 Hz -0.6 dB -0.7 dB
4000 Hz -0.6 dB -0.8 dB
5000 Hz -0.6 dB -0.7 dB
6300 Hz -0.6 dB -0.7 dB
8000 Hz -1.0 dB -1.0 dB
10000 Hz -0.9 dB -0.9 dB
12500 Hz -1.0 dB -1.6 dB
16000 Hz -1.6 dB -2.3 dB
20000 Hz -2.0 dB -2.8 dB
Max. -2.0 dB -2.8 dB
Avg. -0.6 dB -0.8 dB
Table 1
What are Acoustically Transparent Surfaces?
Draper exclusives, AT1200 and AT Grey are the most innovative and
versatile acoustically transparent screen materials available. Both surfaces
are woven, not perforated, thus reducing light loss and pixel loss. And with
virtually no loss of sound quality, this revolutionary advance allows the
viewer (and listener) to position the center channel speaker directly behind
the screen—the optimum location for full-range audio performance.
With more than 76,000 microscopic openings per square foot, AT1200 and
AT Grey have the sound transmission characteristics of high quality speaker
grille cloth, with less then 6% light loss. Both of Draper’s acoustically
transparent screen materials allow audio and video to interact seamlessly,
creating the ultimate home theatre experience.
AT1200 provides a uniform gain slightly superior to the standard one-gain
material. AT Grey has a lower gain, 0.8, for use with even the brightest
projectors. AT1200 is white in color; AT Grey is grey, providing for higher
contrast. They are washable, flame and mildew resistant. Available on
motorized screens in sizes through  diagonal HDTV (select models),
and permanently tensioned screens through  diagonal HDTV. Not
recommended for screens smaller than  wide when used with LCD or
DLP projectors.
Acoustically Transparent Surfaces
AT1200 & AT Grey Why Use an
Acoustically Transparent Screen?
When installing a home theatre
system, the proper set up for the
sound system ensures the highest
quality results. The ideal position
for the main speaker is behind
the screen on the same level as
the right and left speakers. This
maintains—
• Quality sound localization
for the dialogues and overall
sound effects.
• Movie Theatre quality that
is true to the original sound
mixing engineering.
• The ability to use identical
speakers due to space
restrictions and avoids
interference with other objects
on the fl oor or ceiling.
Table 1 shows the third-octave
band insertion loss results in detail
from 100 through 20,000 Hz.
and summarizes the average and
maximum screen insertion loss (IL)
for each screen sample, as well as
the band in which the maximum
IL occurred. These results are valid
for third-octave bands between 100
and 20,000 Hz.
Draper Onyx, 119 HDTV projection screen with an AT Grey viewing surface and a Vel-Tex® covered frame. Design and installation by Scott
Varn, Harmony Interiors, Asheville, North Carolina. Photography © Scott Arthur, Weaverville, North Carolina.

14

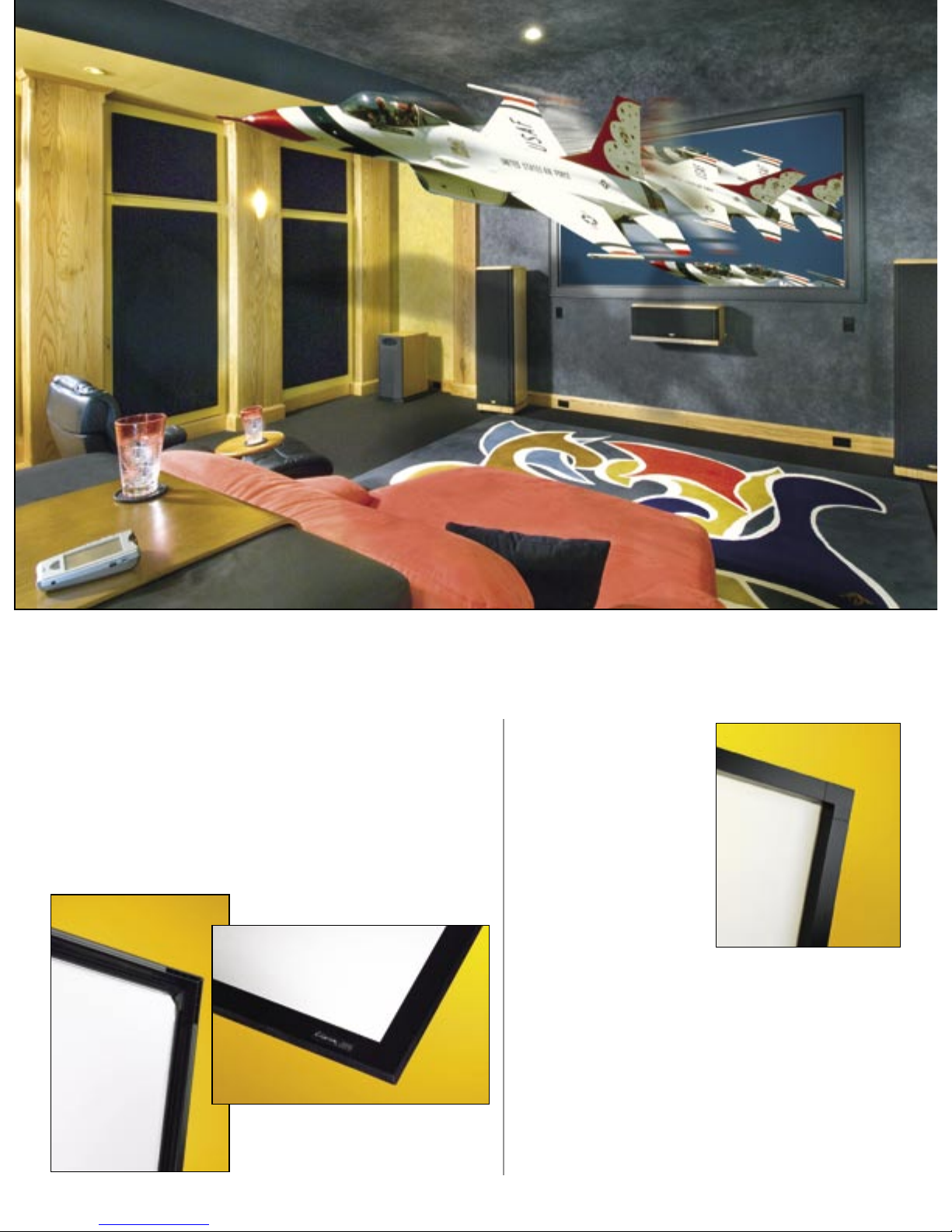

Permanently Tensioned Screens
Onyx
The new generation of permanently tensioned screens begins with the Draper
Onyx. You won’t find a more “user friendly” screen anywhere else on the market.
You can have a beautifully framed image hanging on the wall in just 10 to 15
minutes, with one or two people assembling. Its  wide beveled, extruded
aluminum frame interconnects on site. Each side piece slip-fits tightly to
injection molded plastic corners, forming perfectly mitered edges.
A radical new approach to fabric attachment will amaze even the toughest of
critics. No snaps! Uniform tension is applied to the entire surface area. Includes a
feature to adjust the sag out of the fabric as time and gravity relaxes the viewing
surface. Permanent wall mounting brackets included.
Onyx by
Assembles
in just 10
minutes
The wide black frame absorbs projector “wash”. You may also add the
optional velvety black Vel-Tex® to the frame to eliminate reflections.
Choose your viewing surface: M1300, M2500, HiDef Grey, AT1200,
AT Grey or Cineflex. Offered in all projection formats up to a
maximum custom size of  wide.
Draper Clarion, 133 HDTV projection screen with an M1300 viewing surface and a Vel-Tex® covered frame. Residential installation photographed by Ed Wolkis,
Atlanta, Georgia.
The primary advantage of permanently tensioned projection screens is the perfectly flat viewing surface they provide—just the ticket for the
ultimate home viewing experience. Plus, these screens are light weight, easy to install and virtually maintenance free.

15
Draper Onyx, 106 HDTV projection screen with an M1300 viewing surface. Design and installation by Scott Varn, Harmony Interiors, Asheville, North Carolina.
Photography © Scott Arthur, Weaverville, North Carolina.
Clarion
We’ve redesigned the Clarion to simplify installation. The Clarion’s self-
concealing aluminum frame now forms an attractive  border, for a clean,
theatre-like appearance. The  wide beveled, extruded aluminum frame
interconnects on site. Permanent wall mounting brackets included.
M1300, M2500, HiDef Grey, AT1200 and AT Grey are the viewing surface
choices. Any custom size is available up to  diagonal HDTV. Overall size,
including frame, equals image area plus . Black aluminum is the standard
frame finish. Cover the frame with optional velvety black Vel-Tex® to
eliminate reflections.
ShadowBox Clarion
The ShadowBox Clarion is
simply designed: the fabric is
stretched and attached to the back
side of a ½ tubular aluminum
frame. The visible black frame
serves as the perimeter border
around the image area. Many
home theatre designers use the
ShadowBox behind elaborate
draperies or build the screen into
custom cabinetry. ShadowBox
Clarion is custom made using
M1300, M2500 or HiDef Grey
front projection surface. Cineflex
rear projection vinyl is also available. Offered in all projection formats
up to 12 wide. Cover the frame with optional velvety black Vel-Tex®
to eliminate reflections.

Cineperm
Cineperm, Draper’s most economical permanently tensioned screen,
consists of a  tubular aluminum frame with a snap-on viewing
surface. The viewing surface conceals the frame completely with 
black borders on all sides. Because the snap heads and the border are
exposed, the Cineperm appears less “finished” than other permanently
tensioned screens. However, the Cineperm is the perfect screen for
custom applications involving a cabinet enclosure or the Draper
Eclipse Screen Masking System.
Cineperm is offered with your choice of AT1200, AT Grey, M1300,
M2500, HiDef Grey or Cineflex surfaces, in all projection formats.
WrapAround Style Clarion
The viewing surface on a
WrapAround Clarion literally
wraps around the aluminum
frame and attaches to the back
side, making the frame invisible to
the audience. While the absence
of borders may be somewhat less
functional, many architects and
designers prefer the look. The
WrapAround Clarion is custom
made using M1300, M2500 or
HiDef Grey viewing surface in
all projection formats up to a 12
wide image area.
Permanently
Tensioned
Screens
16

15
Eclipse Masking Systems for
Permanently Tensioned Screens
The Eclipse is a motorized screen masking system installed with a permanently tensioned projection screen. The Eclipse allows the viewer
to switch easily between two screen formats. The formats change at the single touch of a switch or remote control. Projected images are
fully bordered in matte black in either format. Use the Eclipse with a Clarion or Cineperm.
Eclipse/H Masking System and Clarion projection screen with acoustically
transparent AT1200 viewing surface. Below: masking down for NTSC format.
At right: masking up for HDTV format. Installation by Mark Profitt, AVID,
Lexington, Kentucky. Photography by Walt Roycraft, Nicholasville, Kentucky.
Eclipse/H
The Eclipse/H masks
the projection screen on
the two vertical sides,
leaving its height intact.
The viewing surface is
fixed in a wide format,
either HDTV (16:9) or
WideScreen (.:), and
the Eclipse/H masks
it to a NTSC format (4:3). When the Eclipse/H operates, the left and
right masking sections roll down together from the top, supported by a
horizontal steel slat bar. Sizes available up to 132 wide unmasked image area
in any projection format.
Eclipse/V
The Eclipse/V changes the screen
format by masking from the top
and bottom simultaneously. The
screen’s width remains constant.
Choose the Eclipse/V when the
projection screen is fixed in an
NTSC or HDTV format and you
want to convert to a wide format.
Sizes available up to  wide image
area in any projection format.
17

18
Manual Screens
Silhouette/M
Artisan/M
Traditional Style Case Shown
Salara
Silhouette/Series M
Silhouette/Series M is spring-roller operated
with fiberglass matt white or High Contrast
Grey viewing surface choices. The screen retracts
completely inside the case, presenting a strik-
ingly modern appearance. The Silhouette’s
slender dimensions and self-concealing brackets
make it equally attractive mounted to the wall
or ceiling. Offered in all projection formats
through 8 wide.
Salara
Salara/Series M is spring-roller operated with
fiberglass matt white or High Contrast Grey
viewing surface choices. The Salara makes a
design statement in your home. The Salara’s
small, elliptical case and domed endcaps are
finished in solid white, no need to hide it with
extra carpentry work. Quick and easy installa-
tion! Mounts to the wall with “floating” brackets
which can be positioned along the back of the
case. Offered in all projection formats through
 wide.
Artisan/Series M
Simplicity of spring-roller operation in an elegant
hand–crafted case to complement your home
decor. Available with a fiberglass matt white or
High Contrast Grey viewing surface. Solid
hardwood cases are hand–rubbed in your choice
of seven standard finishes (light or medium oak,
walnut, mahogany, natural or medium cherry,
natural maple) or customized to match your
existing woodwork. Hardwood cases are available
in four styles—traditional, bevel, radius or rec-
tilinear. Contemporary custom plastic laminates
are also available to match your home theatre
decor (rectilinear case style only). Available in all
projection formats through  wide.
Draper Silhouette/Series M, 80 HDTV projection
screen with an High Contrast Grey viewing surface.
Design and installation by Scott Varn, Harmony
Interiors, Asheville, North Carolina. Photography
© Scott Arthur, Weaverville, North Carolina.

19
Access/M
Luma
Luma 2
RoadWarrior, Traveller & Piper
Portable Screens
All three of our portable models are lightweight, easy to carry and simple to set up. The main dif-
ferences are in the mechanism that holds the screen upright, and the sizes in which they are available.
Each model can sit on the
fl oor or table. They are
equipped with enough
black “rise” below the view-
ing surface to clear a coffee
table and most theatre-style
seating.
RoadWarrior—has a
clean, simplifi ed design.
The sleek, high-tech ap-
pearance of this product
makes it a natural for
entry-level home theatres.
Pneumatic cylinders hold
the screen securely at
the desired height. The
screen is available in four
sizes:  and  diagonal
NTSC, as well as  and
 HDTV.
Traveller—is similar to
the RoadWarrior yet
lighter in weight. A tele-
scoping upright supports
the screen at desired height.
Five HDTV sizes: , ,
½,  and  nominal
diagonal. Also available in
fi ve NTSC sizes.
Piper—is our newest por-
table projection screen and
a breeze to set up: lift the
upright, choose its height
and raise the screen.
Now let the show begin.
While others manufacture
portable screens with dam-
age-prone Mylar, Draper’s
high-quality, low-cost Piper
has a tear-proof fi berglass
matt white viewing surface
with black borders and 30˝ of
black “rise” below the image
area. During storage and
transportation, the telescop-
ing upright collapses and
clamps to the back of the
matt black extruded alumi-
num case.
A single push-button unlocks
the screen, which can be eas-
ily raised with one hand, and
its handle serves to secure the
screen on the gooseneck of the upright.
Locking levers allow for infi nite adjust-
ment within the upright length.Three
HDTV sizes: , ½ and  nominal
diagonal. Available in three NTSC sizes.
Luma & Luma 2
Attractive and practical spring roller operated
projection screens. The Luma and Luma 2 offer
a pentagonal steel case and matching endcaps in
white. Available with a fiberglass matt white or
High Contrast Grey viewing surface. Select the
slender-cased Luma for formats through 8 wide,
and the Luma 2 for larger sizes up to 12 wide.
Access/Series M
Access/Series M is spring-roller operated with
a fiberglass matt white or High Contrast Grey
viewing surface. Install the housing early, during
the dirty phase of construction. When the home
theatre is ready, screen/roller assembly installs into
case in seconds with latching brackets. Offered in
all projection formats through 12 wide.
screen on the gooseneck of the upright.
Locking levers allow for infi nite adjust-
ment within the upright length.Three
nominal
diagonal. Available in three NTSC sizes.
RoadWarrior
front and
back
Traveller
front and
back
Clockwise: Piper open
and ready for the show;
screen retracted for a look
at its telescoping upright;
closed for storage.

20
Cinescreen®—
Diffusion Rear Screens
A transparent substrate, either glass or acrylic,
with a permanently bonded diffusion medium.
The diffusion medium distributes projected light
and creates a uniform high-resolution repro-
duction of the projected image. Cinescreen,
Draper’s diffusion rear screen, is unique among
rear screens, because its diffusion medium
consists of both an optical coating and an optical
tint—each formulated for specific requirements.
The advantages of diffusion screens are superior
clarity of image and availability in extremely
large sizes. This characteristic can be an advan-
tage in a room with a tiered seating pattern.
Draper’s Cinescreens differ from any other
rigid rear projection screens in two extremely
important respects. Cinescreen optical coat-
ings are inherently abrasion resistant. No other
manufacturer offers you this protection.
Rear-Projection Screens
Draper offers several distinct types of rigid rear projection screens—traditional diffusion and optical screens,
holographic screens and exclusive IRUS technology. Let us help choose which one’s right for your system.
Only Draper offers you a choice of six different
optical coatings, each available in your choice of
three unique optical tints. With a Draper Cine-
screen, you can select the optimum combination
of optical coating and tint based upon your
projection equipment, audience seating pattern,
desired contrast level, screen aspect ratio, ambi-
ent light level and aesthetic considerations. Only
Draper offers you this versatility.
Draper uses the finest plate glass and clear
acrylic as Cinescreen substrates. Virtually iden-
tical optical qualities.
• Cineglass®—Recommended for maximum
sound isolation, scratch resistance and service
life. Weighs approximately twice as much as
acrylic, breaks more easily, must be installed by
a glazier.
• Cineplex®—Lightweight, durable and break
resistant acrylic. Easier to install. Requires more
care in cleaning, as acrylic scratches more easily
than glass. Less soundproof than glass.
DiamondScreen™—
Optical Rear Screens
Made of cast acrylic, incorporating a Fresnel
lens on the projector side that gathers the
light from the projector and refracts it directly
through the screen. Draper’s DiamondScreens
are the first rear projection screens designed
specifically for video and data projection. With a
DiamondScreen, you can expect the brightest
rear screen image in the world—3.5 gain on
axis. DiamondScreens have a panoramic
180° horizontal viewing cone and the largest
vertical viewing cone of any product of its
type. The High Contrast grey optical tint
provides superior color contrast, and its anti-
reflectance properties give superior performance
even under conditions of high ambient light.
DiamondScreens feature superior corner-to-
center brightness, with no “hot spots.”
Draper custom size Cineplex, HDTV, ¼ acrylic screen with Cine 10 optical coating and Neutral Grey optical tint. Complete with a factory
installed System 100 black-finish frame. Design, installation and photography provided by OPTech.net, Williamsburg, Virginia. Recipient of a
2004 Stanley Award. Voted Best Video Room by Tidewater Builder’s Association.
