Dreamline Unidoor-x d58580 series User manual

MODEL #s

D58580-##

##=finish

01- Chrome

04- Brushed Nickel

06- Oil Rubbed Bronze

09- Black Satin

UNIDOOR-X TUB DOOR

TUB DOOR INSTALLATION INSTRUCTIONS

IMPORTANT

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice.

For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer

to your model’s web page on DreamLine.com

For more information about DreamLine®Shower Doors & Tub Doors please visit DreamLine.com

Left-hand bracket installation shown

UNIDOOR-X Tub Door manual Ver 1 10/2016 2

This model is treated with DreamLine’s

exclusive ClearMaxTM Glass technology.

This is a specially formulated coating

that prevents the build up of soap and

water spots.

Install the surface with the ClearMaxTM

label towards the inside of the shower.

Please note that depending on the

model, the glass may be coated on

either one or both surfaces.

For best results, squeegee the glass after

each use and dry with a soft cloth.

NOTE: Do Not attach the handle to the door glass until instructed to do so.

Do Not attempt to lift the door glass with the handle as this may result in damage to

the glass and/or serious personal injury. Use a professional grade glass suction cup

and an assistant.

NOTE: This model is available as a right or left-hand bracket installation. The left-hand bracket

installation is shown as an example throughout this manual.

UNIDOOR-X Tub Door manual Ver 1 10/2016 3

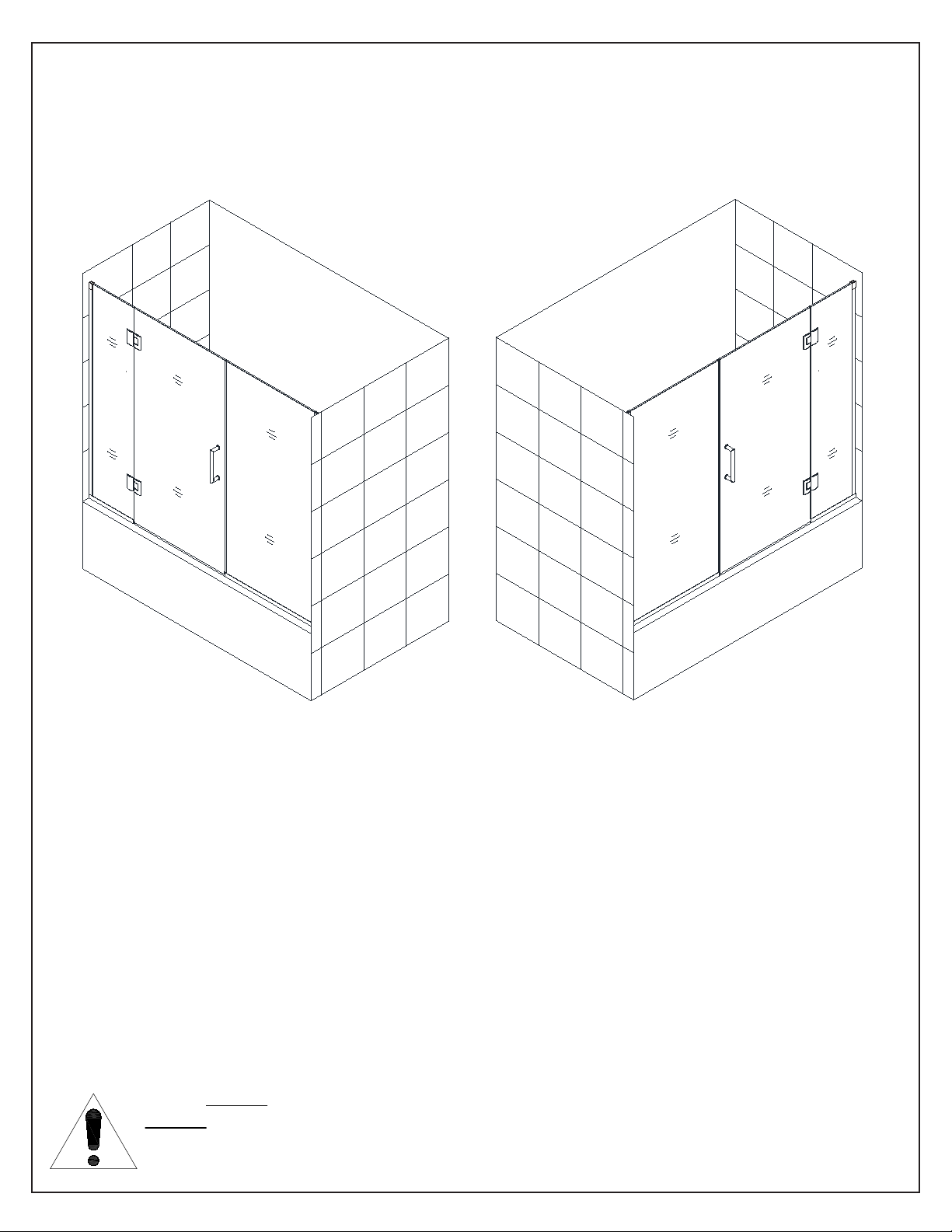

Left-hand bracket installation Right-hand bracket installation

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece

count with your packing slip. After opening all boxes and packages read this introduction carefully.

Check that all of the needed parts are included in the package by checking off the components on

the “Detailed Diagram of Shower Door Components”. If the unit has been damaged, has a finishing

defect, or has missing parts, please contact our customer support department within 3 business

days of the delivery date. Please note that DreamLine®will not replace any damaged products

or missing parts free of charge after 3 business days or if the product has been installed. Feel

free to contact DreamLine®if you have any questions, and please provide an order number, job

name or other proof of purchase help us identify the original order.

2. Please note that you should consult your local building codes with questions on installation

compliance standards. Building and plumbing codes may vary by location, and DreamLine®is not

responsible for code compliance standards for your project and will not accept any returns.

3. If this unit is going to be installed in a new construction, please install all of the required plumbing

and drainage before installing the shower. Use a competent and licensed (if required by local code)

plumber for all plumbing installation

4. Please make sure that prior to beginning the installation, the surfaces are leveled and solid and

will be able to support the total weight of the unit. Also make sure the walls are at right angles.

Irregular installation surface level, radius corners or improper angle of side walls will result in serious

problems for your installation. Please, note that some adjustments and drilling might be necessary

during the installation process.

5. Please protect all primary surfaces of the product during installation. Never set your glass down

directly onto a tile floor. Leave corner protectors in place until necessary to remove them. Always

use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to and

during installation.

6. This unit must be installed upon a finished threshold and against finished walls.

7. This model has 1/2” of adjustment within the u-channel on the stationary panel side for

out-of-plumb wall conditions and overall width within the model size. Confirm the finished opening

conditions before proceeding with the installation.

8. The hinge panel glass for this model should not be adjusted more than 1/4” for

out-of-plumb within the u-channel. This model does NOT have any adjustment for overall width.

Verify that the model size ordered will fit the finished opening before begining installation.

9. Professional installation is recommended.

NOTE: This manual will describe the LEFT-hand bracket installation.

When installing the model for a Right-hand bracket installation, simply begin your installation on

the opposite wall and reverse the orientation of the parts as necessary.

4UNIDOOR-X Tub Door manual Ver 1 10/2016

Tools

NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed

diagram and packing list in this manual as a reference. Before discarding the carton, check for small

hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing,

please contact DreamLine® for replacement. The shipping boxes may contain extra parts not used in

your model configuration.

NOTE: Retain these installation instructions for future reference.

5UNIDOOR-X Tub Door manual Ver 1 10/2016

Metal File

Razor Knife

Top

Middle

Bottom

Tip: Measure the finished opening before

proceeding with the installation to be sure

that the correct model size has been

ordered.

Silicone

Tape

Measure Pencil Screwdriver

Phillips Drill bit

Level

Drill

Power

Drill bit

(Ø=5/16") (Ø=1/8")

Miter saw

Mallet Wood

Hammer

Soft Head

Carpenter’s

Square

Parts List

Detailed Diagram of shower door components

6UNIDOOR-X Tub Door manual Ver 1 10/2016

**Hinge panel glass (#32)- has a top and a bottom and must be installed correctly.

The top hinge cutout is 7-7/8” to center, the bottom cutout is 8-3/8” to center.

Door Glass

1pc

Ø5/16” Wall anchor

15 pcs

Handle

1pc

Countersunk screw ST4.2x40

pcs

Glass-to-Glass Hinge

2pcs

U-channel 2 (44”, bottom profile)

1pc

Bottom anti-water strip

1pc

Hinge panel Glass(7” nominal)***

1pc

Flanged anti-water strip

1pc

U-channel 1 (76”, wall profile)

2pcs

PVC glass spacer (0.5mm)

1pc

Stationary Glass (24” nominal)

inside rubber

gasket

Hinge panel glass bracket

1pc

The glass surface

with the ClearMax™

label must be

installed to face

inside of the shower

Accessories (hinge, handle, bracket)box

(SHDR-AC2511-01/04/06/09)

Box Contents

13, 23 - 3pcs each

2. 5. 13 (1pc). 23(1pc). 36.

Spare parts

Anti-Waterstrip (inline strike)

1pc

Installation steps

7UNIDOOR-X Tub Door manual Ver 1 10/2016

vertical

u-channel

Hinge panel

Glass bracket

1-9/16”

55-7/16”

7”

Fig 1

Carpenter’s

Square

Model

height of

58”

Fig 2

bottom

u-channel**

**If the wall is

out-of-plumb at the

bottom, measure that

dimension (A) and add it

to the length of the

u-channel ( 1/4” max):

Finished cut length=

Glass Width + 3/16” +

dimension A

Plumb line

Out-of-plumb

at the bottom

<Less than 90°

2. Cut the vertical u-channel

to 55-7/16” for tub model

height.

Cut the bottom u-channel**

to 7” for tub model. (Fig 2)

1. Draw a line on the threshold and on

the wall to represent the centerline of the

U-channel. Make sure the line is parallel

to the front edge of the threshold or tub

deck. (Fig 1)

8UNIDOOR-X Tub Door manual Ver 1 10/2016

Fig 3 Fig 4

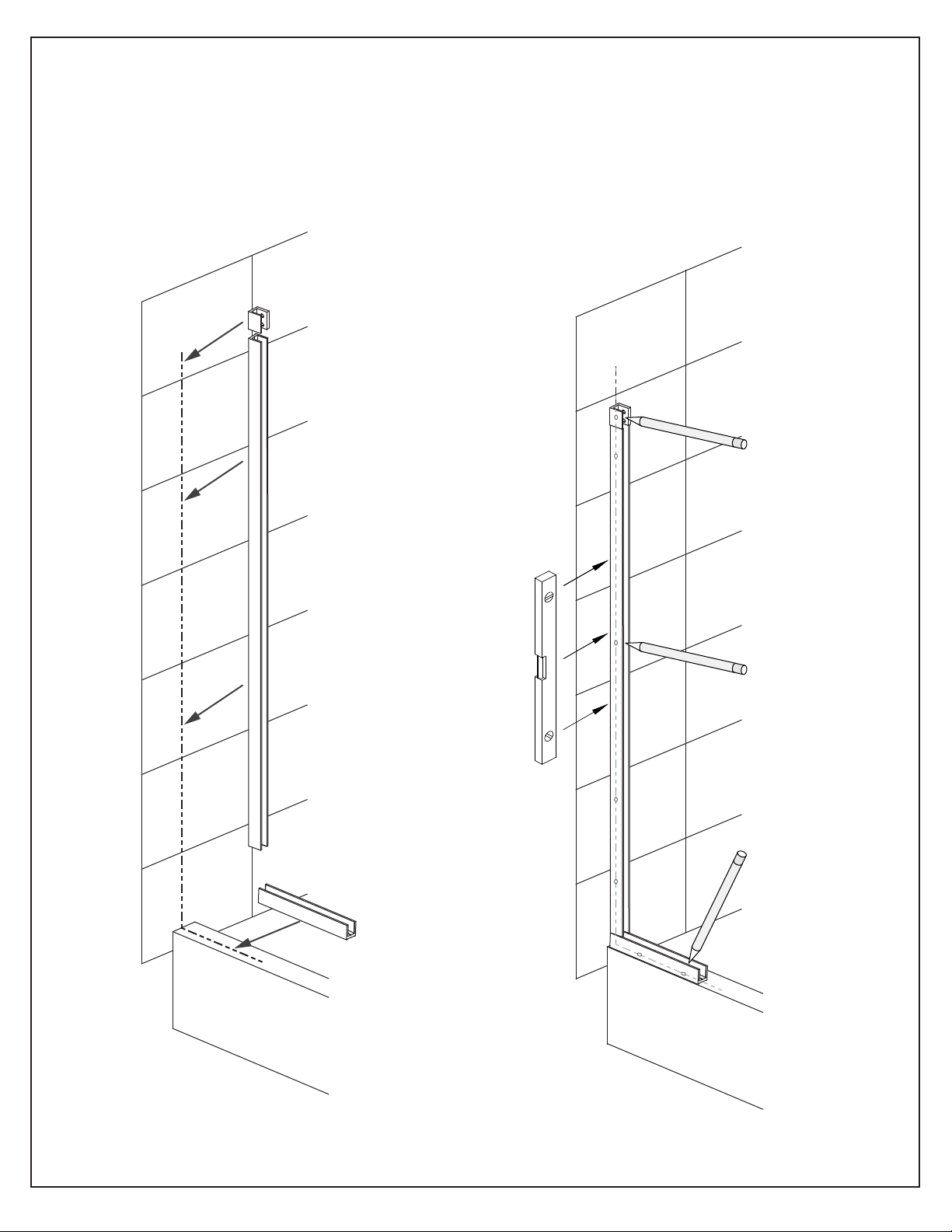

3. Position the u-channels and

Hinge Panel Glass Bracket on

the centerlines to mark the

holes for drilling. (Fig 3)

4. Mark the hole positions on

the centerline on the wall and

tub deck through the holes in

the u-channels and the hinge

panel glass bracket. (Fig 4)

(note that the hinge panel

glass bracket is wider than the

u-channel)

9UNIDOOR-X Tub Door manual Ver 1 10/2016

Ø5/16"

(or Ø5/16" &

anchor for tile)

Ø1/8"

Fig 5 Fig 6

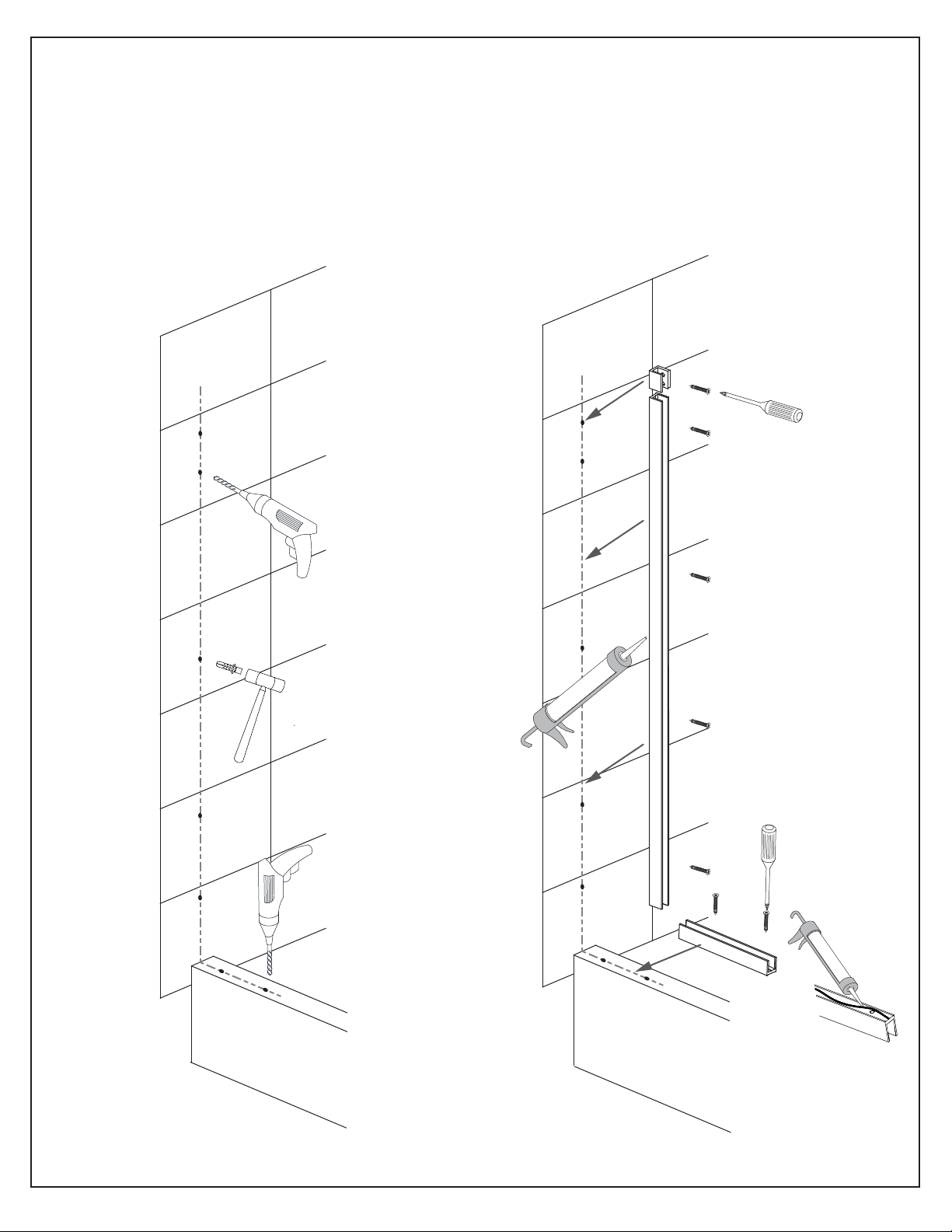

5. Drill Ø5/16” holes in the wall

and install the wall anchors. Drill

Ø1/8” holes into the threshold or

tub deck (or Ø5/16” holes and

anchors for a tile threshold).

(Fig 5)

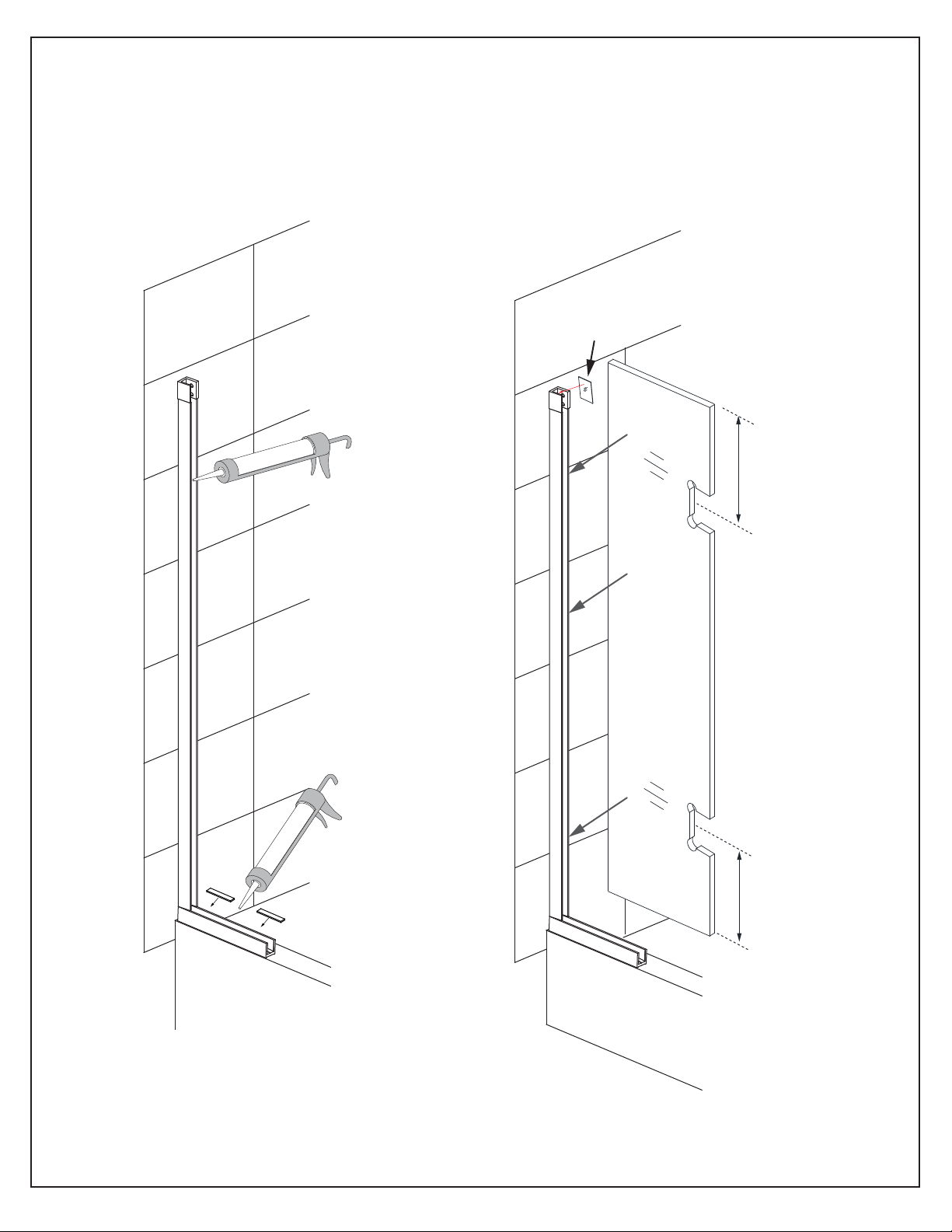

6. Apply silicone to the back of the

u-channels and the screw holes,

then install the u-channels and

Hinge Panel Glass Bracket using

the ST4.2 x 40mm screws (#23).

(Fig 6)

10UNIDOOR-X Tub Door manual Ver 1 10/2016

cut and install two 2”pcs

of the 0.5 mm shims (#34)

into the bottom u-channel

Hinge panel

Glass

bracket

8-3/8”

7-7/8”

Fig 8Fig 7

7. Add the 0.5mm shims into the

bottom u-channel. Apply silicone

into the u-channels. (Fig 7)

8. Install the hinge panel glass into

the u-channel. (Note the top and

bottom of the hinge panel glass)

Install the Hinge Panel Glass bracket

gasket. (Fig 8)

11UNIDOOR-X Tub Door manual Ver 1 10/2016

3 4

door

hinge panel

Fig 10

inside

Fig 9

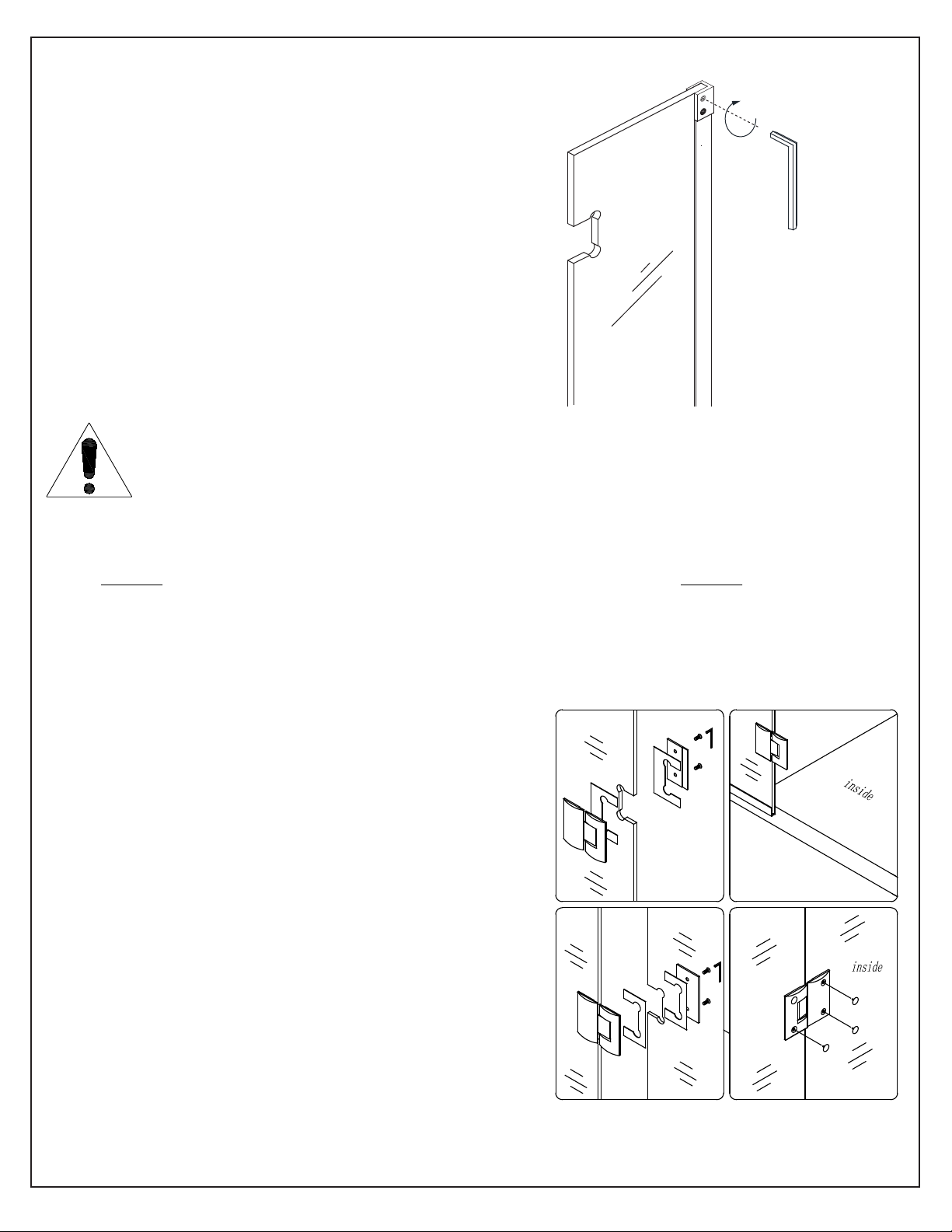

Tighten the rubber tipped set screws on the

Hinge Panel Glass Bracket (#36) to secure the

glass. Do Not over-tighten! (Fig 9)

NOTE: Do Not attach the handle to the door glass until instructed to do so. Do Not attempt to lift the

door glass with the handle as this may result in damage to the glass and/or serious personal injury. Use

a professional grade glass suction cup and an assistant.

10. Attach the Hinges (#05) to the Hinge Panel glass

(#32) with the decorative bolts facing inside the shower.

The Door Glass (#01) ships with four 5/8” shims attached

to the top (2pcs) and bottom (2pcs). Determine the swing

of the door. Remove the shims from the top of the door

glass and leave the bottom shims in place. Set the Door

Glass (#01) onto the threshold or tub deck at the desired

location and check for level. These 5/8” shims will leave

the proper spacing at the bottom of the door glass and

will ensure that the door height finishes at 58” to match

the installed panel height, but always confirm with a

measurement.

Level up the Door Glass (#01) with the Hinge Panel

glass (#32) and fasten the hinges onto the Door Glass

(#01) using one gasket per side. Make sure the top edge

of the Door Glass (#01) and the Hinge Panel glass (#32)

are aligned. (Fig 10 & 11)

NOTE: During installation of the Hinge Panel Glass (#32), it is strongly recommended that the

silicone be allowed to fully cure before hanging the door glass.

12UNIDOOR-X Tub Door manual Ver 1 10/2016

Fig 11

5/8"

5/8” spacer

Fig 12

** NOTE: It is strongly advisable to allow the silicone

to set on the hinge panel glass connection with the

U-channel before hanging the door glass. Leave the

shims in place beneath the door glass while the

silicone cures, especially if an out-of-plumb wall

condition is present (not to exceed 1/4”). (Fig 11)

11. With the door closed, align the door parallel to

the front edge of the tub deck. Hold the door glass in

place and mark its position on the tub deck.

(Fig 12)

NOTE:Theses hinges are factory set to overclose for a

tight seal. See page #19 for instructions regarding

the adjustable hinge features.

13UNIDOOR-X Tub Door manual Ver 1 10/2016

Fig 14

Fig 13

1 2

outside

inside

Door

mark

Stationary

glass

Align Stationary glass

with Door mark.

inside

wall

inside

wall

outside

inside

outside

Door

Stationary

glass

3 4

wall

inside

Stationary

glass

U-channel 2

U-channel 1

inside

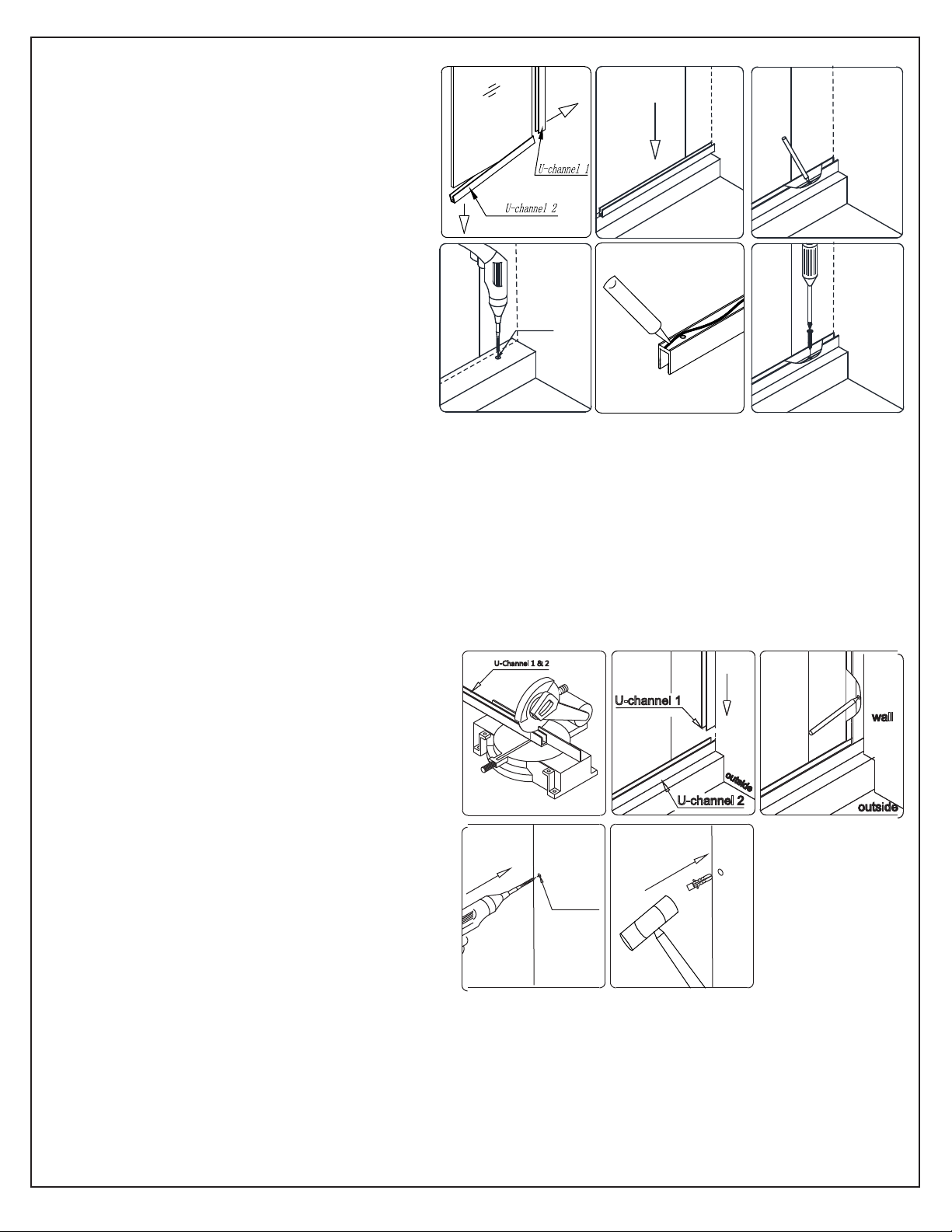

12. Insert three to four 2” pieces of the 0.5mm spacers (#34)

into the bottom U-channel and slip the cut U-channel 2

(bottom profile) (#29) and U-channel 1 (wall profile)

(#09) onto the Stationary glass (#11) as shown in Fig 13.1.

With the door open, place the Stationary glass and u-channel

onto the threshold inline with the door. Adjust the Stationary

glass (#11) and U-channel 1 (wall profile) (#09) against the

wall to compensate for any out of plumb conditions, ensuring

that the Stationary glass (#11) is level vertically and

U-channel 1 (wall profile) (#09) is flush with the wall.

Mark the U-channel 2 (bottom profile) (#29) end opposite

the wall at the exposed vertical glass edge (Fig 12.3). Remove

the U-channel 2 (bottom profile) (#29).

Leave the U-channel 1 (wall profile) (#09) on the

Stationary glass (#11). Set the Stationary glass (#11) aside.

Cut the U-channel 2 (bottom profile) (#29) at the mark. Slip

the U-channel 2 (bottom profile) (#29) back onto the

Stationary glass (#11). (Fig 13)

13. Press the Anti-Water strip (inline panel) (#19)

onto the vertical edge of the Stationary glass (#11).

Align the Stationary glass (#11) with the Door glass

(#01). Adjust the position of the Stationary glass (#11)

so the Anti-water strip (#33) makes tight contact to the

Door Glass (#01) from top to bottom.

NOTE: The top of the Stationary glass (#11) must be

level with the Door Glass (#01).

Outline (mark) the position along the inside edge of the

U-channels on the wall and the threshold. Mark the

U-channel 1 (wall profile) (#09) at the top glass edge

for cutting. (Fig 14)

14UNIDOOR-X Tub Door manual Ver 1 10/2016

Fig 15

Fig 16

outside

wall

outside

wall

outside

wall

0 1/8”

outside

wall

4* 6

05/16”

outside

wall

outside

wall

U-channel 2

U-channel 1

U-channel 2

U-channel 1

outside

U-Channel 1 & 2

14. Remove the U-channel 1 (76”, wall

profile) (#09), U-channel 2 (44”, bottom

profile) (#29) and Anti-Water strip (inline

panel) (#19) from the Stationary glass (#11)

and set the Stationary glass (#11) aside.

Place the U-Channel 2 (bottom profile) (#29)

onto the threshold base in line with the inside

threshold mark.

Mark the drill holes on the threshold through

the predrilled holes in the U- Channel 2 (44”,

bottom profile) (#29) and drill the holes using

Ø1/8” drill bit.

(*for tile, use a Ø5/16“ bit and an anchor)

Apply waterproof silicone along the bottom

surface and around the holes of the U-Channel

2 (44”, bottom profile) (#29) and fasten it to

the base with the Countersunk screws

ST4.2×40 (#23). (Fig 15)

NOTE: The surface needs to be clean and free

of debris before applying silicone.

15. Cut the U-channel 1 (76”, wall profile)

(#09) at the top mark that was made in

Step 13, Fig 14.6. Place the U-Channel 1 (wall

profile) (#09) on top of U-Channel 2

(44”, bottom profile) (#29) and align vertically

(plumb) with wall mark.

Mark the drill holes on the wall through the

predrilled holes in the U-Channel 1 (wall

profile) (#09).

Now drill holes in the wall using Ø5/16“ drill bit

and insert the Ø5/16” Wall anchors (#13).

(Fig 16)

15UNIDOOR-X Tub Door manual Ver 1 10/2016

cut and install three 2”pcs

of the 0.5 mm spacers (#34)

into the bottom u-channel

Fig 17

Fig 18

3 4

inside

wall

waterproof

silicone

16. Apply waterproof silicone along the bottom

surface and around the holes of the U-Channel 1

(76”, wall profile) (#09). Fasten the U-Channel 1

(#09) to the wall with the Countersunk screw

ST4.2x40 (#23). Add three or four 2” pieces of the

0.5mm spacers (#34) into the bottom u-channel.

Apply Waterproof silicone into the groove of both

U-Channels.

NOTE: The surface needs to be clean and free of

debris before applying silicone. (Fig 17)

17. Slide the Stationary glass (#11) into the

groove of both U-Channels.

NOTE: If you have difficulty sliding the Stationary

glass into the U-Channels, lightly tap on the

Stationary glass with a rubber mallet and a piece of

wood.

Apply a bead of silicone on both open ends of the

U-Channels. (Fig 18)

16UNIDOOR-X Tub Door manual Ver 1 08/2016

Fig 19

1 2

outside

inside

outside

inside

outside

inside

Fig 20

1”

19. Mount the Handle (#02) onto the Door Glass

(#01). (Fig 20)

18. Notch 1” off of the bottom of the Flanged

anti-water strip (#33) to fit around bottom

U-channel. Press the Flanged anti-water strip (#33)

onto the vertical edge of the Stationary glass (#11).

(Fig 19)

17UNIDOOR-X Tub Door manual Ver 1 10/2016

Fig 22

Fig 21

measure

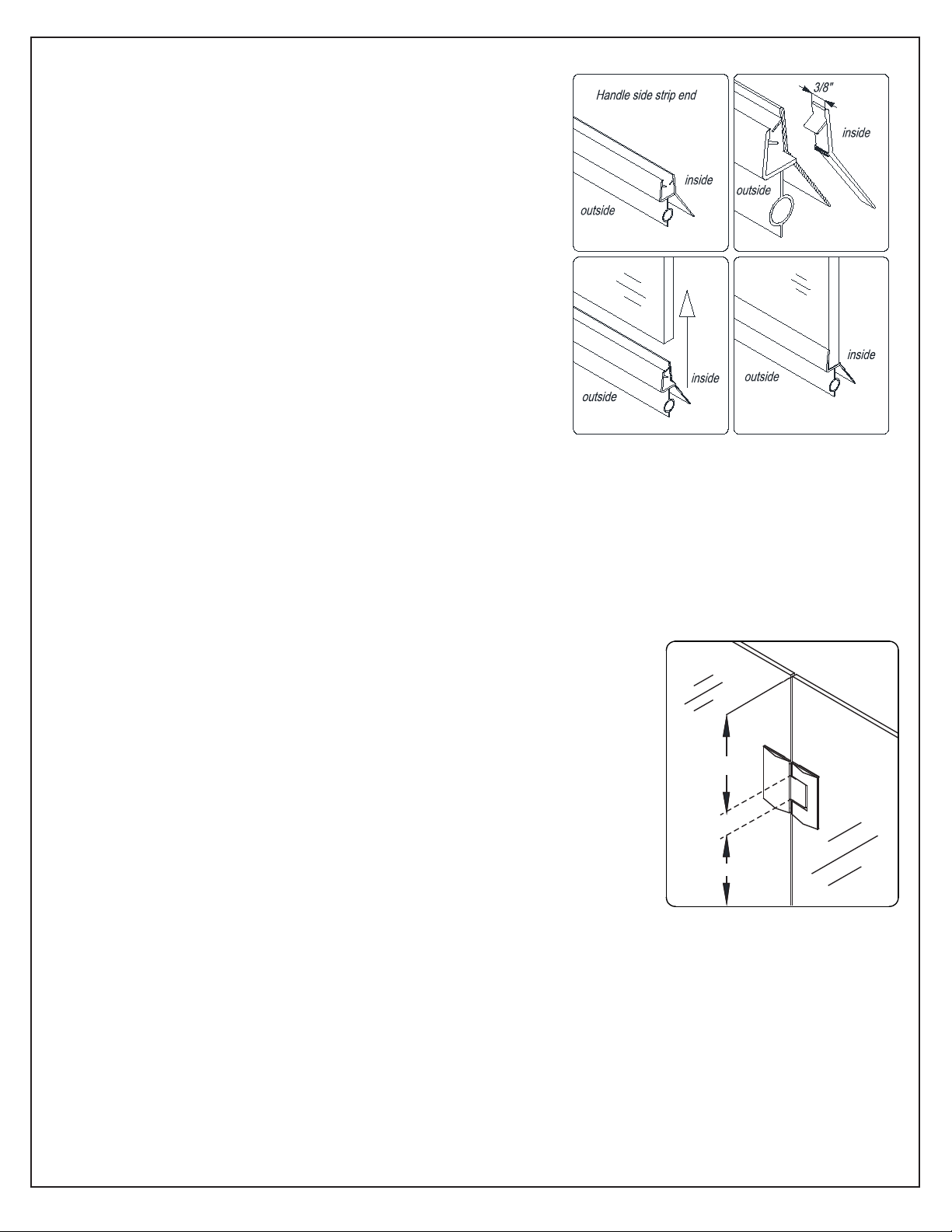

21. To install the Flanged anti-water side strip (#33), take three

measurements :

• from the top edge of the Door Glass (#01) to the top of the

center portion of the top Hinge (#05). (See Fig 22 for an example,

which can be used for all three measurements)

• from the bottom of the center portion of the top Hinge to the top

of the center portion of the bottom Hinge (#05)

• from the bottom of the center portion of the bottom Hinge (#05)

to the threshold. (Fig 22)

20. Measure the bottom of the Door Glass

(#01) from end to end to determine the actual

width of the door. Cut the Bottom anti-water

strip (#07) to the size of your measurement and

notch 3/8” of the inner side of the Bottom

anti-water strip (#07) as shown in Fig 21.2.

Press the Bottom Anti-water strip (#07) onto

the bottom edge of the Door Glass (#01).

NOTE: Make sure the Bottom anti-water strip

(#07) is flush with the vertical edge of the

Handle side of the Door Glass (#01). (Fig 21)

18UNIDOOR-X Tub Door manual Ver 1 10/2016

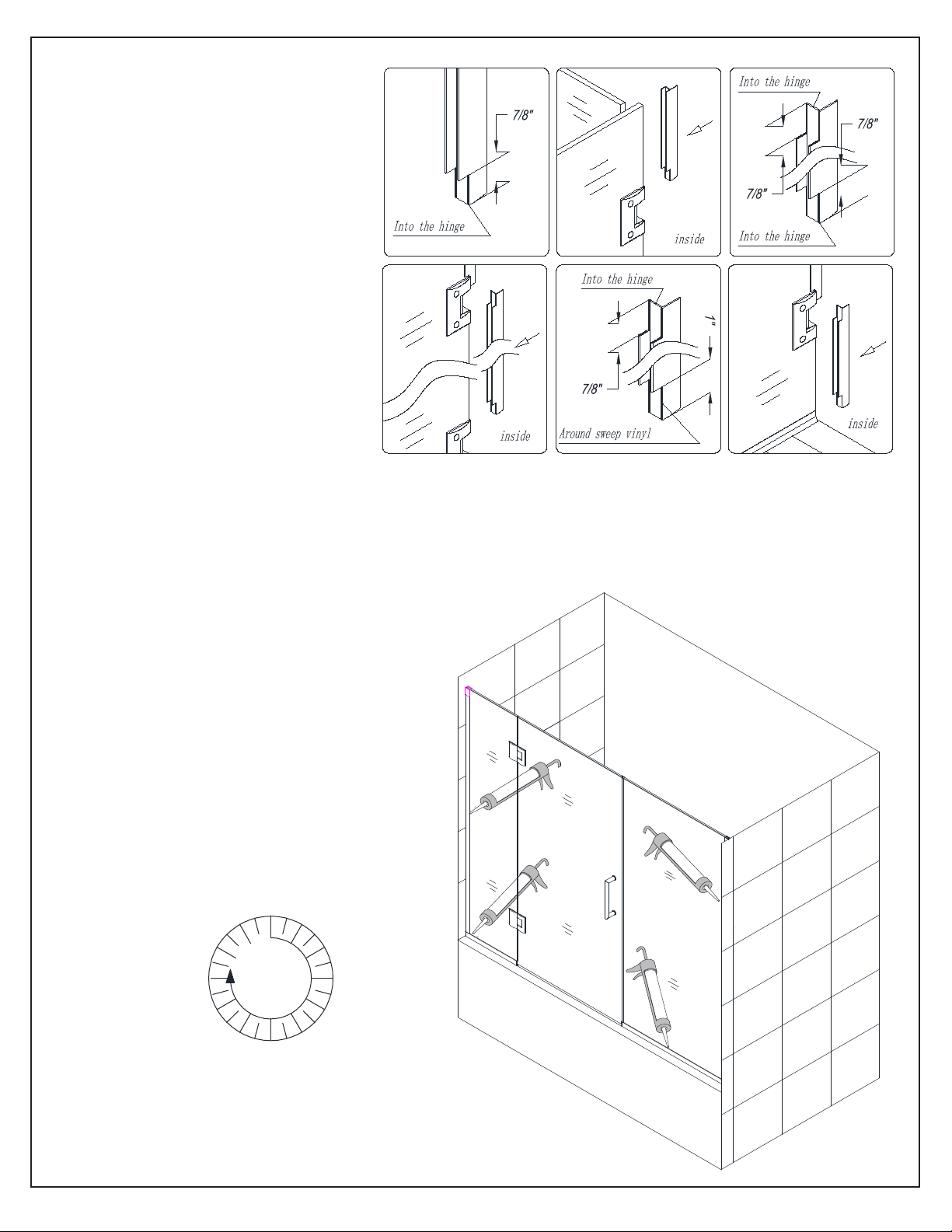

Fig 23

5 6

Hours

Fig 24

23. Apply a quality mildew-resistant

waterproof silicone where both U-Channels

connect to the wall and tub deck from inside

the shower. (Fig 24)

Allow 24 hours for the silicone to fully cure

before using the shower.

22. Cut the Flanged anti-water side

strip (#33) to the measurements from

the previous step.

Notch the cut strips to be able to slide

them into the Hinges (#05) and

around the installed Bottom

anti-water strip (#07) to cover the

space between both glass panels.

Open the door and press the cut

strips onto the vertical edge on the

hinge side of the Door Glass (#01) so

that it will overlap the hinge panel

glass. (Fig 23)

19UNIDOOR-X Tub Door manual Ver 1 10/2016













 

!

"!

!

#$%&



'()*

+

!

#$)&

 



,







#$'&

$'$)$%









'()*

'-.*

Product Maintenance

BASES and BACKWALLS: To ensure long lasting life for your acrylic back walls: wipe them off

after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream

based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal

brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use

with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent

soap buildup and water spots (Hard water can etch the surface of the glass over time if left to

dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that

contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the

surface.

HARDWARE: To ensure a long lasting finish: wipe off the metal parts after each use with a soft

cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If

accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling

or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with soft cloth.

Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or

polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive

sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.

NOTE: To maximize the life of your door, it is important to regularly inspect

the glass and other hardware for misalignment, proper attachment, and/or

damage. Contact DreamLine with any questions or concerns.

20UNIDOOR-X Tub Door manual Ver 1 10/2016

Table of contents

Other Dreamline Bathroom Fixture manuals

Dreamline

Dreamline Unidoor Lux D SHDR -23297210 Series User manual

Dreamline

Dreamline ALLIANCE PRO BG SDAB60A700 User manual

Dreamline

Dreamline Aqua Fold DLT-1132320 User manual

Dreamline

Dreamline TORERO User manual

Dreamline

Dreamline PYRAMID User manual

Dreamline

Dreamline UNIDOOR-X L1 Series User manual

Dreamline

Dreamline PRISM PLUS User manual

Dreamline

Dreamline SHCM-2358-00 User manual

Dreamline

Dreamline QWALL TUB User manual

Dreamline

Dreamline PRISM PLUS SHEN-2634340 Series User manual

Dreamline

Dreamline FRENCH LINEA Series User manual

Dreamline

Dreamline Butterfly Shower Door & Base Kit User manual

Dreamline

Dreamline SHDR-20237210F Series User manual

Dreamline

Dreamline SHCM-3031-00/01 User manual

Dreamline

Dreamline UNIDOOR User manual

Dreamline

Dreamline ALLIANCE PRO SDAL48W700 User manual

Dreamline

Dreamline QWALL-3 User manual

Dreamline

Dreamline UNIDOOR B User manual

Dreamline

Dreamline ENIGMA 60" wide User manual

Dreamline

Dreamline SHST-01-PL User manual

Dreamline

Dreamline AQUA-Q FOLD SD-363072Q Series User manual

Dreamline

Dreamline PRISM PLUS User manual

Dreamline

Dreamline ILLUSION User manual

Dreamline

Dreamline Visions User manual

Popular Bathroom Fixture manuals by other brands

Symmons

Symmons T-600B-V Series installation instructions

Sunshower

Sunshower DUO WHITE user manual

Porcelanosa

Porcelanosa noken BALANS 100170240 N720000183 manual

INDA

INDA Styl 6000 Mounting instructions

Toto

Toto Washlet EK 2.0 installation guide

iDo

iDo PORSGRUND Showerama Operating and maintenance instructions

Pegasus

Pegasus 735B-0204 Use and care guide

Hans Grohe

Hans Grohe Raindance Select S 240 2jet 27129 Series Instructions for use/assembly instructions

Toto

Toto Guinevere TS970AL Installation and owner's manual

Kohler

Kohler 10-Jet K-1000-H2 installation guide

Blanke

Blanke BAY-BOX S Installation instruction

Zenith

Zenith 2114S Assembly instructions

Macro Design

Macro Design DHSC Series Assembly instructions

Helvex

Helvex RM-15 quick start guide

agape

agape NIVIS ACER0763FP0 Series Assembly instructions

Aqua

Aqua DOLCEVITA DV01AQ Assembly instructions

AQUANCE

AQUANCE BETO installation guide

Franke

Franke AQUATIMER A3000 Installation and operating instructions

Dreamline Unidoor-X D58580 Series User manual

Popular Bathroom Fixture manuals by other brands
