Dreamline ENIGMA AIR SHEN-6434480 Series User manual

MODEL #s
SHEN-6434480-##
SHEN-6434600-##
##=finish
07- Brushed Stainless Steel
08- Polished Stainless Steel
ENIGMA AIR ENCLOSURE
SHOWER ENCLOSURE INSTALLATION INSTRUCTIONS
IMPORTANT
DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice.
For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer
to your model’s web page on DreamLine.com
For more information about DreamLine®Shower Doors, Tub Doors & Enclosures, please visit DreamLine.com
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017 ©2017 DreamLine. All Rights Reserved
Right - Hand return panel installation shown

NOTE: This door is reversible for right or left-hand installation. The right-hand return panel installation
is shown as an example throughout this manual. For the left-hand return panel installation, simply
begin on the opposite wall and reverse the orientation of the steps shown.
3
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved

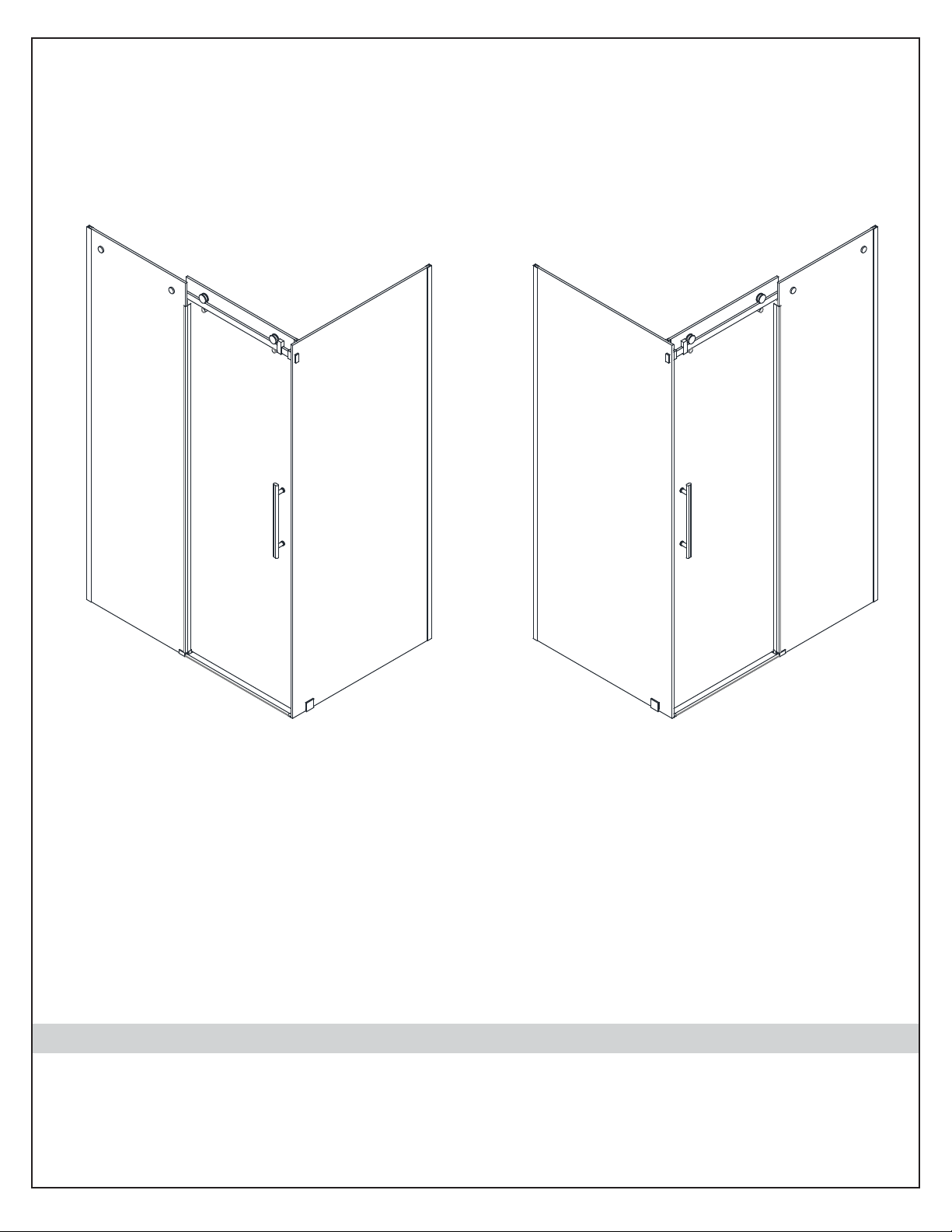

Right-Hand return panel Left-Hand return panel

2
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved
This model is treated with DreamLine’s
exclusive ClearMaxTM Glass technology.
This is a specially formulated coating
that prevents the build up of soap and
water spots.
Install the surface with the ClearMaxTM
label towards the inside of the shower.
Please note that depending on the
model, the glass may be coated on
either one or both surfaces.
For best results, squeegee the glass after
each use and dry with a soft cloth.

4
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved

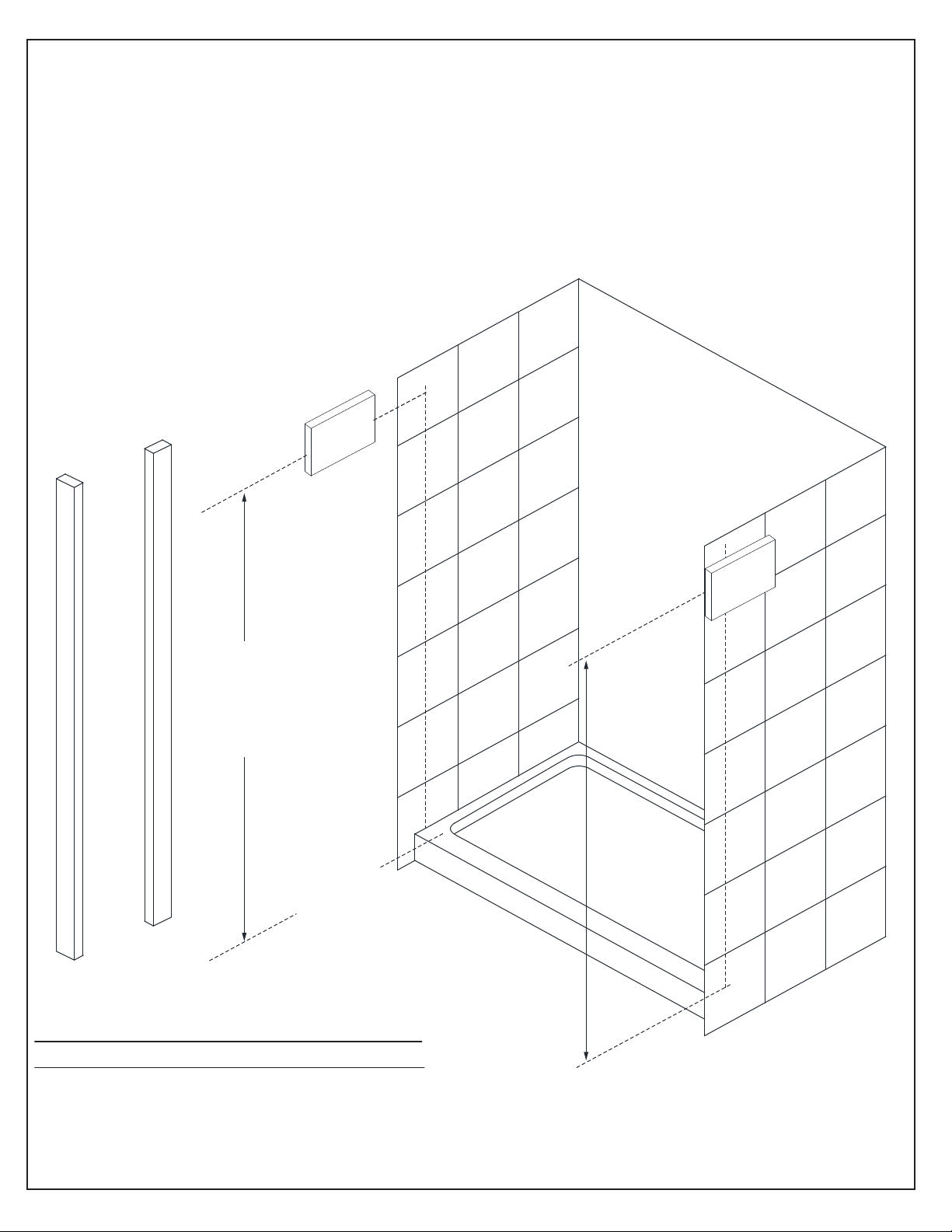

*Blocking height requirement (to center)
as measured from threshold or tub deck:
Enigma Air = 73” for shower ht / 59” for tub ht
Enigma X = 72-1/2“ for shower ht / 58-1/2” for tub ht
Enigma Z = 73-1/2” for shower ht / 59-1/2“ for tub ht
Enigma = 75-1/2” for shower ht only
Install studs OR install 2”x 6” wood blocking between the studs where the
Guide Rail Brackets will attach to the wall
Reinforcement for Enigma Series
Heavy Glass frameless sliding shower door
2” X 6”
Stud
or
threshold
or tub deck
measured
from threshold*
(see list below)
2” X 6”
threshold
or tub deck

Preparation
The safety of any installation is the responsibility of the installer.
Professional installation recommended.
To prevent serious injury, do not lean against the installed glass.
1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece count
with your packing slip. After opening all boxes and packages read this introduction carefully. Check that all
of the needed parts are included in the package by checking off the components on the “Detailed
Diagram of Shower Door Components”. If the unit has been damaged, has a finishing defect, or has
missing parts, please contact our customer support department within 3 business days of the delivery
date. Please note that DreamLine®will not replace any damaged products or missing parts free of
charge after 3 business days or if the product has been installed. Contact DreamLine®if you have any
questions, and please provide an order number, job name or other proof of purchase to help us identify
your original order.
2. Please note that you should consult your local building codes with questions on installation
compliance standards. Building and plumbing codes may vary by location, and DreamLine®is not
responsible for code compliance standards for your project and will not accept any returns.
3. If this unit is going to be installed in a new construction, please install all of the required plumbing and
drainage before installing the shower. Use a competent and licensed (if required by local code) plumber
for all plumbing installation
4. Please make sure that prior to beginning the installation, the surfaces are leveled and solid and will be
able to support the total weight of the unit. Also make sure the walls are at right angles. Irregular
installation surface level, radius corners or improper angle of side walls will result in serious problems for
your installation. Please, note that some adjustments and drilling might be necessary during the
installation process.
5. Please protect all primary surfaces of the product during installation. Never set your glass down directly
onto a tile floor. Leave corner protectors in place until necessary to remove them. Always use a piece of
wood or cardboard to protect the bottom edge and corners of the glass prior to and during installation.
6. This unit must be installed upon a finished threshold and against finished walls.
7. The return panel for this model has up to 1/4“ of out-of-plumb adjustment within the u-channel.
Do not exceed this tolerance. The inline panel does not offer any adjustment.
8. This model requires that you drill into the threshold for proper installation.
9. This model requires a minimum 2-1/4” of flat threshold space for installation.
10. Installation of the Guide Rail brackets into a stud or 2 x 6 wood reinforcement is strongly
recommended.
11. Professional installation required.
NOTE: DO NOT attach the handle to the door glass until instructed to do so. DO NOT
use the handle to lift the glass during installation. This may result in damage to the
glass and/or serious injury. Always use an assistant and/or a professional grade glass
suction cup when handling heavy glass panels.
5
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved
!

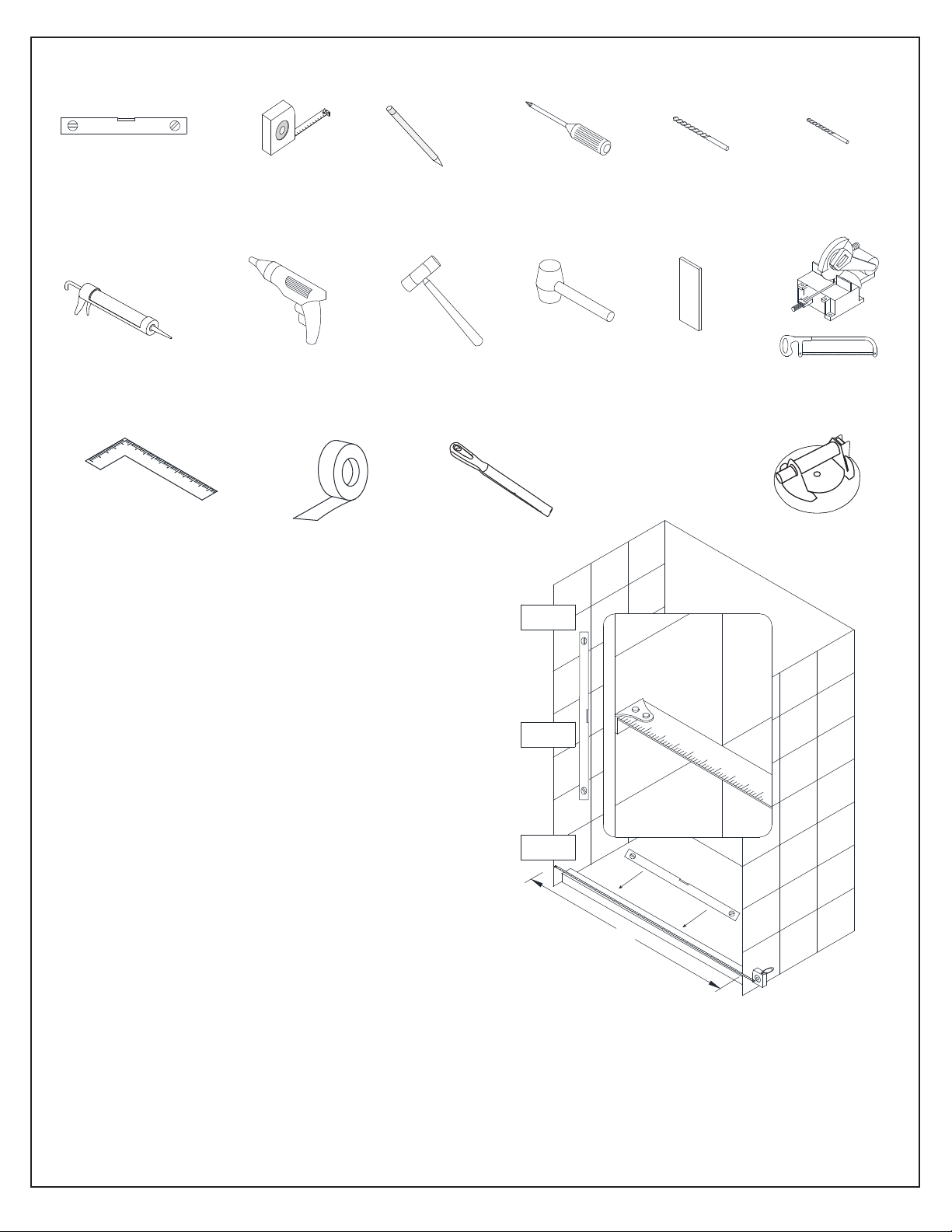

Tools Required
NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed
diagram and packing list in this manual as a reference. Before discarding the carton, check for small
hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing,
please contact DreamLine® for replacement. The shipping boxes may contain extra parts not used in
your model configuration.
NOTE: Retain these installation instructions for future reference.
6
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved
Metal File
Painter’s Tape
W
Top
Middle
Bottom
Tip: Measure the finished opening before
proceeding with the installation to be sure
that the correct model size has been
ordered.
Silicone
Tape
Measure Pencil Screwdriver
Phillips Drill bit
Level
Drill
Power
Drill bit
(Ø=5/16") (Ø=1/8")
Mallet Wood
Hammer
Soft Head
Carpenter’s
Square
Chop saw
and Hacksaw
Professional-grade
Glass suction cup

Detailed Diagram of Shower Door components
7
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved
Part# Part#Item Qty
01 U-channel 1PC
Parts List-A
02 Stationary Glass 1PC
03 Door Glass 1PC
04 Guide Rail 1PC
05 Stopper 2PCS
06 Guide Rail Bracket(6a&6b) 2PCS
07 Glass Bracket
08 Roller
09 Roller Guard
10 anti-Splash Guard End Cap 1PC
11 Anti-splash Guard 1PC
2PCS
2PCS
2PCS
Item Qty
12 Guide Block 1PC
13 Anti-water side strip
14 Bumper seal strip 1PC
15 Handle 1set
16 Ø5/16"(8mm) plastic wall anchor 7PC
17 ST4.2×40 countersunk screw
2PCS
18
19 Allen wrench(4mm)
20 Thread Lock Adhesive
21
1PC
4PCS
2PCS
1PC
1PC
ST4.2×25 round head screw
ST4.2×55 countersunk screw
The glass surface
with the ClearMax™
label must be
installed facing the
inside of the shower
748
9
5
1
13
14
15
16
2
3
18
19
17
10
11
12
6
20
21
6a
6b

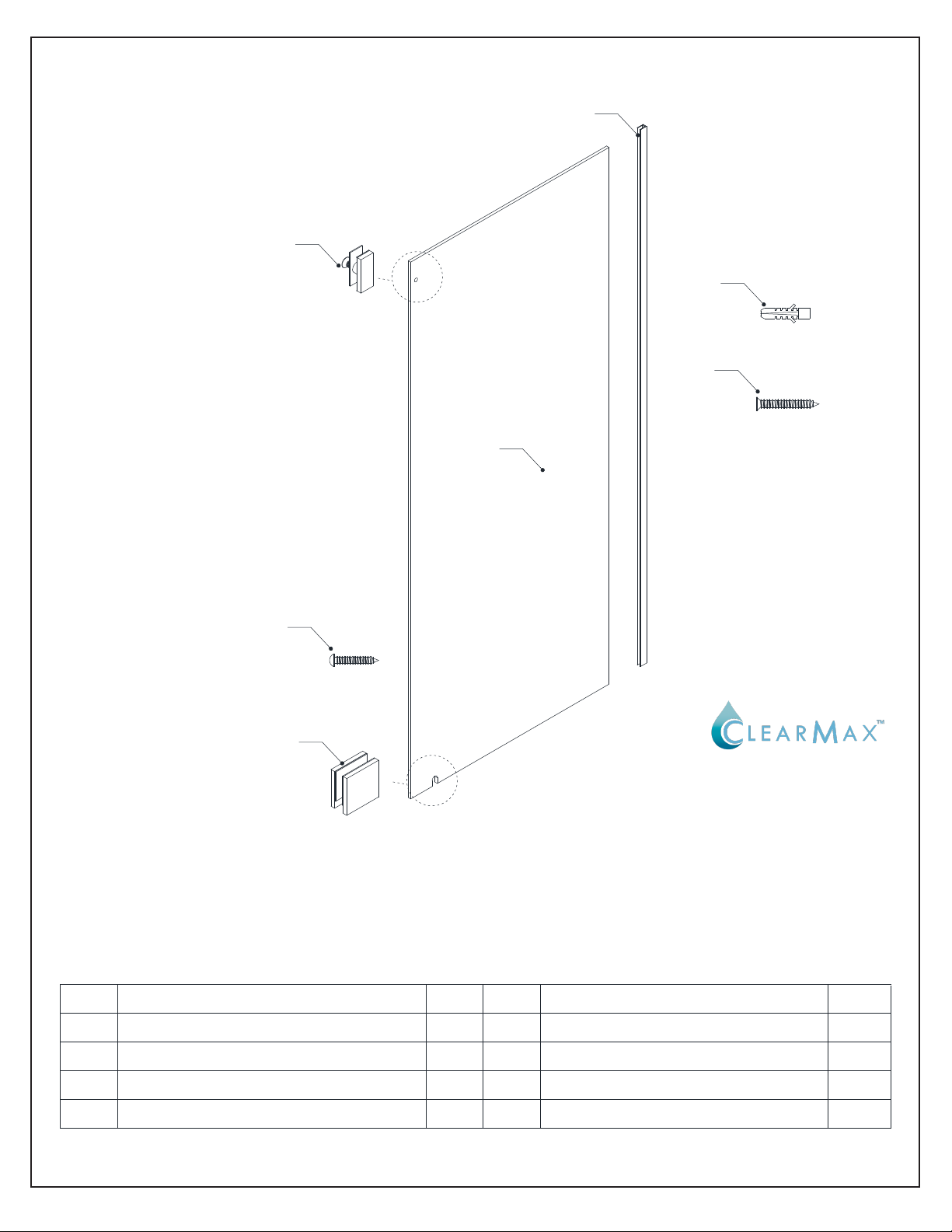

Detailed Diagram of Return Panel components
8
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved
Part# Item Qty
01 U-channel 1PC
Parts List-B
Part# Item Qty
23 Stationary Glass Connector 1PC
24 Bottom Bracket
25 1PC
16 Ø5/16"(8mm) plastic wall anchor 5PC
17 ST4.2×40 Countersunk screw
22 1PC
4PCS
Return Panel Glass
ST4.2×55 Truss Head screw
1PC
23
22
1
24
16
25
17
The glass surface
with the ClearMax™
label must be
installed facing the
inside of the shower

Overall outside dimensions of the installed enclosure
SHOWER ENCLOSURE PLAN
9
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved
(SHEN-6434480)
44-3/8”” min. to 48-3/8” max*
*measured from the finished wall to the outside surface of the return panel glass
34-3/4”
34-3/4”
2-1/4” minimum
threshold required
2-1/4” minimum
threshold required
nished wall
nished wall
nished wall
56-3/8”” min. to 60-3/8” max*
*measured from the finished wall to the outside surface of the return panel glass
34-3/4”
nished wall
(SHEN-6434600 )

Installation steps
10
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved
Fig 2
Fig 1
outside dimensions of the installed enclosure
2-1/4”
minimum
34-3/4”
W2
W1
56-3/8” min to 60-3/8” max
44-3/8“ min to 48-3/8” max
or
2-1/4” minimum
threshold required
1. Check both of the finished walls for plumb and the
threshold for level. Check your threshold against the
minimum threshold requirement of 2-1/4” for this unit.
Compare the overall (outside) dimensions of the
enclosure against the threshold to ensure that it will fit.
(Fig 1)
NOTE:
This model does not allow for out-of-plumb adjustment.
2. Measure the W2 dimension from the finished corner
of the opening over to the return panel threshold.
(based on the model size as shown on the “Shower
Enclosure Plan” Page 9)
Next, measure the W1 dimension of 34-3/4“ out from
the wall as the width of the return panel. These will be
the outside dimensions of the installed enclosure.
Use a carpenter’s square as a guide and extend this line
across the primary threshold to the opposite wall to use
for reference in Step #14 during the installation of the
U-channel for the inline panel glass. (Fig 2)
W1 = 34-3/4”
W2 = between 44-3/8” min > 48-3/8” max
OR
W2= between 56-3/8” min to 60-3/8” max
NOTE: This model requires a minimum 2-1/4”
of flat threshold space for installation.

11
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved
14
3
2
Ø5/16”
(8mm)
Fig 4
Fig 3
W2
W2
W2

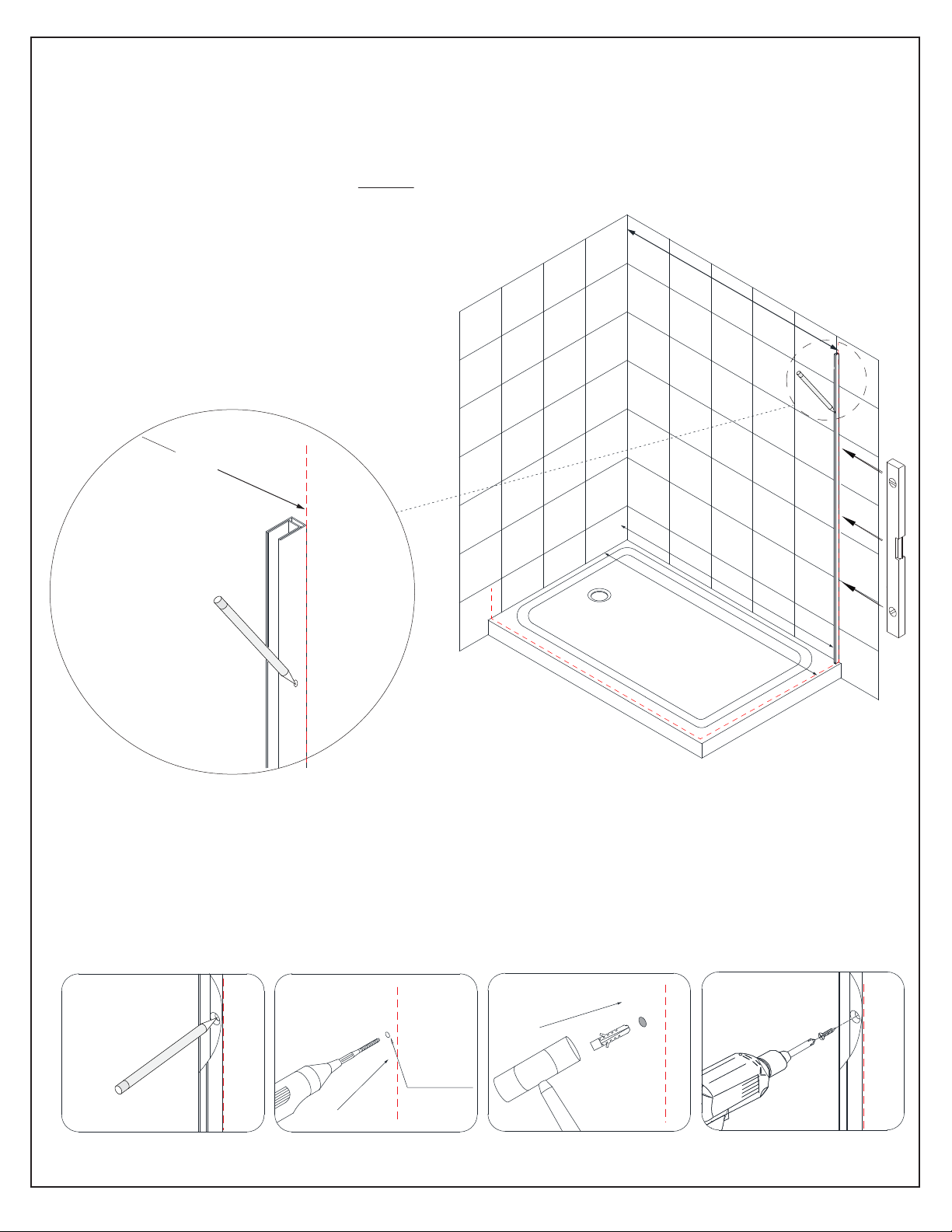

4. Set the U-Channel (#01) aside and drill the holes in the wall using a Ø5/16” drill bit and insert
the Ø5/16“ Plastic Wall Anchors (#16) into the holes. Mount the U-channel (#01) to the wall using
the ST4.2×40 Countersunk Screws (#17). (Fig 4)
3. Align the outside edge of the U-Channel (#01) to the inside of the mark from the previous step on
the return panel side of the unit. Level the U-Channel (#01) vertically (plumb), mark the position of the
U-Channel (#01) on the wall, and mark the four holes for drilling through the pre-drilled holes in the
u-channel. The placement of this u-channel must create an opening that is within the model dimensions
of the door section, depending on the model size: <48” (SHEN-6434480) or <60” (SHEN-6434600 )
See the “Shower Enclosure Plan” on Page 9 for overall dimensions. (Fig 3)

12
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved

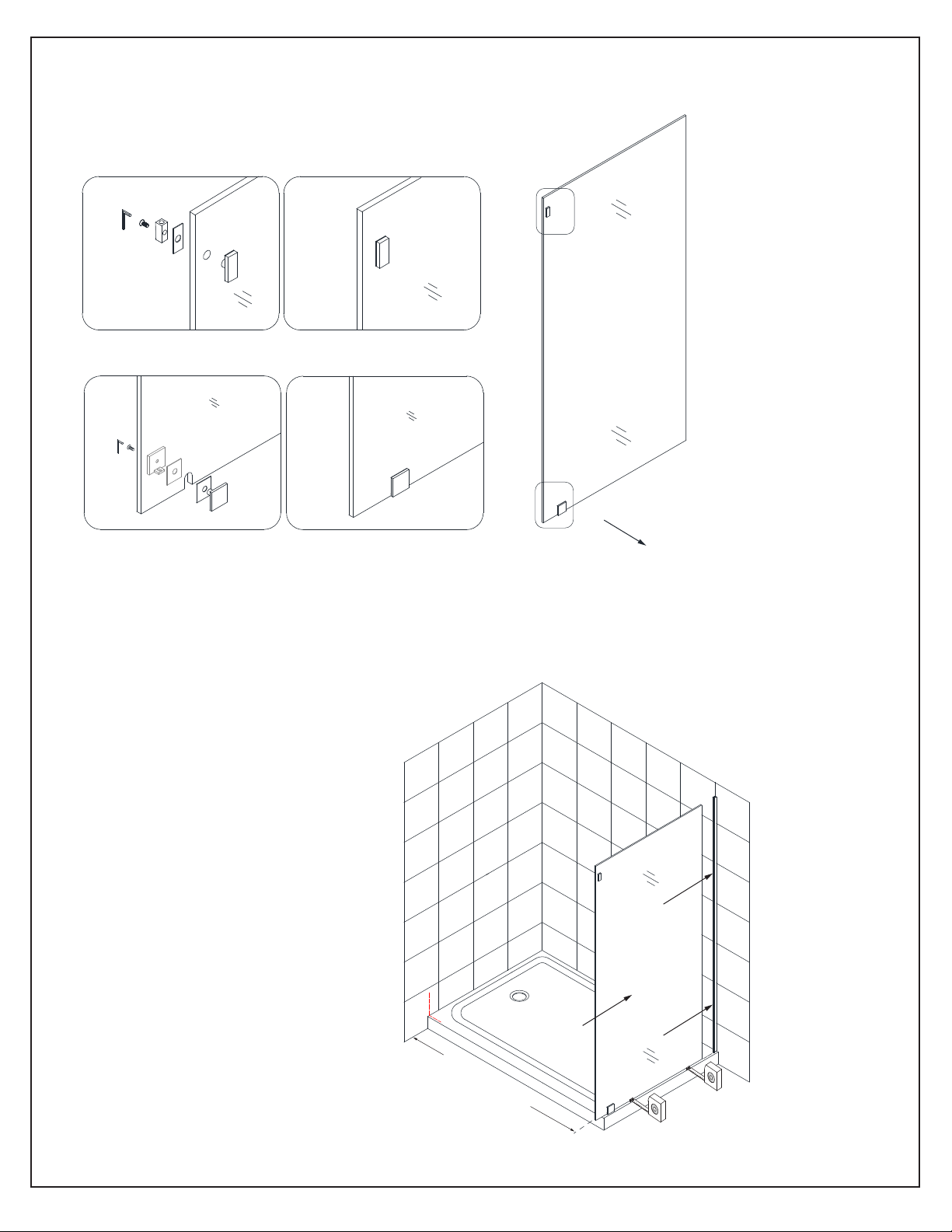

Fig 5
Fig 6
34
2
1
outside
<48” or <60”
6. Place the Return Panel Glass (#22) onto the pre-installed shower base or threshold. Slide the panel
into the U-channel (#01) and level it vertically (plumb). Make sure the Return Panel Glass (#22) is
aligned with the shower base or threshold. (Fig 6)
5. Attach the Stationary Glass Connector (#23) to the top of the Return Panel Glass (#22).
Attach the Bottom Bracket (#24) to the bottom of the Return Panel Glass (#22). Use the supplied
gaskets to protect the glass. (Fig 5)

13
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved
Fig 7
Fig 8
inside

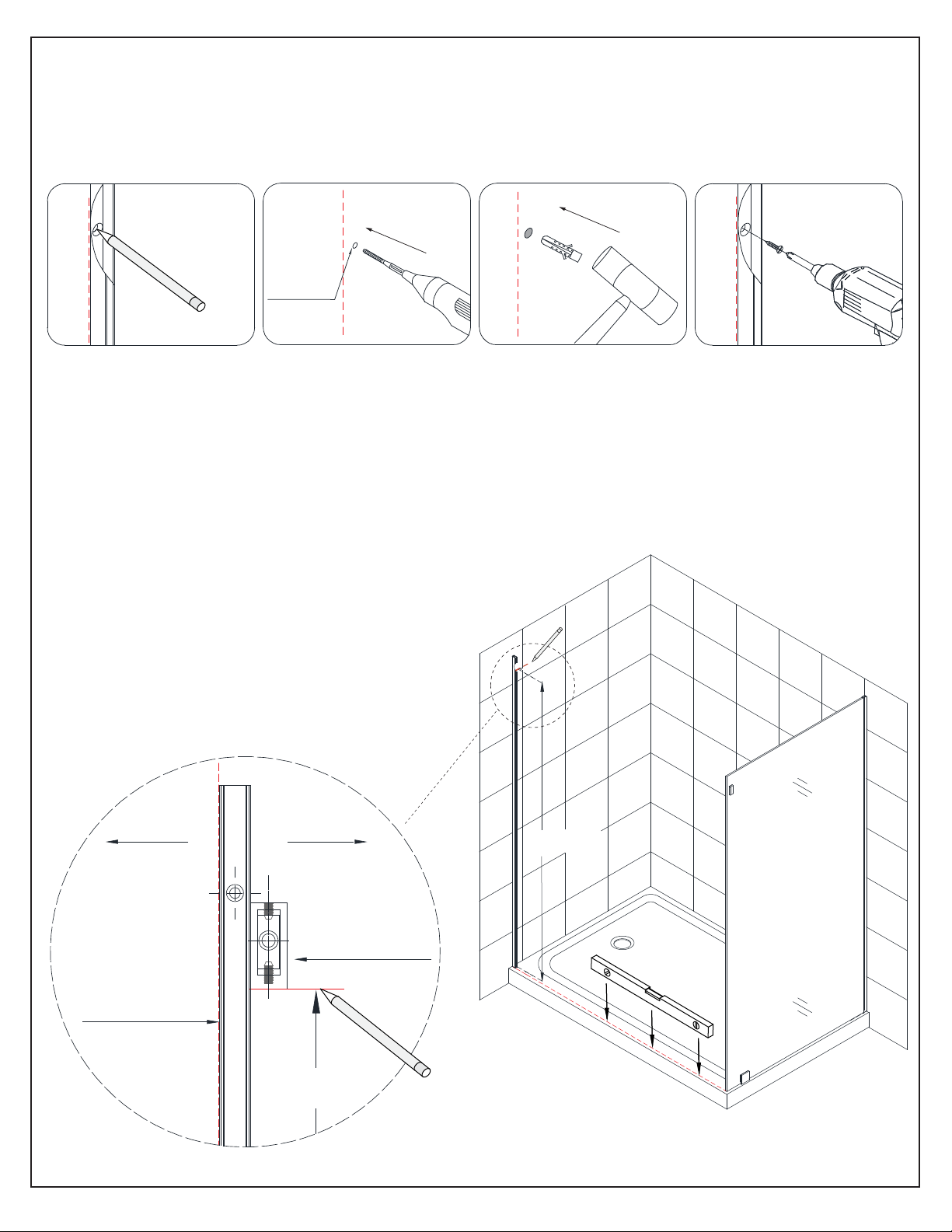

7. Outline the position of the Bottom Bracket (#24)
on the shower base or threshold. (Fig 7)
8. Carefully slide the Return Panel Glass (#22) out of the U-channel and set it aside. Remove the
Bottom Bracket (#24) from the Return Panel Glass (#22). (Fig 8 and Fig 9)

14
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved
Fig 9
Fig 10
outside
See
Step #9
Ø1/8”
Ø5/16”
or
1234

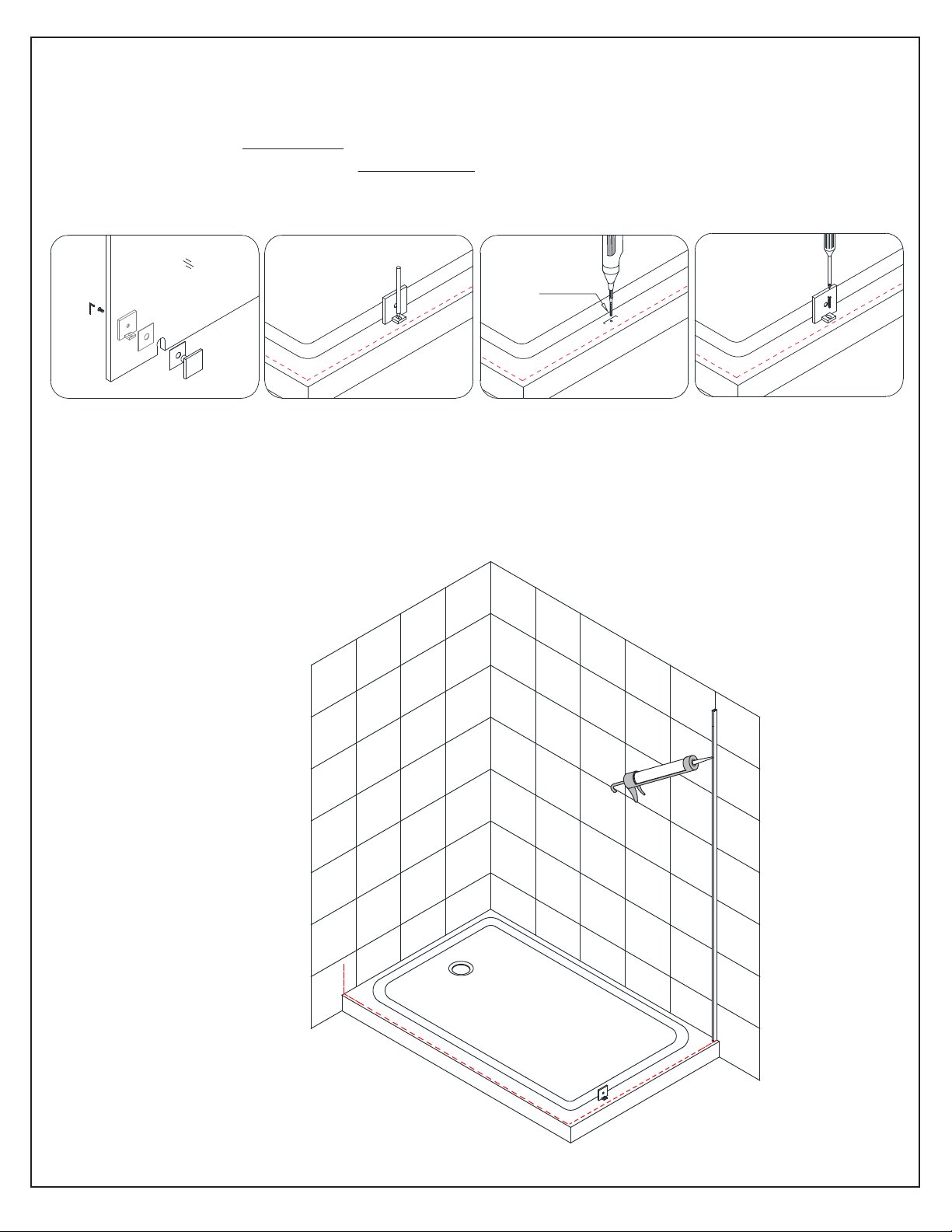

9. Replace the bottom bracket base back to its marked position and then mark the drilling hole on the
threshold.
Drill a hole in the shower base or threshold using:
◾ Ø1/8” drill bit for an acrylic base or
◾Ø5/16” drill bit for an anchor for a tile threshold.Mount the Bottom Bracket (#24) to the threshold
using the Truss Head Screw ST4.2×55 (#25). (Fig 9)
10. Apply a quality mildew-resistant silicone to the inside of the U-channel (#01).
Be sure to apply silicone to the screws and screw holes in the channel as well. (Fig 10)

15
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved
Fig 11
Fig 12
outside
L
72-1/4”
12. Measure the distance from the finished
wall to the inside surface of the installed
Return Panel Glass (#22) (measure to the
surface of the glass, not to the surface of
the installed bracket).
This distance will represent the finished
opening size (L) that will be used to
calculate the finished cut dimension for the
Guide Rail (#04) in the next step. (Fig 12)
11. Place the Return Panel Glass (#22) back into the
U-channel (#01) and assemble the Bottom Bracket (#24)
to the Return Panel Glass (#22). (Fig 11)
◾Measure the width (L) at a height of 72-1/4”

16
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved
Metal File
Fig 14
Fig 13
Cut from the door end only which
is the end opposite of the holes
Finished opening (L) - 1” = finished cut length
Guide Rail with
the Guide Rail
brackets attached
Cut to (L) - 1”
panel end
door end
L
U-Channel
outside inside
NOTE: Use a metal file to remove any burrs
from the cut end of the Guide Rail (#04).

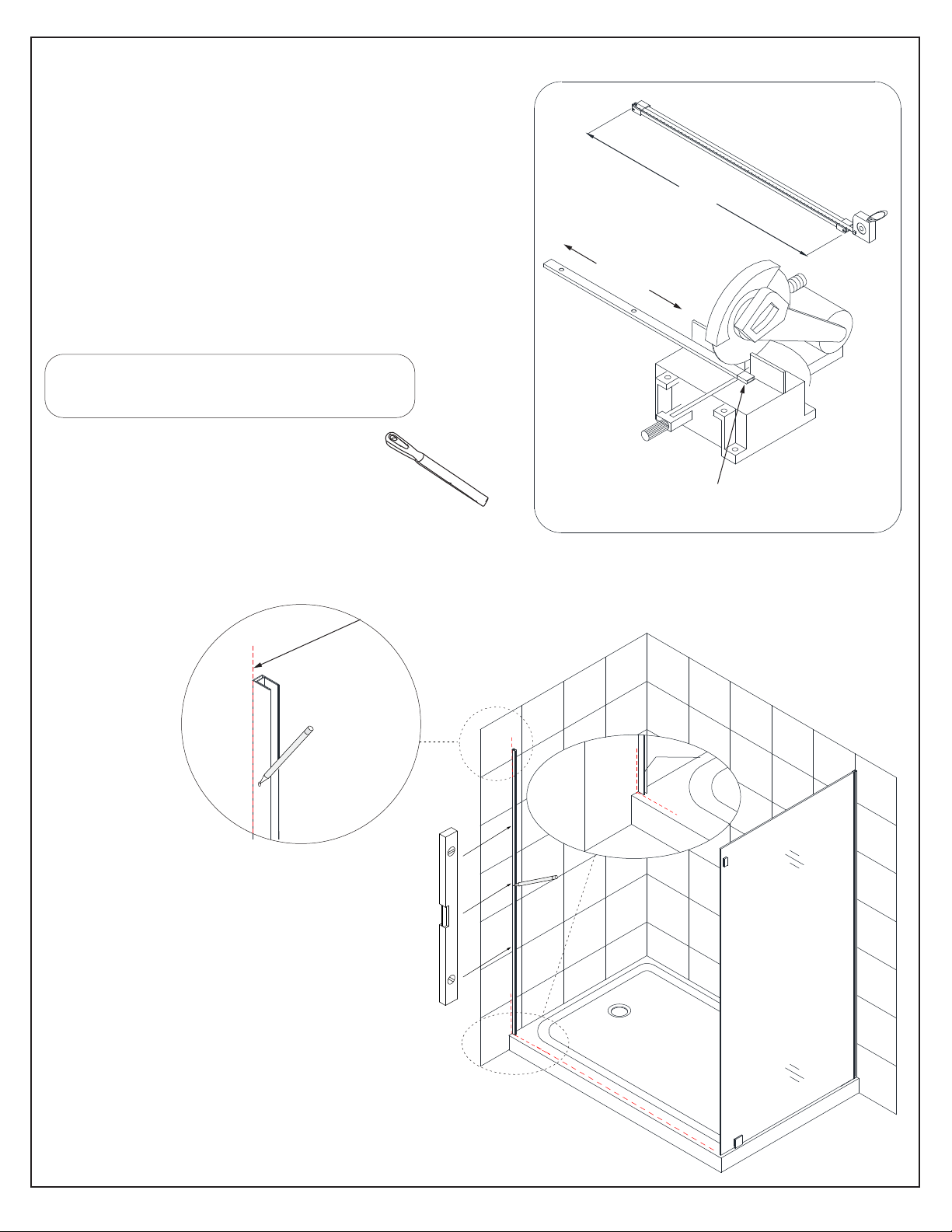

13. Using a Chop-saw or a Hack-saw, cut the Guide
Rail (#04) to fit the finished opening.
Measure the finished opening width at the position
of the Guide Rail (#04) for the model height:
The Guide Rail (#04) is 1“ less than the model size.
and will need to be cut to 1” less than the finished
opening size (L). (Fig 13)
Finished opening (L) - 1” = finished cut length
14. Align the outside edge of the
U-Channel (#01) to the inside of the mark
on the threshold from Step #2. Level the
U-Channel (#01) vertically (plumb), mark
the position of the U-Channel (#01) on the
wall, and mark the four holes for drilling.
(Fig 14)

17
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved
123 4
Ø5/16"
Fig 16
Fig 15
72 1/4”
72-1/4”
U-Channel
Guide Rail
Bracket
outside inside
15. Drill the holes in the wall using a Ø5/16” drill bit and insert the Ø5/16“ Plastic Wall Anchors (#16)
into the holes.
Apply silicone to the back of the channel, screws and screw holes.
Mount the U-channel (#01) to the wall using the Countersunk Screw ST4.2×40 (#17). (Fig 15)
16. From inside the shower, measure up 72-1/4” from the threshold and make a mark on the wall
to the inside of the U-channel 2 (#01). This will indicate the bottom position of the Guide Rail
Bracket (#06). (Fig 16)

18
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved
Fig 17
Fig 18
3
4
1
Ø 5/16”
2*
6b
6a
tighten to
guide rail
tighten to wall bracket
(6b) and adjust level of
guide rail
72-1/4”
Note: Check the threshold for level.
If the threshold rises or falls more than 1/16”
over the span, add or subtract that amount
from the 72-1/4” dimension so that the upper
guide rail is installed level.
**NOTE: When installing to a stud,
drill a Ø1/4” hole and do not use the
anchors.
The guide block
bracket should be
centered in the
bracket as shown
to allow for
vertical
adjustment both
up and down.
C
L
(=)
(=)
*NOTE: Installation of the Guide Rail
bracket into a stud or 2” x 6” wood
reinforcement is strongly
recommended.
17. Hold the Guide Rail Bracket (#06) in the marked position
and using a center punch or small pencil, mark the wall
through the hole for drilling in the Guide Rail Bracket (#06).
(Fig 17)
18. **Drill a Ø5/16” anchor hole and insert
a Wall Anchor (#16).
Separate the Guide Rail Bracket (#06)
components (6a and 6b).
Install the Guide Rail Wall Bracket (#06b)
to the wall using one ST4.2 x 55mm
Countersunk Screw (#21). (Fig 18)

19
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved
2
3
1
Fig 20
Fig 19
19. Insert the Stationary Glass (#02) into the installed U-Channel (#01).
Use Caution not to bang the glass into the U-channel or threshold. (Fig 19)
20. Make sure the Stationary Glass (#02) is parallel to the front edge of the threshold and mark it.
Slide the Guide Block (#12) into the notch of the Stationary Glass (#02). Make sure it is square to the
threshold, and align it flush with the edge of the glass. Mark its position on the threshold and also mark
the hole for drilling using a pencil (or center punch). The rubber gaskets need to be in place to protect
the glass. (Fig 20)

20
ENIGMA AIR ENCLOSURE manual Ver 1 Rev 2 06/2017
©2017 DreamLine. All Rights Reserved
Fig 21
Fig 22
65
4
7
face plate
3
2
See
Step #22
Ø1/8”
Ø5/16”
or
1

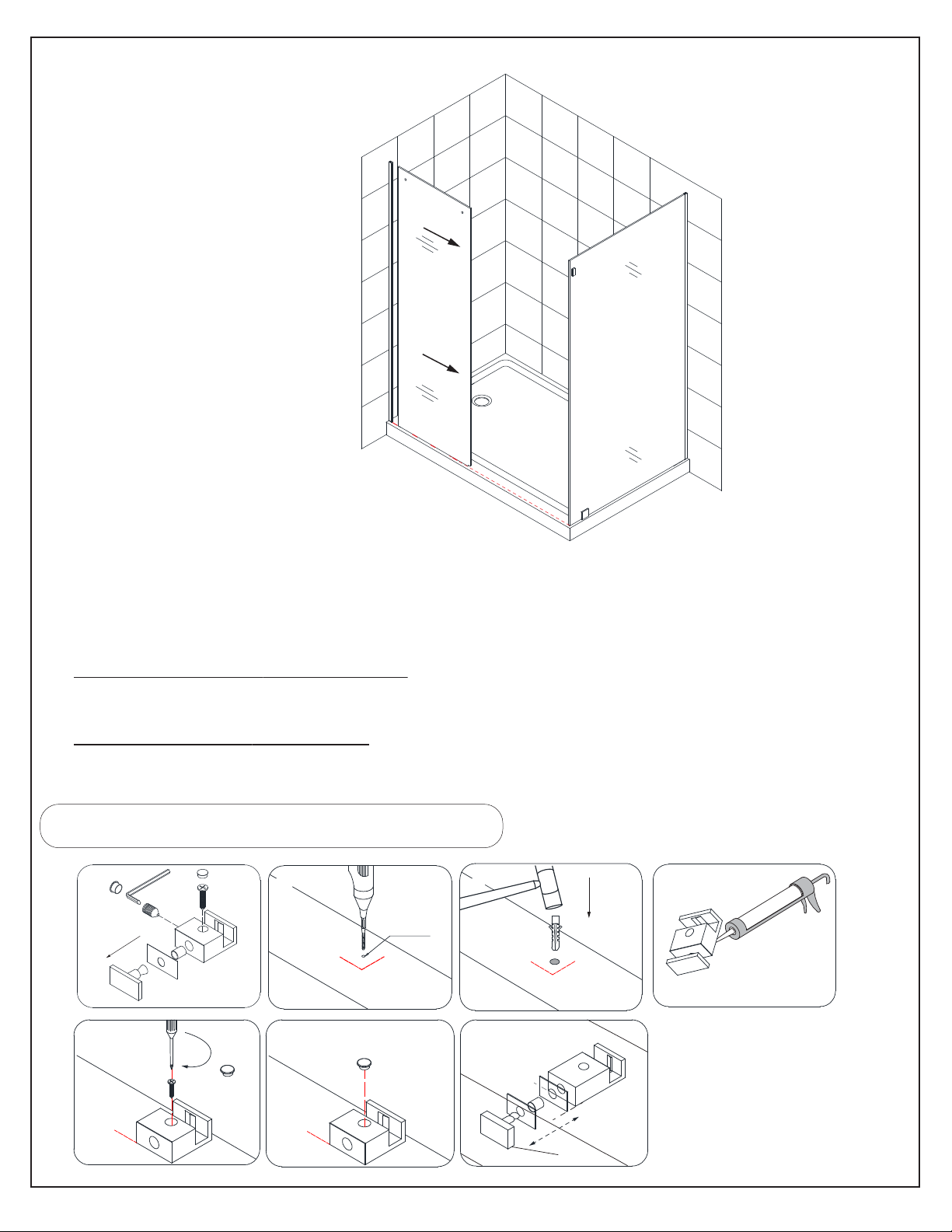

22. To install the Guide Block (#12):loosen the set screw on the side and remove the Guide block
face plate (Fig. 22.1). Apply silicone to the underside of the Guide Block (#12) and screw the Guide
Block (#12) to the threshold as described below:
*NOTE:
◾For installation into an acrylic threshold:
◽drill an Ø1/8”(3mm) hole and use the ST4.2 x 25mm Round Head Screw (#18)
OR
◾For installation into a tile threshold:
◽drill a Ø5/16”(8mm) hole, install Wall Anchor Ø5/16” (#16) and use the ST4.2 x 40mm
Countersunk screw (#17). (Fig 22)
21. Remove the Stationary Glass (#02) from the U-Channel (#01) and carefully set it aside. (Fig 21)
Note: The Guide Block (#12) must be screwed down.
