OPERATING MANUAL - ARID-X, HP4-X 18-100 FM DRYERS
Revision 10/8/02 Page 1
ARID-X & HP4-X 18-100
FLOOR MOUNT DRYERS
OPERATING MANUAL

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X , HP4-X 18-100 FM DRYERS
Revision 10/8/02
Page 2
DRI-AIRINDUSTRIES, INC.
16 THOMPSON ROAD
P.O. BOX 1020
EAST WINDSOR, CT 06088-1020
Tel. [phone]
FAX [phone]
Internet http://www.dri-air.com
e-mail: [e-mail]

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X, HP4-X 18-100 FM DRYERS
Revision 10/8/02 Page 3
CONTENTS
DRYER OPERATION/FEATURES---------------------------4
AIR FLOW SCHEMATIC FOR ARID-X DRYERS--------6
AIR FLOW SCHEMATIC FOR HP4-X DRYERS ---------7
DRYER CYCLE DIAGRAM ------------------------------------8
PLC STANDARD ELECTRICS ------------------------------- 9
INSTALLATION PROCEDURE ----------------------------- 10
Electrical Connection ------------------------------------- 10
Check for correct motor rotation ----------------------- 10
START-UP PROCEDURE ----------------------------------- 11
Standard Electrics----------------------------------------- 11
To Set Temperature: -------------------------------------- 11
Microprocessor Control ---------------------------------- 12
DRYER OPERATION-TROUBLE SHOOTING --------- 13
DRYER OPERATION-DETAILED DIAGNOSIS -------- 14
DRI-AIR ROTARY ZONE VALVE--------------------------- 15
PARTS LISTS
ARID-X & HP4-X 18 - 35 -------------------------------- 16
ARID-X & HP4-X 50 - 100 ------------------------------ 17

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X , HP4-X 18-100 FM DRYERS
Revision 10/8/02
Page 4
The ARID-X dryer series is a dual bed design that provides a
constant supply of dry air to the material hopper. While one
bed is removing moisture from the process air the other is
regenerating by heating the desiccant to a high temperature.
Once the regenerated bed cools down, the Zone Valve
switches the airflow, and the newly regenerated bed is used to
desiccate the process air stream. The saturated bed is now
regenerated in the same manner, completing the regeneration
cycle. The cycle is depicted Page 8.
The airflow design of the ARID-X dryers makes the
regeneration cycle more efficient because we utilize a small
amount of the desiccated process air rather than ambient air
to regenerate the desiccant bed. This reduces the impact of
the high moisture content of the ambient air, which would
contaminate the desiccant bed, and allows the dryer to attain
a lower dew point. Please see the Air Flow Schematic on
Page 6.
HP4-X Design
Our patented HP4-X design incorporates 4 desiccant beds
where two are stacked, one over the other. This nearly
doubles the amount of desiccant available for drying the
process air stream, and because of the tower design, the
dryer is able to regenerate the desiccant in the same time as
our ARID-X series. This allows the dryer to operate in very
high humidity conditions without affecting the process air dew
point. In fact, this design produces dew point levels of – 40’ to
-80’ C for faster more complete drying of your material. Please
see the Air FLow Diagram on Page 7.
Hopper Design
Dri-Air’s ”all stainless” hopper design utilizes a stainless steel
inner shell surrounded by a stainless steel jacketed insulation
layer. The easily removable stainless steel spreader cone
promotes proper material flow to ensure that the material is
dried efficiently and no dried material is left at the hopper
bottom that needs to be fed out prior to operating. You must
ensure that your hopper is adequately sized for your usage
rate and is kept filled, to ensure that you have sufficient time to
dry the material.
DRYER OPERATION/
FEATURES

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X, HP4-X 18-100 FM DRYERS
Revision 10/8/02 Page 5
Dryer Controls

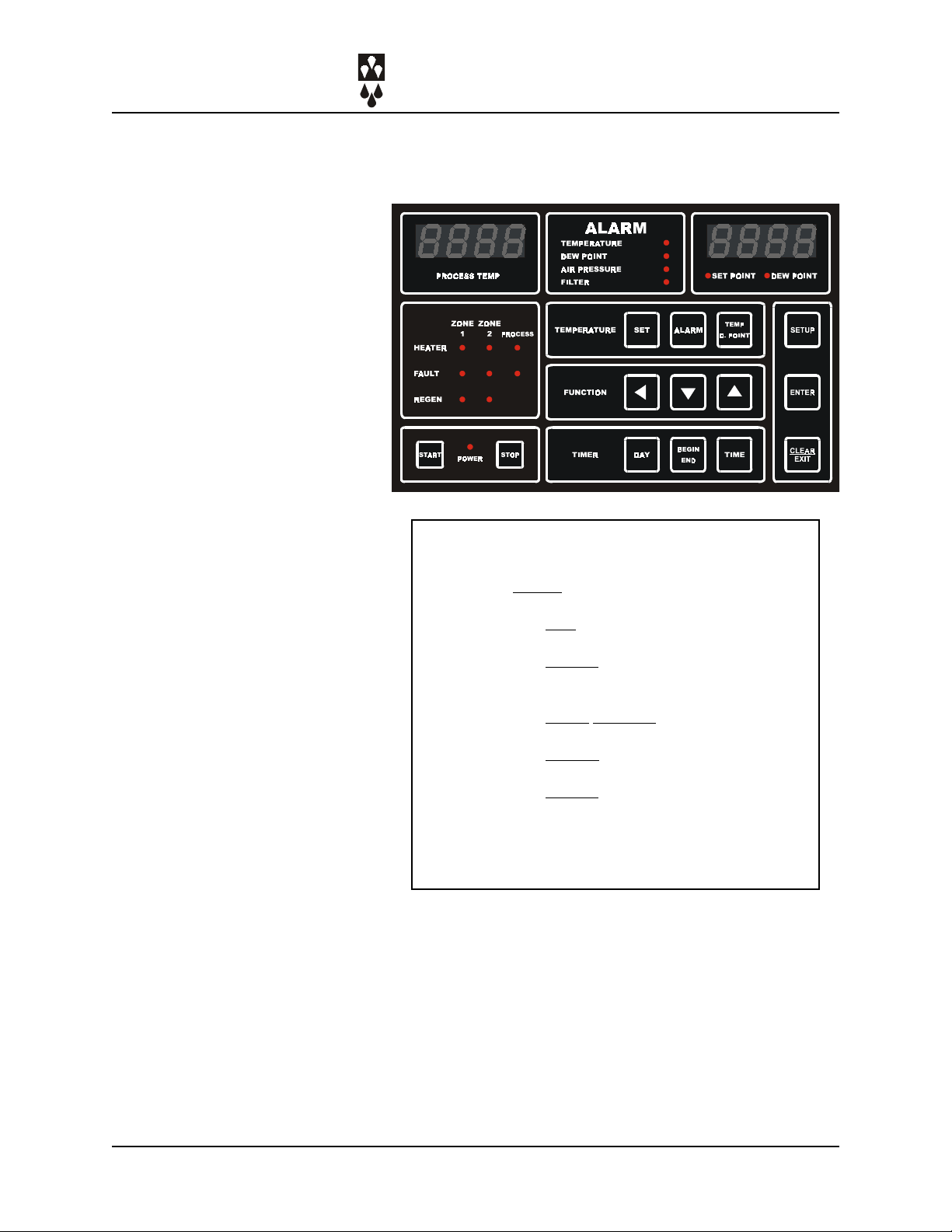

The ARID-X series can be supplied with the standard PLC
Control Module or the advanced Microprocessor Control
Module, while the HP4-X series is only available with the
Microprocessor Control Module.
The PLC Control module includes a PLC control board,
display board, temperature controller and touch pad that is
programmed for the drying cycle described above. The
controller, display board and touch pad indicate the machine
status, alarms, set points and allow you to enter operational
settings for the dryer. These are explained in more detail later
in this manual.
The Microprocessor Control Module is one of the most
sophisticated yet operator friendly controls on the market. It
has many more features than the PLC control module that
provide the operator with more control and operational
flexibility with the dryer. These features and the operating
instructions are covered in detail in the Microprocessor
Control Instruction Manual included with your dryer.
DRYER OPERATION/
FEATURES (Cont.)

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X , HP4-X 18-100 FM DRYERS
Revision 10/8/02
Page 6
AIR FLOW SCHEMATIC
FOR ARID-X DRYERS
XX
VORTEX BLOWER
4-WAY ZONE
VALVE
FILTER
VENT
SAFETY THERMAL
SAFETY THERMAL
REGENERATION
AND PROCESS
HEATER
TO HOPPER
PROCESS HEATER
(APD 5-9)
CONTROL
THERMOCOUPLE
H2
CONTROL
THERMOCOUPLE
L1
CONTROL
THERMOCOUPLE
L2
CONTROL
THERMOCOUPLE
H1

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X, HP4-X 18-100 FM DRYERS
Revision 10/8/02 Page 7
AIR FLOW SCHEMATIC
FOR HP4-X DRYERS
XX
VORTEX BLOWER
4-WAY ZONE
VALVE
FILTER
VENT
CONTROL
THERMOCOUPLE *
M2
CONTROL
THERMOCOUPLE *
M1
SAFETY THERMAL
SAFETY THERMAL
SAFETY THERMAL
REGENERATION
AND PROCESS
HEATER
REGENERATION
AND PROCESS
HEATER
TO HOPPER
PROCESS HEATER
(HPD 5-9)
SECONDARY
REGENERATION
HEATER
CONTROL
THERMOCOUPLE
H1
CONTROL
THERMOCOUPLE
H2
CONTROL
THERMOCOUPLE
L2
CONTROL
THERMOCOUPLE
L1
* - CONTROL THERMOCOUPLE
FOR PLC CONTROL ONLY

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X , HP4-X 18-100 FM DRYERS
Revision 10/8/02
Page 8
Dryer Cycle
Diagram
Desicant Beds
Zo ne 1 He a ting
Zone 2 Cooling
Zo ne 2 He a ting
Zone 1 Cooling
Valve Shifts
Va lve Shifts
DRYER CYCLE
DIAGRAM
XX

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X, HP4-X 18-100 FM DRYERS
Revision 10/8/02 Page 9
The control package includes a PLC controller which is
programmed for the drying cycle previously discussed. The
display board indicates the machine status, heater operation
and alarms. See section on start up for details.
Below are descriptions of the inputs and outputs of the PLC
which are used for trouble shooting. A lit LED indicates the
input or output is actuated. All inputs are 12 volts AC and all
outputs are 110 volts AC and 15 v DC to the heater relays.
Refer to the electrical schematic for more detail.
PLC STANDARD
ELECTRICS
XX
S2
J12
D16
C11
C20
C14
C15C13
D20
D15
D12
D10D14
D9D13
D8D11
J5
Jp7
J2
11
J118
J11
J11A
U7
U5
U9
U2
U2A
S1
R36
OSC1
OSC3
OSC2
Rn7
OSC1
R11
R12
R13
R14
+
+ +
++
C18
C13
C16
D16
C12
Rn5
Rn6
INPUTS
Rn7
OUTPUTS
R37
R38
Tb1
R1 R2 R3 R4 R5 R6
Jp1 Jp2 Jp3
Jp4
Jp6 Jp5
Br1+ +C18
C17
C22
C23
L1
L2
Z1
C2
R7
R8
C11 C0
C1
C2
C3
C2
U3
U4 U6
C8
U11
C15 D8
D9
D0 D1 D2 D3 D4 D5 D6 D7
D10
D11
D12 D13 D14
D15
C4 C5 C6 C7
C9
C19 J5
R2
OSC1
OSC3
OSC2
J2
U8
U9
U1
C1
0
1
2 3 5 6 7 4U2
Jp7
Rn4
Rn3
U5
U18
C14
Tb2
S
mal l
PLC03
REV E
8 UNUSED 8A UNUSED
9 UNUSED
9A UNUSED
10 ALARM (OPTIONAL) 11 HIGH TEMP. ALARM (OPTIONAL) 12 UNUSED
13 MAIN CONTACTOR/TEMP CONTROL 14 ZONE VALVE
PROCESS HEATER
ARID-X 50-100
Z1 TOP HEATER
Z2 TOP HEATER
TEMP
SAFETY
MAIN
HI TEMP
POWER
DISPLAY BOARD - P/N 83401
THERMOCOUPLE BOARD
MOTHER BOARD
PORT
DRI-AIR INDUSTRIES
EXPANDER BD REV C
SS4
AL2
CR1
M2
AL1
SS1
SS2
110 VAC
FROM XFORMER
T1
50 14
UNUSED
NON H.P. 50-300 #9TEMP.CONTSIGNAL SAFETY 7DAYTIMER HI TEMP. ALARM SIGNAL
UNUSED
UNUSED UNUSED
GROUND
L1 L2
QT9
QT8QT7QT6QT5
OL1
7DAYTIMER
H.P ONLY 50-100 PROCESS TUBE
C1 0 1 2 3 4 5 6 7
C13C14C15C16C17
Ch5 Ch4 Ch3 Ch2PWR Ch1 Ch0
C3 C4
U1 U10
C2
C21
TC rev B
Rgain
C20 C19
C18
C9
J2
JP2
JP3
DegC X10
OSC1
JP1
ANALOG TC
C8
J1
C7
C6
C1
C10 C11
C5
1
1
1
2
2
2
3
3
C12
-
+
-
+
-
+
-
+
-
+
-
+
-
+
H2 H1 M2 M1 L2 L1 UNUSED
SS3
SS5
-
+- +-
+
+
+
- -
Z1 BOTTOM HEATER
Z2 BOTTOM HEATER
UNUSED
UNUSED
50-300
NON H.P.
TC1
TC1
JUMP
UNUSED
8
9
10
11
P/N 84100

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X , HP4-X 18-100 FM DRYERS
Revision 10/8/02
Page 10
For all Dri-Air models except ARID-X 10, AHM-1, & PDII
Electrical Connection:
Open electrical access door on the front of the machine by
turning the disconnect off and turning the lower clamping
screw 1/2 turn counterclockwise. Locate the disconnect by
following the operating handle down to the electrical panel.
Insert the incoming power cable or conduit through the hole
provided on the side of the machine.
«use approved wire and fastening means «
Wire incoming power to the top of the disconnect as shown in
the diagrams below.
NOTE:
When 3 wire supplies are used in place of 4 wire supplies,
a control transformer is required.
3 PHASE DRYER INSTALLATION
CHECK FOR CORRECT MOTOR ROTATION
BEFORE RUNNING DRYER
To check motor rotation.......
Leave the electrical cabinet door open so the blower can be
observed. Turn on the power to the dryer and press the ON/
START touch pad and then immediately press the OFF/STOP
touch pad. Observe the cooling fan on the top of the blower
motor and verify the fan is turning clockwise. If the motor is
not turning clockwise, switch any two adjacent supply wires.
The unit is now ready for operation.
INSTALLATION
PROCEDURE
XX

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X, HP4-X 18-100 FM DRYERS
Revision 10/8/02 Page 11
Standard Electrics
Operating this unit is very simple. Once the dryer is
connected to the facility power supply, the unit can be started
by turning the disconnect located on the electrical panel
enclosure to the ON position and pressing the ON button on
the Control Panel Key Pad. To shut the dryer off, simply push
the OFF button on the Control Panel Key Pad and turn the
disconnect to the OFF position.
Setting the process air temperature is done using the Digital
Controller.
For a more detailed explanation, see the following sections.

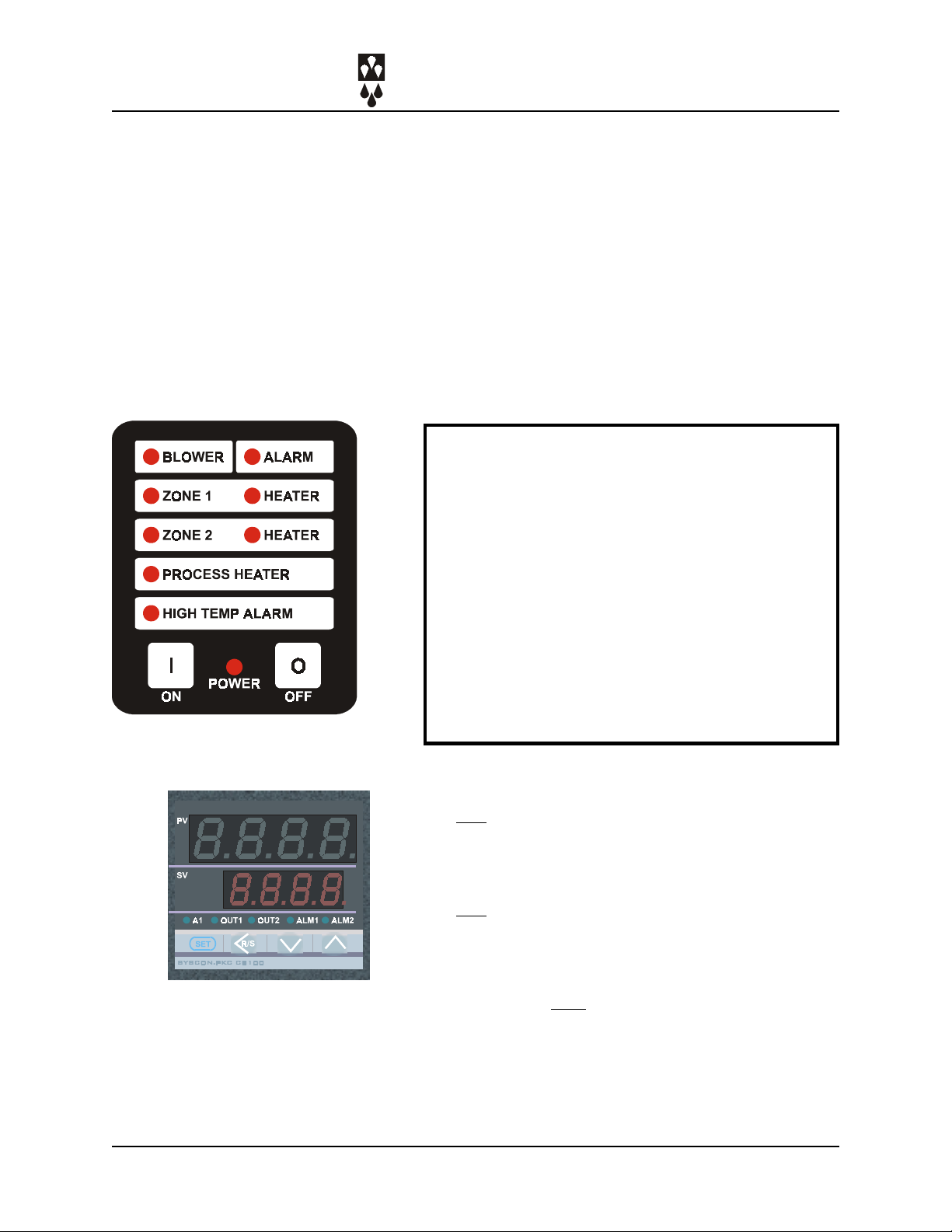

Control Panel - Operating Display
Turn power on to dryer using disconnect.
1. POWER light indicates power to the unit is on.
Press ON button on key pad.
2. Illuminated BLOWER Light indicates Blower is on.
3. Flashing ZONE light indicates bed is in Regeneration
cycle.
4. Steady ZONE light means bed is in cooling cycle.
5. Illuminated HEATER light indicates heater is on.
Alarm Conditions:
6. Flashing HIGH TEMP. ALARM indicates an over or
under temp alarm. Unit shuts down.
7. Steady HIGH TEMP. ALARM light indicates a
thermocouple has failed. Further diagnostics are
required.
8. Flashing ALARM light indicates a safety override
condition has occured. Dryer shuts down.
Digital Controller - Setting Process Air Temperature:
Press SET button - temperature set display will flash.
Press up arrow to increase temperature and down arrow to
decrease temperature.
Press SET again to enter the new temperature.
If the display flashes, the temperature is out of the control
range.
If the display shows 0000 the thermocouple is not connected
or is faulty.
START-UP PROCEDURE
XX

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X , HP4-X 18-100 FM DRYERS
Revision 10/8/02
Page 12
Microprocessor Control
1. Power light indicates there is power on.
2. After initializing, dri Air will be displayed.
3. Press STARTto start the dryer.
4. To set the temperature:
press SET - right display shows set temp
change setting using arrow keys
press ENTER to input new setting
5. Left display indicates actual temperature
6. Right display shows dewpoint or set temp
press TEMP D.POINT button to change
7. To set high temp alarm: (degrees over setting)
press ALARM - right display shows setting
change setting using arrow keys
press ENTER to input new setting
8. Status block indicates heater on or fault
9. See manual for setting 7-day timer .
10. Configuration of the dryer parameters is done
using the setup button. see manual.
For a more detailed explanation of the features and operation
of the Microprocessor Controller, please consult the
Microprocessor Control Operating manual enclosed with this
unit.

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X, HP4-X 18-100 FM DRYERS
Revision 10/8/02 Page 13
The new Dri-Air Standard PLC and MICROPROCESSOR
Electrics were designed for quick diagnosis of problems.
The following steps should be done before proceeding with
other diagnostic steps.
1. Check the Power Circuit:
a. Incoming fuses or circuit breaker
b. All dryer fuses:
Each fuse, with the exception of the main fuses, has
a blown fuse indicator light that illuminates when the
fuse is blown.
c. Is power supplied to the unit?
d. Check heater continuity using a volt ohmmeter.
2. Compressed Air:
For those models that require compressed air.
a. Is compressed air connected with at least 60 PSI
b. Check water separator and drain if necessary
c. Pressure gage should read 60 PSI
3. Air Flow Circuit:
a. Ensure Zone Valve position corresponds to the
regeneration cycle by comparing the Zone position lights
on the Zone Valve to the ZONE position lights on the
dryerpanel.
b. Make sure that all hoses are connected, not crushed,
and free from obstructions.
c. Inspect filter and make sure cover is tight and the filter is
clean.
4. Control Circuit:
a. Using the PLC/MICRO Display Panel ZONE indicator
lights as a guide for the dryer regeneration cycle, check
that all inputs/outputs are proper for the part of the
regeneration cycle that the machine is in.
b. Monitor the PLC output lights to ensure the
corresponding LED on the power board is illuminated
and there is an output voltage to the heater.
5. Operating Conditions:
a. Check the process temperature. It should not be set
below 140°F (60°C) because the unit will go into high
temp alarm.
DRYER OPERATION
TROUBLE SHOOTING

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X , HP4-X 18-100 FM DRYERS
Revision 10/8/02
Page 14
Machine will not start: Power light is not on.
1. Check circuit breakers (CB1) or incoming fuses inside
control box to see if they are tripped or blown. Reset
circuit breakers by turning them off and then on.
2. Check small fuses (FU1 & FU2) next to contactor. The
LED will be lit if they are blown. Replace if necessary by
opening the fuse holder and put new fuse into holder.
3. Check that incoming power to the unit is proper.
4. Check safety snap discs.
Alarm light is flashing: Unit will not run.
Main contactor is not pulling in.
1. Check the motor overload OL1 located in the panel. If it
is tripped, the window will show as orange/yellow. Reset
overload by pushing in the reset button.
Machine will not run: High Temp Alarm Light flashing:
This indicates that the temperature has exceeded the high
limit programmed into the temperature control or the set
temperature can not be reached.
Press stop and restart machine holding in the start button.
Monitor the actual temperature to see if it exceeds the set
point or can not reach the set point. If it can not reach set
point, see section below.
Machine will not run. High Temperature Alarm on, not
flashing:
1. This indicates an “open”thermocouple or the
temperature in the desiccant tower exceeded 900°F.
Machine will not reach temperature:
1. If the process heater light is not lit.
A.Check output from temperature controller and input to
PLC.
B.Check the thermocouple. The tip should be in the
middle of the hose.
2. If the process heater light is lit.
A.Check fuses on power board
B.Check solid state relays on power board.
C.Check that the air flow is correct.
D.Check blower rotation
E.Check heater for continuity.
DRYER OPERATION
DETAILED DIAGNOSIS
(PLC Controlled Dryer)
For Micro Controlled dryers please
see the Microprocessor Control
Instruction Manual

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X, HP4-X 18-100 FM DRYERS
Revision 10/8/02 Page 15
Check the limit first by pressing the SET button on the
temperature control and holding until AL is displayed. The
setting shown indicated the amount over set point that the
alarm will be actuated. It is factory set to 50°F (30°C) and
should not be set below 30°F (16°C) or it will actuate too soon.
If the temp exceeds the set point check the following:
1. Remove the hose from the top of the hopper to check air
flow. There should be air flow out of the hopper with a
suction on the hose. If there is little or no flow, check the
inlet hose.
2. Inspect the filter to make sure that it is clean and not
affecting the air flow.
3. Check the power boards to see if one of the solid state
relays has failed on. Using an ammeter or voltmeter on
the output to the heater, see if there is power when the
LED is not lit which will indicate a failed relay.
4. Check the valve position.
The Dri-Air rotary valve is designed to provide very little flow
restriction and no leakage. It incorporates high temperature,
self adjusting seals for years of trouble free service. The
electrical controls are built into the end of the valve and
include position lights.
Trouble shooting is easy. If the lights indicating position do not
match the zone displayed on the control panel, or there are no
lights, the valve is not working properly. See if the cam is
actuating a switch.
DO NOT PUT FINGERS INTO VALVE WITH POWER ON
Check all electrical connections to make sure they are tight.
Contact factory with the serial number of the dryer for a
replacement valve.
DRI-AIR
ROTARY ZONE VALVE

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X , HP4-X 18-100 FM DRYERS
Revision 10/8/02
Page 16
PARTS LISTS
GENERAL
ELECTRICAL
HEATERS
ARID-X & HP4-X 18 - 35
DESCRIPTION Arid-X HP4-X
Dryer Filter Element 81055 81055
Zone Valve 83705 83705
Thermocouple (Process) 84054 84054
Desiccant 80082 (Lbs/Machine) 8 lbs. 14 lbs.
Tower Clamp 81017 80017
Tower Gasket 81028 81028
RegenerationValve NR NR
Pressure Switch NR NR
Regulator NR NR
MAC Valve NR NR
Caster (Swivel) 80981 80981
STD MICRO
Disconnect 82308 82308
Temperature Control (RKC CB-100) 84016 NR
Main Board 84100 82071
DisplayBoard 83401 82072
Thermocouple Board 84049 NR
Transformer 83437 84131
Current Transformer NR 82246
Main Contactor 82270 82270
Solid State Relay 82302 82302
IEC Contactor 80576 80576
IEC Contactor* 84860 84860
Power Board 83493 83493
Power Board (208 & 230 v Dryers) 84080 84080
Single Pole Relay 82496 82496
Double Pole Relay 80587 80587
Dual Solid State Board NR 82870
Toggle Switch 80466 80466
Safety Thermal Switch(Tower) 80221 80221
Thermocouple (Tower) 82174 82174
TRI-Solid State Board NR 83468
Dewpoint Sensor 81908 81908
208V 230V 400V 480V 575V
Regeneration (Cone Style) 83342 83373 83982 83374 84235
HP Center (Flat Style) 82373 82373 83958 82505 84260
Process NR NR NR NR NR
NOTE:
TO ORDER BLOWERS OR
OVERLOAD REFER TO
PART NUMBER ON ITEM.
*:
IEC CONTACTOR USED IN ALL
FM, PD & HM DRYERS AND CLL
POWER PACKS WITH SERIAL
NUMBERS GREATER THAN
D14650

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X, HP4-X 18-100 FM DRYERS
Revision 10/8/02 Page 17
ARID-X & HP4-X 50 - 100
DESCRIPTION Arid-X HP4-X
Dryer Filter Element 81331 81331
Zone Valve 83705 83705
Thermocouple (Process) 84054 84054
Desiccant (Pounds / Machine) 30 lbs. 50 lbs.
Tower Clamp 81172 81172
Tower Gasket 82795 82795
RegenerationValve NR NR
Pressure Switch NR NR
Regulator NR NR
MAC Valve NR NR
Caster (Swivel) 80981 80981
STD MICRO
Disconnect 82308 82308
Temperature Control (RKC CB-100) 84016 NR
Main Board 84100 82071
DisplayBoard 83401 82072
Thermocouple Board 84049 NR
Transformer 83437 84131
Current Transformer NR 82246
Main Contactor 82270 82270
Solid State Relay 82302 82302
IEC Contactor 80576 80576
IEC Contactor* 84860 84860
Power Board 83493 83493
Power Board (208 & 230 v Dryers) 84080 84080
Single Pole Relay 82496 82496
Double Pole Relay 80587 80587
Dual Solid State Board NR 82870
Toggle Switch 80466 80466
Safety Thermal Switch(Tower) 80221 80221
Safety Thermal Switch(Process) 80551 80551
Thermocouple (Tower) 82175 82175
Transformer .050 82245 82245
TRI-Solid State Board NR 83468
Dewpoint Sensor 81908 81908
230V 400V 480V 575V
Regeneration (Cone Style) 81351 81766 81366 81432
HP Center (Flat Style) 82364 83934 82493 83372
Process 82343 84204 82319 84065
GENERAL
ELECTRICAL
HEATERS
NOTE:
TO ORDER BLOWERS OR
OVERLOAD REFER TO
PART NUMBER ON ITEM.
*:
IEC CONTACTOR USED IN ALL
FM, PD & HM DRYERS AND CLL
POWER PACKS WITH SERIAL
NUMBERS GREATER THAN
D14650

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X , HP4-X 18-100 FM DRYERS
Revision 10/8/02
Page 18
NOTES:

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X, HP4-X 18-100 FM DRYERS
Revision 10/8/02 Page 19
NOTES:

DRI-AIRINDUSTRIES, INC.
OPERATING MANUAL - ARID-X , HP4-X 18-100 FM DRYERS
Revision 10/8/02
Page 20
NOTES:
