Drive DeVilbiss HEALTHCARE CWC003HD User manual

Aston Commode
Mobile Shower Chair
(CWC003HD, CWC003ATC)
Instructions for use

Page 2 of 12Aston Commode Mobile Shower Chair (CWC003, 2021-09 rev2)
introduction
Please read these instructions carefully prior to initial use. They contain
important safety information and valuable tips for proper use and care.
The Aston commode chairs are intended as an aid for showering, toileting and
transit for users with mobility diculties. These chairs are designed for
occasional or frequent indoor use. They come with a 5 litre bucket and lid
(530100090), and can be wheeled over most conventional and disabled toilets.
The device has an aluminium and polyurethane (PU) frame, solid tyres, stainless
steel fasteners and a removable aperture cover for easier access to the patient.
The CWC003ATC commode chair is supplied with a thick comfort seat, and
supports users weighing up to 160 kg (25 stone). The heavy duty model
(CWC003HD) also supports up to 260 kg (41 stone). The optional self propel kit
(530400815) adds two 24” wheels and brakes, with quick release axles for
easy attachment and removal.
If you have questions or need additional information, contact Drive DeVilbiss
Healthcare Ltd or your approved supplier.
parts description

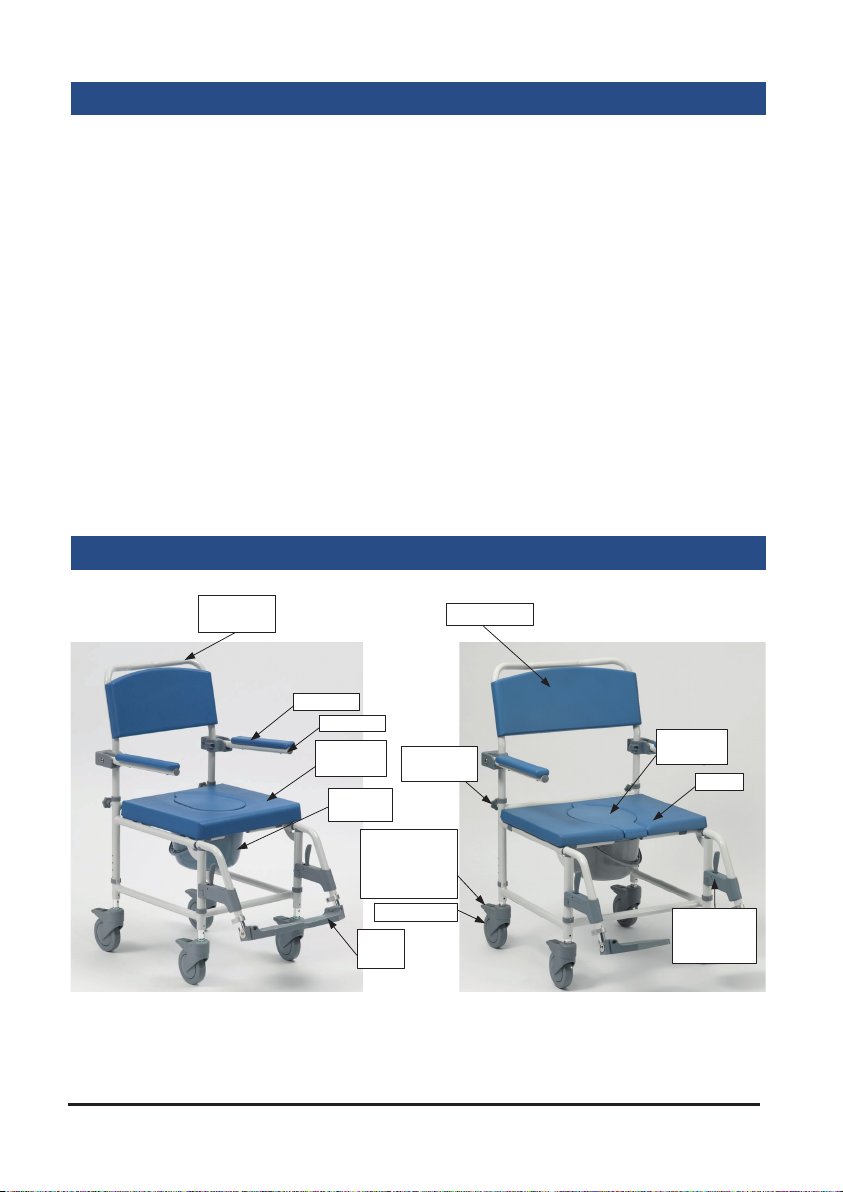

APERTURE
COVER
COMFORT
SEAT
FOOT
REST
5” CASTORS
DOUBLE
FUNCTIONING
PARKING
BRAKES
FOOTREST
LOCKING
MECHANISM
BUCKET
WITH LID
ARMPAD
ARMREST
SEAT
BACKREST
KNOB
PUSH
HANDLE BACKREST
Transit model with comfort seat
(CWC003ATC)
Heavy duty transit model
(CWC003HD)

Aston Commode Mobile Shower Chair (CWC003, 2021-09 rev2) Page 3 of 12
symbolsindications
• Impaired mobility and/or inability to transfer to a toilet or shower
• Inability to move a wheelchair (for example, those with limited strength and
grip function or a lack of coordination ability of the arms / hands)
• For use with the toilet and shower (the shower must be designed to
accommodate a shower wheelchair)
Over-loading the chair is the only known contraindication, although others
may be specific to an individual or care environment.
symbolspreparing for use
These instructions should be read carefully before using the commode. This
product does not have a service manual. Repairs and adjustments should be
done by approved service personnel. Any adjustments must be made for
each user after consulting a healthcare professional.
A risk assessment must also be performed to assess suitability of the device
for the user. This assessment should include, but not be limited to:
• Small adults (and children)
• Very active occupants
• Users who lack capacity
• Unauthorised access to the device
Independent users and attendants are responsible for determining that they
are both mentally and physically capable of using the commode with
minimal risk of harm.

Aston Commode Mobile Shower Chair (CWC003, 2021-09 rev2) Page 4 of 12
assembly and adjustment
Fitting the Castors

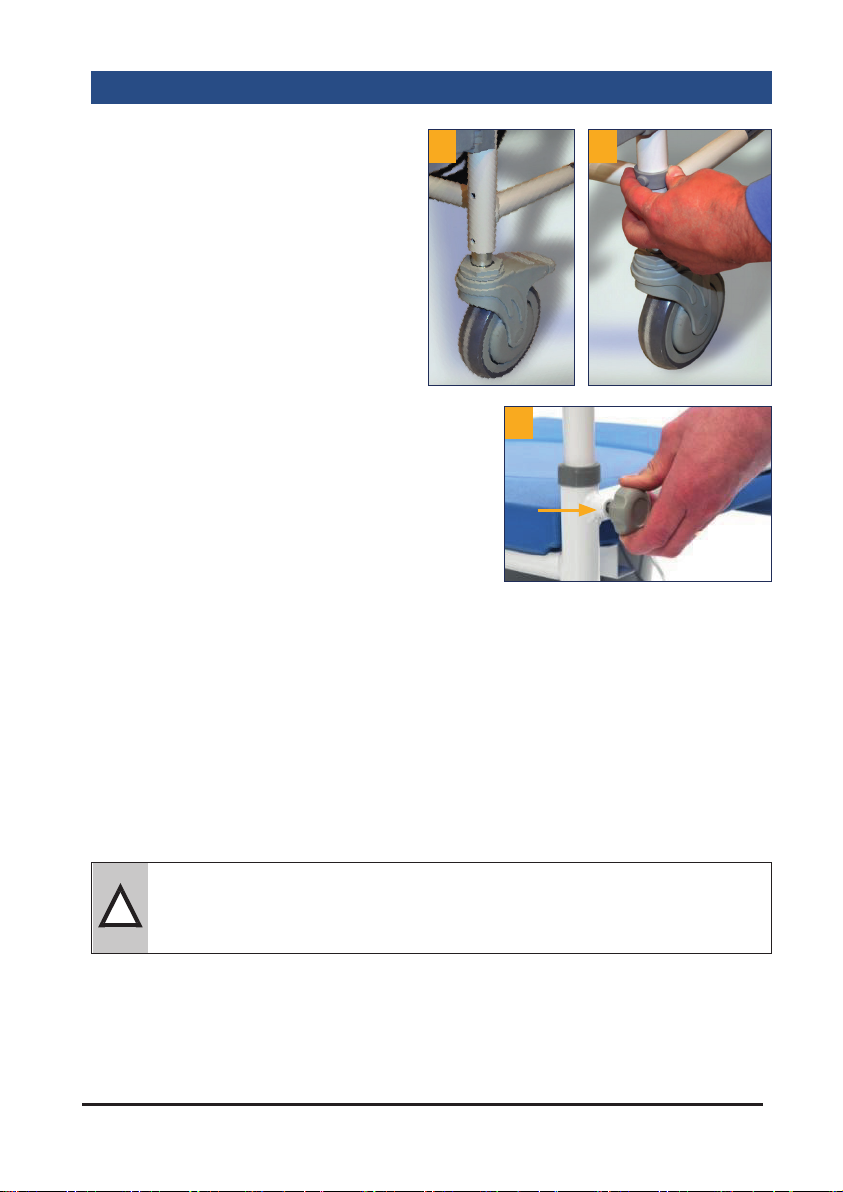

Insert the four 5” wheels to the
desired position in mounting tube
and secure with the ‘E’ clips provided
(pic 1-2). To readjust, remove and
reinsert the ‘E’ clips. Ensure they are
all set to the same height.
Note: Models may be supplied with a
nut and bolt to secure the castor,
which require a spanner and hex key
to adjust.
Fitting the Backrest
Place the backrest into the receivers on the
base frame and turn the knobs clockwise
to secure (pic 3).
Fitting and Removing the Seat
The seat has a removable cover for the aperture. The seat clips on and o
the frame.
To attach the seat, first locate the seat by sliding the back into the frame, then
press down on the whole of the seat until secure.
To remove the seat, first remove the bucket and aperture cover. Then lift up
the front for the seat to release and slide the seat away from the chair.
When used as a shower chair, it is recommended that the aperture cover is
removed to allow better access to the occupant for cleaning.
1 2
3
!
Warning
Ensure weight is not applied directly to the aperture cover, as this can
fall through the seat and put the occupant at risk.

Aston Commode Mobile Shower Chair (CWC003, 2021-09 rev2) Page 5 of 12
assembly and adjustment
Moving the Bucket
Push the bucket from the rear into the
guide rail under the seat. Pull out
backwards to remove (pic 4).
Fitting the Footrests
Hang the footrests in the receiver
tubes at the top of the frame and
swivel inwards (towards the front)
until they click into place (pic. 5).
To release, press the lever
inwards and swivel the footrests
to the side (pic. 6).
Footplate Adjustment
To adjust the footplate angle,
slacken the bolt near the bottom
of the inner tube (chrome, pic. 7).
Adjust the footplate to the
required angle and resecure the
bolt.
To adjust the height, slacken the bolt at the end of the
white tubing, using a hex key and turning anticlockwise
(pic. 8). Slide the footrest to the required height and secure the footrest by
retightening the bolt.
4
56
8
7
!
Warning
Ensure the chair is empty when
moving the bucket to prevent
trapping.

Aston Commode Mobile Shower Chair (CWC003, 2021-09 rev2) Page 6 of 12
symbolsfitting 24” self propel wheels

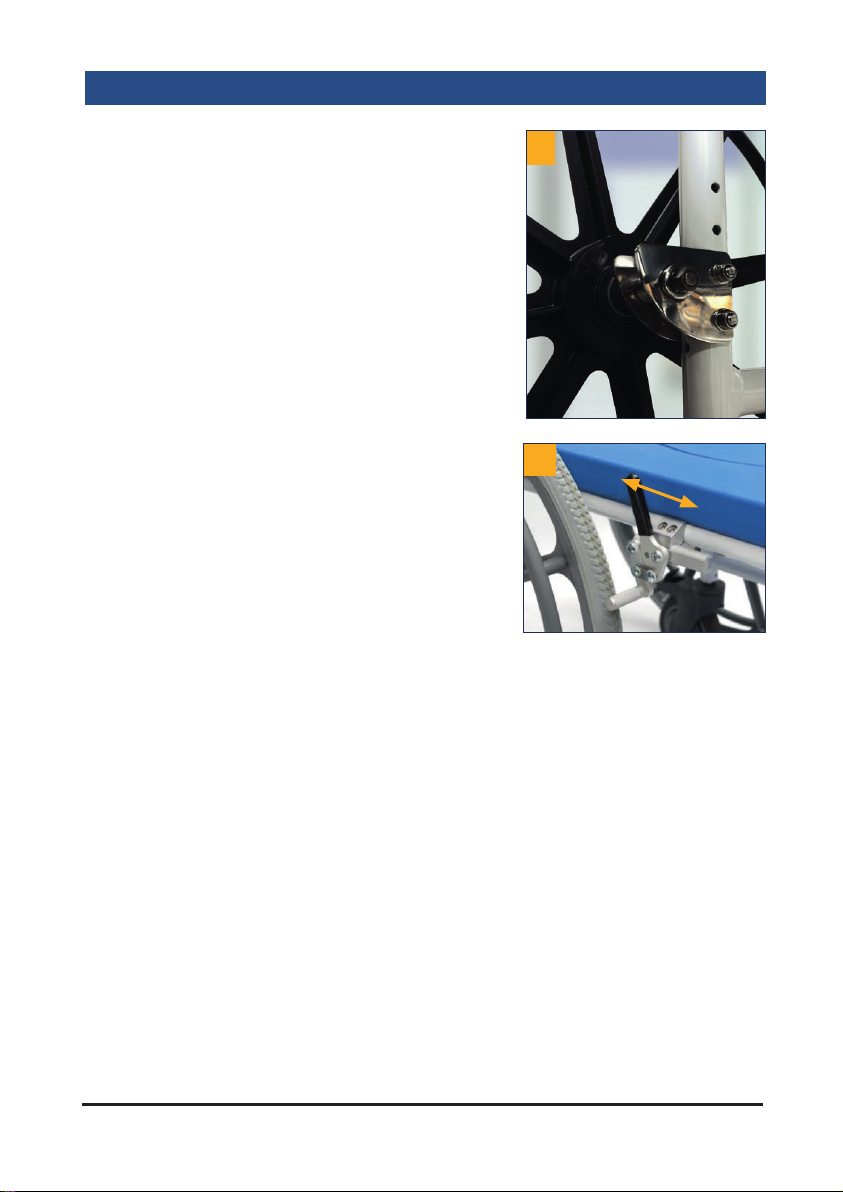

Optional 24” wheel kits (530400815) are also
available from Drive DeVilbiss Healthcare Ltd.
To fit the wheels with rear castors fitted, face
them forwards and lock the brakes to prevent
trapping.
Install each bracket so the rear castors are
about 3 mm from the ground once added.
Press the button on the quick release pins
and insert each axle through the wheel and
into the bracket (pic. 9). Release the button
and check each wheel is secure.
Fit the parking brakes next to the wheels, so
the levers fully lock the wheels (pic. 10).
10 UNLOCK
LOCK
9

Page 7 of 12Aston Commode Mobile Shower Chair (CWC003, 2021-09 rev2)
using the commode
!
Before using the commode, read the safety notices below;
• Check all components are secured before use.
• Only use on flat ground at slow speeds. Do not use on steep or
uneven terrain, kerbs or large obstacles.
• The commode is only suitable for single occupancy.
• Keep the occupant’s feet on footrests. Do not stand on footrests.
• Ensure that fingers and objects do not get caught in wheel
spokes or any other moving parts during use and assembly.
• Maintain proper balance at all times. Users should not move
their centre of gravity out of the seating area or reach for items
further than their arm’s length.
• Brakes should always be applied when transferring or stationary.
• Be aware of hazards in your environment, such as narrow
doorways, steps, household appliances, children’s toys, etc.
• A competent person must perform a risk assessment to ensure
the device is suitable for each user. We recommend you consult
a healthcare professional before using assistive medical devices.
• Keep away from heating and ignition sources which may raise
surface temperatures or cause a fire.
• The product should not be exposed to temperatures above
60°C for long periods of time (for example, use in a sauna).

Aston Commode Mobile Shower Chair (CWC003, 2021-09 rev2)
Page 8 of 12
using the commode
Using the Brakes

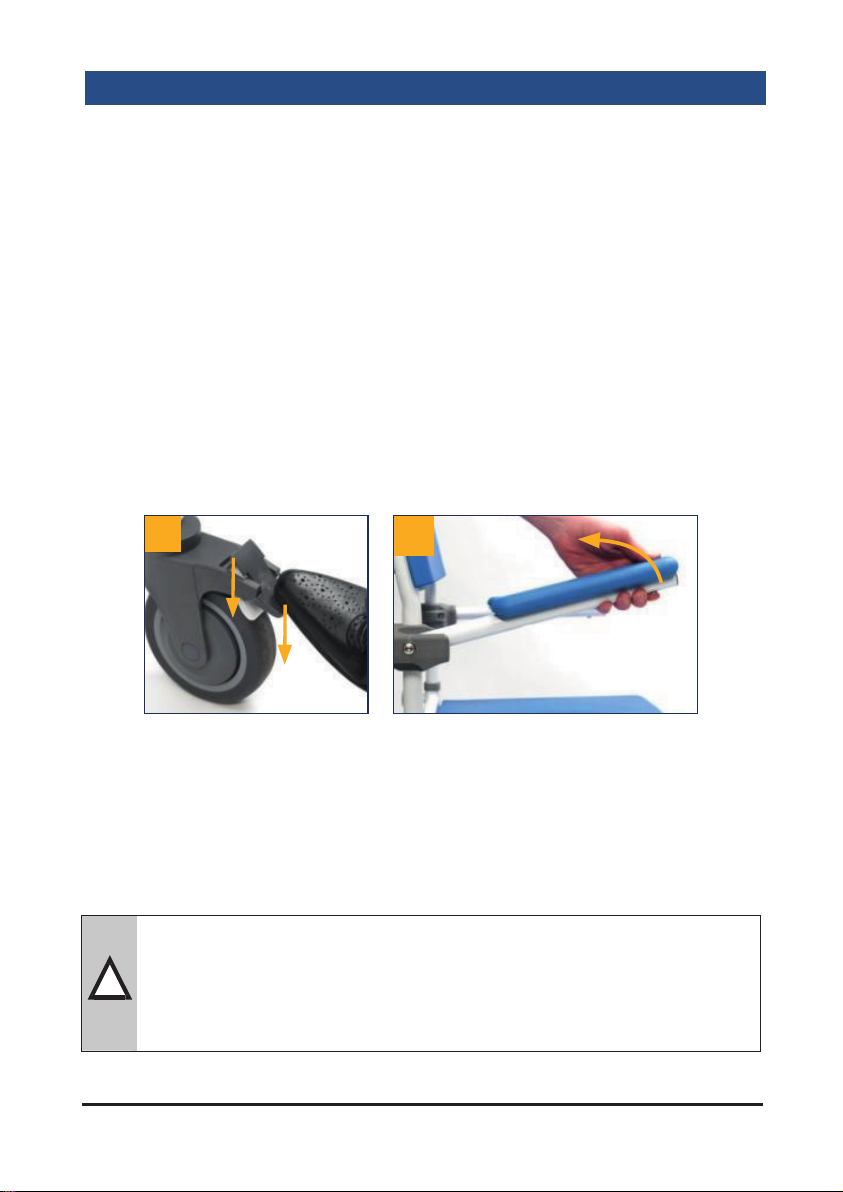

To lock the castors, press down on the locking tab with a foot (pic. 11). To
release, press the other side of the locking tab with a foot. To lock and unlock
the 24” wheels, push the lever as shown (pic. 10).
Transferring Users
Move the seats as close as possible to each other. Always engage the castor
brakes (pic. 11) and fold the footrests and armrests (pic. 12).
If users need to be lifted, attendants are responsible for being suitably trained
and competent to lift users with minimal risk of harm.
Propelling Users
These transit models can only be propelled by attendants, pushing from
behind with the handgrips. Occupants can propel devices with 24” wheels
fitted, pushing the handrims. Apply reverse pressure to slow down.
Using the Bucket and Lid
To add the bucket, slide underneath the seat from the back of the commode.
Ensure the bucket is secure on the two rails underneath the seat.
To remove the bucket, slide the bucket from underneath the seat. Cover the
bucket with the lid and carry the bucket securely using the handle to reduce
the risk of spillages.
12
11
LOCK
UNLOCK
!
Warning
• Only move the bucket when the chair is empty to avoid trapping.
• Carefully dispose of the bucket contents in a sluice or WC.
Do not dispose in an open drain or sink, as this can cause serious
health risks.

Aston Commode Mobile Shower Chair (CWC003, 2021-09 rev2)
Page 9 of 12
care and maintenance
Do not use a damaged or badly worn chair. Users should routinely check for
any malfunctions or changes in performance. Contact Drive DeVilbiss
Healthcare Ltd or your provider for spares, or to replace damaged or worn
parts.
• Brakes and tyres should be checked before each use, and at least once
a month. All tyres are solid, so do not require inflation. Slightly loosen and
tighten the lock nut on the axle to correct side play.
• Keep the chair dust free and clean at least once a week with a moist cloth
and mild detergent. Spray castors and fasteners with a water dispersing
agent. The bucket should be disinfected manually or in an autoclave after
each use. Plastic and polyurethane (PU) parts can be removed if
necessary, and cleaned in an aqueous decontamination machine at 80ºC.
Do not clean the aluminium frame in this way, to avoid damaging
paintwork. Avoid neat bleach, high-dose chlorine, vinegar-based or
abrasive cleaners. Wipe and leave to fully dry before reuse.
• Check screws, joints and upholstery regularly. Adjust or replace any parts,
if necessary.
• Drive DeVilbiss Healthcare Ltd recommend that an approved service
engineer services the device annually. If the device is subject to heavy
use or used in a multi-user environment, service more frequently. Repair,
replace, adjust and/or lubricate these parts if required:
• The device has an estimated service life of 6 years in a single-user
domestic environment, when maintained in line with the manufacturer’s
recommendations. In a multi-user environment (such as a nursing
home or hospital) the service life may be reduced.
• When the product has reached the end of its useful life, follow local
recycling and disposal policies.
• Tyre and castor wear
• Wheel bearings
•
•
Brakes
Footrest locking mechanism
•
•
Bucket and lid
•
Seat, back and arm pads
•
Rear wheel quick release pin
‘E’ clips

Aston Commode Mobile Shower Chair (CWC003, 2021-09 rev2) Page 10 of 12
warranty
Your Drive branded product is warranted to be free of defects in materials
and workmanship for one year from date of purchase. This device was built to
exacting standards and carefully inspected prior to shipment. This warranty is
an expression of our confidence in the materials and workmanship of our
products and our assurance to the customer.
In the event of a defect covered by this warranty, we will at our option supply
parts or replace the device. This warranty does not cover device failure due
to owner misuse or negligence, or normal wear and tear. The warranty does
not extend to non-durable components, such as rubber accessories, castors
and grips, which are subject to normal wear and need periodic replacement.
If you have any queries or require full warranty conditions, please contact
your provider.
storage
See the assembly and adjustment steps to release the footrests, so they can
either be swivelled outwards or removed. Detach the 24” wheels, if fitted.
Store the chair in a dry environment, away from direct sunlight, with the castor
brakes applied.
The chair (and bucket) must be cleaned before storing, using the instructions
provided in care and maintenance.
Your wheeled commode may require carrying if no elevators or ramps are
available. Attendants are responsible for being suitably trained and
competent to lift the commode with minimal risk of harm. Adopt the latest
health and safety recommendations during manual handling and do not carry
using the handles or any removable sections.

Aston Commode Mobile Shower Chair (CWC003, 2021-09 rev2) Page 11 of 12
symbols
specification
Model
Standard with
Comfort Safety
Seat
(CWC003ATC)
Heavy Duty
(CWC003HD)
Maximum occupant mass 160 kg 260 kg
Overall length with footrest 90 cm 90 cm
Overall width 56 cm 65 cm
Overall height 98 - 103 cm 98 - 103 cm
Total mass 13 kg 17 kg
Armrest length 30 cm 30 cm
Armrest width 5 cm 5 cm
Armrest height 71 - 76 cm 71 - 76 cm
42 cm 42 cm
46 cm 55 cm
Seat surface height at front edge 51 - 56 cm 51 - 56 cm
!
Maximum occupant mass
Consult instructions for use
Quantity
Date of manufacture
Serial number
Catalogue number
SN
REF
QTY

Aston Commode Mobile Shower Chair (CWC003, 2021-09 rev2) Page 12 of 12
support
For more information, or assistance with use and maintenance, please
contact your provider. Users with visual, reading or cognitive disabilities
should seek advice from their provider or a professional care provider for an
appropriate format. For the latest version of this document, contact Drive
DeVilbiss Healthcare Ltd using the details below, or check our website.
Any serious incident that has occurred in relation to the device should be
reported to the manufacturer and the competent authority of your Member
State. Please quote the product serial code on all correspondence, which can
be found on the frame of the commode, under the seat.
Drive DeVilbiss Healthcare Ltd
Holmfield, Halifax, West Yorkshire, HX2 9TN, GB
Drive DeVilbiss Sidhil Ltd
4 Trench Road, Mallusk, Newtownabbey,
BT36 4TY, Northern Ireland
Drive DeVilbiss Healthcare Ltd provide these instructions for use and product markings.
[email protected] | www.drivedevilbiss.co.uk
Customer Service: [phone]
Spares: [phone]
Approved service facility
