Drive 13085L User manual

Seat Lift
Chair Table
item # 13085L, 13085R
Warranty
Drive DeVilbiss Healthcare Ltd,
Heathfield Lane, Birkenshaw,
West Yorkshire, GB BD11 2HW
www.drivedevilbiss.co.uk
Doc code: 13085_hangtag (Iss 05/18)
Your Drive branded product is warranted to be
free of defects in materials and workmanship for
one year from date of purchase.
This device was built to exacting standards and
carefully inspected prior to shipment. This
warranty is an expression of our confidence in
the materials and workmanship of our products
and our assurance to the customer.
In the event of a defect covered by this warranty,
we will at our option supply parts or replace the
device.
This warranty does not cover device failure due
to owner misuse or negligence, or normal wear
and tear. The warranty does not extend to non-
durable components, such as rubber
accessories, castors and grips, which are
subject to normal wear and need periodic
replacement.
If you have any queries or require full warranty
conditions, please contact your Drive stockist.
This does not affect your statutory rights.

THIS TABLE IS TO BE USED WITH
HEAVIER CHAIRS AND COUCHES.
INCORRECT POSITIONING OF
TABLE BASE (#7) UNDER THE
CHAIR OR COUCH MAY RESULT
IN THE TABLE TIPPING OVER.
(REF. ASSEMBLY STEP 1)

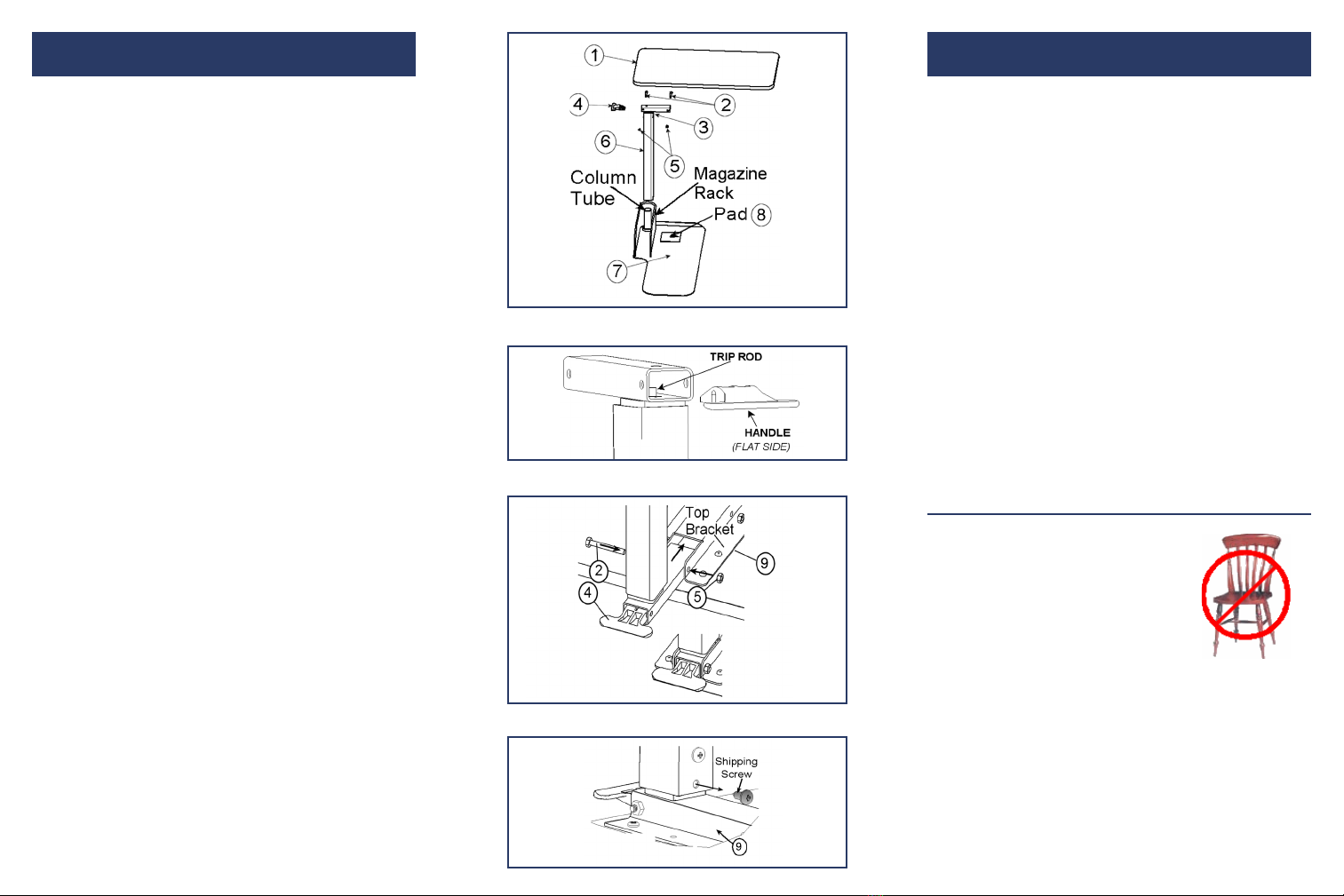

Assembly Instructions
CAUTION--SPRING LOADED ASSEMBLY
Do not remove the black shipping screw
before completing assembly steps 1- 5.
Removing the shipping screw before this can
result in personal injury and spring damage.
PRODUCT IS NOT TO BE USED AS A LIFT
ASSIST OR TO HOLD MORE THAN 50 LBS.
Tools Necessary For Assembly:
Phillips Screwdriver
2x 10mm Spanners (or socket set)
FIGURE 1
FIGURE 2
FIGURE 3
TO ELEVATE THE TABLE:
Push upwards at any position on the underside
of the top, until the top has reached the desired
height.
TO LOWER THE TABLE:
Squeeze the trip handle up and push the top down
to the desired height. The table will operate best
if the downward pressure is placed at the column
end of the top.
Occasional application of light oil lubrication
between the inner and outer columns will help
keep your Table operating smoothly. Penetrating
oils with rust inhibitors are recommended.
The table will swing a full 360º around on the base
to be used as an end table or a lap tray as needed.
Operating Instructions
1. Place the base (#7) under the left side of chair
with the magazine rack opening facing the
rear of chair. Place the front left leg of the
chair on the positioning pad (#8) located near
the magazine rack.
2. Stand the Column (#6) on end, making sure
the Trip Rod is visible in the rectangular tube
but not protruding out of the top, as shown in
Fig. 1. If necessary, shake the Column (#6) until
the rod drops.
3. Insert Trip Handle (#4) into the Column (#6)
with the rounded side up. Be sure that the
Trip Handle (#4) rests on top of the rod inside
the Column (#6). Fig. 1
4. Place the Top (#1) on a flat surface, with the
Top Bracket (#9) facing upward. Then, while
holding the Trip Handle (#4) in place so it
doesn’t fall out, insert the Column (#6) into the
Top Bracket (#9). Align the holes in the
Column foot (#6), the Trip Handle (#4) and the
Top Bracket (#9). Install both bolts (#2) and
both nuts (#5) thru these aligned holes with
the two (2) 10mm spanners. Fig. 2
5. Pick up the Top (#1) and Column (#6) and place
over the round tube on the Base (#7) inside of
the magazine rack. Be sure the Column (#6)
has dropped down all the way!
6. Remove the black shipping screw in the
column and replace it with the zinc plated
screw (#3), using a Phillips screwdriver. Fig. 3
1x 14mm Spanner (or socket set)
Secure the column bracket (3) to the top bracket (9)
with the two M8 screws using a 14mm spanner
