DROMONT Compacta User manual

AUTOMATIC DISPENSER
User s Manual
Printed in Italy
Edition
1st February 2005

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 1 of 34
Adresses:
DROMONT S.p.A. Headquarters
Via Borzone,42
12060 Grinzane Cavour (CN) Italy
Tel. [phone]
Fax. [phone]
e_mail: [email protected]
Web Site: www.dromont.it
DROMONT Asia / Pacific - Branch
C/o Rhine Ruhr Process Equipment
A304, 3
Rd
Floor West Wing, Wisma Tractor
No. 7, Jalag SS16/1
Subang Jaya, 47500 Pataling Jaya
Selangor Darul Ehsan, Malaysia
Tel. [phone]
Fax. [phone]
e_mail: [email protected]
Web Site: www.dromont.it
COPYRIGHT 2002, Dromont S.p.A. All rights reserved
No part of this manual may be reproduced in any form, or by any means, electronic or mechanical,
including photocopying and recording, without prior written permission of Dromont S.p.A.
Information in this manual is subject to change without notice and does not represent a commitment on
the part of Dromont S.p.A.
Unless otherwise indicated, all reference companies, names, data and addresses used in the screens
and/or examples are purely coincidental and serve only to clarify the use of the Dromont product.
Dromont S.p.A. shall not be liable for technical or editorial errors or omissions made herein; nor for
incidental or consequential damages resulting from the performance or use in this material.
If you require additional copies of this manual or further technical information about it, please write to:
Trade marks
Misura Prima is a trademark of Dromont S.p.A.
Windows , Windows 95 , 98 , ME, NT , 2000 and XP are trademarks of
Microsoft Corporation.
All other trademarks are the property of their respective owners.

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 2 of 34
Contents
1. INTRODUCTION 4
1.1 H OW TO READ THIS MANUAL 5
2. GENERAL INFORMATI ON 6
2.1 S AFETY WARNINGS 6
2.2 L ABELS ON THE MACHINE 8
2.3 F IRE EXTINGUISHER . 8
3. UNPACKING THE MAC HINE 9
3.1 M OVING AND HANDLING THE PACKED MACHINE 9
3.2 U NPACKING 9
4. FEATURES 10
4.1 G ENERAL DESCRIPTION 10
4.2 T ECHNICAL SPECIFICATIONS 11
4.3 M ACHINE S PERFORMANCE AND CHARACTERISTICS 12
4.4 F EATURES AND OPTIONS C OMPACTA 12
4.4.1 C ANISTERS 12
4.4.2 A UTOMATIC HUMIDIFIER ( AUTOCAP ) 13
4.4.3 E LECTRONIC BOARDS 14
4.4.4 E LEVATOR 15
4.5 O PTIONS 15
4.5.1 P RINTER 15
4.5.2 M ODEM 16
4.5.3 C AN SIZES 16
5. INST ALLING THE MACHINE 17
5.1 G ENERAL WARNINGS 17
5.2 S AFETY DEVICES ON THE MACHINE 17
5.3 C ONDITIONS FOR PROPER INSTALLATION 18
5.4 A CCESSORIES 18
5.5 C ONNECTING THE COMPUTER . 21
5.6 I NSTALLING THE D ROMONT S OFTWARE 21
5.7 S ETTING THE SCALE 22
5.8 F ILLING THE CANISTERS 22

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 3 of 34
5.9 C ONTROL PANEL 23
5.10 P URGE AND RECIRCULATION 25
5.10.1 P URGE 25
5.10.2 R ECIRCULATION 25
5.10.3 C ALIBRATION 25
5.11 D OSING 26
5.12 S HUT DOWN 26
5.13 S TANDBY 26
5.14 G ENERAL A DVICE 27
6. ORDINARY MAINTENA NCE 28
6.1 G ENERAL WARNINGS 28
6.2 M AINTENANCE TABLE 28
6.3 C LEANING 28
6.3.1 C ANISTER FILTERS 28
6.3.2 D ISPENSING NOZZLES 29
6.4 M OISTENING THE HUMIDIFIER CAP SPONGE 29
6.5 A UTOCAP PROTECTION 30
6.6 L UBRICATION 31
6.6.1 W ORM SCREW AND HEAD SHAFT 31
6.7 C HANGING A PISTON 32
6.8 E XCHANGING ELECTRO VALVES : 33
7. NOTES 34

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 4 of 34
1. INTRODUCTION
Purpose and use of this manual
This manual, inserted in the product packing, contains instructions on the installation, use, and
routine maintenance of the following equipment:
Compacta Automatic Dispenser
This manual provides instructions on the routine maintenance needed to uphold the dispenser
performance over time.
It s aimed at the machine operators and installers, who need the necessary training and
professional skill to use similar automatic machines.
It also contains all information available at the time of publication regarding the machine and the
accessories; since some of the latter are optional, they may not be installed on your machine. It
thus also includes any variations or changes that involve different operating procedures for either
the installation technician or the operator.
R E A D T H I S M A N U A L C A R E F U L L Y
B E F O R E I N S T A L L I N G A N D U S I N G T H E
M A C H I N E
It s organised into chapters, each of which refers to a specific topic..
The present manual has to be considered an integral part of the machine, and must be stored
until the machine is fully dismantled.
We recommend that you store it close to the machine so that it is easily accessible, in a place
protected from heat and damp.
Use the manual in such a way as to avoid damaging its contents; do not remove, tear or rewrite
any portion of its contents.
Should it be lost or partially ruined, so that its contents can no longer be read in full, we
recommend that you request a new manual from the manufacturer.
Give this manual to any other user or subsequent owner of the machine.

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 5 of 34
1.1 How to read this manual
WARNING
WORDS I N BOLD TYPE PRECEDED BY MARK
REFER TO WARNINGS FOR POSSI BLE DANGER FOR
THE OPERATOR.
REMARKS
WORDS I N BOLD TYPE PRECEDED BY MARK
REFER TO REMARKS ABOUT I MPORTANT
OPERATI ONS FOR THE PROPER FUNCTI ONI NG OF
THE MACHINE.

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 6 of 34
2. GENERAL INFORMATION
2.1 Safety warnings
The Dromont dispensers have been designed and manufactured in observance of essential safety
requirements; the CE marking certifies its compliance.
All measures and precautions were taken during its design, manufacture, testing and installation
to ensure the highest possible level of safety considering rational use of the machine.
The warnings listed below are to be considered general in nature; specific safety instructions
related to the type of intervention to be carried out and the type of accessories installed on the
machine are given in detail in the specific paragraphs.
R E A D T H E S A F E T Y W A R N I N G S C A R E F U L L Y
B E F O R E U S I N G T H E M A C H I N E
WARNING WARNINGS WARNING
Do not operate near the plant without suitable personal protections such as:
glasses
protective suit (against chemical agents)
safety shoes
Do not operate the machine with permanent and/or movable protections disabled
When the Compacta is connected to the main power it will perform the automatic timed
controlled process of re-circulation and stirring at pre-set intervals. This involves sudden
activation of the pump motor during the re-circulation process and the sudden activation of
the stirring motors during the stirring process
The customer must make sure that environmental conditions and power supply conditions
where the machine operates are always in compliance with the instructions of this manual.
Do not disable safety precautions installed on the machine
Do not modify for any reason any part of the machine (joints, holes, finishing, ... ) to adapt
additional devices . (We advise to ask for modifications directly to DROMONT S.p.A.)
Clean machine coverings panels and commands carefully, with dry and soft cloths, or lightly
soaked in a non-flammable detergent.

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 7 of 34
Only the authorized personnel who have read and understood every parts of the manual can
use the Compacta .
Only trained personnel must do the repair and maintenance operations
The Compacta has to be linked only at voltage reported in Chapter 5.5.
During maintenance or repair operations the machine must be switched off with the power
disconnected.
The machine makes the re-circulation at intervals specified by the operator. During the
stirring the motor is activated and the stirrer turns.
The machine must be positioned on a flat area and fixed to the floor.
D R O M O N T D ECLI N ES ALL R ESP O N SI BI LI T Y FO R AN Y
M ALFU N CT I O N ALI T Y O R I N JU R Y T O P ER S O N S O R
D A M AGE CA U S ED BY A BO V E- M EN T I O N ED
O P ER AT I O N S

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 8 of 34
2.2 Labels on the machine
picture 2-1 Position of labels
FIELD DESCRIPTION
Type Type of machine
Frequency Hz Frequency (Hz)
Date Date of manufacturing
Serial number Serial number
Auxiliary Volt Feeding auxiliary Volt
Phases Number of phases
Feeding Volt Feeding machine volt
Installed power kW Ampere Installed power (kW) and electric current (Ampere)
picture 2-2 Explanation of the technical data
2.3 Fire extinguisher.
If the machine catches fire, you must use dry powder or carbon dioxide fire extinguishers. Never
use water. Carefully use the instructions indicated by the manufacturer and listed on the
extinguisher.

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 9 of 34
3. UNPACKING THE MACHINE
3.1 Moving and handling the packed machine
The machine has been carefully wrapped with bubble plastic and cellophane plastic and tightened
to a wooden pallet, which is specially adapted for unpacking the machine more quickly.
Youll find the dimensions of the packed machine in picture 3-1:
Compacta 16 Compacta 24 Compacta 32
Width (mm/Inch) 720/28.35 850/33.5 850/33.5
Depth (mm/Inch) 705/27.75 1500/59.1 1500/59.1
Height (mm/Inch) 1370/53.93 1550/61 1550/61
Weight (kg) 330 370 380
picture 3-1
3.2 Unpacking
The following is the procedure for unpacking the Compacta:
a) Cut the plastic folio and bubble plastic.
b) Screw all four stabilisers clockwise until they reach the floor.
c) Screw them another 1 cm until the machine comes loose from the pallet.
d) Remove the pallet under the machine.
e) Screw the stabilisers anti-clockwise until the wheels touch the floor.
f) Place the machine in its final location.
g) Screw the stabilisers clockwise until the wheels come off the ground.
REMARKS
USE A RATCHET OR AN ELECTRIC DEVICE FOR THE
ABOVE WRITTEN PROCEDURE

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 10 of 34
4. FEATURES
4.1 General description
The Compacta is an automatic dispenser with innovative architecture, it operates up to 32
internal circuits and supports both simultaneous volumetric and gravimetric dispensing and
combined operational modes.
The Compacta uses the piston pump technology combining high accuracy with low wear.
picture 4-1 shows the working principle of the machine.
picture 4-1 working principle and fluid flow
The principle is basically as a bicycle pump: the pump (03) goes down which creates a
depression in the piston volume. Due to this depression the colorant will pass from the canister
through the filter and the three-way valve (02) to the piston. When the piston goes up it will push
the fluid back to the canister (in recirculation) or it will go to the dosing head (04) passing
through the three-way valve.

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 11 of 34
4.2 Technical specifications
Compacta 16 Compacta 24 Compacta 32
Electrical specification
Power supply* See wiring diagrams See wiring diagrams See wiring diagrams
Frequency 50/60Hz 50/60Hz 50/60Hz
Maximum power absorbed See wiring diagrams See wiring diagrams See wiring diagrams
Environment working conditions
Temperature (°C) 10-35 10-35 10-35
10-35: range for a right working of electronic cards and devices installed on
the machine
If the temperature changes the viscosity of the component to dose on the
machine, it's necessary modify the work temperature to assure and guarantee
a product viscosity lower than 2000 cPs
Component viscosity (cPs) 0-2000 cPs The machine works properly in this products viscosity range
Relative humidity (%) 5-75 5-75 5-75
Overall dimensions
Width (mm/inch) 720/28.3 800/31.5 800/31.5
Depth (mm/inch) 595/23.4 1400/55.1 1400/55.1
Height (mm/inc) 1260/49.6 1370/53.9 1370/53.9
Weight ***
Total machine (kg) 300 330 340
Noise Level
Noise Level <65 dB(A) <65 dB(A) <65 dB(A)
Vibrations
The machine does not transmit vibrations to the floor that may compromise the stability and
precision of any nearby equipment
*** Figures are purely indicative, and depend on the exact configuration of the machine.
picture 4-2

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 12 of 34
4.3 Machine s performance and characteristics
Dispensing system Volumetric-simultaneously/gravimetricaly/combination
Dispensing centre external
Diameter dispensing head (mm) 35
Number of circuits 16
Canister capacity (L) 3-5
Type of canisters Plastic canisters (POM)
Type of electro valves Three way solenoid valves
Type of pumps Piston pump
Flow-rate* (L/min) 0,5
Minimum dispensed quantity** 1/384 fl oz (0.077cc)
Automatic humidifier cap standard
Manual lifting device standard
*Flow-rate depending on colorant-characteristics;**Minimum dispensed quantity depending of colorant characteristics
picture 4-3
4.4 Features and options Compacta
4.4.1 Canisters
The Compacta has a fixed combination of canister sizes of 3 and 5 liters.
The canisters can be chosen in plastic (POM) or stainless steel (depending on the type of
colorant) and are compatible with every type of colorant. Each canister has a stirrer that stirs at
20Rpm during the re-circulation or a dosing cycle. As you can see in picture 4-4 the stirrer has
been developed to guarantee the best mixing avoiding settling or the drying of the colorant. The
stirring motor is independent and very easy exchangeable.

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 13 of 34
picture 4-4 3/5 Ltr canisters Compacta
4.4.2 Automatic humidifier (autocap)
The autocap (1) is connected to a sensor and opens or closes when the sensor (2) detects a can.
The sensor is positioned in a way that even the smallest can will be detected. In picture 4-5
you can see the autocap.
picture 4-5 Autocap and photocell

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 14 of 34
4.4.3 Electronic boards
The Compacta is equipped with three exchangeable electronic boards (see picture 4-6). Each of
which has their specific function declared in the accompanying table. The boards are accessible
by opening the backdoor. The boards can be taken out by unscrewing them from the metal plate.
Three transformers supply the necessary voltage to the electronic boards and machine ( picture
4-7 )
WARNING
O N L Y Q U A LI F I E D T E C N I C I A N S M A Y W O R K O N
T H E E L EC T R O N I C S / E L E CT R I C S .
WARNING
P L E A S E M A K E S U R E Y O U T A K E T H E R I G H T
S A F E T Y M E A S U R E M E N T S B E F O R E W O R K I N G
O N / I N S I D E T H E M A CH I N E .
P LEA S E T A K E N O T I C E O F T H E S A F E T Y
S T I C K E R S O N T H E B A C K O F T H E M A CH I N E .
picture 4-6 Electronic boards picture 4-7 Transformers

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 15 of 34
The following is a description of the functions of each electronic board.
N° Description
01 Driver for the stepping motor
02 Electronic board for powering the machine
03 Mother board with core module
04 Transformer for logic
05 Transformer for the stepping motors
06 Transformer for services
picture 4-8
4.4.4 Elevator
On the Compacta dispenser two different types of elevator can be installed: manual or automatic
version.
Manual elevator
The Compacta is equipped with a manual shelf. Highering or lowering the shelf can be done
tearing the handle that you'll find on the bottomside of the shelf. After the shelf is positioned in
its position the handle is relieved and the shelf will be blocked in its position.
Automatic elevator
The elevator has a motor integrated which highers/lowers the cans until they are detected by the
photocell . Operating the elevator is very easy and effortless: just pushing the vertical arrows on
the display moves the elevator up and down.
The elevator stops automatically when the photocell detects a can.
4.5 Options
4.5.1 Printer
There is the possibility to connect a printer to the Prima software. Follow the instructions for
installation that comes with the printer and read the software manuals.

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 16 of 34
4.5.2 Modem
Dromont offers to each client a unique tele-assistance service, which goes through a modem and
a special software package. This modem gives the Dromont service engineer access to the
computer linked to the customer s machine. Problem solving in this way is easy and costs very
little time.
4.5.3 Can sizes
Dimenstion minimun maximun
Height (mm) 100 450
Diameter (mm) 80 340
Volume (l) 0,5 41
picture 4 -11
REMARKS
THE COMPACTA IS DESIGNED AND DEVELOPED FOR DISPENSING
SIMULTANEOUSLY VOLUMETRICALLY OR GRAVIMETRICALLY INTO
CANS OF THE SIZE STATED IN CHAPTER 4.5
CAN-SIZES BIGGER OR SMALLER THAN STATED IN CHAPTER 4.5 CAN
CAUSE DAMAGE OR POLLUTION ON THE MACHINE

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 17 of 34
5. INSTALLING THE MACHINE
5.1 General warnings
Only qualified or appropriately trained personnel are authorised to install the machine.
WARNING
BEFORE INSTALLING THE MACHINE, READ THE INSTRUCTIONS IN
THIS CHAPTER CAREFULLY TO ENSURE THE SAFETY OF THE
PERSONNEL INVOLVED AND AVOID DAMAGING THE MACHINE.
5.2 Safety devices on the machine
The Compacta is equipped with an emergency button on the front panel (see picture 5-1)
The emergency button is visibly positioned on the front of the machine. This button can be
activated manually by pressing it in case of an emergency. As soon as the button is activated the
machine will cancel all its operations and will stay in the position where it is. To disable the
emergency turn the red bottom clockwise until it unlocks.
picture 5-1 Emergency button

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 18 of 34
WARNING
IN CASE OF A FAILURE OR BREAKDOWN OF ANY OF THE SAFETY
DEVICES, IT IS NOT ALLOWED TO USE ANY COMPONENTS OTHER
THAN PROVIDED BY THE MANUFACTURER. CONTACT ONLY THE
DROMONT TECHNICAL SERVICE .
5.3 Conditions for proper installation
Installing the Dromont dispensers involves:
a) Installing any accessory.
b) Connecting the computer to the machine and installing the application software.
c) Filling the canisters and do the purging/recirculation.
d) Moistening the sponge of the humidifier cap.
5.4 Accessories
Depending on the options the customer selected with his machine the following parts that come
with it:
X = standard O = optional
Accessories Standard/Option
Power cable X
Serial cable X
Computer O
Scale O
Printer O
Modem O
picture 5-2 Power cable and general installation
Open the back door using a large screwdriver and take out the transparent box with spare-parts
(see picture 5-3)

Compacta - User s Manual
Compacta User_en ed 1 Feb 05.doc
Page 19 of 34

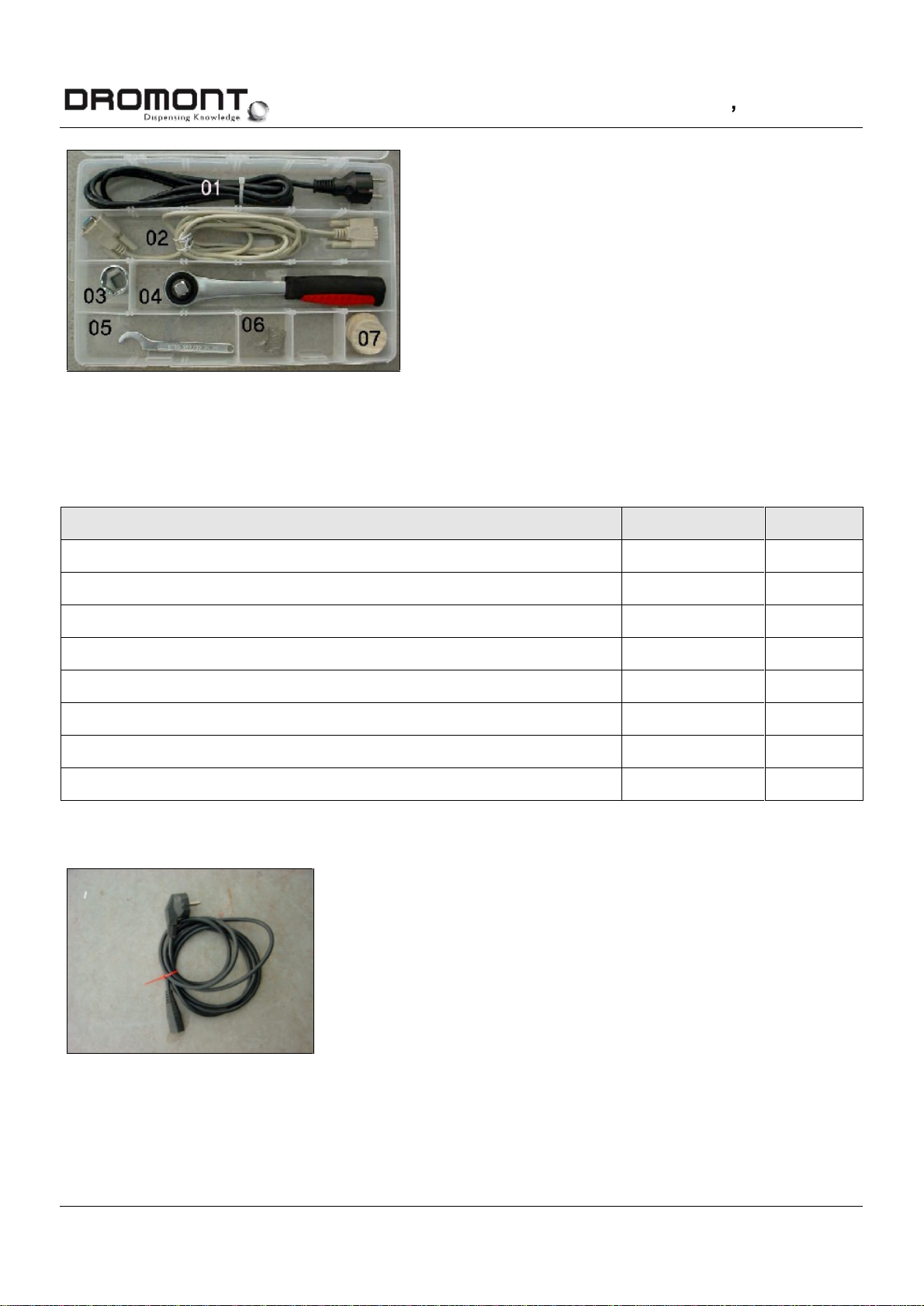

picture 5-3 Box with tools and spare parts
In this box you will find the following parts (see picture 2-1 ):
Part Quantity N°
Power cable for the PC 1 01
Serial cable for the PC 1 02
Socket spanner for stabilisers 1 03
Ratchet spanner for stabilisers 1 04
Tool for exchanging pistons 1 05
Filters 3 06
Sponges 3 07
Autocap protection 2 /
picture 5-4
picture 5-5 Power cable
