MaXtreme
Processing with a minimum quantity
aerosol lubrication
Operation and maintenance manual
Original instructions
DropsA products can be purchased at DropsA branches and authorised distributors,
go to www.dropsa.com/contact or write to [e-mail]

2
Summary
INTRODUCTION ........................................................ 3
1. GENERAL DESCRIPTION......................................... 3
1.2 SELF-ADAPTING AND HYBRID FEATURE .............. 3
1.3 SYSTEM OPERATION SUMMARY TABLE .............. 4
1.3.1 MULTIPLIER ON/OFF ........................................ 4
1.4 SCHEMATIC OPERATION AEROSOL FLOW RATE
AND CONSUMPTION ................................................ 4
2. STRUCTURE AND OPERATION ............................... 5
2.1 LP/HP CIRCUIT OPERATION................................. 5
2.2 HP CIRCUIT DRIVE WITH REMOTE CONTROL ....... 5
3.1. MATERIALS PRESENT ON THE SYSTEM ............... 8
3.2 AIR QUALITY ....................................................... 8
3.3 LUBRICANT: MAXTREME OIL............................... 8
3.4 PRESSURE ......................................................... 10
4. IDENTIFYING THE MACHINE................................ 10
5. TECHNICAL CHARACTERISTICS ............................ 11
6. EQUIPMENT COMPONENTS ................................ 12
7. UNPACKING AND INSTALLATION OF THE MACHINE
............................................................................... 13
7.1 UNPACKING ...................................................... 13
7.2 INSTALLATION .................................................. 13
7.2.2 COMPRESSED AIR CONNECTION .................... 13
7.2.3.1 FIRST FILLING .............................................. 14
7.2.3.2 SUBSEQUENT FILLINGS................................ 14
7.3 PIPES AND NOZZLES .......................................... 15
8. OPERATING INSTRUCTIONS ................................ 15
8.1 MAXTREME SETTINGS....................................... 15
8.2 START-UP - BASIC PRINCIPLES ........................... 15
8.3 INTERNAL LUBRICATION ................................... 16
8.5 ELECTRICAL CONNECTIONS MINIMUM LEVEL ... 18
8.6 PROBLEMS AND SOLUTIONS ............................. 18
9. MAINTENANCE PROCEDURES ............................. 19
9.1 REMOVAL OF THE PRESSURE RESIDUE .............. 19
9.2 EXTERNAL CLEANING OF THE EQUIPMENT........ 19
9.3 CLEANING THE INSIDE OF THE EQUIPMENT ...... 19
10. DISPOSAL .......................................................... 20
11. ORDER INFORMATION ...................................... 20
12.2 DOUBLE PNEUMATIC/ELECTRIC CONTROL
NOZZLE ................................................................... 21
13. TRANSFER AND TRANSPORTATION................... 22
14. PRECAUTIONS FOR USE..................................... 22
15. CONTRAINDICATIONS OF USE ........................... 23
Copyright............................................................ 24

3
INTRODUCTION
This Operation and Maintenance Manual refers to the MaXtreme product for dry machining processes.
You can obtain the latest version by requesting it from the Technical Sales Department, or by consulting our website
http://www.DropsA.com.
This operation and maintenance manual contains important information for the health and safety protection of the
personnel who intends to use this equipment. This manual must be read carefully and kept so that it is always
available to the operators who want to consult it.
1. GENERAL DESCRIPTION
MaXtreme is designed for near-dry machining, a technology recently designed to replace traditional cooling systems
and immersion in pure or emulsified oil in machining environments for chip removal, where a controlled flow of
compressed air transports minimal amounts of cutting oil in "aerosol" format to the cutting surface. This technology
ensures lubrication of the cutting surface and enables high-performance machining while offering longer tool life and
reduced cycle times. Removing coolant from the process also provides important environmental benefits and reduces
the high cost of the waste product.
The aerosol is transported to the cutting surface from the outside (via nozzles positioned around the tool) or from the
inside, also known as "through the tool".
Internal lubrication is the most difficult to achieve due to the coalescence of oil particles inside the tool. MaXtreme
solves this by generating ultra-thin particles that can pass through the rotating tool without hindrance caused by
centrifugal force.
MaXtreme combines years of research and development in aerodynamic and fluid-dynamic effects to produce oil
particles in an ultra-fine aerosol (diameter below the micron) that allow high-performance machining.
The double vortex solution is a revolutionary system that allows minimal lubrication and superior internal or external
near-dry lubrication.
In fact, for some applications, the second nozzle optimised for higher pressures is designed to increase the aerosol
flow directly on tools with minimum passage sections, thus offering better chip outflow and constant tool cooling.
This option can operate in a hybrid configuration with the primary nozzle delivering constant and rich aerosol even at
low flow rates, reducing the 'dead zone' at extremely low flow rates.
In addition to the Machinery Directive 2006/42/EC and, due to the increase in pressure performance up to 20 bar,
MaXtreme is certified according to PED Directive 2014/68/EU, according to which the circuit identifies the following
characteristics:
- PED RISK CATEGORY = I
- PED module: Module A
- Maximum allowable pressure: 22 Barg
- Test pressure: 36 Barg
- Permissible temperature: min 0 °C –max +60 °C
- Fluid group: Group 2
1.2 SELF-ADAPTING AND HYBRID FEATURE
The self-adaptive and hybrid functions mean that no adjustments between tool changes or complex programming
configurations are necessary. The system is mounted and adapts automatically.
How it works:
the aerosol is produced using a new vortex generator that has an improved operational envelope.
A special conical exhaust nozzle design combined with a controlled surface finish fragments the oil particles by
decelerating them at a controlled speed to create an aerosol with particles smaller than a micron. When the flow
rates become very high (typically for very large utensils), an air pressure increase valve opens to integrate the airflow
for the removal of chips and heat and therefore the density is reduced of the aerosol not required for this type of
processing operation.

4
1.3 SYSTEM OPERATION SUMMARY TABLE
ΔPress = supply pressure - tank pressure
1.3.1 MULTIPLIER ON/OFF
AIR SUPPLY PRESSURE
TANK PRESSURE DURING
OPERATION
AIR MULTIPLIER
6 bar
> 4,5 bar
on
<4,5 bar
off

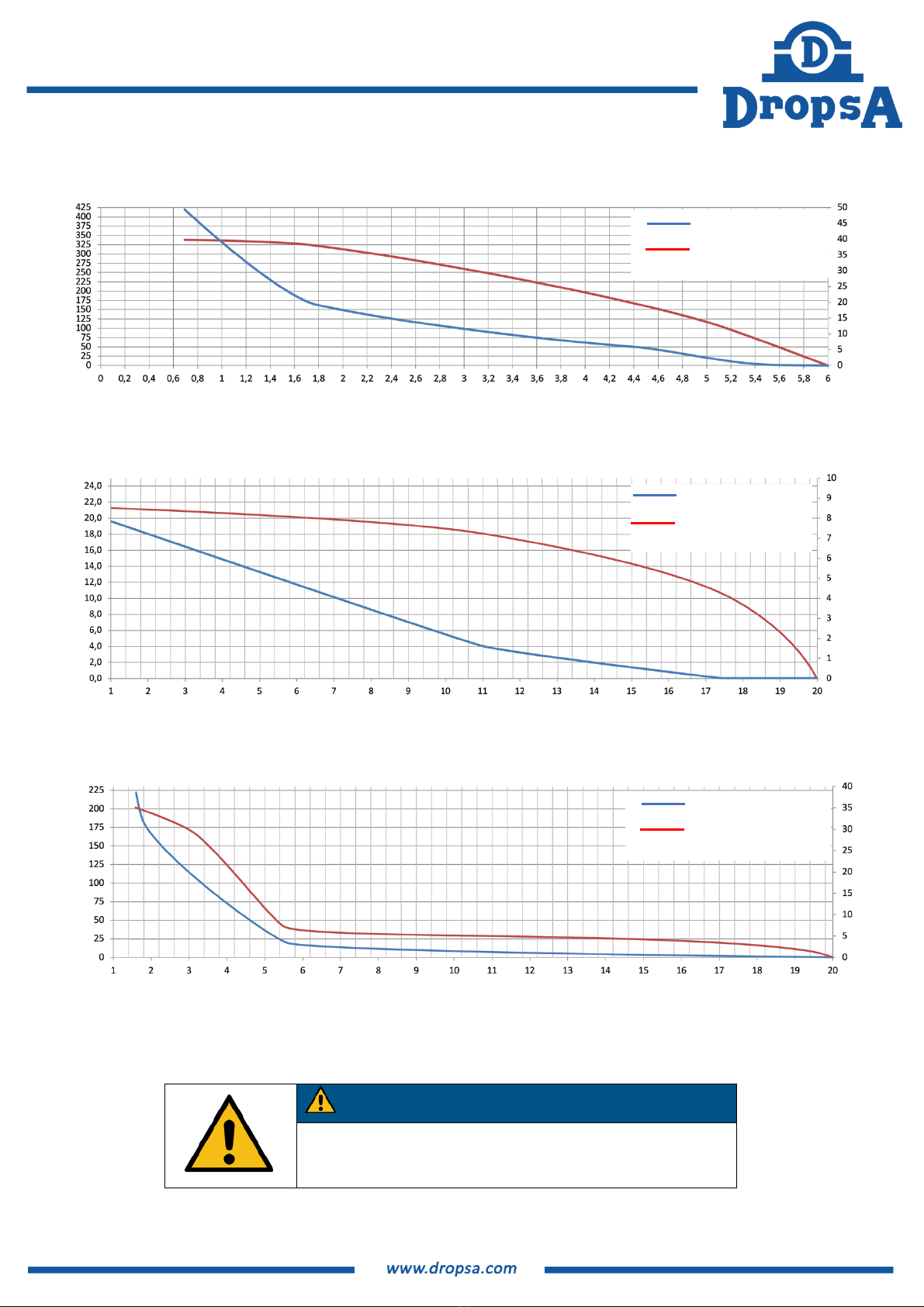

1.4 Schematic Operation Aerosol Flow Rate and Consumption
Note: External is possible In the double nozzle version. Remote HP piloting (from CNC) by inserting an ON/OFF solenoid valve
OPERATING CONDITIONS
VORTEX 1
VORTEX 2
EXTRA AIR
AEROSOL DENSITY
PRESSURE
TANK
ΔPress. >1<=2
NORMAL TOOLS
ON
OFF
OFF
NORMAL
NORMAL
ΔPress. >2
BIG TOOLS
ON
OFF
ON
LOW
LOW
ΔPress.=1
SMALL MEDIUM TOOLS
ON
ON
OFF
NORMAL HIGH
NORMAL
ΔPress.<1
SMALL TOOLS
OFF
ON
OFF
HIGH
HIGH
AEROSOL FLOW AND CONSUMPTION
DEAD ZONE
NO AEROSOL
ZONE
HIGH
PRESSURE
ZONE
HYBRID
PRESSURE ZONE
NORMAL
PRESSURE ZONE
WITH
EXTRA AIR
(4)
(3)
(1)
(2)
Zone (4)
Zone (3)
Zone (1)
Zone (2)

5
2. STRUCTURE AND OPERATION
2.1 LP/HP CIRCUIT OPERATION

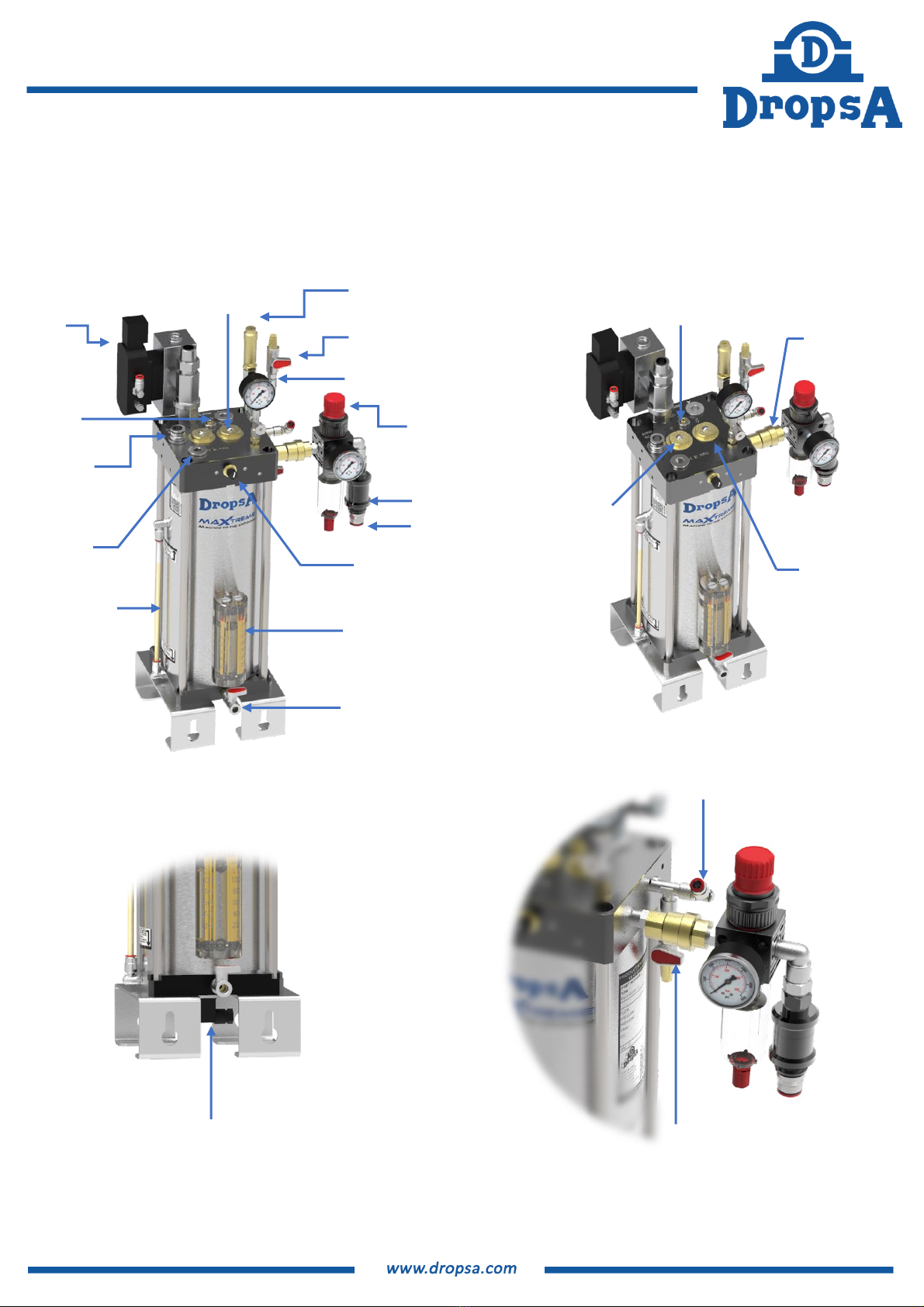

The system consists of a pressurised lubricant reservoir with air. The lubricant contained in the tank (1) is sent through
a pipeline inside the tank itself, to the generator nozzle (3) located inside the generator head, as a result of the
pressure from the air, regulated by the valve (2).
The oil previously regulated by the valve (4) meets the airflow placed in rotation at high speed, thus splitting into
micro-particles that form the aerosol mist conveying with the opening of the electro-pneumatic valve (14), towards
the use in the CNC chamber.
By simply turning the valve (4), the quantity of oil introduced into the circuit is defined in % according to the position
of the ball on the flowmeter (11), and the fog density is varied accordingly. (only for LP mode).
Even if totally closed, the valve (4) allows a minimum oil passage that can guarantee minimum lubrication.
The flowmeter has reading integrated for both HP / LP operating modes.
The left scale reading indicates oil supply on LP circuit, while right scale indicates oil supply on HP circuit.
In case of high airflow rates, the valve (5) feeds additional air into the tank in order to keep the pressure in the tank
constant. (Ref sheet 1 –Page 6)
When using drills with very small lubrication diameters, there is an increase in pressure in the reservoir. This condition
causes the pneumatic valve (10) to open the high-pressure duct, thus activating the multiplier (8) (if present) or
external accessory connected to the port (7).
In this situation, the pressure inside the tank will tend to increase, thus closing the check valve (9). Increased pressure
will facilitate the release of machining waste material, ensuring continuous tool cooling/lubrication. (Ref sheet 2 -
Page 6)
There is no oil regulation on the HP circuit.
The oil can be filled from the port (16) or the valve (15), which also acts as an oil drain.
The max/min oil level in the tank is directly observable from the pipe (12) located on the tank.
Note: The oil level must not exceed the reference on the tank.
When topping up, make sure to exclude the mains air by acting on the valve (18), discharge the residual pressure
contained in the tank by acting on the quick-release valve (22).
It is also possible to connect a minimum level alarm (13) directly to the connector under the equipment in order to
prevent machining without lubricant when the system is unattended.
(Ref sheet 1 –Page 6)
Note: A single nozzle version is available in which the HP circuit is deactivated.
2.2 HP CIRCUIT DRIVE WITH REMOTE CONTROL
It is possible to mount an ON/OFF solenoid valve (21) externally controlled by the CNC that controls the intervention
of external accessories.
In this case, it is preferable to deactivate the pneumatic valve (10) by completely unscrewing the adjustment screw on
the valve itself. (Ref sheet 3 –Page 6)
In case of maintenance, it is possible to eliminate the residual pressure on the multiplier circuit by opening the valve
(23) and energising the ON/OFF solenoid valve (21) if present.
ADVANTAGES:
Reduction of the cycle time: from 25% to
80%.
Reduction of the quantity of lubricant
required
Longer utensil life
Improved finishing of the pieces
Application:
Machine tools;
Sheet metal cutting and bending machines;
Steel mills.

6
Hydraulics diagram
Vortex Operation (LP) Vortex (HP) operation from pneumatic pilot
valve
Scheme 1 Scheme 2
Piloting (LP/HP) with solenoid valve
Scheme 3

7
3. Use safety and precautions
Before carrying out any operation it is important to read this manual. It is always recommended to respect the safety
standards of the country where the equipment is installed and the need to resort to personnel specialised In the
various maintenance, use, installation, etc. necessary during the life of the equipment.
Safety instructions and symbols are used in this manual in accordance with the ANSI Z535, ISO 3864 and ISO 7010
standards listed below:
Sumbols table
DANGER
PROHIBITION
OBLIGATION
Generic danger
Generic prohibition
Generic obligation
Laser beam danger
No smoking or use
naked flames
It is mandatory to read
the instructions
Electricity danger
No entry with
watches and metal
objects
It is mandatory to use
hearing protectors
Hot surface danger
Do not touch
It is mandatory wear eye
protection
Danger container under
pressure
It is forbidden to
switch off with water
It is mandatory to ensure
the ground connection
Danger of crushing
hands
It is mandatory to
disconnect the current
Explosive area danger
Protective glows must be
worn
Warnings table
Warning
Damage
to
Definition
Consequences
People
Indicates a dangerous situation, which,
if not avoided, death or serious injury
will certainly cause.
Death or serious injury,
paralytic
Indicates a dangerous situation, which,
if not avoided, death or serious injury
may cause.
Potential death or
serious injury
Indicates a dangerous situation, which,
if not avoided, mild or moderate injury
could cause.
Moderate and mild
injury possible
Things
Indicates unrelated practices at person
injury.
Suggestions or other infprmation.
Damage to things, not
to people
DANGER
WARNING
CAUTION
NOTICE

8
The main rules of behavior to be observed for working wit a good level of safety are the following:
Installation, use, maintenance, etc. operations must always be carried out by qualified and trained personnel.
It is a good rule to always wear the personal protective equipment provide without exception.
Always carry out cleaning, adjustment and maintenance operations, making sure that all energy and
compressed air supply are disconnected.
Install the equipment away from passageways, so as to prevent it form being hit or damaged.
Don’t damage the warning sign and pictograms applied to the equipment; if they are inadvertently damaged,
immediately replace them with identical ones.
Verify the chemical compatibility of the materials with which the equipment is built with the oil you intend to
use. A wrong choice could cause, in addition to damaging the equipment and pipes, serious risks for people
(leakage of irritating and harmful products) and for the environment.
Never exceed the maximum permitted operating pressure value of the equipment and the components
connected to it. In case of doubt, consult the data shown on the appliance plate.
Use only original spare parts.
If it is necessary to replace components with others, make sure that they are suitable for operating at the
maximum working pressure of the equipment.
DropsA S.p.A. declines any responsibility for damage to person or things deriving from the improper use of the
equipment, form the tampering of its safety devices or from the non-observance of the safety rules at work.
WARNING
It is necessary to read the Use and
Maintenance Manual of the equipment to
know the risks of use
3.1. Materials present on the system
None of the materials used for the construction of the system is dangerous for the people in charge of its
management (during all phases of the system's life). Specifically, the materials used for the construction of the
machine are primarily:
iron derivatives;
plastic derivatives;
aluminium derivatives.
Materials are in accordance with the REACH and RoHS directive.
3.2 Air quality
In order to avoid mixing water in oil in the tank and/or filling of the nozzles due to impurities present in the supply
circuit itself, it is advisable to use filtered and dehumidified air according to DIN ISO 8573-1 (1.4.1).
If the equipment is used at temperatures lower than 3°C, it is necessary to use filtered and dehumidified air according
to DIN ISO 8573-1 (1.3.1).
3.3 Lubricant: MaXtreme Oil
During operation, the system has been designed to use specific products for production purposes, i.e. the lubricants
contained in the tank are used to carry out its activity. The only lubricant permitted by the manufacturer DropsA
S.p.A. is a non-hazardous mixture according to the agreement (EC)1272/2008 [GHS] as described on its MSDS
(Material Safety Data Sheet):

9
Chlorine free Lubricating properties, anti-wear coolant
Mineral oil-free
There is no water to be recycled. Reduces waste to dispose of and lowers consumption
For applications with:
Minimal lubrication systems General cutting operations of high/medium severity
Use on ferrous and non-ferrous materials
In case oils other than those recommended by DropsA S.p.A. are used, they must belong to group 2 according to the
PED Directive, and must be a non-hazardous mixture according to agreements (EC)1272/2008 [GHS], with the
following physical characteristics:
Viscosity: <50 cSt 40°
Density: 918 Kg/m3 15 °C
Flashpoint: >250 °C
For the disposal of the oil, strictly adhere to local provisions and the related MSDS (Material Safety Datasheet).
DANGER
The lubricant used in the lubrication
circuits is a fluid that is flammable at
temperature>250°C. Prevent it from
coming into contact with very hot parts or
naked flames
CAUTION
During oil filling operations use protective glasses and gloves to avoid direct contact
with lubricant.

10
3.4 Pressure
4. IDENTIFYING THE MACHINE
On the side of the unit, there is a nameplate with the product code, supply voltages and basic features.
CAUTION
Before each intervention check the absence of residual pressures in each branch of
the lubricant circuit.
After long periods of inactivity, check the seal on all the parts subject to pressure.
Do not subject the fittings, pipes and the parts under pressure to violent impact.
A damaged hose or fitting is DANGEROUS, replace it.

11
5. TECHNICAL CHARACTERISTICS
Technical characteristics
*LP nozzle Air Supply:
6 Bar (87 psi)
*LP nozzle air/outlet flow rate:
35000 Nl/h (W/additional air) (1236 cfh) 6 Bar
*Oil Flow rate:
220 ml/h (13.2 cu/h) 20°C
*HP nozzle Air Supply:
20 Bar (290 psi)
*HP nozzle air/outlet flow rate:
6500 Nl/h (229.5 cfh)
*Nozzle oil flow HP:
9.5 ml/h (0.6 cu/h) 20°C
Min. working diameter LP nozzle (6 bar)
2 mm (7000 Nl/h) (247 cfh)
Minimum working diameter HP nozzle (20 bar)
0.8 mm (3500 Nl/h) (123 cfh)
Reservoir capacity:
2 litres (0.50 gallons)
Air supply hose:
Ø12mm.(0.47 in)
Usage tube:
Ø12 ÷ 16 mm (0.47 ÷ 0.6 in.)
Number of aerosol outlets:
1~3
Lubricant
DropsA recommends MaXtreme OIL for the best results
Degree of protection:
IP 65
Electro-pneumatic valve power supply:
(Optional)
24VDC200mA
Operating temperature
0°C ÷ +60°C
Storage temperature
-10°C ÷ +80°C
Noise (distance 1mt)
70 dB “A”
Escape valve:
22 bar
Reservoir pressure gauge:
0~25 Bar
All the values on the technical characteristics refer to Ø12 in/out connections
* The value is variable depending on the outlet Ø or the tool chosen for HP nozzle version

12
6. EQUIPMENT COMPONENTS
High flow
nozzle 6 bar
HP/LP high/low-pressure piloting
Valve
non-return
HP nozzle 20 bar
Minimum level alarm
connector
Power supply input
air 20 bar
HP circuit quick exhaust
valve (20 bar)
Safety valve
Pressure relief valve
tank
Network pressure
regulator unit
Tank pressure gauge
Slide valve
On/Off
High flow nozzle
6 bar
Oil flow regulator
Air inlet
network
Port of use
free
Solenoid valve
(optional)
Quick connect ø12
(optional)
Filling port
oil
Oil level
(visual)
Oil drain/oil load
valve
Flowmeter

13
7. UNPACKING AND INSTALLATION OF THE MACHINE
7.1 UNPACKING
Once you have identified the suitable place for installation, open the packaging and remove the equipment. Check the
unit for damage during transport and storage. The packing material does not require special disposal precautions as it
is in no way dangerous or pollutant. For disposal, refer to local regulations.
7.2 INSTALLATION
The equipment can be installed in two ways:
a) Attach the equipment to the structure of the machine tool. Take care not to install the equipment in an
environment that is particularly prone to strong vibration or oscillation.
b) Install the equipment in the vicinity of the machine tool, ensuring that it is a suitable environment for this
type of equipment.
Strictly follow the following rules:
In order to avoid malfunctions, always position the equipment vertically.
NEVER turn the equipment upside down.
For filling and control of the system, place the equipment in an easily accessible environment.
NOTICE
Place the equipment on the machine
vertically and in an easily accessible location.
NEVER flip the equipment
The operator is responsible for any damage caused to the MaXtreme equipment by improper installation.
7.2.2 COMPRESSED AIR CONNECTION
WARNING
The compressed air connection must be made by
competent and qualified personnel.
For safety reasons, the compressed air pressure at the
mains air connection must never exceed 6 bar.
Mains air
connection

14
7.2.3 TANK FILLING
7.2.3.1 FIRST FILLING
During the first filling, it must be ensured that there is
no residual pressure inside the tank. (Ref. par.9.1).
The oil must be poured into the tank through the
special inlet (OIL RECHARGE).
The "maximum" sign (B) on the filling indicator must
under no circumstances be exceeded.
7.2.3.2 SUBSEQUENT FILLINGS
When the oil reaches the "minimum" level (A),
MaXtreme must be refilled. If the unit is in operation,
switch it off and eliminate the residual pressure
(Ref.par.9.1). Then proceed as described in 7.2.3.1
FIRST FILLING UP.
If connected in analogue mode with the minimum
level alarm, the numerical control would block the
system. In that case eliminate the residual pressure,
(Ref.par.9.1), and proceed as described in paragraph
7.2.3.1 FIRST FILLING UP
WARNING
During the filling operations, always
disconnect the system from the
compressed air by acting on the manual
sliding valve and on the multiplier supply
pressure reducer by turning it fully
counterclockwise.
When filling the tank, never exceed the
"maximum"(B) level.
NOTICE
Use the same oil in case of subsequent
fillings, otherwise make sure to remove all
traces of the lubricant previously used via
the oil drain cock.
Only then fill the tank with the new oil and
operate the equipment.
DropsA declines all responsibility for the
incorrect operation of the equipment.
Recommended lubricants: MaXtreme Oil
ANALOGUE MINIMUM
LEVEL ALARM CONNECTION
OIL DRAIN
(15)
(A) OIL LEVEL MIN
(B) MAX OIL LEVEL
OIL FILLING

15
7.3 PIPES AND NOZZLES
The recommended pipes have an external diameter of 12 mm for the whole part of the system that can be covered
with this diameter.
The length of the aerosol pipeline should be kept as short as possible. The longer the aerosol pipeline length, the
greater the pressure and aerosol losses.
The aerosol lines should be laid as linearly as possible, especially avoiding "narrow bows", otherwise there is a danger
of lubricant precipitation. If deflection connections cannot be avoided, they must have a radius of at least 200 mm.
The aerosol pipeline should have a continuous slope in the direction of the machine. Downward curves should be
avoided as much as possible since lubricant could accumulate at these points if the machine is stopped.
The feeding of aerosols into spindles or rotating tools should be carried out as far as possible in the axial direction. In
the case of radial adduction, it can happen, especially at high spindle speeds, that the lubricant is "centrifuged out",
thus causing a separation of the aerosol.
This is particularly the case when used with small tools with high rotational speed.
WARNING
The equipment must operate according to the
parameters indicated in the technical
characteristics.
8. OPERATING INSTRUCTIONS
The same general procedures and precautions typical of the installation of traditional lubrication and cooling systems
must be observed.
8.1 MaXtreme SETTINGS
Refer to the figure in paragraph 6
Air quantity: by air pressure regulator with pressure gauge.
Oil quantity: through the flow control valve.
8.2 START-UP - BASIC PRINCIPLES
Refer to the figure in the paragraph. 6
a) Close the air pressure regulator valve completely by turning the ring nut counterclockwise.
b) Connect the compressed air hose via the appropriate mains air connection.
c) Mount the tool in the machine.
d) Open the following valves:
Manual on/off slide valve for compressed air by moving it horizontally to (ON).
Turn the ring nut of the air pressure regulator until you get 6 bar reading on the pressure gauge.
f) Open operating valve.
g)
NOTICE
During operation in HP mode, the percentage of oil indicated on
the flowmeter may be at a maximum of 20%.
LP flow rate in percentage of oil indicated on the flowmeter may
be at a maximum of 100%.
The oil flow rate of the HP nozzle is not adjustable.

16
8.3 INTERNAL LUBRICATION
MaXtreme is used for internal lubrication work: the aerosol is brought inside the tool via the spindle.
In such a situation, it is suggested to follow the following instructions:
The spindle must be suitable for the type of application in question (dry machining).
Some spindles have a non-return valve. This could be a problem due to the relatively low working pressure of
the system. A valve modification may be required. Ask DropsA for advice.
Make sure that the hose used to transport the oil does not have any alterations such as cross cuts, cracks or
cracks. In this case, the lubricant would be deposited in the cracks and would not reach the correct amount at
the cutting point.
Be advised when choosing the ideal tool for minimal lubrication.
Ensure that there is no excessive bending or shrinkage (diameter reduction) of the piping in the lubrication
line. This would result in a deposit of lubricant in these areas preventing the aerosol from reaching the
machining centre.
Make sure that aerosol mist comes out of the tool.
The workpiece must be positioned at a maximum distance of 40 mm (1.57 in.) from the outlet of the
minimum lubrication channel to ensure the formation of a thin film of lubricant.
The amount of aerosol mixture must be appropriate for the type of processing. If necessary, change the flow
quantity through the oil flow control valve. (Ref. par. 6)
NOTICE
MaXtreme is capable of effective lubrication through very small
tool channels (capillaries); in this case, it may be necessary to
configure the system for aerosol pressure up to 20 Bar.
For a greater system efficiency, we recommend the use of the
same tools or with a similar internal lubrication passage, if used at
the same time.

17
OIL FLOW RATE (CC/H)
AIRFLOW (Nm3/H)
OIL FLOW RATE (CC/H)
AIRFLOW (Nm3/H)
OIL FLOW RATE (CC/H)
AIRFLOW (Nm3/H)
8.4 INDICATIVE CONSUMPTION
*not applicable to MaXtreme one
*not applicable to MaXtreme one
Maxtreme oil viscosity: <50cSt 40°
Test temperature: 20°C
NOTICE
For optimal performance, the use of a heater is recommended
when used at temperatures <20°C.
TANK PRESSURE (bar)
Oil flow rate (cc/h)
Airflow (Nm3/h)
TANK PRESSURE (bar)
TANK PRESSURE (bar)
COMBINED AIR/VORTEX OIL FLOW RATE
Oil flow rate (cc/h)
Airflow (Nm3/h)
Oil flow rate (cc/h)
Airflow (Nm3/h)
HIGH AIR/OIL FLOW RATE PRESS 20 BAR VORTEX 2
FLOW RATE AIR/OIL NORMAL PRESSURE 6 BAR VORTEX 1
OIL FLOW RATE(CC/H)
AIRFLOW (Nm3/H)
OIL FLOW RATE (CC/H)
AIRFLOW (Nm3/H)

18
8.5 ELECTRICAL CONNECTIONS MINIMUM LEVEL
Connect the minimum level by setting the circuit to N.O without the
presence of oil.
The plate is placed on the tank.
8.6 PROBLEMS AND SOLUTIONS
WARNING
The unit may only be opened and repaired
by authorised DropsA personnel.
Below is a troubleshooting table highlighting the main failures, probable causes and possible solutions.
If, even after consulting the diagnostic table, the problem has not been solved, do not proceed with troubleshooting
by disassembling parts of the machine, but contact the Technical Office DropsA and report the anomalies found with a
detailed description.
TROUBLESHOOTING TABLE
ANOMALY
CAUSE
REMEDIAL ACTION TO BE TAKEN
When the working solenoid valve is
activated, no air comes out.
No air supply
Check that you have pressure in the
tank.
Make sure that there is mains air and
that all valves and pressure reducers
are correctly set.
Faulty solenoid valve
Contact service centre DropsA S.p.A
Activating the working solenoid valve
does not generate aerosols.
Faulty solenoid valve
Contact service centre DropsA S.p.A
The tank pressure is equal to the supply
pressure.
Increase the air passage hole
on the unit to be lubricated
Oil missing
Check the oil level
Lubricant below the minimum level in
the tank
Fill the tank with new lubricant.
The multiplier always works below
4.5 bar
Actuation valve
Tighten the screw located on the
actuation valve until the multiplier has
almost achieved shutdown.
The multiplier doesn’t work, and the
tank pressure is the same as that of
the network
Actuation valve
Unscrew the screw located on the
actuation valve until the multiplier
resumes normal operation. (The valve
will then be withdrawn. Please see the
previous point)
WARNING
Make sure that the air supply is
disconnected before performing any
maintenance work.

19
9. MAINTENANCE PROCEDURES
CAUTION
Before any operation, check for the absence of any residual pressure in all branches
of the lubricant circuit.
After long periods of inactivity, check the seal on all the parts subject to pressure.
Do not subject the fittings, pipes and the parts under pressure to violent impact.
A damaged hose or fitting is DANGEROUS, replace it.
We recommend using only original spare parts.
The units have been designed and built in such a way as to require minimal maintenance.
In order to simplify maintenance, we recommend installing them in a position that is easy to reach.
(Ref. par. 7.2).
Periodically check the joints of the lines for any leaks.
Check the oil level periodically and refill the oil via the filler plug if necessary.
The machine does not require special tools for any check and/or maintenance operations. We recommend using tools
and personal protection equipment suitable for use with reference to Legislative Decree 81/2008, and in good
condition (in accordance with the prevailing regulation) in order to prevent damage to personnel or parts of the
machine.
9.1 REMOVAL OF THE PRESSURE RESIDUE
Refer to the figure in the paragraph. 6
Remove mains pressure by acting on the on/off slide valve.
Remove the mains pressure on any external accessory.
Open the quick exhaust valve on the head, making sure that the pressure gauge marks "0" bar.
Open the quick exhaust valve on the circuit at 20 bar.
9.2 EXTERNAL CLEANING OF THE EQUIPMENT
MaXtreme Cleaning
Eliminate residual pressure. (Par. 9.1)
Clean with a damp cloth; do not use steel brushes.
Do not wash with running water.
Do not use aggressive cleaning agents, detergents, chemicals.
After cleaning, dry with a soft cloth.
Reposition the equipment. Do not connect the compressed air source until all other connection operations
have been completed.
9.3 CLEANING THE INSIDE OF THE EQUIPMENT
Under normal conditions of use, internal cleaning is not necessary. In case it becomes indispensable:
Eliminate residual pressure. (Par. 9.1)
Decompress the outgoing pipes as well.
Open the oil drain cock.
Collect the oil in a basin.

20
Close the oil outlet. Fill the unit with new lubricant (approx. 2 lt - 0, 44 gallons- as described in 5.3.1.)
Put the equipment back into operation (see Chap. 8. Instruction for use)
WARNING
Before any maintenance operation, make
sure that the pneumatic supply is
disconnected.
10. DISPOSAL
During maintenance on the machine, or in the event of its demoliton, do not dispose of contaminated parts into the
environment. See local regulations for their correct disposal. Upon dmolition of the machine, the identification label
and any other document must be destroyed.
11. ORDER INFORMATION
Accessories
Part number
Description
3155187
Solenoid valve for aerosol control
0295188
Air multiplier kit
0295189
On/Off solenoid valve kit for high-pressure circuit
0295272
On/Off solenoid valve kit for low-pressure circuit
Consumable Products
Part number
Description
3226692
Maxtreme - Oil 22 Lt
3226693
Maxtreme - Oil 206 Lt
3226694
Maxtreme - Oil 980 Lt
Part number
Description
3135263
Maxtreme -1 with minimum level, single nozzle (HP circuit deactivate)
3135264
Maxtreme - with minimum double-level nozzle
Spares parts
Part number
Description
0020685
Pressure adjustment valve 0~10 Bar
3292142
0-25 Bar pressure gauge
3155312
Safety valve
3089043
Aircheck valve
