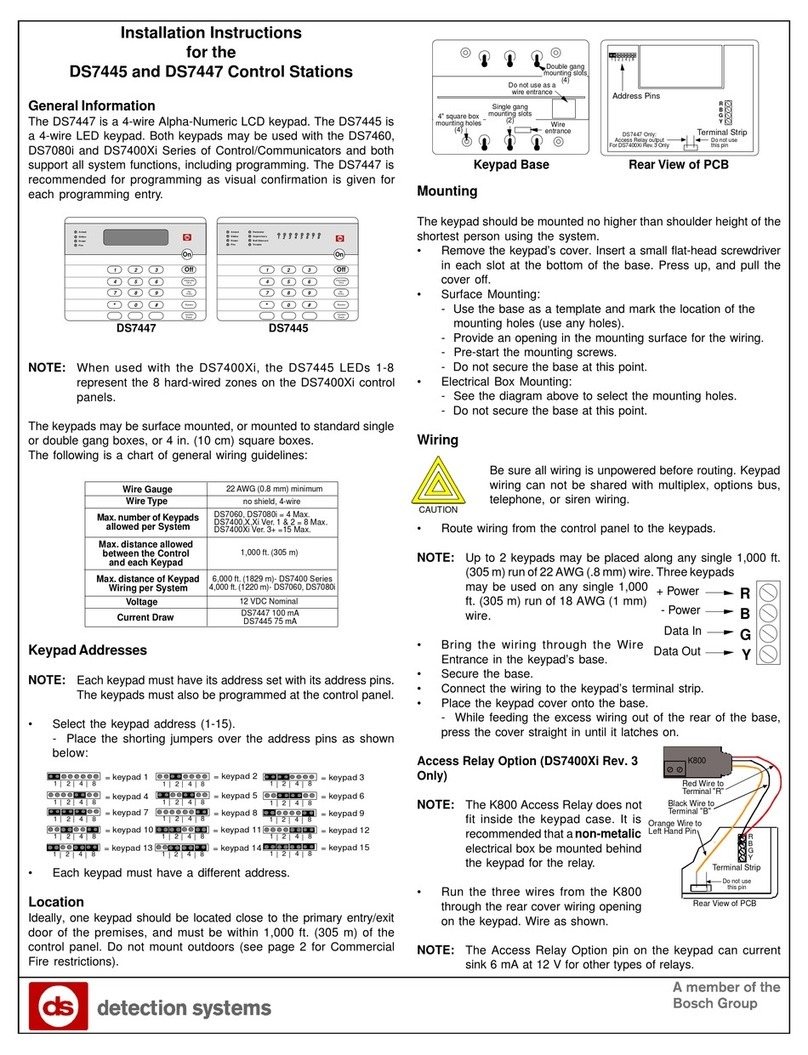

Installation Instructions
DS7445i and DS7447i/DS7447E
Keypads
1.0 General Information
The DS7447i/DS7447E is a 4-wire Alpha-Numeric LCD
keypad. The DS7445i is a 4-wire LED keypad. Both key-
pads are compatible with the DS7060, DS7080i Series,
DS7200 Series and DS7400Xi Series of Control Panels.
The keypads can be surface mounted, or mounted to
standard single or double gang boxes or to 10 cm (4 in.)
square boxes.
See Table 1 for general wiring guidelines:
123
456
789
0
*
#
On
No
Entry
System
Reset
Bypass
Only
Perimeter
Off
TEST WEEKLY
Armed
Status
Power
Fire
123
456
789
0
*
#
On
No
Entry
System
Reset
Bypass
Only
Perimeter
Off
TEST WEEKLY
12345678
9101112 13 14 15 16
Armed
Status
Power
Fire
Perimeter
Supervisory
BellSilenced
Trouble
1 2
Figure 1: One-column Wide
1 - DS7447i/DS7447E LCD Keypad
2 - DS7445i LED Keypad
2.0 Keypad Addresses
Each keypad must have a unique address set with its address
pins. The keypads must also be programmed at the control
panel.
See Figure 4 and Figure 5 for Address and Mode Jumper
locations.
1. Select a different address (0 to 32) for each keypad. See
Table 3 and Table 4.
2. Place the shorting jumpers over the address pins as shown
in Figure 2.
Figure 2 shows proper shorting jumper placements.
Wire Gauge #18 AWG is required for UL Fire
Installations
Wire Type no shield, 4-wire
Max. Resistance wire resistance should not exceed 33 ohms
Table 1: Keypad Wiring Distances
Maximum distance between control panel and each keypad
should not exceed 305 m (1000 ft.)
1 - Jumper Plug ON (covers both pins)
2 - Jumper Plug OFF
or or
1 2
Figure 2: Correct Shorting Jumper Placements
Operating Voltage Nominal 12 VDC supplied by
Control/Communicator Aux. Power Supply
Alarm Standby
DS7447E /
DS7447i
100 mA 100 mA
Current
Requirements
DS7445i 75 mA 75 mA
Access Relay
Option:
50 mA Current Sink
(Not Tested by UL)
Table 2: Operating Voltage
"ON" indicates a shorting jumper across both pins
Address Jumpers
Module
Address
124816MODE
0OFF OFF OFF OFF OFF OFF
1ON OFF OFF OFF OFF OFF
2OFF ON OFF OFF OFF OFF
3ON ON OFF OFF OFF OFF
4OFF OFF ON OFF OFF OFF
5ON OFF ON OFF OFF OFF
6OFF ON ON OFF OFF OFF
7ON ON ON OFF OFF OFF
8OFF OFF OFF ON OFF OFF
9ON OFF OFF ON OFF OFF
10 OFF ON OFF ON OFF OFF
11 ON ON OFF ON OFF OFF
12 OFF OFF ON ON OFF OFF
13 ON OFF ON ON OFF OFF
14 OFF ON ON ON OFF OFF
15 ON ON ON ON OFF OFF
Table 3: Keypad Address Selections for DS7060,
DS7080i Series and DS7400Xi Series Control
Panels

P/N: 49205D Page 2 © 2003 Bosch Security Systems
3.0 Location
Ideally, locate one keypad close to the primary entry/exit
door of the premises within 305 m (1000 ft.) of the control
panel. Do not mount the keypad outdoors (See Section 8.0
Commercial Fire Applications).
4.0 Mounting
Mount the keypad no higher than shoulder height of the
shortest person using the system.
1. Remove the keypad’s cover.
2. Insert a small flat-head screwdriver in each slot at the
bottom of the base. Press up, and pull the cover off.
* Installer's Mode Address Setting: Use for direct connection
of Installer's Keypad.
Address Jumpers
Module
Address
124816MODE
0* OFF OFF OFF OFF OFF OFF
1ON OFF OFF OFF OFF ON
2OFF ON OFF OFF OFF ON
3ON ON OFF OFF OFF ON
4OFF OFF ON OFF OFF ON
5ON OFF ON OFF OFF ON
6OFF ON ON OFF OFF ON
7ON ON ON OFF OFF ON
8OFF OFF OFF ON OFF ON
9ON OFF OFF ON OFF ON
10 OFF ON OFF ON OFF ON
11 ON ON OFF ON OFF ON
12 OFF OFF ON ON OFF ON
13 ON OFF ON ON OFF ON
14 OFF ON ON ON OFF ON
15 ON ON ON ON OFF ON
16 OFF OFF OFF OFF ON ON
17 ON OFF OFF OFF ON ON
18 OFF ON OFF OFF ON ON
19 ON ON OFF OFF ON ON
20 OFF OFF ON OFF ON ON
21 ON OFF ON OFF ON ON
22 OFF ON ON OFF ON ON
23 ON ON ON OFF ON ON
24 OFF OFF OFF ON ON ON
25 ON OFF OFF ON ON ON
26 OFF ON OFF ON ON ON
27 ON ON OFF ON ON ON
28 OFF OFF ON ON ON ON
29 ON OFF ON ON ON ON
30 OFF ON ON ON ON ON
31 ON ON ON ON ON ON
32 OFF OFF OFF OFF OFF ON
Table 4: Keypad Address Selections for Other Control
Panels
4.1 Surface Mounting:
1. Use the base as a template and mark the location of the
mounting holes (use any holes).
2. Provide an opening in the mounting surface for the
wiring.
3. Pre-start the mounting screws but do not secure the
base at this time!
ADDRESS
124816
MODE
1 2
3
45
Figure 4: Internal View of DS7445i LED Keypad
1 - Address Jumper Pins
2 - Mode Pins
3 - Option Bus Terminals
4 - Access Relay Option Pins
5 - Sounder
1 12
3
4 5
Figure 3: Back View of Keypad
1 - Double gang mounting holes
2 - Single gang mounting holes
3 - Terminal Strip opening
Do not use as wire entrance!
4 - Wire Entrance
5 - Sounder Opening
4.2 Electrical Box Mounting:
- See Figure 3 to select the mounting holes, but do not
secure the base at this time!
"ON" indicates a shorting jumper across both pins
Module Addresses 15-32 are for use with the DS7200 Series
only.

© 2003 Bosch Security Systems Page 3 P/N: 49205D
ADDRESS
124816
MODE
1 2 3
4
5
6
Figure 5: Internal View of DS7447i/DS7447E LCD
Keypad
1 - Address Jumper Pins
2 - Mode Pins
3 - Option Bus Terminals
4 - Access Relay Option Pins
5 - Sounder
6 - Contrast Control
5.1 Control Panel to Keypad Wiringz
Be sure all wiring is unpowered before routing.
1. Route wiring from the control panel to the keypads.
Up to two keypads may be placed along any single
305 m (1000 ft.) run of #22 AWG (0.8 mm) wire.
Three keypads may be used on any single 305 m
(1000 ft.) run of #18 AWG (1.2 mm) wire..
2. Insert wiring through the Wire Entrance in the keypad
base (see Figure 3).
3. Secure the base.
4. Connect the wiring to the keypad terminal strip.
(Figure 6).
5. Place the keypad cover onto the base. While feeding the
excess wiring out of the rear of the base, press the cover
straight in until it latches.
6.0 DS7447i/DS7447E Contrast Control
Turn the DS7447i/DS7447E Keypad's contrast control
clockwise to increase contrast. Turn it counter-clockwise to
decrease contrast.
See Figure 5 for the location of the Contrast Control on the
DS7447i/DS7447E LCD Keypad.
7.0 Special Key Labeling
Do not label if keys are unprogrammed..
Consult your control panel's programming instructions for
specific function key assignments.
Figure 7 shows typical function key assignments (DS7447i/
DS7447E shown - same button layout/assignment applies to
DS7445i).
123
456
789
0
*
#
On
No
Entry
System
Reset
Bypass
Only
Perimeter
Off
TEST WEEKLY
Armed
Status
Power
Fire
1
2
3
Figure 7: Special Key Labeling
1 - Fire
2 - Special Emergency
3 - Panic
1
2345
Figure 6: Keypad Terminal Connections
1 - Keypad Terminals
2 - Red (Power +)
3 - Black (Power -)
4 - Green (Data In)
5 - Yellow (Data Out)

7/03
Keypads - DS7445i/DS7447i/DS7447E
Page 4 of 4
P/N: 49205D
Installation Instructions
© 2003 Bosch Security Systems
130 Perinton Parkway, Fairport, NY 14450-9199 USA
Customer Service: [phone]; Technical Support: [phone]
8.0 Commercial Fire Applications
(DS7400Xi Series)
8.1 Single Keypad Use in Commercial Fire
Systems
The keypad must be used on the keypad bus and mounted
to the front of the control enclosure. If the keypad is within
the same room as the control equipment, with the wire run
in conduit (or equally protected against mechanical injury)
within 6 m (20 ft.) of the control equipment.
The keypad must be assigned as Keypad Address 1.
8.2 Multiple Keypad Use in Commercial Fire
Systems
Only one keypad must be used on the panel's option bus
and assigned as Keypad Address 11-14.
The keypad must be mounted to the front of the control
enclosure. If the keypad is within the same room as the
control equipment, with the wire run in conduit (or equally
protected against mechanical injury) within 6 m (20 ft.) of
the control equipment.
9.0 Instruction Label and Slide
Two instruction labels are provided and one must be placed
onto the pull-out slide. The slide may be installed to pull
from the left or the right (slide it into rear of base).
1
2
3
4 5
Figure 8: Instruction Label and Slide Installation
1 - Back of keypad
2 - Pull-out slide
3 - Instruction label (Writing on other side)
4 - Pull-out slide guide track
5 - Alternate location of pull-out slide
• Use Instruction Label (P/N: 28815) if the keypad(s) you
are installing are for use with the DS7060, DS7080i
Series and DS7400Xi Series Control Panels.
• Use Instruction Label (P/N: 49646) if the keypad(s) you
are installing are for use with the DS7200 Series
Control Panels.
Keypad Notification Possible Causes
DS7445i Continuous
Sounder. The yellow and green wires
have been disconnected
The control panel has
malfunctioned. Replace the
control panel.
DS7447i/DS7447E
Continuous Sounder and
System Fault display.
The yellow and green wires
have been disconnected
The control panel has
malfunctioned. Replace the
control panel.
DS7445I Continuous
Sounder
The keypad has not been
programmed properly at the
control panel.
DS7447i/ DS7447E
Continuous Sounder and
Not Programmed Display.
The keypad has not been
programmed properly at the
control panel.
DS7445i 3-beep Error Tone
on All Keypads.
Two or more keypads have the
same address.
DS7400 Series Only: DS7430
MUX Module not installed
on main board correctly.
Check pin alignment.
DS7400 Series Only: Keypad
and another device on the
option bus have the same
address.
DS7445i/DS7447i/
DS7447E
3-beep Error Tone on All
Keypads and Entry
Error. Please Try
Again Display on
DS7447i/DS7447E Keypad.
Two or more keypads have the
same address.
DS7400 Series Only: DS7430
MUX Module not installed
on main board correctly.
Check pin alignment.
DS7400 Series Only: Keypad
and another device on the
option bus have the same
address.
Table #: One-column Wide
Be careful when installing the label. Place it as
close to the pull-tab as possible.
10.0 Troubleshooting
See Table 5 for troubleshooting tips.
