DSG Technology IPStar User manual

IPStar
Operation Manual
Talk over Internet for Free
DSG Technology, Inc.
http://www.dsgtechnology.com

Chapter 1. Understanding the IPStar
A Brief Overview
No Computer Needed
User-friendly Interface
Main Features
IPStar-to-IPStar Mode
IPStar-to-Phone Mode
Direct-Link Mode
Direct-IP Mode
Free Online Upgrade
Chapter 2. Installing the IPStar
Package Contents
Installing the IPStar
Basic Requirements to Use IPStar
Chapter 3. IPStar Configuration Mode
Entering Configuration Mode
Structure of Configuration Mode
Using Phone Keypad to Configure IPStar
Browsing the Menu
Selecting Between Fixed Values
Editing the Data of an Option
Using Buttons to Configure IPStar
Browsing the Menu
Selecting Between Fixed Values
Editing the Data of an Option
Basic Setup (IPStar-to-IPStar / Direct-Link Mode)
ITSP Setup (IPStar-to-Phone Mode)
Internet Setup
System Setup
TABLE OF CONTENTS
Table of Contents

Chapter 4. Making Internet Calls
Making an IPStar-to-IPStar Call
Making an IPStar-to-Phone Call
Using Direct-Link Mode
Using Direct-IP Mode
Monitoring the Status of IPStar
To End an Internet Call
To Speed-Up the Internet Disconnection
Quick Internet Disconnection
To Receive an IPStar Call
UsingYour Phone Keypad to Trigger IPStar
Chapter 5. Upgrading the IPStar
Upgrade Notification
Restoring Original Version
Chapter 6. How to Get an ITSP Account
(IPStar-to-Phone)
Checking the ITSP Account Balance
Appendix A. Technical Specifications
Appendix B. Troubleshooting
Table of Contents

In the past, real-time voice information is sent over the Public Switched Telephone
Network (PSTN). With the Circuit-Switched Technology, every call takes up a dedicated
bandwidth. End-to-end calls are established on the basis of a sequence of dialed digits,
and the PSTN dedicates a physical path between callers. Although the telephone
equipment establishes the call path at the beginning of the call, the path may change
between calls, but not during any specific call.
A Brief Overview
Understanding the IPStar
Congratulations on the selection of IPStar. Besides being relatively inexpensive
to install and easy to configure, IPStar is the first Internet Telephony appliance that
provides both IPStar-to-IPStar and IPStar-to-Phone capabilities via Internet!
CHAPTER 1
IPStar is a revolution of Voice over Internet Protocol (VoIP) product that offers full
duplex, high quality and low latency voice conversation through the Internet. Choosing
IPStar is an important addition to the home or office for its International and Long-
Distance cost-saving benefits.
Understanding the IPStar 1-1

No Computer Needed
1-2 IPStar Operation Manual
In comparison with a PSTN, an Internet Protocol (IP) Network has a Packet-Switched
architecture. Devices transmit data in packets, and the path from end to end can vary
within an established session. In addition to data, packets also contain addressing
information, which routing devices use to send information to its destination. Routing
devices maintain tables which instruct them how to direct packets. As networking
environments change, routing devices are updated with dynamic protocols.
Traditionally, the PSTN was the only network supporting voice communication. With an
IPStar, voice traffic can be sent over IP-based Packet-Switched networks!
IPStar possesses its own processor and network interface; it works intelligently. Simply
enter the Internet account into the IPStar with the phone keypad and press the
button on the IPStar, then users are ready to talk as long as they wish via Internet. All of
the communication costs will be eliminated except a local Internet connection charge.
No Computer Needed
With a back-lit LCD display and five buttons, IPStar is extremely easy to use and to
configure. The smart setup program allows the IPStar ready-to-go in three minutes. All
the system status can be clearly monitored through the LCD panel.
User - Friendly Interface
• Backward Button
• Downward Button
• Flash Button (Start/Stop/Setting)
• Upward Button
• Forward Button

Main Features
Understanding the IPStar 1-3
IPStar is a unique and efficient electronic device being made. In addition to IPStar-to-
IPStar and Direct Link modes, the unparalleled IPStar-to-Phone and Direct-IP modes
greatly enhance the capability of voice communication by using Internet. IPStar users can
save significantly on Long-Distance and International call charges with these features.
Main Features
If the receiving party is equipped with an IPStar, just dial the phone number as usual and
talk to the remote IPStar owner instantly. When the call is answered, simply press the
on the IPStar and the call will be automatically switched from a regular phone call
to an Internet call.
IPStar-to-IPStar Mode
Every IPStar has the ability to communicate with other Internet Telephony products, such
as DSG IP1000 and DSG IP2000 Gateways*. With an active Internet Telephony Service
Provider* (ITSP) account, users can call all the covered areas with extra-low service rates.
IPStar-to-Phone Mode

Every IPStar comes with a unique six-digit ID number. In Direct-Link mode, simply dial
the ID with a leading key and you will be connected to other on-line IPStar users
immediately. The users will save the cost of an initial Long-Distance call with this
feature.
Direct-Link Mode
IPStar has the ability to communicate with other compatible Internet Telephony products,
such as InterStar, IPStar, or any DSG IP1000 and DSG IP2000 Gateways*. By setting the
IPAddress of receiving gateway, IPStar may route the call to an extension or PSTN via
these compatible gateways.
Direct-IP Mode
Note: To use IPStar-to-Phone mode, callers must apply an active ITSP account number
from DSG compatible ITSPs. Please check www.dsgtechnology.com and refer to
Chapter 6 How to Get an ITSPAccount for further information.
Note: An Internet Telephony Gateway is a gate between Internet and PSTN (Public
Switched Telephone Network). The Internet Telephony Gateway enables callers using
Internet to talk to regular phone users without IPStar.
Main Features
1-4 IPStar Operation Manual

The design of IPStar is extremely flexible. More and more new options and functions will
be added into the IPStar via the online upgrade function. Users are guaranteed to enjoy
the latest added features for instant convenience and hassle-free selections at no cost.
Free Online Upgrade
Note: IP1000 and IP2000 are part of the DSG’s selection of Internet Telephony products.
IP1000 is a stand-alone Internet telephony gateway and IP2000 is an NT-based Internet
Telephony gateway. Please check www.dsgtechnology.com for further information.
Free Online Upgrade
Understanding the IPStar 1-5

User-Friendly Interface
1-6 IPStar Operation Manual

Installing the IPStar
Connecting IPStar is as simple as connecting an answering machine.
CHAPTER 2
In the IPStar package, users will find:
• An IPStar
• An operation manual
• Aquick start guide
• Awarranty card
• An 12V/1ADC power adapter
• An RJ-11 phone cord
Package Contents
Installing the IPStar 2-1

Note: If using an answering machine, please connect it between the wall-jack and IPStar
RJ11 jack labeled LINE.
As shown in the following graph, connecting IPStar is as simple as connecting an
answering machine.
Installing the IPStar
Wall power socket
AC/DC Adapter
Wall RJ11 Phone Jack
Telephone
PhoneLine
Power
1. Unplug the phone from the wall-jack, and plug it into the RJ11 jack labeled PHONE
on the back of IPStar.
2. Plug one end of the phone cord came with the package into the wall-jack.
3. Plug the loose end of the cord into the RJ11 jack labeled LINE on the IPStar.
4. Plug the power adapter into an electrical outlet. Please DO NOT turn on the power
switch yet.
5. Plug the DC adapter connector into IPStar power socket labeled DC 12V.
6. Turn on the power switch of the IPStar.
Install the IPStar
Installing the IPStar
2-2 IPStar Operation Manual

After the power switch is turned on, the
IPStar’s LCD screen will display:
After the system check process, the
IPStar’s LCD screen will display:
DSG IPStar
S
y
ste m Check...
IPStar 00:00:00
Please Wai t
After a few seconds, the IPStar’s LCD
screen will display:
The user can pick up the telephone handset at this stage. If there is a dial tone, that means
the installation has successfully being completed.
IPStar 00:00:00
En
j
o
y
the best
Installing the IPStar
Installing the IPStar 2-3

Please check the following list in order to make an Internet call with the IPStar.
• An active Internet connection
Local Internet access phone number
User name
Password
• Atouch-tone phone
• An analog phone line
• An 110/230Velectrical outlet
Basic Requirements to Use IPStar
Basic Requirements to Use IPStar
2-4 IPStar Operation Manual

IPStar Configuration Mode
With the smart configuration program, IPStar is ready-to-use in three minutes!
CHAPTER 3

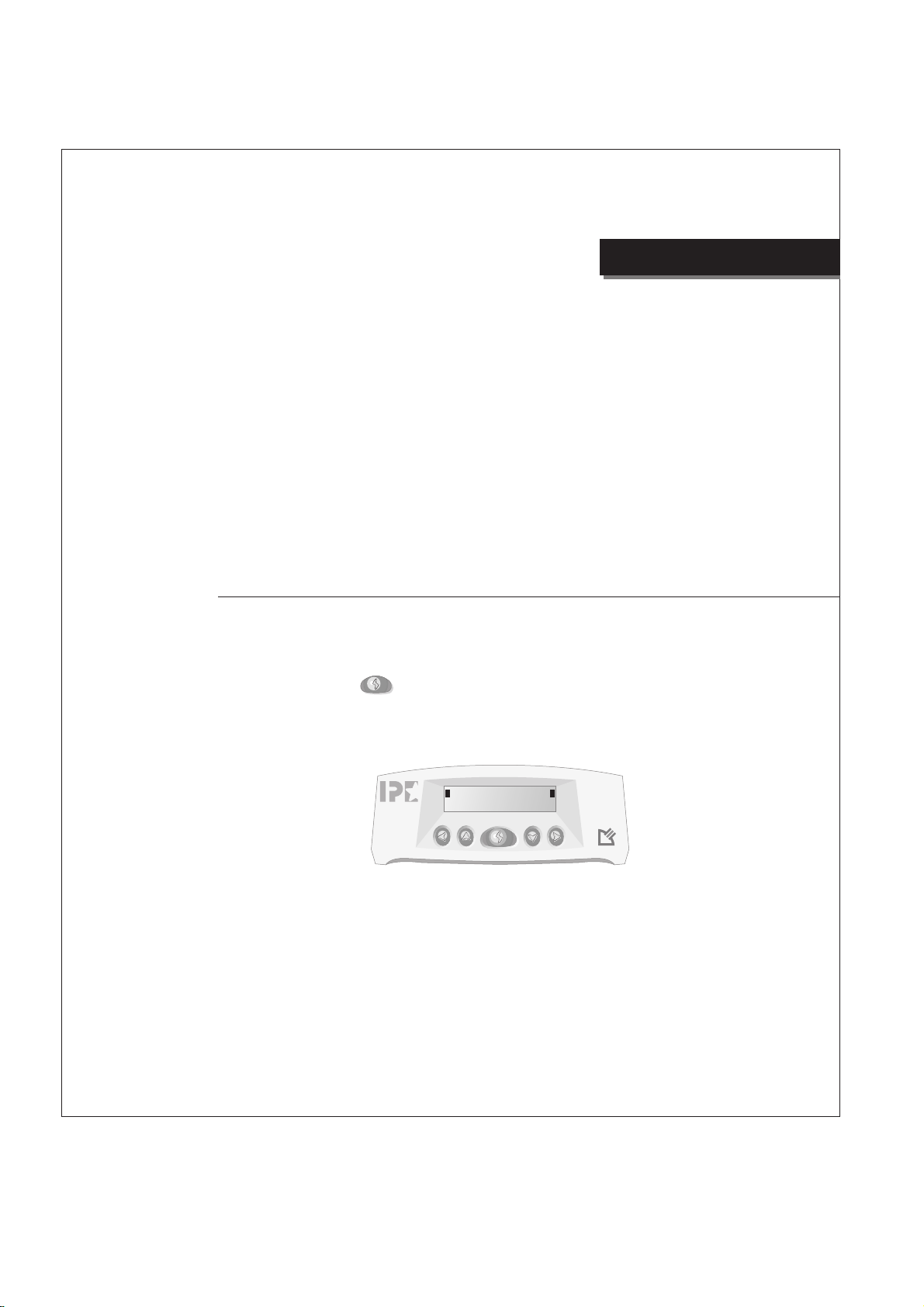

Press and hold IPStar for two seconds. IPStar will switch to Configuration Mode
and display ISP PHONE NO:
Entering Configuration Mode
ISP PHONE NO
IPStar Configuration Mode 3-1

Structure of Configuration Mode
3-2 IPStar Operation Manual
Structure of Configuration Mode
INTERNET SETUP
SYSTEM SETUP
SYSTEM SETUP
EXIT SETUP
ISP USER ID ISP PASSWORD E-MAIL ADDRESSISP PHONE NO
ITSP SETUP
ITSP SETUP
EXIT TO MAIN
LONG DIST CODE
INT'L CODE
COUNTRY CODE
YOUR PHONE NO
ITSP ACCOUNT
INTERNET SETUP
ACTIVE ISP
ISP TEST
ISP PHONE II
ISP USER ID II
ISP PASSWD II
ISP REDIALS
DIAL TIMEOUT
ISP TYPE
PRIMARY DNS
SECONDARY DNS
DIRECT IP
DIALING TYPE
EXIT TO MAIN
DEVICE ID
DATA CONTROL
VAD LEVEL
PLAY VOLUME
VOICE QUALITY
JITTER DELAY
ON-LINE TIME
BACK LIGHT
CALL WAITING
DOWNLOAD NOW
RESTORE
DISABLE
ENABLE
EXIT
EXIT
AUTO UPGRADE
SYSTEM CLOCK
EXIT TO MAIN

Using Phone Keypad to Configure IPStar
Using Phone Keypad to Configure IPStar
To configure the IPStar, use the keypads on the touch-tone phone to scroll
the menu and to input the necessary information for IPStar as below:
Browsing the Menu
Selecting Between Fixed Values
*0
#
back to the previous option
go to the next option
select the option or enter the editing mode
*0
#
back to the previous value
go to the next value
save the setting and leave the editing mode
IPStar Configuration Mode 3-3

Using Buttons to Configure IPStar
Using Buttons to Configure IPStar
The functions for the five buttons on IPStar are described as the following:
Browsing the Menu
Editing the Data of an Option
12
abc
3
def
4
ghi
5
jkl
6
mno
7
pqrs
8
tuv
9
wxyz
*0
#
Tips: Performing hook-flash (momentarily depressing the hook-switch) will save the
current setting and escape to upper menu level.
• back to the previous option
• go to the next option
• select the option or enter the editing mode
backspace and
delete the character add a space
3-4 IPStar Operation Manual
Key Characters
1
1 ~ ! # $ % ^ & * ( ) _ +
: " < > ? - =; ’ / [ ]{ } ‘ \
2
2 a b c AB C
3 3 d e f D E F
4
4 g h i G H I
5
5 j k l J K L
6
6 m n o M N O
7
7 p q r s PQ R S
8 8 t u v TU V
9 9 w x y z WX YZ
0
0 . , @

Using Buttons to Configure IPStar
Selecting Between Fixed Values
Editing the Data of an Option
• back to the previous value
• go to the next value
• save the setting and leave the editing mode
∞ data input (scroll the character set forward)
• data input (scroll the character set backward)
• save the setting and leave the editing mode
back-space and delete the character
• add a space
IPStar Configuration Mode 3-5
0 1 2 3 4 5 6 7 8 9 a b c d e f g h i j k l m n o p q r s t u v w x y z
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z . @ ~ ! # $ %
^ &
*
( ) _ + | : " < > ?
- = ;
,
/ , [ ]{ } ‘ \
backward
forward

Basic Setup (IPStar-to-IPStar / Direct-Link Mode)
1. Press the on IPStar for two
seconds to enter the Configuration Mode.
2. With ISPPHONE NO. displayed, press
to edit this option.
3. Use the keypad on the phone or buttons
on IPStar to input the Internet dialup
phone number obtained from the local
ISP.
4. Press to save and exit edit mode.
Tips: Some of Internet Service Providers (ISP) require the user to input DNS information
or a login script for Internet connection. There are more information about these advance
settings in INTERNET SETUP section.
ISPPhone Number (Required)
Basic Setup (IPStar-to-IPStar / Direct-Link Mode)
Before using the IPStar device, the user needs to subscribe an Internet access line from the
local ISP. To use IPStar-to-IPStar and Direct-Link modes, only ISPPHONE NO., ISP
USER ID, and ISPPASSWORD are required.
ISP PHONE NO
Note: If the IPStar is connected to an extension of a PBX, users need to input a "0" or "9"
and a pause to dial out from the PBX. A comma "," stands for 0.5 second pause and this
can be entered by buttons.
3-6 IPStar Operation Manual

ITSP Setup (IPStar-to-Phone Mode)
ISP PASSWORD
E-MAIL ADDRESS
IPStar Configuration Mode 3-7
1. Use the buttons on IPStar to scroll the menu.
2. With ISP USER ID displayed, press
to edit.
3. Use the keypad on the phone or buttons on
IPStar to input the login name for user’s
Internet account.
4. Press to save and exit edit mode.
ISP User ID (Required)
ISP USER ID
1. Use the buttons on IPStar to scroll the menu.
2. With ISP PASSWORD displayed, press
to edit.
3. Use the keypad on the phone or buttons on
IPStar to input the password for user’s
Internet account.
4. Press to save and exit edit mode.
ISP Password (Required)
1. Use the buttons on IPStar to scroll the menu.
2. With E-MAILADDRESS displayed, press
to edit.
3. Use the keypad on the phone or buttons on
IPStar to input user’s email address.
4. Press to save and exit edit mode.
E-mail Address (Optional)
