DT Research 301Q Assembly instructions

BASIC OPERATION GUIDE

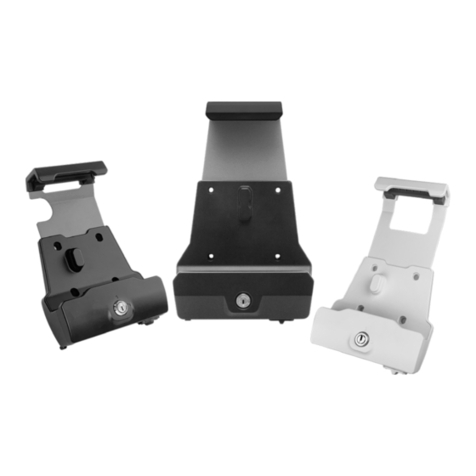

Tablet Mount Cradle
INTRODUCTION
Thank you for acquiring the latest addion to DT Research’s line of tablet accessories – the
Tablet Mount Cradle. Featuring compact, robust design, this cradle provides secure
placement and charging of the tablets whether mounted in vehicles or on the wall. This
innovave cradle provides connecon ports and promotes ergonomic, efficient access and
management of DT Research tablets..
Package Contents
• One (1) Tablet Wall Mount Cradle
• One (1) VESA Conversion Bracket
• Two (2) Keys
• Four (4) Silver Bushes for wall mounng
• Four (4) Black Nuts for VESA mounng
• Eight (8) M4 Screws
For 301Q, 311Q, and 313Q
signage dtri com
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131
Copyright © 2022, DT Research, Inc. All Rights Reserved. BOG 081522 WMCQ ENG
Releasing the Tablet from the Cradle
1. Unlock the Cradle with the key, then slide the latch on the bo�om of the Cradle to
loosen the Top Clasp.
2. Using two hands, hold the Tablet on both sides, pull the tablet up to remove the Tablet
from the Cradle.

For 301Q For 311Q For 313Q
Dimensions
(H x W x D) 10.6 x 6.97 x 2.9 in/ 263 x 177 x 73 mm 10.9 x 6.97 x 2.9 in/ 277 x 177 x 73 mm 11.8 x 6.97 x 2.9 in/ 300 x 177 x 73 mm
Weight 2.42lbs/ 1080g 2.42lbs/ 1080g 2.44lbs/ 1130g
Temperature Operaon: 0°C – 40°C
Storage: -20°C – 60°C
Humidity 0% – 90% non-condensing
I/O Ports
Ethernet 1 x RJ45 1 x RJ45 1 x RJ45
USB 3.0 444
DC-in 111
* Specificaons subject to change without noce.

NOTE: The cradle you receive may look slightly different than the one in this picture
based on the exact model ordered.
NOTE: For proper operation, make sure all necessary connections are in place
before powering on the DT Research Tablet.

Keyhole Keyhole
Top Clasp Top Clasp
OPERATION

The Tablet Mount Cradle supports VESA standard mounng opons (75 mm x 75 mm or
100 mm x 100 mm) so it can be easily a�ached onto a wall, in a vehicle, and on a VESA arm.
2 3

1. Use the key to unlock, and slide the latch on the bo�om of the Cradle to loosen the Top Clasp.
2. Insert the bo�om part of the Tablet into the cradle first with the connector parts
correctly lined up.
NOTE: If using a 100 x 100 VESA stand or arm, the VESA Conversion Bracket is
needed. Please place the VESA Conversion Bracket on the back side of the Cradle,
and apply the four M4 screws.



USB PortsEthernet Port
DC-in Jack
Latch
301Q/311Q/313Q Tablet Mount Cradle



5
3. When the bo�om of the Tablet is in place, push
the Tablet against the back and into the Cradle.
4. Push down on the Top Clasp, so the top poron
of the cradle slides down and locks into the
locked-down posion.
5. Lock the Cradle with the key.
USB PortsEthernet Port
DC-in Jack
Latch
Keyhole Keyhole
Top Clasp Top Clasp
