DTS Titan Solo HP User manual

2
Le informazioni contenute in questo documento sono state attentamente redatte e
controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze.
Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato,
riprodotto per intero o in parte senza previo consenso scritto della D.T.S .
D.T.S. si riserva il diritto di apportare senza preavviso cambiamenti e modifiche
estetiche , funzionali o di design a ciascun proprio prodotto. D.T.S non assume alcuna
responsabilità sull’uso o sull’applicazione dei prodotti o dei circuiti descritti.
The information contained in this publication has been carefully prepared and
checked. However, no responsibility will be taken for any errors. All rights are
reserved and this document cannot be copied, photocopied or reproduced, in part or
completely, without prior written consent from D.T.S.
D.T.S. reserves the right to make any aesthetic, functional or design modifications to
any of its products without prior notice. D.T.S. assumes no responsibility for the use or
application of the products or circuits described herein.
Les informations contenues dans le présent manuel ont été rédigées et contrôlées
avec le plus grand soin. Nous déclinons toutefois toute responsabilité en cas
d'éventuelles inexactitudes. Tous droits réservés. Ce document ne peut être copié,
photocopié ou reproduit, dans sa totalité ou partiellement, sans le consentement
préalable de D.T.S.
D.T.S. se réserve le droit d'apporter toutes modifications et améliorations esthétiques,
fonctionnelles ou de design, sans préavis, à chacun de ses produits. D.T.S. décline
toute responsabilité sur l'utilisation ou sur l'application des produits ou des circuits
décrits.
Las informaciones contenidas en este documento han sido cuidadosamente
redactadas y controladas. Con todo, no se asume ninguna responsabilidad por
eventuales inexactitudes. Todos los derechos han sido reservados y este documento
no puede ser copiado, fotocopiado o reproducido, total o parcialmente, sin previa
autorización escrita de D.T.S.
D.T.S. se reserva el derecho a aportar sin previo aviso cambios y modificaciones de
carácter estético, funcional o de diseño a cada producto suyo. D.T.S. no se asume
responsabilidad de ningún tipo sobre la utilización o sobre la aplicación de los
productos o de los circuitos descritos.

3
INDEX:
1- SYMBOLS.................................................................................................................4
2- GENERAL WARNING ..............................................................................................5
3- GENERAL WARRANTY CONDITIONS....................................................................5
4- TECHNICAL FEATURES .........................................................................................5
5- ACCESSORIES ........................................................................................................6
6- IMPORTANT SAFETY INFORMATION....................................................................7
6.1 Fire prevention......................................................................................................7
6.2 Prevention of electric shock..................................................................................7
6.3 Safety...................................................................................................................7
6.4 Level of protection against the penetration of solid and liquid objects..................7
6.5 Waste Electrical and Electronic Equipment (WEEE) directive..............................8
7- INSTALLATION........................................................................................................8
8- INPUT / OUTPUT CONNECTIONS...........................................................................9
8.1 LED CONNECTIONS.........................................................................................10
9- DMX SIGNAL CONNECTION.................................................................................11
9.1 DMX Addresses..................................................................................................12
9.2 Selecting the DMX address................................................................................12
10- RDM FUNCTIONS ................................................................................................12
11- FIRMWARE UPDATING.......................................................................................13
12- DISPLAY FUNCTIONS.........................................................................................14
13- REC MODE...........................................................................................................17
14- ERROR MESSAGES ............................................................................................17
15- PERIODIC CLEANING .........................................................................................18
16- PERIODIC CONTROLS........................................................................................18
17- DMX PROTOCOL.................................................................................................19

4

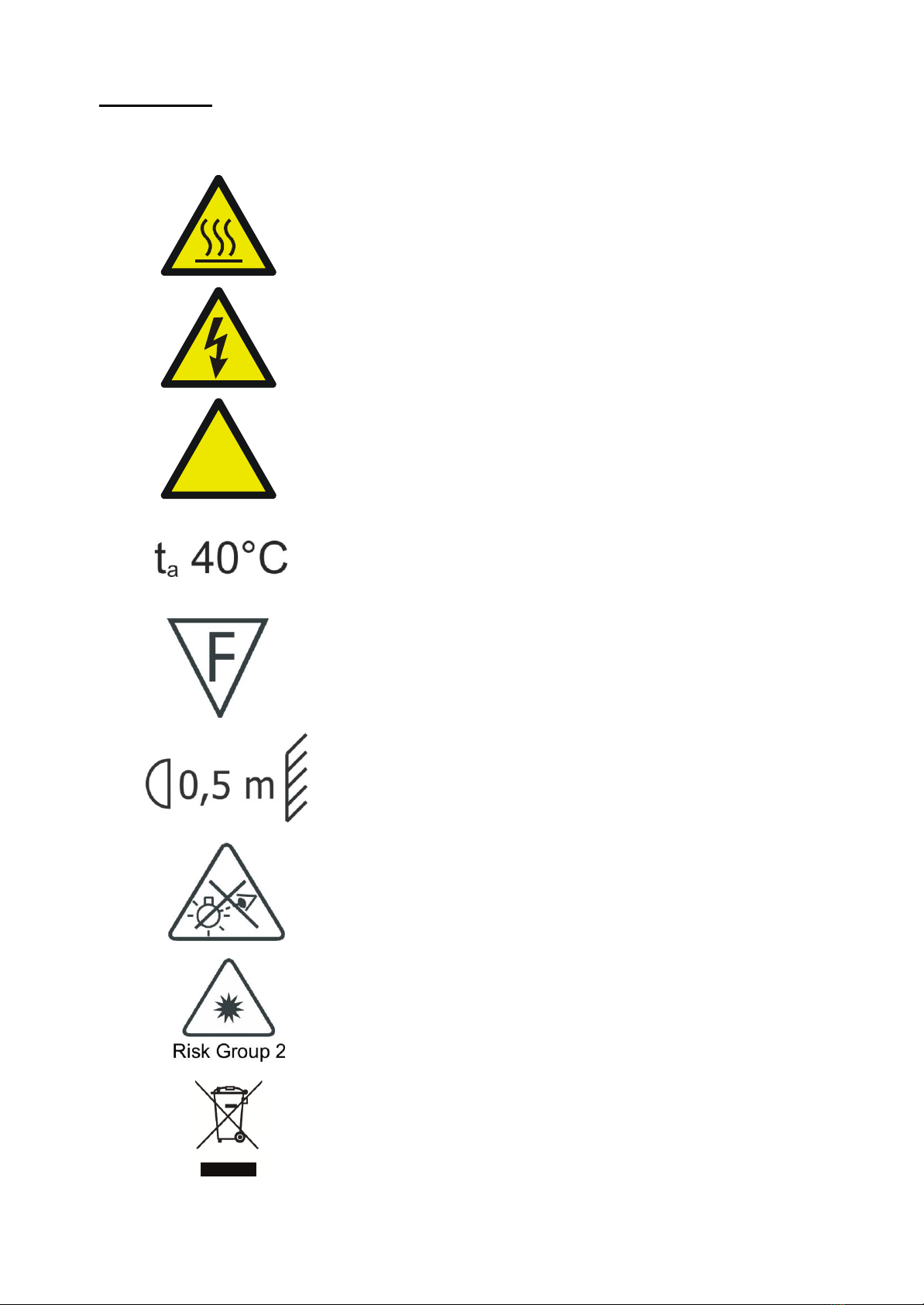

1- SYMBOLS
Graphic symbols used on this manual:
THIS SYMBOL INDICATES A HOT SURFACE
THIS SYMBOL INDICATES ELECTRIC
SHOCK RISK
THIS SYMBOL INDICATES GENERAL RISK
THIS SYMBOL INDICATES THE MAXIMUM
OPERATING AMBIENT TEMPERATURE
THIS SYMBOL MEANS “SUITABLE FOR
MOUNTING ON NORMALLY FLAMMABLE
SURFACES”
THIS SYMBOL INDICATES THE MINIMUM
DISTANCE FROM THE ILLUMINATED OBJECTS
THIS SYMBOL MEANS “DO NOT STARE
AT THE OPERATING LIGHT SOURCE”
THIS SYMBOL INDICATES
PHOTOBIOLOGICAL SAFETY
THIS SYMBOL INDICATES THE EUROPEAN
COMMUNITY DIRECTIVE 2012/19/EC ON
WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT (WEEE)
!

5
2- GENERAL WARNING
Read the instruction contained in this user manual carefully, as they give important
information regarding safety during installation, use and maintenance.
The unit is not for household use and must be installed by a qualified electrician or
experienced person.
Always disconnect the device from the mains before maintenance.
The device must always be equipped with an efficient ground connection.
3- GENERAL WARRANTY CONDITIONS
The unit is guaranteed for 36 months from the date of purchase against manufacturing
material defects.
4- TECHNICAL FEATURES
DTS product codes:
03.LTB001P11FC10 TITAN HP SOLO IP65 FC NARROW lenses Black finishing
03.LTB001P11FC25 TITAN HP SOLO IP65 FC MEDIUM lenses Black finishing
03.LTB001P11FC40 TITAN HP SOLO IP65 FC WIDE Flood lenses Black finishing
LED Technology
12 x OSTAR STAGE “N” FULL RGBW LEDs
Optical group
3 available lenses set: Narrow, Medium flood, Wide flood
Color generation
16 million colors
Wide palette of pure uniform Whites with variable linear color temperature (2700K –
8000K)
Control
DMX 512 / RDM
10 DMX channels (Default)
4-digit 7-segment LED display + 4 soft keys
Protection
IP 65
Power supply
Built-in full-range PSU 100-240Vac 50-60 Hz
Consumption: 200W Max
Connections
Power supply: 3 x 1 sq mm cable (1,5 m length)
DMX In/Out: 0,7 m cable with XLR 5 pins IP65 connector
Operating ambient temperature
-10° / 40°
Weight
6,3 Kg

6
Certifications
2014/35/UE ; 2014/30/UE
IEC 62471 ; IEC 695-2-1
EN 60598-1 ; EN 62471 ; EN 61347-2-13
EN 60598-2-17 ; EN 55015 EMC ; EN 61347-1
DIMENSIONS
5- ACCESSORIES
As standard
1 x PowerCON TRUE1 female cable connector (code 0520P066)
1 x PowerCON TRUE1 male cable connector (code 0520P067)
1 x User’s Manual
Optional (on request)
- Permanent installation kit IP68: Power connector + 2 x DMX In/Out connectors (code
03.LA.214)
- Aliscaf clamp for tube diameter 50 mm (Max load 100 Kg) (code 0521A008)
(indicated for any kind of loads vertical / horizontal)
- “C” Clamp G50 (Max load 10 Kg) (code 0521A012) (not indicated for horizontal load)
- “C” Clamp G60 (Max load 50 Kg) (code 0521A004) (not indicated for horizontal load)
- Professional Quick trigger clamp (Max load 100 Kg) (code 0521A037) (not indicated
for horizontal load)
- Safety cable 3 mm x 60 cm (Max load 60 Kg) (code 0521A010)

7
6- IMPORTANT SAFETY INFORMATION
6.1 Fire prevention:
-It is permissible to place the unit on normally flammable surfaces.
Suitable for mounting on normally flammable materials surfaces greater than 200°C
with some combustion time lag.
-Minimum distance from the closest illuminable surface: 0,5 m.
-Replace any blown or damaged fuses only with those of identical value (T 3.15A
250V). Refer to the wiring diagram if there is any doubt.
-Connect the unit to mains power via a thermal magnetic circuit breaker.
6.2 Prevention of electric shock:
-High voltage is present inside the unit. Unplug the unit prior to performing any
function which involves touching the inside of the projector.
-The level of technology inherent in the TITAN SOLO HP requires the assistance of
specialised personnel for all servicing.
Please refer to an authorised DTS service centre.
-A good earth connection is essential for proper functioning of the unit.
-Never connect the unit without proper earth connection.
-The fixture should be located in places with a good air ventilation.
6.3 Safety:
-Risk Group 2 product according to EN 62471.
CAUTION. Do not look directly into the light output. May be harmful to the eyes and
skin.
-Do not stare at the operating light source.
-The light source contained in this luminaire shall only be replaced by the
manufacturer or his service agent or a similar qualified person.
-The unit is not for household use and must be installed by a qualified electrician or
experienced person.
-The projector should always be installed with bolts, clamps and other tools that are
capable of supporting the weight of the unit.
-Always use a second safety cable to sustain the weight of the unit in case of the
failure of the main fixing point.
-The external surface of the unit, at various points, may exceed 90°C. Never handle
the unit until at least 10 minutes have elapsed since the projector was turned off.
-Never install the fixture in an enclosed area lacking sufficient air flow.
The ambient temperature should not exceed 40°C.
6.4 Level of protection against the penetration of solid and liquid objects:
-The projector is classified as an outdoor appliance and its protection level against the
penetration of solid and liquid objects is IP65.
Suitable for wet locations.
!
!

8
6.5 Waste Electrical and Electronic equipment (WEEE) directive:
-The machine, accessories and packaging should be sorted for environmetal-friendly
Recycling.
For EC countries: according to the European Directive 2012/19/EC for Waste
Electrical and Electronic Equipment and its implementation into national right,
luminaires that are no longer usable must be collected separately and disposed of in
an environmentally correct manner.

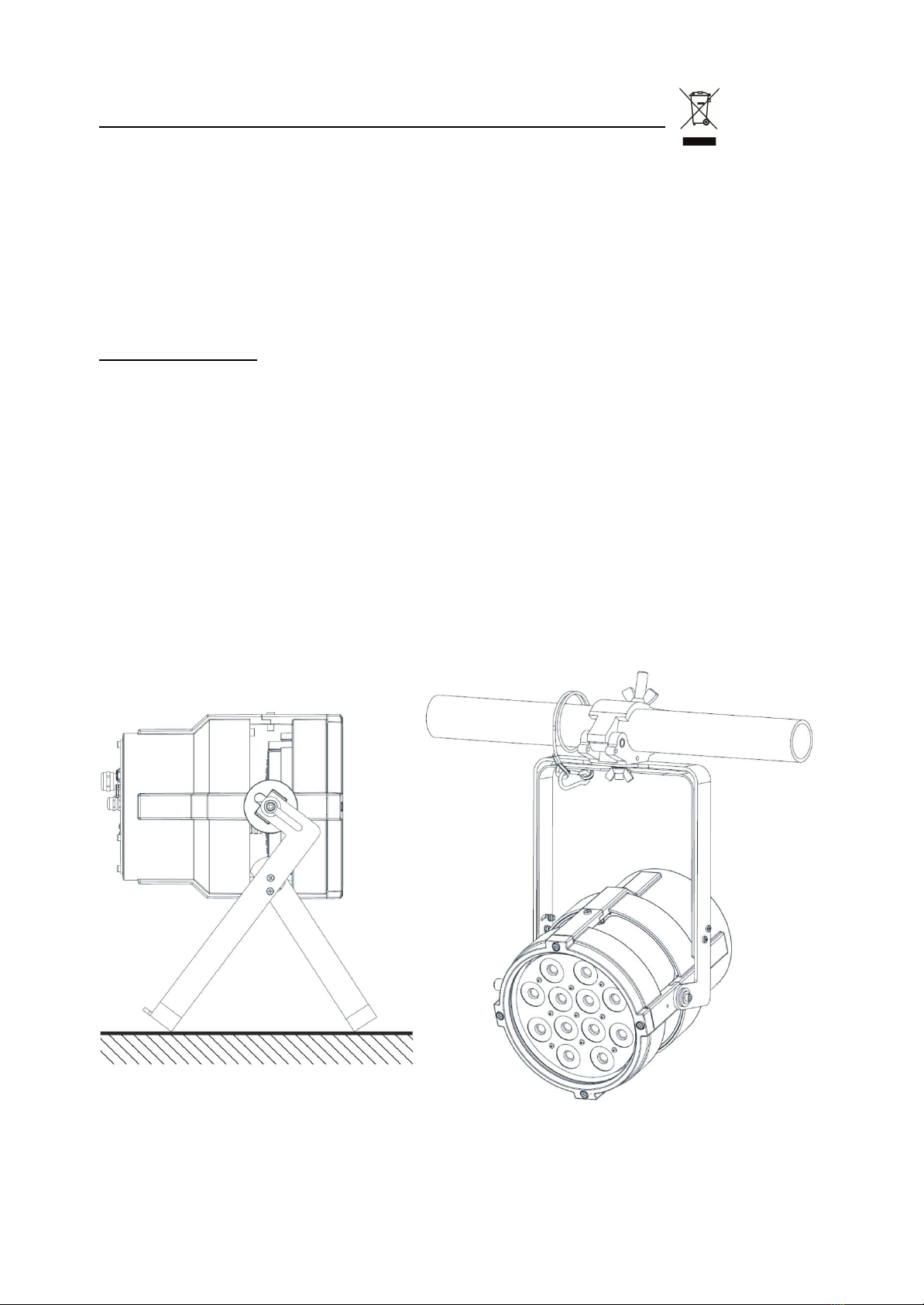

7- INSTALLATION
The unit is suitable for wet locations.
TITAN SOLO HP may be either floor or ceiling mounted.
For ceiling mounted installation, it is recommended the use of appropriate clamps to fix
the unit to the mounting surface.
The supporting structure from which the unit is hung should be capable of bearing the
weight of the unit, as should any clamps used to hung it.
For outdoor application, a permanent installation kit IP68 (code 03.LA.214) is
available on demand.
ATTENTION:
A safety cable (code 0521A010) must be securely fixed to the unit’s mounting bracket
and to the support structure of the projector as shown in the picture.
Fixing clamps and safety cable are available on demand.

9
8- INPUT / OUTPUT CONNECTIONS

10
8.1- LED CONNECTIONS

11
9- DMX SIGNAL CONNECTION:
The unit operates using a digital DMX 512 signal.
Connection between the controller and the unit or between units must be carried out
using a two pair screened ø 0.5 mm.
Ensure that the conductors do not touch each other.
Do not connect the cable ground to the DMX connector chassis.
The plug housing must be isolated. Connect the mixer signal to the DMX IN projector
plug and connect it to the next projector by connecting the DMX OUT plug on the first
unit to the DMX IN plug of the second one.
In this way, all the projectors are cascade connected.
If the display showing the DMX address flashes, then one of the following errors has
occurred:
- DMX signal not present
- DMX reception problem
For Installations where long distance DMX cable connections are needed, we
suggest to use a DMX terminator.
The DMX terminator is a male XLR 3-5 pins connector with a 120 ohm resistor
Between pin 2 and 3.
The DMX terminator must be plugged into the last unit (DMX out panel connector) of
the DMX line.
PLACE A 120 OHM RESISTOR BETWEEN PIN 2
AND 3 OF A MALE XRL CONNECTOR AND PLUG IT
INTO THE DMX OUT PANEL CONNECTOR OF THE
LAST UNIT CONNECTED TO THE DMX LINE
1
2
3
5
4
OUT
120 ohm
PIN 3
PIN 2

12
9.1 DMX addresses
TITAN SOLO HP can be controlled with 10 DMX channels (Default).
In order to use the unit in 10 DMX channels mode (Default), set the following
addresses on the mixer:
Projector 1 A001
Projector 2 A011 If you want to select the next projector, just add “10”
Projector 3 A021
….. A….
projector 6 A051
9.2 Selecting the DMX address
1) Press the UP-DOWN key until you reach the required DMX address. The numbers
on the display will start to flash (but the new DMX address hasn't yet been set).
2) Press ENTER to confirm your selection. The numbers on the display will stop
flashing and the projector is now controlled by the new DMX address.
TIPS: if you keep pushed the UP or DOWN keys, the channels are calculated more
quickly and you get a faster selection.
2) Press ENTER to confirm your selection. The numbers on the display will stop
flashing and the projector is now controlled by the new DMX address.
10- RDM FUNCTIONS
By using a RDM controller it is possible to set DMX address, DMX mode and other
parameters.
TITAN SOLO HP accepts the following RDM commands:
DEVICE_INFO
To read the following parameters:
RDM protocol version
Fixture model ID
Fixture type
Software version ID
DMX channels
DMX mode
DMX address
Total sub-fixtures
Total sensors
IDENTIFY_DEVICE
All LED channels ON at max power to identify the
fixture
DMX_START_ADDRESS
To read / set the DMX address
SOFTWARE_VERSION_LABEL
Software version ID
SUPPORTED_PARAMETERS
List of all supported parameters
PARAMETER_DESCRIPTION
Description / details of Manufacturer Specific
parameter as “NO DMX ACTION”
DMX_PERSONALITY
To set the DMX mode
DMX_PERSONALITY_DESCRIPTION
Description / details of the DMX mode
DEVICE_MODEL_DESCRIPTION
Description / details of the Fixture model
MANUFACTURER_LABEL
Producer ID
SENSOR_DEFINITION, SENSOR VALUE
LED Temperature

13
10- RDM FUNCTIONS
RDM MANUFACTURER-SPECIFIC PIDs
NO DMX ACTION
To set the desired fixture’s behavior in case DMX
signal is missing or not available.
1 = Black-out
2 = All channels @ 60%
3 = All channels @ 100%
4 = CUSTOM (RGBW values set into the menus
“RED NO DMX”
“GREEN NO DMX”
“BLUE NO DMX”
“WHITE NO DMX”
5 = Keep last valid DMX signal (Default)
EMERGENCY MODE
Enable / Disable “EMERGENCY” Mode
0 = Disable
1 = Enable
11- FIRMWARE UPDATING
To update the software version of the TITAN SOLO HP you need:
- DTS RED BOX interface (DTS Code 03.LA.008).
- USB-DMX Driver for the DTS RED BOX interface.
- “DTS Firmware Upgrade Utility v.2.02” program installed on PC.
- Latest firmware release available for TITAN SOLO HP unit.
Updating the software version.
Please follow the procedure below to perform the update:
1. Install the DTS RED BOX USB-DMX driver on the PC you will use to update the unit
software.
2. Connect the DTS RED BOX interface to a spare USB port on the PC (be sure that
internal switch on DTS RED BOX is set to COM).
3. Connect the unit DMX input to the DTS RED BOX DMX output with a standard DMX
cable and turn ON the unit.
4. Send the new software version into the unit by using “DTS Firmware upgrade
Utility v.2.02”program. At the end of the procedure, the unit will reset.

14

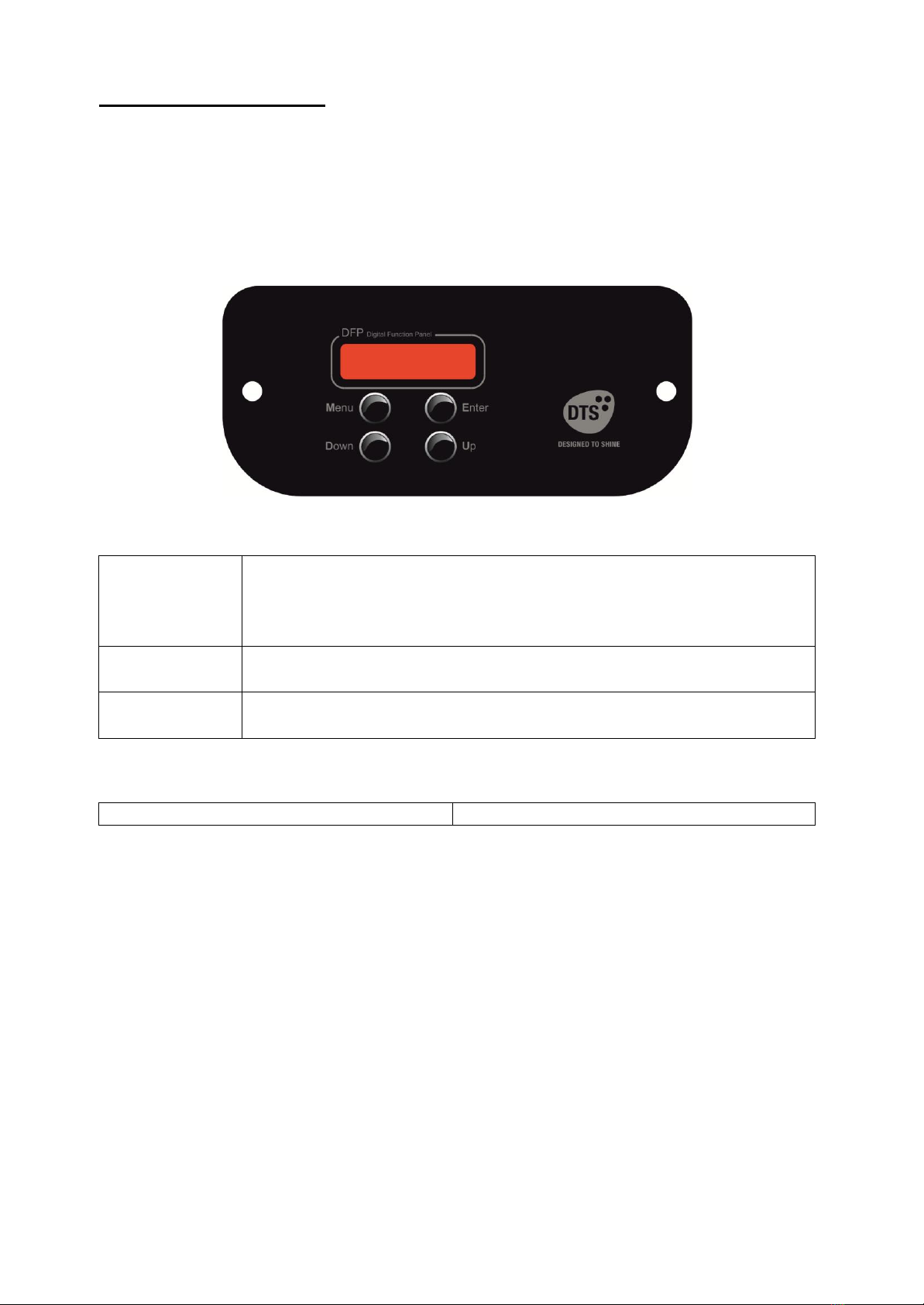

12- DISPLAY FUNCTIONS
The TITAN SOLO HP display panel shows all the available control menus.
Using these options, it is possible to change the fixture’s setting.
Changing the DTS settings can vary the functions of the unit so that it does not
respond to the DMX 512 used to control it. Carefully follow the instructions below
before carrying out any variations or selections.
MENU
To access the control menus in the display panel.
To return to the previous level in the menu structure without
making a change.
To exit the menus.
ENTER
To select any required menu.
To confirm any changes.
UP / DOWN
To navigate the menus structure.
To change any value.
Firmware release
5.21

15
MAIN MENU
LEVEL 1
LEVEL 2
LEVEL 3
FUNCTION




Display normal orientation for
floor mounting position
(Default)


Display inverted orientation for
suspended mounting position



Display always ON (Default)


Display goes OFF after 10
seconds




Allows to select 10 DMX
channels mode (Default)



Allows to select 6 DMX channels
mode (Shutter + Dimmer +
RGBW)



Allows to select 15 DMX channels
mode



Allows to select WALL mode (6
DMX channels)



Allows to select M4CH mode (5
DMX channels: Dimmer + RGBW)



Allows to select RGBW mode (4
DMX channels)



Allows to select 1 DMX channel
mode



Allows to select 16B mode (10
DMX channels: Dimmer 16 bit +
RGBW 16 bit)



Allows to select Dimmer White
mode (dedicated for TITAN CT)



Custom mode (not implemented
on TITAN SOLO HP)



AUX mode (not implemented on
TITAN SOLO HP)



Macro function enables channel
mapping macro rainbow effects
Default = STD






Allows to select the minimum
level for RED (Default = 0)



Allows to select the maximum
level for RED (Default = 100)



Allows to select the minimum
level for GREEN (Default = 0)



Allows to select the maximum
level for GREEN (Default = 100)



Allows to select the minimum
level for BLUE (Default = 0)



Allows to select the maximum
level for BLUE (Default = 100)



Allows to select the minimum
level for WHITE (Default = 0)



Allows to select the maximum
level for WHITE (Default = 100)



Allows to select the value of the
delay (in milliseconds) for Dimmer
channel reaction to DMX or
Program variation.
Off = Instant response to DMX
variation.
4 = 100 ms Smooth response to
DMX variation (Default)
20 = 500 ms Smooth response to
DMX variation.



Allows to select Quadratic
current for linear light output
(Default)


Allows to select Linear current
output



Allows to adjust the PWM
frequency value (Hz) in order to
reduce flickering in the process of
your camera recordings.
Range: 610 Hz –10KHz
Default = 610 Hz



Allows to increase the LED’s
current from 1050mA to 1500mA
per channel
Default = ON





Allows to sync the pulse between
multiple units.
Default = ON



16
MAIN MENU
LEVEL 1
LEVEL 2
LEVEL 3
FUNCTION







Automatic mode without DMX
controller.
Chase with 16 steps previously
created in REC mode.
Speed time and wait time values
(in seconds) selectable by user
(Default = 10).
In Auto mode the unit do generate
DMX for slave units.







16 customizable Colour Macros.
RGBW values selectable by user.
Default = 01









Rainbow colours effect.
Speed time value (in seconds)
selectable by user.
Default = 10





16 Colour Macros as on DMX
channel 9 (MACRO).
Default = 01





16 White color temperature from
2700K to 8000K as on DMX
channel 8 (CCT).
Default = 01



Dimmer level selectable by user
as on DMX channel 2 (DIMMER)
Default = 255



Shutter level selectable by user
as on DMX channel 1
(SHUTTER)
Default = 15



Esc from automatic mode.




In DMX Recorder mode it is
possible to create and store the
scenes of the CHPR menu by
using an external DMX controller.
The unit must be set to 10 DMX
channels mode.
Refer to “REC MODE” at page 16.








Slave mode.
The unit is forced to DMX address
1 and 10 DMX channels mode
receiving signal from the unit set
in Auto mode.


Esc from slave mode




Infrared mode.
(Not implemented on TITAN
SOLO HP)








Wireless DMX.
(Not implemented on TITAN
SOLO HP)










Allows to select the internal fans
speed.
Default = 24V




Enable/disable Emergency Mode
Default = OFF






To restore default settings




LED temperature monitoring




Shows the total unit life time and
the RGBW LEDs life time
















Test mode. (Not implemented on
TITAN SOLO HP)




Software version

17
13- REC MODE
DMX Recorder mode
For the programming of ChPr by using a DMX controller, besides the 10 channels necessary
to control the unit a further 3 DMX channels are needed.
So that in RECORDER mode (via DMX) the unit will need 13 channels to be correctly
programmed.
The three new DMX channels are:
DMX channel 11 = SCENES channel
From 0-10 = no function (r001)
From 11-255 are displayed the programmable scenes (max 16 scenes from M001 to M0016)
DMX channel 12 = EDIT channel:
-From 0-19 = no function
-From 20-234 the unit runs the configuration given by the received input DMX values.
With the channel SCENES it is possible to pass from one step to the next while with REC it is
possible to record the selected scene.
-From 235-255 the unit runs the configuration given by the received input DMX values closing
the sequence as last scene.
With the channel REC it is possible to record the selected scene as last scene.
DMX channel 13 = RECORDING channel
Records the set scene with a variation between 0 to 255 (the display flashes indicating that
the scene has been recorded). It is advised that you keep the REC channel set to 0 and to run
through the 255 only once you have decided to save the scene. If ChPr is not closed, by
indicating the last scene (Edit channel between 235-255), in playback mode all 16 scenes will
be played through even if not programmed.
14- ERROR MESSAGES
ERROR SHOWED ON DISPLAY
APPEARS WHEN

LED thermal sensor damaged (open or in
short circuit).
Unit immediately goes in black-out.

LED temperature detected over 100°C.
Unit immediately goes in black-out.

18
15- PERIODIC CLEANING
Lenses Front Glass:
The dust can reduce the luminous output substantially. Reqularly clean the lenses
front glass using a soft cotton cloth, dampened with a specialist glasses cleaning
solution.
16- PERIODIC CONTROLS
Mechanical parts:
Periodically check all mechanical parts and the gaskets. Please refer to an authorised
DTS service centre for any operation involving of the unit if needed.
Electrical components:
Check for unit proper earthing. Please refer to an authorised DTS service centre for
any operation involving of the unit if needed.
Fuse replacement:
Locate the internal fuse, which protects the electronics, in the TITAN SOLO HP.
Using a multimeter, test the condition of the fuse, replacing it with one of equivalent
type (T 3.15A 250V).
Attention: Disconnect mains power prior to remove the fuse to be tested.

19
17- DMX PROTOCOL
10 CHANNELS MODE (Default)
1 SHUTTER
2 DIMMER
3 RED
4 GREEN
5 BLUE
6 WHITE
7 WHITE PRE-PROGRAMMED
8 CTC
9 MACRO
10 FUNCTION
Ch
Name
Dmx Levels
1
SHUTTER
0..9
Black-out
10..19
Open
20..29
Black-out
30..119
Strobe (from 3,27 s to 30 ms)
120..149
Pulse up (from 42,6 s to 120 ms)
150..179
Pulse down (from 42,6 s to 120 ms)
180..204
Random strobe
205..229
Full independent random strobe
230..234
RED YELLOW CYAN BLUE sequence
230 -> 100 ms for each color
231 -> 200 ms for each color
232 -> 300 ms for each color
233 -> 400 ms for each color
234 -> 500 ms for each color
235..255
Open
2
DIMMER
0..255
Proportional dimmer from min to max
3
RED
0..255
Proportional color from min to max
4
GREEN
0..255
Proportional color from min to max
5
BLUE
0..255
Proportional color from min to max
6
WHITE
0..255
Proportional color from min to max
7
WHITE PRE-
PROGRAMMED
0..55
No function
56..105
Full (R G B W at full)
106..155
DTS White
156..205
Custom White create (RGBW levels selectable by DMX)
206..255
White CTC (channel 8 CTC enabled)
8
CTC
0..255
Linear control temperature correction from 2700K to 8000K

20
Ch
Name
Dmx Levels
9
MACRO
with MACR = STD
0..14
No function
15..29
Macro 1
30..44
Macro 2
45..59
Macro 3
60..74
Macro 4
75..89
Macro 5
90..104
Macro 6
105..119
Macro 7
120..134
Macro 8
135..149
Macro 9
150..164
Macro 10
165..179
Macro 11
180..194
Macro 12
195..209
Macro 13
210..225
Macro 14
226..239
Macro 15
240..255
Macro 16
9
MACRO
with MACR = EXT
0..14
No function
15..22
Macro 1
23..30
Macro 2
31..38
Macro 3
39..46
Macro 4
47..54
Macro 5
55..62
Macro 6
63..70
Macro 7
71..78
Macro 8
79..86
Macro 9
87..94
Macro 10
95..102
Macro 11
103..110
Macro 12
111..118
Macro 13
119..126
Macro 14
127..134
Macro 15
135..142
Macro 16
143..150
Rainbow Speed 1 (1 s)
151..158
Rainbow Speed 2 (5 s)
159..166
Rainbow Speed 3 (10 s)
167..174
Rainbow Speed 4 (20 s)
175..182
Rainbow Speed 5 (30 s)
183..190
Rainbow Speed 6 (60 s)
191..198
Rainbow Speed 7 (120 s)
199..206
Rainbow Speed 8 (180 s)
207..214
Random Speed 1 (0,5 s)
215..222
Random Speed 2 (1 s)
223..230
Random Speed 3 (2 s)
231..238
Random Speed 4 (5 s)
239..246
Random Speed 5 (10 s)
247..255
Random Speed 6 (30 s)
10
FUNCTION
0..79
If channel 7 WHITE PRE-PROGRAMMED = DMX range value 156-205: Custom White recall
80..160
Custom White create (enable custom white creation)
161..255
Custom White store (store the custom white created)
