DTT SYSTEM PERFECT SUN 32P User manual

Unpacking and Inspection
The canopy box contains the canopy, a pair of gas springs, assembly
hardware and the skirt. The bench box contains the bench and the
stand legs. Inspect the items and make sure they are free from any vis-
ible damage. Report the extent of any damage to the transportation
company.
30198-01A - Page 1
WARNING
Wear protective eyewear.
Failure to may result in severe burns or longterm injury to the eyes.
DANGER
Shock hazard.
Disconnect power before servicing or removing any protec-
tive covers.
Do not operate this device near water or while you are wet.
DANGER
Some medications may increase your sensitivity to ultraviolet light. It
is recommended that you consult a physician before using this
sunbed if taking any medication or if you suspect that your skin might
be especially sensitive to sunlight.
CAUTION
Air from the room is used to cool the sunbed. Maximum ambient room
temperature should be 80°F. Place your sunbed no closer than 6” from
any wall. Make sure nothing obstructs the airflow into the sunbed’s
endcaps or out of the fan openings. A poorly ventilated room may
cause the unit to become hot and cause discomfort to the user.
Ultraviolet radiation. Follow instructions. Avoid overexposure. As with
natural sunlight, overexposure can cause eye and skin injury and
allergic reactions. Repeated exposure may cause premature aging of the skin and skin cancer.
WEAR PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE BURNS OR
LONGTERM INJURY TO THE EYES. Medications or cosmetics may increase your sensitivity
to the ultraviolet radiation. Consult physician before using sunlamp if you are using medications
or have a history of skin problems or believe yourself especially sensitive to sunlight. If you do
not tan in the sun, you are unlikely to tan from the use of this product. Children, the elderly, or
fair skinned people who always burn easily and either never tan or tan minimally should not use
this equipment.
To use, lie down on bench and pull canopy down as far as adjustment will allow maintaining
at least 2 inches (5.1 centimeters) between your body and canopy clear plastic panel, other-
wise overexposure may occur. Do not use without clear plastic panels in place. Untanned per-
sons should not tan on consecutive days during their first week of tanning. Never tan more than
once a day. Tanning normally appears after the first few sessions and maximizes after approxi-
mately four weeks. Tan once or twice per week thereafter to maintain appearance. Persons
already having a base tan may begin at advanced levels corresponding to the extent of their
base tan.
Skin Type:
ISensitive Skin (Burns easily and severely and does not tan.)
II Light Skin (Burns easily and severely and tans minimally.)
III Normal Skin (Burns moderately and tans average.)
IV Dark Skin (Burns minimally, tans easily and above average.)
New lamps emit approximately 10% more ultraviolet radiation during the first 50 hours of
operation. Recommended tanning times should therefore be reduced by approximately 10%
during that period.
WARNING: • Read these instructions before using this sunlamp product. • All persons in the
room should wear protective eyewear when lamps are on. Recommended eyewear: provided
eyeshields or equivalent eyewear as defined under 21 CFR 1040.20. Other types of eyewear
may not provide adequate protection. Failure to use protective eyewear may result in severe
burns or other eye injury. If discomfort develops, discontinue use and consult a physician.
THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THE 32P:
DARK TAN® II Wolff® Model DTII 71-T12 100W BI-PIN (below)
XS-Power Wolff® Model XSP71-T12-100W BI PIN (below)
DARK TAN® Wolff® Model DT71-T12-100W BI-PIN (below)
DARK TAN® Dual Twist Model DTDT 71-T12-100W BI-PIN (below)
XS-Power Dual Twister ™ Voltarc ® Model XSPDT71-T12-100W BI PIN (below)
XS-Power 2 Tone Twist Model XSP2T 71-T12-100W BI-PIN (below)
THIS EQUIPMENT MUST BE EARTH GROUNDED.
This product is in conformity with performance standards
for sun lamp products under 21 CFR PART 1040.20 and
ANSI/UL Standard 482.
88465
DISCONNECT POWER CORD BEFORE ATTEMPTING TO CLEAN, RELAMP, OR
ENGAGE IN THE MAINTENANCE OF THIS PRODUCT.
DANGER
RECOMMENDED EXPOSURE TIMES IN MINUTES
Level 1/Week 1 Level 2 Level 3 Level 4 Level 5
Skin Type: 1st-3rd Sessions
I Sensitive NOT RECOMMENDED FOR TANNING
II Light 3 6 10 14 17
III Normal 4 7 11 15 17
IV Dark 5 9 131717
MAXIMUM EXPOSURE TIME IS 17 MINUTES
Electrical Requirements
Your sunbed operates from a 120V AC source. You should have a
NEMA 5-20R electrical outlet (below), on a dedicated circuit capable
of providing 20 Amp service, installed in the room in which you will
use the unit. We recommend installation by a professional electrician.
The outlet must be earth grounded. 20 AMP NEMA #5-20R
RECEPTACLE

Page 2 - 30198-01A
Lay the bench upside down on the
floor. Locate the two stand legs.
1
Remove the six 5/16” x 1” bolts and
5/16” washers installed in the bench.
Attach the stand legs, with the four small
skirt mounting holes toward the back, by
installing the center bolt first. You may
have to gently push the sides of the legs
in to align holes. Tighten with the Allen
wrench.
2
SKIRT MOUNTING HOLES
Assembly Procedures
(ELECTRICAL CONNECTOR
INDICATES BACK OF BENCH)
While the bench is upside-down attach the trian-
gular skirt mounting brackets. Locate the two
brackets and attach them as shown with two #10-
32 x 1/2” screws and star lock washers. Make sure
the threaded inserts point toward the stand legs
and the wide end is toward what will be the floor.
3
Allen-head Bolt 5/16” x 1”
Quantity 2
5/16” Metal Washer
Quantity 2
Bushing
Quantity 2
Allen-head Bolt 5/16” x 1 1/2”
Quantity 2
Nylon Washer
Quantity 2
Hinge Brackets
(1) left, (1) right
Hex (Allen) Wrench
Quantity 1
Safety Goggles
Quantity 1
Hardware Inventory (These items, Velcro® and a small pillow)
Star Lock Washer
Quantity 8
#10-32 x 1/2” Screw
Quantity 8
Skirt Retaining Bracket
Quantity 2
Skirt Mounting Bracket
Quantity 1-left, 1-right
Attach the side skirts to the mounting
brackets with two #10-32 x 1/2” screws
and star lock washers from inside the
skirt and into the brackets. The rounded
part of the side skirts points toward the
front of the bed.
4

30198-01A - Page 3
The front skirt panel is held in place by adhesive backed
Velcro® strips. Clean each place the adhesive will touch
with rubbing alcohol (see right). Peel off the backing paper
from the two large pieces and adhere them to the stand legs.
Stick a long, narrow strip on each side of the side skirts in
the indentation. The last piece attaches the tab on the top of
the front skirt to the bottom of the bench cover.
5
Peel the remaining backing paper from the
Velcro strips and press the front skirt in place.
6
VELCRO STRIPS
VELCRO STRIP
SIDE SKIRT
FRONT SKIRT
LEG
RETAINING BRACKET
Using the front leg mounting bolt, secure
the L-shaped Skirt Retaining Bracket so it
clamps the front and side skirt to the
bench cover. Place the retainer bracket
so the tab holds the front skirt as shown.
Repeat for the other side.
7
SHORT BOLT
Turn bench over. Install hinge brackets to ends of bench such
that the short boss engages the stud above the bolt hole, and
the long boss engages the hole below the bolt hole. Secure
using 5/16” x 1” Allen-head bolts and 5/16” metal washers.
Tighten bolt snug, then an additional half turn.
8
STUD
Place the bushings
into hinge brackets.
9

Page 4 - 30198-01A
THREADED
LOCKING RING
RECEPTACLE
ON BENCH
CANOPY TO BENCH
POWER CORD
Connect the canopy to
bench power cord to the
bench receptacle. Align the
terminals and firmly push
on until seated then tighten
the threaded locking ring.
15
Plug the three-prong 120V AC
power cord into a dedicated outlet
(see Electrical Requirements).
16
PIVOT STUD

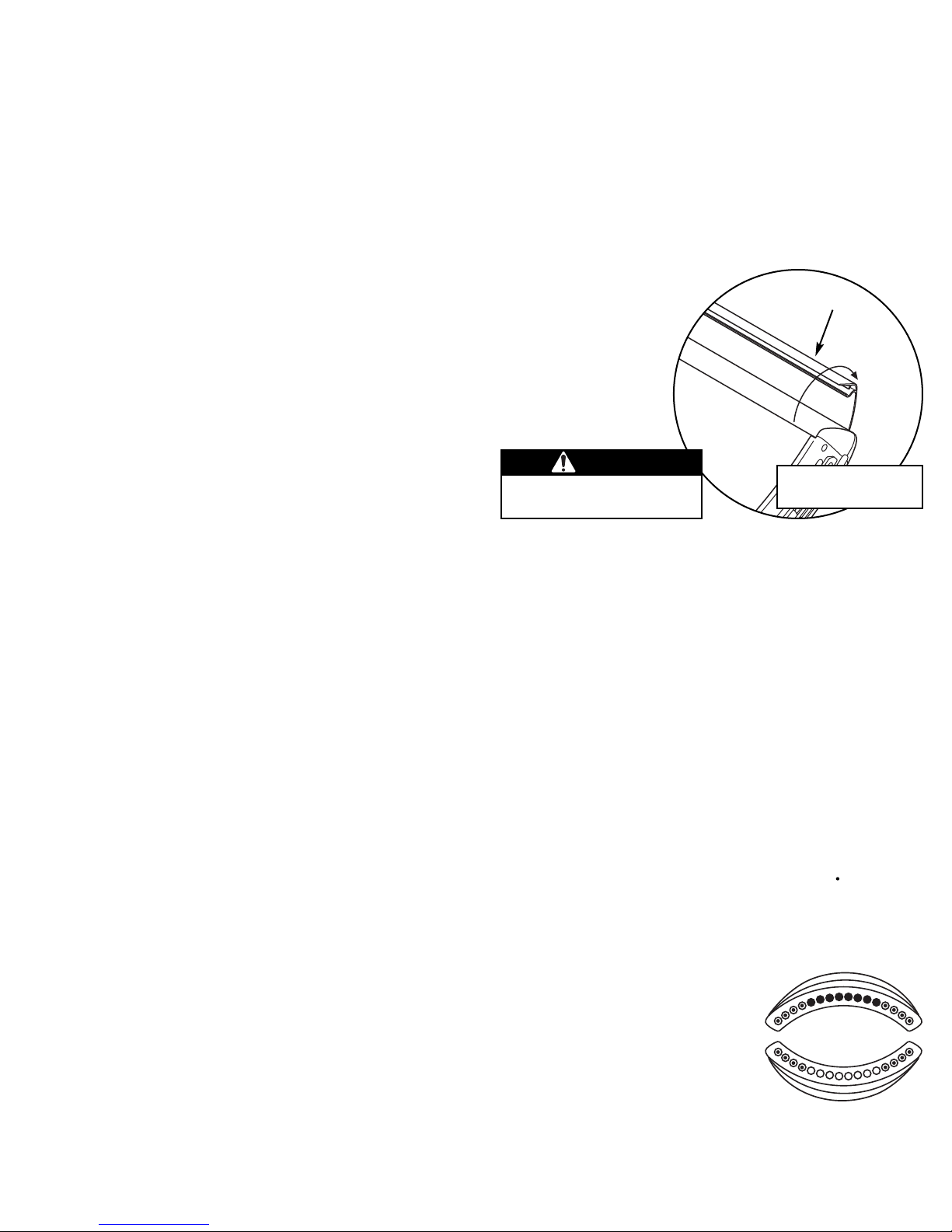

CAUTION
Failure to engage locking clips may
result in the ball joints working loose,
allowing the canopy to fall, which may
result in damage to the unit and injury.
Ty p e 1
Pry back the
locking clip
with a flat
screwdriver.

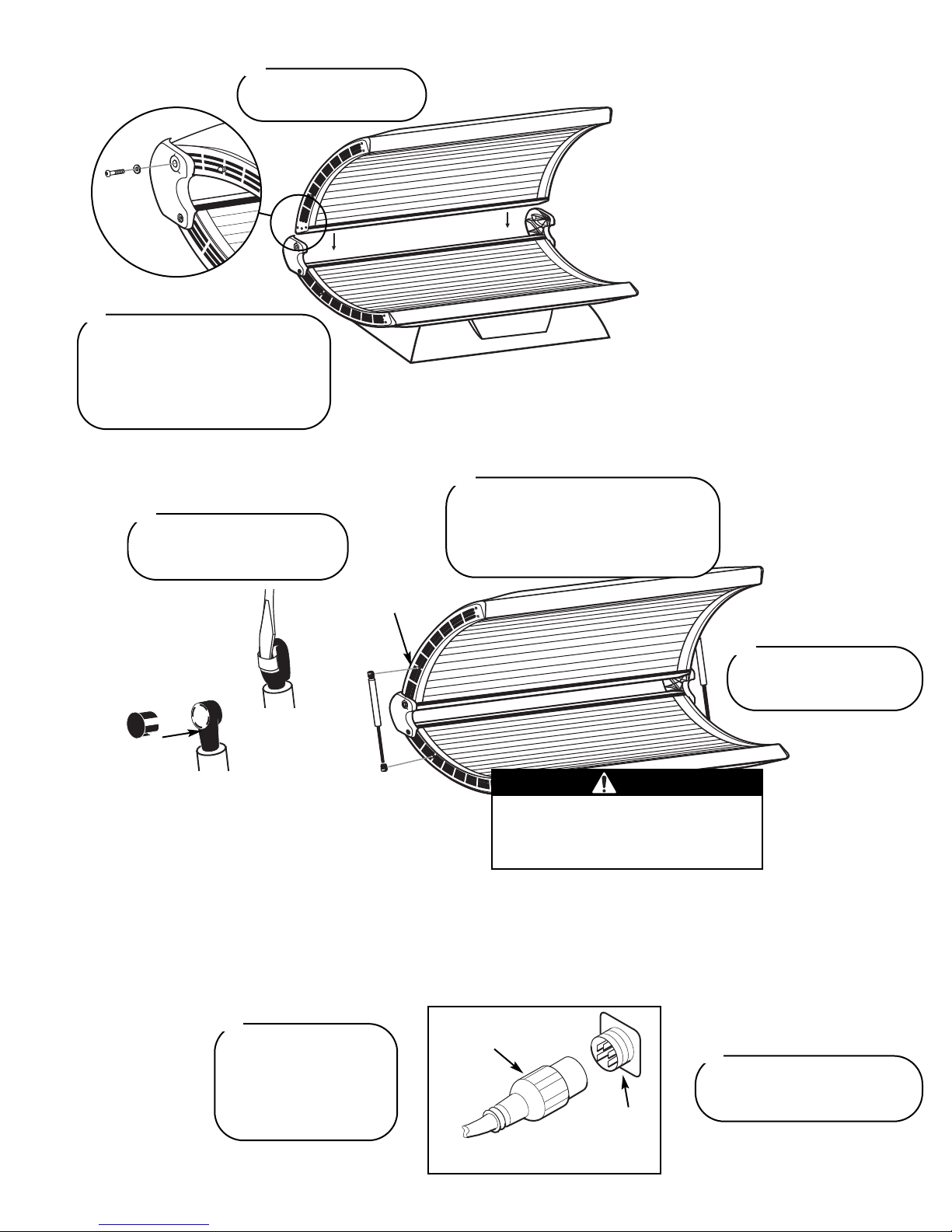

The gas springs have a locking
mechanism. Follow the directions
below for the type you received.
12
With a helper holding the canopy open,
align ends of gas spring ball joints with
pivot studs and push into place. Be sure
rod end is down as shown. DO NOT lower
canopy until both gas springs are engaged!
13
Lift and lower canopy a few
times to lubricate gas springs
for optimum performance.
14
Ty p e 2
Remove locking
clip to install or
remove gas spring.
Lift the canopy and hold it
between the hinge brackets.
10
Insert 5/16” x 1 1/2” bolts with nylon
washers into both hinge brackets.
Tighten bolts into the endcap threaded
inserts until snug, then an additional
half turn. Do not overtighten to avoid
damaging threaded inserts.
11

30198-01A - Page 5
1Press the timer button (B) to begin the tanning session. The timer dis-
play (A) displays the remaining time. The lamps will turn on and the
timer will begin to count down from the maximum tanning session
time. If a tanning time less than the displayed time is desired repeat-
edly press the timer button (B) to decrease the remaining time.
2Lift the canopy, lie down on the bench (face up), lower the canopy
as close to your body as possible, with no less than 2” between the
canopy acrylic and your body.
3When the timer reaches “0” the lamps turn off. If you want to stop
your session before time expires, press the stop button (C).
4Raise the canopy by pushing the outer edge of the canopy.

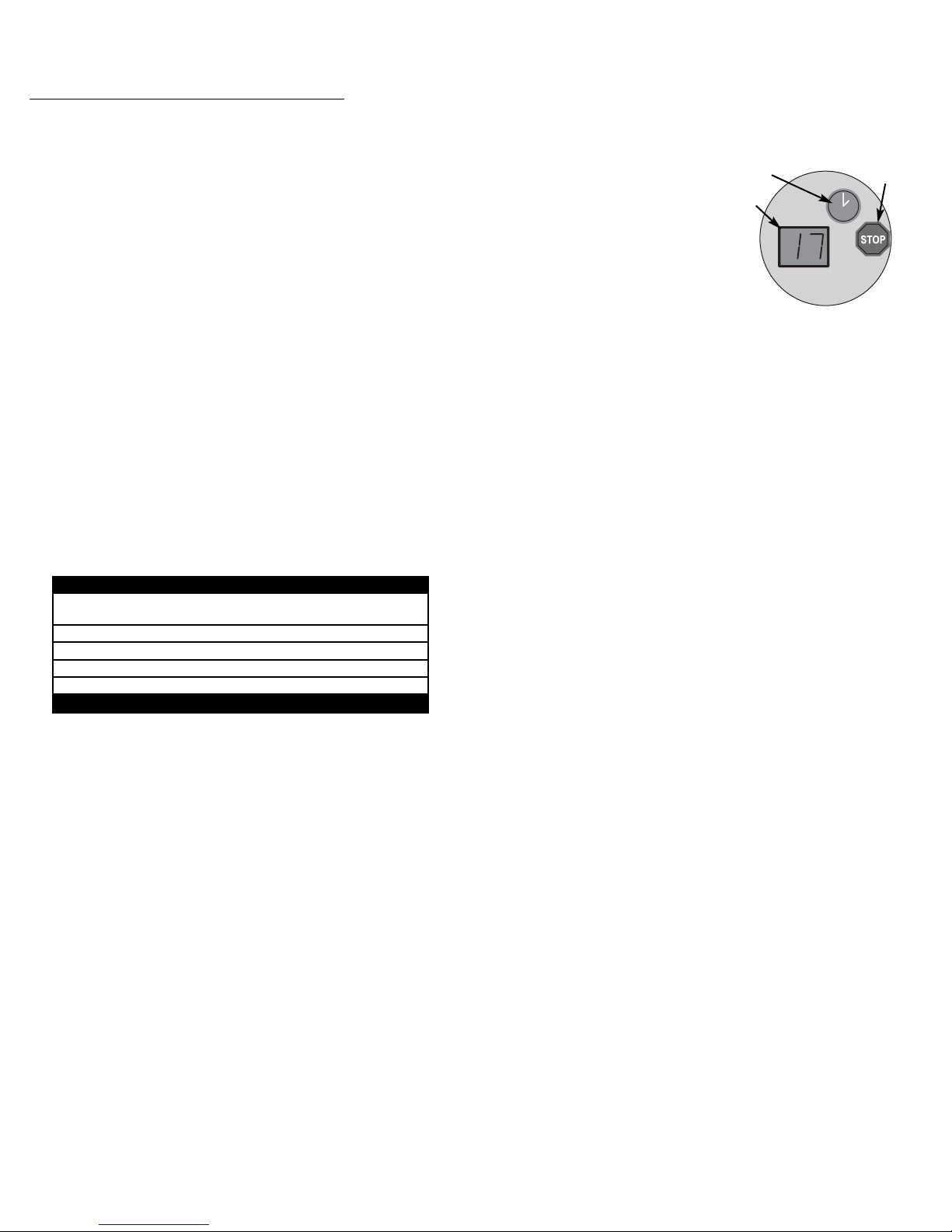

A Timer display - Displays remaining time.
B Timer button - Turns bed on. Timer dis-
play shows remaining time. If a lesser
time is desired, press timer button
until desired time is displayed.
C Stop button - Interrupts tanning session.
A
B
Using Your Sunbed
Before using your sunbed, please note the following:
• Your skin should be free of cosmetics, tanning oils, or other body
lotions prior to tanning except for those specifically made for use
with tanning devices. However, do not remove natural body oils by
bathing or showering immediately before tanning.
• Keep treated hair from contacting sunbed surfaces. Many hair prod-
ucts can damage the sunbed acrylic. Wear a shower cap or towel if
you use gels, mousses, sprays, or other hair products.
• Your sunbed is designed for individual use. Always wear the safety
goggles supplied with your sunbed or another approved pair of gog-
gles, as defined under 21 CFR 1040.20. Regular sunglasses do not
provide adequate protection from ultraviolet light.
Exposure Times
Follow the guidelines for skin type and exposure times as shown in the
table below. Untanned persons should not tan on consecutive days
during their first week of tanning. Never tan more than once a day.
Tanning normally appears after the first few sessions and maximizes
after approximately four weeks. Tan once or twice per week thereafter
to maintain appearance. Persons already having a base tan may begin
at advanced levels corresponding to the extent of their base tan.
Skin Type:
ISensitive Skin (Burns easily and severely and does not tan.)
II Light Skin (Burns easily and severely and tans minimally.)
III Normal Skin (Burns moderately and tans average.)
IV Dark Skin (Burns minimally, tans easily and above average.)
C
RECOMMENDED EXPOSURE TIMES IN MINUTES
Level 1/Week 1 Level 2 Level 3 Level 4 Level 5
Skin Type: 1st-3rd Sessions
I Sensitive NOT RECOMMENDED FOR TANNING
II Light 3 6 10 14 17
III Normal 4 7 11 15 17
IV Dark 5 9 131717
MAXIMUM EXPOSURE TIME IS 17 MINUTES
Operation
This sunbed is equipped with a control key lock on the timer bezel,
allowing you to monitor usage by children and/or others. To activate,
insert the key into the lock and turn, horizontal to lock and vertical to
unlock. You may remove the key in either position.
