Dual XHDR6435 Operating instructions

INSTALLATION/OWNER'S MANUAL

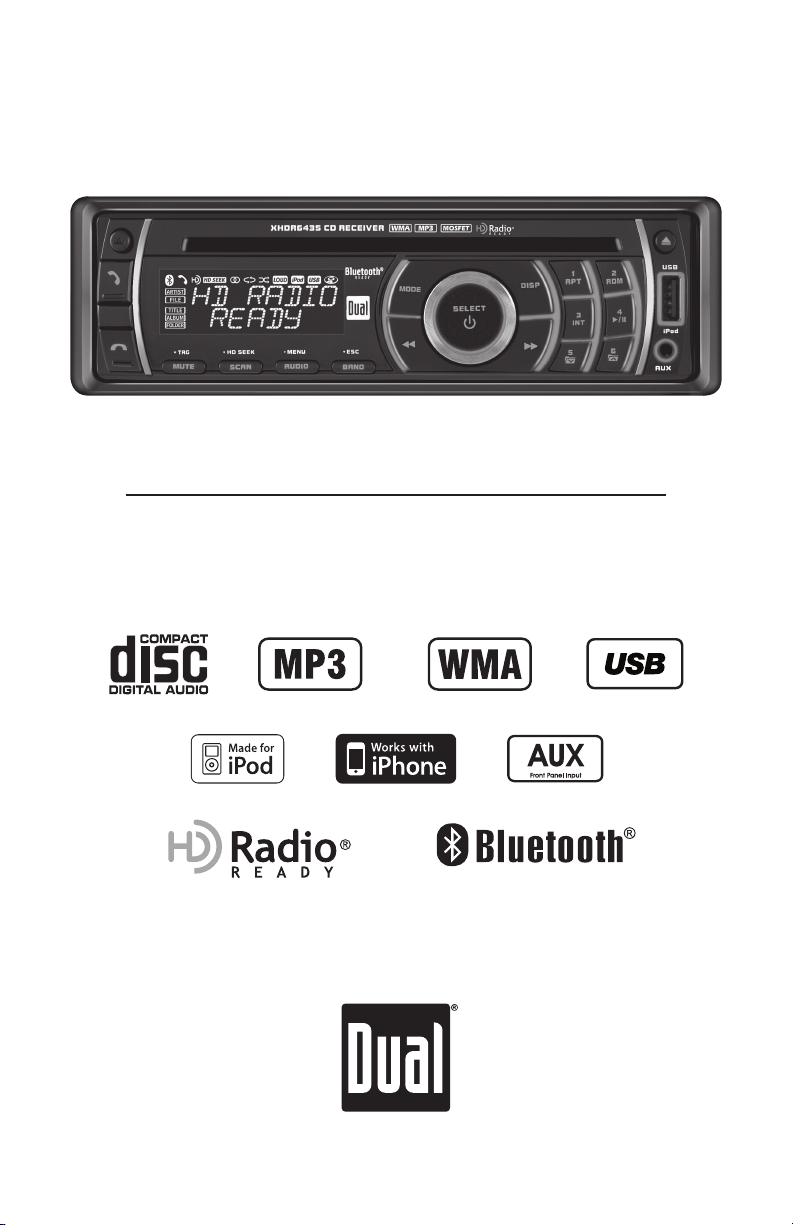

CD Receiver with Detachable Face
XHDR6435
READY

2
TYPICAL FRONT-LOAD DIN MOUNTING METHOD
Please read entire manual before installation.
Before You Start
•Disconnectnegativebatteryterminal.Consultaqualifiedtechnicianforinstructions.
•Avoidinstallingtheunitwhereitwouldbesubjecttohightemperatures,suchasfrom
directsunlight,orwhereitwouldbesubjecttodust,dirtorexcessivevibration.
Getting Started
•Removetrimringfromunit,
•Remove2transitscrewslocated
ontopoftheunit.
•Insertthesuppliedkeysintothe
slotsasshown,andslidetheunit
outofthemountingsleeve.
•Installmountingsleeveinto
opening,bendingtabstosecure.
•Connectwiringharnessand
antenna.Consultaqualified
technicianifyouareunsure.
•Certainvehiclesmayrequirean
installationkitand/orwiring
harnessadapter(soldseparately).
•Testforcorrectoperationandslide
intomountingsleevetosecure.
•Snaptrimringintoplace.
XHDR6435 INSTALLATION
Preparation
KEYS
HEX BOLT
MOUNTING SLEEVE
PLAIN WASHER
HEX NUT

3
FUSE
Whenreplacingthefuse,
makesurenewfuseisthe
correcttypeandamperage.
Usinganincorrectfuse
coulddamagetheradio.
TheXHDR6435usesone
10ampATMfuselocated
besidethewiringconnector.
XHDR6435 INSTALLATION
Wiring Diagram
Antenna
Connector
Steering Wheel Interface Input
PAC SWI-PS connection
(sold separately)
FRONT R/SUB
L-CH
R-CH
REMOTE IN
BLACK 8-pin Female Mini-DIN
BTM60 Connection (sold separately)
BLUE 10-pin Female Mini-DIN
HDM90 Connection (sold separately)
REAR/SUB
(selectable)
RCA Preamp Output
Connections
FRONT

4
XHDR6435 OPERATION
Control Locations - Receiver
Folder Name
AlbumName
SongTitle
File Name
1
2
3
4
Release
Talk
Mode
Power( )/Select
Display
Preset1/Repeat
Preset3/Intro
1
2
3
4
5
6
7
ArtistName
BluetoothConnected
PhoneCall
HDRadioStation
7
8
5
6
HDSeekMode
Stereo/Mono
RepeatSong
RandomSongPlayback
11
12
9
10
Preset2/Random
Preset4/Play/Pause
CDEject
USBPort
AuxiliaryInput
Preset6/FolderUp
Preset5/FolderDown
8
9
10
11
12
13
14
Loudness
iPod®DeviceConnected
USBDeviceConnected
CDLoaded
13
14
15
16
Tune/TrackUp
Tune/TrackDown
Band/ESC
Audio/Menu
Scan/HDSeek
Mute/Tag
EndCall
15
16
17
18
19
20
21
1
2
3
4
5
10 11 12 13 146 8 15
7 9 16
LCD Icons
12 4 5678109
3
21 15 14 13 12 11
20 19 18 17 16

5
Control Locations - Remote
Key9
Mute/EndCall
Key0/Display
Talk
Key8/Tag
Key7
Preset4/Play/Pause
Preset1/Repeat
Band/ESC/Key*
Tune/TrackDown
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
Mode
Power( )/Select
VolumeUp
Audio/Menu
Tune/TrackUp
VolumeDown
Scan/HDSeek/Key#
Preset3/Intro
Preset2/Random
Preset6/FolderUp
Preset5/FolderDown
2 3
6
5
8
7
10
19
12
13
17
18
9
20
15
16
21
XHDR6435 OPERATION
1 4
14
11
21
11

6
General Operation
XHDR6435 OPERATION
Faceplate Removal
Semi-Permanent
Faceplate Installation
Power On/Off
Mode
Auxiliary Input
Steering Wheel Interface
Input
Volume
Mute
Reset
Display
Set the Clock
Press RELEASEandpullawayfromtheleftsidetoremove.
Tore-install,insertrightsideoffaceplatefirstthenpush
leftsidetosecure.
Removetrimringandinstallsupplied#1x7/32”Phillips
headscrewthroughleftsideofmountingframeintofaceplate.
Press oranyotherbutton(excepteject)toturntheuniton.
Insertingadiscwillturntheunitonautomatically.Pressand
hold toturntheunitoff.
Press MODEtoselectbetweenAM/FM,CDplayer,operation
of iPod,USB,auxiliaryinputandBluetoothmodes.Modesof
operationareindicatedinthedisplay.
Note: "HDRADIO"willappearwhentheHDM90HDRadio™
tunerisconnected(soldseparately).CDmodewillnot
appearunlessaCDisinserted.USBmodewillnotappear
unlessaUSBdeviceisconnected.OperationofiPodmode
willnotappearunlessaniPoddeviceisconnected.Bluetooth
modewillnotappearunlesstheBTM60Bluetoothmoduleis
connected.
Insert3.5mmplugtoconnectyourportableaudiodevice.
Thesteeringwheelinterfaceinputlocatedonthebackofthe
headunitallowsconnectiontothePAC (Pacific Accessory
Corporation) SWI-PSinterfacemodule(soldseparately).Visit
www.pac-audio.comfordetails.
Toconfiguresteeringwheelcontrols,followtheinstructions
providedwiththePAC SWI-PSinterfacemodule.After
installingtheinterfacemodule,insertthemodule's3.5mm
jackintotheportonthebackoftheheadunit.
Adjustvolumeusingvolumeknob(00-46).
Press MUTE tosilencetheaudio.“MUTE”willflashinthe
display.PressMUTEagaintocancel.
Press to RESETtheunituponinitialinstallationorif
abnormaloperationoccurs.Theresetbuttonislocated
behindthefaceplate.
Press DISPtoselectbetweenclockanddifferenttypesof
information,suchasradiofrequency,CDtrackorMP3CD/
USBsonginformation.
Withtheuniton,pressandholdDISPuntiltheclockbegins
toflash,thenrelease.PressTUNE
nn
toadjustthe
hoursandTUNE
ll
toadjusttheminutes.PressDISP
momentarilytosavetheselectedtime.

7
XHDR6435 OPERATION
General Operation
Setup Menu
Menu Function Options Action
Auto Station
Store
AUTOPGM
STATIONS
Press SELECTtoseekandsave6strongstationsinthecurrentband.
(Tuner mode only)
Delete Tags DELTAGS Press SELECTtopermanentlydeletealliTunestagscurrentlysavedinthe
unit. (HDM90 required for HD Radio function.)
Tuning Mode
TUNERDIGITAL Programstheunittotunetodigitalandanalogradiostations.(HDM90
required for HD Radio function.)
TUNERANALOG Programstheunittotunetoanalogradiostationsonly.(HDM90 required
for HD Radio function.)
Local/Distance
Tuning
LOCALOFF Activatesstandarddistancetuning.
LOCALON Activateslocaltuningforstrongstationsonly.
Frequency
Spacing
FREQ'NCYUSA ActivatesUSAfrequencyspacing(not available when HDM90 is connected).
FREQ'NCYEURO ActivatesEUROfrequencyspacing(not available when HDM90 is connected).
Loudness
Curve
LOUDOFF Disablestheloudnessfunction.
LOUDON Enablestheloudnessfunction.Activatingthisfeaturewillenhancethe
bassandtreblefrequencieswhenlisteningtomusicatlowvolumes.
Clock
Display
CLOCKOFF Programsunittonotdisplaytheclockwhenthepowerisoff.
CLOCKON Programsunittodisplaytheclockwhenthepowerisoff.
Auxiliary
Input
AUX-INON Enablesthefrontpanel3.5mmauxiliaryinput.
AUX-INOFF Disablesthefrontpanel3.5mmauxiliaryinput.
Rear/Sub
RCA output
REAR/SUBSUB ProgramstheRear/SubRCApreampoutputtosubwoofer.
REAR/SUBREAR ProgramstheRear/SubRCApreampoutputtorear.
Beep
Confirmation
BEEPOFF Disablestheconfirmationbeep.
BEEPON Enablestheconfirmationbeep.
Programmable
Turn On Volume PROG-VOL# Programsunittoturnonataspecificvolume
(defaultisOFF).
Power on
Message
MESSAGEOFF Disablespoweronmessage.
MESSAGEON Enablespoweronmessagetobedisplayed.
Scrolling
Option
SCROLL15SEC Programsunittoscrollinformationonceevery15seconds(default).
SCROLLONCE Programsunittoscrollonce,thenshowfirst10charactersondisplay.
SCROLLON Programsunittoscrollcontinuously.
SCROLLOFF Programsunittoshowthefirst10charactersonthedisplay.
Illumination
Dimmer
DIMMERHIGH Programsunittothebrightestilluminationlevel.
DIMMERMEDIUM Programsunittothemiddleilluminationlevel.
DIMMERLOW Programsunittothedimmestilluminationlevel.
Demonstration
Mode
DEMOOFF Disablesthedemonstrationmode.
DEMOON Enablesthedemonstrationmessage.
PressandholdAUDIO/MENUformorethan3secondstoaccessthe
setupmenu,thenpressAUDIO/MENUtocyclethroughmenuoptions.
Whendesiredoptionappearsinthedisplay,rotatethevolume knob
left/righttoadjustoractivatethedesiredfunction.PressESCtoexit
themenuatanytime.
Setup Menu

8
XHDR6435 OPERATION
Press ESCtoexitanymenuadjustmentmode.
Press AUDIO/MENUmomentarilytoselectbetweenBass,
Treble,Balance,Fader,EQ,Subwoofer*andSourceVolume
Level.
Press AUDIO/MENU until BASSappears,thenrotate
thevolume knobleft/righttoadjust(-6minimum/+6
maximum).
Press AUDIO/MENU until TREBLEappears,thenrotate
thevolume knob left/righttoadjust(-6minimum/+6
maximum).
Note:BassandTreblesettingsaresavedastheUSEREQ
setting.
Note: BassandTreblesettingsareretainedforeachmode
individually.
Press AUDIO/MENU until BALANCEappears,thenrotate
thevolume knobleft/righttoadjust(BALANCELEFT12
toBALANCERIGHT12).BALANCEEVENrepresentsequal
balance.
Press AUDIO/MENU until FADERappears,thenrotatethe
volume knobleft/righttoadjust(FADERFRONT12toFADER
REAR12).FADEREVENrepresentsequalfader.
Press AUDIO/MENU until EQappears.Rotatethevolume
knobleft/righttoselectbetweenFLAT(default),POP,JAZZ,
CLASSIC,BEAT,ROCKandUSERequalizationcurves.Press
SELECTtoconfirm.AnymanualadjustmenttotheBassor
TreblesettingsareautomaticallysavedasUSER.
Press AUDIO/MENU until SUBWFRappears,thenrotatethe
volume knobleft/righttoadjust(0-12).Adjustinglevelsto0
turnsthesubwooferoff.
Thesourcevolumelevelcontrolallowsagainadjustmentfor
eachaudiosource:AM,FM,CD,AUX,USB,operationofiPod
andBluetooth.Setthesourcevolumelevelforeachmode,
dependingontherelativevolumeofeachaudiosource.
Tosetthesourcevolumelevel,pressAUDIO/MENU until
SOURCELEVELappears.Afteronesecond,thecurrent
modewillappearonthedisplay.Turnthevolume knob to
adjusttheaudiolevelofthecurrentsource(-6minimum/+6
maximum).
Note: Onlythecurrentmodewillbeavailableforadjustment.
Toadjustanothermodeofoperation,pressMODEuntilthe
desiredmodeisselected,thensetthesourcevolumelevel
forthatmode.
Escape
Audio
Bass
Treble
Balance
Fader
EQ
Subwoofer
Source Volume Level
General Operation
BASS TREBLE BALANCE FADER EQ SUBWOOFER* SOURCE LEVEL

9
XHDR6435 OPERATION
Display
Seek Tuning
Manual Tuning
Scan Tuning
Band
Storing and Recalling
Station Presets
WhenusingtheXHDR6435withouttheoptionalHDM90,
press DISPtotogglethedisplaybetweenthefollowing
options:
Press TUNE
nn
or TUNE
ll
formorethanonesecond
toseekthenextstrongstation.
Press TUNE
nn
or TUNE
ll
momentarilytomoveradio
frequencyupordownonestepatatime.Pressandholdto
advancequickly.
Press SCANmomentarilytopreviewstrongstationsonthe
currentband,pausingforfivesecondsateach.PressSCAN
againtocancel.
Press BANDtoselectbetweenFM1,FM2,FM3,AM1and
AM2bands.Uptosixpresetscanbeprogrammedforeach
band.
Upto18FMstationsand12AMstationscanbestoredin
memory.Tostoreastation,selectthedesiredbandand
station.Pressandholdthedesiredpresetbutton(1-6)for
morethantwoseconds.Whenstored,thepresetnumber
willappearinthedisplay.Thestationcanberecalledby
pressingthecorrespondingpresetbutton.
AM/FM Tuner Operation
(LINE 1) FREQUENCYFREQUENCY
CLOCKBAND/PRESET
(LINE 2)

10
XHDR6435 OPERATION
Connecting the HDM90
(sold separately)
Display
HD Radio Tuning
HD Seek Mode
Auto Station Store
Setting HD Radio Presets
Recalling an HD Radio
Multicast Preset
HDRadiooperationrequiresconnectingtheHDM90
HDRadiotuner(soldseparately).RefertotheHDM90
instructionsforconnectiondetails.
WhentheunitistunedtoanHDRadiostation,pressDISPto
togglethedisplaybetweenthefollowingoptions:
Refertotheinstructionsforseek,manualandscantuning
onpage9.
WhenHDRadiostationisselected,anHDRadiologowill
begintoflashonthedisplay.Afteraboutfiveseconds,HDor
HD1willilluminateaftertheradiofrequency.
• If"HD"appears,theradiostationisbroadcastingahigher
 qualitysound.Noadditionalstationsareavailable.
• If"HD1"appears,additionalmulticastchannels(HD2
 and/orHD3)areavailable.PressTUNE
ll
to tune to
 otheravailablemulticastchannels.
PressandholdHD SEEKfor2secondstoactivatedigital-
onlytuningmode.TheHDSEEKiconwillappearonthe
display,indicatingthattheunitwillskipoveranalogstations
andtunetoHDRadiostationsonly.Followtheinstructions
onpage9toaccessseek,manualandscantuning.
WhileinHDSEEKmode,theAUTOSTOREmenuoptionwill
automaticallystoreonlyHDRadiostations,beginningfrom
thelowestfrequency.
Note: Multicastchannels(HD2and/orHD3)arenot
automaticallystoredwiththisfeaturebutcanbestoredby
holdingthedesiredpresetnumber(1-6)for3seconds.
HDRadiomulticaststations(HD2andHD3)canbestoredas
presetsinthesamewayasanalogradiostations.Pressand
holdapresetbuttonuntilitbeepstostorethepreset.
Whenselectingapresetmulticaststation,"LINKING"will
appearinthedisplayforapproximately5secondswhilethe
multicaststationinformationisreceived.
Note:IftheHDRadiosignalonthepresetisunavailable,the
unitrevertstothepreviousanalogordigitalstation.
HD Radio™ AM/FM Tuner Operation
(LINE 1) FREQUENCY
FREQUENCY
STATION NAME
PROGRAM TYPE
ARTIST
SONG TITLE CLOCK (LINE 2) BAND/PRESET

11
XHDR6435 OPERATION
TheiTunesTaggingfeatureoftheXHDR6435requiresthe
optionalHDM90module(soldseparately).Onceconnected,
theHDM90allowstheuserto"Tag"songsthatareplaying
onHDRadio™stationsandenablesthemtobepurchased
laterthroughiTunes.Withthetouchofabuttontheunitwill
rememberthetitleandartistsonginformation,andthen
transferthatinformationtoyouriPoddevicethenexttime
youconnectittotheXHDR6435.Anewlistcalled"Tagged"
willappeariniTunes,givingyoutheoptiontopurchaseeach
song.
Tune to an HD Radio station. TheHDlogointhedisplay
mustremainsolid-indicatingthatadigitalstationistuned.
Ifthesonghasvalidartistandsongtitleinformation,the
TAG/MUTEbuttonwillturnred.
Press and hold the TAG/MUTE button.TAGGINGSONGwill
appear,followedbyTAGSTORED,confirmingthesong
informationhasbeensavedtointernalmemory.Thesong
informationwillbesavedinmemoryuntilaniPoddeviceis
pluggedin.Upto64Tagscanbesavedbeforetheymustbe
transferred or deleted.
Plug in an iPod device.AlltheTagscurrentlyinmemory
willbeautomaticallytransferred,deletingtheTagsfromthe
headunit'smemory.Seepage23forconnectiondetails.
IfaniPoddeviceispluggedinwhenasongistagged,the
TagwillbeimmediatelytransferredtotheiPoddevice(see
page12forcompatibilitywithiPoddevices).
AftertheTagtransfertotheiPoddeviceiscomplete,
theXHDR6435willdisplaythenumberoftagsthatwere
successfullytransferred.
Sync with iTunes.Alistnamed"Tagged"willappearonthe
leftintheiTunessoftware.Clickonthe"Tagged"listtoview
allthesongsthathavebeentaggedandclickthe"view"
buttonforpurchaseinformation.
Note: SomeiPoddevicesmayrequireyoutoselect'transfer
purchases'inthecontextmenufromthenameofyouriPod
devicetotransferTagstoiTunes.
Managing Tags
Todeleteallthesavedtagswithouttransferringthemto
aniPoddevice,changetotunermode,thenpressAUDIO/
MENUfor3secondstoenterthesetupmenu.PressAUDIO/
MENUoncemoreuntilDELTAGSappearsalongwiththe
numberoftagssavedinmemory.thenpressSELECT.A
confirmationmessagewillappear.
Note:TagsaremanagedfromtheiTunessoftware.
Overview
Tagging Music
Step 1
Step 2
Step 3
Step 4
Deleting All Tags
iTunes® Tagging Operation (HDM90)

12
XHDR6435 OPERATION
iTunes® Tagging Operation (HDM90)
Device Compatibility
with iTunes Tagging
Compatiblewith
•*iPhone3GS
•*iPhone3G
•*iPhone
•iPodnano(5thgeneration)
•*iPodtouch(2ndgeneration)
•iPodnano(4thgeneration)
•iPodclassic
•*iPodtouch(1stgeneration)
•iPodnano(3rdgeneration)
DisplayedMessage Description
CHECK iPod VER
ThereisacompatibilityissuewiththeiPoddevicethatis
connected.CheckthelistofcompatibleiPoddevicesbelow.
IftheattachediPoddeviceiscompatible,updatethefirmwareto
thelatestversionusingiTunes.
SENDING TAGS TagsarebeingsenttotheiPoddevice.Thisprocesscantake
severalminutesdependingonthenumberofTagsbeingsent.
iPod FULL ThereisnotenoughspaceontheconnectediPoddeviceto
transfertheiTunesTags.FreeupspaceusingiTunes.
TRANSFER FAILED
Connectionerror.EnsuretheiPoddeviceispoweredonand
reconnecttheiPoddeviceuntilaTAGSSENTconfirmationis
displayed.
ALREADY TAGGED
Thesamesonghasalreadybeentaggedfromthesameradio
station,andiscurrentlysavedinmemory.Thesamesongcannot
betaggedtwice-unlessthesongistaggedonadifferentradio
station,theTagsaresenttoaniPoddeviceorthetagsareerased.
MEMORY FULL
CONNECT iPod
TheinternalmemoryoftheHDM90willhold 64 Tags.AniPod
devicemustbeconnectedtotransfertheTags,ortheTagsmust
bedeletedbeforemoresongscanbetagged.
NO TAG INFO
Thereisnotsufficientinformation(artistortitle)totagthesong.
SomeHDRadio™stationsorcertainsongsmaynotfullysupport
iTunesTagging.
TAGGING FAILED TherewasanerrorsavingtheTaginformationtotheinternal
memory.Pressandholdthe TAG/MUTEbuttonagain.
NO TAGS STORED
Therearenotagssavedintheinternalmemory.TheDELETE
TAGSfunctioncanonlydeleteTagsthataresavedintheinternal
memory.
Troubleshooting
*SomeiPoddevicesmayrequireyoutoselect'transferpurchases'inthecontextmenufromthename
ofyouriPoddevicetotransferTagstoiTunes.
Gotowww.apple.com/itunesforthelatestversionoftheiTunessoftware.

13
XHDR6435 OPERATION
Insert CD
Eject CD
Track Select
Fast Forward and Reverse
Pause
Repeat
Random
Intro
CD-R/CD-RW Compatibility
Withthelabelfacingup,insertastandardsizeCDintothe
CDslot.TheCDwillautomaticallybeginplayback.
Press EJECTtoejecttheCD.Theunitwillchangeto
previousmodeofoperation.Ifthediscisnotremoved
within10seconds,theunitwillreloadthedisc.Theunit
doesnothavetobeturnedontoejectCD.
Press TRACK
ll
toskiptothebeginningofthenext
track.PressTRACK
nn
toreturntothebeginningofthe
currenttrack.PressingTRACK
nn
againskipstothe
beginningoftheprevioustrack.
PressandholdTRACK
ll
or TRACK
nn
tofastforward
orreverseatrack.
Press
l
/ II totemporarilystopCDplayback.
Press
l
/ II againtoresumeplayback.
Press RPT toentertheRepeatmenu,thenturnthevolume
knobtoselectoneofthefollowingoptions:
•OFF-Playsalltracksondisc.
•TRACK-Continuouslyrepeatsselectedtrack.
Press RDM toentertheRandommenu,thenturnthe
volume knobtoselectoneofthefollowingoptions:
•OFF-CancelstheRDM function.
•ALL-Playsalltracksinrandomorder.
Note:Randommodeisretainedinmemorywhenselecting
betweenothermodesandwhentheunitisturnedon/off.
Press INT toentertheIntromenu,thenturnthevolume
knobtoselectoneofthefollowingoptions:
•OFF-CancelstheINT function.
•ALL-Playsthefirst10secondsofeachtrack.
SomeCD-RsandCD-RWsmaybeincompatiblewiththis
unit,dependingonmediatypeandrecordingmethod.
Inaddition,thefollowingCDsmaybeincompatiblewith
thisunit:CDsexposedtoextremetemperaturesordirect
sunlightforextendedperiodsoftime,CDsrecordedin
whicharecordingsessionfailedorare-recordingwas
attemptedandencryptedorcopy-protectedCDsthatdonot
conformtotheaudioCD-DAredbookrecordingstandard.
CD Player Operation

14
CD Player Operation - MP3/WMA Files
Playing an MP3/WMA Disc
Displaying Information
Song Title Icon
Artist Icon
Folder Icon
File Icon
Character Support
WhenanMP3/WMAencodeddiscisfirstinserted,
“CDPLAY”willappearinthedisplay.Dependingonthe
numberoffilesandfolders,thismaytakeseveralseconds.
Press DISPtoselectbetweenthefollowing:
“NOID3TAG”willbedisplayediftheMP3filecontainsno
ID3taginformation.
“UNKNOWN”willbedisplayediftheWMAfilecontainsno
WMAtaginformation.
“ROOT”willbedisplayedifthedirectorynameofaroot
folder is not labeled.
Thisiconwillilluminatewhenthesongtitleisdisplayed.
Thisiconwillilluminatewhentheartistnameisdisplayed.
Thisiconwillilluminatewhenthefoldernameisdisplayed.
Thisiconwillilluminatewhenthefilenameisdisplayed.
Maximumcharacterdisplayinformation
•Trackname–32charactermaximum
•Directoryname–32charactermaximum
•*Songtitle–30charactermaximum
•*Artistname–30charactermaximum
*SongtitleandArtistNamewillonlybedisplayedif
includedwiththeMP3/WMAfile.
XHDR6435 OPERATION
(LINE 1) FILE NAME ELAPSED TIME
CLOCK
TRACK NUMBER
TOTAL TRACKS
ARTIST
SONG TITLE FOLDER NAME (LINE 2)

15
XHDR6435 OPERATION
CD Player Operation - MP3/WMA Files
Folder/File Search Mode
Step 1
Step 2
Step 3
Step 4
MP3/WMACDmodefeaturesafileandfoldersearchmode.
Thissearchallowsnavigatingthroughfolderstofinda
specificMP3orWMAfileforplayback.
Press SELECT."MP3CDSEARCH"willappear,thenalistof
thefilesinthecurrentlyselecteddirectorywillbeaccessible.
Turn the volume knob.Thelistofsubfoldersandfilesinthe
currentfolderwillcycle.Turningthevolumeknobleftwill
cycletothebeginningofthefolder/filelist.Anysubfolders
willbelistedatthebeginningofthelist,followedbyanyfiles.
willilluminatewhenafolderishighlighted.
willilluminatewhenafileishighlighted.
Navigate to the desired folder and file.
•Togouponefolderlevel,pressESConce.
•Toviewthecontentsofahighlightedfolder,pressSELECT.
Note:the"FOLDERUP"optionmayalsobeselectedto
navigateuponefolderlevel.
Press SELECTtobeginplayingtheselectedMP3/WMAfile.
Note: Press ESCfromtherootdirectorytoexitsearchmode.

16
CD Player Operation - MP3/WMA Files
XHDR6435 OPERATION
Folder Access
Repeat
Random
Intro
Press toselectthepreviousfolder.
Press toselectthenextfolder.
Note: FolderaccessisonlyavailableonMP3/WMAdiscs
recordedwithmorethanonefolder.
Press RPT toentertheRepeatmenu,thenturnthevolume
knobtoselectoneofthefollowingoptions:
•OFF-PlaysalltracksonCD.
•TRACK-Continuouslyrepeatsselectedtrack.
•FOLDER-Continuouslyrepeatsallfilesinselectedfolder.
Press RDM toentertheRandommenu,thenturnthevolume
knobtoselectoneofthefollowingoptions:
•OFF-CancelstheRDM function.
•ALL-Playsalltracksinrandomorder.
•FOLDER-Playsalltracksinfolderinrandomorder.
Note:Randommodeisretainedinmemorywhenselecting
betweenothermodesandwhentheunitisturnedon/off.
Press INT toentertheIntromenu,thenturnthevolume
knobtoselectoneofthefollowingoptions:
•OFF-CancelstheINT function.
•ALL-Playsfirst10secondsofeachtrack.
•FOLDER-Playsfirst10secondsofeachtrackinfolder.
Note:Folderrepeat,randomandintrooptionsonlyfunction
onMP3/WMAdiscsrecordedwithmorethanonefolder.

17
XHDR6435 OPERATION
CD Player Operation - MP3/WMA Files
Thefollowingtypesofdiscs/filesarecompatible:
•CD-ROM(ISO),CD-R,CD-RW
•CD-DA
•MP3data
•WMAdata
Thefollowingtypesofdiscs/filesarenotcompatible:
•WMAfilesthatareprotectedbyDRM(DigitalRights 
 Management).
•WMAlosslessformat
•DiscsrecordedwithTrackAtOnceorpacketwriting
•MP3PROformat
•MP3playlists
•WAVformat
MP3/WMAplaybacksequenceisbasedonrecordedorder
offilesandbeginsintherootfolderofthedisc.Anyempty
foldersorfoldersthatdonotincludeMP3/WMAfilesare
skipped.Thisunitmaynotplayfilesintheordertheywere
recordedin.Refertoyourrecordingsoftware’suser’s
manual for more information.
•ISO9660level1
•ISO9660level2
•YellowBookMODE1
•YellowBookMODE2FORM1
•Multisession
•Maximumfoldersandfiles-256
•Maximumfolderlevels-8
•MPEG-1/2/2.5AudioLayer-3
ISO9660standards:
•Maximumnestedfolderdepthis8(includingtheroot
folder).
•Validcharactersforfolder/filenamesarelettersA-Z
 (allcaps),numbers0-9,and“_”(underscore).Some
 charactersmaynotbedisplayedcorrectly,dependingon
 thecharactertype.
•ThisdevicecanplaybackdiscsinJoliet,Romeo,andother
 standardsthatconformtoISO9660.MP3/WMAwritteninthe
 formatsotherthantheabovemaynotplayand/ortheirfile
 namesorfoldernamesmaynotbedisplayedproperly.
Media Compatibility
Playback Order
Compatible Recording
Formats

18
CD Player Operation - MP3/WMA Files
XHDR6435 OPERATION
AninternalbufferprovidesESP(ElectronicSkipProtection)
tovirtuallyeliminateskipping.
Whenplayingadiscrecordedwithregularaudiofiles
(CD-DAor.WAV)andMP3/WMAfiles,theunitwillplaythe
MP3/WMAfilesonly.
OnlyMP3fileswithfilenameextension(.mp3)canbeplayed.
OnlyWMAfileswithfilenameextension(.wma)canbe
played.
Donotattempttoplaydiscswhichcontainnon-MP3/WMA
fileswiththeMP3/WMAextension.
8kHz~48kHz
32kHz~48kHz
32kbps~320kbpsconstant
Variable bit rates
32kbps~192kbpsconstant
Variable bit rates
Note:
Somefilesmaynotplayorbedisplayedcorrectly,
dependingonsamplingratesandbitrates.
ID3tagsVersion1.0to2.0
Forbestresults,usethefollowingsettingswhenburning
anMP3disc:
•128kbpsorhigherconstantbitrate
•44.1kHzorhighersamplingfrequency
Forbestresults,usethefollowingsettingswhenburninga
WMAdisc:
•64kbpsorhigherconstantbitrate
•32kHzorhighersamplingfrequency
Additional MP3/WMA
Information
Sampling Frequency
Rates
MP3
WMA
Transfer Bit rates
MP3
WMA
MP3 Tag Display
Recommended Settings

19
XHDR6435 OPERATION
PlayMP3/WMAfilesfrommostmassstoragedevicesby
connectingthemtotheXHDR6435'sUSBport.
WhenaUSBdeviceisfirstconnected,“READING”will
appearinthedisplayandplaybackwillbeginmomentarily.
Dependingonthenumberoffilesandfolders,itmaytake
severalsecondsforthedevicetobeginplaying.Ifnovalid
MP3/WMAfilesaredetected,“NOFILE”willbedisplayed
andthelastmodewillberesumed.
Press TRACK
ll
toskiptothebeginningofthenext
track.PressTRACK
nn
toreturntothebeginningofthe
currenttrack.PressingTRACK
nn
againskipstothe
beginningoftheprevioustrack.
PressandholdTRACK
ll
or TRACK
nn
to fast
forwardorreverseatrack.
Press
l
/ II totemporarilystopUSBplayback.
Press
l
/ II againtoresumeplayback.
Press SELECTtoentertheUSBfile/foldersearchmode.
"USBSEARCH"willbedisplayed.Alistofallthefolders
fromtheUSBdevicewillbedisplayed.
Note:Anyfileslocatedintherootdirectorywillbelocatedin
thefoldernamed"ROOT".PressSELECTtoviewthefileson
therootfolder.
Turnthevolume knobtocyclethroughallthefoldersonthe
deviceandpressSELECTtochoosethedesiredfolder.The
listoffilesintheselectedfolderwillbedisplayed.Turnthe
volume knobtocyclethroughthelistoffiles.
Oncethedesiredsongisdisplayed,pressSELECTtobegin
playbackofthedesiredsong.
PressingESCwhenviewingthecontentsofafolderwill
returntothelistoffoldersontheUSBdevice.PressESC
againtoexitthesearchmenu.
Connecting a USB Device
(sold separately)
Playing Music
Track Select
Fast Forward and Reverse
Pause
File Search
Step 1
Step 2
Step 3
USB Operation - MP3/WMA Files

20
Whenafileisaccessed,theclockandelapsedtimewill
bedisplayed.PressDISPmomentarilytoselectfilename
(default),songtitle,artist,tracknumberorclock&elapsed
time.
"NOTITLE"willbedisplayedifnosongtitleinformationis
available.
"NOARTIST"willbedisplayedifnoartistinformationis
available.
Thisiconwillilluminatewhenthesongtitleisdisplayed.
Thisiconwillilluminatewhentheartistnameisdisplayed.
Thisiconwillilluminatewhenthefoldernameisdisplayed.
Thisiconwillilluminatewhenthefilenameisdisplayed.
Press toselectthepreviousfolder.
Press toselectthenextfolder.
Note:FolderaccessisonlyavailableonUSBdeviceswith
morethanonefolder.
Press RPT toentertheRepeatmenu,thenturnthevolume
knobtoselectoneofthefollowingoptions:
•OFF-PlaysalltracksonUSBdevice.
•TRACK-Continuouslyrepeatsselectedtrack.
•FOLDER-Continuouslyrepeatsallfilesinselectedfolder.
Press RDM toentertheRandommenu,thenturnthevolume
knobtoselectoneofthefollowingoptions:
•OFF-CancelstheRDM function.
•ALL-Playsalltracksinrandomorder.
•FOLDER-Playsalltracksinfolderinrandomorder.
Note:Randommodeisretainedinmemorywhenselecting
betweenothermodesandwhentheunitisturnedon/off.
Press INT toentertheIntromenu,thenturnthevolume knob
toselectoneofthefollowingoptions:
•OFF-CancelstheINT function.
•ALL-Playsfirst10secondsofeachtrack.
•FOLDER-Playsfirst10secondsofeachtrackinfolder.
USB Operation - MP3/WMA Files
XHDR6435 OPERATION
(LINE 1) FILE NAME ELAPSED TIME
CLOCK
TRACK NUMBER
TOTAL TRACKS
ARTIST
SONG TITLE FOLDER NAME (LINE 2)
Displaying Information
Song Title Icon
Artist Icon
Folder Icon
File Icon
Folder Access
Repeat
Random
Intro
