Operating
Instructions
Professional
Overhead
Projector
MODELS
28A640,
28A641A,
28A653A,
28A663,
28A4000,
28A4003,
28A4500,
28A5500
Audio Visual Products
DUKANE

IMPORTANT SAFETY INSTRUCTIONS
When using your overhead projector, basic safety precautions should
always be followed, including the following:
1. Read and understand all instructions before using.
2. Close supervision is necessary when any projector is used by or
near children. Do not leave projector unattended while in use.
3. Care must be taken as burns can occur from touching hot parts.
4. Do not operate projector with a damaged cord or if the projector
has been dropped or damaged — until it has been examined by
a qualified serviceman.
3. Position the cord so that it will not be tripped over, be pulled or
contact hot surfaces.
6. If an extension cord is necessary, a cord with a current rating at
least equal to that of the projector should be used. Cords rated
for less amperage than the projector may overheat.
7. Always unplug projector from electrical outlet before cleaning
and servicing and when not in use. Never yank cord to pull
plug from outlet. Grasp plug and pull to disconnect.
8. Let projector cool completely before putting away.
9. To protect against the risk of electric shock, do not immerse this
projector in water or other liquids.
10. To avoid the risk of electric shock, do not disassemble this
projector, but take it to a qualified serviceman when some service
or repair work is required. Incorrect reassembly can cause electric
shock when the projector is used subsequently.
11. The use of accessory attachment not recommended by the
manufacturer may cause a risk of fire, electric shock or injury to
persons.
12. Connect this projector to a grounded outlet.
13. Disconnect this unit from its source of supply before replacing
the projection lamp.
Additional lamp safeguards: never handle lamps with bare fingers;
periodically inspect lamps, when they’re turned off, for signs of
blistering or blackening; insure proper action of the cooling system;
turn off the projector immediately if the image becomes abnormally
dim; never operate a projector with the lamp housing open; and make
sure that the lamp itself is properly seated.
SAVE THESE INSTRUCTIONS

TABLE OF CONTENTS Page
1 PRODUCT FEATURES.....1
2 SPECIFICATIONS.3
3 DUKANE MODELS 663, 4003, 4500 AND 5500.3
4 SETUP. 4
5 OPERATION. 5
6 CARE IN USE .
6.1 Maintenance .
6.2 Lamp Replacement..
6.3 Information On Lamp Warranty
7 SERVICING.
7.1 Shipping Information.
7.2 Service...
7.3 No Charge Warranty Repair ......
8 ELECTRICAL SAFETY GROUNDING INSTRUCTIONS .8
UNIT WARRANTY
Back Cover
\J
\!
\J
\J0\0\C\

1 - PRODUCT FEATURES
A number of terms are used frequently in this instruction booklet. The
OVERHEAD PROJECTOR will be easier to operate if you become
familiar with the terms and their respective features for the functional
1. Mirror; used to direct projected
2. Lens Head
3- Wide Angle Projection Lens;
when in place, picture is 20% larger
(663, 4003, 4300 and 5500 only)
4. Mast; rack & pinion focusing
mechanism
5. Focus Knob; turn to focus pro¬
jected image
6. Stage; place presentation media
to be projected on stage
7. Stage Latch; release for lamp
replacement and cleaning
8. Base
9- Locking Knob; release for fold-
away design
10. Power Switch
1

11. High/Low Switcli; high mode
(4000 lumens), low mode (3200
lumens), (4000/4003/4300 only)
12. 120 V AC Outlet; for use with
LCD panel connection (4000/4003
only—two outlets on 4500/5300)
13. Lamp Ejection Lever; release
for bulb replacement
14. Lamp Changer Lever; slide for
replacement lamp
15. Door Latch (one each side);
for cord storage
16. Door/Leg Assembly; close for
foldaway design
17. Power Cord

2 - SPECIFICATIONS
Dimensions.5" H x 13" W x 17.5" D (Folded)
32" H x 13" W x 17.5" D (Opened)
Aperture.. 640, 641A, 663, 4000, 4003—10" x 10" (254mm x 254mm)
4500, 5500—11.2" x 11.2" (285mm x 285mm)
Lens.641A—Single Element, 293mm (11.5")
640, 653A, 4000—Three Element, 327mm (13-0")
663, 4003, 4500, 5500—Four Element, 280mm (11.0")
Lamp...641A, 653A, 663—360W, ENX
640, 4000, 4003, 4500, 5500—410W, FXL
Elevation. Up to 30 Degrees
Focus. Rack and Pinion
Power.641A, 653A, 663—120V, 60Hz, 4.4A
640, 4000, 4003—120V, 60Hz, 7.0A
4500, 5500—120V, 60Hz, 9.8A
Power Cord.3-Wire Grounded, 10 Ft.
Safety Interlock . Cuts Off Power When Unit Is Open
Weight .17 Lbs.
3 - DUKANE MODELS 663, 4003, 4500 & 5500
Professional Overhead Projectors
The Models 663, 4003, 4300 and 5500 feature a special optical design
which combines a standard three-element (13") projection lens with a
movable fourth element that converts to a wide angle (11”) lens.
This design allows you to maintain image size for both transparency
and the smaller LCD panel aperture size. Other features include a
lamp changing mechanism and spare lamp indicator that will light
up to remind you to replace the primary lamp.
3

4 - SETUP
1. Set unit on projection table in the vertical position (handle up).
2. Slide bottom door latches out and swing both doors around to
magnet latches (see page 2). Doors are fixed open on 640.
3. Remove ah of the power cord, then tip unit over to rest on its legs.
4. Turn focus knob clockwise until it stops at the end of the mast
(Fig. A).
5. Rotate the mast up until it stops (Fig. B and C).
6. Push in the mast locking knob and tighten (Fig. C).
7. Rotate the lens assembly counterclockwise to the working
position. Open the mirror and focus image (Fig. C).
in reverse order.
4

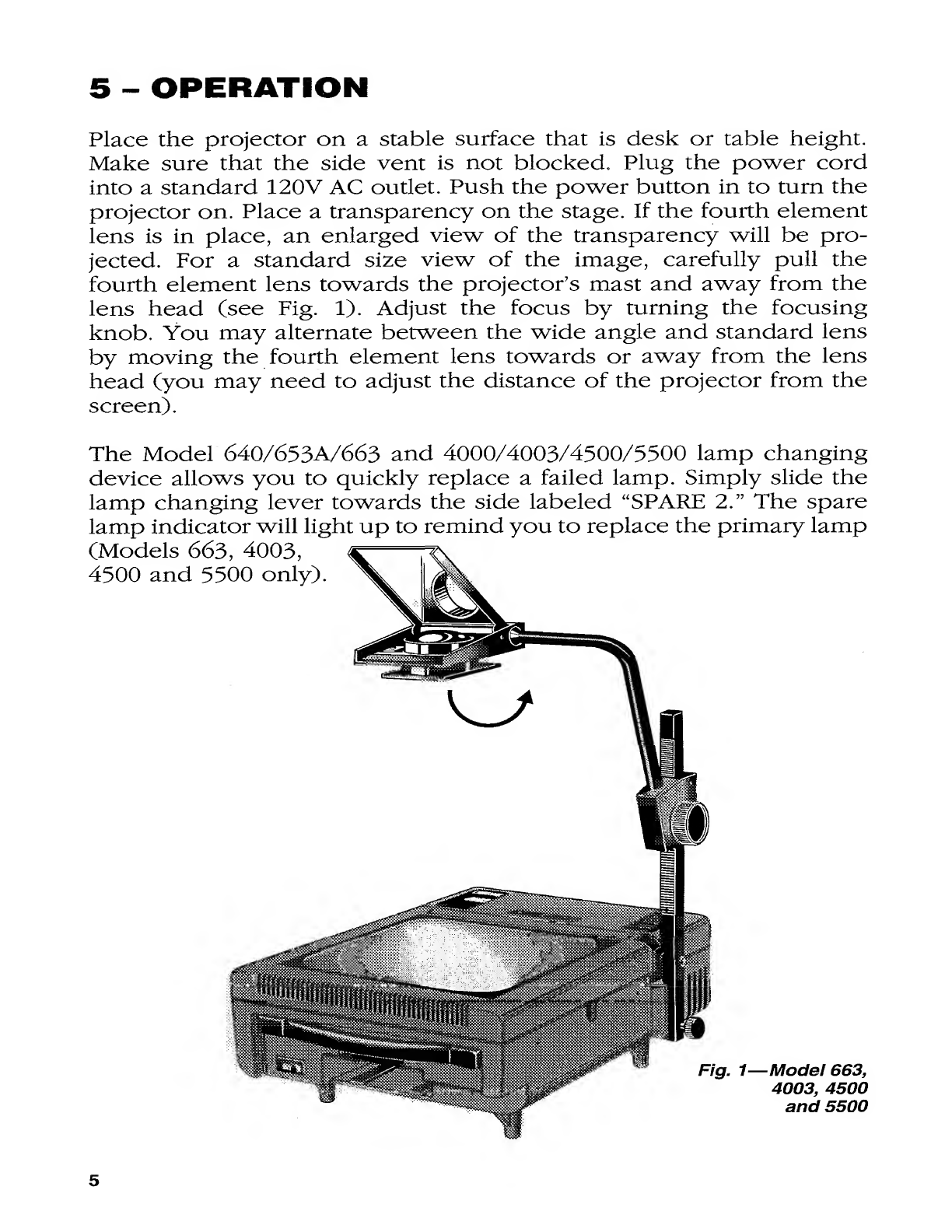

5 - OPERATION
Place the projector on a stable surface that is desk or table height.
Make sure that the side vent is not blocked. Plug the power cord
into a standard 120V AC outlet. Push the power button in to turn the
projector on. Place a transparency on the stage. If the fourth element
lens is in place, an enlarged view of the transparency will be pro¬
jected. For a standard size view of the image, carefully pull the
fourth element lens towards the projector’s mast and away from the
lens head (see Fig. 1). Adjust the focus by turning the focusing
knob. You may alternate between the wide angle and standard lens
by moving the fourth element lens towards or away from the lens
head (you may need to adjust the distance of the projector from the
screen).
The Model 640/653A/663 and 4000/4003/4300/3300 lamp changing
device allows you to quickly replace a failed lamp. Simply slide the
lamp changing lever towards the side labeled “SPARE 2.” The spare
lamp indicator will light up to remind you to replace the primary lamp
5

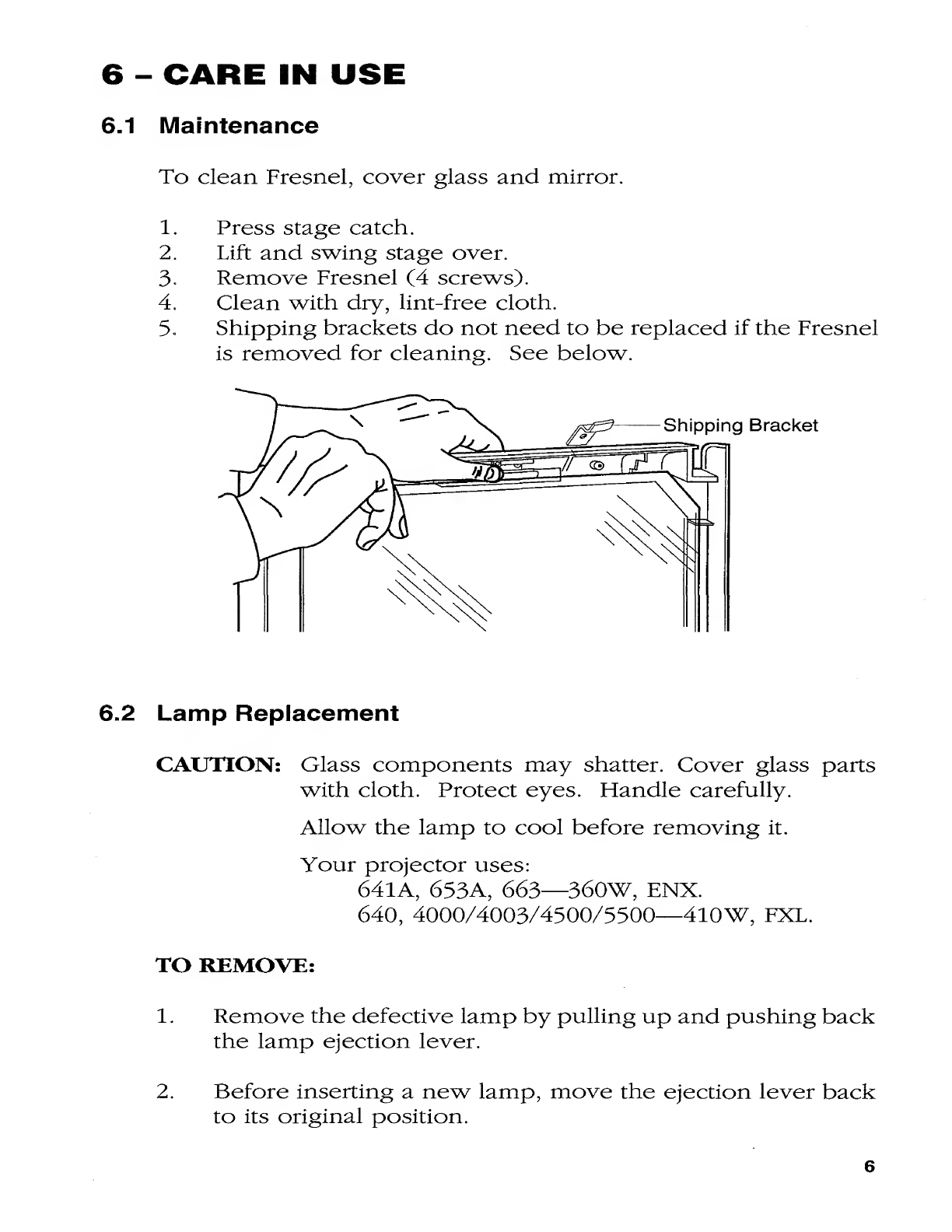

6.1 Maintenance
To clean Fresnel, cover glass and mirror.
1. Press stage catch.
2. Lift and swing stage over.
3- Remove Fresnel (4 screws).
4. Clean with dry, lint-free cloth.
5. Shipping brackets do not need to be replaced if the Fresnel
is removed for cleaning. See below.
6.2 Lamp Replacement
CAUTION: Glass components may shatter. Cover glass parts
with cloth. Protect eyes. Handle carefully.
Allow the lamp to cool before removing it.
Your projector uses:
641A, 653A, 663—360W, ENX.
640, 4000/4003/4300/5500—410W, FXL.
TO REMOVE:
1. Remove the defective lamp by pulling up and pushing back
the lamp ejection lever.
2. Before inserting a new lamp, move the ejection lever back
to its original position.
6

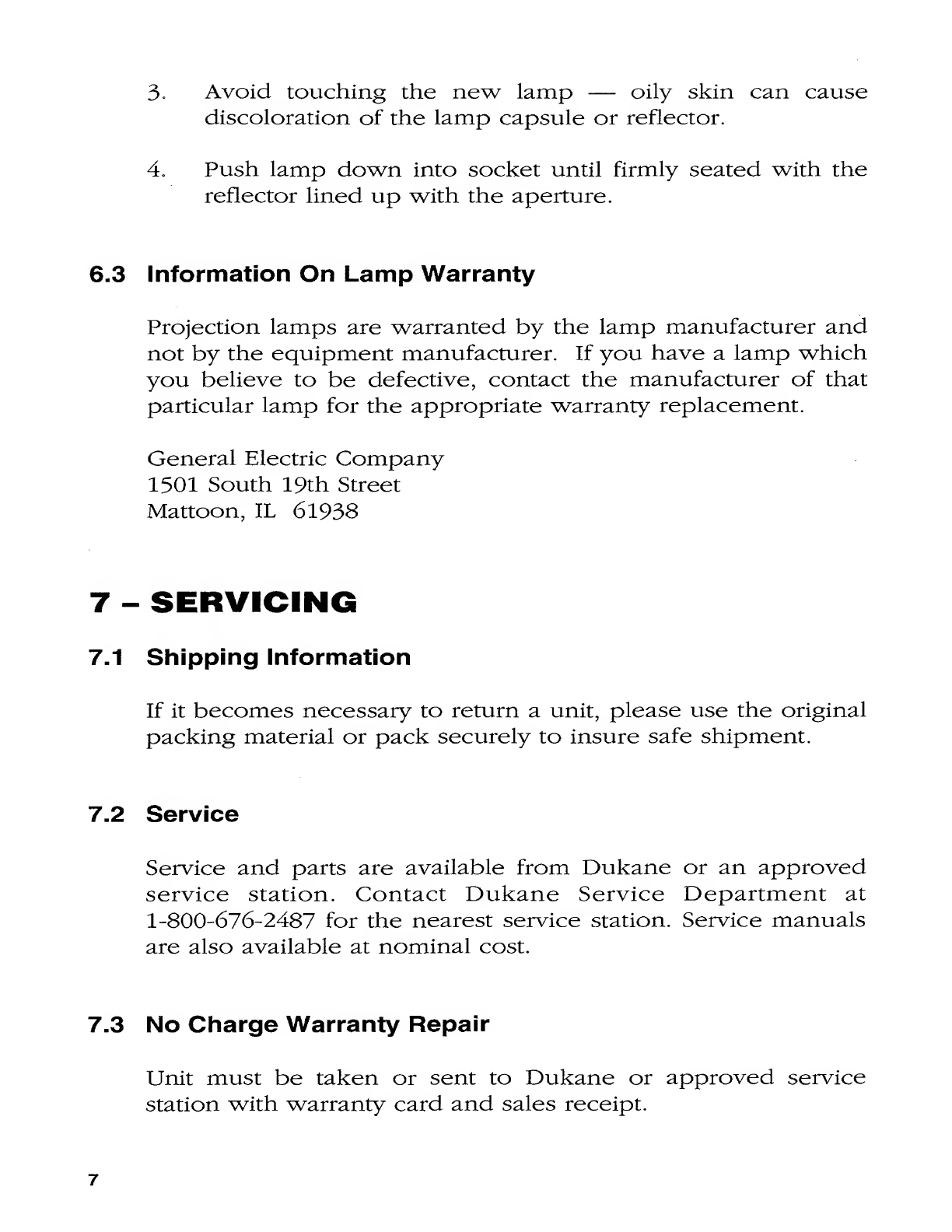

3. Avoid touching the new lamp — oily skin can cause
discoloration of the lamp capsule or reflector.
4. Push lamp down into socket until firmly seated with the
reflector lined up with the aperture.
6.3 Information On Lamp Warranty
Projection lamps are warranted by the lamp manufacturer and
not by the equipment manufacturer. If you have a lamp which
you believe to be defective, contact the manufacturer of that
particular lamp for the appropriate warranty replacement.
General Electric Company
1301 South 19th Street
Mattoon, IL 61938
7 - SERVICING
7.1 Shipping Information
If it becomes necessary to return a unit, please use the original
packing material or pack securely to insure safe shipment.
7.2 Service
Service and parts are available from Dukane or an approved
service station. Contact Dukane Service Department at
1-800-676-2487 for the nearest service station. Service manuals
are also available at nominal cost.
7.3 No Charge Warranty Repair
Unit must be taken or sent to Dukane or approved service
station with warranty card and sales receipt.
7

The manufacturer will not be liable for any expense incurred
because of failure to present warranty card, pickup and delivery
charges, service calls, or if service is supplied by other than the
Dukane approved service stations.
8 - ELECTRICAL SAFETY
GROUNDING INSTRUCTIONS
This Class I product uses a three-wire power cord that grounds the
product for your protection. Do not DEFEAT or REMOVE the
grounding pin. If an extension cord is used, it must also be a three-wire
type with an ampere rating equal or greater than the product’s rating.
The plug must be connected to a properly grounded three-terminal
power receptacle. Connection to any other type of receptacle should
be done only by a qualified electrician in accordance with local and/
or national electrical codes.
8

THREE-YEAR LIMITED WARRANTY
This Dukane audio visual product is warranted to the original
purchaser for a period of three (3) years from the original purchase
date-in normal use and service-against defects in material and
workmanship. DUKANE CORPORATION EXPRESSLY DISCLAIMS
ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING
ALL WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
During the warranty period, Dukane Corporation will repair or
replace (at the Manufacturer’s option) any such defective parts
(except for lamps, which are subject to whatever warranties the
manufacturer may provide) without charge to the purchaser fpf
parts or labor when the product is returned, prepaid and insured, with
proof-of-purchase date. This remedy of repair or replacement is
exclusive of all other remedies that the purchaser may have.
This exclusive remedy is void if the product has been damaged by
accident or unreasonable use, neglect, or improper service or other
causes not arising out of defects in material or workmanship.
Dukane Corporation disclaims all liability for incidental or con¬
sequential damages of any kind, including all damages arising out
of any interruptions in operation of the product and all damages
to software.
No person, firm or representative is authorized to assume any
obligation or make any warranty on behalf of the Dukane Corporation
other than as stated above.
THIS LIMITED WARRANTY IS VALID FOR U.S.A. AND CANADA.
FOR OTHER LOCATIONS, LOCAL WARRANTIES APPLY.
Audio Visual Products
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, IL 60174
Phone: [phone]
Fax: [phone]
DUKANE
401 - 5 05-04
