Dukane ImagePro 8775 User manual

ImagePro 8775
Portable LCD Projector
• 3000 Lumens Brightness
• XGA Resolution
• 600:1 Contrast Ratio
• High Speed Wireless 802.11g
(with optional LAN card)
• Integrated RJ45 Connection
• Computer-Free Presentation Capability
• PC Card Slot
• Up to 3000 hour lamp life
8775
AC
In
PC
Control
RS232
Power
Switch
Composite
Video
Audio
In
Audio
Out
LAN
RJ45
PC Card
Slot
USB
Monitor
Out
S-Video
Computer 1
RGB In
Component
In
Computer 2
RGB In
DVI-D
In
IR
Audio
Out
L – R
Speaker

The Dukane ImagePro 8775 is an outstanding LCD
projector for your classroom or conference room.
Powerful new features include high speed wireless
network capability, computer free presentation
capability, and enhanced
security features.
This full-featured LCD projector
is more than you’re used to for
less than you think.
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
800-676-2485 toll-free
630-584-5156 fax
[email protected] e-mail
www.dukcorp.com/av
ImagePro is a registered trademark of Dukane Corporation
#11692-B-06

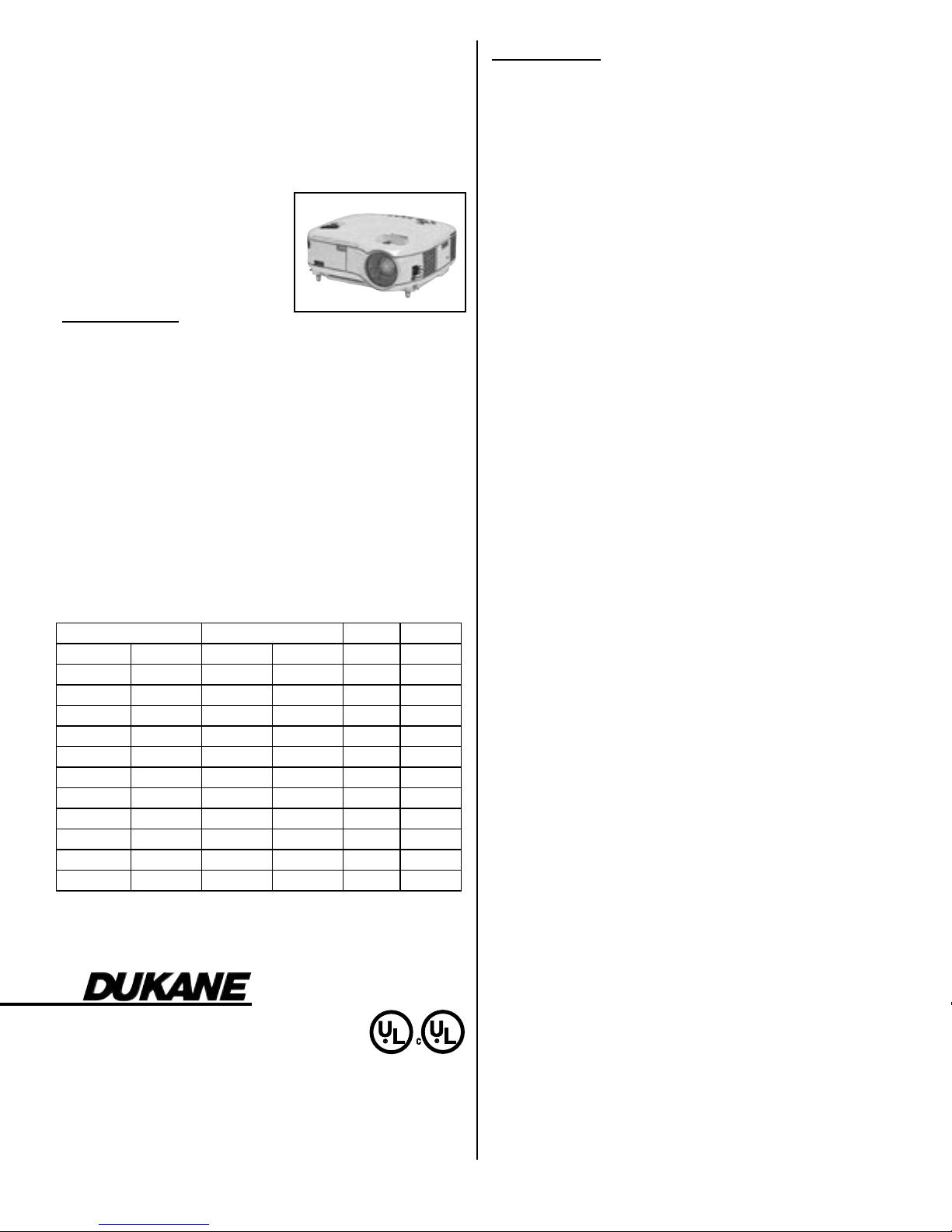

ImagePro 8775
Portable LCD projector
Key features:
• XGA (1024 x 768) resolution
• 3000 ANSI Lumens of brightness
• 600:1 Contrast Ratio
• Full function remote with mouse/cursor control
and laser pointer
• Computer free presentation capability via USB
• High Speed Wireless Communication: 802.11g
(requires optional LAN card)
• Integrated Wired Network Connection: RJ45
• PC Card Slot
• Two Year Warranty and One Year
Peace of Mind Service
Two (2) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year Peace-of-Mind Loaner Program.
2YR
8775 Projection Table
Image Size 4:3 Throw Distance
Diagonal Width Min. Max. b* d*
Inches Inches Inches Inches Inches Inches
30 24 33 41 6 3
40 32 45 55 9 3
60 48 69 84 13 5
80 64 93 113 17 7
100 80 117 142 22 8
120 96 141 171 26 10
150 120 176 214 32 13
200 160 236 286 43 17
240 192 284 344 52 20
300 240 356 431 65 25
b* = Vertical distance between lens center and screen center.
d* = Vertical distance between lens center and bottom of screen(top of screen for ceiling application).
Throw Ratio (distance to width) 1.5 1.8
Specifications 8775
Image Element 0.8” polysilicon TFT x 3, MLA
Brightness 3000 ANSI lumens
(2200 lumens in Whisper Mode)
Resolution 1024 x 768 pixels, XGA
Contrast 600:1
Scanning Frequency fh 15-100 kHz, fv 48-120 Hz
Lens Manual zoom and focus (F1.7-2.0), 1.2x zoom
Lens Throw Ratio 1.5-1.8:1 throw distance to image width
Keystone Correction Manual Automatic, vertical +/-40 deg,
horizontal +/-35 deg
Aspect Ratio 4:3, 16:9, selectable
Computer VGA, SVGA, XGA, and
Compatibility SXGA, SXGA+, and UXGA Compressed
Mac 13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M,
PAL-N, PAL60, SECAM,
HDTV 1080i, 720p, 576i/p, 480i/p
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using USB receiver to PC
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 200W DC
Lamp Life 2000 hours, 3000 in Whisper Mode
Audio 1W x 1
Throw Distance 28" to 354"
Screen Size 21" to 300" diagonal
Inputs, Video RCA, composite video
S-video, Min DIN 4-pin
Component, YCbCr
RCA, L/R audio
Inputs, Computer RGB Signal: D-sub, 15 pin x 2
DVI-D w/ HDCP
Audio, Stereo mini jack
Outputs, Monitor 15 pin, D-sub
Outputs, Audio Audio out, Stereo mini jack (variable)
Outputs, Control RS232
Network RJ-45 port
PC Card slot
Computer Free
Presentations
USB Type A, PC Card Slot
Security Kensington lock slot, Password Protection
Fan Level 35dB, 30dB in whisper mode
Operating
Temperature
41 to 104 deg. F (5-40 deg C)
Power AC 100-120V, AC200-240V
50/60 Hz, 292W Normal, 230W in Whisper
Mode,
16W Standby, 10W Power-Save
Size (WxHxD) 11.6" x 4.7" x 11.4"
Weight 7.7 lbs.
Carton Size 16.2” x 14” x 18.3”
Shipping Weight 15.6 lbs.
Accessories Included Remote control, RGB cable, power cord,
CDROM, operators manual, soft carry case
Safety UL/CSA, FCC Class B
Optional Accessories Lamp 456-8767A
Ceiling mount, universal; RPA-U
Wireless Network Card; NWL-100A
