1
Projector
User's Manual - Network
Quick Setup Guide
Thank you for purchasing this product.
This manual is intended to explain only how to setup this product. For proper use
of this product, please refer to this manual and the other manuals for this product.
9005/9006W/9007WU
Connecting the projector and the computer via the network, remote control and
status monitoring of the projector can be performed by Web browser.
Two types of interface, ”Projector Web Control” and “Crestron e-Control”, are
available for this projector.

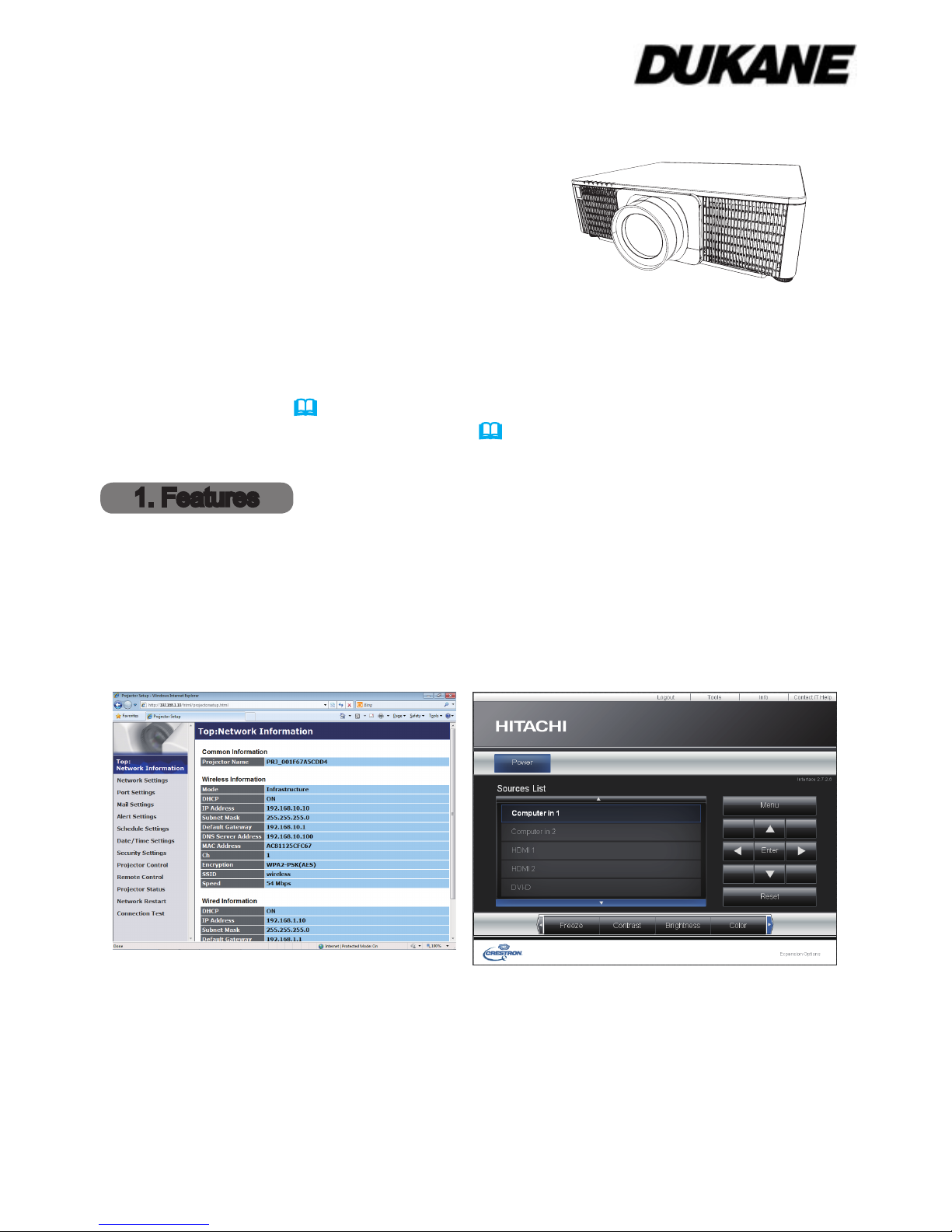

1.1 Web Control
Projector Web Control Crestron e-Control
1. Features
See the corresponding pages for quick setup.
・Connection Setup (&7)
・System Requirements for Applications (&13)
430-9005/9006W/9007WU-QSG-Net-00

2

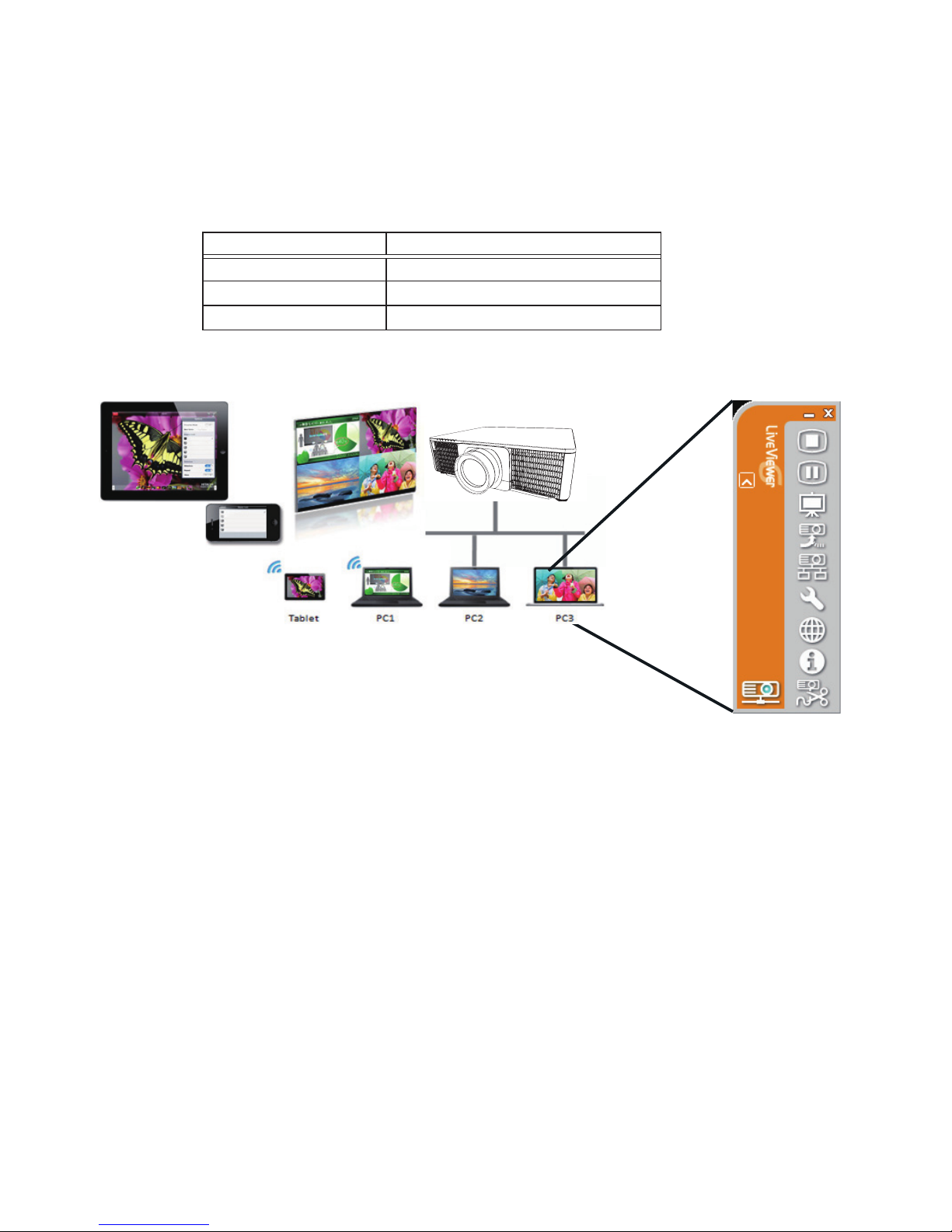

1.2 Network Presentation
The projector can display the computer screen images transmitted through the
network.
To use Network Presentation, an exclusive application, "LiveViewer" is required.
The following application is required to use Network Presentation.
OS Application
Windows LiveViewer
Mac OSX LiveViewer
iOS(iPhone/iPad) Projector Quick Connection

3
1.3 My Image Function
The projector can display still images transferred via the network.
It is possible to allocate up to 4 image les.
MY IMAGE transmission requires an exclusive application for your computer.
Use the application to transfer the image data.
1
43
2
1
43
2
1
43
2
Transfer image data
Display image data (ex. )

4
1.4 Messenger Function
The projector can display text data transferred via the network on the screen.
It is possible to store up to 12 text data.
Transfer text data
Display text data (ex. )
1
43
2
1
4
3
2
12
1
4
3
2
12

5

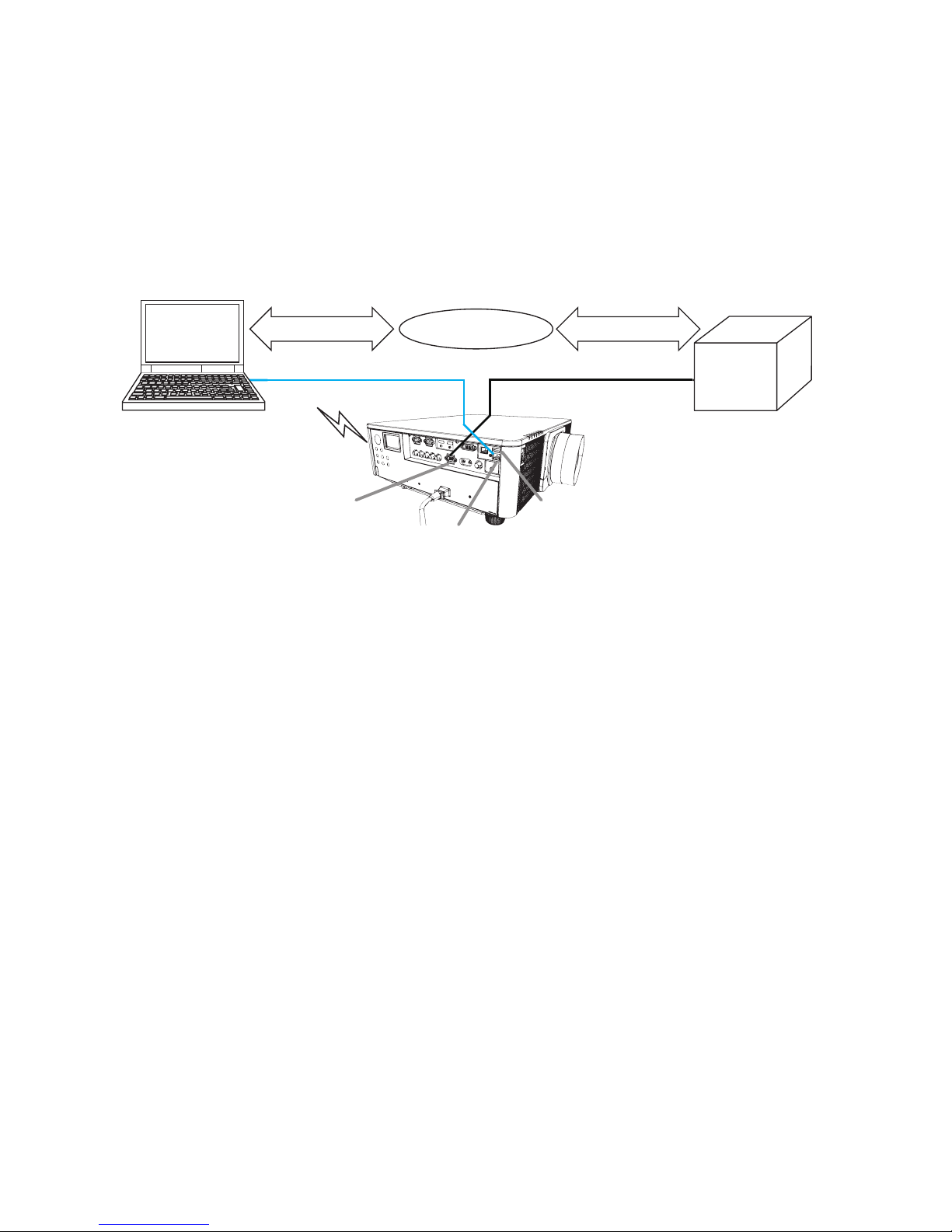

1.5 Network Bridge Function
This projector is equipped with the NETWORK BRIDGE function to perform
mutual conversion of a network protocol and a serial interface.
By making use of the NETWORK BRIDGE function, a computer connected to the
projector via wireless or wired LAN is able to control an external device via
RS-232C communication using the projector as a network terminal.
1.6 Other Functions
The projector can automatically send an alert message to the specied
e-mail addresses when the projector detects a certain condition that requires
maintenance or detects an error.
1.6.1 E-mail Alerts
The SNMP (Simple Network Management Protocol) enables to manage the
projector information, which is a failure or warning status, from the computer on
the network. The SNMP management software will be required on the computer
to use this function.
1.6.2 Projector Management using SNMP
RS-232C
RS-232C cable
CONTROL port
LAN port
External device
Wired LAN
LAN cable
Computer
Protocol change
TCP/IP data Serial data
WIRELESS port
(USB wireless adapter)
Wireless
LAN

6
The scheduling function enables to setup scheduled events including
power on / power off. It enables to be “self-management” projector.
The schedule can be set in web display or SETUP-SCHEDULE menu in the
projector.
1.6.3 Event Scheduling
You can congure and control the projector via the network using RS-232C
commands.
1.6.4 Command Control via the Network
1) Press the MENU button on the remote control or the control panel of the projector.
2) From EASY MENU, select LANGUAGE.
Then, select your desired language.
2. Changing the Display Language
Please follow the on-screen display (OSD) for proper operation.
MENU
button MENU button

7

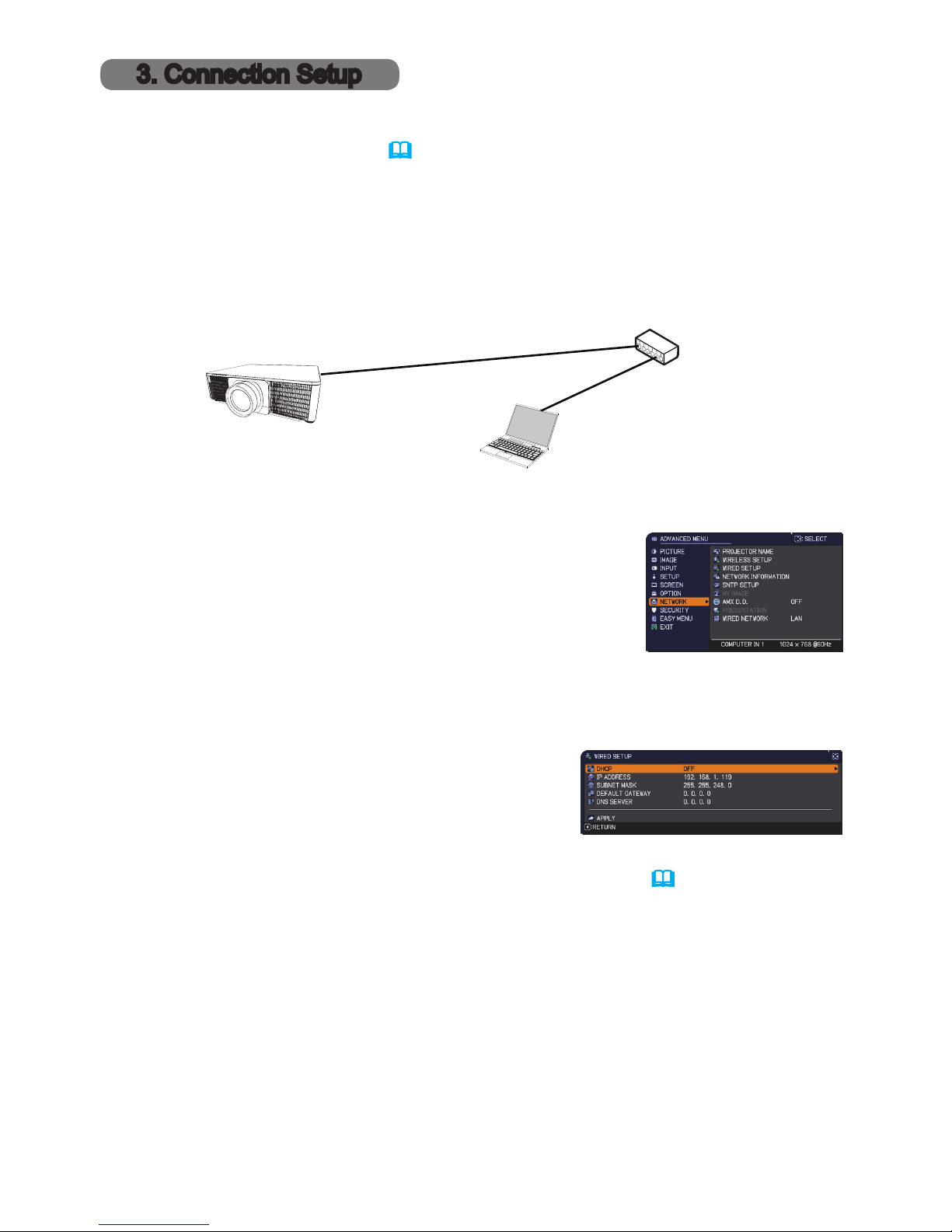

3.1 Connection via Wired LAN
1) Connect the projector to the computer via a hub
with a LAN cable (CAT-5e or higher).
2) Press the MENU button on the remote control or the
control panel of the projector.
The MENU you last used will appear.
Use the cursor button to select the following.
EASY MENU > ADVANCED MENU > NETWORK > WIRED SETUP
3) Set the following items in WIRED SETUP.
・󲹭DHCP
・IP ADDRESS
・SUBNET MASK
・DEFAULT GATEWAY
・DNS SERVER
As for setting an IP address, refer to “About IP address”. (&8)
Select APPLY, then press the ENTER button to reect the settings.
The connection via wired LAN is available. Set wired LAN for the projector by
following the instructions of your network administrator when connecting to the
existing network.
3. Connection Setup
For Mac users: Mac OS does not support some applications. Refer to System
Requirements for Applications (&13) rst before setting up the connection.
3.2 Connection setup of Wired LAN
hub

8
• Although HDBaseT and LAN port can be used for wired LAN, they cannot be
used simultaneously. Connect LAN cable to the port set in WIRED NETWORK
on NETWORK menu.
• The same network address cannot be used for both wireless LAN and wired LAN.
• I f the projector and the computer exist in the same network (i.e., same network
address), you can leave the default gateway eld blank.
• When the projector and the computer exist in different networks, the default
gateway must be set. Consult with the network administrator in detail.
NOTE
[About IP address]
■ Setting manually
The Network address portion of the IP address setting on your computer must
be the same as the setting on the projector. Also, the entire IP address on the
computer must not overlap with that of the other devices on the same network,
including the projector.
The projector’s settings are as follows.
IP address: 192.168.1.254
Subnet mask: 255.255.255.0
(Network address: 192.168.1 in this case)
Therefore, specify the computer’s IP address as follows.
IP address: 192.168.1.xxx (xxx shows decimal number.)
Subnet mask: 255.255.255.0
(Network address: 192.168.1 in this case)
For example
Select from 1 to 254 for “xxx” not duplicating with any other equipments.
In this case, since the IP address of the projector is “192.168.1.254”, specify
a setting between 1 to 253 for the computer.
■ Setting automatically
When a DHCP server exists in the connected network, it assigns an IP address
to the projector and the computer automatically. If DHCP server is not available,
set IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY.

9
3.3 Connection via Wireless LAN
Connection via wireless LAN is available with option parts, USB wireless adapter
(USB-WL-11N).
Wireless LAN has two types of connection, Ad Hoc and Infrastructure.
* Ad Hoc is one of the wireless LAN communication methods without having an
access point to communicate.
* Infrastructure is one of the wireless LAN communication methods with having
an access point to communicate. If communicating with existing network, consult
with your network administrator.
Fig. 3.3.a Without an access point communication (Ad Hoc)
Fig. 3.3.b With an access point communication (Infrastructure)
• Network settings can also be changed in Network Settings of Projector Web
Control.
• Wireless LAN initial settings for the projector is as follows.
Mode: Ad Hoc
DHCP: Off
IP address: 192.168.10.254
Subnet Mask: 255.255.255.0
Default Gateway: 0.0.0.0
SSID: wireless
Encryption: Off
Channel: 1
• The same network address cannot be used for both wireless LAN and wired LAN.
NOTE

10
3.3.1 Connection in Ad Hoc Mode
Set the following when connecting the projector and the computer in Ad Hoc mode.
Projector setting
[Restriction on plugging and unplugging the USB wireless adapter]
Before you insert or pull out the USB wireless adapter from the projector, turn off
the power of the projector and pull out the power cord’s plug from the outlet.
Do not touch the USB wireless adapter that is connected to the projector while the
projector is receiving AC power.
Do not use any extension cable or device when connecting the adapter to the projector.
1) Attach the USB wireless adapter to the WIRELESS port of the projector.
2) Turn on the projector.
3) Press the MENU button on the remote control or the
control panel of the projector.
The MENU you last used will appear.
Use the cursor button to select the following.
EASY MENU > ADVANCED MENU > NETWORK > WIRELESS SETUP
4) Set the following items in WIRELESS SETUP.
・MODE: ADHOC
・󲹭DHCP
・IP ADDRESS
・SUBNET MASK
・SSID
・ENCRYPTION
・CH
As for setting an IP address, refer to “About IP address”. (&8)
Select APPLY, then press the ENTER button to reect the settings.
• As for the procedure of setting network and wireless connection for the computer,
refer to the manual of computer or wireless LAN device.
NOTE
Computer setting
1) Set IP ADDRESS and SUBNET MASK for the computer according to IP
ADDRESS and SUBNET MASK set for the projector. Set the projector and the
computer so that they can have the same network address.
2) Select SSID set for the projector by following the procedure of wireless
connection of the computer. Enter encryption key by following the computer’s
instruction if it is encrypted.

11
3.3.2 Connection in Infrastructure Mode
Set the following when connecting the projector and the computer in Infrastructure
mode.
[Restriction on plugging and unplugging the USB wireless adapter]
Before you insert or pull out the USB wireless adapter from the projector, turn off
the power of the projector and pull out the power cord’s plug from the outlet.
Do not touch the USB wireless adapter that is connected to the projector while the
projector is receiving AC power.
Do not use any extension cable or device when connecting the adapter to the projector.
1) Attach the USB wireless adapter to the WIRELESS port of the projector.
2) Turn on the projector.
3) Press the MENU button on the remote control or the
control panel of the projector.
The MENU you last used will appear.
Use the cursor button to select the following.
EASY MENU > ADVANCED MENU > NETWORK > WIRELESS SETUP
4) Set the following items in WIRELESS SETUP.
・MODE: INFRASTRUCTURE
・󲹭DHCP
・IP ADDRESS
・SUBNET MASK
・DEFAULT GATEWAY
・DNS SERVER
・SSID
・ENCRYPTION
・CH
As for setting an IP address, refer to “About IP address”. (&8)
Select APPLY, then press the ENTER button to reect the settings.

12
•󲹭 Transmission speed may be slow depending on the settings of an access point.
• If the projector and the computer exist in the same network (i.e., same network
address), you can leave the default gateway eld blank.
• When the projector and the computer exist in different networks, the default
gateway must be set. Consult with the network administrator in detail.
• Set wireless LAN for the projector by following the instructions of your network
administrator when connecting to the existing network.
• Open System Authentication is used for WEP encryption, and Shared Key
Authentication is not supported. The authentication with an access point succeeds
and it is regarded that the connection is established normally even when entering
illegal encryption key due to Open System Authentication, but data cannot actually
be transmitted.
NOTE
The connection can be set up by selecting from SSID SCAN LIST without setting
SSID and ENCRYPTION in WIRELESS SETUP. The procedure of connecting by
SSID SCAN LIST is as follows.
1) Select SSID SCAN LIST in WIRELESS SETUP on NETWORK menu.
The list of SSID in wireless network is displayed.
2) Select SSID in wireless network that you want to connect in SSID SCAN LIST.
The display to enter the encryption key appears if it is encrypted.
Enter the encryption key by using software keyboard.
3) The icon indicating “connected” ( ) is displayed in SSID SCAN LIST screen
when the connection is complete.
Connection in Infrastructure Mode (continued)
SSID SCAN LIST function

13
4.1 Applications
The latest version of the application software can be downloaded from the website
below.
http://www.hitachi-america.us/digitalmedia/
http://www.hitachidigitalmedia.com/
http://www.hitachi-dm.cn/
http://www.hitachi.co.jp/proj/
For iOS Network Presentation software, refer to the URL below for details and
downloads of Projector Quick Connection.
http://www.hitachi.co.jp/Prod/vims/proj/en/index.html
http://www.hitachi.co.jp/Prod/vims/proj/jp/index.html
[System Requirements for Applications]
Application Hardware and Software
LiveViewer [Windows]
OS:
Windows®XP
Windows Vista®(Service Pack 1 or later)
Windows®7
Windows®8
Graphic card:
VGA: 640x480 or higher (recommended XGA: 1024x768)
CPU:
Pentium 4 (2.8 GHz or higher)
Hard disk space:
100MB or higher
4. Applications

14
[System Requirements for Applications] (continued)
Application Hardware and Software
LiveViewer [Mac]
Mac OSX 10.5
Mac OSX 10.6
Mac OSX 10.7
Mac OSX 10.8
Hard disk space:
15MB or higher
Projector Quick
Connection
iOS 5.1.1 or later
iPad, iPad2, New iPad
iPhone4/4S/5
Projector Image
Tool(PJImg)
OS:
Windows®XP
Windows Vista®
Windows®7
Windows®8
CPU:
Pentium 3 (500MHz or higher)
Hard disk space:
20MB or higher
Projector Messenger
Tool (PJMessenger)
OS:
Windows®XP
Windows Vista®
Windows®7
Windows®8
CPU:
Pentium 3 (500MHz or higher)
Hard disk space:
20MB or higher
• Only for Intel version. Power Mac is not supported.
• LiveViewer for MAC is not included in the bundled
CD-ROM. Download it from the website.
NOTE

15
• The information in this manual is subject to change without notice.
• The illustrations in this manual are for illustrative purposes. They may differ
slightly from your projector.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
NOTE
5. Troubleshooting
Please check the following web address where you may nd the latest information
for this projector.
http://www.hitachi-america.us/projectors
http://www.hitachiserviceeu.com/support/guides/userguides.htm
DUKANE CORP AV SERVICE DEPT
2900 Dukane Drive
St Charles, IL 60174
800-676-2487 / 630-762-4032
Fax [phone]
[email protected]
www.dukane.com/av
430-9005/9006W/9007WU-QSG-Net-00
