ImagePro 8301 Portable DLP Projector
 e ImagePro 8301 is a bright (3000 lumens)
versatile DLP projector with Brilliant Color™,
and HDTV compatible
8301 FEATURES
ConVA by Dukane delivers control of classroom audio visual assets
in sync with our Student Response System. Experience tomorrow's
classroom today with ConVA. Visit www.convasystems.com.
Call Dukane: 800-676-2485
www.dukcorp.com
• 3000 lumen brightness
• XGA resolution (1024 X 768)
• Brilliant Color™ DLP Technology
• Filter Free Design
• Contrast ratio of 2200 to 1
• Front venting for cool presentations
• HDTV ready, DVI-I, HDMI input
• Audio pass-through for volume
control when operating
• Dukane 5-Year Warranty

Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
800-676-2485 toll-free
630-584-5156 fax
[email protected] e-mail
www.dukcorp.com/av
ImagePro 8301
Portable DLP projector
Five (5) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year Peace-of-Mind Loaner Program.
5YR

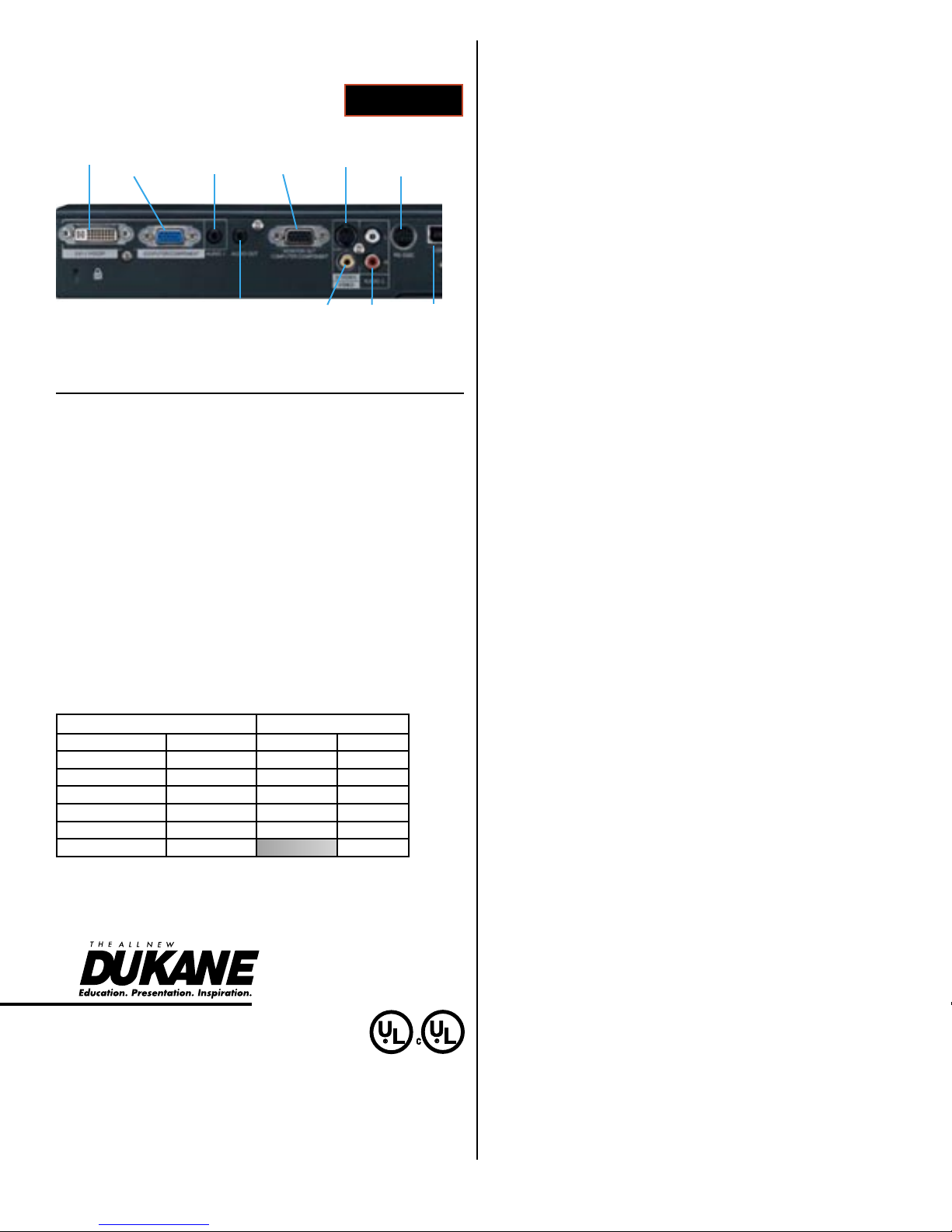

8301 Projection Table
Connections
Back Panel
Audio
In 1
Monitor
Out
Computer
In 1
S-VideoDVI-I
Composite
Video
Audio
Out
Control
(RS-232)
FEATURES
• XGA (1024 x 768) resolution
• 3000 ANSI lumens of brightness
• 2200:1 contrast ratio
• 1 watt speaker
• Brilliant color images
• Vertical keystone correction
• Only 6.4 lbs.
• No filter to service
• Easy lamp replacement through bottom door
• Controllable remotely
• Five Year Warranty and One Year Peace of Mind Service
Specifications 8301
Image Element 0.55” DND DLP
Brightness 3000 ANSI lumens (2400 econo mode)
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 2,200:1
Scanning Frequency fh 15-100 kHz, fv 45-120 Hz
Lens Manual zoom
Lens Throw Ratio 1.84 -2.13 :1 throw distance to image
width
Keystone Correction Digital vertical +/-15˚
Aspect Ratio 4:3 native, 16:9 selectable
Computer
Compatibility
VGA, SVGA, XGA, SXGA,UXGA
Mac 13", Mac 16"
Video Compatibility NTSC, PAL, PAL-M
SECAM, HDTV1080i/p, 720p, 480i/p,
Closed Caption CC1, CC2
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 250W UHB
Lamp Life 2000 hours (4000 hours econo mode)
Audio 2W speaker
Throw Distance 4'11" to 36'
Screen Size, diagonal 40” to 300”
Inputs, Video (1) S-video, Min DIN 4-pin,
(1) Composite video, RCA x 1
(2) Audio, Stereo, RCA x 2, (L/R)
Inputs, Computer (1) RGB Signal: D-sub, 15 pin, DVI-I
(1) DVI-I
(1) Audio, Stereo mini jack
Outputs Monitor 15 pin, D-sub
Outputs Audio Audio, Stereo mini jack x 1
Outputs, Other DIN Connector, RS232
USB type B (remote mouse only)
Security Kensington slot
Fan Level 37dB, (29dB in econo mode)
Operating Temperature 41 to 95 deg. F (5-35 deg C)
Power AC 100-120V, AC220-240V
50/60 Hz, 326 watt
Size (D & W) 10.7” x 10.5” x 3.5”
Weight 6.4 lbs. (2.9 kg)
Carton Size 15” x 15” x 9”
Shipping Weight 12 lbs.
Accessories Included Remote control, batteries (AA), power
cord, Computer cable, User manual,
CD-ROM, lens cap
Safety FCC-A, UL/CUL
Optional Accessories Lamp 456-8301
Ceiling mount, universal, RPA-U
#080040-H-08.1 ImagePro is a registered trademark of Dukane Corporation
USB
Type B
Image Size 4:3 Throw Distance
Diagonal Width Min. Max.
Inches Inches Feet Feet
40 32 4.9 5.7
60 51 7.3 8.5
80 63 12.3 14.2
100 85 18.6 21.3
120 102 24.6 28.3
Throw Ratio (distance to width) 1.84 2.13
to
Audio
In 2
