P474W/P474U/P554W/P554U Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com P474W/P474U/P554W/P554U Page 1 of 9
Contents
Product Description, Lens Specs, Screen/Aspect Ratio
Notes Pg 1
Distance Charts and Formulas Pg 2-3
Ceiling Mount/Desktop Installation Pg 4
Lens Shift Adjustable Range Pg 5
Cabinet Dimensions Pg 6-7
Ceiling Mount Dimensions and Input Panel Pg 8
Control Codes Pg 9
Product Description
Type: 3 panel LCD projector, Dimensions: 16.52”(W) x 5.54”(H) x 12.95”(D)
0.64 p-Si TFT w/MLA Weight: 10.6 lbs
Resolution: 6647W: 1280 x 800 (16:10) Brightness:6647W:4700 Lumens
6647WU:1920 x 1200 (16:10) 4700 Lumens
6655W:1280 x800 (16:10) 5500 Lumens
6655WU: 1920 x 1200 (16:10)
6647WU
6655W:
6655WU:5500 Lumens
Fan Noise: 39 dB / 33dB @ 1 meter
Power Consumption:6647W:418W (max) BTU’s: 6647W:1426.3 BTU/hour (max)
6647WU:424W(max) 6647WU:1446.7 BTU/hour (max)
6655W: 448W (max) 6655W: 1528.6 BTU/hour (max)
6655WU:460W(max) 6655WU:1559.3 BTU/hour (max)
Network Ready, integrated wired and wireless adapter
Manual: Lens Shift, Horizontal & Vertical/Zoom/ Focus
Lens Specifications
Throw Ratio: Focal Length: 17.4mm –29.0mm
(for 100” diagonal)
(for 100” diagonal) 17.2mm –27.7mm
Offset Angle: F/#: 1.7 –2.2
1.5 –2.1
Screen Sizes:
6647W/6655W:1.2–2.1:1
6647WU/6655WU: 1.2 –2.0:1
4.8° - 8.0° (for 100” diagonal)
30” -300” diagonal Manual Focus/Manual Zoom/Manual Lens Shift
Screen/Aspect Ratio
4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using developed scaling
technology. Menu selections have settings for each screen type and aspect ratio control for each source type.
Notes
For screen sizes not indicated on the projection tables, use the formulas below.
If the figures on the tables do not match the results of formulas, use the figures in the table..
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary 5%.
www.dukaneav.com 6647W/6647WU/6655W/6655WU_Installation_Guide-00 Page 1 of 9
6647W/6647WU/6655W/6655WU Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
DUKANE CORP AV SERVICE DEPT
2900 Dukane Drive
St Charles, IL 60174
800-676-2487 / 630-762-4032
Fax [phone]
[email protected]
www.dukaneav.com

NEC Display Solutions of America, Inc.
P474W/P474U/P554W/P554U Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com P474W/P474U/P554W/P554U Page 2 of 9
Formulas: 16:10 Aspect Ratio (6647W/6655W—WXGA)
The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size
varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to
calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 4:
16:10 Screen Formulas:
W = H x 16/10
H = W x 10/16
Screen Diagonal = W x 18.868/16
Projection Formulas:
B(max) = 0.347W
B (min) = 0
C(wide) = 1.263W–3.138
C(tele) = 2.264W–3.138
D (max) = -0.053W
D(min) = 0.313W
α(wide) =tanˉ¹ (B/C(wide))
α(tele) = tanˉ¹ (B/C(tele))
Lens Shift Max (Right) = 0.15W
Lens Shift Max (Left) = 0.-15W
Note: For screen sizes not indicated on the projection
tables, use the formulas on page 1.
Distance Charts
The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of installation.
Distances are in inches. For millimeters multiply by 25.4.
Diagonal Width(W) Height (H)
Max
(Right)
Max
(Lef t)
inches inches inches
57 48 30 17 -0 57 -106 -2 -15 16.2 - 9.0 7.2 - -7.2
66 56 35 19 -0 68 -124 -2 -18 16.0 - 8.9 8 - -8
68 58 36 20 -0 70 -127 -2 -18 16.0 - 8.9 9 - -9
75 64 40 22 -0 78 -142 -2 -20 16.0 - 8.9 10 - -10
79 67 42 23 -0 82 -149 -2 -21 15.9 - 8.9 10 - -10
85 72 45 25 -0 88 -160 -3 -23 15.9 - 8.9 11 - -11
92 78 49 27 -0 96 -174 -3 -25 15.8 - 8.9 12 - -12
98 83 52 29 -0 102 -185 -3 -26 15.8 - 8.9 12 - -12
102 86 54 30 -0 106 -192 -3 -27 15.8 - 8.9 13 - -13
111 94 59 33 -0 116 -211 -3 -30 15.8 - 8.8 14 - -14
113 96 60 33 -0 118 -214 -3 -30 15.8 - 8.8 14 - -14
123 104 65 36 -0 128 -232 -4 -33 15.7 - 8.8 16 - -16
125 106 66 37 -0 130 -236 -4 -33 15.7 - 8.8 16 - -16
147 125 78 43 -0 154 -279 -4 -39 15.7 - 8.8 19 - -19
149 126 79 44 -0 157 -283 -4 -40 15.7 - 8.8 19 - -19
213 181 113 63 -0 225 -406 -6 -57 15.6 - 8.8 27 - -27
255 216 135 75 -0 270 -486 -8 -68 15.5 - 8.8 32 - -32
270 229 143 79 -0 286 -515 -8 -72 15.5 - 8.8 34 - -34
300 254 159 88 -0 318 -573 -9 -80 15.5 - 8.8 38 - -38
B
max - min
inches
Screen Size (16:10)
inches
C
w ide - tele
inches
degrees
inches
D
max - min
Lens Shift
α
w ide - tele
Dukane AV Division
6647W/6647WU/6655W/6655WU Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
www.dukaneav.com 6647W/6647WU/6655W/6655WU_Installation_Guide-00 Page 2 of 9

NEC Display Solutions of America, Inc.
P474W/P474U/P554W/P554U Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com P474W/P474U/P554W/P554U Page 3 of 9
Formulas: 16:10 Aspect Ratio (6647WU/6655WU—WUXGA)
The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size
varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to
calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 4:
16:10 Screen Formulas:
W = H x 16/10
H = W x 10/16
Screen Diagonal = W x 18.868/16
Projection Formulas:
B(max) = 0.347W
B (min) = 0
C(wide) = 1.238W–1.818
C(tele) = 1.999W–1.727
D (max) = -0.053W
D(min) = 0.313W
α(wide) =tanˉ¹ (B/C(wide))
α(tele) = tanˉ¹ (B/C(tele))
Lens Shift Max (Right) = 0.15W
Lens Shift Max (Left) = 0.-15W
Note: For screen sizes not indicated on the projection
tables, use the formulas on page 1.
Distance Charts
The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of installation.
Distances are in inches. For millimeters multiply by 25.4.
Diagonal Width(W) Height (H)
Max
(Right)
Max
(Lef t)
inches inches inches
57 48 30 17 -0 58 -94 -2 -15 16.1 - 10.0 7.2 - -7.2
66 56 35 19 -0 68 -110 -2 -18 16.1 - 10.0 8 - -8
68 58 36 20 -0 69 -113 -2 -18 16.0 - 10.0 9 - -9
75 64 40 22 -0 77 -126 -2 -20 16.0 - 10.0 10 - -10
79 67 42 23 -0 81 -133 -2 -21 16.0 - 10.0 10 - -10
85 72 45 25 -0 87 -142 -3 -23 16.0 - 10.0 11 - -11
92 78 49 27 -0 95 -155 -3 -25 15.9 - 10.0 12 - -12
98 83 52 29 -0 101 -165 -3 -26 15.9 - 9.9 12 - -12
102 86 54 30 -0 105 -171 -3 -27 15.9 - 9.9 13 - -13
111 94 59 33 -0 115 -187 -3 -30 15.9 - 9.9 14 - -14
113 96 60 33 -0 117 -190 -3 -30 15.9 - 9.9 14 - -14
123 104 65 36 -0 127 -206 -4 -33 15.9 - 9.9 16 - -16
125 106 66 37 -0 129 -209 -4 -33 15.9 - 9.9 16 - -16
147 125 78 43 -0 153 -248 -4 -39 15.8 - 9.9 19 - -19
149 126 79 44 -0 155 -251 -4 -40 15.8 - 9.9 19 - -19
213 181 113 63 -0 222 -360 -6 -57 15.8 - 9.9 27 - -27
255 216 135 75 -0 266 -430 -8 -68 15.8 - 9.9 32 - -32
270 229 143 79 -0 281 -456 -8 -72 15.8 - 9.9 34 - -34
300 254 159 88 -0 313 -507 -9 -80 15.7 - 9.9 38 - -38
degrees
inches
D
max - min
Lens Shift
α
w ide - tele
B
max - min
inches
Screen Size (16:10)
inches
C
w ide - tele
inches
6647W/6647WU/6655W/6655WU Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
www.dukaneav.com 6647W/6647WU/6655W/6655WU_Installation_Guide-00 Page 3 of 9

NEC Display Solutions of America, Inc.
P474W/P474U/P554W/P554U Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com P474W/P474U/P554W/P554U Page 4 of 9

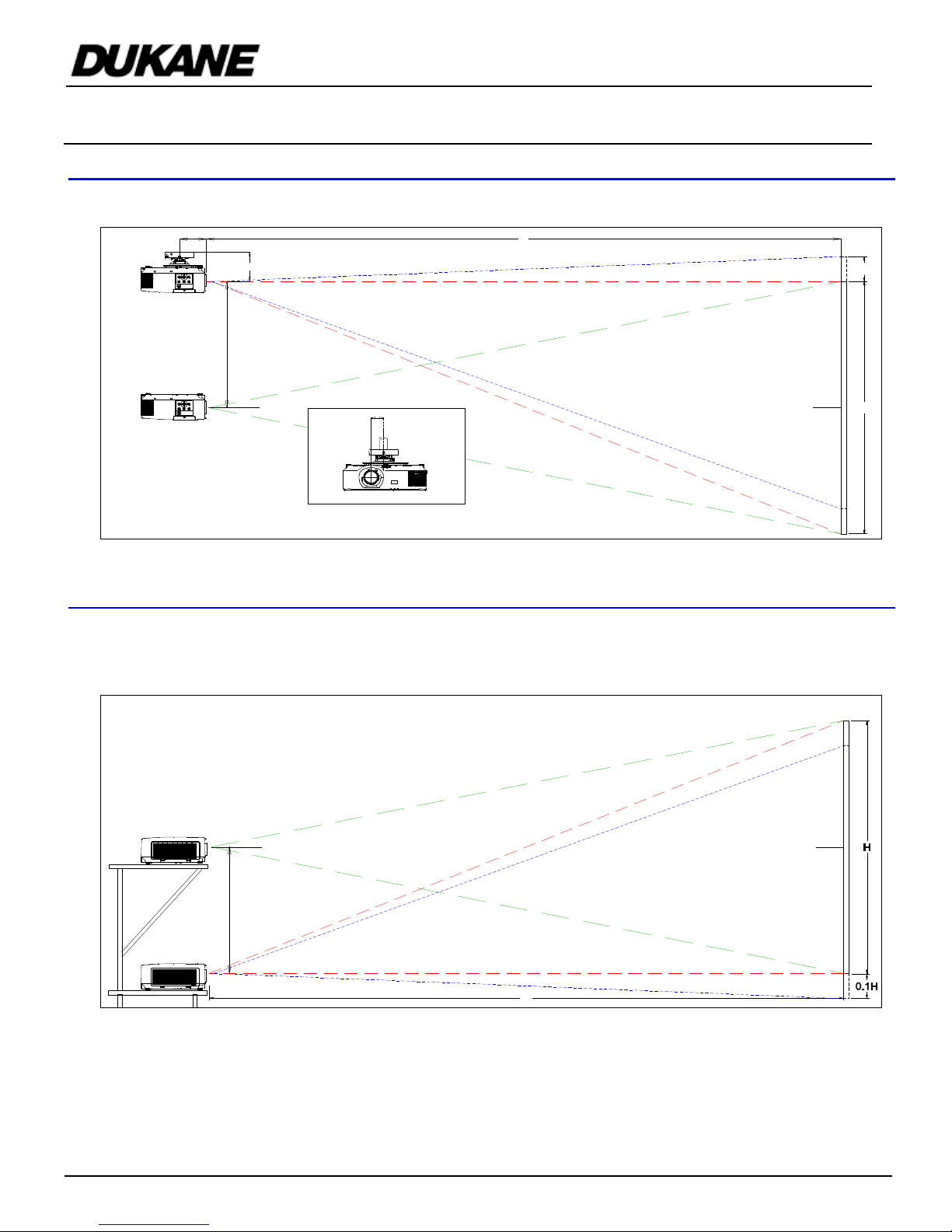

Ceiling Mounted
Desktop
Shift Range
Screen Cent er
H
0.1H
Lens O f fset F rom Mount Pipe
6.25
C
5.34
2.48
Shift Range
Screen Cent er
C
6647W/6647WU/6655W/6655WU Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
www.dukaneav.com 6647W/6647WU/6655W/6655WU_Installation_Guide-00 Page 4 of 9

NEC Display Solutions of America, Inc.
P474W/P474U/P554W/P554U Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com P474W/P474U/P554W/P554U Page 5 of 9
Lens Shift Adjustable Range
Lens Shift Range for Desktop and Ceiling Mount Application

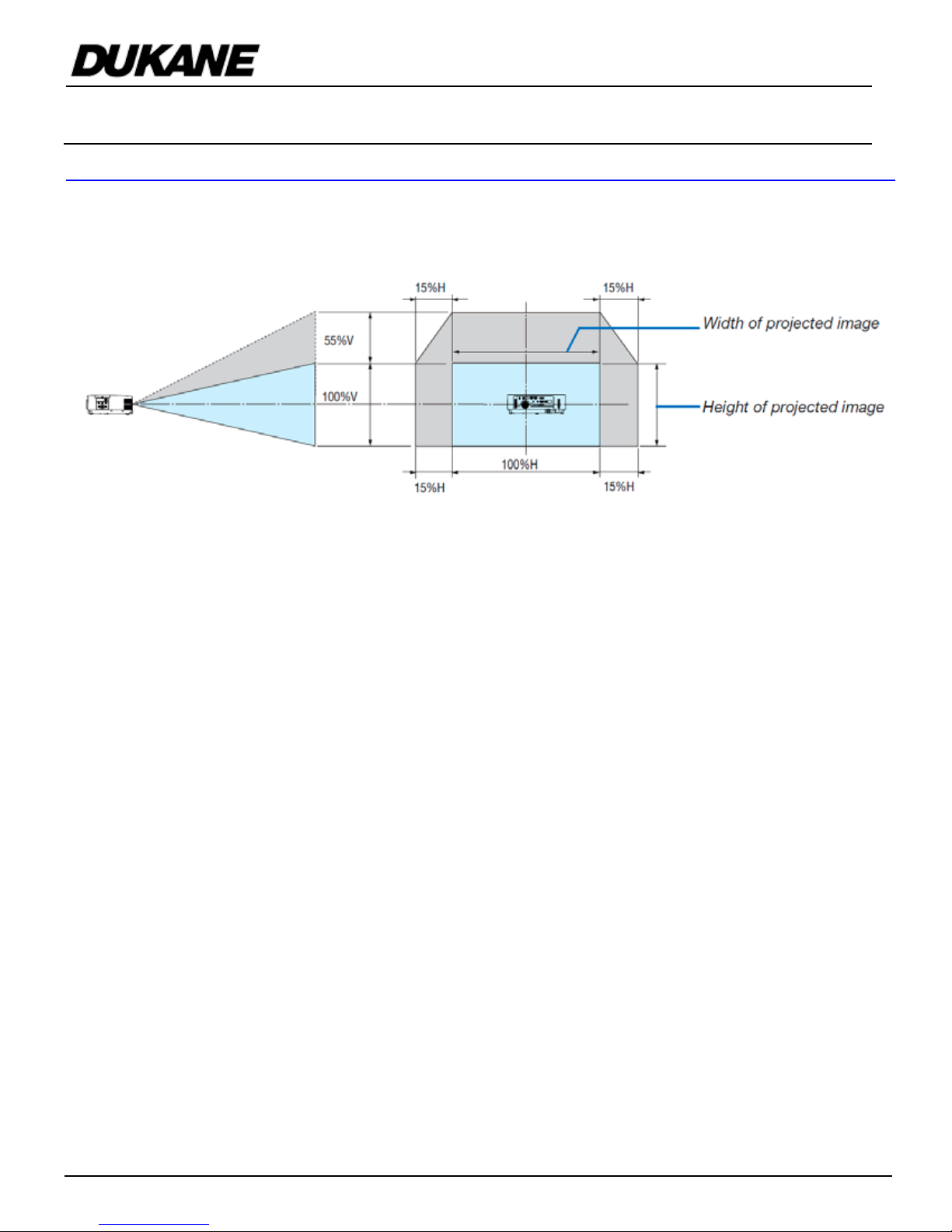

The diagram below shows the location of the image position in the lens for the 6647W/6655W. The 6647W/6655W has a maximum
horizontal lens shift range of +/- 15% and a maximum vertical lens shift of + 55%. The lens can be shifted within the shaded area
as shown using the normal projection position as a starting point.
Lens Shift Range for Desktop and Ceiling Mount Application
The diagram below shows the location of the image position in the lens for the 6647WU/6655WU. The 6647WU/6655WU has a
maximum horizontal lens shift range of +/- 25% and a maximum vertical lens shift of + 62%. The lens can be shifted within the
shaded area as shown using the normal projection position as a starting point.
Note: Projector is set out of the box at center position, which is how it is depicted above.
(H: width of projected image, V: height of projected image)
6647W/6647WU/6655W/6655WU Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
www.dukaneav.com 6647W/6647WU/6655W/6655WU_Installation_Guide-00 Page 5 of 9

NEC Display Solutions of America, Inc.
P474W/P474UU/P554W/P554U Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com P474W/P474U/P554W/P554U Page 6 of 14
Cabinet Dimensions

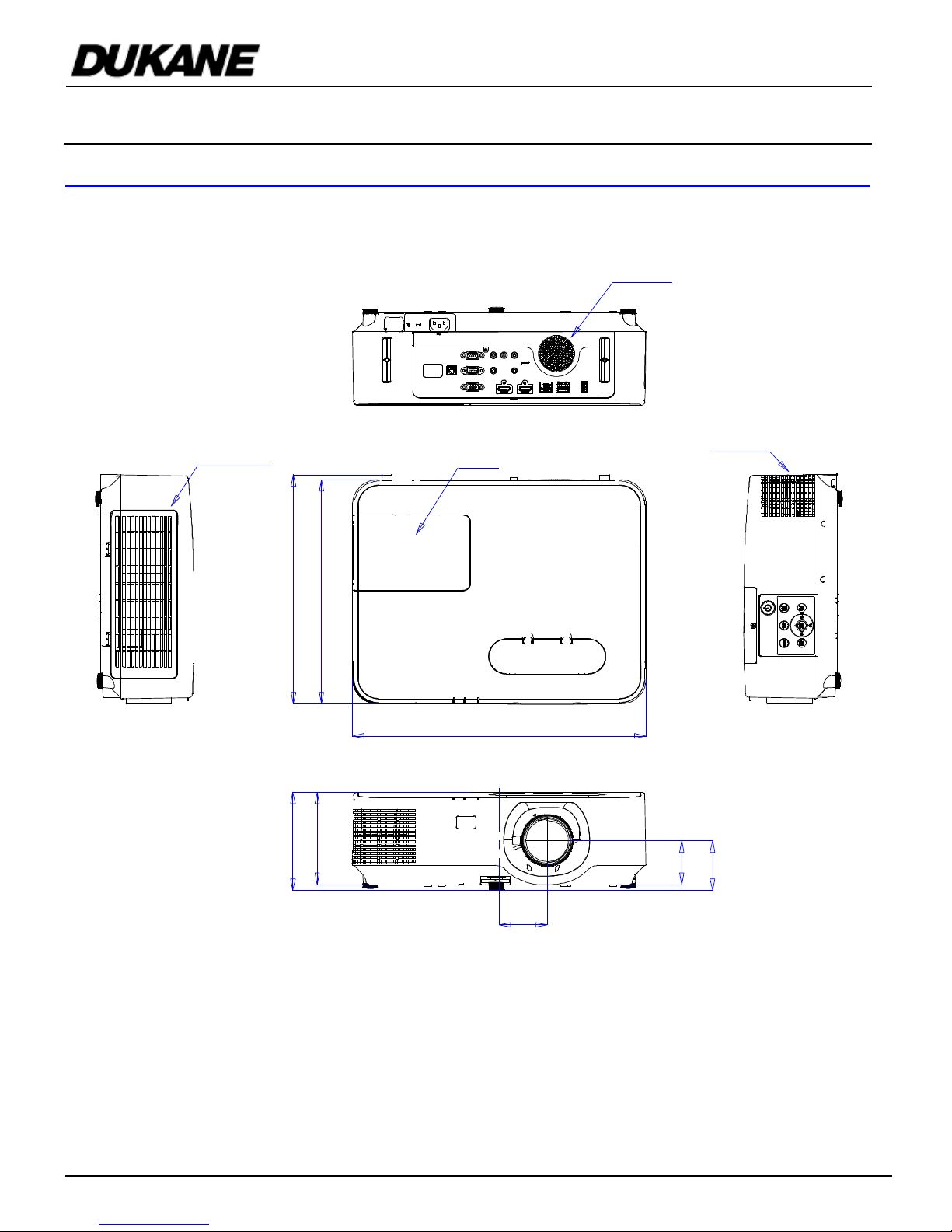

The following diagrams show the cabinet dimensions for the 6647W/6647WU/6655W/6655WU.
Dimensions are in inches. For millimeters multiply by 25.4.
12.67
12.95
16.52
2.49
2.69
5.23
5.54
2.8
Intake Filter
Speaker
Exhaust
Lamp
6647W/6647WU/6655W/6655WU Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
www.dukaneav.com 6647W/6647WU/6655W/6655WU_Installation_Guide-00 Page 6 of 9

NEC Display Solutions of America, Inc.
P474W/P474UU/P554W/P554U Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com P474W/P474U/P554W/P554U Page 7 of 14
Cabinet Dimensions
5.11
7.67
6.88
7.26 7.26
0.2
For Ceiling Mount
( 4) M4 x 8mm
1.86
5.93
6647W/6647WU/6655W/6655WU Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
www.dukaneav.com 6647W/6647WU/6655W/6655WU_Installation_Guide-00 Page 7 of 9

NEC Display Solutions of America, Inc.
P474W/P474UU/P554W/P554U Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com P474W/P474U/P554W/P554U Page 8 of 14
Input Panel
Control Panel
6647W/6647WU/6655W/6655WU Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
www.dukaneav.com 6647W/6647WU/6655W/6655WU_Installation_Guide-00 Page 8 of 9
or Dukane mount PRG-UNV.

NEC Display Solutions of America, Inc.
P474W/P474UU/P554W/P554U Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com P474W/P474U/P554W/P554U Page 9 of 14
PC Control Codes
Function Code Data
POWER ON 02H 00H 00H 00H 00H 02H
POWER OFF 02H 01H 00H 00H 00H 03H
INPUT SELECT Computer 02H 03H 00H 00H 02H 01H 01H 09H
INPUT SELECT HDMI1 02H 03H 00H 00H 02H 01H A1HA9H
INPUT SELECT HDMI2 02H 03H 00H 00H 02H 01H A2HAAH
INPUT SELECT Video 02H 03H 00H 00H 02H 01H 06H0EH
INPUT SELECT Computer 02H 03H 00H 00H 02H 01H 01H 09H
INPUT SELECT HDBaseT 02H 03H 00H 00H 02H 01H BFH C7H
PICTURE MUTE ON 02H 10H 00H 00H 00H 12H
PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H
SOUND MUTE ON 02H 12H 00H 00H 00H 14H
SOUND MUTE OFF 02H 13H 00H 00H 00H 15H
AUTO ADJUST 02H 0FH 00H 00H 02H 05H 00H 18H
Cable Connection
Communication Protocol:
Baud Rate: 38400 bps (for cable lengths longer than 20’, it is recommended changing to 9600 bps in setup menu)
Data Length: 8 bits
Parity: No Parity
Stop Bit: One bit
X on/off: None
Communications: Full duplex
PC Control Connector (D-Sub 9P)
NOTE 1 : Pins 1, 4, 6, and 9 are used inside the projector.
NOTE 2:For long cable runs it is recommended to set communication speed within the projector to 9600 bps.
NOTE 3: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection.
12345
67 8 9
To GND of PC
To RxD of PC
To TxD of PC
To CTS of PC
To RTS of PC
6647W/6647WU/6655W/6655WU Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
www.dukaneav.com 6647W/6647WU/6655W/6655WU_Installation_Guide-00 Page 9 of 9
