LPX Series Owner's Guide
(These instructionsare intended for use by atechnician
familiar with electronic products)
NextGeneration Low Profile Power Supplies
IJLIOIII0-1
Features:
• Universal full range AC input
• Filtered and regulated with built in PFC function
• Fanless design, cooling by free air convection
• DOE Level VI No load power consumption< 0.15W (< 0.SW for LPX-25)
• RoHS Compliant
• UL/CUL Listed
• Complies with EISA 2007/DoE, NRCan, and EU ErP
• Protections: Short Circuit/ Overload/ Over voltage/ Over temperature
• Adjustable output voltage: 11.5- lSV
• 125% peak load capability
• 3 year warranty
DuraComm• Corporation
6655 TROOST AVENUE
KAN S AS CITY, MO. 64131
816-472-5544
www.duracomm.com

WARNING: The individual user should take care to determine prior to use or installation whether this
device is suitable, adequate, or safe for the use intended. Since individual applications are subject to
great variation, DuraComm makes no representation or warranty as to the merchantability, suitability or
fitness of these units foranyspecific application.
Precision regulated power supplies operate internally from voltages in excess of 13.8 volts. In rare
cases, voltage spikes or transients on the AC power line, or over heating, may cause a component failure
in the power supply. If this failure results in over voltage at the output terminals, the electronic over
voltage feature will operate. Overload of the output will cause the over current feature to operate. In
either case, the cause mustbe determined and corrected.
Failures require investigation as to the cause and/ or repair of the unit. THIS UNIT DOES NOT
HAVE ANY USER SERVICEABLE PARTS. SERVICE AND REPAIR MUST BE REFERRED TO QUALIFIED
PERSONNEL.
DESCRIPTION: The DuraComm LPX Series of powersupplies are UUCUL listed.They are manufactured in
accordance with ISO 9001 qualityassurance standards.These powersupplies convert90~264Volt
50/60 Hz AC input to low noise and ripple, regulated 13.8 volt DC output.
DuraComm 's power supplies are protected against inadvertent shorts and overloads by an
electronic output current limiting circuit.This current limiting circuit reduces the output limiting to a very
low and safe value until the overload is removed from the power supply. As soon as the overload is
removed, the output will be automatically restored.
Additionally the power supplies incorporate an over temperature feature to protect against
undesired componentfailure should operation in excessive environmental temperatures occur.
DuraComm LPX series powersupplies are compatible with all LPH radio hoods.
DuraComm LPX series power supplies may be configured for battery back up & charging applications
with theaddition of the LPBC-25. See www.duracomm.com formore information.
OPERATION: Connect your 12 volt DC device to the red (positive) and black (negative) output terminals.
Be certain you connect positive to positive (red) and negative to negative (black). Insert the AC plug into
an AC outlet of the propervoltage.
Press the ON/OFF switch to the ON position and observe that the indicator light illuminates. If the
indicator light fails to light, rechecktheequipment installation, hook-up polarity, and the AC outlet.
PRECAUTIONS: DO NOT block any openings in the case or operate the unit in a hot, enclosed
environment or compartment. Be sure adequate ventilation is provided since heat build-up will shorten
component life. NOTE: Most audio and radio equipment draws much less average current than the peak
demand.
If the unit stops working, check the 12 volt connections for tightness. If the unit fails again or
repeatedly, have the unit checked by a qualified technician. HAZARDOUS VOLTAGES EXIST INSIDE THE
UNIT . THERE ARE NO USER SERVICEABLE PARTS INSIDE. DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE.
Warning: The DuraComm series of desk top power supplies are accurately regulated to maintain output
voltagefrom no load to full load. Slightlyabove the rated output load, thecurrent limiting circuit begins
to act, reducing the output voltage to prevent unit overload damage.

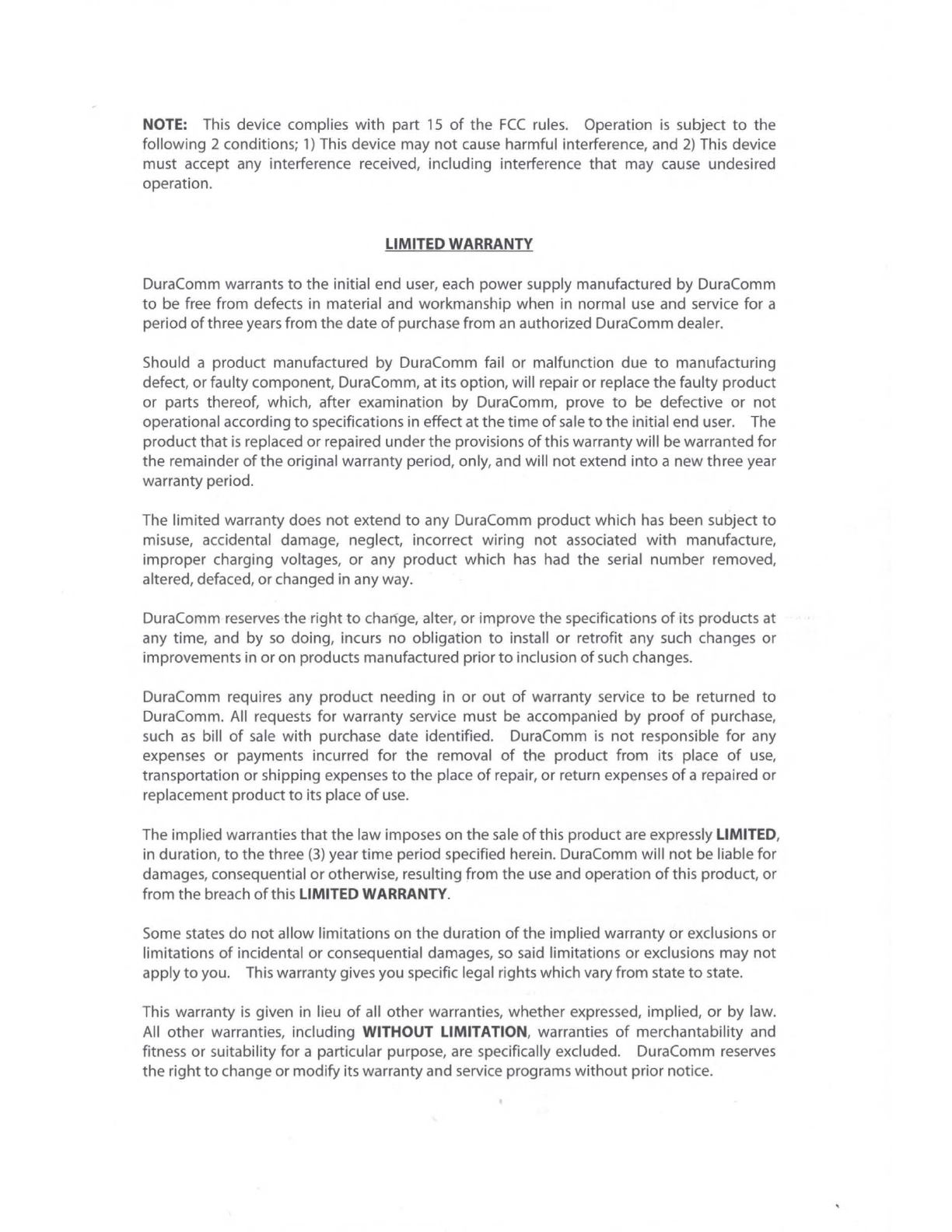

NOTE: This device complies with part 15 of the FCC rules. Operation is subject to the
following 2 conditions; 1) This device may not cause harmful interference, and 2) This devi ce
must accept any interference received, including interference that may cause undesired
operation.
LIMITED WARRANTY
DuraComm warrants to the initial end user, each power supply manufactured by DuraComm
to be free from defects in material and workmanship when in normal use and service for a
period of threeyears from the date of purchase from an authorized DuraComm dealer.
Should a product manufactured by DuraComm fail or malfunction due to manufacturing
defect, or faulty component, DuraComm, at its option,will repair or replace the faulty product
or parts thereof, which, after examination by DuraComm, prove to be defective or not
operational according to specifications in effectatthetime of sale to the initial end user. The
product that is replaced or repaired underthe provisions of this warranty will be warranted for
the remainder of the original warranty period, only, and will not extend into a new three year
warranty period.
The limited warranty does not extend to any DuraComm product which has been subject to
misuse, accidental damage, neglect, incorrect wiring not associated with manufacture,
improper charging voltages, or any product which has had the serial number removed,
altered, defaced, or changed in any way.
DuraComm reserves the right to chang e, alter, or improve the specifications of its products at
any time, and by so doing, incurs no obligation to install or retrofit any such changes or
improvementsin or on products manufactured prior to inclusion of such changes.
DuraComm requires any product needing in or out of warranty service to be returned to
DuraComm. All requests for warranty service must be accompanied by proof of purchase,
such as bill of sale with purchase date identified. DuraComm is not responsible for any
expenses or payments incurred for the removal of the product from its place of use,
transportation or shipping expenses to the place of repair, or return expenses of a repaired or
replacement product to its place of use .
The implied warranties that the law imposes on the sale of this product are expressly LIMITED,
in duration, to the three (3) year time period specified herein. DuraComm will not be liable for
damages, consequential or otherwise, resulting from the use and operation of thi sproduct, or
from the breach of this LIMITED WARRANTY.
Some states do not allow limitations on the duration of the implied warranty or exclusions or
limitations of incidental or consequential damages, so said limitations or exclusions may not
apply to you. This warrantygives you specific legal rights which vary from state to state.
This warranty is given in lieu of all other warranties, whether expressed, implied, or by law.
All other warranties, including WITHOUT LIMITATION, warranties of merchantability and
fitness or suitability for a particular purpose, are specifically excluded. DuraComm re s erves
the right to change ormodifyits warranty and service programs without prior notice.

Specifications
Model
LPX - 10 LPX - 14
LPX-18 LPX -25
Output DC Voltage 13.SV
Rated Current 8.7A
13A 17.4A 26A
Current Rated 0 ~ 8.7A 0~13A 0 - 17.4A
0~26A
Peak 10.9A 16.3A 21.7A 32.6A
Wattage Rated 120W 179.4W 240.lW
359W
Peak 150.4W 225W 300W 1450W
Rinnle & Noise (Max) 150mVP·P
Voltage ADJ. Range 11.5 - 15V 11.5 - 15V 11.5 - 15V 11 .5 - 15V
Voltaae Tolerance ±1.0% ±1.0% ±1.0% ±1.0%
Line Regulation ±0.5% ±0.5% ±0.5% ±0.5%
Load Reaulation ±2.0% ±2.0% ±2.0% ±2.0%
Setup, Rise Time
1 000ms, 1 00ms at full load
Hold Up Time* 20ms at full load
Input
Voltage Ranae
90 ~ 264VAC
127 - 370VDC
Freauency Ranae
47 ~ 63Hz
Power Factor • PF>0.98/115VAC, PF>0 .95/23 0VAC at full load
Efficiency * 89.5% 91% 91% 91%
AC Current •
l.25A/115VAC 0.63A/2 30VAC
Inrush Current • 65A 70A 75A
60A
Cold Start at 2 30 VAC
Leakaae Current <3.5mA / 240VAC
No Load Power <0 .lSW <0.lSW <0.lSW <0.5W
Protections Short Circuit Protection type : Constant current limiting, recovers automatically after fault
condition is removed
Overload
Normally works within 110 - 125 % rated output power for more than 3 seconds and
switches to constant current limiting, with auto-recovery after the peak load condition
is removed
Constant current limiting, if> 125% rated power, with auto-recovery after the overload
condition is removed
Over Voltage 15.5 - 18.2V
Protection type : Shut down o/p voltage, re - power on to recover
Over Temperature Shut down O/P voltaae recovers automatically after temperature aoes down
Environment
Working Temp
-30 - +70°c
Workina Humiditv 20 -95% RH non-condensina
Storage Temp
-40 -+85°C, 10 -95% RH non -con densing
Temp. Coefficient
±0.05%/•c (0 - so •c >
Vibration 10 - 500Hz, 2G 1 0min./1 cvcle, 60min. each a Iona X, Y, Z axes
Safety & EMC Safety Standards IEC60950-1 UL60950- l approved
(Note 9)
Withstand Voltaae I/P - O/P:3KVAC I/P-FG:2KVAC O/P -F G:0.5KVAC
Isolation Resistance
I/P-O/P 1/P·FG, O/P-FG:lOOM Ohms/ SOOVDC / 25 °C/ 70% RH
EMC Emission Parameter Standard Test Level / Note
Conducted EN55032 (CISPR32) / FCC PARTl 5 Class B
CCISPR22l
Radiated
EN55032 (CISPR32) / FCC PARTl 5 Class B
(CISPR22)
Harmonic Current
EN61000-3·2 -----
Voltage Flicker EN61000 ·3·3 ----
EMC Immunity EN55024
Parameter Standard
Test Level / Note
ESD
EN61000-4-2
Level 3
BKV air · Level 2 4KV contact
Radiated EN61000·4·3 Level 2 3V/m
EFT/ Burst EN61000·4·4 Level 2 lKV
Surge
EN61000-4-5 Level 2, 1KV /Line-Line, Level 3,
2KV/Line-Earth
Conducted EN61000·4·6 Level 2 3Vrms
Magnetic Field EN61000-4-8
Level 1, lA/m
Voltage Dips and
EN61 000-4-11 >95% dip 0.5 periods, 30% dip 25
Interruptions periods,
>95% interruptions 250 Periods
Others MTBF 257K hrs. min.
MIL -HDBK-2 17F (25 °C)
DIMENSIONS, (L x W x H) 192 x 1 78 x 45 mm 7.56 X 7.00 X 1.77 in
Product
DIMENSIONS, (L x W x H) 280 x 230 x 60 mm 1] .02 X 9.06 X 2.36 in
Shiooina
WEIGHT 1 KG 2.21 LB
Notes 1. All parameters NOT specially mentioned are measured at 230VAC i, nput, rated load and 25 of ambient
temperature.
2. Peak current or peak power up to 3 seconds is provided .
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a
0.1 uf & 4 7uf parallel capacitor .
4. Tolerance: includes set up tolerance, line regulation and load regulation.
5. Line regulation is measured from low line to high line at rated load.
6. Load regulation is measured from 0% to 100% rated load.
7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may
lead to increase of the set up time.
8. Derating may be needed under low input voltages. Please check the derating curve for mo re detai ls.
9. The power supply is considered as an independent unit, but the final equipment still needs to re-confirm
that the whole svstem complies with the EMC directives.
