Duratech DLT10-BIC User manual

Manual
DLT10-BIC
LINK Touch
Built-In Charger
Manual
DLT10-BIC

2

ENG
TABLE OF CONTENTS
1. About the DLT10-BIC ..................................................................................................................................................4
2. Technical Specications .............................................................................................................................................5
3. Packaging Contents....................................................................................................................................................6
4. Safety Instruction ........................................................................................................................................................7
5. Installation Instructions ...............................................................................................................................................7
6. Service & Warranty ...................................................................................................................................................13
7. Environment / Disposal of Old Equipmen ................................................................................................................14
8. Regulatory Complianc ..............................................................................................................................................15
3

1. ABOUT THE DLT10-BIC (BUILT-IN CHARGER)
The DLT10-BIC is an optional method for mounting the LINK TouchTM near the swimming pool. It is based on
a Power Supply and ush mounted socket with USB-Connection.
The Power Supply allows a direct connection to the mains and provides the right power to the socket for the
LINK TouchTM. When the LINK TouchTM is inserted in the wallmount, connected to the DLT10-BIC, it will charge until
the battery is full.
The main advantage of the DLT10-BIC is related to the aesthetics, whereby that the Power Supply and Cables
(Power and USB), needed for the Link TouchTM, are invisibly covered in the wall.
4

ENG
2. TECHNICAL SPECIFICATIONS
Power Supply:
Input Voltage: 100 - 240 Volt
USB Output Voltage: 5V DC
USB Output Current: 2.1A
USB Type: Type A
Power Supply is CE Compliant
Electric Box:
Diameter: 67,00 mm
Depth: 40,00 mm
Two screws are pre-installed on the part.
USB-Cable:
Voltage Rating: 5V DC
USB Type: USB-A to USB-C
5

3. PACKAGING CONTENTS
ITEM NO. PART NUMBER / DESCRIPTION QUANTITY
1 402 - 0596 QSG Manual ; DLT10-BIC 1
2 501 - 0184 Cable ; USB-A to USB-C 1
3 510 - 0162 Screw Cap ; Wall Mount ; LINK Touch 2
4 510 - 0554 Bracket 1
5 513 - 0307 Wallmount ; Assembly ; LINK Touch 1
6 513 - 0666 USB Power Module ; 5V DC ; 2,1A 1
7 513 - 0667 Electric Box for Drywalls ; 67,00 mm 1
6
4
5
3
2
1
7
6

ENG
4. SAFETY INSTRUCTIONS
Before installation and use of the DLT10-BIC, the basic safety instructions need to be understood.Specic contents
include the following warnings:
1. Be careful of electric shock.
2. Make sure to turn off the fuse of the circuit you will be working on.
3. Failure to comply with safety instructions may result in serious body injury or death.
4. The installation of the DLT10-BIC must be done by professional pool service personnel, installers or operators.
5. The national standards and regulations for installation should be followed.
6. Contact a licensed electrician or building inspector for information on local electrical codes for installation
requirements.
Intended use
This device has been developed to connect and mount the LINK TouchTM.
The DLT10-BIC should be used only for this purpose, as described in this user guide.
Precautions for Setup
- The DLT10-BIC can only be mounted indoor. Do not mount outdoors.
- The Power Adapter is designed for 100 - 240V, 50/60 Hz. Verify if the power outlet voltage is within this range
before plugging in your Power Adapter.
- Make sure the Power/USB-Cable are not strained or pinched.
- Do not use the USB-Cable when damaged or frayed.
- Be sure to hold only the connector end of the USB-Cable when disconnecting.
Precautions for Operation
- Protect the Built-In Charger from moisture.
- Never spill liquid of any kind on the DLT10-BIC.
Precautions for Cleaning, Transport and Storage
- This DLT10-BIC contains no user serviceable parts. Do not attempt to service the DLT10-BIC yourself. Repair
service should be performed by a authorised technician.
7

5. INSTALLATION INSTRUCTIONS
OFF
ON
OFF
STEP 1: INSTALL ELECTRIC BOX.
Make sure to turn off the fuse of the circuit you will be working on! The Electric Box can be used in concrete
wall and thin drywalls.
Insert the power cables into the Electric Box, through the soft silicone inserts featured in the Electric Box.
Lock the Electric Box into place, by turning the two
long screws with a Philips Screw Driver.
8

ENG

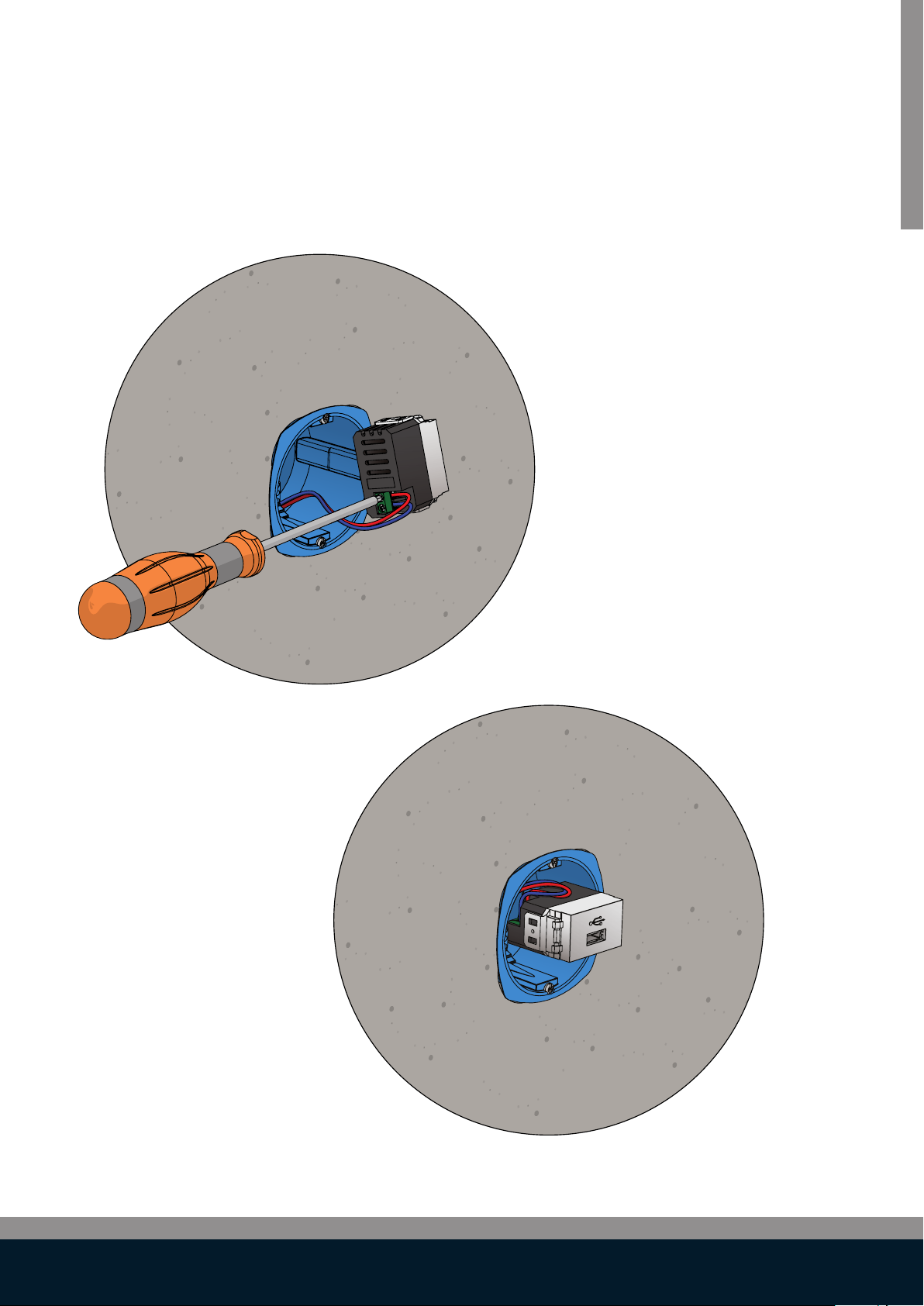

STEP 2: INSTALL POWER SUPPLY.
The Power Supply features a terminal block at the back.
Place both power cables into the terminal block and use a Philips Screw Driver to lock the cables into place.
Position the Power Supply into the Electic Box by bending the power cables.
9

STEP 3: INSTALL THE USB-CABLE.
Insert the USB-A connector from the USB-Cable into the Power Supply. Make sure the connector is facing upward!
Insert the USB-C connector from the USB-Cable into the bottom of the Wallmount.
Position the Bracket at the back of the Wallmount. Make sure the USB-Cable is going OVER the bracket to garantee
a good tment between the Bracket and the Electric Box.
a good tment between the Bracket and the Electric Box.
10
