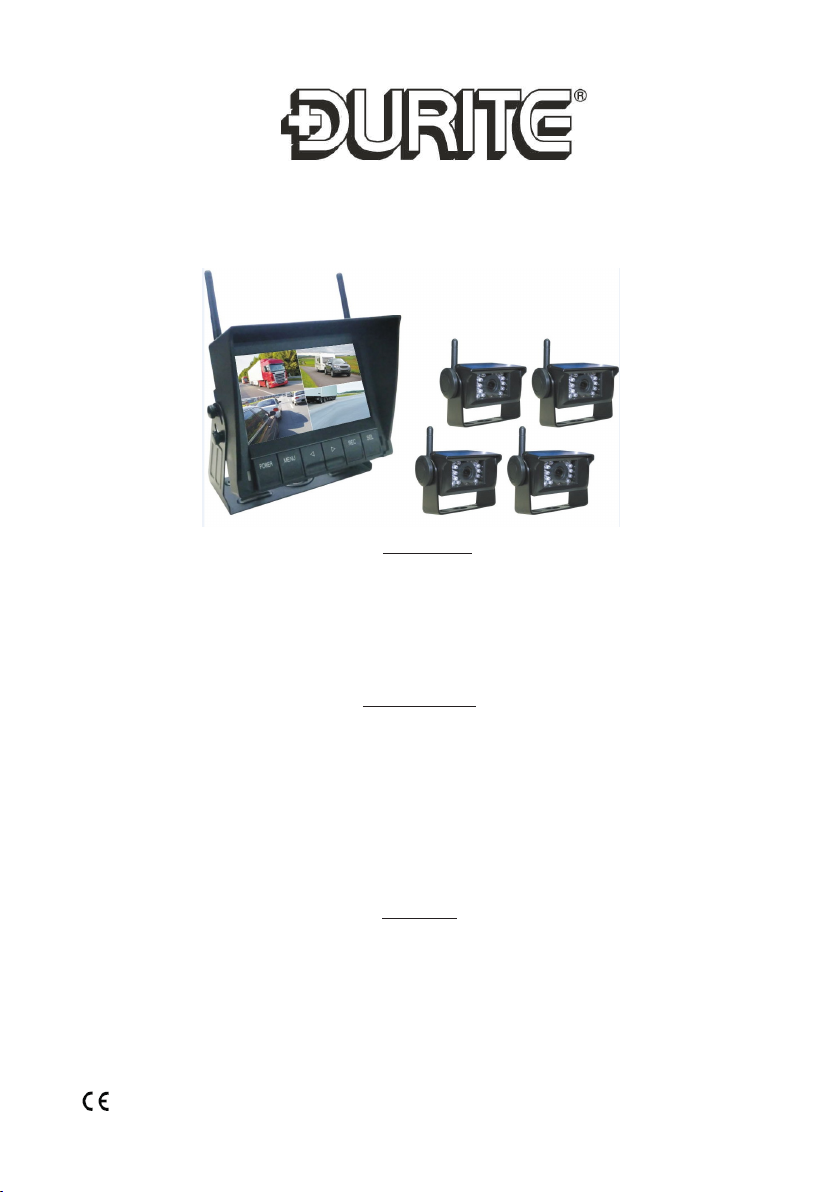

Durite 7 Waterproof 4CH User manual
7" Waterproof 4CH Digital Wireless CCTV Kit with Recording
12/24VDC
Part 0-775-59
0-775-59-LEAF
www.durite.co.uk
WARNINGS
Before using this unit please read these instructions carefully.Take special care to follow
the warnings and safety suggestions listed below. Keep these instructions for future refer-
ence.
There are no user-serviceable parts within the unit, refer servicing to qualied service
personnel.
PRECAUTIONS
• Please ensure you are familiar and comply with local trafc and driving regulations.
•Connection -The camera should only be connected to a Durite cctv system.
•Heat - Do not install the camera near heat sources. Please install in a ventilated area.
•Mounting - Ensure the camera is facing the desired direction before xing the camera
base. If xing to isolated return chassis the camera bracket should be isolated from the
vehicle chassis.
•Service -The user should not attempt to service these units beyond that described in these
instructions. All other servicing should be referred to an authorised service technician.
GENERAL
The camera has a CMOS image sensor which gives a high quality picture and its solid state
circuitry provides extremely long life. Compact size and single connection make it easy
to install. Automatic gain control (AGC) provides a clear image in both strong sunlight
and low light conditions, if lighting conditions fall below a set level the Infra-red LEDs will
illuminate.It is recommended that all camera lead connections are additionally sealed by ei-
ther wrapping with a suitable tape or application of heat shrink sleeving. It is recommend to
connect the system and test before xing to ensure the correct eld of view is displayed.
0-775-59-LEAF
www.durite.co.uk
SAFETY AND INSTALLATION INSTRUCTIONS
Secure the monitor in such a way that it can not become loose under any circumstance
(Sudden braking ,accidents) and cause injures to the occupants of the vehicle.
Do not attach the monitor in the area that may be used by an airbag, as this could cause
injury if the airbags are triggered. Do not open the monitor. The monitor may not impair
your vision when driving. Do not operate the monitor if the housing has been damaged.
Connect it to the correct voltage (12/24VDC). Do not drop the monitor. The picture quality
can beimpaired in the vicinity of electromagnetic elds. For this reason do not mount the
monitor near loudspeakers.
FEATURES
The 4TX to 1RX waterproof digital wireless system is specially designed for commercial
vehicle such as truck,trailer and farm cultivator
With signicant long-distance and stable transmission capacity, the transmission range
can be as far as 120M
Waterproof &Dust Resistance Grade: IP68
Applicable for DC 12V/24V vehicle
With re-pairing function
With record function 64 - 128GB TF Card (Recommend SanDisk Class 10)
MONITOR CONTROLS
0-775-59-LEAF
www.durite.co.uk
MONITOR INSTALLATION
MONITOR CONNECTION
0-775-59-LEAF
www.durite.co.uk
OPERATION
DISPLAY MODE SETTINGS
0-775-59-LEAF
www.durite.co.uk
SWITCHING CHANNEL AND TIME SETTINGS
PAIRING SETTINGS
0-775-59-LEAF
www.durite.co.uk
MIRROR / NORMAL SETTINGS
PICTURE PARAMETER SETTINGS
0-775-59-LEAF
www.durite.co.uk

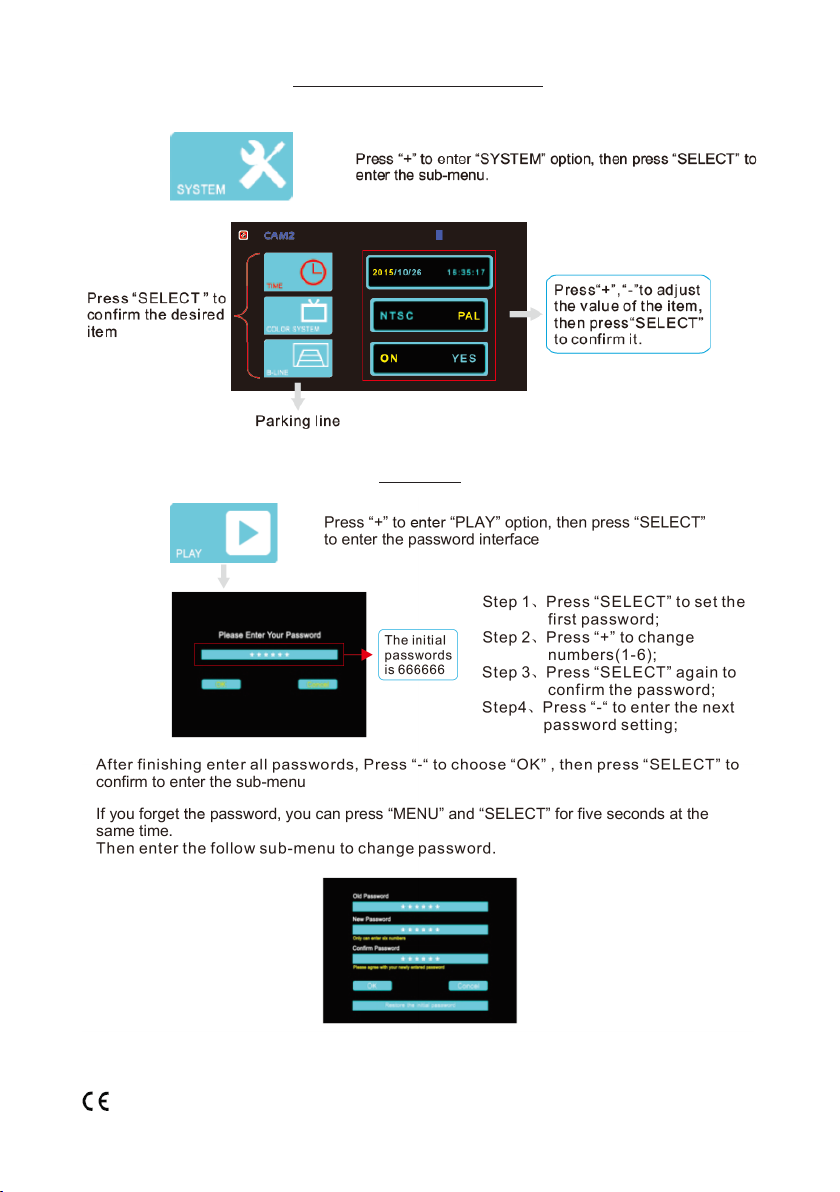

SYSTEM PARAMETER SETTINGS
PLAYBACK
0-775-59-LEAF
www.durite.co.uk

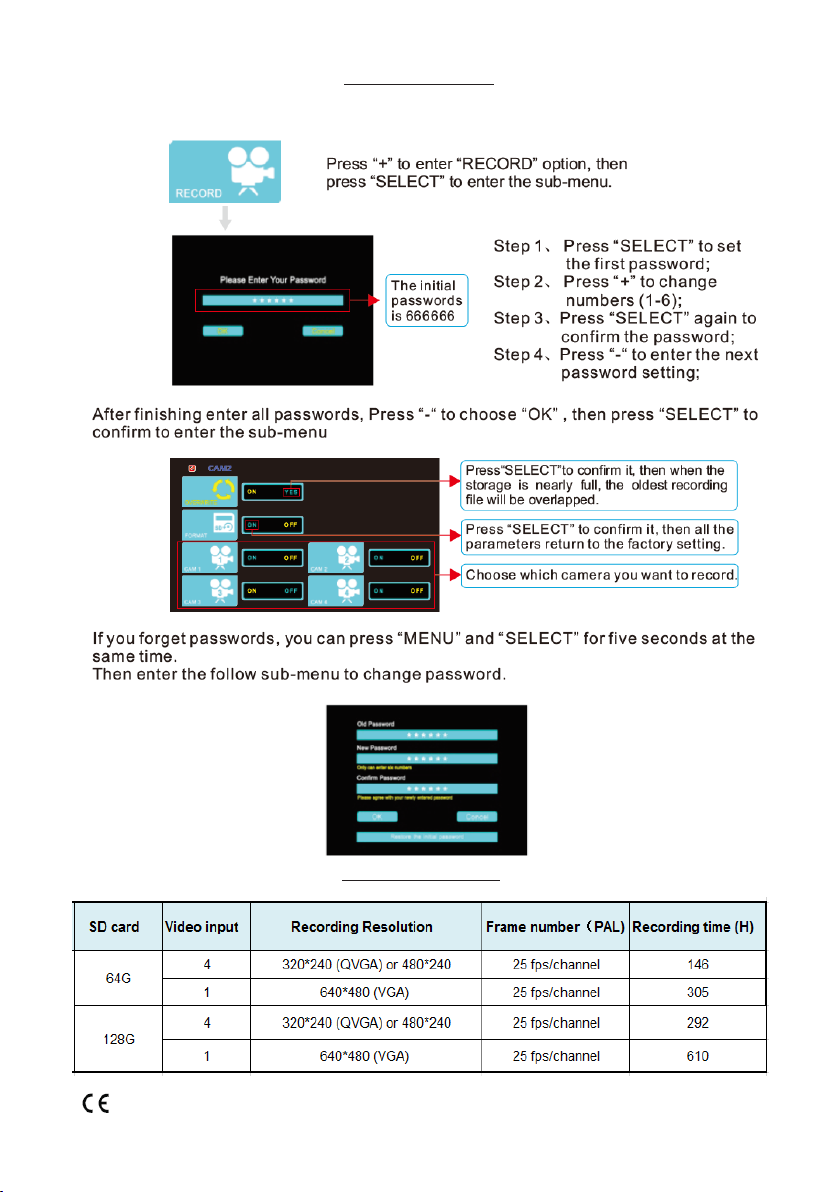

RECORD SETTINGS
RECORD TIME TABLE
0-775-59-LEAF
www.durite.co.uk
SPECIFICATION
MONITOR
7 inch DigitalTFT LCD monitor .......................16:9
Video input &Video output: ............................4CH
Wide view angle(CR>10):.................................(up/ down): 50/70, (left/right):70/70
High brightness (cd/m2): .................................400
Contrast ratio:...................................................500
Resolution :.......................................................800*3 RGB *480
Day/ night sensor for automatic adjustment .Built-in sensor
Frequency Range:.............................................2406 - 2476 MHz
Barrier-free Transmission Distance: ................≤120M (free sight)
Memory mode:................................................ High speed SD card 64 -128GB (Recommend Class 10)
Start Up Time: ................................................. 1S Max
Latency: ........................................................... < 120 ms
Video Code: ..................................................... MPEG4
Audio Code: ......................................................WAV, 1 channel
Protection...........................................................IP65
Frame Rate.........................................................NTSC:30f/s PAL:25f/s
Color system: ................................................... PAL/NTSC
With soon respond (ms) (at 25°C)....................20
Power requirement: .........................................12V/24V DC
Power consumption: ....................................... ≤5W
Operating temperature:...................................-20°C to +70°C
Storage temperature........................................-30° to +80°C
Dimension: .......................................................199(L)*140(W)*147(D) mm
Weight:...............................................................476g
Certicate...........................................................CE, FCC, E Marked R10.05
CAMERA
Image type...........................................................1/3 Inch CMOS
Resolution(pixels)...............................................750*500
Lens angle...........................................................85°(D) or 126°(D)
Minimal illumination..........................................0 Lux/F2.6(Automatic IR LED)
20pcs LED for night vision.................................>8m
Modulation......................................................... 2.4G FHSS
Launching power................................................10Mw/CE/2Mw/FCC
Transmission distance........................................120m
Channel frequency..............................................20 Chanel A/V auto switch
Operating frequency...........................................2406 - 2476 MHz
Protection............................................................IP68
Horizontal resolution..........................................500 TV Lines
Power supply.......................................................9V-30V DC
Power consumption............................................≤2.5W
Signal to noise ratio............................................>48dB
Operating temperature range...........................-10°C to +60°C
Storage temperature range............................... -40°C to +85°C
Dimension........................................................... 94mm×65mm×78.8mm
Weight.................................................................. 360g
Certicate..............................................................CE, FCC, E Marked R10.05
