Duronic AF24 User manual
AF24
Air Fryer
PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

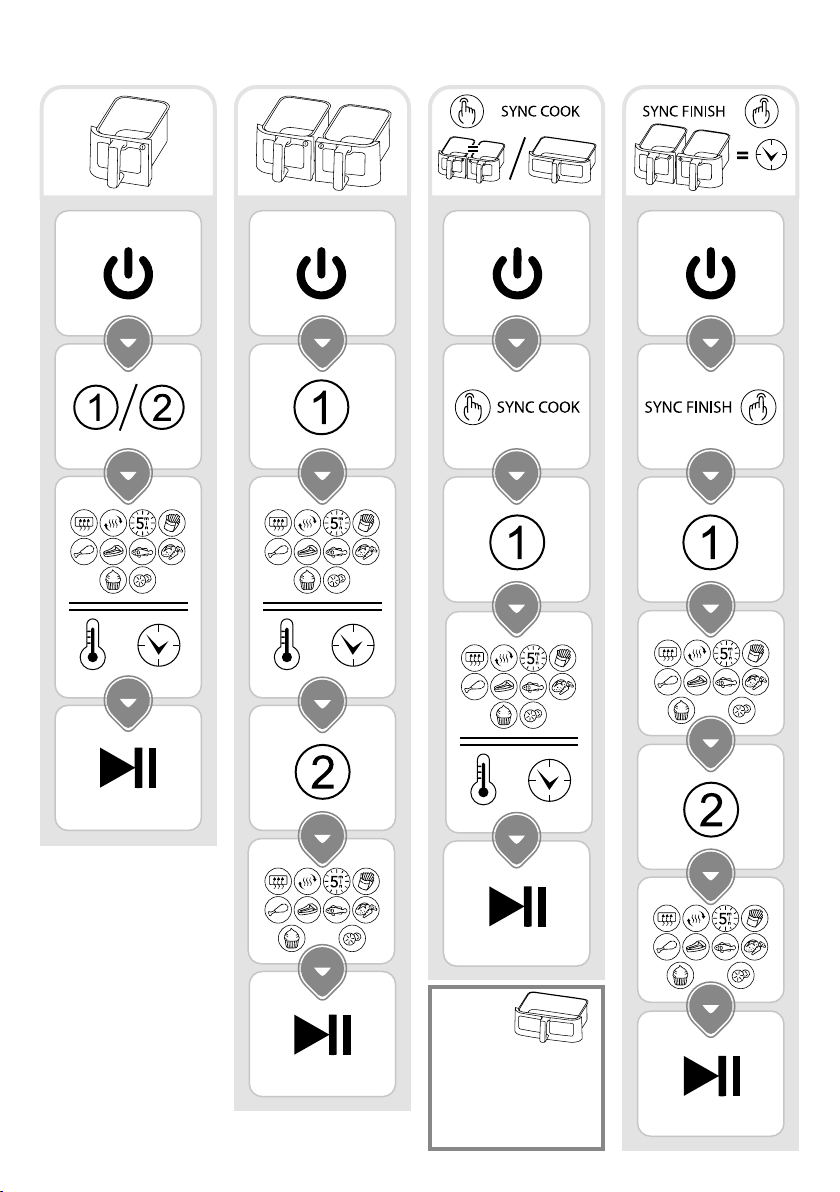

QUICK START GUIDE | KURZANLEITUNG | GUIDE DE DÉMARRAGE RAPIDE
AF24
Sold separately
Separat erhältlich
Vendu séparément
Vendido por separado
Venduto separatamente
Sprzedawany osobno
AFD1
2
EnglishManual
Manueld’utilisationenfrançais
GebrauchsanleitungaufDeutsch
ManualdeInstruccionesenEspañol
Manuale D’istruzioni In Italiano
3
26
49
72
95
118
Contents
3
English Manual
4
Components
1
2
3
5
4
13
6
7
8
9
10
11
12
1. Air inlet
2. Cooking mode guide
3. Control panel
4. Cooking zone 1
5. Cooking zone 2
6. Air outlet vents
7. Cable storage
8. Power cable
9. Main unit
10. Drawer 1 (left)
11. Drawer 2 (right)
12. Drawer handle
13. Inner cooking trays x2
Model Number Capacity Dimensions Voltage
AF24
Dual Air Fryer
9L
(2 x 4.5L)
39x37.7x32.5cm
15x14.8x9.1in 2400W 220-240V
50-60Hz
AFD1
Large Drawer
(sold separately)
1x 10L 32x38.8x14cm
12.6x15.3x5.5in N/A N/A
5
Components (Continued)
14
15
14. Large drawer
15. Large inner cooking tray
(sold separately)
A. Zone 1
B. Temperature plus/minus
C. Digital display
D. Timer plus/minus
E. Zone 2
F. Lamp 1
G. Start/Pause
H. Sync Finish
I. Sync Cook
J. Pre-set Modes
K. Power button
L. Lamp 2
A
G KJIH LF
BCDE
6
PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE
REFERENCE
• This appliance is for indoor/household use only. Do not use outdoors.
• This appliance is not designed for commercial or industrial use; it is for
household use only.
•This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge unless they have been given supervision or instruction concerning
the use of the appliance by a person responsible for their safety.
•Children should be closely supervised at all times to ensure that they do not
play with the appliance.
• Only use the appliance out of the reach of children because it gets very hot
and will contain hot food.
•Do not operate this appliance if the power cable or plug is damaged. If
either is damaged, return it to Duronic for service or repair by a professional
technician.
• Never try to replace the parts and repair the unit by yourself. Do not modify
the appliance in any way that is not described in the instructions for use. The
appliance contains live parts. Repairs may only be carried out by Duronic,
using original spare parts and accessories.
•If an extension lead/cable is needed to reach the appliance to a mains power
socket that is too far away out of reach of the appliance’s accompanying
cable, please ensure that:
- the marked electrical rating of the extension lead is at least as great
as the electrical rating of the appliance.
- the extension lead is of the grounded type.
- no other appliance is plugged into the same extension lead.
- the extension cable is safely positioned to avoid it being pulled on by
children or animals or being tripped over.
Safety Information
7
• Always operate the appliance on a dry, smooth, even and stable surface. Do
not place the air fryer on or next to a hot surface.
• Position the appliance and its power cable to the rear of the work surface,
well out of reach of children.
•Do not cover the air inlet or the air outlet vent openings while the appliance is
operating.
•Leave at least 10cm free space at the back and sides and 10cm free space
above the appliance; do not place anything on top of the appliance.
• Disconnect the mains plug from the power socket if you are going to be
absent for long periods.
• Never disconnect the plug by pulling on the power cable.
• Unplug from the mains plug outlet when not in use and before cleaning.
• This appliance is not intended to be operated using an external timer or
separate remote-control system.
•Do not let the power cable hang over the edge of the table or counter, or
touch hot surfaces.
•Do not use the appliance for anything other than cooking or warming up food.
• Do not operate the air fryer with wet hands.
• To clean, wipe the main unit with a well-wrung wet cloth. Do not submerge
it in water or other liquids. Wash drawers with warm water and soap. Dry
properly before placing the drawers back into the unit. The inner cooking trays
can be cleaned by hand with warm water and soap, or alternatively, cleaned
in the dishwasher.
•
• Do not touch the inside of the appliance while it is operating or straight after
use. If you need to touch somewhere inside the cooking zones, wait until the
area is completely cool.
Safety Information (Continued)
8
• Before inserting the drawers into the main unit, ensure both the inside of the
unit and drawers are clean and dry by wiping them with a soft cloth.
• Ensure the drawers are closed completely before operating the appliance.
• During hot air frying, hot steam is released through the air outlet openings.
Keep your hands and face at a safe distance from the steam and the air outlet
openings.
•Be careful of hot steam and hot air when you remove the drawers from the
appliance.
• The surface below the appliance may become hot during use. Always use this
appliance on a heatproof surface.
• The drawers and inner trays become extremely hot during the cooking
process. Avoid physical contact with them while removing the drawer or plate
from the appliance. Always use the drawer handles.
• After removing the drawers from the main unit, place them on a heat-resistant
surface.
• If you see dark smoke coming out of the appliance unplug it immediately and
wait for the smoke emission to stop before you remove the drawers from the
appliance.
• Let the appliance cool down for about 30 minutes before you handle or clean
it.
•After cooking, ensure that any burnt remnants are removed and the inner
trays and inside the drawers are cleaned.
•Do not clean any part of this appliance with metal scouring pads. Pieces
can break off the pad and touch electrical parts, creating the risk of electric
shock. It can also scratch the surface of the appliance or drawers and cause
damage.
Safety Information (Continued)
9
Introduction
The AF24 is a dual zone large capacity 9L air fryer that can cook quick, healthy
and delicious homemade meals. Harnessing improved hot air circulation
technology this family-sized air fryer will cook food quickly and evenly to produce
a tasty and healthy meal every time.
This model comes with two dual drawers that allow you to cook in two different
ways at the same time, as well as together on the same modes. A larger drawer,
the AFD1, is a 10L drawer that can be used to cook a larger amount of food in the
same single drawer. The AFD1 is sold separately.
1. Remove all of the packaging materials. Check that there are no parts missing.
Some stickers, such as the mode guide, are to be permanently kept on the
unit.
2. Clean the outside of the main unit by wiping it with a wet well-wrung sponge
or cloth.
3. Clean the drawers and inner trays with warm water and dishwashing liquid.
Dry thoroughly, place the inner trays inside the drawers, then slide the
drawers into the unit.
4. Position the main unit on a dry level heatproof surface away from other
sources of heat.
5. Plug in the power cable into the nearest wall socket. DO NOT let the cable
hang over the edges of worktops or touch hot surfaces.
6. Do not put anything on top of the appliance or covering the air outlets or
10
Cooking in One Zone
1. Place the food you wish to cook inside the Drawer (10/11) and close the
drawer.
2. Press the Power Button(K) to switch on the air fryer. The Control Panel(3) will
illuminate for a second and you will hear a beep sound.
3. Select which Zone(A/E) you wish to cook in.
4. Select a mode from the pre-set menu on the control panel.
5. Press the Start/Pause button(G) to start cooking.
6. If you want to check on the food whilst it is cooking simply press the Lamp
button(F/L) for the corresponding Zone and you can view the food through the
glass window.
7.
or shake the contents of the drawer to ensure the food is cooked evenly.
Remove the drawer from the unit to do this.
8. When the timer ends the air fryer will make a bleep sound and switch itself off
automatically.
Cooking Zones
If you wish to pause cooking, simply press the Start/Pause button once and the
cooking will stop. To un-pause, press the Start/Pause button again and cooking
will recommence.
Cooking Zones 1 and 2 can work individually or together at the same time. Using
the different settings, you can also choose to cook both Zones on the same
settings (Sync Cook) or to have them on different temperatures and programmed
11
1. Place the food you wish to cook inside the Drawers and close the drawers.
2. Press the Power Button to switch on the air fryer. The Control Panel will
illuminate for a second and you will hear a brief bleep sound.
3. Press the Zone 1 button.
4. Select a mode from the pre-set menu on the control panel.
5. Press the Zone 2 button.
6. Select a mode from the pre-set menu on the control panel.
7. Press the Start/Pause button to start cooking.
8. If you want to check on the food whilst it is cooking simply press the Lamp
button for the corresponding Zone and you can view the food through the
glass window.
9.
or shake the contents of the drawer to ensure the food is cooked evenly.
Remove the drawer from the unit to do this.
10. When the timer ends the air fryer will make a bleep sound and switch itself off
automatically.
If you wish to pause cooking in both Zones together, simply press the Start/
Pause button once and the cooking will stop in both Zones at the same time. To
un-pause, press the Start/Pause button again and cooking will recommence.
If you wish to pause cooking in just one independent Zone and not the other,
simply press the required Zone button and then press the Start/Pause button. The
button again and cooking will recommence.
12
CAUTION:
• Do not use the drawer(s) without the inner trays.
•
•
•
•
•
parts.
•
•
13
Sync Finish
The Sync Finish mode allows you to cook different foods in each Zone
compartment which may require different time or temperature to each other and
dehydrate fruit in one drawer and cook some fries in the other. With the Sync
Finish mode, you are able to achieve this so that you can use both foods at the
same time.
To activate Sync Finish mode:
1. Press the Power button.
2. Press the Sync Finish button
3. Press the Zone 1 button.
4.
temperature and time using the Temperature +/- buttons and Time +/- buttons.
5. Press the Zone 2 button
6.
temperature and time using the Temperature +/- buttons and Time +/- buttons.
7. Press the Start/Pause button.
8. The Zone with the longest time will begin to heat up and cook the food inside.
When the cooking time comes to an end, it will make a beeping noise, both
Zones will stop cooking and the unit will switch itself off.
14
Sync Cook
Sync Cook mode uses both cooking Zones to either cook both drawers of food on
the same temperature and time, or allows you to use the larger AFD1 drawer to
cook food in.
1. Press the Power Button.
2. Press the Sync Cook button.
3. Press the Zone 1 button.
4.
temperature and time using the Temperature +/- buttons and Time +/- buttons.
5. Press the Start/Pause button.
6. Both cooking zones will begin to heat up and start cooking the food inside.
When the cooking time comes to an end, it will make a beeping noise, both
Zones will stop cooking and the unit will switch itself off.
To check on the progress of your food at any time, press the button for Lamp 1 or
Lamp 2. The light will stay on for a few seconds before switching off again.
The temperature range is 50-200°c. Each time you press the +/- buttons the
temperature will increase or decrease in 10°c increments. If you are on 200°c and
press the + button it will loop back around and adjust to 50°c. Whilst setting the
and then stay on continuously – this means the temperature has been set
successfully.
15
Icon Setting
Pre-heat 3 minutes 180°C
Re-heat 15 minutes 150°C
Quick cook 5 minutes 200°C
Fries 18 minutes 200°C
Chicken 20 minutes 200°C
Meat 12 minutes 180°C
Fish 10 minutes 180°C
Vegetables 10 minutes 160°C
Baking 25 minutes 160°C
Dehydrate
8 hours
(can be adjusted up to
16.5 hours)
60°C
The time range is 1-60 minutes. Each time you press the +/- buttons the time will
increase or decrease in 1-minute increments. If you are on 1 minute and press
the - button it will loop back around and adjust to 60 minutes. Whilst setting the
continuously – this means the time has been set successfully.
16
For best results we recommend to:
• preheat the Zone you intend to use for 3 minutes before starting to cook. This
helps to achieve the best crisping result.
• use the inner tray to get the best crispiness outcome.
• pat dry any food with marinades before cooking.
•
container or dish on top of the inner tray.
•check on the progress of your food throughout cooking. If the food is not
cooking as quickly as you hoped, adjust the timer to add some extra minutes
onto the cooking time.
•remove food immediately to prevent it from overcooking once the cooking has
Clean the appliance after every use.
The inner trays, drawers and the inside of the unit have a non-stick coating. Do
not use metal kitchen utensils or abrasive cleaning materials to clean them, as
this may damage the non-stick coating.
1. Unplug the appliance from the wall socket and let the appliance cool down.
Remove the drawers to let the air fryer cool down more quickly.
2. Wipe the outside of the appliance with a moist cloth. Then wipe again with a
dry cloth.
Cleaning and Maintenance
DID YOU KNOW?
17
3. Clean the drawers and inner trays with hot water, washing-up liquid and a
non-abrasive sponge. Alternatively, the drawer and the inner tray are both
dishwasher-safe.
with hot water and with some washing up liquid. Put the inner tray into the
drawer and leave them to soak for approximately 10 minutes.
4. If needed, clean the heating element with a cleaning brush to remove any
food residues.
5. Ensure that every part is dried completely before re-assembling and using the
air fryer.
Cleaning and Maintenance (Continued)
CAUTION:
18
Cooking Charts
FROZEN FOODS
Ingredient Quantity Oil
(mins)
3 steaks None 200°C 18-21
Chicken nuggets 340g None 200°C 10-13
None 200°C 14-16
None 200°C 10-13
French fries 450g None 200°C 18-22
Gyoza dumplings 300g 1 tbsp 200°C 12-14
450g None 180°C 8-10
Mozzarella sticks 300g None 190°C 8-10
Mini pizzas 2 pizzas None 200°C 12-15
Scampi 390-450g None 200°C 9-11
450g None 200°C 20-22
Croquet potatoes 450g None 190°C 18-22
Onion Rings 285g None 190°C 13-16
19
Ingredient Quantity Oil
(mins)
Asparagus 1 bunch Whole, stems
trimmed 2 tsp 200°C 8-12
6-7 small Whole None 200°C 30-35
3 small or
2 large Whole None 200°C 10-15
1 head Cut in 1-inch
1 tbsp 200°C 8-10
450g Cut in half, stem
removed 1 tbsp 200°C 15-20
680g Cut in 1-2-inch
pieces 1 tbsp 200°C 20-25
Carrots 450g Peeled, cut in
1/2-inch pieces 1 tbsp 200°C 13-16
1 head Cut in 1-inch
2 tbsp 200°C 17-20
Corn on the cob 2 ears,
cut in half Husks removed 1 tbsp 200°C 12-15
Green beans 1 bag
(12oz) Trimmed 1 tbsp 200°C 8-10
Kale (for chips) 680g Torn in pieces,
stem removed None 200°C 7-9
Mushrooms 225g Cut in
quarters 1 tbsp 200°C 7-9
Other manuals for AF24
2
Table of contents
Languages:
Other Duronic Fryer manuals
