Dustbane Hurricane Mini User manual

Dustbane Products Ltd., 1000 Last Mile Dr., Ottawa, ON K1G 6Y1 • Tel: [phone] Fax: [phone] www.dustbane.ca
Hurricane Mini
Quick Guide
This guide is intended for quick consultation only and does not replace the user and maintenance
manual. Before using this machine, read the user maintenance manual contained in the machine’s
packaging and follow all the instructions.
PREPARATION AND OPERATION
This guide is intended for quick consultation only and does not replace the user and maintenance manual.
Before using the machine, read the user and maintenance manual contained in the machine’s packaging thoroughly and strictly follow all the
instructions.
PREPARATION & OPERATION
CT15 B Quick guide
1
6
2 3
9
5
7 8
PLDC01957
ON
AUTO
ECO
ECO
CHEM
H
2
O
+
> 3”
This guide is intended for quick consultation only and does not replace the user and maintenance manual.
Before using the machine, read the user and maintenance manual contained in the machine’s packaging thoroughly and strictly follow all the
instructions.
PREPARATION & OPERATION
CT15 B Quick guide
1
6
2 3
9
5
7 8
PLDC01957
ON
AUTO
ECO
ECO
CHEM
H
2
O
+
> 3”
This guide is intended for quick consultation only and does not replace the user and maintenance manual.
Before using the machine, read the user and maintenance manual contained in the machine’s packaging thoroughly and strictly follow all the
instructions.
PREPARATION & OPERATION
CT15 B Quick guide
1
6
2 3
9
5
7 8
PLDC01957
ON
AUTO
ECO
ECO
CHEM
H
2
O
+
> 3”
This guide is intended for quick consultation only and does not replace the user and maintenance manual.
Before using the machine, read the user and maintenance manual contained in the machine’s packaging thoroughly and strictly follow all the
instructions.
PREPARATION & OPERATION
CT15 B Quick guide
1
6
2 3
9
5
7 8
PLDC01957
ON
AUTO
ECO
ECO
CHEM
H
2
O
+
> 3”
This guide is intended for quick consultation only and does not replace the user and maintenance manual.
Before using the machine, read the user and maintenance manual contained in the machine’s packaging thoroughly and strictly follow all the
instructions.
PREPARATION & OPERATION
CT15 B Quick guide
1
6
2 3
9
5
7 8
PLDC01957
ON
AUTO
ECO
ECO
CHEM
H
2
O
+
> 3”
This guide is intended for quick consultation only and does not replace the user and maintenance manual.
Before using the machine, read the user and maintenance manual contained in the machine’s packaging thoroughly and strictly follow all the
instructions.
PREPARATION & OPERATION
CT15 B Quick guide
1
6
2 3
9
5
7 8
PLDC01957
ON
AUTO
ECO
ECO
CHEM
H
2
O
+
> 3”
This guide is intended for quick consultation only and does not replace the user and maintenance manual.
Before using the machine, read the user and maintenance manual contained in the machine’s packaging thoroughly and strictly follow all the
instructions.
PREPARATION & OPERATION
CT15 B Quick guide
1
6
2 3
9
5
7 8
PLDC01957
ON
AUTO
ECO
ECO
CHEM
H
2
O
+
> 3”
1
4
6
2
5
7
3
Add water and detergent to solution
tank.
Pull squeegee lever to lower.
Turn valve manually to adjust water
level.
Power on.
Press once to turn water ON or OFF.
Pull up on lever to adjust the angle of
the handle.
Pull lever to activate scrubber.
8
This guide is intended for quick consultation only and does not replace the user and maintenance manual.
Before using the machine, read the user and maintenance manual contained in the machine’s packaging thoroughly and strictly follow all the
instructions.
PREPARATION & OPERATION
CT15 B Quick guide
1
6
2 3
9
5
7 8
PLDC01957
ON
AUTO
ECO
ECO
CHEM
H
2
O
+
> 3”
Press once to turn brush
motor, or vacuum motor
ON or OFF.
Press and hold brush or
Vacuum button for 3 sec.
to turn ECO mode ON or
OFF.
When ECO mode is activated, the
Brush and Vacuum light will flash
continuously. ECO mode reduces
power of motor by 20% to reduce
battery consumption.

Dustbane Products Ltd., 1000 Last Mile Dr., Ottawa, ON K1G 6Y1 • Tel: [phone] Fax: [phone] www.dustbane.ca

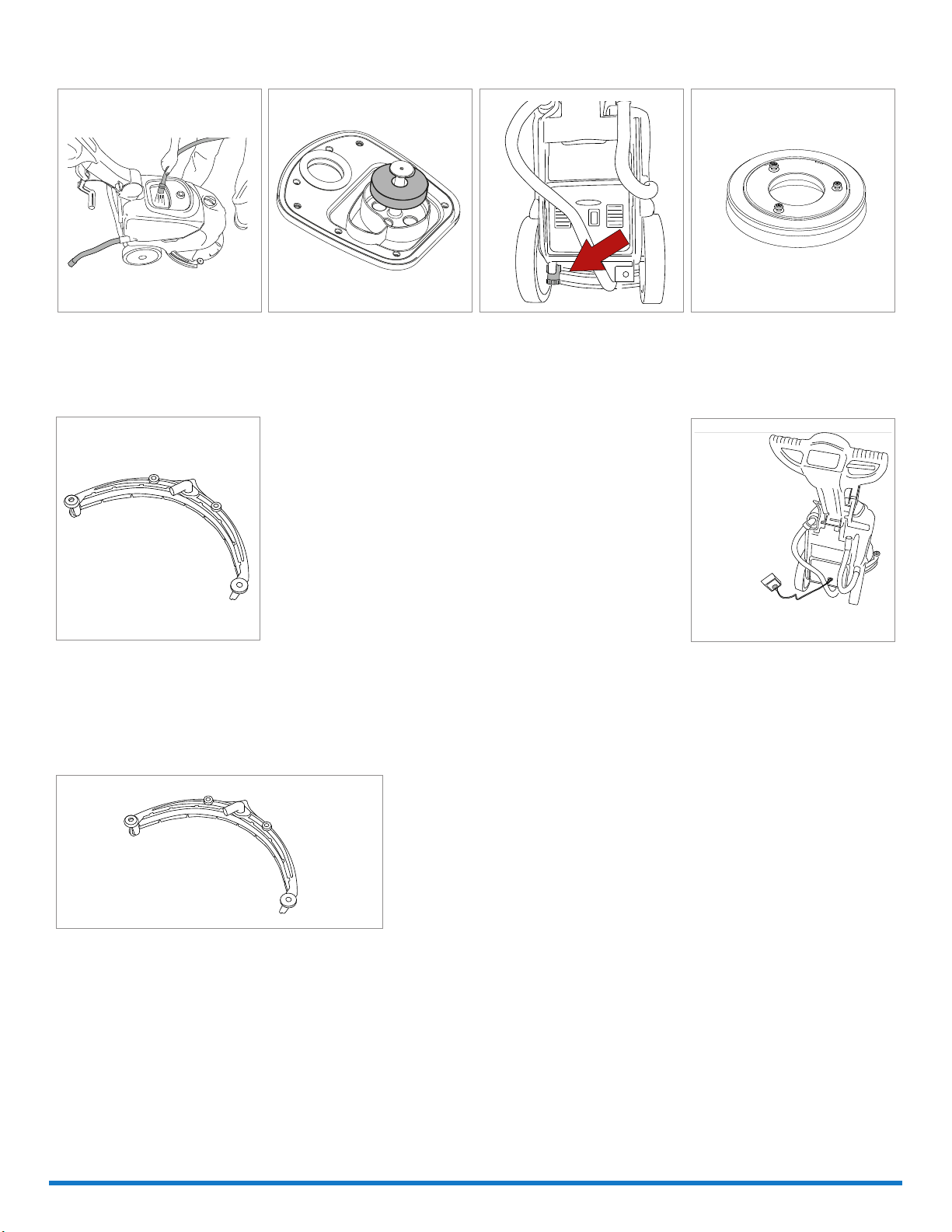

REPLACING THE SQUEEGEE BLADES ATTACHING/REMOVING THE BRUSHES
Position the brush underneath the head, in the centre (single-
brush floor scrubber), position the brushes underneath the
head on both sides (double brush scrubber), switch the
machine on.
Press the ON-OFF switch, once after starting the machine
releases brush attachment. The button is only enabled when
all the functions are deactivated (suction motor and brushes).
REPLACING THE SQUEEGEE BLADES
ATTACHING/REMOVING THE BRUSH
• unscrew the nuts xing the blade retainers;
• remove the two blade retainers;
• remove the blade;
• put the same blade back, reversing the edge in contact with the oor until all four edges are worn, or replace with a new one;
• put the two blade retainers back on the squeegee and screw up the nuts again;
Attaching the brush:
• rest the brush on the oor in front of the machine. Raise the front of the machine by levering on the handle, then lower it onto the brush, centring it with the brush cover. Action the drive lever repeatedly until the brush
engages..
Removing the brush:
• Raise the front of the machine by levering on the handle, then operate the brush lever repeatedly. After operating the lever a few times, the brush is released and falls to the ground.
DAILY MAINTENANCE
Clean the dirty
water tank.
Check the dirty water tank oat
is undamaged and clean and
moves freely on the pin.
Check that the
detergent outlet lter
is clean.
Check that the
brush is clean.
Check that the
squeegee is clean
and the blades are not
worn.
PLDC01957
BATTERY
CHARGER ON
BOARD
DAILY MAINTENANCE
REPLACING THE SQUEEGEE BLADES
ATTACHING/REMOVING THE BRUSH
• unscrew the nuts xing the blade retainers;
• remove the two blade retainers;
• remove the blade;
• put the same blade back, reversing the edge in contact with the oor until all four edges are worn, or replace with a new one;
• put the two blade retainers back on the squeegee and screw up the nuts again;
Attaching the brush:
• rest the brush on the oor in front of the machine. Raise the front of the machine by levering on the handle, then lower it onto the brush, centring it with the brush cover. Action the drive lever repeatedly until the brush
engages..
Removing the brush:
• Raise the front of the machine by levering on the handle, then operate the brush lever repeatedly. After operating the lever a few times, the brush is released and falls to the ground.
DAILY MAINTENANCE
Clean the dirty
water tank.
Check the dirty water tank oat
is undamaged and clean and
moves freely on the pin.
Check that the
detergent outlet lter
is clean.
Check that the
brush is clean.
Check that the
squeegee is clean
and the blades are not
worn.
PLDC01957
BATTERY
CHARGER ON
BOARD
REPLACING THE SQUEEGEE BLADES
ATTACHING/REMOVING THE BRUSH
• unscrew the nuts xing the blade retainers;
• remove the two blade retainers;
• remove the blade;
• put the same blade back, reversing the edge in contact with the oor until all four edges are worn, or replace with a new one;
• put the two blade retainers back on the squeegee and screw up the nuts again;
Attaching the brush:
• rest the brush on the oor in front of the machine. Raise the front of the machine by levering on the handle, then lower it onto the brush, centring it with the brush cover. Action the drive lever repeatedly until the brush
engages..
Removing the brush:
• Raise the front of the machine by levering on the handle, then operate the brush lever repeatedly. After operating the lever a few times, the brush is released and falls to the ground.
DAILY MAINTENANCE
Clean the dirty
water tank.
Check the dirty water tank oat
is undamaged and clean and
moves freely on the pin.
Check that the
detergent outlet lter
is clean.
Check that the
brush is clean.
Check that the
squeegee is clean
and the blades are not
worn.
PLDC01957
BATTERY
CHARGER ON
BOARD
REPLACING THE SQUEEGEE BLADES
ATTACHING/REMOVING THE BRUSH
• unscrew the nuts xing the blade retainers;
• remove the two blade retainers;
• remove the blade;
• put the same blade back, reversing the edge in contact with the oor until all four edges are worn, or replace with a new one;
• put the two blade retainers back on the squeegee and screw up the nuts again;
Attaching the brush:
• rest the brush on the oor in front of the machine. Raise the front of the machine by levering on the handle, then lower it onto the brush, centring it with the brush cover. Action the drive lever repeatedly until the brush
engages..
Removing the brush:
• Raise the front of the machine by levering on the handle, then operate the brush lever repeatedly. After operating the lever a few times, the brush is released and falls to the ground.
DAILY MAINTENANCE
Clean the dirty
water tank.
Check the dirty water tank oat
is undamaged and clean and
moves freely on the pin.
Check that the
detergent outlet lter
is clean.
Check that the
brush is clean.
Check that the
squeegee is clean
and the blades are not
worn.
PLDC01957
BATTERY
CHARGER ON
BOARD
REPLACING THE SQUEEGEE BLADES
ATTACHING/REMOVING THE BRUSH
• unscrew the nuts xing the blade retainers;
• remove the two blade retainers;
• remove the blade;
• put the same blade back, reversing the edge in contact with the oor until all four edges are worn, or replace with a new one;
• put the two blade retainers back on the squeegee and screw up the nuts again;
Attaching the brush:
• rest the brush on the oor in front of the machine. Raise the front of the machine by levering on the handle, then lower it onto the brush, centring it with the brush cover. Action the drive lever repeatedly until the brush
engages..
Removing the brush:
• Raise the front of the machine by levering on the handle, then operate the brush lever repeatedly. After operating the lever a few times, the brush is released and falls to the ground.
DAILY MAINTENANCE
Clean the dirty
water tank.
Check the dirty water tank oat
is undamaged and clean and
moves freely on the pin.
Check that the
detergent outlet lter
is clean.
Check that the
brush is clean.
Check that the
squeegee is clean
and the blades are not
worn.
PLDC01957
BATTERY
CHARGER ON
BOARD
REPLACING THE SQUEEGEE BLADES
ATTACHING/REMOVING THE BRUSH
• unscrew the nuts xing the blade retainers;
• remove the two blade retainers;
• remove the blade;
• put the same blade back, reversing the edge in contact with the oor until all four edges are worn, or replace with a new one;
• put the two blade retainers back on the squeegee and screw up the nuts again;
Attaching the brush:
• rest the brush on the oor in front of the machine. Raise the front of the machine by levering on the handle, then lower it onto the brush, centring it with the brush cover. Action the drive lever repeatedly until the brush
engages..
Removing the brush:
• Raise the front of the machine by levering on the handle, then operate the brush lever repeatedly. After operating the lever a few times, the brush is released and falls to the ground.
DAILY MAINTENANCE
Clean the dirty
water tank.
Check the dirty water tank oat
is undamaged and clean and
moves freely on the pin.
Check that the
detergent outlet lter
is clean.
Check that the
brush is clean.
Check that the
squeegee is clean
and the blades are not
worn.
PLDC01957
BATTERY
CHARGER ON
BOARD
REPLACING THE SQUEEGEE BLADES
ATTACHING/REMOVING THE BRUSH
• unscrew the nuts xing the blade retainers;
• remove the two blade retainers;
• remove the blade;
• put the same blade back, reversing the edge in contact with the oor until all four edges are worn, or replace with a new one;
• put the two blade retainers back on the squeegee and screw up the nuts again;
Attaching the brush:
• rest the brush on the oor in front of the machine. Raise the front of the machine by levering on the handle, then lower it onto the brush, centring it with the brush cover. Action the drive lever repeatedly until the brush
engages..
Removing the brush:
• Raise the front of the machine by levering on the handle, then operate the brush lever repeatedly. After operating the lever a few times, the brush is released and falls to the ground.
DAILY MAINTENANCE
Clean the dirty
water tank.
Check the dirty water tank oat
is undamaged and clean and
moves freely on the pin.
Check that the
detergent outlet lter
is clean.
Check that the
brush is clean.
Check that the
squeegee is clean
and the blades are not
worn.
PLDC01957
BATTERY
CHARGER ON
BOARD
Unscrew the wing nuts fixing the blade retainer.
Remove the blade retainer.
Remove the blade.
Put the same blade back, reversing the edge in
contact with the floor, or replace with a new one.
Reposition the blade retainer and fix the wing nuts
back.
Clean the dirty water tank.
Make sure the squeegee is
clean and the blades are not
worn.
Make sure the dirty water tank
float is undamaged and clean
and moves freely on the pin.
TO CHARGE BATTERIES
Plug in On Board charger to
charge batteries if equipped.
NOTE: Never stop charge until
cycle is complete (green light).
Make sure detergent outlet
filter is clean and free of
debris.
Make sure the brushes/drive
pad are clean and not worn
out. Replace if necessary.
