Dusun DSGW-090 User manual

Hangzhou Roombanker Technology Co., Ltd A Dusun Company
F l o o r 8 , B u i l d i n g A , W a n t o n g C e n t e r
Tel: [phone] 881048 0 Hangzhou, Chin a
Website: www.dusuniot. www.dusunremotes.com www.dusunlock.com
User manual
Product Name: Smart Ceiling LTE Gateway
Model Name: DSGW-090
Revision History
Specification
Sect.
Update Description
By
Rev
Date
Approvals
Organization
Name
Title
Date

Hangzhou Roombanker Technology Co., Ltd A Dusun Company
F l o o r 8 , B u i l d i n g A , W a n t o n g C e n t e r
Tel: [phone] 881048 0 Hangzhou, Chin a
Website: www.dusuniot. www.dusunremotes.com www.dusunlock.com
1 Introduction ..............................................................................................................................................................3
1.1 Purpose& Description ................................................................................................................................... 3
1.2 Product Feature Summary ............................................................................................................................ 3
1.3 Hardware block diagram ...............................................................................................................................3
2 Mechanical Requirement .........................................................................................................................................4
2.1 Drawings ........................................................................................................................................................4
3 Specifications ............................................................................................................................................................4
3.1 Technical Specification .................................................................................................................................. 4
3.2 Performance Requirement ............................................................................................................................5

Hangzhou Roombanker Technology Co., Ltd A Dusun Company
F l o o r 8 , B u i l d i n g A , W a n t o n g C e n t e r
Tel: [phone] 881048 0 Hangzhou, Chin a
Website: www.dusuniot. www.dusunremotes.com www.dusunlock.com
1 Introduction
1.1 Purpose& Description
The DSGW-090 is a ceiling gateway used in the smart home, intelligent security industry, pension services. It a
central device, support multiple wireless protocols including Wi-Fi and zigbee3.0, BLE, Z-WAVE. The user can
connect the network through Wi-Fi, Ethernet and Cellular network. Besides, smart sensors can be connected
through zigbee3.0, BLE, Z-WAVE.
1.2 Product Feature Summary
• OS: Linux@ OpenWrt
• USB 5V type C Power supply and PoE Ethernet Power supply
• Processor: MTK7628 (MIPS24KEc(580MHZ))
• RAM: 128MB
• Flash: 16MB
• Support IEEE802.11n,IEEE802.11g,IEEE 802.11b Protocol
• Support Z-WAVE
• Support zigbee3.0 and thread
• Support BLE5.2
• Support LTE cat1
• One WAN/LAN variable network port

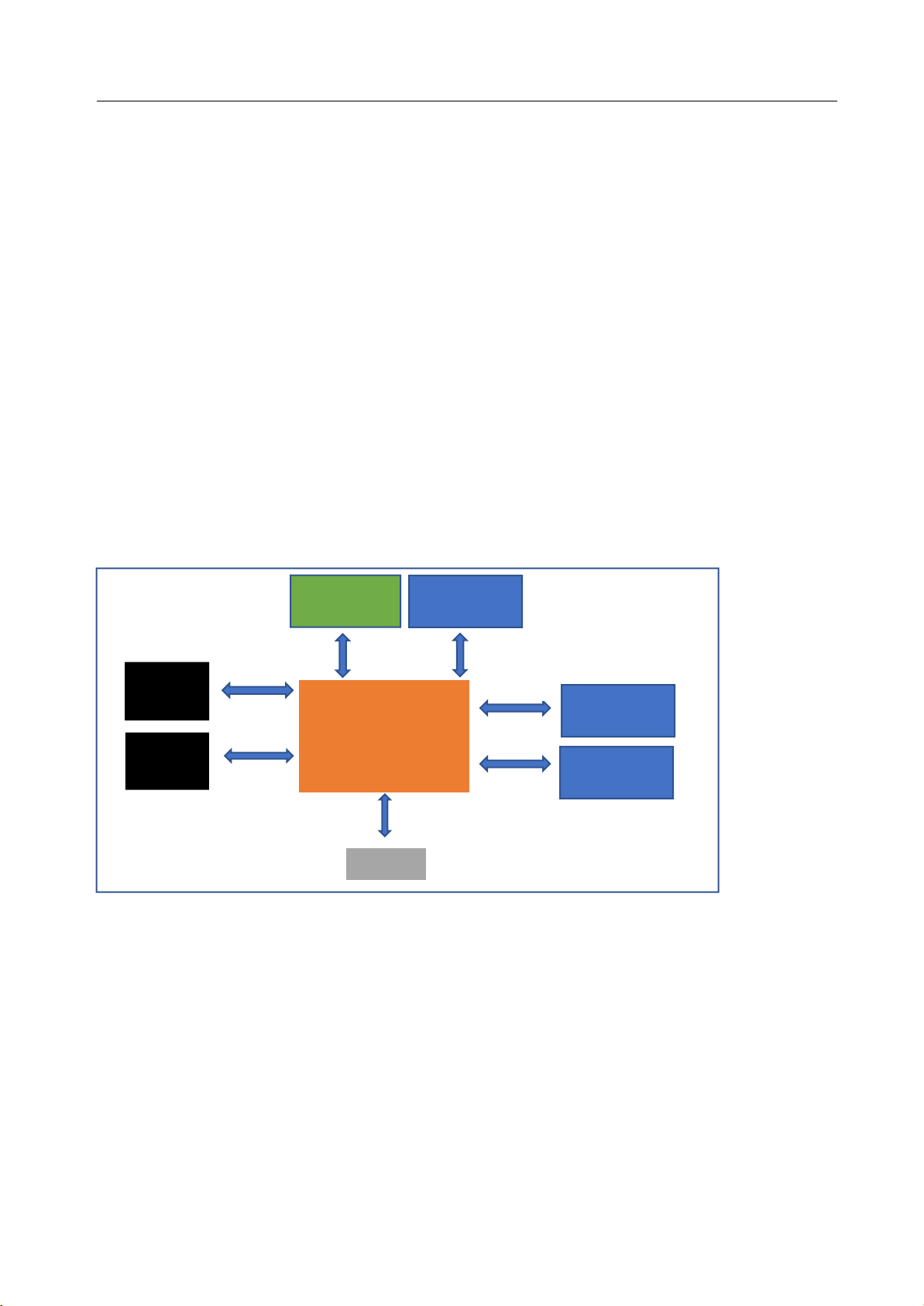

1.3 Hardware block diagram
MTK7628
DDR2
128MB
Flash
16MB
Ethernet
Z-WAVE
700 serial
SPI
USB
EFR32MG1B232
Zigbee CHIP
UART
LTE cat1
EG91
BLE5.2
EFR32BG21
UART

Hangzhou Roombanker Technology Co., Ltd A Dusun Company
F l o o r 8 , B u i l d i n g A , W a n t o n g C e n t e r
Tel: [phone] 881048 0 Hangzhou, Chin a
Website: www.dusuniot. www.dusunremotes.com www.dusunlock.com
2 Mechanical Requirement

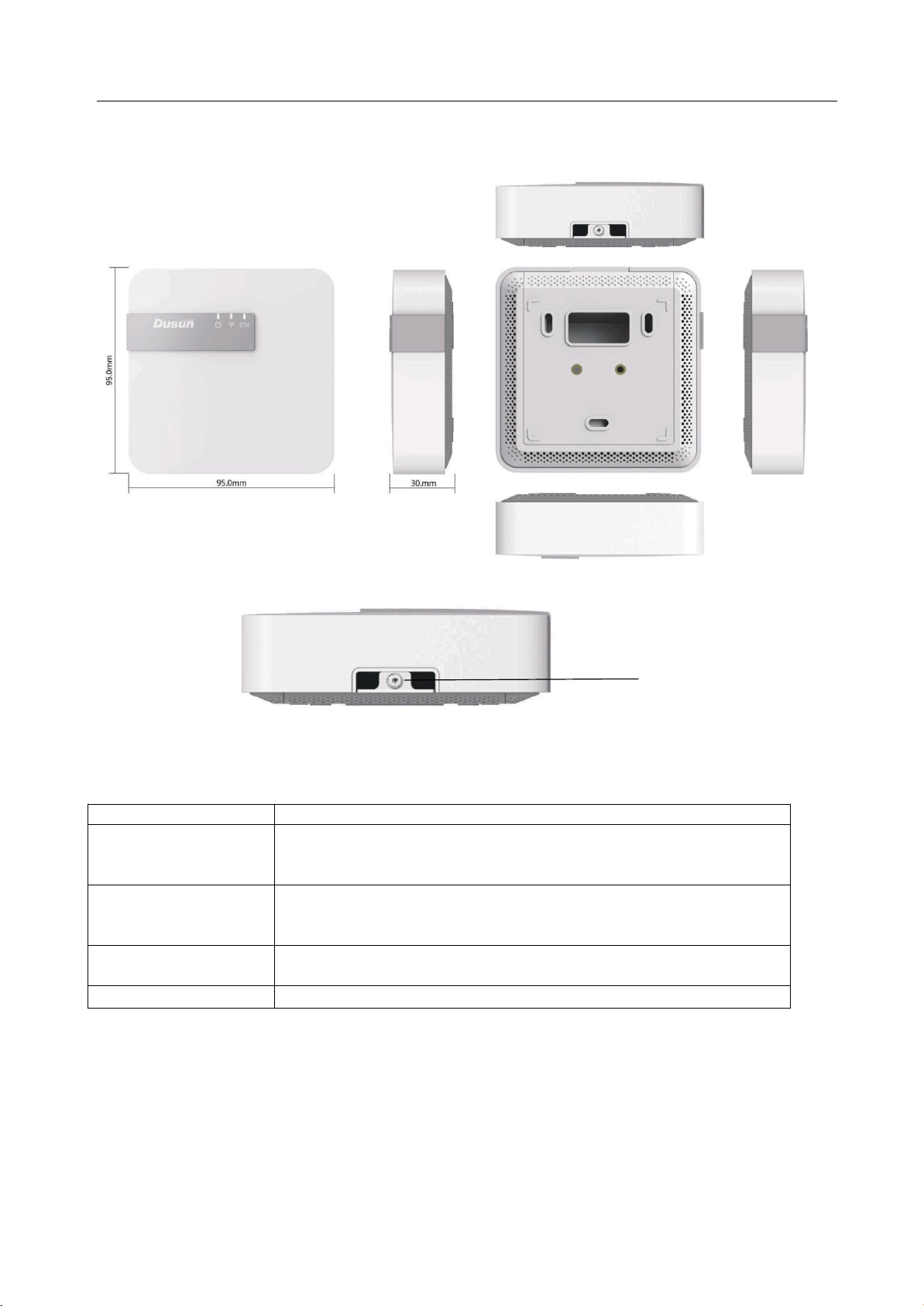

2.1 Drawings
3 Specifications
3.1 Technical Specification
Power Adapter
Input:100V~240V AC/50~60HZ Output:5V/2A, USB type-C
Ethernet
The network interface supports CAT-5/CAT-5E to transmit data and POE
Power Supply (voltage range is 44~ 57V,power rating is 15W). It is
WAN/LAN variable.
Indicator LEDs
Power LED normally on when powered on
Zigbee/Z-WAVE LED is flash when the signal come
Wi-Fi LED normally on after connecting to Wi-Fi for 1-2 sec
Reset Button
The reset button is hole button, After pressing the reset button for more
than 5 seconds, the Gateway will be restored to the factory settings.
Operating Temperature
-10℃~40℃
Anti-theft screw to lock the gateway
and mounting bracket

Hangzhou Roombanker Technology Co., Ltd A Dusun Company
F l o o r 8 , B u i l d i n g A , W a n t o n g C e n t e r
Tel: [phone] 881048 0 Hangzhou, Chin a
Website: www.dusuniot. www.dusunremotes.com www.dusunlock.com
3.2 Performance Requirement
Wi-Fi Performance
• IEEE wireless LAN standard:
• IEEE802.11n; IEEE802.11g; IEEE 802.11b
• Data Rate:
IEEE 802.11b Standard Mode:1,2,5.5,11Mbps
IEEE 802.11g Standard Mode:6,9,12,18,24,36,48,54 Mbps
IEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band
• Sensitivity:
HT40 MCS7 : -70dBm@10% PER(MCS7) /2.4GHz band
HT20 MCS7 : -71dBm@10% PER(MCS7) /2.4GHz band
• Transmit Power:
IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHz band
IEEE 802.11g: 16dBm @54MHz
• IEEE 802.11b: 18dBm @11MHz
• Wireless Security: WPA/WPA2, WEP, TKIP, and AES
• Working mode : Bridge、Gateway、AP Client
• Range: 50 meters minimum, open field
• Transmit Power:17dBm
• Highest Transmission Rate: 300Mbps
• Frequency offset: +/- 50KHZ
• Frequency Range (MHz): 2412.0~2483.5
• Low Frequency (MHz):2400
• High Frequency (MHz):2483.5
• E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
• Bandwidth (MHz):20MHz/40MHz
• Modulation: BPSK/QPSK, FHSSCCK/DSSS, 64QAM/OFDM
Zigbee3.0 Performance
• Range: 100 meters minimum, open field
• Transmit Power:17.5dBm
• Highest Transmission Rate: 300Mbps
• Frequency offset: +/- 20KHZ
• Receiving Sensibility:-94dBm
• Frequency Range (MHz):2401.0~2483.5
• Low Frequency (MHz):2400
• High Frequency (MHz):2483.5
• E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
• Bandwidth (MHz):5MHz
•Modulation: OQPSK
Z-WAVE Performance
• TX power: TX power up to 13dBm
• RX sensitivity: @100kbps -97.5dBm
• Range: 100 meters minimum, open filed
•Default Frequency: 916MHz( Different country with different frequency)
Bluetooth performance
•Bluetooth Protocol: Bluetooth 5.2
•TX Power: 19.5dBm
•Range: 150 meters minimum, open filed
•Receiving Sensibility: [email protected]%BER

Hangzhou Roombanker Technology Co., Ltd A Dusun Company
F l o o r 8 , B u i l d i n g A , W a n t o n g C e n t e r
Tel: [phone] 881048 0 Hangzhou, Chin a
Website: www.dusuniot. www.dusunremotes.com www.dusunlock.com
•Frequency offset: +/-20KHZ
•BLE dual role (peripheral role and central role)
LTE cat1
• LTE FDD: B2/B4/B5/B12/B13
• WCDMA:B2/B4/B5
• LTE FDD Data rate:10(DL)/5(DL)
Ethernet
10/100Mbps

Hangzhou Roombanker Technology Co., Ltd. A DUSUN company
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
To comply with RF exposure requirements, a minimum separation distance of 20 cm must be maintained
between the user’s body and the handset, including the antenna.
