DVDO DVDO-RS-2 User manual

Version: V1.0.0
DVDO-RS-2
18Gbps HDBaseT USB-C / HDMI / KVM Room AV Solution
User Manual

Important Safety Instructions
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
1. Do not expose this apparatus
to rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
plugs.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.

Table of Contents

Introduction
The wall plate is a 2x1 switcher and HDBaseT transmitter with HDMI and
USB-C input. It features a US one-gang enclosure for Decora-style wall plate
openings. The USB-C input provides an ideal AV interface for connecting with
new Apple notebooks and Windows® PCs as well as smartphones and tablets.
Supporting video resolution up to 4K@60Hz 4:4:4, the product is remotely
powered by the receiver or other HDBaseT-equipped devicesvia POE.
Features
•Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a
•Supports 18Gbps video bandwidth
•Video resolution up to 4K@60Hz 4:4:4
•HDBaseT output extends video transmission distance up to 230ft /
70m
for 1080P or 131ft / 40m for 4K via a single CAT6/6a/7 cable
•Support HDR10 and HDR10+
•Supports Dolby Atmos,TrueHD, Digital+, Digital; DTS X, HD
Master Audio, HD High ResolutionAudio, 5.1; PCM 2-8Ch
•Supports HDMI and USB-C input
•US one-gang enclosure for Decora-style wall plate openings
•Input signal selection supports automatic mode and manual mode
•USB 2.0 extension with receiver
•Supports POE function (only from receiver to transmitter)
•USB-C charging port
Package Contents
1× 18Gbps HDBaseT 70M with USB-C/HDMI & KVM Wall Plate Transmitter
1× User Manual

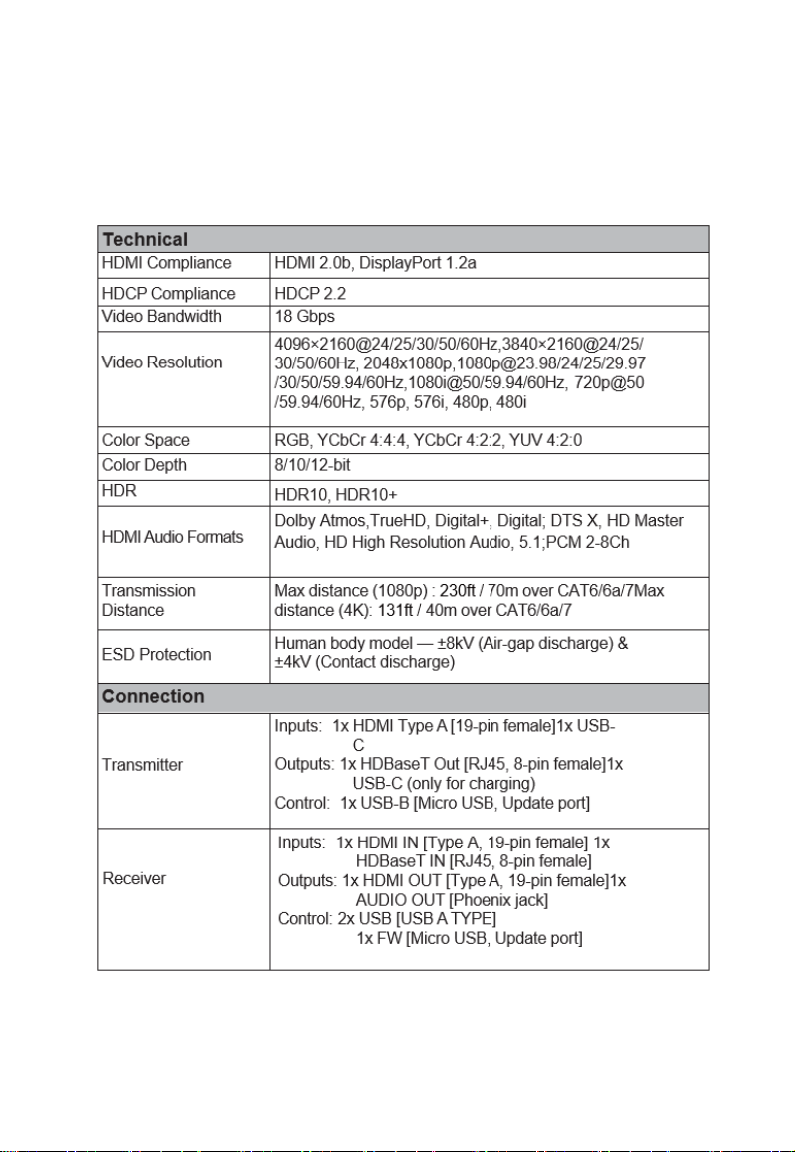

Specifications

Product Dimensions
5. Operation Controls and Functions
5.1 Transmitter Panel

Operation Controls and Functions
Transmitter Panel
1Power LED indicator will illuminate in green when the product is powered on,
and red when the product is on standby.
2 HDMI LED will be on when the HDMI input port is active and the HDMI
signal is detected.
3 USB-C LED will be on when the USB-C input port is active and USB-C
signal is detected.
4 HDMI Port: Connect to HDMI source device.
5 USB-C Port: For USB-C signal input or charging USB-C devices.
6 CHARGE Port: Connect this port to power supply, then the USB-C port will
power the connected device.
7 USB-B Port: Connect to the computer’s USB port.
8 SOURCE Button: Used to switch HDMI / USB-C input signal.
9 HDBaseT OUT: Connect to receiver with CAT6/6a/7 cable.
10 Micro-USB: Firmware update port.
Receiver Panel

1 Power LED indicator will be on when the product is powered on.
2 DC 24V: Power supply port.
3 FW Firmware update port.
4 HDBaseT IN: Connect to transmitter with a CAT6/6a/7 cable.
5 HDMI OUT: Connect to HDMI display device.
6 HDMI IN: Connect to HDMI source device.
7 AUDIO OUT:Analog audio output port.
8 USB Port: Two USB ports for KVM function.
Note:
This transmitter supports automatic/manual mode for source signal input. In
manual switching mode, press the SOURCE button to select HDMI/USB-C
input.
In automatic switching mode, the last connected or the currently connected
source signal will be selected automatically. When both HDMI and USB-C
ports are connected to active signals, HDMI signal input is prioritized. When
neither HDMI and USB-C ports are connected to active signals, it will switch to
the receiver’s source signal.

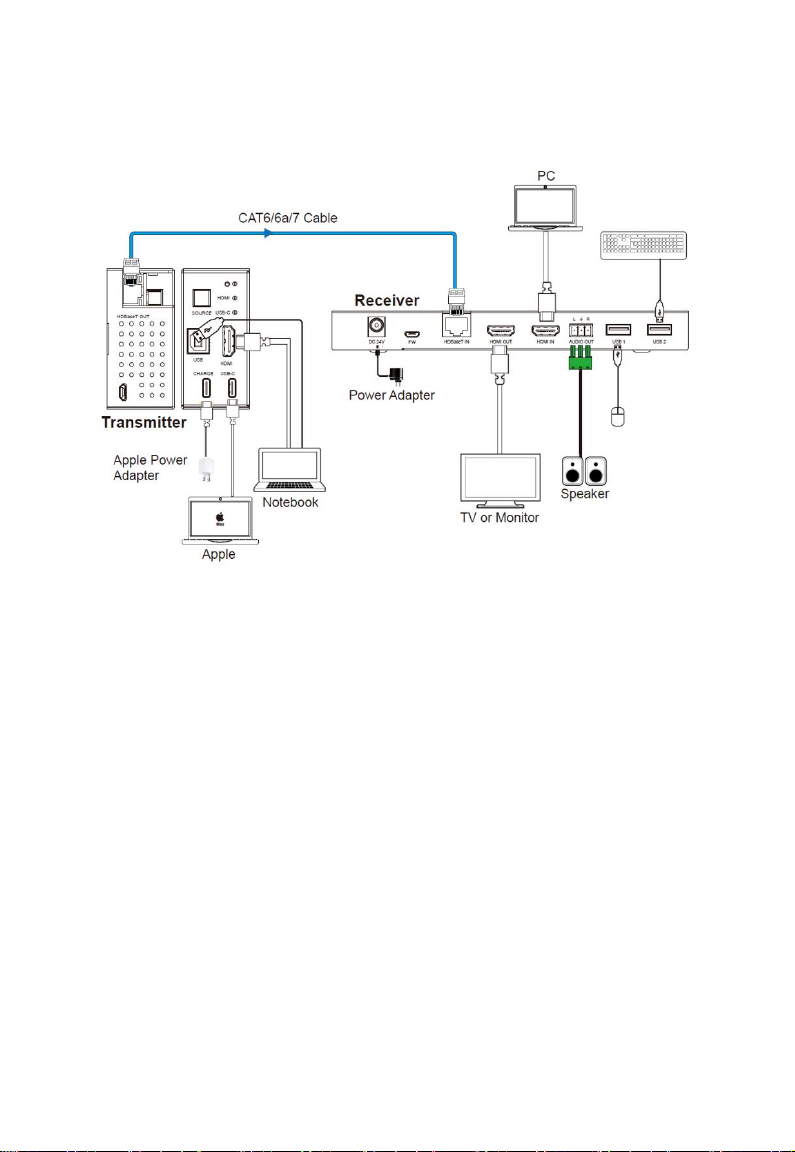

Application Example
