DVIGear DVI-3531a User manual

DVI-D Fiber Optic Cable
User Guide
Converter / Scaler AV-PC to HDMI
DVI-3531a

Table of Contents
Section Page
1.0 Introduction.......................................1
2.0 Specifications .....................................2
3.0 Checking Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . 3
4.0 Connecting the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
5.0 Operating The Unit .................................5
6.0 Troubleshooting ...................................7
7.0 Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
8.0 RegulatoryCompliance.............................8

-1-
1.0 INTRODUCTION
Thank you for purchasing this Converter / Scaler from DVIGear. This product
provides user-selection between three different input signal formats: DVI-D or
HDMI, analog VGA and analog Component Video. Each input format supports its
own stereo audio connection. The selected input signal is converted to a digital
HDMI signal with imbedded audio. This unit accepts a wide range of input signal
resolutions and support pixel clock rates up to 165 MHz. It also provides user-
selectable output resolutions up to 1080p and 1600x1200 (UXGA) using a high
performance internal scaling engine.
Our professional video conversion products have been serving the industry
for several years. DVIGear offers a full line of high quality Video Scalers, Scan
Converters, Analog-Digital Converters and DVI/HDMI Converters, as well as Signal
Switchers and Distribution Amplifiers.
1.1 Liability Statement
Every effort has been made to ensure that this product is free of errors. DVIGear
cannot be held liable for the use of this hardware or any direct or indirect
consequential damages arising from its use. It is the responsibility of the user
of the hardware to check that it is suitable for his/her requirements and that it
is installed correctly. All rights are reserved. No parts of this manual may be
reproduced or transmitted by any form or means electronic or mechanical,
including photocopying, recording or by any information storage or retrieval system
without the written consent of the publisher.
DVIGear reserves the right to revise any of its hardware and software following its
policy to modify and/or improve its products where necessary or desirable. This
statement does not affect the legal rights of the user in any way.
All third party trademarks and copyrights are recognised. The DVIGear logo is a
registered trademark of DVIGear, Inc. All other trademarks are the property of their
respective holders.
1.2 Features
The DVI-3531a Converter / Scaler has many unique and innovative features:
• Supports HDTV input and output signals with
resolutions up to 1080p
• 3:2 Pull-Down correction with
2:2 Pull-Down recovery
• Supports PC input and output signals with
resolutions up to 1920x1200 /60 Hz
• 8-Bit Triple ADC/PLL
• Supports both YPbPr and YCbCr Component Video
inputs
• Intuitive On-Screen Display (OSD)
set-up menus
• Integrates analog audio into digital HDMI output • Front Panel or IR Remote Control
• 3-D Motion Adaptive de-Interlacing and Noise
Reduction
• Rugged, metallic enclosure

-2-
2.0 SPECIFICATIONS
Input Connections
HDMI – digital HDTV video 1x 19-pin Female HDMI connector, DVI-D via adapter cable
PC – analog RGB Video 1x Female HD-15 (VGA) connector
Component – analog HDTV video 3x Female RCA connectors
Input Resolutions
Analog PC RGB 1920 x 1200 / 60 Hz (W-UXGA), pixel clock up to 165 MHz
Digital PC RGB 1920 x 1200 / 60 Hz (W-UXGA), pixel clock up to 165 MHz
Analog HDTV 1080p
Digital HDTV 1080p
Output Connection
HDMI – digital HDTV video 1x 19-pin Female HDMI connector
Output Resolutions
Digital PC RGB User selectable up to 1920 x 1200 / 60 Hz (W-UXGA)
Digital HDTV User selectable up to 1080p
Scaling Engine
Number of Scaling Engines Two (2)
Phase Lock Loops Employed 8-bit triple ADC for superior precision
De-Interlacers 3D Motion Adaptive
Noise Reduction 3D Motion Adaptive
Pull-Down Correction 3:2 with 2:2 Recovery
HDMI Receiver HDMI (v1.2a) and DVI + HDCP
Image Component Processing Full Time / Full Range
Audio Inputs
Analog Stereo (line in) 2x RCA Connectors
PC Audio Stereo 3.5 mm Stereo Connector
Aux Audio Stereo 3.5 mm Stereo Connector
Mechanical
Size (H x W x D) 1.0” x 7.0” x 5.35” (25.5 x 179 x 136 mm)
Weight 15.8 oz. (448 g)
Warranty
Limited Warranty 3Years Parts and Labor
Environmental
Operating Temperature 0 to 48°C (32 to 120°F)
Operating Humidity 10% to 85%, Non-Condensing
Storage Temperature -10 to 70°C (14 to 158°F)
Storage Humidity 10% to 85% Non-Condensing
Power Requirements
External AC Power Adaptor Input: 100-240VAC @50/60Hz Output: 5VDC @2A
Regulatory Approvals
Scaler/Converter Unit FCC, CE, RoHS
Power Supply UL, CE, CSA, RoHS
Model Numbers
DVI-3531a Converter / Scaler AV-PC to HDMI
Accessories Included
1x External AC Power Adaptor, 1x User Manual, 1x IR Remote Control
1x HD-15 Male to HD-15 Male (VGA) Cable
1x 3-RCA Male to 3-RCA Male Cable

-3-
3.0 CHECKING PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make certain
the following items are contained in the shipping carton:
• 1x DVI-3531a Converter / Scaler unit
• 1x External AC Power Supply
• 1x Infrared Remote Control
• 1x User Manual
• 1x 3-RCA Male to 3-RCA Male cable
• 1x User Manual
Note: Please retain the original packing material should the need ever arise to return the
unit. If you find any items are missing, contact your reseller or DVIGear immediately. Please
have the Model Number, Serial Number and Invoice Number available for reference when
you call.
4.0 CONNECTING THE HARDWARE
Please study the following front panel and back panel drawings in order to become
familiar with connector locations and control functions:
Front Panel
1 2 3 4 5 6 7
1 Component Video input (either YPbPr and YCbCr formats)
2 Stereo Audio input associated with the Component Video input
3 Infrared Sensor
4 Status LEDs – Indicates selected source type
5 Menu/Enter – press to access OSD Menus, acts as Enter key for menu selection
6 Multi-function Key – see note below
7 Power ON/OFF
Note: The “+” and “-” keys are multi-functional controls whose function varies depending if
OSD Menus are present or not. When the OSD Menus are present (activated by pressing
the Menu control button) the “+” and “-” keys allow navigation through the various menu
parameters.
When the Menus are not present, the “-” key will automatically adjust the picture centering,
color, etc. for the analog input signals (Component Video or PC). The “+” will sequentially
step through the different inputs of the Converter / Scaler.

-4-
Rear Panel
1 2 3 4 5 6
5VDC
1 Power Input - locking female connector for External AC Power Adaptor1
2 HDMI Output – female connector; connect to a compatible HDMI or DVI display
3 Aux Audio Input – 3.5 mm female stereo audio connector for the HDMI input
4 HDMI Input – female connector; connect to a compatible HDMI or DVI source
5 PC Audio In – 3.5 mm female stereo audio connector for the PC input
6 PC In – HD-15 pin VGA female connector; connect to a compatible PC Video
source
This Converter / Scaler uses advanced signal processing that will automatically
accept, identify, and scale (when required), a wide array of input formats and
resolutions. Since you can specify the output resolution of this Converter /
Scaler, it is advisable to know the optimum (native) resolution of your destination
display and set the unit’s output resolution accordingly. Please consult your
owner’s manual in order to determine your display’s native resolution.
Since the output signal format is HDMI (digital only), you must use a display or
other destination device that has a compatible HDMI or DVI input in order to
use this product. You can connect the output of this unit to an HDMI destination
device (e.g. HDTV display) using an HDMI cable, or to a DVI destination device
(e.g. PC display) using an HDMI to DVI cable.
Connect the appropriate cables to all inputs and output taking care to use the
highest quality cables. Please note that low quality cables can cause serious
image quality degradation, as well as limit the distance between the source and
destination devices and the Converter / Scaler. Cable selection is especially crucial
for HDMI/DVI cables due to the high bit-rates of the digital signals. For best results
use DVIGear’s Super High Resolution™ (SHR™) DVI and HDMI cables.
After the signals cables are connected, connect the External AC Power Adaptor
and power ON the unit.
Note 1: This product utilizes a special “Twist-Lock” DC power connector to prevent the power
cable from coming loose. Insert the connector into the socket just as you would with the other
power adaptors. Once inserted, gently twist the connector right or left 90 degrees to lock it
in place.

-5-
5.0 OPERATING THE UNIT

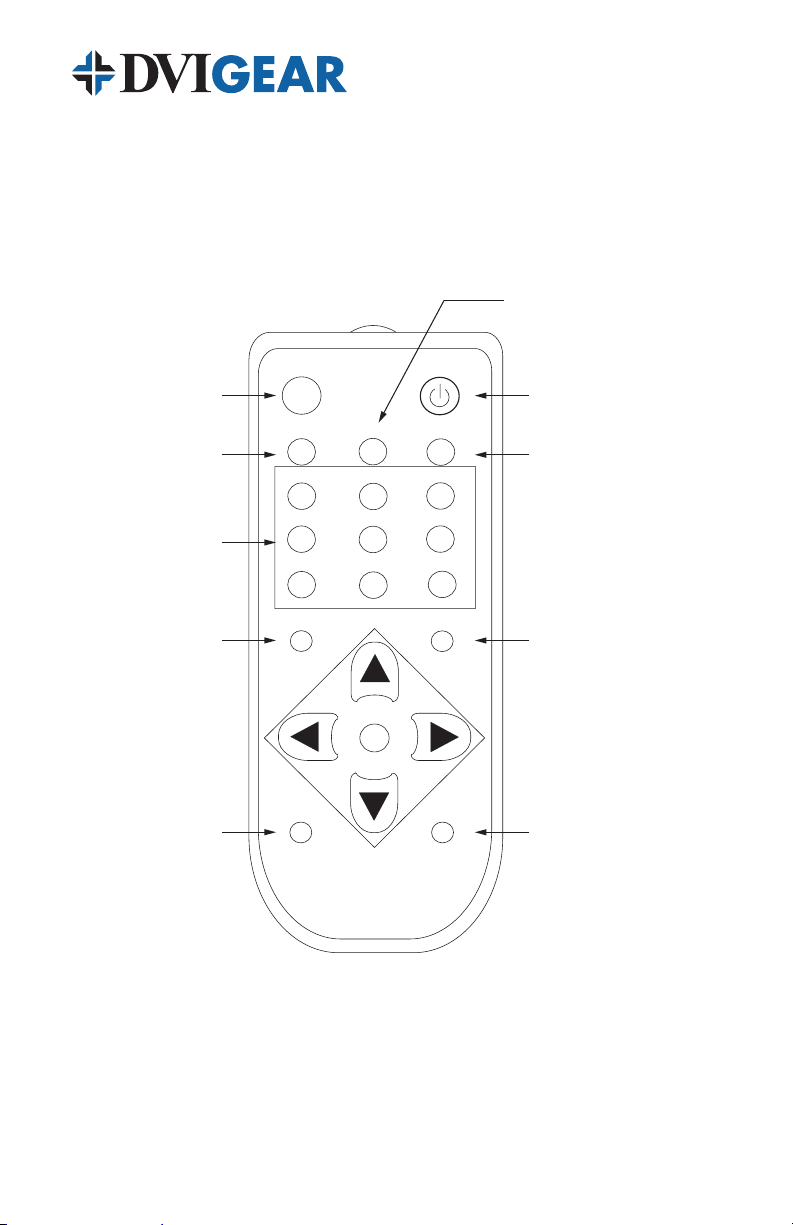

The AV-PC to HDMI Converter / Scaler can be operated either from the front
panel controls or via the supplied IR Remote Control unit. Since IR is the
control method preferred by most users, please take a moment to familiarize
yourself with the location and function of the control buttons on the IR Remote
Control unit.
EXIT MENU
OK
RESET
AUTO
ADJUST
INPUT POWER
HD PC HDMI/DVI
VGA SVGA XGA
SXGA UXGA 1080i
480p 720p 1080p
CR-27
Reset to Factory
Default Setting
Exit Menu
Select Output
Resolution
Select YPbPr Input
Toggle through
the Inputs
Select Auto-
Adjust Function
Navigate Menus and
Adjust Parameters.
Select Menu (OSD)
Power On/Off
Select HDMI / DVI Input
Select PC Input
5.1 Using the On Screen Display Menus
Regardless of whether you operate the scaler from the front panel or with the IR
Remote Control unit, it is important to become familiar with the On-Screen Display
(OSD) Menu structure in order to take full advantage of the capabilities this product
has to offer.

-6-
5.1.1 Menu Navigation
Press the MENU/ENTER button to display the OSD menu. Once the menus are
displayed, the “+” and “-” keys are used to navigate through the menu. The “+”
will advance the curser forward (right) or down and the “-” will advance the curser
backwards (left) and up. Once the desired function has been chosen, press the
MENU/ENTER key to select the function. Once the function has been selected,
use the “+” and “-” key to increase or decrease the desired value, then press the
MENU/ENTER to save the adjustment. To exit the OSD menus use the “+” or “-”
key to scroll through the functions until the curser is on Exit and press the MENU/
ENTER key, or simply press the MENU/ENTER key repeatedly.
For remote control access, press the MENU key on the IR Remote Control unit
to display the OSD menus. Use the arrow keys to navigate through the OSD
menus. Once the function has been chosen, press the OK key to select it and
use the arrow keys to make the desired adjustment. Press the OK key to save the
adjustment. Press the EXIT key to escape from the OSD menus.
5.1.2 Menu Structure
The OSD Menu structure is as follows:
Main Menu
Video Menu Color Menu Output Menu OSD Menu Info Menu
Contrast User VGA H-Position Input
Brightness Normal SVGA V-Position Output
Hue Warm XGA Time Out Version
Sat Cool SXGA Background
Sharpness UXGA Exit
Picture Mode WXGA
Scale WSXGA
NR WUXGA
H-Position1480i
V-Position1480p
Exit 576i
576p
PC Menu2720p (50/60)
Contrast 1080i (50/60)
Brightness 1080p (50/60)
Clock Native
Phase
H-Position1
V-Position1
Exit
Note 1: H-Position and V-Position are only present when Component Video or PC modes
are selected.
Note 2: The PC menu is only active when the PC Input is selected as the source.

-7-
The Video Menu or PC Menu appears when either of these modes are selected
as inputs. Please note the differences in the menu structure above.
The Color Menu allows selection of four (4) color temperature presets:
Warm Picture has a slightly reddish appearance
Cool Picture has a slightly bluish appearance
Normal Picture has a calibrated color temperature
User User-definable color temperature
The Output Menu allows you to specify the output resolution you want the
Converter / Scaler to produce. For example, if you are using an HDMI display
that can only accept a 1080i HDTV input signal, set the output resolution of the
Converter / Scaler to 1080i. Keep in mind that setting the resolution can cause
an apparent malfunction if you select a resolution that your display device cannot
accept. Therefore, be certain you know what resolutions your display device can
accept BEFORE making these menu selections.
The OSD Menu allows you to customize the way the On-Screen Display appears
when it has been accessed. You can change the default settings to suite your
personal preferences, or simply leave the factory default settings.
Lastly, the Info Menu contains technical information. If you have problems with the
scaler and require assistance, a technician may ask you to read information from
this menu as part of the troubleshooting process.
6.0 TROUBLESHOOTING
In the event that the AV-PC to HDMI Converter / Scaler does not appear to be
functioning properly, make certain that the source and all other devices connected
to the unit are functioning correctly by connecting each device source device
direct to a compatible display with a short cable. This will aid in the elimination of
a source being the issue. If the signal is present under these conditions, make
certain that power is present to the scaler. If it is, check the cables for damage.
The cable should be undamaged and short as possible and of premium quality as
discussed in Section 4.
As a final step before contacting technical support, using the IR Remote Control unit,
press the RESET key, which will return the unit to the default factory settings
After trying the above suggestions should the problem still persist, contact your
dealer for additional suggestions. Should the dealer’s technical personnel be
unable to assist you, please contact DVIGear via telephone at [phone]
(United States and Canada); international callers may dial [phone], or use
e-mail at [e-mail].

7.0 LIMITED WARRANTY
LIMITED WARRANTY – With the exceptions noted in the next paragraph,
DVIGear, Inc. warrants the original purchaser that the equipment it
manufactures or sells will be free from defects in materials and workmanship for
a period of three yearsfrom the date of purchase. Should this product, in
DVIGear’s opinion, prove defective within this warranty period, DVIGear, at its
option, will repair or replace this product without charge. Any defective parts
replaced become the property of DVIGear. This warranty does not apply to
those products which have been damaged due to accident, unauthorized
alterations, improper repair, modifications, inadequate maintenance and care, or
use in any manner for which the product was not originally intended.
If repairs are necessary under this warranty policy, the original purchaser must
obtain a Return Authorization Number from DVIGear and return the product
freight prepaid to a location designated by DVIGear. After repairs are complete,
the product will be returned, freight prepaid.
LIMITATIONS - All products sold are “as is” and the above Limited Warranty is in
lieu of all other warranties for this product, expressed or implied, and is strictly
limited to three years from the date of purchase. DVIGear assumes no liability
to distributors, resellers or end-users or any third parties for any loss of use,
revenue or profit.
DVIGear makes no other representation of warranty as to fitness for the purpose
or merchantability or otherwise in respect of any of the products sold. The liability
of DVIGear with respect to any defective products will be limited to the repair
or replacement of such products. In no event shall DVIGear be responsible or
liable for any damage arising from the use of such defective products whether
such damages be direct, indirect, consequential or otherwise, and whether such
damages are incurred by the reseller, end-user or any third party.
9.0 REGULATORY COMPLIANCE
This AV-PC to HDMI Converter / Scaler has been tested for compliance with
appropriate FCC and CE rules and regulations and is RoHS compliant.
The External AC Power Adaptor has been tested for compliance with UL, CE,
CEC and CSA rules and regulations and is also RoHS compliant.
-8-

Your Digital Connectivity Experts
400 Meadowmont Village Circle
Suite 425
Chapel Hill, NC 27517
Toll Free 888.463.9927
Phone [phone]
Fax [phone]
www.dvigear.com
www.dvigear.com
Toll Free 888.463.9927 DVIGear, Inc.
Phone [phone] Triad Court, Suite 8
Fax [phone] Marietta, Georgia 30062-2258
DVI-3531-UG-01 / Nov.2008
