Dyna-Glo DGA550SSP User manual

Serial Number Purchase Date
ATTACH YOUR RECEIPT HERE
Español p. 63
Français p. 32
5-BURNER GAS
GRILL
MODEL #DGA550SSP/DGA550SSP-D
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m., CST, Monday – Friday,
or e-mail us at [email protected].
1
ANS Z21.58b-2012
CSA 1.6b-2012
Outdoor Cooking
Gas Appliance
70-10-054 Rev 02/2014
All manuals and user guides at all-guides.com
all-guides.com

33
P
V
U
O
G
M
N
F
E
D
T
S
W
Q
Z
R
J
K
H
I
B
X
L
Y
A
C
A1
PACKAGE CONTENTS
All manuals and user guides at all-guides.com

4
PACKAGE CONTENTS

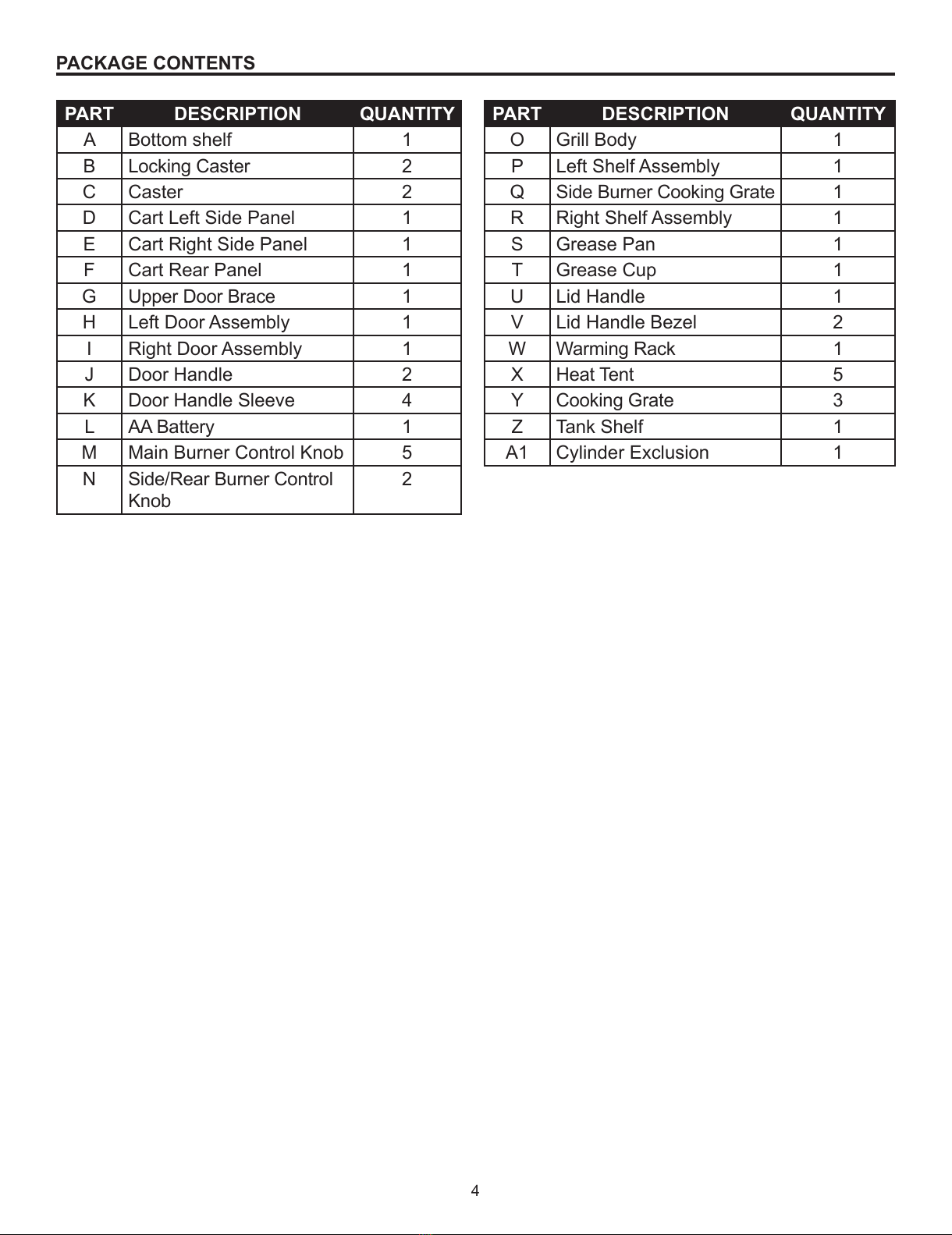

PART DESCRIPTION QUANTITY
A Bottom shelf 1
BLocking Caster 2
C Caster 2
D Cart Left Side Panel 1
E Cart Right Side Panel 1
F Cart Rear Panel 1
GUpper Door Brace 1
HLeft Door Assembly 1
IRight Door Assembly 1
J Door Handle 2
K Door Handle Sleeve 4
LAA Battery 1
M Main Burner Control Knob 5
NSide/Rear Burner Control
Knob
2
PART DESCRIPTION QUANTITY
O Grill Body 1
PLeft Shelf Assembly 1
QSide Burner Cooking Grate 1
RRight Shelf Assembly 1
S Grease Pan 1
T Grease Cup 1
U Lid Handle 1
VLidHandleBezel 2
WWarming Rack 1
XHeat Tent 5
YCooking Grate 3
Z Tank Shelf 1
A1 CylinderExclusion 1
All manuals and user guides at all-guides.com

5
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
Please read and understand this entire manual before attempting to assemble, operate or install the
product. If you have any questions regarding the product, please call customer service at
1-877-447-4768, 8:30 a.m. – 4:30 p.m., CST, Monday – Friday.
SAFETY INFORMATION
HARDWARE CONTENTS (shownactualsize)
DO NOTuseinanexplosiveatmosphere.Keepgrillareaclearandfreefromcombustiblematerials,
gasolineandotherammablevaporsandliquids.
DANGER
CALIFORNIA PROPOSITION 65
•Fuelsusedingas,oilred,woodburning,andcharcoalburningappliancesandtheproductsof
combustion of such fuels contain chemicals known to the state of California to cause cancer, birth
defects or other reproductive harm. This product contains chemicals, including lead and lead
compounds, known to the state of California to cause cancer, birth defects or other reproductive harm.
Wash hands after handling.
All manuals and user guides at all-guides.com

6
CAUTION
• NEVERusecharcoalorlighteruidwiththegrill.
• DO NOT use gasoline, kerosene or alcohol for lighting.
• The LP gas cylinder used with this appliance must be:
 (a)ConstructedandmarkedinaccordancewiththeSpecicationsforLP-GasCylindersof
the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada, CAN/
CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods; and
Commision, as applicable; and
 (b)Providedwithalistedoverllingpreventiondevice.
(c) Provided with a cylinder connection device compatible with the connector for outdoor cooking
appliances. This grill is not intended to be used in or installed on recreational vehicles and/or
boats.
• NEVERkeepalledcontainerinahotcarorcartrunk.Heatwillcausethegaspressureto
increase, which may open the relief valve and allow gas to escape.
• ALWAYS open grill lid slowly and carefully as heat and steam trapped within the grill can burn you
severely.
• DO NOTstoreorusegasolineorotherammableliquidsorvaporsinthevicinityofthisoranyother
appliance.
• An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
• This grill is for use with propane gas only (propane cylinder not included).
• NEVER attempt to attach this grill to the self-contained propane system of a boat, camper trailer,
motor home or house.
• DO NOT attempt to move the grill while it is lit or when it is hot. The casters should be locked when
not moving the grill.
DO NOT place the grill under overhead
combustible construction or awnings.
Minimum clearance from sides and back
of unit to combustible construction is 36
in. (914.4 mm).
NOTE: The installation must conform
with local codes or, in the absence of
local codes, with either the National
Fuel Gas Code, ANSI Z223.1/NFPA 54,
Natural Gas and Propane Installation
Code, CSA B149.1, or Propane Storage
and Handling Code, B149.2.
WARNING
SAFETY INFORMATION
36 in.
(91.4 cm)
36 in.
(91.4 cm)
All manuals and user guides at all-guides.com

7
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 50 minutes with two people
Tools Required for Assembly and leak testing (not included): Phillips screwdriver, spray bottle.
SAFETY INFORMATION

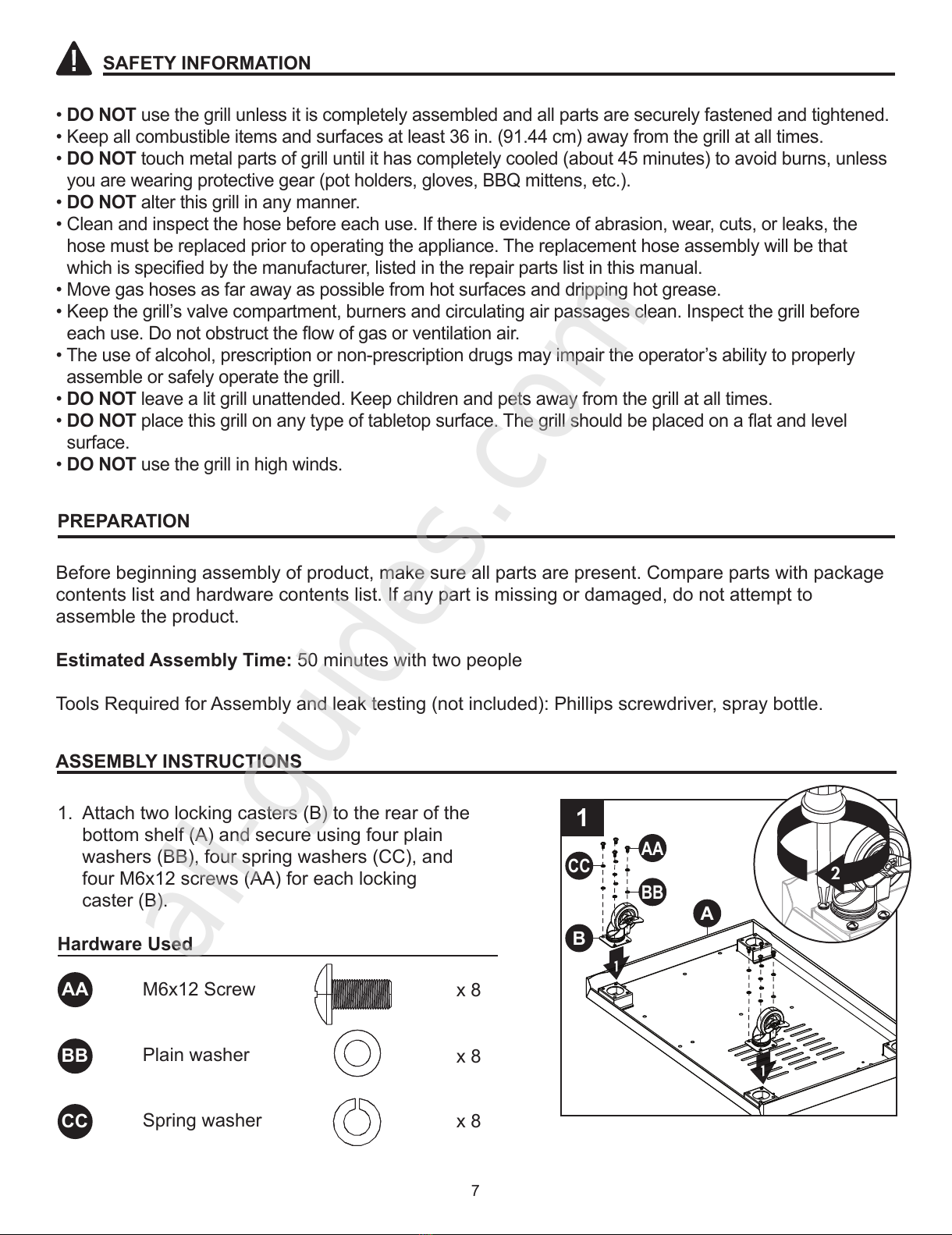

• DO NOT use the grill unless it is completely assembled and all parts are securely fastened and tightened.
• Keep all combustible items and surfaces at least 36 in. (91.44 cm) away from the grill at all times.
• DO NOT touch metal parts of grill until it has completely cooled (about 45 minutes) to avoid burns, unless
you are wearing protective gear (pot holders, gloves, BBQ mittens, etc.).
• DO NOT alter this grill in any manner.
• Clean and inspect the hose before each use. If there is evidence of abrasion, wear, cuts, or leaks, the
hose must be replaced prior to operating the appliance. The replacement hose assembly will be that
whichisspeciedbythemanufacturer,listedintherepairpartslistinthismanual.
• Move gas hoses as far away as possible from hot surfaces and dripping hot grease.
• Keep the grill’s valve compartment, burners and circulating air passages clean. Inspect the grill before
eachuse.Donotobstructtheowofgasorventilationair.
• The use of alcohol, prescription or non-prescription drugs may impair the operator’s ability to properly
assemble or safely operate the grill.
• DO NOT leave a lit grill unattended. Keep children and pets away from the grill at all times.
• DO NOTplacethisgrillonanytypeoftabletopsurface.Thegrillshouldbeplacedonaatandlevel
surface.
• DO NOT use the grill in high winds.
ASSEMBLY INSTRUCTIONS
1. Attach two locking casters (B) to the rear of the
bottom shelf (A) and secure using four plain
washers (BB), four spring washers (CC), and
fourM6x12screws(AA)foreachlocking
caster (B).
1
1
2
CC
B
AA
BB
A
1
Hardware Used
M6x12Screw
Plain washer
Spring washer
x8
x8
x8
AA
BB
CC
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
All manuals and user guides at all-guides.com
all-guides.com

8
ASSEMBLY INSTRUCTIONS
3. Turn over bottom shelf (A) and attach tank shelf
(Z)usingeightM6x12screws(AA).

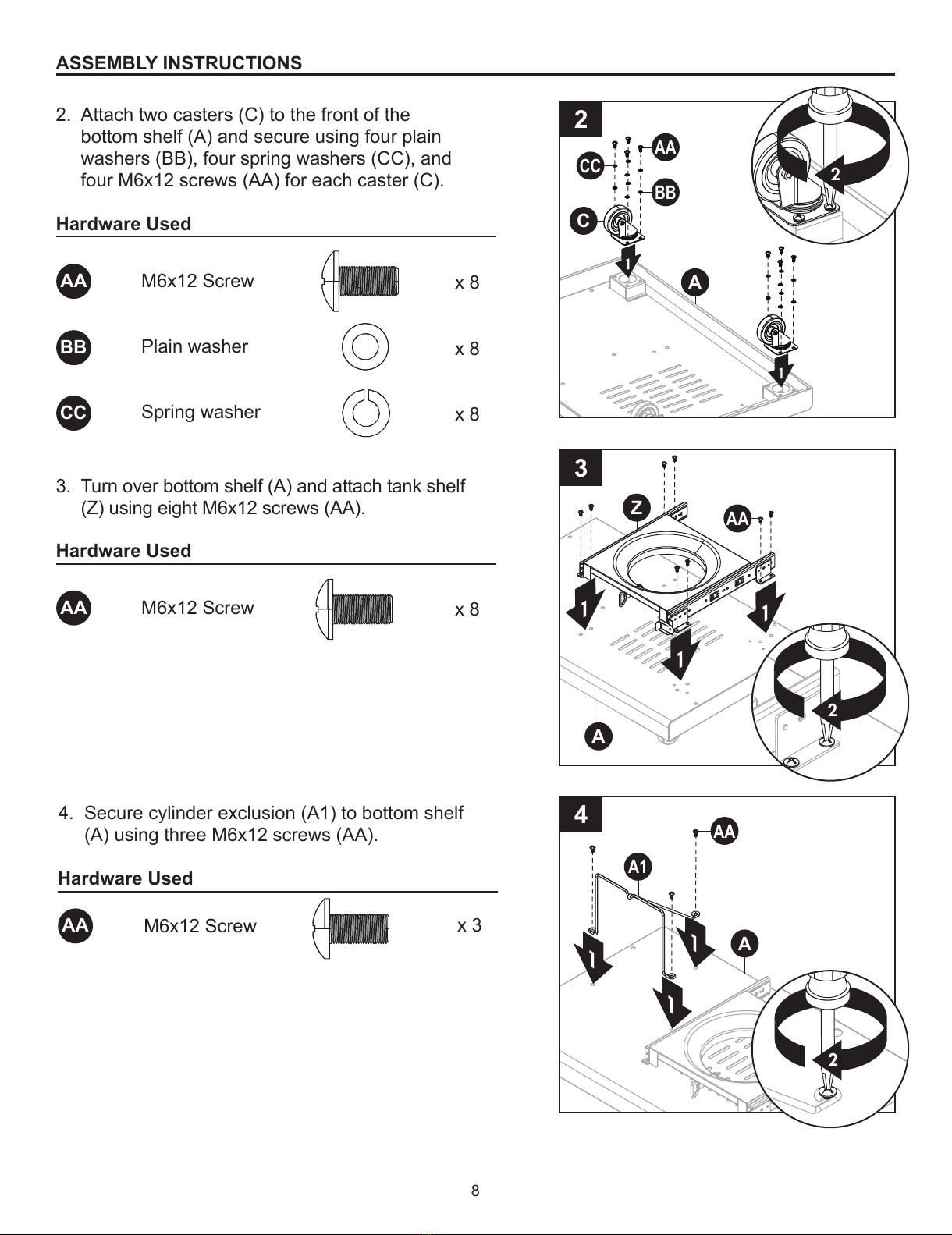

2. Attach two casters (C) to the front of the
bottom shelf (A) and secure using four plain
washers (BB), four spring washers (CC), and
fourM6x12screws(AA)foreachcaster(C).
1
1
1
2
AA
Z
A
3
1
1
2
CC
C
AA
BB
A
2
Hardware Used
Hardware Used
M6x12Screw
M6x12Screw
Plain washer
Spring washer
x8
x8
x8
x8
AA
AA
BB
CC
M6x12 Screw
Qty. 40 M4x10 Screw
Qty. 12 M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE:
Preassembled
with door handle.
Plain Washer
Qty. 16 Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE:
Preassembled
with lid handle.
AA BB CC
FF
EE
GG HH
M6x16 Screw
Qty. 10
DD
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
M6x12 Screw
Qty. 40 M4x10 Screw
Qty. 12 M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE:
Preassembled
with door handle.
Plain Washer
Qty. 16 Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE:
Preassembled
with lid handle.
AA BB CC
FF
EE
GG HH
M6x16 Screw
Qty. 10
DD
M6x12 Screw
Qty. 40 M4x10 Screw
Qty. 12 M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE:
Preassembled
with door handle.
Plain Washer
Qty. 16 Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE:
Preassembled
with lid handle.
AA BB CC
FF
EE
GG HH
M6x16 Screw
Qty. 10
DD
4.Securecylinderexclusion(A1)tobottomshelf
(A)usingthreeM6x12screws(AA).
1
1
11
1
2
AA
A1
A
4
Hardware Used
M6x12Screw x3
AA
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
All manuals and user guides at all-guides.com

9
ASSEMBLY INSTRUCTIONS

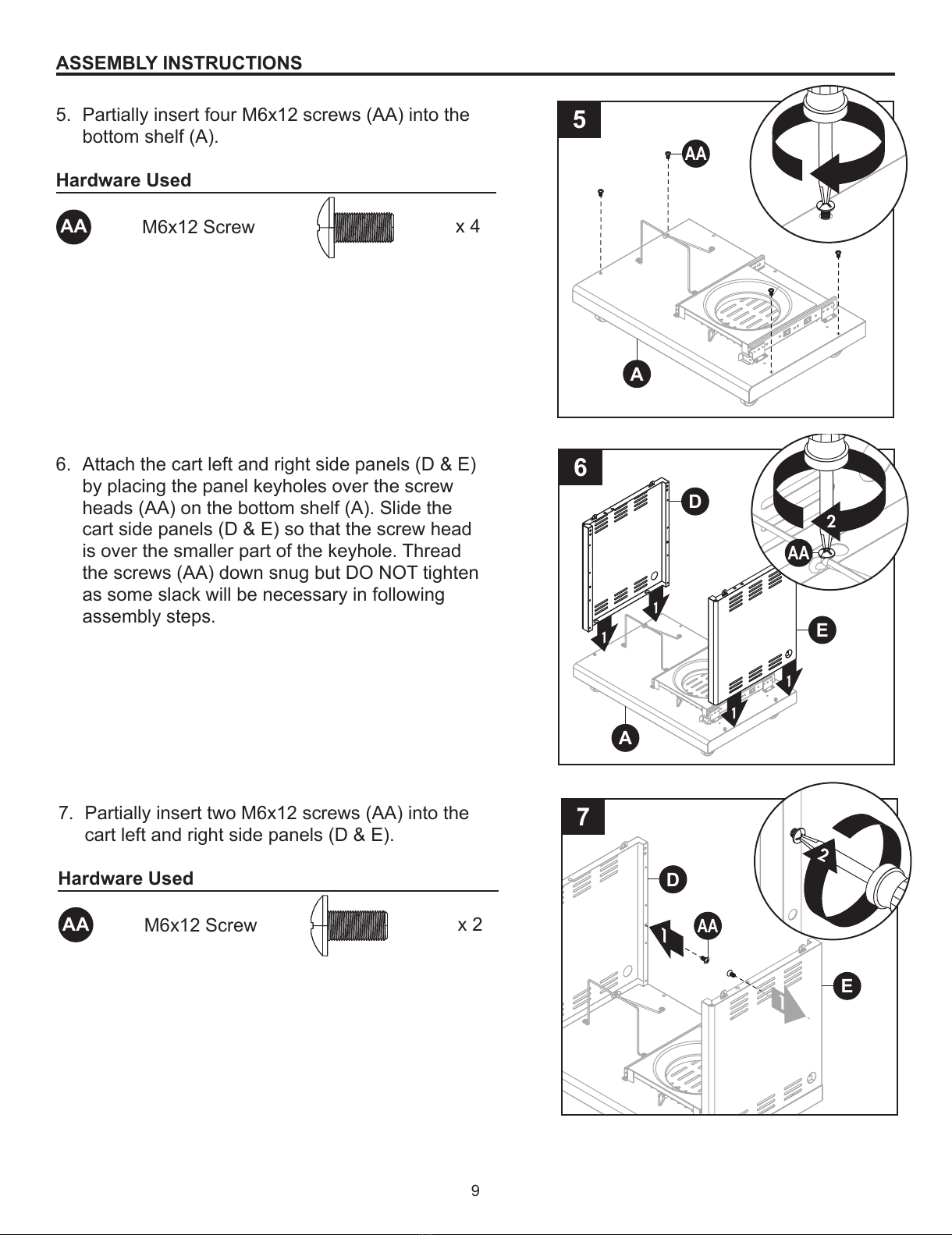

6. Attach the cart left and right side panels (D & E)
by placing the panel keyholes over the screw
heads (AA) on the bottom shelf (A). Slide the
cart side panels (D & E) so that the screw head
is over the smaller part of the keyhole. Thread
the screws (AA) down snug but DO NOT tighten
as some slack will be necessary in following
assembly steps.
5. PartiallyinsertfourM6x12screws(AA)intothe
bottom shelf (A).
11
11
2
D
E
AA
6
A
AA
A
5
Hardware Used
M6x12Screw x4
AA
M6x12 Screw
Qty. 40 M4x10 Screw
Qty. 12 M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE:
Preassembled
with door handle.
Plain Washer
Qty. 16 Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE:
Preassembled
with lid handle.
AA BB CC
FF
EE
GG HH
M6x16 Screw
Qty. 10
DD
Hardware Used
M6x12Screw x2
AA
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
1
1
2
AA
D
E
7
7. PartiallyinserttwoM6x12screws(AA)intothe
cart left and right side panels (D & E).
All manuals and user guides at all-guides.com

10
ASSEMBLY INSTRUCTIONS
Hardware Used
Hardware Used
M6x12Screw
M6x12Screw
x3
x4
AA
AA
2
2
11
3
AA
G
E
D
9
222
1
1
3
F
AA
A
D
E
8
8. Attach the cart rear panel (F) by sliding the
keyholes in the cart rear panel (F) over the
inserted screws. Slide the cart rear panel (F) down
to meet bottom shelf (A). Secure the cart rear
panel (F) to the bottom shelf (A) with three screws
(AA). Tighten all screws, including the two screws
in cart side panels (D & E).
9. PartiallyinsertfourM6x12screws(AA)intothe
cart side panels (D & E). Attach the upper door
brace (G) by sliding the cut-outs in the upper door
brace (G) over the four screws (AA) and tightening
all four screws (AA).
1
1
2
H
J
K
GG
10
10.RemovepreassembledM4x10screws(GG)
from the door handles (J). Insert two door handle
sleeves (K) into the holes located on the back
oftheleftdoorassembly(H).InserttwoM4x10
screws (GG) into the door handle sleeves (K)
and into the threaded holes in the door handle
(J). Tighten the screws. Repeat with right door
assembly (I).
Hardware Used
M4x10Screw x4
GG
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
All manuals and user guides at all-guides.com

11
ASSEMBLY INSTRUCTIONS
11
2
U
V
HH
O
12
1
1
2
DD
H
D
11
11. Attach the left door assembly (H) to the cart
body by aligning the holes in the hinge of the
left door assembly (H) with the holes in the cart
leftsidepanel(D).SecureusingfourM4x10
screws (DD). Tighten all screws. Repeat with
right door assembly (I).
12. Remove preassembled screws (HH) from the lid
handle (U). Attach the lid handle (U) by inserting
twoM6x25screws(HH)frominsidethelidofthe
grillbody(O),throughthelidhandlebezels(V),
into the lid handle (U) and tightening securely.
Hardware Used
Hardware Used
M4x10Screw
M6x25Screw
x8
x2
DD
HH
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
O
M
N
13
13. Slip main burner control knobs (M) and side/
rear burner control knob (N) onto the valve
stems located on the front control panel of the
grill body (O).
All manuals and user guides at all-guides.com

12
ASSEMBLY INSTRUCTIONS
Hardware Used
M6x20Screw x4
EE
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
14. Lock the back two casters (B) to ensure the cart
doesn’t move. Using two people, carefully place
the grill body (O) over the mounting tabs on
the cart side panels (D & E) and onto the cart.
Adjust the grill body (O) so that the holes in the
grill body (O) are aligned with the holes in the
tabs of the cart side panels (D & E).
NOTE: Make sure the LP gas hose regulator is
inside the cart
15.Securethegrillbody(O)usingtwoM6x20
screws (EE) on each side.
1
1
2
DD
E
16
16. Secure the LP gas holder to cart right side
panel(E)usingtwoM4x10screws(DD).
Hardware Used
M4x10Screw x2
DD
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
1
1
1
1
2
EE
O
15
O
D
E
14
All manuals and user guides at all-guides.com
all-guides.com

13
ASSEMBLY INSTRUCTIONS
1
1
2
P
FF
O
18
1
1
2
FF
O
17
17.PartiallyinserttwoM6x16screws(FF)intothe
left side of grill body (O). DO NOT fully tighten
screws(leaveapproximately5mm).
18. Align the key holes in the left shelf assembly (P)
with the two screws (FF) just installed in the grill
body(O)andtightenscrews.InsertthreeM6x16
screws (FF) in the remaining holes in the supports
and tighten.
Hardware Used
Hardware Used
M6x16Screw
M6x16Screw
x2
x3
FF
FF
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
Hardware Used
M4x10Screw x2
DD
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
2
2
1
3
DD
19
19. Align the side burner tubing with the side burner
oriceandinsertintothesideburnerorice.
UsetwoM4x10screws(DD)tosecuretheside
burneroriceandsideburneroricesupportto
the side burner support.
All manuals and user guides at all-guides.com

14
ASSEMBLY INSTRUCTIONS
Q
21
20

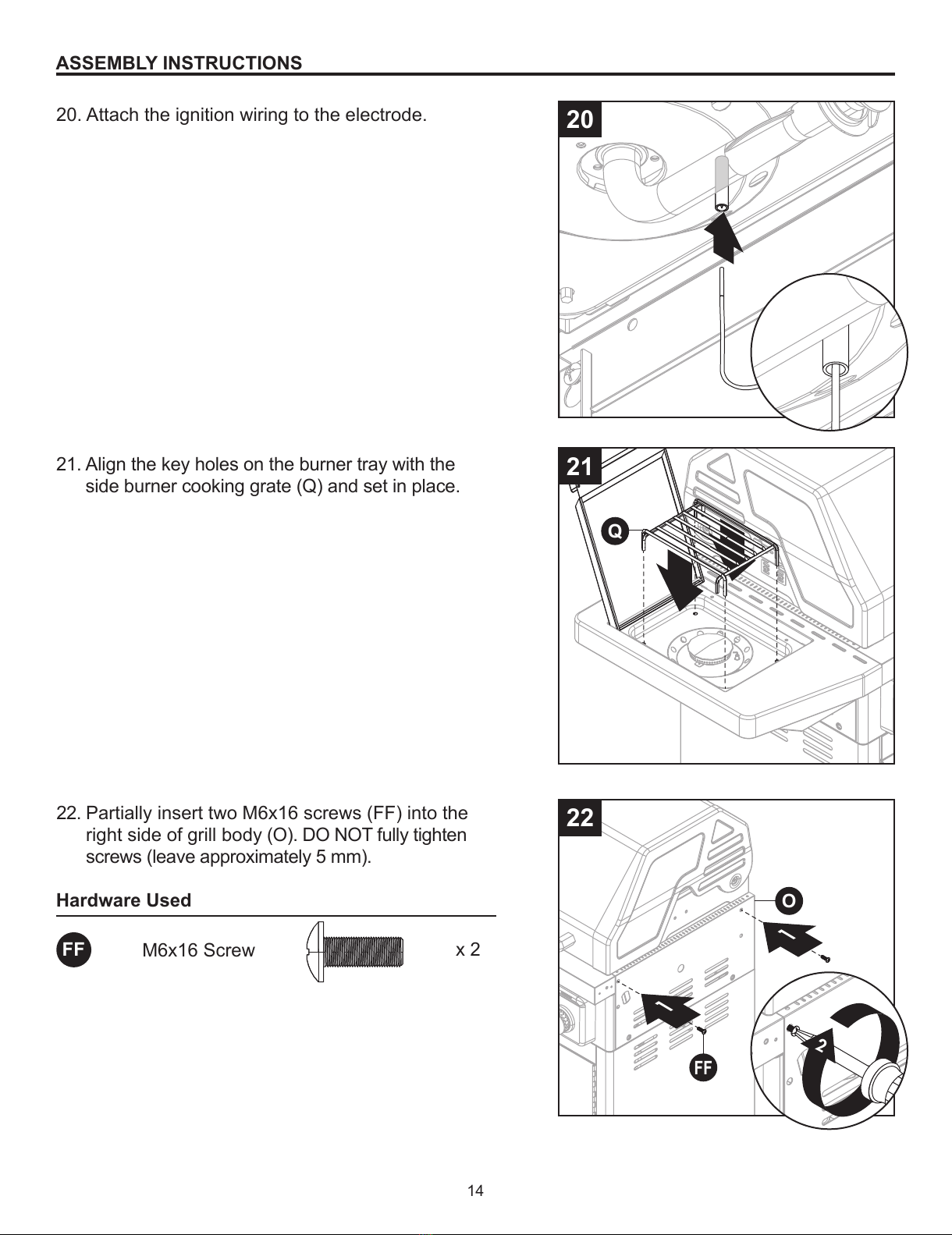

20. Attach the ignition wiring to the electrode.
21. Align the key holes on the burner tray with the
side burner cooking grate (Q) and set in place.
11
2
FF
O
22
22.PartiallyinserttwoM6x16screws(FF)intothe
right side of grill body (O). DO NOT fully tighten
screws(leaveapproximately5mm).
Hardware Used
M6x16Screw x2
FF
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
All manuals and user guides at all-guides.com

15
ASSEMBLY INSTRUCTIONS
1
2
FF
O
R
23
Burner
Valve
Orifice
WARNING

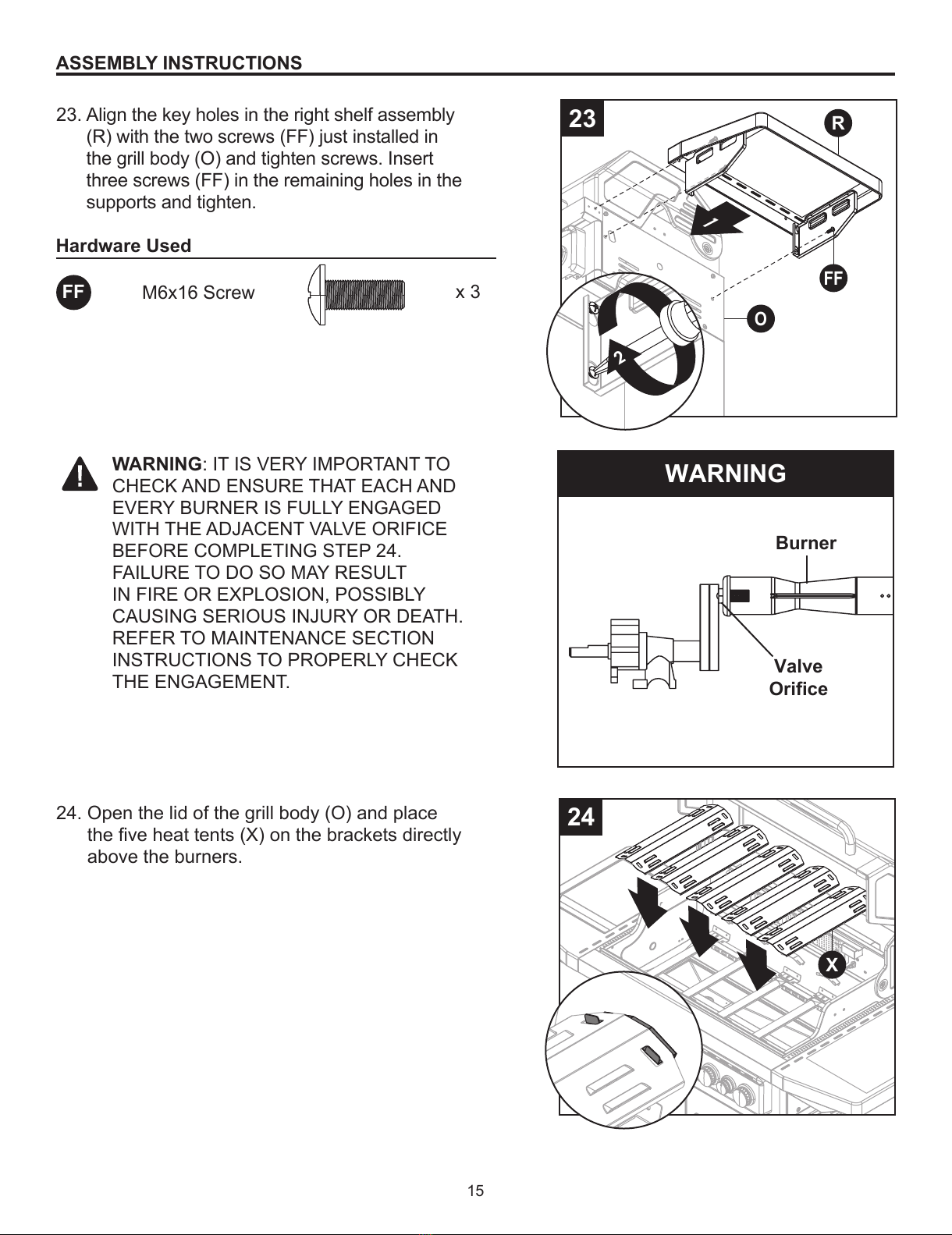

23. Align the key holes in the right shelf assembly
(R) with the two screws (FF) just installed in
the grill body (O) and tighten screws. Insert
three screws (FF) in the remaining holes in the
supports and tighten.
WARNING: IT IS VERY IMPORTANT TO
CHECK AND ENSURE THAT EACH AND
EVERY BURNER IS FULLY ENGAGED
WITH THE ADJACENT VALVE ORIFICE
BEFORE COMPLETING STEP 24.
FAILURE TO DO SO MAY RESULT
IN FIRE OR EXPLOSION, POSSIBLY
CAUSING SERIOUS INJURY OR DEATH.
REFER TO MAINTENANCE SECTION
INSTRUCTIONS TO PROPERLY CHECK
THE ENGAGEMENT.
Hardware Used
M6x16Screw x3
FF
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA DD EE
GG HH
BB CC
M6x16 Screw
Qty. 10
FF
1
2
X
24
24. Open the lid of the grill body (O) and place
theveheattents(X)onthebracketsdirectly
above the burners.
All manuals and user guides at all-guides.com

16
ASSEMBLY INSTRUCTIONS
W
26
Y
25
25. Place the three cooking grates (Y) on the grill
body braces and grill rear panel.
26. Insert the warming rack (W) into the two holes
located on the back edge of the grill body (O).
1
2
1
ST
O
27
27. Insert the grease pan (S) into position by sliding it
in the grill body (O) from the rear along the rails.
Insert the grease cup (T) into position by sliding
it onto the rails located on the bottom side of the
grease pan (S).
All manuals and user guides at all-guides.com

17
ASSEMBLY INSTRUCTIONS
3
2
4
1
L
28
1
2
Z
29

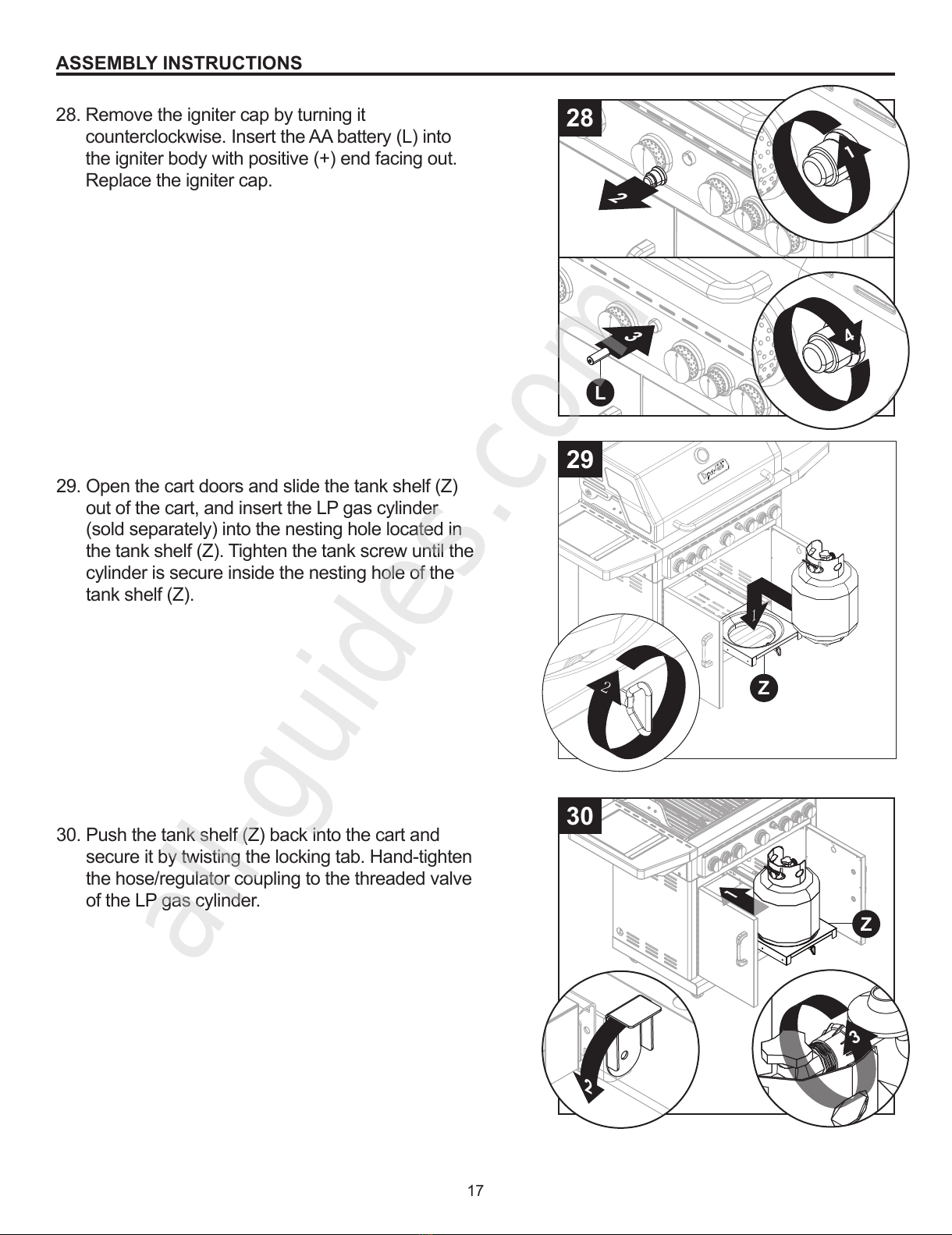

28. Remove the igniter cap by turning it
counterclockwise. Insert the AA battery (L) into
the igniter body with positive (+) end facing out.
Replace the igniter cap.
29. Open the cart doors and slide the tank shelf (Z)
out of the cart, and insert the LP gas cylinder
(sold separately) into the nesting hole located in
the tank shelf (Z). Tighten the tank screw until the
cylinder is secure inside the nesting hole of the
tank shelf (Z).
1
3
2
Z
30
30. Push the tank shelf (Z) back into the cart and
secure it by twisting the locking tab. Hand-tighten
the hose/regulator coupling to the threaded valve
of the LP gas cylinder.
All manuals and user guides at all-guides.com
all-guides.com

#70-10-054
GRILL AU GAZ
À CINQ BRÛLEURS
32
ANS Z21.58b-2012
CSA 1.6b-2012
Appareil de cuisson
au gaz extérieur
JOIGNEZ VOTRE REÇU ICI
Numéro de série
Des questions, des problèmes, des pièces manquantes? Avant de retourner l’article au
détaillant,appeleznotreserviceàlaclientèleau1-877-447-4768, 08:30-16 heures 30,
HNC, du lundi - vendredi ou par e-mail à [email protected].
Date d’achat
MODÈLE #DGA550SSP/DGA550SSP-D
All manuals and user guides at all-guides.com

34
P
V
U
O
G
M
N
F
E
D
T
S
W
Q
Z
R
J
K
H
I
B
X
L
Y
A
C
A1
CONTENU DE L’EMBALLAGE
All manuals and user guides at all-guides.com

35
CONTENU DE L’EMBALLAGE
PIÈCE DESCRIPTION QUANTITÉ
A Tablette inférieure 1
BRoulette avec frein 2
CRoulette 2
D Panneau latéral gauche
du chariot
1
E Panneau latéral droit du
chariot
1
F Panneau arrière du
chariot
1
GTraverse supérieure de la
porte
1
H Ensemble de porte
gauche
1
IEnsemble de porte droite 1
J Poignée de porte 2
KManchon de la poignée de
porte
4
LPile AA 1
M Bouton de commande de
brûleur principal
5
N Bouton de commande
du brûleur latéral et du
brûleur arrière
2
PIÈCE DESCRIPTION QUANTITÉ
O Corps du barbecue 1
P Ensemble de tablette
gauche
1
QGrille de cuisson du
brûleur latéral
1
R Ensemble de tablette
droite
1
S Bac ramasse-graisse 1
T Gobelet ramasse-graisse 1
U Poignée du couvercle 1
V Collerette de la poignée
du couvercle
2
WGrille de maintien au
chaud
1
XPlaque chauffante 5
YGrille de cuisson 3
ZTablette pour le réservoir 1
A1 Poignée de retrait de la
bouteille de propane
1
All manuals and user guides at all-guides.com

36
Boulon M6x12
Qté : 40
Boulon M4x10
Qté : 12
Boulon M6x20
Qté : 4
Boulon M4x10
Qté : 4
REMARQUE :
Préassemblés à la
poignée de porte.
Rondelle ordinaire
Qté : 16
Rondelle à
ressort
Qté : 16
Boulon M6x25
Qté : 2
REMARQUE :
Préassemblés à la
poignée du couvercle.
AA DD EE
GG HH
BB CC
Boulon M6x16
Qté : 10
FF
Assurez-vousdelireetdecomprendrel’intégralitéduprésentmanuelavantdetenterd’assembler,
d’utiliseroud’installerleproduit.Sivousavezdesquestionsconcernantceproduit,veuillez
téléphonerauserviceàlaclientèleau1-877-447-4768, 08:30-16 heures 30, HNC, du lundi - vendredi.
CONSIGNES DE SÉCURITÉ
QUINCAILLERIE INCLUSE (grandeur réelle)
N’utilisezpaslebarbecuedansunendroitprésentantunrisqued’explosion.Assurez-vousquel’espace
autourdubarbecueestpropreetexemptdematériauxcombustibles,d’essenceetd’autresvapeursou
liquidesinammables.
DANGER
PROPOSITION 65 DE LA CALIFORNIE
•Lescombustiblesutilisésdanslesappareilsdechauffageaugaz,àl’huile,auboisouaucharbon,
de même que les produits de la combustion de ces combustibles contiennent des produits chimiques
reconnus par l’État de la Californie comme étant la cause de cancers, d’anomalies congénitales et
d’autresproblèmesliésauxfonctionsreproductrices.Cet appareil contient des produits chimiques,
notamment du plomb et des composés de plomb, reconnus par l’État de la Californie comme
étantlacausedecancers,d’anomaliescongénitalesetd’autresproblèmesliésauxfonctions
reproductrices. Lavez-vous les mains après l’avoir manipulé.
All manuals and user guides at all-guides.com
