Dyna-Glo DGX440SGP User manual

Français p.
Español p.
082719
4-BURNER LP GAS GRILL
WITH GRIDDLE
Model #DGX440SGP/DGX440SGP-D
Questions, problems, missing parts?
Before returning to your retailer,
call our customer service
department at 1-877-447-4768,
8:00 a.m. – 4:30 p.m., CST,
Monday – Friday or e-mail us at
[email protected]
Français p. 33
Español p. 65

2
Table Of Contents
Assembler/Installer: This manual contains important information necessary for the proper
assembly and safe use of this appliance. Read and follow all warnings and instructions before
assembling and using this appliance. Leave these instructions with the consumer.
Consumer/User: Follow all warnings and instructions when using this appliance.
Retain these instructions for future reference.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from
the appliance and immediately call your
local fire department.
1. Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
2. An LP (liquid propane) cylinder not
connected for use shall not be stored
in the vicinity of this or any other
appliance.
3. This grill is for outdoor use only and
shall not be used in a building, garage,
under overhangs or any other enclosed
area.
4. Do not leave a lit grill unattended.
Keep children and pets away from the
grill at all times.
DANGER WARNING
Safety Information............................................................................................................................... 3
Package Contents ............................................................................................................................... 5
Hardware Contents ............................................................................................................................. 6
Preparation........................................................................................................................................... 6
Assembly Instructions........................................................................................................................ 7
Operation Instructions...................................................................................................................... 17
Care and Maintenance...................................................................................................................... 23
Troubleshooting ................................................................................................................................ 28
Limited Warranty ............................................................................................................................... 29
Replacement Parts List .................................................................................................................... 30

3
Please read and understand this entire manual before attempting to assemble, operate or install the
product. If you have any questions regarding the product, please call customer service at: 1-877-447-
4768, 8:00 a.m. – 4:30 p.m., CST, Monday – Friday.
DANGER
CAUTION
Safety Information
• Do not use in an explosive atmosphere. Keep grill area clear and free from combustible
materials, gasoline and other ammable vapors and liquids.
• Never use charcoal or lighter uid with the grill.
• Do not use gasoline, kerosene or alcohol for lighting.
• The LP gas cylinder used with this appliance must be:
(a) Constructed and marked in accordance with the Specications for LP-Gas Cylinders
of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada,
CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;
and Commission, as applicable; and
(b) Provided with a listed overlling prevention device.
(c) Provided with a cylinder connection device compatible with the connector for outdoor
cooking appliances. This grill is not intended to be used in or installed on recreational
vehicles and/or boats.
• Never keep a lled container in a hot car or car trunk. Heat will cause the gas pressure to
increase, which may open the relief valve and allow gas to escape.
• Always open grill and griddle lid slowly and carefully as heat and steam trapped within the grill
can burn you severely.
WARNING: FUELS USED IN LIQUEFIED PROPANE GAS
APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF SUCH
FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE,
WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE
CANCER AND CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE
HARM. For more information go to: www.P65Warnings.ca.gov.

4

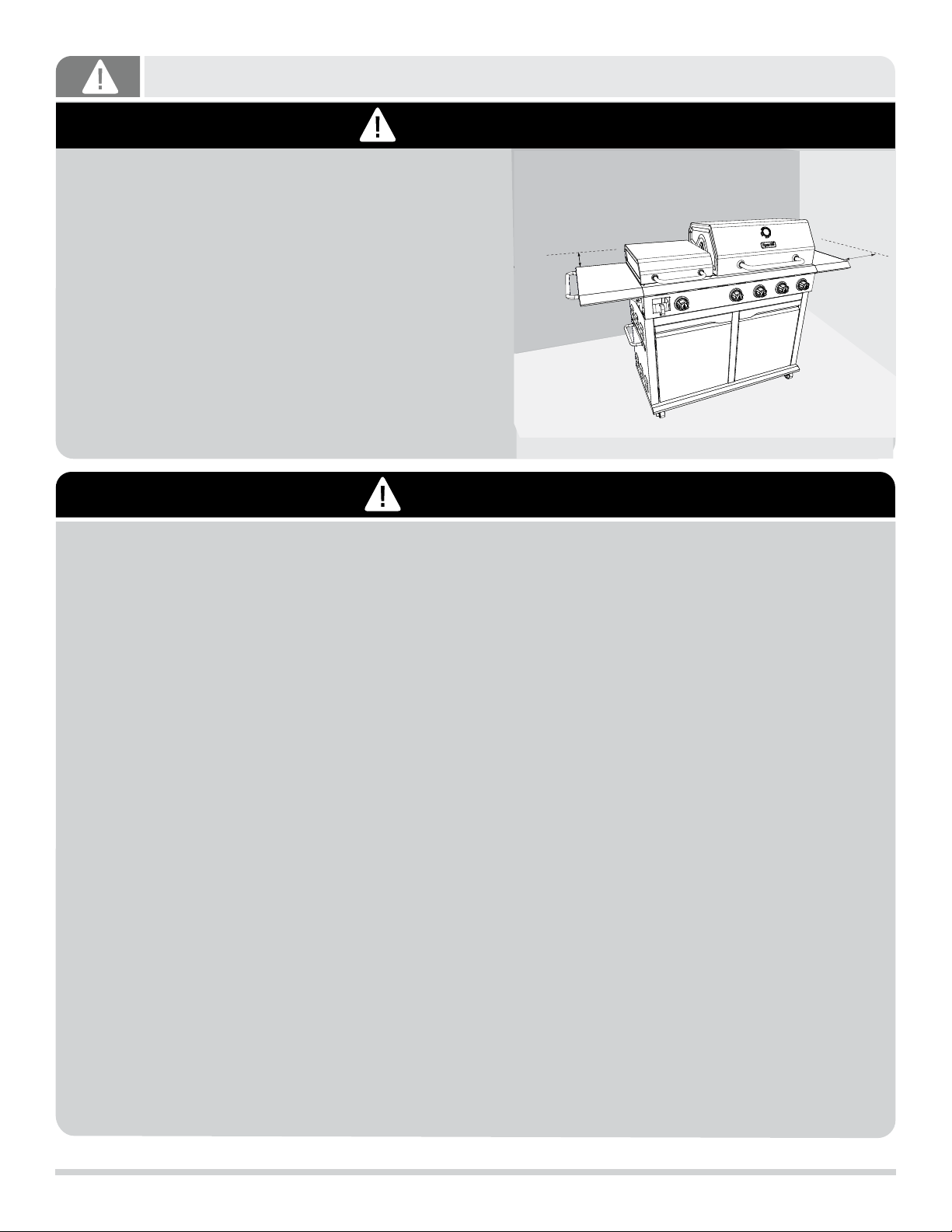

• Do not place the grill under overhead
combustible construction or awnings.
Minimum clearance from sides and back
of unit to combustible construction, 36
inches (91.44 cm) from sides and back.
NOTE: The installation must conform with
local codes or, in the absence of local
codes, with either the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Natural
Gas and Propane Installation Code, CSA
B149.1, or Propane Storage and Handling
Code, B149.2.
• Do not store or use gasoline or other ammable liquids or vapors in the vicinity of this or any
other appliance.
• An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
• This grill is for use with propane gas only (propane cylinder not included).
• Never attempt to attach this grill to the self-contained propane system of a boat, camper
trailer, motor home or house.
• Do not attempt to move the grill while it is lit or when it is hot. The casters should be locked
when not moving the grill.
• Do not use the grill unless it is completely assembled and all parts are securely fastened and
tightened.
• Keep all combustible items and surfaces at least 36 inches (91.44 cm) away from the grill at all times.
• Do not touch metal parts of grill until it has completely cooled (about 45 minutes) to avoid
burns, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc.).
• Do not alter this grill in any manner.
• Clean and inspect the hose before each use. If there is evidence of abrasion, wear, cuts, or
leaks, the hose must be replaced prior to operating the appliance. The replacement hose
assembly will be that which is specied by the manufacturer.
• Move gas hoses as far away as possible from hot surfaces and dripping hot grease.
• Keep the grill’s valve compartment, burners and circulating air passages clean. Inspect the grill
before each use. Do not obstruct the ow of gas or ventilation air.
• The use of alcohol, prescription or non-prescription drugs may impair the operator’s ability to
properly assemble or safely operate the grill.
• Do not leave a lit grill unattended. Keep children and pets away from the grill at all times.
• Do not place this grill on any type of tabletop surface. The grill should be placed on a at and
level surface.
• Do not use the grill in high winds.
36in
914.4mm
36in
914.4mm
WARNING
Safety Information
CAUTION
36in
914.4mm 36in
914.4mm

5

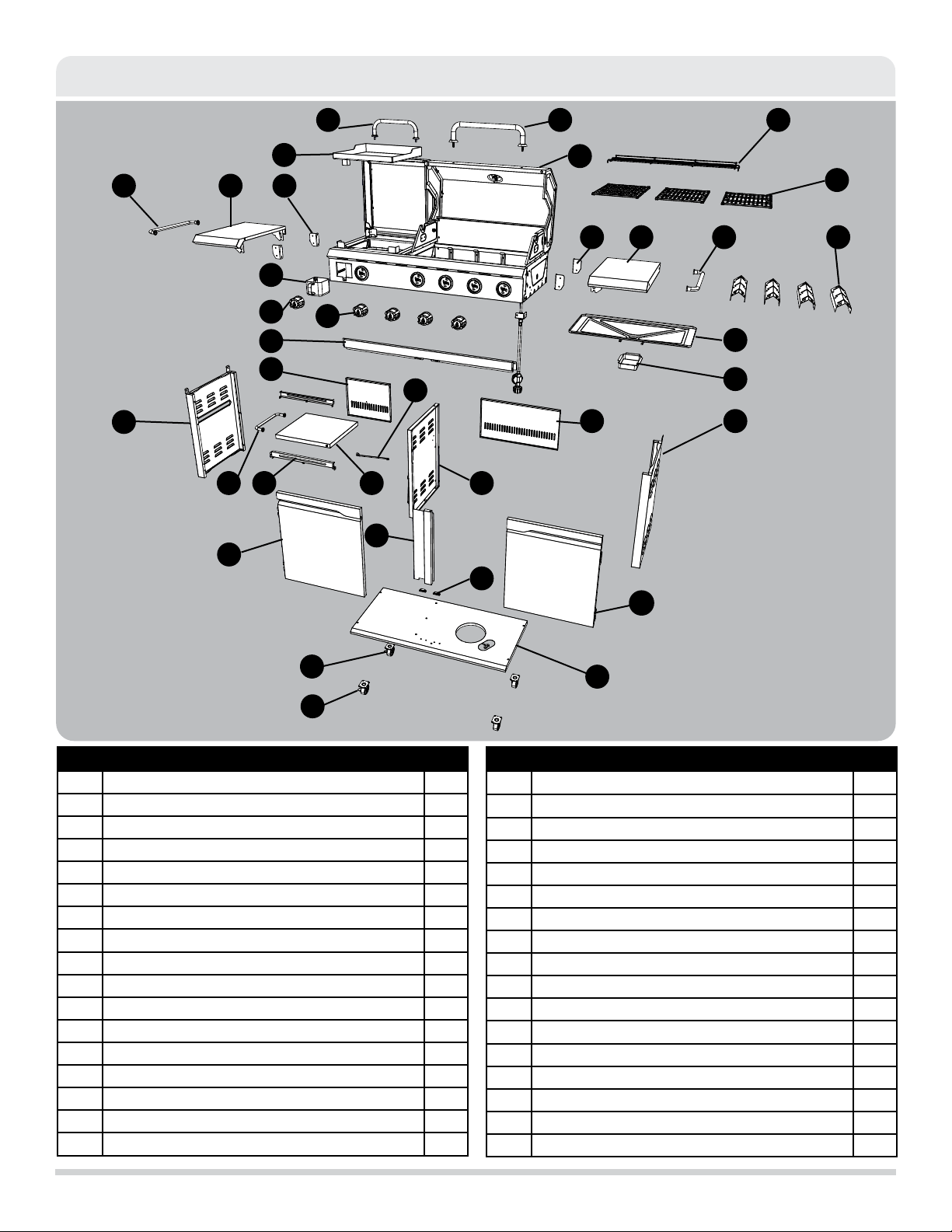

Package Contents
J
IC
BA D
E
KL
M
N
Q
G
H
O
R
Z
F
P
T S U
A1
X
Y
W
VB1
C1
D1
G1
E1
H1
F1
No. Part name Qty
AGriddle Lid Handle 1
BGrill Lid Handle 1
C Grill Body 1
DWarming Rack 1
E Cast Iron Grate 3
F Heat Tent 4
GGrease Pan 1
HGrease Cup for Gas Side 1
IGriddle 1
JGrease Cup for Griddle Side 1
KGriddle Control Knob 1
LGas Grill Control Knob 4
MLeft Side Shelf Bracket 2
NLeft Side Shelf 1
OSide Shelf Handle 2
PCart Upper Brace 1
QRight Side Shelf Bracket 2
No. Part name Qty
RRight Side shelf 1
SCart Side Shelf Rail 2
TCart Inner Shelf Handle 1
UCart Inner Shelf 1
VCart Left Panel 1
WTank Block Bar 1
XCart Left Rear Panel 1
YMagnet 2
ZCart Center Panel 1
A1 Cart Right Rear Panel 1
B1 Cart Right Side Panel 1
C1 Left Door 1
D1 Non-Locking Swiivel Caster 2
E1 Cart Center Brace 1
F1 Cart Bottom Shelf 1
G1 Locking Swivel Caster 2
H1 Right Door 1
O

6
THIS UNIT IS HEAVY. Two people required for safe assembly.
Two people required for safe assembly. Some parts may contain sharp edges.
Wear protective gloves if necessary. Read and follow all safety statements,
warnings, assembly instructions and use and care instructions before attempting
to assemble and use.

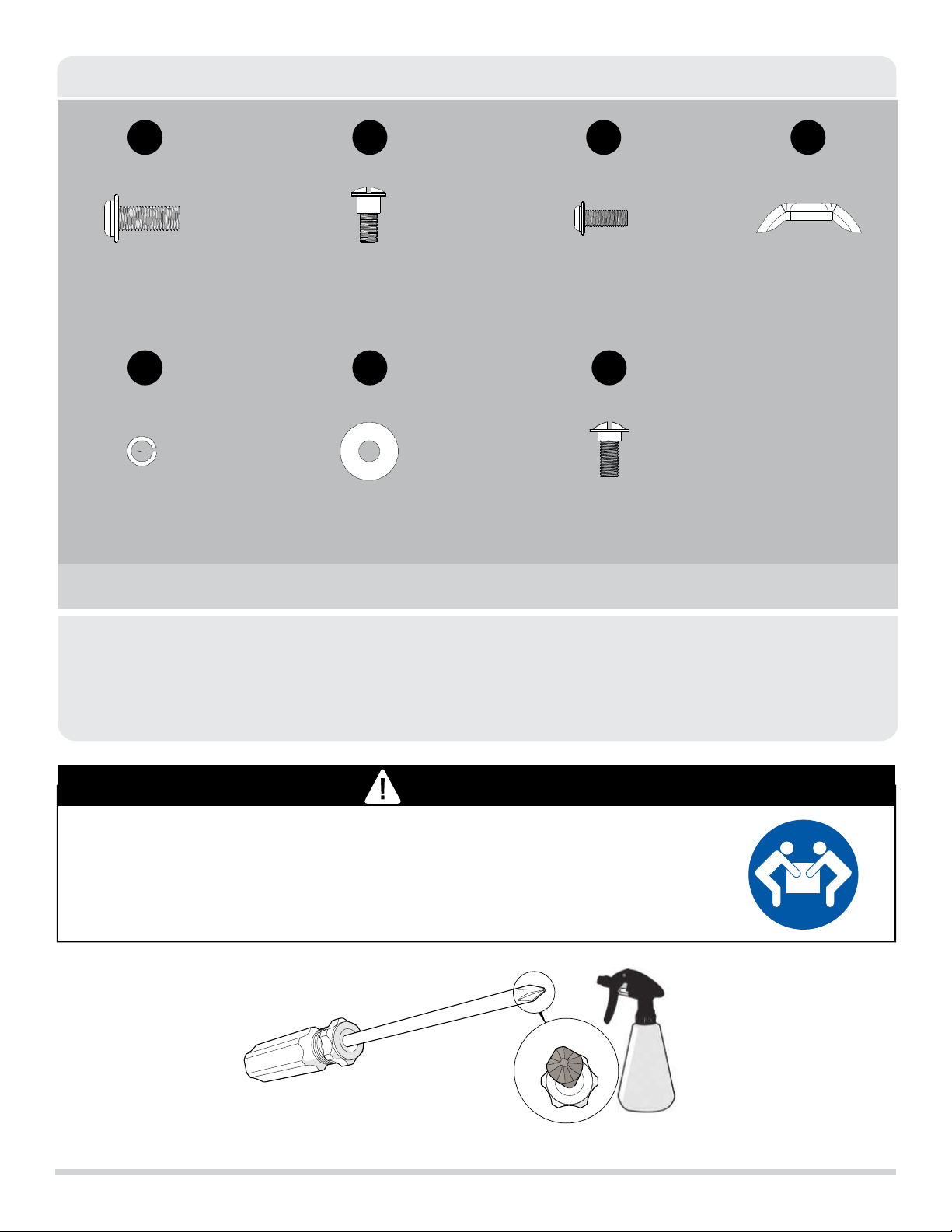

Hardware Contents
Preparation
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list on previous page and hardware contents above. If any part is missing or damaged, do not
attempt to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 50 minutes with 2 people.
Tools Required for Assembly and Leak Testing (not included): Phillips screwdriver, Spray bottle
CAUTION
CC
AA BB DD
M6x12
Screw
61X 4X8X
4X
22X
2X
M6 Wing
Nut
M6 Plain
Washer
FF GG
M6 Spring
Washer
EE
M4x12
Screw
4X
M6
Shoulder Screw
M6
Shoulder Screw

7
1
2
Assembly Instructions
Assembly – Casters
Assembly – Magnets and Panel Mounting Screws
Y
AA
F1
CC
AA
7X
CC
4X
5mm
AA
16X
G1 F1
D1
AA

8
3
4
Assembly – Cart Panels
V
Z
B1
Assembly – Rear Panels
AA A1X
AA
8X
F1
V Z B1
F1

9
5
6
AA
2X
CC S
GG
AA
U
W
GG
2X
T

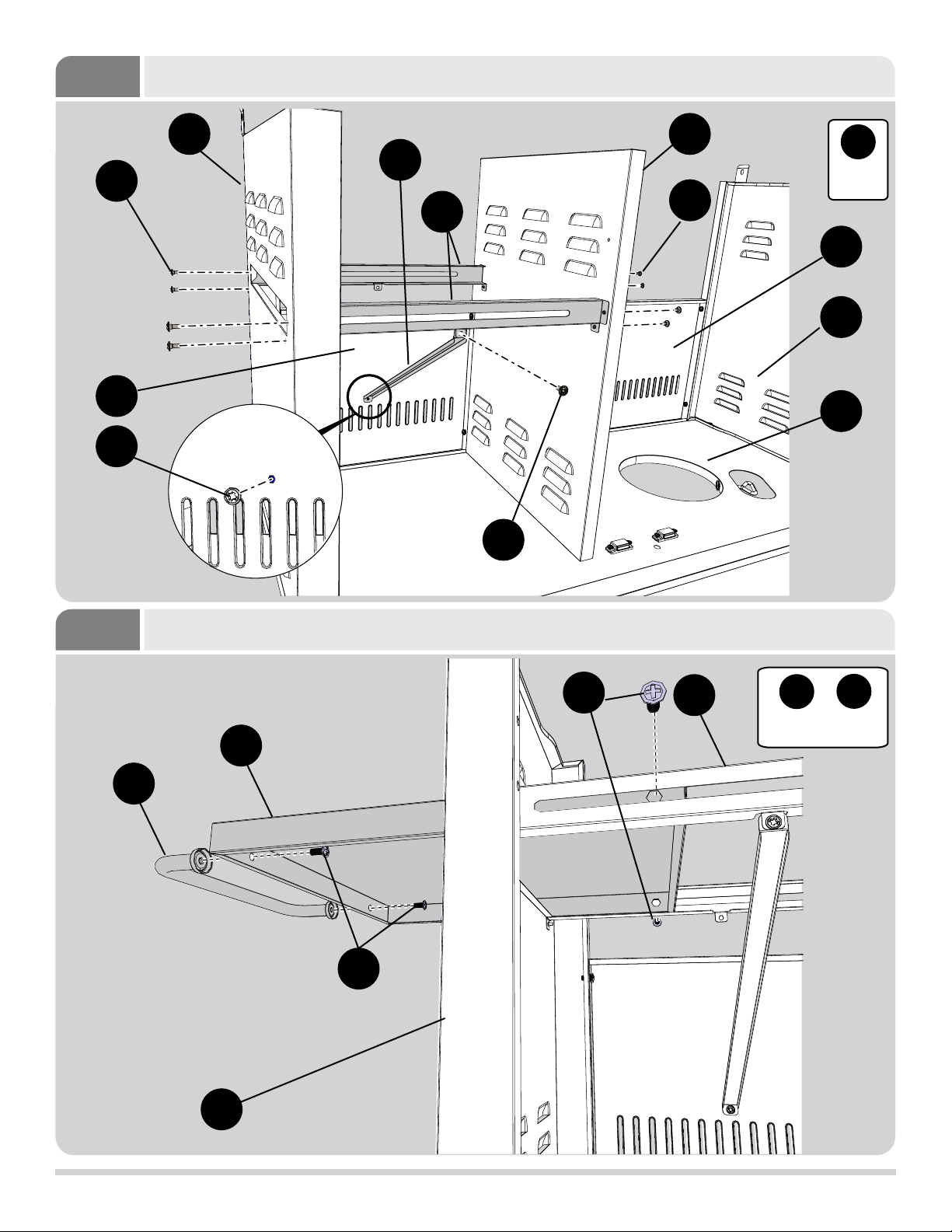

Assembly – Cart Inner Shelf and Handle
Assembly – Cart Inner Shelf Rails
CC
10X
CC
CC
ZV
B1
A1
XF1
S
V
Insert
from
outside
CC

10
7Assembly – Cart Center Brace
E1
AA
AA V
AA
Assembly – Base Front Top Brace
8
AA
5X
AA
3X
Z
F1
P
B1 E1

11

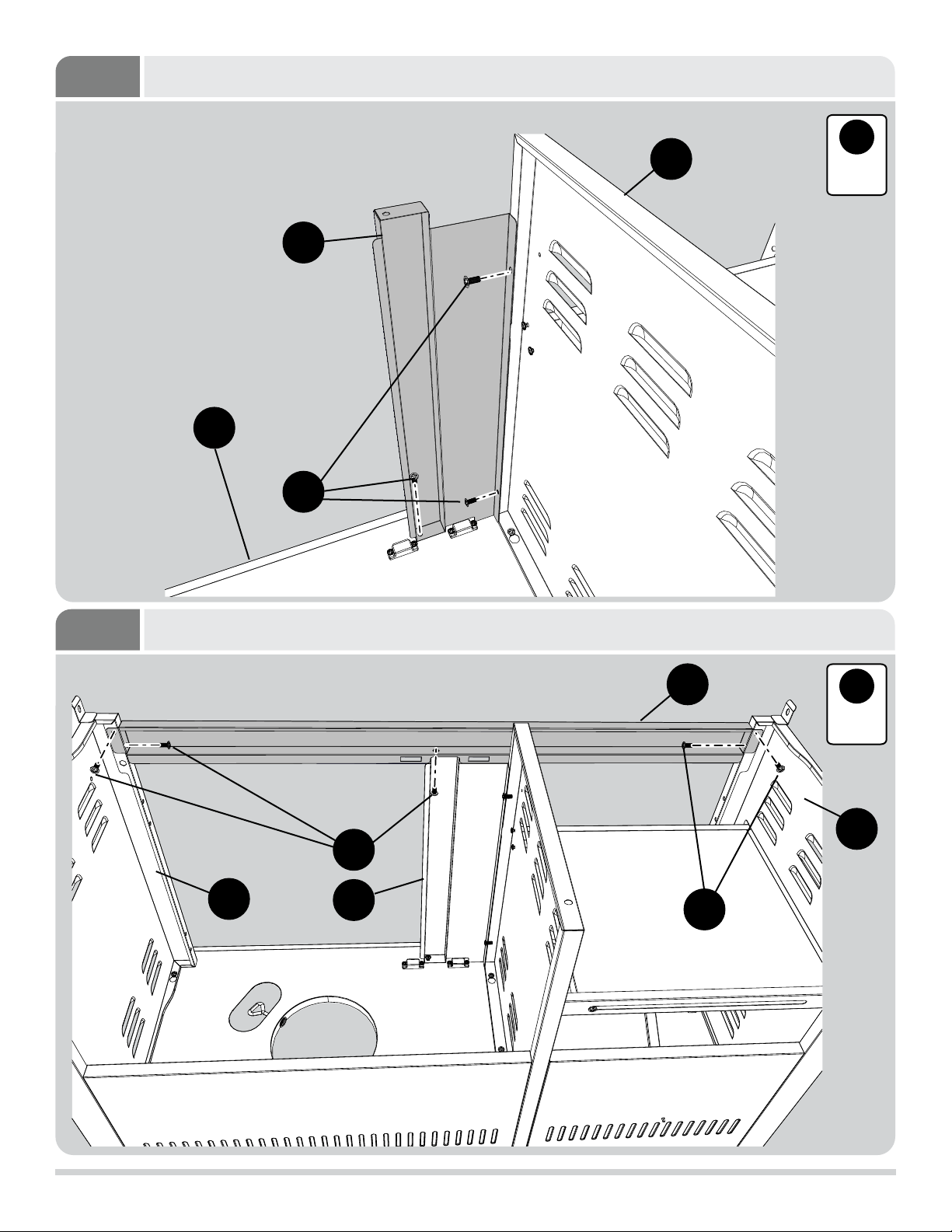

9Assembly – Cabinet Doors
CC
8X CC
C1
AA
AA
H1
10
CC
All four
hinges
AA

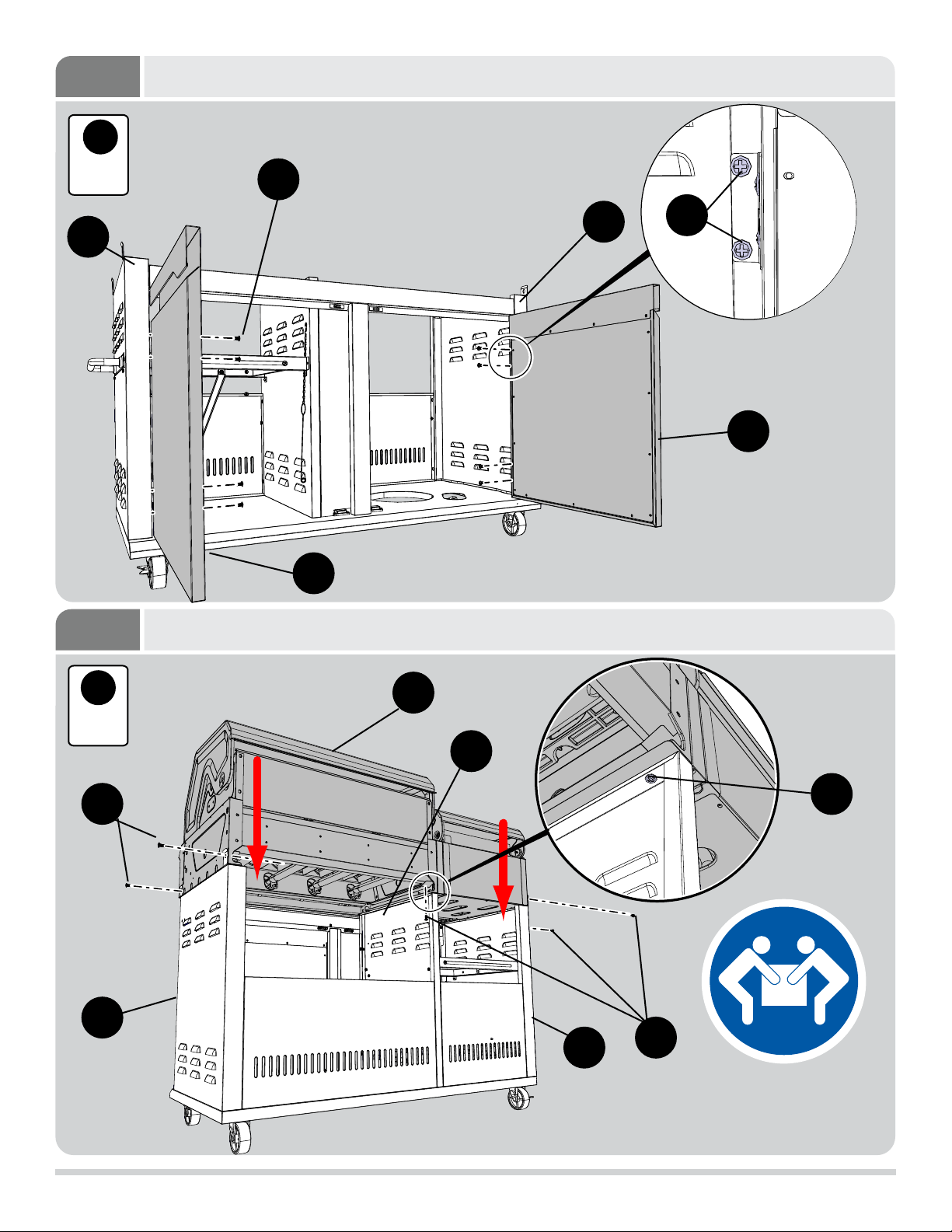

Assembly – Grill and Griddle Assembly to Cart
CAUTION:
2 people required
for safe assembly.
AA
5X
VB1
C
V
B1
Z

12

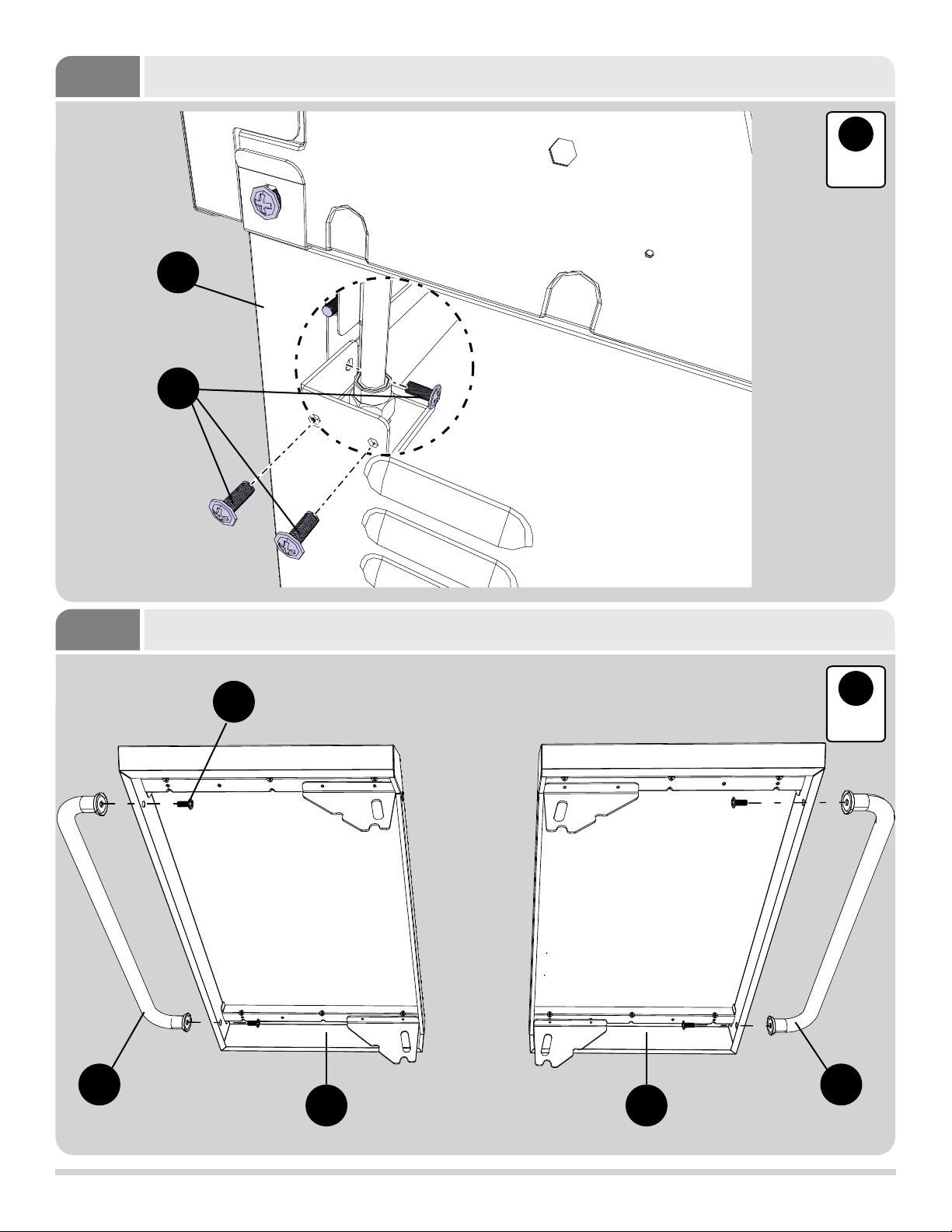

11 Assembly – Grill and Griddle Lid Handles
12 Assembly – Control Knobs and Griddle Grease Cup
DD
4X
FF
A
DD
EE
K
L
EE
4X
FF
4X
B
J
C

13
13 Assembly – Hose Bracket
14 Assembly – Left and Right Shelf Handles
AA
3X
AA
ON R O
AA
4X
AA
B1

14

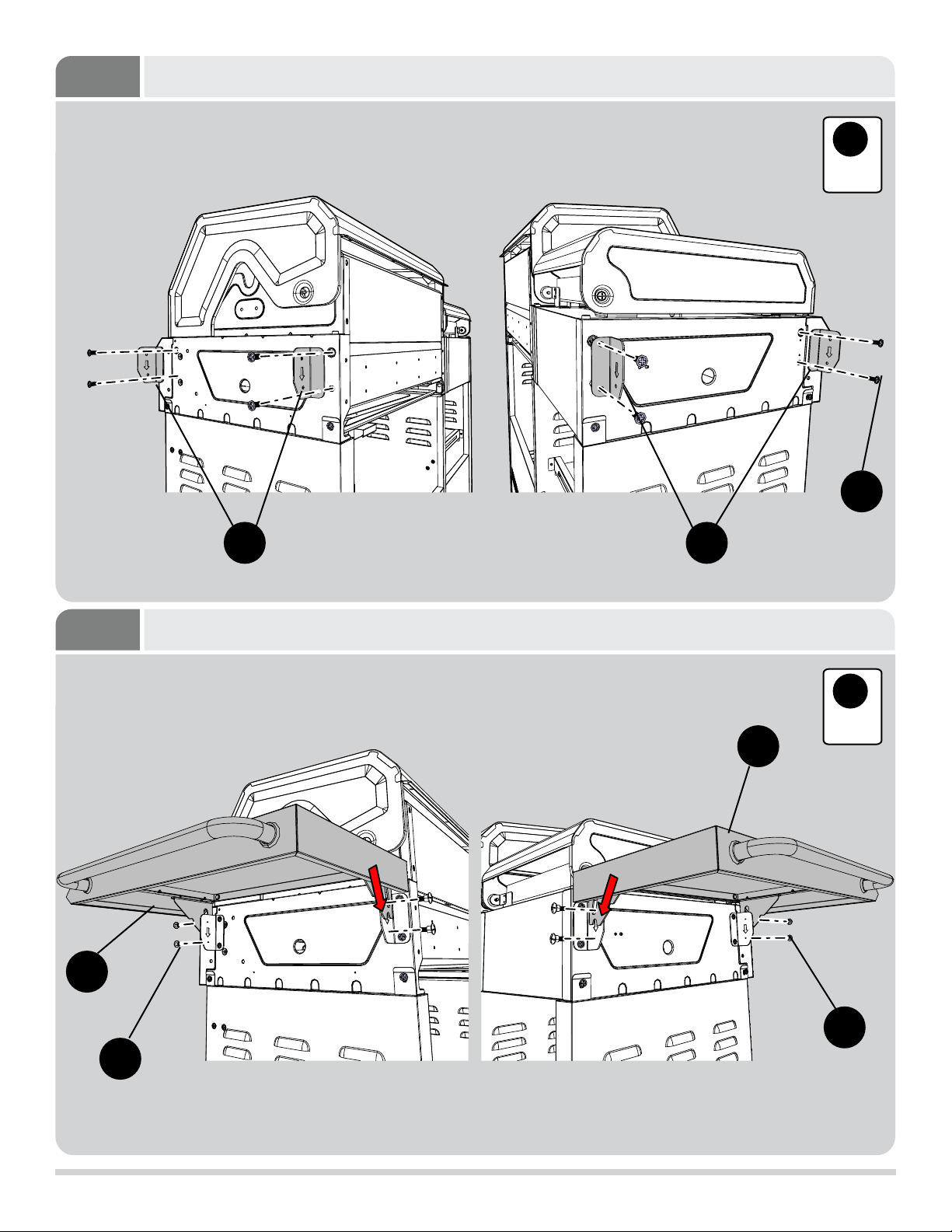

15 Assembly – Left and Right Side Shelf Brackets
16 Assembly – Side Shelves
AA
8X
Q
AA
BB
N
R
BB
8X
M
BB

15

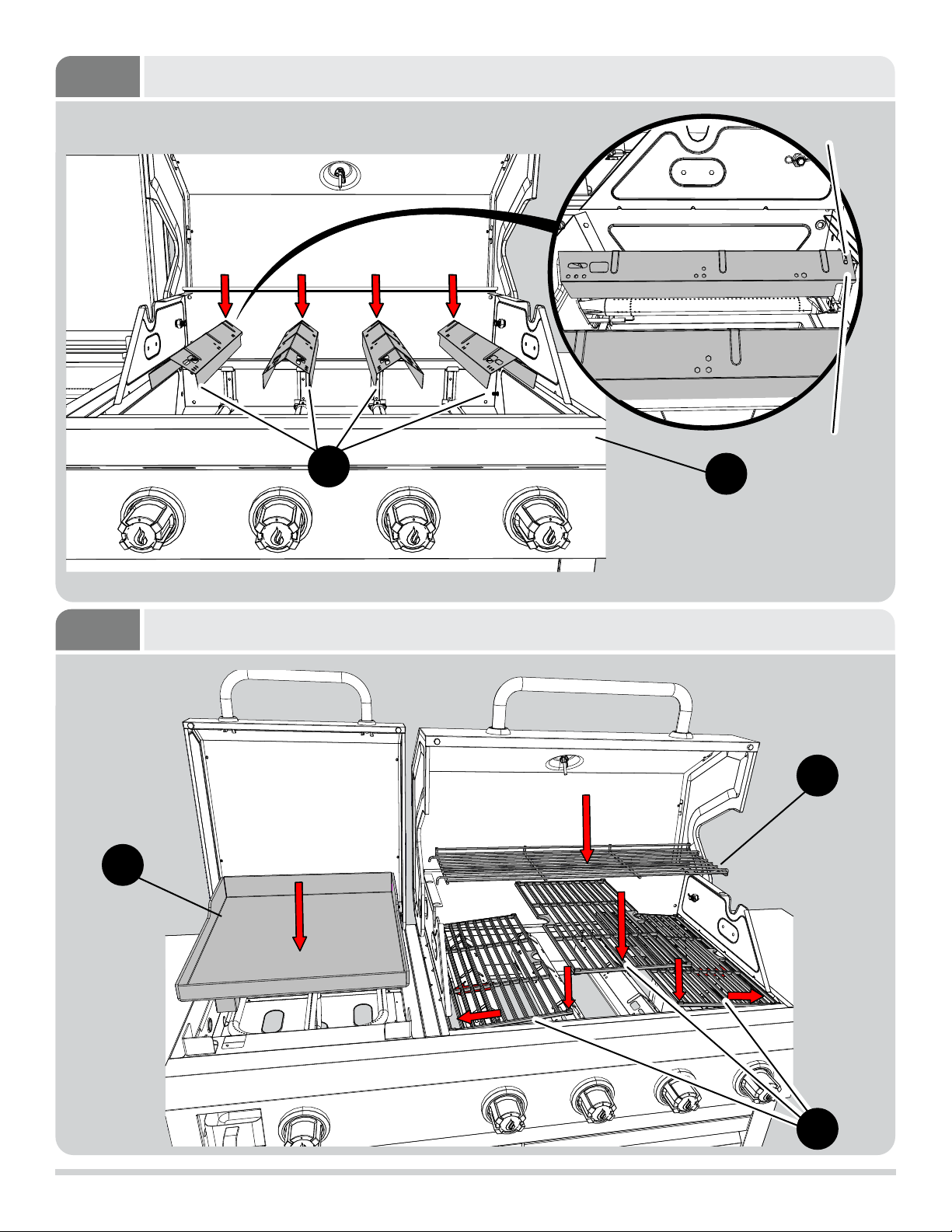

17 Assembly – Heat Tents
18 Assembly – Warming Rack, Cooking Grates, Griddle
D
F
Tab
Slot
I
E
C

16
19
20
Assembly – Grease Pan and Grill Grease Cup
Assembly – Propane Cylinder
H
G

17
Operation Instructions
CHECKING FOR LEAKS
After all connections are made, check all connections and ttings on the LP gas tank valve, gas hose
and regulator for leaks with a water and soap solution.
To prevent re or explosion while testing for a leak:
• Always perform leak test prior to lighting the grill or griddle.
• Do not smoke while testing for a leak.
• Always perform leak tests outdoors in a well-ventilated area.
• Do not use any source of ame while testing for leaks.
• Do not use the grill or griddle until any and all leaks are corrected.
• If you are unable to correct a leak, disconnect the propane supply and call a gas appliance service
dealer.
PERFORM LEAK TEST
• Prepare leak test solution by 50/50 ratio of liquid dish soap and water. Total solution required is
approximately 2 - 3 ounces (70 - 90 ml). Put leak test solution in a spray bottle.
• Ensure all control knobs are in the O OFF position.
• Connect the gas hose to the gas supply.
• Open the LP gas tank valve.
• Spray leak test solution on all gas carrying connections and ttings. Presence of bubbles at areas
of applied test solution indicates a gas leak. If leaks are detected or you smell or hear gas, shut off
the gas supply valve immediately and repair or replace the defective part. Do not use the grill until
all leaks are corrected.
CAUTION
Only use the regulator and hose assembly provided! If a replacement is necessary, please call
our customer service center. Do not use replacement parts that are not intended for this grill.
WARNING
ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO PREVENT
FIRE, DAMAGE AND/OR INJURY.

18

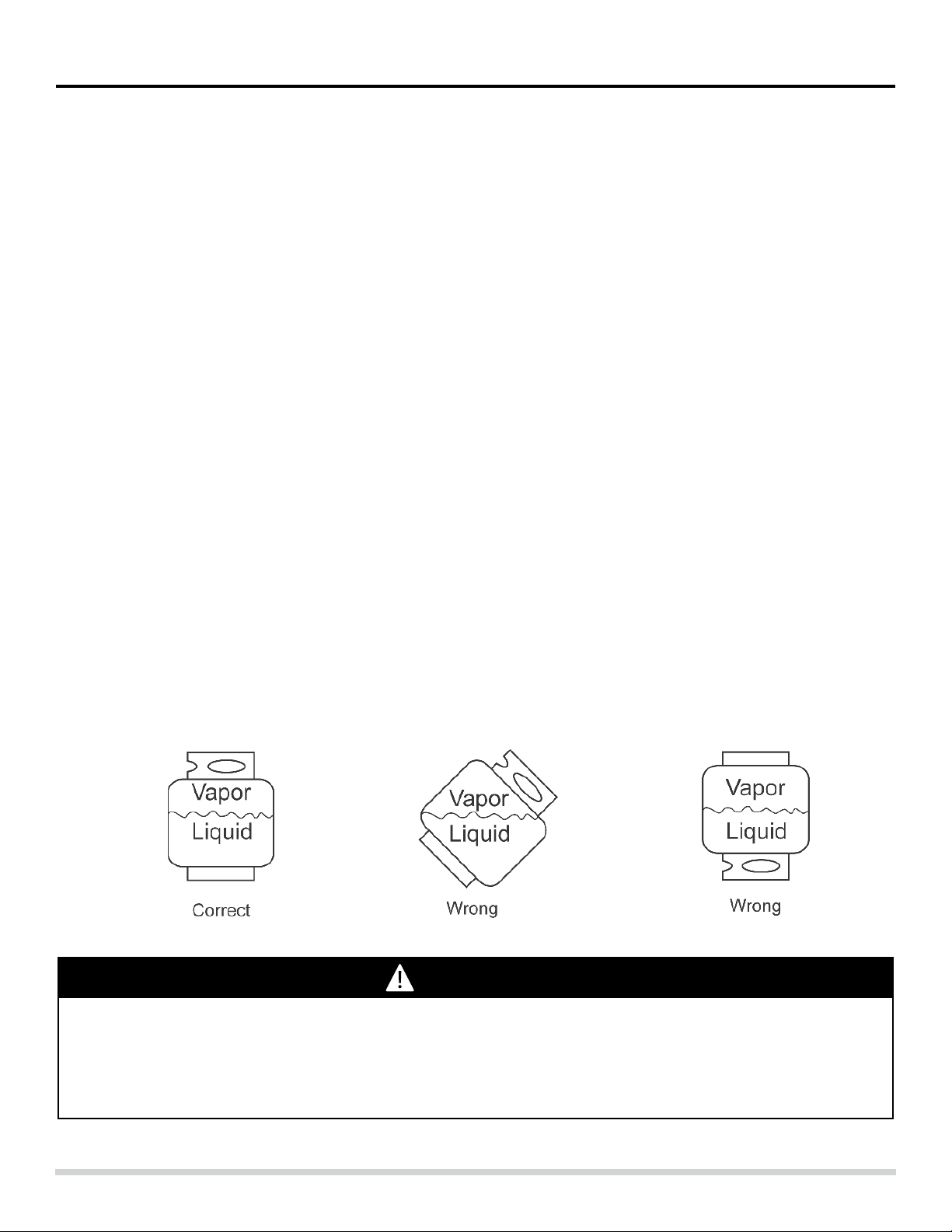

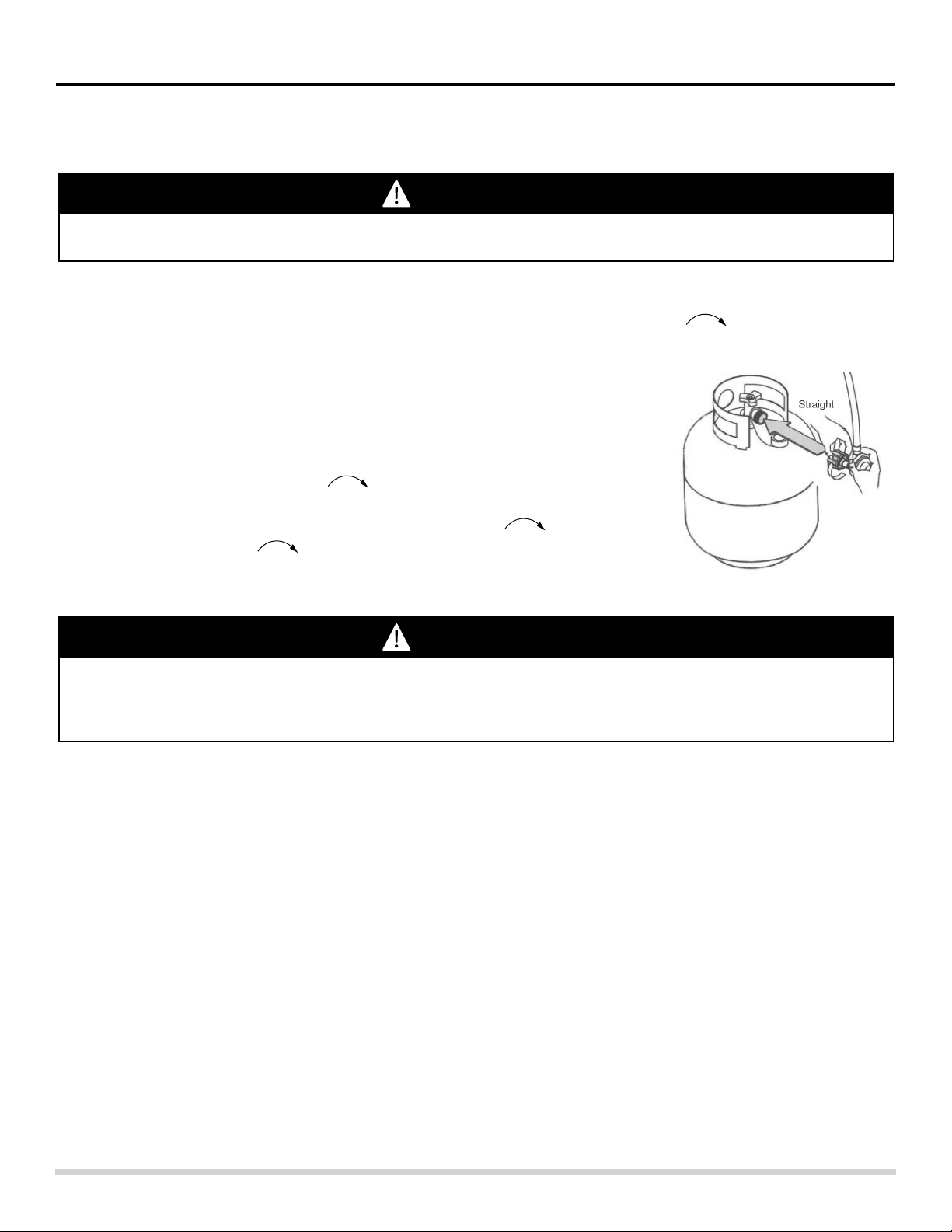

CONNECTING THE GAS CYLINDER
The propane gas supply cylinder to be used must be constructed and marked in accordance with the
Specications for LP Gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National
Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous
Goods; and Commission, as applicable; and provided with a listed overlling prevention device.
Use only 20-pound cylinders (height: 18.11 inches, tank diameter: 9.84 inches, foot diameter:
8.03 inches) equipped with a cylinder connection device compatible with the connection for outdoor
cooking appliances.
The cylinder must include a collar to protect the cylinder valve. The gas cylinder should not be dropped
or handled roughly!
If the appliance is not in use, the gas cylinder must be disconnected. Storage of an appliance indoors
is permissible ONLY if the cylinder is disconnected and removed from the appliance. Cylinders must be
stored outdoors out of the reach of children and must not be stored in a building, garage or any other
enclosed area. Your cylinder must never be stored where temperatures can reach over 125°F.
Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust
cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may
result in leakage of propane.
Before connection, be sure that there is no debris caught in the outlet of the gas cylinder, outlet of the
regulator valve or in the outlet of the burner and burner ports. Connect regulator valve and hand-tighten
rmly. Keep the propane cylinder valve closed and disconnect the propane cylinder from the regulator
valve when the grill is not in use.
DO NOT obstruct the ow of combustion air and ventilation air to the grill. The propane cylinder must be
arranged for vapor withdrawal and equipped with a listed overlling prevention device. Please use the
proper cylinder orientation to provide vapor withdrawal.
NOTE: The cylinder must be fully upright for the cylinder to have vapor withdrawal only.
CAUTION
a. Do not store a spare LP-gas cylinder under or near this appliance.
b. Never fill the cylinder beyond 80 percent full.
c. If the information in (a) and (b) is not followed exactly, a fire causing death or serious
injury may occur.
Operation Instructions

19
Operation Instructions
NOTE: Other cylinders may be acceptable for use with this appliance provided they are compatible with
the appliance nesting hole and retention means. Refer to Step 20 of the Assembly Instructions for correct
cylinder to cylinder holder connection.
WARNING
ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO PREVENT
FIRE, DAMAGE AND/OR INJURY.
CONNECTING THE GAS CYLINDER
1. The knob on the LP tank must be closed. Make sure that the knob is turned clockwise to a
full stop. The cylinder supply system must be arranged for vapor withdrawal.
2. Check that the control knob on the control unit is turned off.
3. Remove the protective cap from the LP tank valve and coupling nut.
4. Hold the regulator in one hand and insert the nipple into the valve outlet.
Be sure the nipple is centered in the valve outlet. The coupling nut
connects to the large outside threads on the valve outlet.
Use care – do not cross thread the connection.
5. Hand-tighten the coupling nut clockwise until it comes to a full stop.
Firmly tighten by hand only. Do not use tools.
To Disconnect: Fully close the tank valve by turning clockwise.
Turn the coupling nut counterclockwise until the regulator assembly
detaches.
WARNING
In the connection process, make sure:
• the regulator inlet connector mates with the cylinder valve outlet properly, safely and rmly, and;
• the LP gas hose does not come in contact or remain in contact with the rebox.

20
Operation Instructions
Lighting The Grill and/or Griddle – Before first use:
Remove all hangings or plastic straps, if present. Before you cook on your new gas grill, it is important
to clean your grill with heat. To do this, operate the grill for approximately 15 minutes with the lid closed
and the control knobs in the highest position. This will clean the internal parts by burning off any residue
and odor from the manufacturing process.
Before you use your griddle for the rst time, please read the next page for instructions on how to
properly season the griddle surface.
CAUTION
If the flame extinguishes accidentally during ignition or operation, immediately TURN OFF
the cylinder valve and then TURN OFF the control knob.
ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO PREVENT
FIRE, DAMAGE AND/OR INJURY.
WARNING
Do not lean over grill when lighting. Read instructions before lighting.
1. Check that the control knobs are in the OOFF position.
2. Open valve at tank fully by turning counter-clockwise.
3. Open lid during lighting.
4. Depress and turn control knob counterclockwise from OOFF position, past the ignite
position, to the high position for the burner. You may need to repeat several times to ignite the
burner. If ignition does not occur in 5 seconds, turn the control knobs to OOFF position, wait 5
minutes, and repeat the lighting procedure.
If the burner still does not light, check that there is gas in the cylinder and follow the match lighting
instructions on page 22.
