Dynacraft ELECTRIC POWER SCOOTER User manual

1
ELECTRIC SCOOTER
this manual contains important safety, performance and
maintenance information. read the manual before taking your
first ride or allowing your child to ride your new electric
scooter. keep the manual handy for future reference
FOR AGES EIGHT AND UP
MAXIMUM WEIGHT: 120 lbs. (54 kgs.)
OWNER’S MANUAL
NOTE: Illustrations in this Manual are for reference purposes only and may not reflect the exact
appearance of the actual product. Specifications are subject to change without notice.
NOTE: The electric scooter must be traveling at 3 mph before the motor will engage. Kick start to
3 mph while applying the throttle to engage motor.
DO NOT RETURN TO STORE!
QUESTIONS OR COMMENTS?
1-800-288-1560
STOP

2
TABLE OF CONTENTS
1. Introduction, Safety, and Warnings
2. Before You Begin Assembly
3. E-Scooter Parts
4. Assembly
5. Before You Ride
6. Routine Checks and Hardware Maintenance
7. Detailed Maintenance and Repair
8. Troubleshooting Guide
9. Warranty
3
6
8
9
13
14
15
22
24

3
INTRODUCTION, SAFETY, AND
WARNINGS
ABOUT THIS MANUAL: This Manual was written to help you get the most
performance, comfort, enjoyment and safety when riding your new electric scooter. It
is important for you to understand your new electric scooter. By reading this manual
before you or your child go out on your first ride, you will know how to get the most
from your new electric scooter. It is also important that your or your child’s first
ride on your new electric scooter be in a controlled environment, away from cars,
obstacles, and other riders.
GENERAL WARNING:
Riding an electric scooter can be a dangerous activity, even under the best of
circumstances. Proper maintenance of your new scooter is your responsibility and
helps reduce the risk of injury. Certain conditions may cause components to fail
without fault of the manufacturer. The Scooter can and is intended to move and it is
therefore possible to lose control, fall off and/or get into dangerous situations that no
amount of care, instruction or expertise can eliminate. If such a thing does occur you
can become seriously injured or die, even when using safety equipment and other
safety precautions.
RIDE AT YOUR OWN RISK AND ALWAYS USE COMMON SENSE.
This manual contains many warnings and cautions concerning the consequences
of failing to inspect, maintain or properly use your electric scooter. Because any fall
can result in serious injury or even death, we do not repeat the warning of possible
serious injury or death each time such a possibility is mentioned in this manual or
the risk of falling leads to a warning.

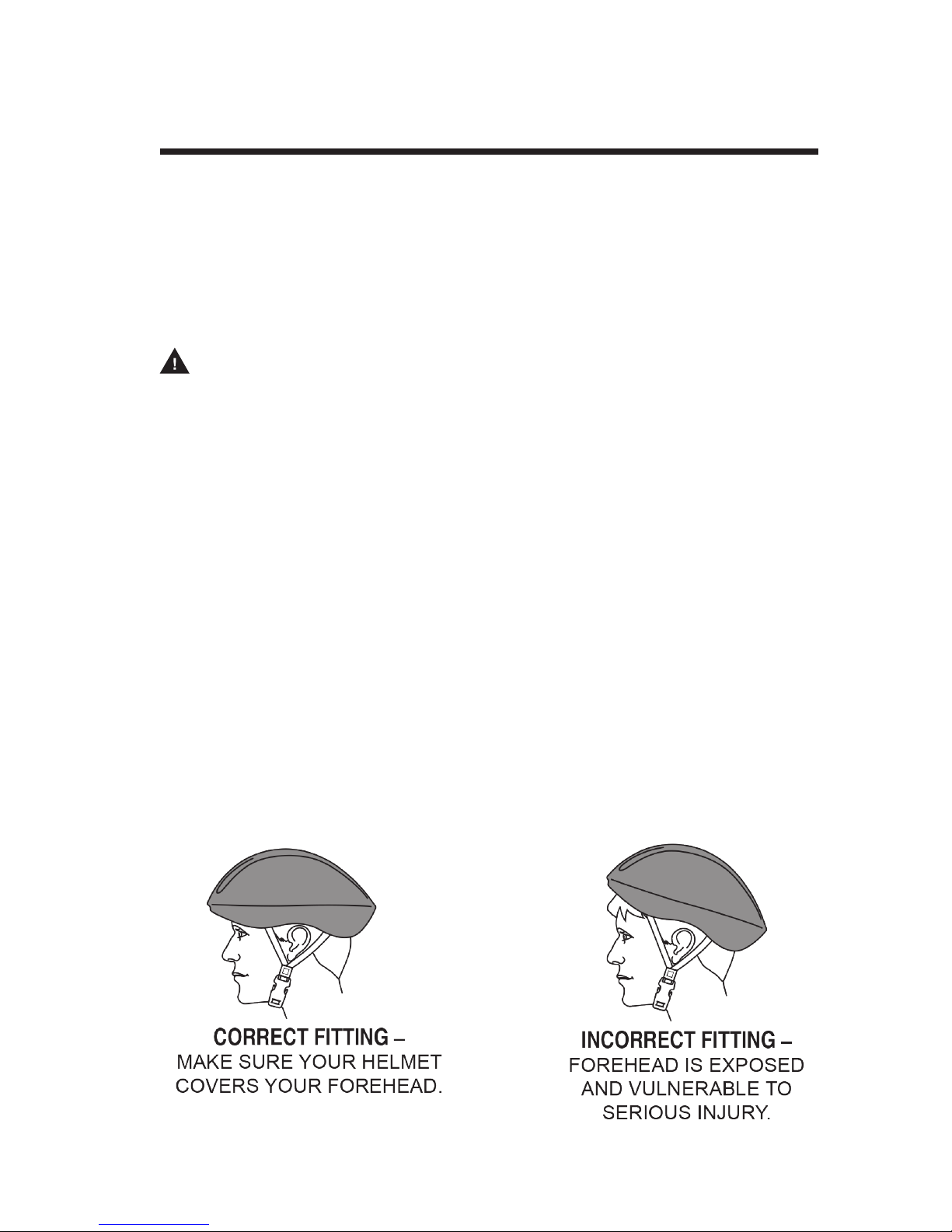

ALWAYS USE PROPER SAFETY EQUIPMENT AND RIDING ATTIRE
Always use appropriate safety equipment, such as a helmet, elbow pads, knee pads,
gloves, and wrist guards. A helmet is not only a good idea but may be legally required
in your community. To protect yourself or your child, the helmet must meet CPSC, 16
CFR 1203, requirements and be worn correctly:

4
Always wear appropriate clothing and shoes, including long sleeved shirts and long
pants and lace-up or similar shoes with rubber soles. Never ride barefoot or in
sandals and make sure that shoelaces or other fasteners are tied and kept away from
the wheels and drive system of the scooter.
RIDER USE AND REQUIRED PARENTAL SUPERVISION
RIDERS MUST NOT EXCEED THE WEIGHT LIMIT OF 120 pounds (54 kg).
The age grade for the scooter is for ages 8 and older. Just because someone is
within the age and weight limitations specified for the scooter, does not mean that
his/her size is appropriate to fit or maintain control of the scooter or that he/she is
capable of safely operating the scooter. You are the best judge of whether you or
your child can safely operate the scooter; this includes determining whether your
child is at the appropriate developmental stage for safe use of the scooter. Any
rider that is unable to fit comfortably on the scooter should never attempt to ride it.
A parent’s decision to allow their child to use the scooter should be based on the
child’s maturity, skill and their ability to follow rules. Keep this scooter away from
small children and remember that it is intended for use only by persons who are, at a
minimum, able to comfortably and safely operate the scooter.
Children operating the scooter should be supervised by an adult at all times. Parents
should ensure that children only use the scooter safely and within their age and
physical limits.
This manual contains very important safety information. It is your responsibility to
completely review this information and make sure that all riders understand all of
the warnings, cautions, instructions and safety topics addressed in this manual
and to assure that all riders are able to safely and responsibly use the scooter. You
should periodically review and reinforce all information in this manual with all riders,
especially children. You should also regularly inspect and maintain your scooter to
insure the safety of all riders. Make sure that your new scooter is properly fitted to
any child riding it; that it is in good repair and safe operating condition; that you and
your child have gone over the use, operation and safety information in this manual;
that you and your child have learned and understand what to do and what not to do
with your new scooter, including observing all applicable laws, rules and common
sense.
Children should be made aware of all possible riding hazards and correct riding
behavior before they ride the scooter! Please explain the following to them as often
as necessary.
SAFE RIDING PRACTICES AND WARNINGS
• Check and obey all local laws or regulations which may be in effect in the
locations where the electric scooter may be used.
• Always wear a helmet and other safety equipment and appropriate clothing and
shoes. Always keep the chin strap on the helmet securely buckled.

5
• Observe the age and weight limitations on the cover of this manual.
• Children must be supervised by an adult to be safe.
• Always be alert and ride your scooter defensively. Watch out for obstacles that
could catch one of the scooter’s wheels or force you to turn suddenly and/or lose
control. Be careful to avoid pedestrians, persons using other wheeled products
(including roller or in-line skates, skateboards, scooters, bikes, etc.), children
or animals who may enter your path. Always respect the rights and property of
others.
• Do not activate the speed control/throttle on the hand grip unless you are on the
scooter and in a safe, outdoor environment that is suitable for riding your electric
scooter.
• Do not attempt or perform any stunts or tricks on the electric scooter. The
scooter is not made to withstand abuse from jumping, curb grinding or any other
type of misuse or stunting.
• Do not ride on ramps, half pipes, skateboard parks, or empty swimming pools.
• Keep both hands on the handlebars at all times.
• Do not touch the motor or brakes on the scooter when in use or directly after
use as these parts can become extremely hot.
• Never allow more than one person to ride the scooter at one time and never try
to tow anything.
• Do not use near steps, water, or swimming pools.
• Do not ride in wet weather.
• Never immerse the scooter in water; electrical and drive components could be
damaged by water or create other potentially unsafe conditions.
• Keep your fingers and other body parts away from the chain, motor, steering
system, wheels and all other moving components.
• Do not ride while using a cell phone or other electronics or while wearing
headphones.
• Never hitch on to another vehicle or let yourself be pulled or pull anyone or
anything while riding the scooter.
• Ride only on smooth, flat, dry surfaces such as pavement or level ground without
loose debris, such as sand, leaves, rocks or gravel. Water, mud, ice, bumpy,
uneven, slick, or rough surfaces could impair traction and contribute to possible
loss of control. Avoid excessive speeds that can occur from downhill rides which
could cause loss of control.
• Do not ride on hills and avoid excessive speed.
• Avoid sharp turns, bumps, drainage grates, and other obstacles.
• Do not ride at night or where there is limited visibility.
• Do not ride indoors or on surfaces that could become damaged such as carpet
or flooring.
• Do not ride on streets, around cars, or in foot or vehicle traffic.
• Regularly check the scooter and its components. If any parts are broken or
worn, do not ride the scooter until you have fixed or replaced the broken or worn
parts.
• Units shall not be operated to perform racing, stunt riding, or other maneuvers,
which may cause loss of control, or may cause uncontrolled operator/rider

6
actions or reactions.
• Do not to allow hands, feet, hair, body parts, clothing, or similar articles to come
in contact with moving parts, wheels, or drivetrain, while the engine is running.
• Before each cycle of operation, the operator shall perform the preoperation
checks specified but the manufacturer, including:
• That all guards and pads originally supplied by the manufacturer are in proper
place and in serviceable condition;
• That the area that the unit is to be operated in is safe and suitable for safe
operation;
• That the braking system is functioning properly;
• That all safety labels are in place and understood by everyone, including the
rider;
• That any and all axle guards, chain guards, or other covers or guards supplied
by the manufacturer are in place and in serviceable condition; and
• That tires/wheels are in good condition, inflated properly (if applicable), and have
sufficient tread remaining.
• Operators/riders shall adhere to all manufacturer’s recommendations and
instructions, as well as comply with all laws and ordinances, including:
• Units without headlights shall be operated only with adequate daylight
conditions of visibility, and
• Owners/riders should highlight and make the scooter conspicuous, including the
use of lighting, reflectors, and for low-riding units, signal flags on flexible poles.
• Persons with the following conditions shall be cautioned not to operate the
scooter:
• Those with heart conditions;
• Pregnant women;
• Persons with head, back, or neck ailments, or prior surgeries to those areas of
the body; and
• Persons with any mental or physical conditions that may make them susceptible
to injury or impair their physical dexterity or mental capabilities to recognize,
understand, and perform all of the safety instructions and to be able to assume
the hazards inherent in the use of the scooter.
• Operators/riders always shall use appropriate protective clothing, including but
not limited to a helmet, with appropriate certification, and any other equipment
recommended by the manufacturer.
• Avoid sharp bumps, drainage grates, and sudden surface changes.
PRE-RIDE SAFETY CHECKLIST
• Check to make sure that the brake system is functioning properly.
• Check to make sure that all components are properly secured and are
functioning according to the manufacture’s specifications.
• Components must be maintained and repaired and only with the manufacturer’s
authorized replacement parts. Installation should be performed only by qualified
personnel.

7
USING THE CHARGER
The charger should be examined regularly for damage to the cord, plug, enclosure
and other parts. In the event such damage has occurred, the scooter should not be
charged until the charger has been repaired by qualified personnel or replaced.
Use only the supplied, recommended charger.
Always use caution when charging.
The charger is not a toy and should be operated by an adult.
Never operate the charger near flammable materials or liquids, and operate the
charger in well-ventilated areas.
Disconnect the charger and unplug it from the scooter when not in use.
Do not exceed the recommended charging time.
Always disconnect the charger from the scooter prior to wiping down or cleaning the
scooter with any liquid.
FAILURE TO HEED THE WARNINGS LISTED ABOVE INCREASES RISK OF
POTENTIALLY SERIOUS INJURY. USE THE APPROPRIATE CAUTION WHEN RIDING
AND ALWAYS WEAR PROTECTIVE GEAR.
BEFORE YOU BEGIN ASSEMBLY
WARNING:
Remove all packing and items from the display box. Make sure that the power switch
is turned “OFF” before assembling the scooter.
ESTIMATED ASSEMBLY TIME
You should allow approximately 25 minutes for assembly, not including initial
charging time. Initial charging can take approximately 18 hours. (see page 11 for
charging information)
Required Tools
• 10mm/8mm wrench (included)
• 2 (two) 13mm wrenches (not included)
• 4mm Allen key (not included)
• 5mm Allen key (included)
• Second 5mm Allen key (not included)
• Phillips screw driver (not included)
WARNING: DO NOT USE NON-ORIGINAL OR
NON-RECOMMENDED PRODUCTS WITH YOUR
ELECTRIC SCOOTER. Altering of the original components or the
use of non-recommended replacement parts may or may not be compatible
with the design and will void the warranty and may cause an unsafe
condition resulting in serious injury or death.

8
E-SCOOTER PARTS
Part Description
1 frame
2 motor
3 front fork
4 headset
5 clamp
6 right side cover
7 kickstand
8 battery box
9 deck
10 rear wheel
11 left side cover
12 front wheel
13 chain
Part Description
14 brake
15 throttle
16 brake lever
17 controller
18 battery
19 steer tube
20 handlebar
21 handlebar clamp
22 charger port
23 reset button
24 on/off switch
25 chain wheel
26 chain tensioner

9
ASSEMBLY
RESET BUTTON
TWIST GRIP THROTTLE
HANDLEBAR
STEER TUBE
BRAKE LEVER
ON/OFF
SWITCH
CHARGER
(INCLUDED)
CHARGING PORT

10

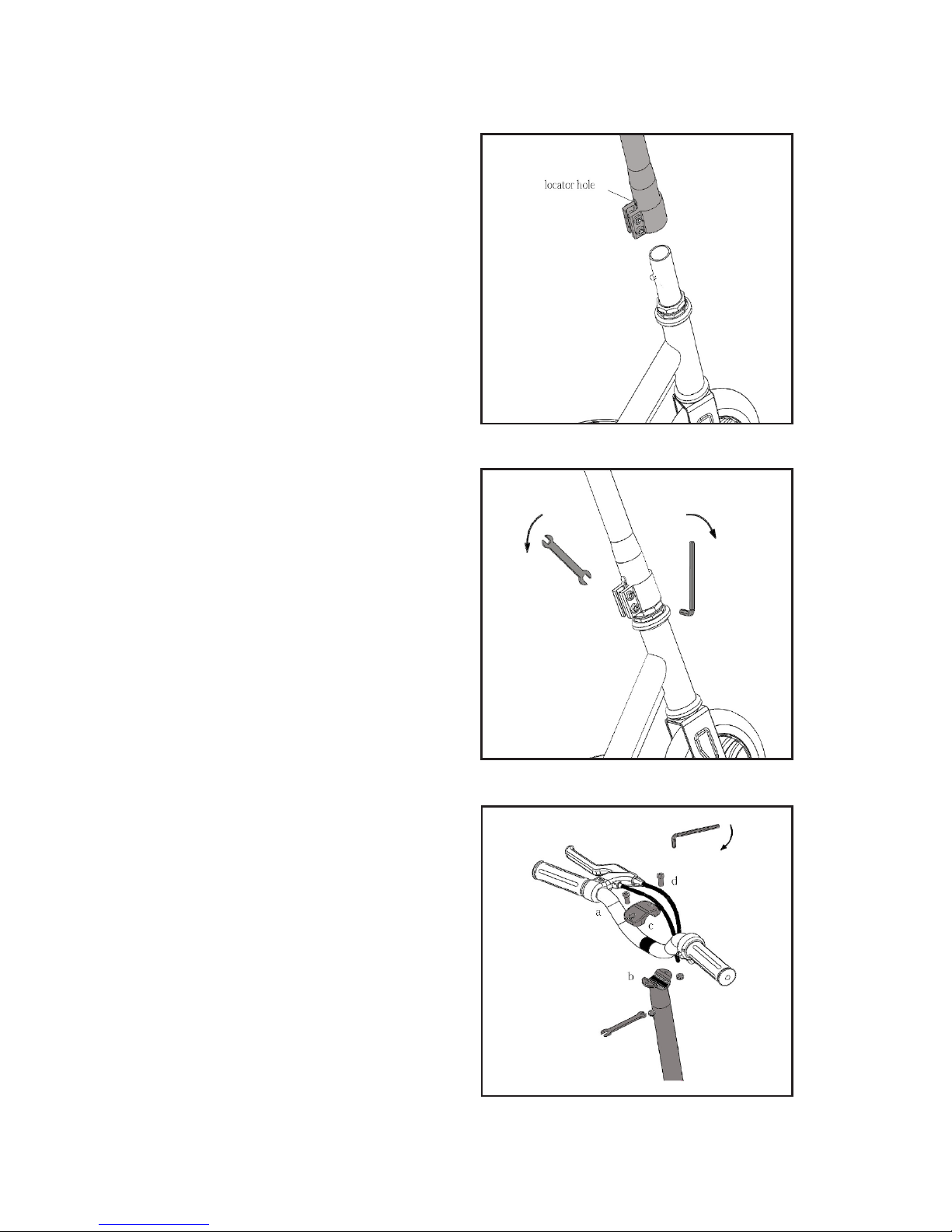

Handlebar Steer Tube Assembly
Tools required: 5 mm Allen key, 10 mm wrench
1. Slide the clamp onto the handlebar
steerer tube as shown. Depress the push
button located on the rear of the fork
stem and attach the handlebar steerer
tube onto the fork stem. The push button
should align with the locator hole on
the handlebar steerer tube and lock the
steerer tube securely in place.
Note: The push button should pop out
through the locator hole.
2. Tighten the clamp bolts with the 5mm
Allen key and 10 mm wrench. Tighten
bolts evenly and securely.
Note: Do not completely tighten each
bolt, one at a time. Rather, please
alternate tightening each bolt until
they are all completely tightened to
assure they are evenly tightened.
Note: The open end of the clamp
should be located in the same
direction as the slot on the handlebar
steerer tube before you tighten it.
3. Attach the handlebar (a) vertically and
horizontally onto handlebar steer tube
clamp (b), install handlebar clamp and
hardware (c&d) and tighten evenly and
securely with the 5mm Allen key and
10mm wrench.
Note: Make sure that the cable wires
are smooth and out of the way before
attaching to the handlebar.
Note: The threaded area on the
handlebar must be covered by the
handlebar clamp(b).

11
Note: Do not completely tighten each
bolt one at a time. Rather, please
alternate tightening each bolt until
they are all completely and evenly
tightened.
4. Attach figure-8-shaped plastic clips
onto the handlebar steerer tube as
shown.
Charging the Battery
Required components: Charger
Your electric scooter may not have a fully charged battery. Therefore the battery must
be charged prior to use.
Initial battery charge time – Approximately 18 hours, and never charge the battery
longer than 30 hours.
• Recharges after initial charge - Up to 12 hours, and, again, never charge the
battery longer than 30 hours.
• Run time: Up to 40 minutes of continuous ride time on a full charge.
• Average battery life: 250 charge / discharge cycles.
Warnings:
• When the scooter is not in regular use, the batteries need to be charged on a
monthly basis in order to maximize performance.
• Turn off power switch when not in use.
• Batteries may become damaged and no longer accept a charge if the power
switch is left in the ON position when not in use.
• Fully charge battery before putting the scooter in storage.
WARNING: Batteries must be fully charged
before you ride your electric scooter.

12
1. Make sure that the power switch is
in the OFF position before plugging in
the charger. Insert the charger into the
charging port on the right side of the
battery box.
2. Plug the charger into a wall power
outlet. The light on the charger housing
should illuminate. A red LED light
indicates that the battery is charging,
and a green LED light indicates that the
battery is fully charged. (if the lights on
the charger do not light up, check the
power to the electrical outlet.)
WARNING: Do not use this product for the first
time until you have charged the battery for at least
18 hours. Failure to follow these instructions may
damage your product and void your warranty.
Note: The charger has a small window with one LED light that indicates the
charge status. Refer to the illustration on the charger unit for the actual “charging” and
“charged” status indication. Your charger may get warm during use; this is normal for
some chargers and is no cause for concern. If, however, your charger doesn’t get warm
during use, it doesn’t mean that it is not working properly.
WARNINGS:
• Always disconnect your scooter from the charger before cleaning with liquid.
• Charging produces explosive gases. Charge battery in a well ventilated area,
away from sparks, flames, smoking and combustibles.
• Batteries must be recharged at least once a month even when the scooter is
not in use. Failure to do so may result in batteries that will no longer accept a
charge.

13
WARNING: Always ensure that you are in a
safe open area to ride before you engage the
throttle. Never twist the throttle without being on
the scooter in a balanced, ready-to-ride position
with both hands on the handlebar controls. Failure
to follow these instructions may damage your
scooter and void your warranty.
BEFORE YOU RIDE
Before you ride always check the following:
Safety Gear: Always wear proper protective gear (including helmet, elbow and knee
pads, wrist guards) and appropriate clothing and shoes.
Brakes: Check that the brakes are functioning properly. Check to make sure that
when the brake lever is squeezed, the brake slows and stops the rear wheel without
excessive effort. When you apply the brake with the throttle on, the brake cut off
switch should stop the motor. Make sure that the brakes are not rubbing when the
lever is not being squeezed. Do not ride the scooter if the brakes are not functioning
properly.
Throttle: Once the power switch is placed in the “ON” position, kick the scooter up to
3mph (5kmh) and then twist the throttle to engage the motor, the scooter will move.
Make sure that before the throttle is twisted that you are in an open and safe area to
ride, you are balanced on the scooter and have both hands on the handlebar controls.
Tires: Inspect the wheels for excess wear and replace them if necessary.
Frame, Fork and Components: Always carefully inspect your scooter before you ride.
Check for cracks and broken, worn or loose components, which should be repaired or
replaced before you ride the scooter.
Battery: Always make sure the power switch is in the “off’ position whenever the
scooter is not in use. Never store the product in outdoor conditions, never store it
in the rain, and never store the product in freezing or below freezing temperatures.
These low temperatures will permanently damage the battery.
WARNING:
A Scooter that does not work properly can cause you to lose control and fall. Inspect
the entire scooter thoroughly before every ride, and do not ride the scooter until any
problem has been corrected.

14
ROUTINE CHECKS AND
HARDWARE MAINTENANCE
Brake: Check the brakes for proper function. When you squeeze the lever, the brake
should provide positive braking action. When you apply the brake with the speed
control on, the brake cut off switch should stop the motor. Make sure that the brakes
are not rubbing.
Frame, Fork and Handlebars: Check for cracks or broken connections. Although
broken frames are rare, it is possible for aggressive rider to run into a curb or wall
and bend or break a frame. Get in the habit of inspecting your scooter on a regular
basis.
Tires: Periodically inspect the wheels for excess wear.
Safety Gear: Always wear proper protective gear such as an approved safety helmet.
Elbow pads and knee pads are recommended. Always wear athletic shoes (lace-up
shoes with rubber soles); never ride barefoot or in sandals, and keep shoelaces tied
and out of the way of the wheels, motor and drive system.
Battery: Make sure the power switch is turned off whenever the scooter is not in
use. Never store the product in freezing or below freezing temperatures! Freezing will
permanently damage the battery.
Maximum Operating Speed: Scooter should never exceed 10 mph.
WARNING:
Do not use this product for the first time until you have charged the battery for at
least 18 hours. (Failure to follow this instruction may damage your product and void
your warranty.)

15
WARNING: Turn the power switch “OFF” before
conducting any maintenance procedures.
Adjusting the Brakes
Tools required; 10mm wrench
1. To adjust the brake cable tension, turn
the adjusting barrel on the brake lever
clockwise (to loosen) or counter-clockwise
(to tighten) . Only turn the adjusting barrel
in small increments until the desired
adjustment is reached. If the brake
continues to need further adjustment,
proceed to the next step.
Note: Keep brakes properly adjusted
and in good working condition at all
times. Check to make sure that brakes
are functioning properly after any
adjustment and before riding.
2. If the brake cable is still either too
tight or too loose, use a 10mm wrench
to loosen the brake cable pinch bolt for
further adjustment on the cable. Ensure
that the 10mm nut is securely tightened
after the adjustment is made.
DETAILED MAINTENANCE
AND REPAIR
WARNING: The
brake could be capable
of locking up and
skidding the rear wheel
if not applied correctly.
Always try to avoid
skidding as this could cause you to lose control of
the scooter and fall, and will cause damage to the
rear tire. Practice using the brake in an unobstructed
open area to become familiar with its function and
until you can make smooth, controlled stops.

16
Chain, Rear Brake, and Rear Wheel Replacement
Tools required: 4mm Allen key, 5mm Allen key, two 13mm wrenches (not included), 10mm
wrench, Phillips screwdriver (not included)
1. Use a 4mm Allen key to remove the
4 bolts from the rear axle cover on both
sides of the scooter.
2. Loosen the brake cable pinch nut with
a 10mm wrench.
3. Remove the brake arm bolt with a
Phillips head screwdriver and an 8mm
wrench. Using two 13mm wrenches,
loosen the rear wheel axle nuts. Pull up
on the chain tensioner and remove the
rear wheel from the frame.

17
4. Note the location of all rear wheel
hardware and make sure that you
properly reinstall all items.
(Replace the rear brake as indicated in
the diagram above if needed.)
5. If you are replacing the chain, remove
the motor bolts with a 4mm Allen key.
Slide motor out of the frame slightly so
that there is enough room to remove/
replace the chain onto the motor gear.
Retighten the bolts.
6. Place the chain under the tensioner
wheel and onto the rear chain wheel
gear. Install the replacement wheel into
the frame, but do not tighten the axle
nuts yet. Install the brake arm hardware,
but, again, do not tighten yet.
(Note: Make sure to follow all the
hardware locations indicated in figure 4.)

18
Chain and Rear Wheel Replacement (Continued)
Tools required: 4mm Allen key, 5mm Allen key, two 13mm wrenches (not included), 10mm
wrench, Phillips screwdriver (not included)
7. Ensure that the axle washers are
seated correctly against the frame. After
tightening the axle nuts with 13mm
wrenches, check wheel alignment and
the tracking of the chain by rotating the
wheel counter clockwise with your hand.
The wheel should spin freely and easily.
8. Retighten the brake arm bolt with a
Phillips head screwdriver and an 8mm
wrench.
9. Retighten the brake cable pinch
nut with a 10mm wrench. Refer to
the instructions on page 7 for proper
adjustment of the brake cable.

19
10. Reinstall side covers using a 4mm
Allen key. Be careful not to over tighten
the bolts.
1. Lift the chain tensioner arm up.
2. Use the Phillips head screwdriver to
loosen (counter-clockwise) the bolt
on the chain tensioner.
3. Pull out the worn chain tensioner
and replace it with a new one.
4. Repeat the steps above in reverse to
tighten all bolts before finishing.
1. Using two 5mm Allen keys, loosen
and remove the front axle by turning the
wrenches counter clockwise.
Chain Tensioner Replacement
Note: Use a 4mm Allen key to remove the 4 bolts from the rear axle cover on both sides of the
scooter.
Front Wheel Replacement
Tools required: Two 5mm Allen keys

20
Front Wheel Replacement (Continued)
Tools required: Two 5mm Allen keys
Battery Care and Disposal
Do not store the battery in temperatures above 75°F (23.5 °C) or below 32°F (0°C).
THIS SCOOTER CONTAINS SEALED LEAD ACID
BATTERIES, WHICH MUST BE RECYCLED IN ACCORDANCE
WITH YOUR LOCAL AND STATE LAWS. PLEASE CAREFULLY
READ AND UNDERSTAND THE FOLLOWING DISPOSAL
INSTRUCTIONS:
Disposal: This product contains sealed lead acid batteries, which must be disposed
or recycled in an environmentally safe manner. Do not dispose of the batteries in your
household trash. Do not dispose of the batteries in a fire, as the battery may explode
or leak. The incineration, disposal in landfill, and/or placing sealed lead acid batteries
with household trash is prohibited by law in most areas. Return exhausted batteries
2. Reinstall new replacement wheel,
being sure to note the order and location
of all components.
3. Reinstall hardware and tighten the
front axle by turning clockwise with a
5mm Allen key.
