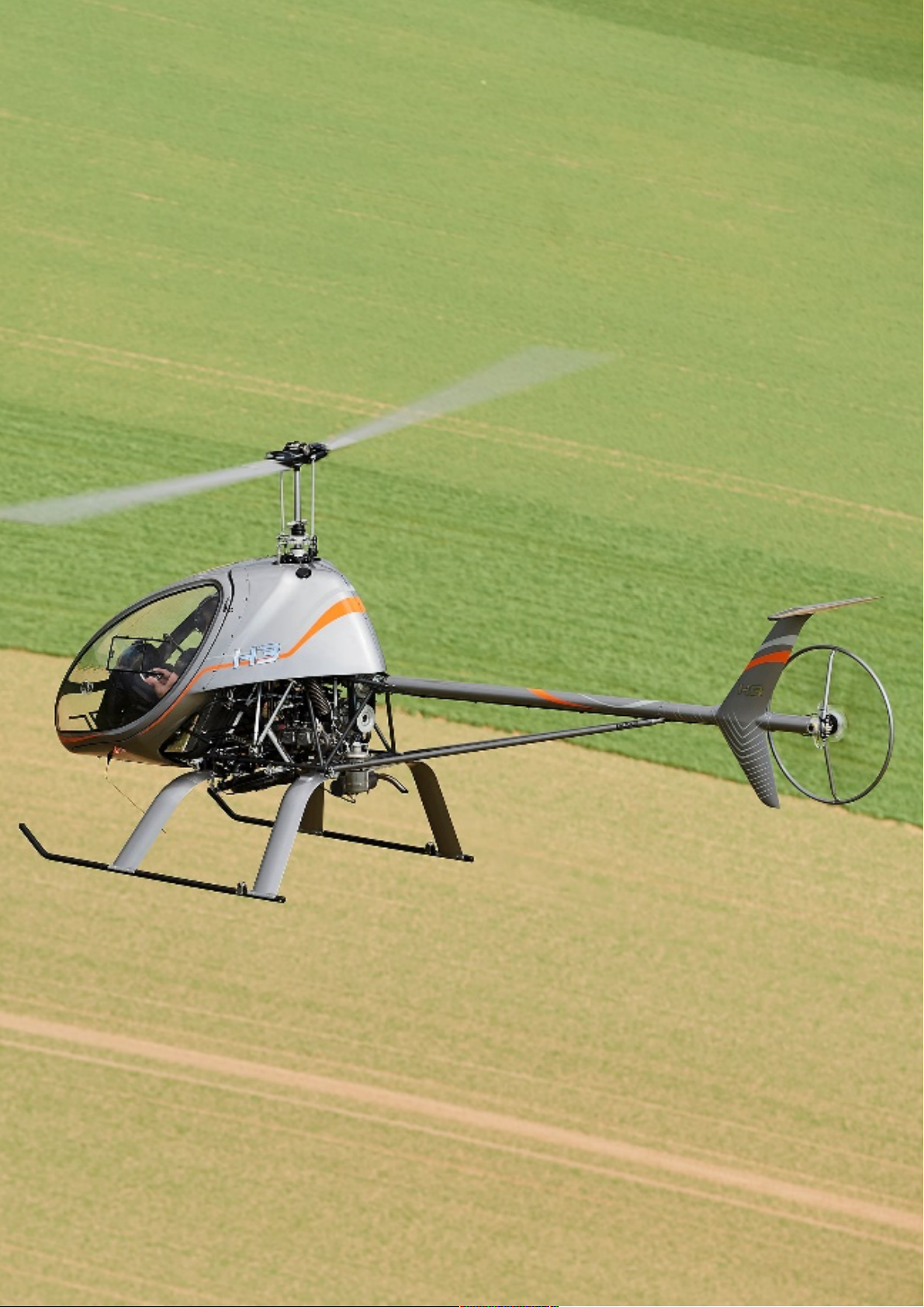

Dynali H3 Sport 135 HP User manual

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 2
LIMITS IN USE
Pilot Operating Handbook
Dynali H3 Sport 135 HP
Ultralight Helicopter
Dynali_POH_H3 Sport 135 HP/ Revision 3.3 – Issue date 15.01.2021

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 0
GENERAL
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
2
Copyright © by Dynali Helicopter Company, Thines, Belgium

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 0
GENERAL
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
3
All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of
Dynali SPRL. Dynali reserves the right to change or improve its products and to make changes in the content of this manual
without obligation to notify any person or organization of such changes or improvements. Mandatory notifications to the Civil
Aviation Authorities or other regulatory organizations are unaffected by this.
Dynali H3 Sport, the Dynali logo and word picture mark are trademarks or registered trademarks of Dynali SPRL, registered in
Belgium and other countries.
Other company and product names mentioned herein may be trademarks of their respective companies. Mention of third-party
products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Dynali assumes no
responsibility with regard to the performance or use of these products. All understandings, agreements, or warranties, if any, take
place directly between the vendors and the prospective users.
Every effort has been made to ensure that the information in this manual is accurate. Dynali SPRL is not responsible for printing
or clerical errors.
This document has been designed for double-sided printing.
For any question or request, please contact :
Dynali Helicopter Company
101, Avenue Thomas Edison
1402 – Thines (BE)
[email protected]
www.dynali.com
Tel : [phone]
Fax : [phone]

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 0
GENERAL
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
4
REVISION LOG
SECTION
Inserted by
Rev. N°
Date
1
Dynali SPRL
3.3
04.11.2020
2
Dynali SPRL
3.3
04.11.2020
3
Dynali SPRL
3.3
04.11.2020
4
Dynali SPRL
3.3
04.11.2020
5
Dynali SPRL
3.3
04.11.2020
6
Dynali SPRL
3.3
04.11.2020
7
Dynali SPRL
3.3
04.11.2020
8
Dynali SPRL
3.3
04.11.2020
9
Dynali SPRL
3.3
04.11.2020
10
Dynali SPRL
3.3
04.11.2020

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 0
GENERAL
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
5
PILOT OPERATING HANDBOOK FOR DYNALI H3 SPORT 135 HP
Model : _____________________________________________________________
Serial N° : ___________________________________________________________
Registration : ________________________________________________________
Type Certificate N° : ___________________________________________________
Aircraft builder and
type certificate holder : _________________________________________________
Distribution Partner : ___________________________________________________
Owner : _____________________________________________________________

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 0
GENERAL
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
6

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 0
GENERAL
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
7
TABLE OF CONTENTS
SECTION 1 - GENERAL ............................................................................................................9
1.1 INTRODUCTION.....................................................................................................................9
1.2 CERTIFICATION.....................................................................................................................9
1.3 PERFORMANCE DATA AND OPERATING PROCEDURES...............................................10
1.4 DEFINITION OF TERMS ......................................................................................................10
1.5 3-VIEW DRAWING OF THE H3 SPORT ..............................................................................11
1.6 DESCRIPTION......................................................................................................................12
1.7 TECHNICAL CHARACTERISTICS .......................................................................................12
SECTION 2 - LIMITS IN USE ...................................................................................................16
2.1 GENERAL .............................................................................................................................16
2.2 ENVIRONMENTAL LIMITATIONS........................................................................................17
2.3 COLOUR CODE FOR INSTRUMENT MARKINGS ..............................................................18
2.4 SPEED LIMITATIONS...........................................................................................................18
2.5 ROTOR AND ENGINE SPEED LIMITATION........................................................................19
2.6 ENGINE AND TRANSMISSION LIMITATIONS ....................................................................20
2.7 WEIGHT LIMITS ...................................................................................................................22
2.8 CENTER OF GRAVITY (C.G.) LIMITS .................................................................................23
2.9 LOAD FACTOR LIMITS ........................................................................................................24
2.10 AUTHORISED OPERATION.................................................................................................24
2.11 NOISE LEVEL .......................................................................................................................25
2.12 STICKERS ............................................................................................................................25
2.13 DASHBOARD AND CONTROLS ..........................................................................................27
2.13.1 MARKINGS ........................................................................................................................27
2.13.2 KEYPAD.............................................................................................................................29
2.13.3 CYCLIC CONTROL............................................................................................................32
SECTION 3 - EMERGENCY PROCEDURES ..........................................................................34
3.1 ENGINE FAILURE – AUTOROTATION................................................................................34
3.2 FORCED DITCHING.............................................................................................................35
3.3 EMERGENCY EVACUATION...............................................................................................36
3.4 TAIL ROTOR OR TRANSMISSION FAILURE IN TRANSLATION .......................................36
3.5 TAIL ROTOR OR TRANSMISSION FAILURE IN HOVER ...................................................36
3.6 ENGINE FIRE/SMOKE ON GROUND ..................................................................................37
3.7ENGINE FIRE/SMOKE IN FLIGHT .......................................................................................37
3.8 LANDING INTO HIGH VEGETATION...................................................................................37
3.9 LOSS OF VISIBILITY ............................................................................................................37
3.10 GOVERNOR FAILURE .........................................................................................................37
3.11 ALARM AND WARNING LIGHTS .........................................................................................38
SECTION 4 - NORMAL PROCEDURES..................................................................................40
4.1 PRE-FLIGHT CHECKLIST....................................................................................................40
4.1.1 BEFORE PRE-FLIGHT CHECK...........................................................................................40
4.1.2 COMPLETE PRE-FLIGHT CHECK OF THE HELICOPTER ...............................................41
4.2 STANDARD CHECKLIST FOR H3 SPORT..........................................................................44
4.2.1 BEFORE ENGINE START CHECKLIST..............................................................................44
4.2.2 ENGINE START CHECKLIST..............................................................................................44

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 0
GENERAL
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
8
4.2.3 TAKE-OFF CHECKLIST ......................................................................................................47
4.2.4 LANDING CHECKLIST ........................................................................................................47
4.2.5 ENGINE SHUTDOWN PROCEDURE .................................................................................49
SECTION 5 - PERFORMANCES............................................................................................. 51
5.1 GENERAL .............................................................................................................................51
5.2 ALTITUDE DENSITY DIAGRAM...........................................................................................52
5.3 HOVER IN GROUND EFFECT .............................................................................................53
5.4 OUTSIDE GROUND EFFECT...............................................................................................54
5.5 HEIGHT-SPEED DIAGRAM..................................................................................................55
5.6 ENGINE PERFORMANCE....................................................................................................56
SECTION 6 - WEIGHT AND BALANCE.................................................................................. 57
6.1 EMPTY WEIGHT ET BALANCE ...........................................................................................57
6.2 PROCEDURE FOR WEIGHING THE HELICOPTER ...........................................................58
6.3 CALCULATION OF WEIGHT AND BALANCE......................................................................58
6.4 WEIGHT SHEET ...................................................................................................................60
6.5 LATERAL BALANCE.............................................................................................................61
SECTION 7 - SYSTEMS .......................................................................................................... 63
7.1 AIRFRAME & UNDERCARRIAGE ........................................................................................63
7.2 ENGINE & ENGINE MOUNT ................................................................................................64
7.3 MAIN TRANSMISSION .........................................................................................................64
7.4 MAIN TRANSMISSION GEARBOX (MTG) ...........................................................................65
7.5 MAIN ROTOR........................................................................................................................66
7.6 TAIL ROTOR.........................................................................................................................66
7.7 FLIGHT CONTROLS.............................................................................................................67
7.8 RADIATORS..........................................................................................................................68
7.9 STABILISER..........................................................................................................................68
7.10 FUEL CIRCUIT......................................................................................................................69
7.11 FLOATS.................................................................................................................................69
7.12 PARACHUTE ........................................................................................................................69
7.13 CABIN....................................................................................................................................70
SECTION 8 - HANDLING & MAINTENANCE ......................................................................... 71
8.1 GENERAL .............................................................................................................................71
8.2 OBLIGATORY DOCUMENTS ...............................................................................................71
8.3 MAINTENANCE LOGBOOK .................................................................................................72
8.4 MAINTENANCE AND PROCEDURES .................................................................................72
8.5 MAINTENANCE TRACKING.................................................................................................73
8.6 SCHEDULED MAINTENANCE .............................................................................................74
SECTION 9 - SAFETY TIPS .................................................................................................... 75
SECTION 10 - WARRANTY CONDITIONS ............................................................................. 83

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 1
GENERAL
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
9
SECTION 1 - GENERAL
1.1 INTRODUCTION
This manual is designed as an operating guide for pilots, instructors, and
owners/operators, providing information for the safe and efficient operation of this
helicopter. It includes documentation required by the competent certification authority.
This handbook is not however designed as a substitute for adequate and competent
flight instruction.
Pilots of this aircraft must hold a proper license, including the class rating “helicopter”,
corresponding to the aircraft’s model. A special endorsement may be required to fly
with passengers. It is the pilot’s responsibility to be familiar with this handbook, the
special characteristics of this helicopter, and all other information and legal
requirements relevant for the operation in his country. The pilot is responsible for
determining that the helicopter is in a safe condition for flight, and for operation of the
aircraft with in compliance with the procedures and limitations set out in this manual.
It is the owner’s/operator’s responsibility to have this helicopter registered and insured,
according to country-specific regulations. The aircraft owner/operator is also
responsible for maintaining the helicopter in airworthy condition. Maintenance
instructions are provided in SECTION 8 of this manual as well as in the Assembly
Manual.
Note that depending on the kind of operation, type of maintenance activity or
component involved, the competent authority may dictate qualified personnel and/or
certified facilities.
1.2 CERTIFICATION
The H3 Sport was designed, tested and certified according to the French design
specifications for ultralight helicopters (Code HUL) including the latest amendment
published on the date of this revision, it has also been designed and tested for
conformity with the British Civil Airworthiness Requirements (BCAR) and CS-VLR,
although these latter two certifications have not been solicited.
The certification document (Fiche d’identification) was issued by the French DGAC
(Direction Générale de l’Aviation Civile).

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 1
GENERAL
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
10
1.3 PERFORMANCE DATA AND OPERATING PROCEDURES
The legal basis for operating a helicopter is provided by national laws and regulations.
The helicopter must be operated in compliance with any technical specifications and
limitations under which national approval may be conditional (e.g. Type Approval Data
Sheet).
All documented performance data and operating procedures have been identified
within the certification processes for this helicopter by means of ground tests, flight
tests and detailed analysis.
1.4 DEFINITION OF TERMS
This manual uses “WARNING”, “CAUTION” and “NOTE” in bold capital letters to
indicate especially critical and important instructions. Additionally, the color of the panel
(red, yellow and grey shading) highlights the significance of the instruction.
Definitions for each term are given below.
WARNING !
A warning means that the neglect of the appropriate procedure or condition
could result in personal injury or death.
CAUTION
A caution means that the neglect of the appropriate procedure or condition
could result in damage or destruction of equipment.
NOTE
A note stresses the attention for a special circumstance, which is essential to
emphasize.

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 1
GENERAL
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
11
1.5 3-VIEW DRAWING OF THE H3 SPORT

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 1
GENERAL
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
12
1.6 DESCRIPTION
The Dynali H3 Sport is an ultralight two-seat helicopter in a side-by-side seating
configuration. The main structure is a stainless steel or painted steel chassis which
frames the engine, the cabin, the tail structure and all the main and rear transmission.
The main rotor mast is made from stainless steel and the main rotor blades are in
extruded aluminum. The rotor head is controlled by push-pull rods through the swash
plate.
The tail structure is composed of an aluminum boom, supported by two carbon tail
struts. The tail rotor blades are formed in carbon and are controlled by push-pull cables.
The cabin cell and the stabilizer are made from vacuum infused carbon fiber and the
canopy is in Perspex.
1.7 TECHNICAL CHARACTERISTICS
GENERAL
Fuselage length ................................................................................. 6.00 m
Maximum Length (including main rotor) ............................................ 7.80 m
Height ............................................................................................... 2.50 m
Height on wheels .............................................................................. 2.60 m
Interior cabin width............................................................................. 1.30 m
Width of undercarriage ...................................................................... 1.80 m
Maximum empty weight ....................... 312.5 kg (standard configuration)
MTOW (max.) ................................................................................... 500 kg
Maximum empty weight with parachute.........................................................337.5 kg (standard configuration)
MTOW with parachute ................................................................................................................................ 525 kg
Fuel tank capacity....................................................... 60 L (80 L in option)
Regular fuel ...............................................................Unleaded 98 or UL91
Low level warning light........................................................................... 15 L
Instrument reading................................. (1/2 = 34L) (1/4 = 22L) (0/4 = 15L)
MAIN ROTOR
2-blade pitch articulated, semi-rigid on teetering hinge
Diameter ............................................................................................ 7.10 m
Number of blades ....................................................................................... 2
Blade chord......................................................................................180 mm

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 1
GENERAL
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
13
Blade twisting.............................................................................................0°
Blade weight ..................................................................................... 11.3 kg
Blade tip speed at 100% of nominal configuration ........................690 km/h

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 1
GENERAL
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
14
TAIL ROTOR
4-blade, pitch articulated, rigid type without articulation
Diameter ..........................................................................................830 mm
Number of blades ....................................................................................... 4
Blade chord........................................................................................55 mm
Blade twisting.............................................................................................5°
Blade weight ....................................................................................... 120 g
Blade tip speed at 100% of nominal configuration ........................580 km/h
TRANSMISSION
Main transmission and Main Transmission Gearbox (MTG)
Main Transmission.................................................. Pulleys & Four V-belts
Main transmission gearbox (MTG) .......................90° conic spiral gearing
Reduction ration MTG....................................................................... 3.55 / 1
Freewheel ......................................................................... 6.6 kN - 6 rollers
Rear transmission and Rear Transmission Gearbox (RTG)
Rear transmission................................................................................ Shaft
Rear transmission gearbox (RTG)........................90° conic spiral gearing
Reduction ratio RTG .............................................................................. 2 / 1
Reduction ratios
Engine / main transmission shaft........................................................ 2.9 / 1
Engine / engine gear........................................................................... 2.4 / 1
Engine / main rotor ........................................................................... 10.3 / 1
Tail rotor / main rotor .......................................................................... 7.3 / 1
ROTAX ENGINE CONFIGURATIONS
§4-cylinder, four-stroke spark-ignition engine with opposed cylinders
§Liquid cooled cylinder heads
§Air cooled cylinders
§Dry sump forced lubrication with separate oil tank
§Automatic valve adjustment by hydraulic tappet
§Mechanical and/or electrical fuel pump
§Electronic dual ignition
§Electric starter (12V 0.6 kW)
§Air intake system, exhaust system with muffler
Engine......................................................................... Rotax 912 ULS-I-BB

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 1
GENERAL
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
15
Bore ..............................................................................................1 600 cm³
Specificity.......................................................... Injection M150 & Big Bore
ENGINE COOLING AND LUBRICATION
Engine coolant
Glycol diluted at 50%
Quantity ................................................................................. 6 L maximum
Engine oil
Type............Synthetic oil with anti-friction additive for 4-stroke engine
Capacity................................................................................................... 4 L
Recommended oils ........................................................Motorcycle 10W50
Consumption.................................................................... 0.1 L/h maximum
Oil MTG
Type.................................................Hypoid SAE 70 to 90 (SWEPCO 201)
Capacity................................................................................................ 0.8 L
Oil RTG
Type ................................................Hypoid SAE 70 to 90 (SWEPCO 201)
Capacity..............................................................................................70 mL
Oil in the free-wheel
Type ................Anti-friction additive oil FUCHS RENOLIN MR30 VG100
Capacity..............................................................................................40 mL

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 2
LIMITS IN USE
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
16
SECTION 2 - LIMITS IN USE
2.1 GENERAL
This section contains operating limitations, instrument markings and basic placards
which are required for safe operation of the helicopter, including its engine, and
standard equipment or systems.
WARNING !
The operation of a helicopter demands professional pilot instruction and
dedicated training on helicopters. Without valid license, the helicopter must not
be operated.
WARNING !
During the entire flight, adequate rotor loading must be maintained. Do not
perform any manœuvres resulting in the sensation of feeling lightness or near
weightlessness.
WARNING !
Smoking on board is strictly prohibited.
CAUTION
This helicopter has been designed and tested for a safe design load at maximum
gross weight. Flying at high speed in turbulent air, especially in combination
with aggressive manœuvres or a steep turn, can easily create higher loads on
the aircraft.
NOTE
This helicopter does not comply with the terms of the international authority for
civil aviation (ICAO). There is no international common regulatory system for
ultralight helicopters.

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 2
LIMITS IN USE
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
17
NOTE
During the certification process, all required safe loads have been successfully
demonstrated with an adequate safety margin. However hard landings or landing
on uneven surfaces may result in excessive loads on certain components.
Following such incident, extra attention should be given during the external pre-
flight check.
2.2 ENVIRONMENTAL LIMITATIONS
Minimum operating Outside Air T° for safe flight ................................ -15 °C
Maximum operating Outside Air T° for safe flight, ............................. +40 °C
Maximum wind speed or gust intensity for safe flight ….................. 60 km/h
Maximum demonstrated crosswind component………… .... 30 km/h (16kts)
Maximum tailwind component for take-off and landing… .... 30 km/h (16kts)
Maximum demonstrated operating altitude……….......................... 10 000 ft
Slope landing ........................................................ 8° longitudinal / 4° lateral
WARNING !
Do not consider flying in the likelihood of severe weather. Thunderstorms may
develop rapidly with the risk of heavy precipitation or hail, severe turbulence
with strong vertical air movements, and lightning strikes. If, despite proper flight
planning, a thunderstorm should be encountered, consider a precautionary
landing immediately.
NOTE
It is the responsibility of the pilot / operator to make the decision if flight
operation is safe.

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 2
LIMITS IN USE
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
18
2.3 COLOUR CODE FOR INSTRUMENT MARKINGS
Red
Operating limits (needle should not enter red during operation)
Yellow
Limited operating range (maximum 5 minutes)
Green
Normal operating range
2.4 SPEED LIMITATIONS
Red zone ...........................................................................0 km/h – 85 km/h
Green zone .................................................................. 86 km/h - 130 km/h
Yellow zone ................................................................. 131 km/h - 164 km/h
Red zone (VNE)............................................................................. 165 km/h
NOTE
The yellow zone of the air speed starts at 131 km/h although the cruising speed
of the H3 Sport is 140 km/h. This zone points out the speed limit where all the
flight manoeuvres can be safely executed.
WARNING !
The VNE must never be exceeded.

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 2
LIMITS IN USE
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
19
WARNING !
Depending on installed optional equipment, VNE may be lower !
WARNING !
Sudden or large forward input on the controls must be avoided at all means,
even at airspeed within green arc. Do not exceed maximum speed when flying
through turbulence, gusts or rough winds.
CAUTION
Notice the first red zone located between 0 and 85 km/h that shows the
recommended flight profile during take-off and landing. Thus, it is recommended
to have a speed close to 85 km/h when flying lower than 500 ft ASFC.
2.5 ROTOR AND ENGINE SPEED LIMITATION
Engine RPM – Interior circle
Red circle............................................................... 1000 RPM – 1500 RPM
Yellow circle............................................................ 1501 RPM – 5300 RPM
Green circle ........................................................... 5301 RPM – 5800 RPM
Yellow circle............................................................ 5801 RPM – 5900 RPM
Red circle (VNE) ..................................................... 5901 RPM – 6500 RPM
Rotor RPM – Exterior circle
Red circle........................................................................ 0 RPM – 500 RPM
Yellow circle................................................................ 501 RPM – 515 RPM
Green circle ............................................................... 516 RPM – 565 RPM
Yellow circle................................................................ 566 RPM – 575 RPM

Pilot Operating Handbook
H3 Sport 135 HP
SECTION 2
LIMITS IN USE
Dynali_POH_H3 Sport 135 HP Rev. 3.3 – Issue date 15.01.2021Page
20
Red circle (VNE) ......................................................... 576 RPM – 600 RPM
CAUTION
After engine start, the engine RPM will rise to between 2500 and 3000 RPM.
Clutch should only be engaged with engine idling.
2.6 ENGINE AND TRANSMISSION LIMITATIONS
Engine limits as found in the Rotax manual or its appendices take priority over
information provided in this manual for information purposes.
Limitations are periodically reviewed according to the evolution of the aircraft. If the
color zones of your H3 are not the same as the ones from the Handbook, you can ask
for an update to Dynali or your retailer.
Battery voltage
Minimum voltage....................................................................................12 V
Low voltage caution range.......................................................12.1 – 12.5 V
Normal range..............................................................................12.6 - 14 V
High voltage caution range ......................................................14.1 – 15.4 V
Maximum voltage................................................................................15.5 V
NOTE
Some versions of the engine are equipped with two batteries. These are then
identical and have the characteristics listed above
Cylinder Head Temperature (CHT°)
Minimum CHT° .................................................................................... 70 °C
Low CHT° caution range............................................................... 71 - 80 °C
Normal range.............................................................................81 - 100 °C
High CHT° caution range..........................................................101 - 110 °C
Maximum CHT° ................................................................................. 111 °C
Engine Oil Temperature
Minimum oil temperature ..................................................................... 50 °C
Minimum oil temperature caution range ...................................... 51 – 70 °C
Normal range.............................................................................71 - 120 °C
Caution range ...........................................................................121 - 130 °C
Maximum ........................................................................................... 131 °C
