Dynapac BA41/BB Series Installer manual

CONCRETE EQUIPMENT
CONCRETE EQUIPMENTCONCRETE EQUIPMENT
CONCRETE EQUIPMENT
Manual number : 4700369943_ENG_NO.DOC
Revision : 3

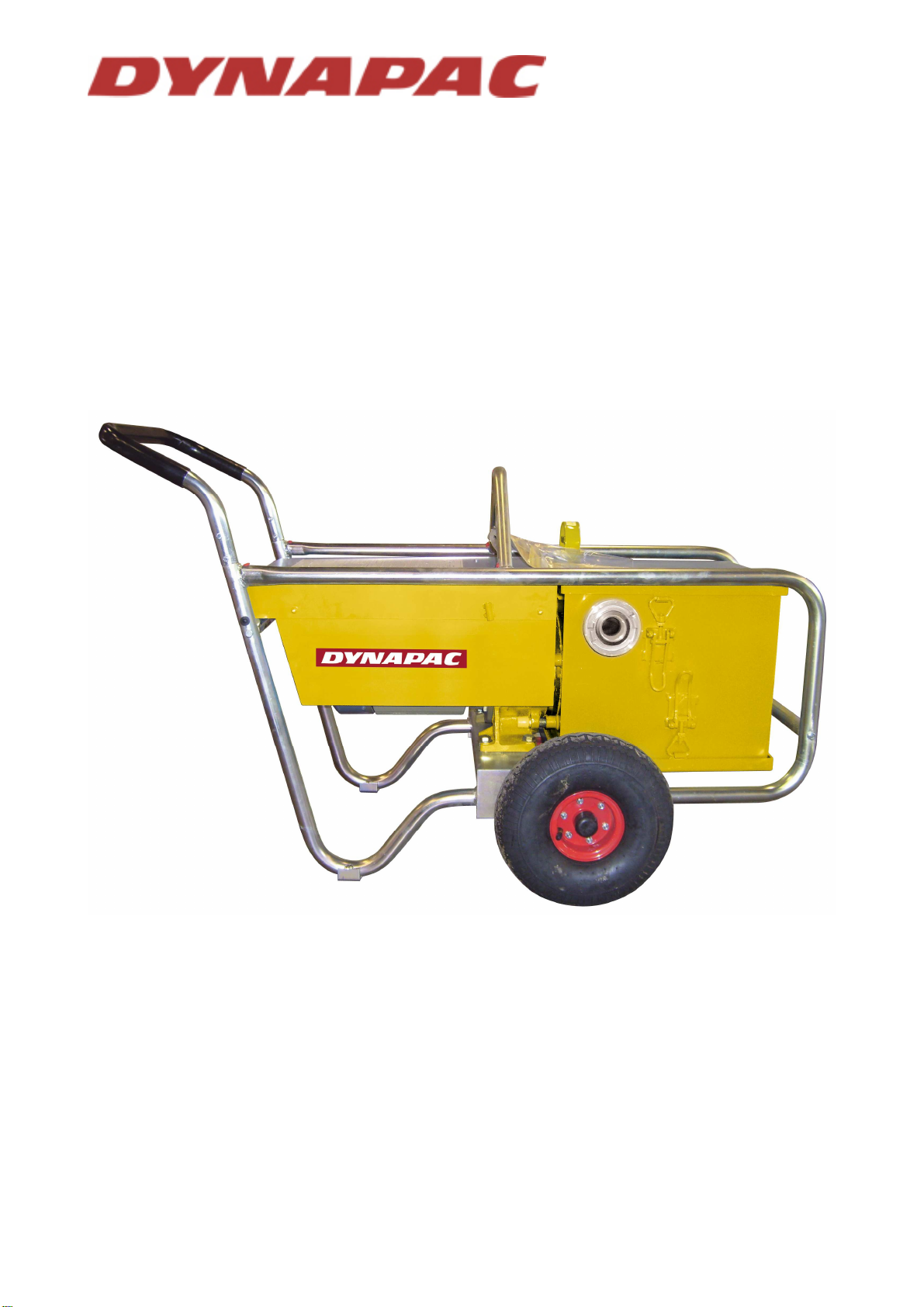

BA41/BB VACUUM TREATMENT FOR
STRONGER FLOORS
Instructions and spar parts catalogu

INSTRUCTIONS MANUAL – BA41E
File: 4700369943_ENG_NO.doc Page 3 / 25
SUMMARY
GENERAL SAFETY RULES...............................................................................................4
Machines submitted........................................................................................................................................4
Symbols...........................................................................................................................................................4
Important rules for your safety ........................................................................................................................4
Safety equipment ............................................................................................................................................4
Working area...................................................................................................................................................4
Power supply...................................................................................................................................................5
Starting the machine .......................................................................................................................................5
Operation.........................................................................................................................................................5
Maintenance....................................................................................................................................................5
Be alert............................................................................................................................................................5
GENERAL ...........................................................................................................................6
DESIGN...............................................................................................................................6
DESCRIPTION....................................................................................................................6
TECHNICAL DATA .............................................................................................................7
OPERATING INSTRUCTIONS............................................................................................7
ELECTRICAL CONNECTIONS ......................................................................................................................7
BEFORE STARTING......................................................................................................................................7
STARTING......................................................................................................................................................7
WORK SCHEDULE ........................................................................................................................................8
MAINTENANCE ..................................................................................................................8
WORKSHOP INSTRUCTIONS ...........................................................................................9
DISASSEMBLY...............................................................................................................................................9
ASSEMBLY.....................................................................................................................................................9
SUCTION MAT BB........................................................................................................................................10

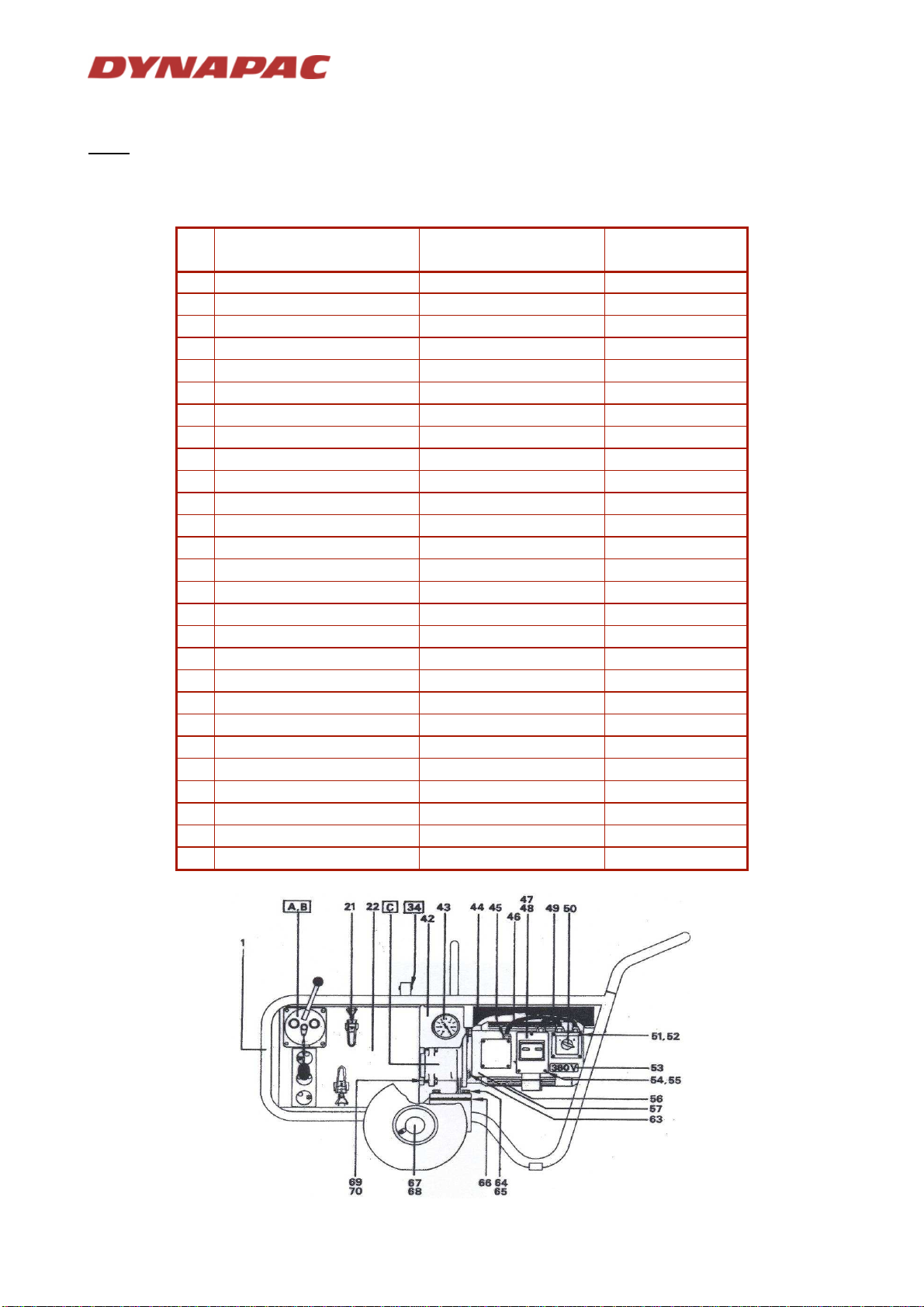

SPARE PARTS CATALOGUE..........................................................................................11

INSTRUCTIONS MANUAL – BA41E
File: 4700369943_ENG_NO.doc Page 4 / 25
GENERAL SAFETY RULES
M ACHINES SUBMITTED
Powered with : Electric, Pneumatic, Petrol or Diesel engine.
S YMBOLS
The words WARNING and CAUTION used in safety instructions, have the following meanings :
•WARNING indicates hazards or hazardous procedures which could result in serious injury or death ,
if the WARNING is not observed.
•CAUTION indicates hazards or hazardous procedures which could result in injury or damage to
equipment if the WARNING is not observed.
I MPORTANT RULES FOR YOUR SAFETY
WARNING
The machine must not be modified without prior consent of the manufacturer. Use only original parts.
If modifications are made without prior consent of the manufacturer there is a risk of serious injury to
the personal.
•These safety recommendations have been compiled from international safety standards.
•Local regulations must also be checked and observed. Before using the machine, read carefully
these instructions and keep them in a safe place.
•Make sure that the signs about using, safety, and maintenance are always legible.
•The use of the machine is restricted to the applications specified in the product literature.
•Always change damaged parts immediately. Change wear parts in due time.
S AFETY EQUIPMENT
WARNING
The admissible sound level of 85 dB (A), can be exceeded because of the machine and/or the
application. Long time exposure to loud noise without ear protectors can cause permanent damage
to hearing.
Long time exposure to vibrations can damage the hands, fingers and wrists. Do not use the machine
if you are experiencing discomfort, cramp or pain. Consult a doctor before working again with the
machine.
•Always use approved safety equipment. The following safety equipment applies to operators and
other personnel in the immediate vicinity of the working zone.
•Safety helmet.
•Ear protectors.
•Dust mask in dusty environments.
•Protective gloves.
•Protective shoes.
•Goggles.
To avoid the risk of clothes being caught in the machine, avoid wearing loose-lifting clothes. If you have long
hair, cover it with a hair net.
W ORKING AREA
WARNING
Do not use the machine in explosive environments.

INSTRUCTIONS MANUAL – BA41E
File: 4700369943_ENG_NO.doc Page 5 / 25
Do not operate a machine powered by a petrol or diesel engine in poorly ventilated spaces. These
types of engines produce toxic gases which can cause serious health troubles.
P OWER SUPPLY
WARNING
Make sure that the power supply equipment complies with the relevant safety requirements of the
local and the international standards.
- Electric machine: It must be ensured that the machine is connected to the voltage and the
frequency specified on the name plate. The power supply cable has to be properly sized. Check
that the cable and the plug of the machine are not damaged. Never switch off the machine by
pulling the plug from its socket. Use the machine switch. Keep the cable out of the moving parts
of the machine.
- Pneumatic machine: Check that the compressed-air hose and the hose coupling are not
damaged. Never attempt to loosen a compressed-air hose which is pressurized. First switch off
the air at the compressor and then leave the machine running itself to discharge the hose after
some seconds.
- Machine powered by petrol or diesel engine: Petrol has an extremely low flash-point and can
be explosive in certain situations. Keep away from all hot or spark-generating objects, do not
smoke, when handling fuel. Wait until the machine has cooled before filling the tank. Avoid
spilling petrol or diesel on the ground.
S TARTING THE MACHINE
CAUTION
Before starting make yourself familiar with the machine and make sure that the machine does not
show any obvious faults. Then start the machine according the instruction and spare parts
catalogue.
O PERATION
CAUTION
Use the machine only for the purpose for which it is intended. Make sure you know how to stop the
machine quickly in the event of an emergency situation. Do not touch rotating parts during operation.
M AINTENANCE
CAUTION
Maintenance work must only be carried out by skilled personnel. Keep unauthorized persons away
from the machine. Do not carry out maintenance work while the machine is moving or the engine is
running. Never use a machine which is damaged.
B E ALERT
CAUTION
Always concentrate on what you are doing. Use common sense. Never operate the machine if you are
tired or under the influence of drugs alcohol or other substances which can affect your vision,
reaction, ability or judgement.

INSTRUCTIONS MANUAL – BA41E
File: 4700369943_ENG_NO.doc Page 6 / 25
GENERAL
The vacuum unit BA41 is used together with the DYNAPAC suction mats BB in order to reduce the water
content 20-25% in fresh concrete .
DESIGN
1 Discharge side
2 Lid
3 Clamps
4 Reduction valve
5 Lifting eye
6 Vacuum gauge
7 Electric motor
8 Handle
9 Switch with phase shifter
10 Lid in the bottom of the tank
11 Tank
12 Two-way valve in the suction
side
13 Plug
14 Pump body
15 Pneumatic rubber wheel
16 Appliance inlet
17 Overload release .
DESCRIPTION
The vacuum pump 14 of liquid ring type, is driven by an electric motor 7. Water is removed from the concrete
floor through the suction mat and connecting hose to the vacuum compartment 11 .
The water then passes through the pump and into the water compartment of the tank, from where it drains
out through the discharge hose to a suitable collection point. The valve 4 is used to:
- Adjust the vacuum when starting or during operation.
- Equalize the water-levels in water and vacuum compartments.
- Avoid cavitation during extreme running conditions.
The motor protection 9 is used to choose the right direction of pump rotation.
The tank is provided with top and bottom easily removable lids making easier the cleaning .
A filter in the tank prevents dirt from getting into the pump .
The pump is equipped with double suction hose connection which enable the use of two suction mats
simultaneously .

INSTRUCTIONS MANUAL – BA41E
File: 4700369943_ENG_NO.doc Page 7 / 25
TECHNICAL DATA
BA41E
P/N 369231
3-phased current ( V/Hz ) 400V-3-50Hz
Intensity at 50Hz ( A ) 9.5
Speed at 50Hz ( rpm ) 2850
Output at 50Hz kW-( hp) 4 (5.4)
Maximum vacuum ( % ) 80
Suction capacity at 80 % vacuum
air m³/mn-( cu.ft ) 0.5 - (17
11/16
)
Noise level measured in air connected to one
BB15 suction mat, at 1m from the machine
dB(A), according to ISO 6081.
Weight Kg-( Lb ) 125 – (276)
Length x Width x Height mm
( in ) 1300x710x860 (51x28x33.8)
IMPORTANT
The above information is a general description only, is not guaranteed and contains no warranties of
any kind
OPERATING INSTRUCTIONS
ELECTRICAL CONNECTIONS
The electrical motor is connected for 400V-3-50Hz.
BEFORE STARTING
Make sure that the tanks and the filter are cleaned.
Make sure that the main supply voltage coincides with electric motor voltage 400V-3-50Hz.
Fill both compartments of the tank with clean water. Fit the tank cover in place and secure.
Put in place the suction mat and connect the flexible hoses.
Make sure that flexible hoses and connections are undamaged.
If not used the second suction connection must be plugged (fig 5) .
STARTING
Start the motor and check direction of rotation . The arrow on the fan cover indicates the correct direction of
rotation (fig 4) . If it rotates in the wrong direction switch the electric motor off and then start again in the
reverse position of the switch.

INSTRUCTIONS MANUAL – BA41E
File: 4700369943_ENG_NO.doc Page 8 / 25
WORK SCHEDULE
Start work with the reduction valve (fig 7) completely opened and then progressively closed it in order to
obtain:
-0.3 to -0.4 bars during 6 minutes.
-0.6 to -0.7 bars for 6 minutes again.
-0.9 bars (valve closed) 1 to 1.5 minutes per cm of concrete thickness.
IMPORTANT
DO NOT RUN THE PUMP WITHOUT WATER
DO NOT USE THE PUMP FOR PUMPING WATER
IF THERE IS DANGER OF FREEZING NO WATER SHOULD BE LEFT IN THE TANKS
DO NOT RUN THE PUMP WITH DIRTY TANKS. CEMENT SLURRY WILL INVOLVE
SEALS AND PUMP WEARING.
MAINTENANCE
IMMEDIATELY AFTER FINISHING WORK OR EVERY 150 m² VACUUMED
Stop the pump . Disconnect the suction hoses .
Open the tank lids .
Remove the filter (fig 10) and clean it .
Flush the tank . Flush for about 2 minutes in the connection pipe of the filter ( fig 11 ).
Or :
Let in place the bottom lid , pour water in all chambers up to the level of the discharge hole .
Place the top lid . Start the pump .
Cover one hose connection and close the valve of the suction hose .
Let the pump run till max vacuum (about 0.90 kp/cm
2
) is reached . Open the valve of the suction hose .
repeat the cycle once . Stop the motor . Empty the tank by tilting the pump forwards . Store the pump in the
tilted position (fig 9) .
NOTE : DO NOT POUR ANY TYPE OF ACID OR OIL IN THE PUMP BECAUSE THERE ARE RUBBER
PARTS IN THE PUMP BODY .

INSTRUCTIONS MANUAL – BA41E
File: 4700369943_ENG_NO.doc Page 9 / 25

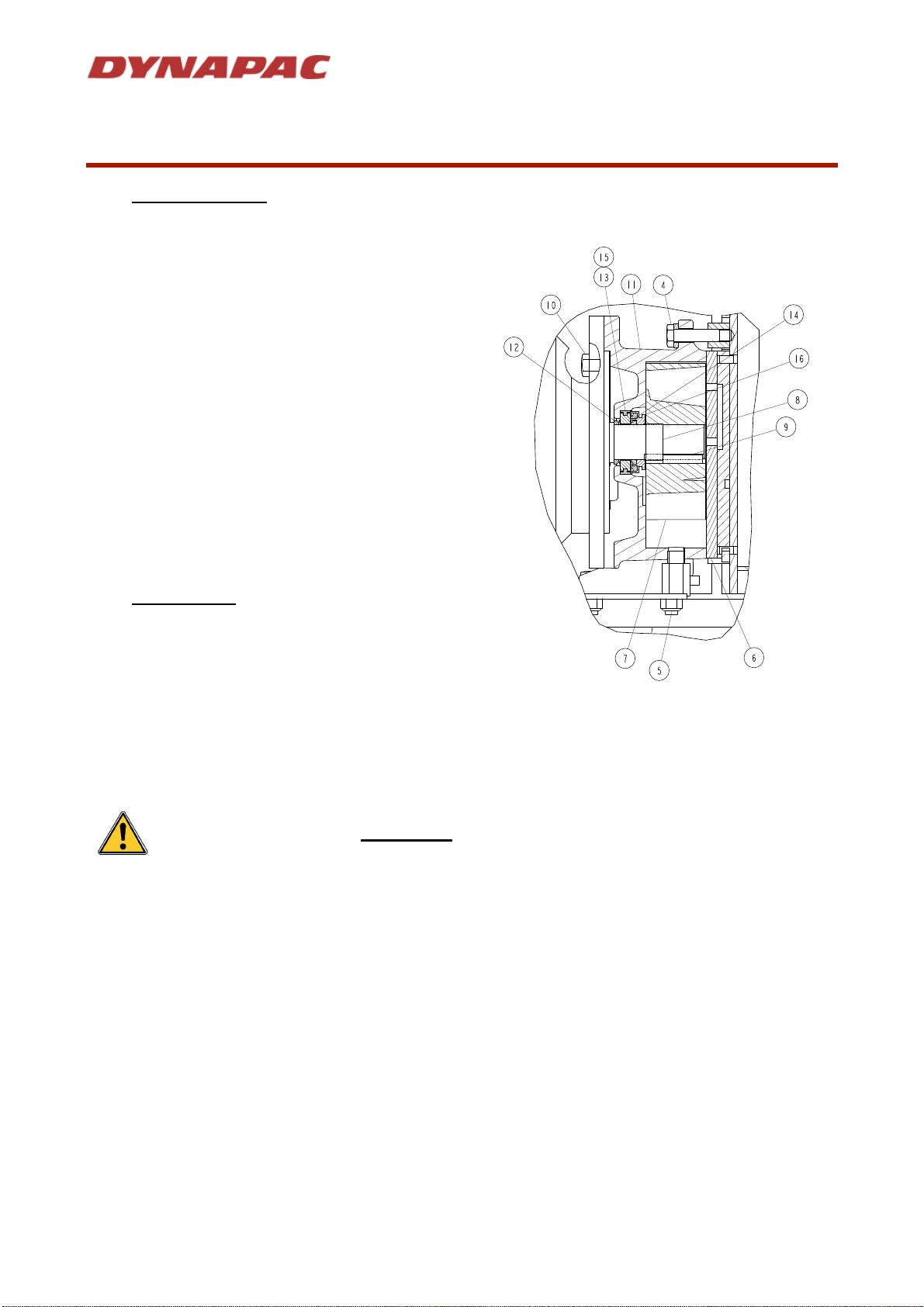

WORKSHOP INSTRUCTIONS
DISASSEMBLY
1. Needed parts: Disassembly tool N°4700363380.
2. Dismantle the cover , unscrew the tank from the
frame.
3. Unscrew the 5 screws 4 and take-off the tank.
4. Unscrew the 4 nuts 5 and take-off the assy motor-
pump.
5. Remove the pump plate 6.
6. Extract the pump wheel 7by using tool N°
4700363380.
7. Take off tolerant ring 8and the key 9from the
motor shaft.
8. Unscrew the 4 screws 10 and take off the pump
body 11.
9. From the pump body 11 extract sealing 12, 13, 14
seal holders 15 and 16.
ASSEMBLY
1. Put in place seal 12 on the motor shaft. Fill all the
space around the seal with high vacuum grease.
2. Place in order in the pump body 11: Seal holder 15
equipped with its seal 13, seal holder 16 equipped with seals 14 and 12. Before assembly grease all
the parts and fill all the space between seal holder 15 and 16. Use high vacuum grease.
3. Position the complete pump body on the motor shaft and then tight screws 10.
4. Place tolerant ring 8 on the pump shaft and key 9. Push the pump wheel 7on the pump shaft by using
tool 367228.
IMPORTANT
Tolerant ring must be replaced each time the pump wheel is dismantled.
A gap of 0.1mm must be respected between the pump wheel and the bottom of the pump body .
5. Put the pump plate 6on the pump body.
6. Place the tank with its rubber seal on the pump and then tight screws 4.Tightening torque : 2mkg.
7. Tight the tank 2and cover 1on the frame 3.

INSTRUCTIONS MANUAL – BA41E
File: 4700369943_ENG_NO.doc Page 10 / 25
SUCTION MAT BB
A complete suction mat DYNAPAC BB, consists of a top mat with a hose and tapered connection, two
carrying tubes, a roll of 30 m of bottom mats, a transportation bag of plastic net and a repair kit.
The plastic sheet, which is in contact with the concrete, acts as a filter, only allowing water to pass through it
and excluding cement sludge.
The bubbles of the plastic sheet acts as a spacer under the top mat so that the vacuum is evenly spread over
the entire surface to be treated.
The top mat is made of impervious plastic fabric with a suction channel in the centre of its underside.
The suction channel distributes the vacuum evenly along the length of the mat.
The suction mat is manufactured in six standard sizes of 1.5 to 6m bay width.
BB15 BB30 BB40 BB50 BB60
Dim A x B (m) 1.5x5 3.0x5 4.0x5 5.0x5 6.0x5
Weight (kg) 19 35 46 57 67
Order N° 010520600 010520200 010520300 010520400 010520500
SUCTION HOSE N°805115
1.5" Diameter. per meter .

INSTRUCTIONS MANUAL – BA41E
File: 4700369943_ENG_NO.doc Page 11 / 25
SPARE PARTS CATALOGUE
RESERVDELSTÄLLNING
Följande uppgifter ska lämmas vid beställning av
reservdelar för att undvika leveransfel :
1. Maskintyp.
2. Maskinens seriunmmer.
3. Antal av önskad reservdel.
4. Reserdelens artikelnummer.
5. Reservedelens benämning.
6. Måttupgifter vid beställning av metervara.
ORDERING SPARE PARTS
To avoid errors in delivery, please give the following
information when ordering spare parts :
1. Type of machine.
2. Machine serial number.
3. Quantity required.
4. Part number.
5. Parts description.
6. Dimensions when ordering per length.
ERSATZTEILBESTELLUNG
Zur Vermeidung von Fehllieferungen sind bei der
Bestellung von Ersatzteilen folgende Angaben zu
machen :
1. Mashinentyp.
2. Herstellungsnummer.
3. Bestellmenge. (Quantity)
4. Ersatzteilbenennung. (Part N°)
5. Ersatzteilbenennung. (Description)
6. Massangaben bei Bestellung von Meterware.
ORDINI DI RICAMBI
Per evitare errori nelle consegne di ricambi, Vi
preghiamo di comunicarci le seguenti informazioni al
momento dell ‘ordinazione :
1. Tipo di macchina.
2. Numero di serie della macchina.
3. Quantitá dei pezzi desiderati. (Quantity)
4. Numero di codice del pezzo. (Part N°)
5. Descrizione del pezzo di ricambio. (Description)
6. Misura, in caso di ordine per metro.
PEDIDO DE RECAMBIOS
Para evitar errores en las entregas, deberá indicarse
los siguientes datos al hacer un pedido de
recambios :
1. Tipo de máquina.
2. Número de serie.
3. Cantidad de piezas deseadas. (Quantity)
4. Número de artículo de la pieza de recambio. (Part
N°)
5. Denominación de la pieza. (Description)
6. Indíquese la medida al solicitar un artículo que se
expide por metros.
COMMANDE DE PIECES DE RECHANGE
Les indications suivantes doivent être fournies lors
de la commande de pièces de rechange, afin d’éviter
toute erreur de livraison :
1. Type de machine.
2. Numéro de série.
3. Quantité désirée de pièce de rechange. (Quantity)
4. Numéro de la pièce de rechange. (Part N°)
5. Description de la pièce de rechange. (Description)
6. Longueur en cas de commande par mètre.

INSTRUCTIONS MANUAL – BA41E
File: 4700369943_ENG_NO.doc Page 12 / 25
SPARE PARTS
Note : To place spare parts order, use :
- The serial number of the machine
- The description and the part number
Ref. Description BA41E
4700369231 Qty
1 Fram 4700369285 1
21 Over-center catch 4700369293 4
22 Vacuum tank 4700369233 1
34 Vacuum adjustment 4700369295 1
42 Bracket 4700369348 1
43 Vacuum meter 4700369303 1
44 Label 4700704501 2
45 Gland 4700369349 3
46 Cable 4700369350 0.45
47 Motor protector 4700369351 1
49 Cable 4700369350 0.57
50 Switch 4700369352 1
51 Screw 4700107834 4
52 Nut 4700183557 4
53 Decal 4700369353 1
54 Screw 4700533027 4
55 Nut 4700586001 4
56 Electric motor 4700369354 1
57 Switch holder 4700369237 1
63 Screw 4700500051 4
64 Screw 4700500267 4
65 Washer 4700600267 4
67 Wheel 4700369327 2
68 Circlips 4700369328 4
69 Screw 4700185987 2
69 Screw 4700500056 3
70 Washer 4700603012 4

INSTRUCTIONS MANUAL – BA41E
File: 4700369943_ENG_NO.doc Page 13 / 25
Ref.
Description BA41E
4700369231 Qty
2 Nut 4700586003 4
3 Sealing 4700369292 1
4 Screw 4700508019 4
5 Coupling 4700369289 3
6 Chain 1
7 Y Coupling 4700369238 1
8 Plug 4700369290 1
9 Adapter 4700369291 2

INSTRUCTIONS MANUAL – BA41E
File: 4700369943_ENG_NO.doc Page 14 / 25
Ref.
Description BA41E
4700369231 Qty
35 Star knob 4700369296 1
36 Nut 4700927233 1
37 Washer 4700600267 1
38 Valve housing 4700369298 1
39 Valve packing 4700369299 1
40 Valve screw 4700369300 1
41 Screw 4700533024 4

INSTRUCTIONS MANUAL – BA41E
File: 4700369943_ENG_NO.doc Page 15 / 25
Ref.
Description BA41E
4700369231 Qty

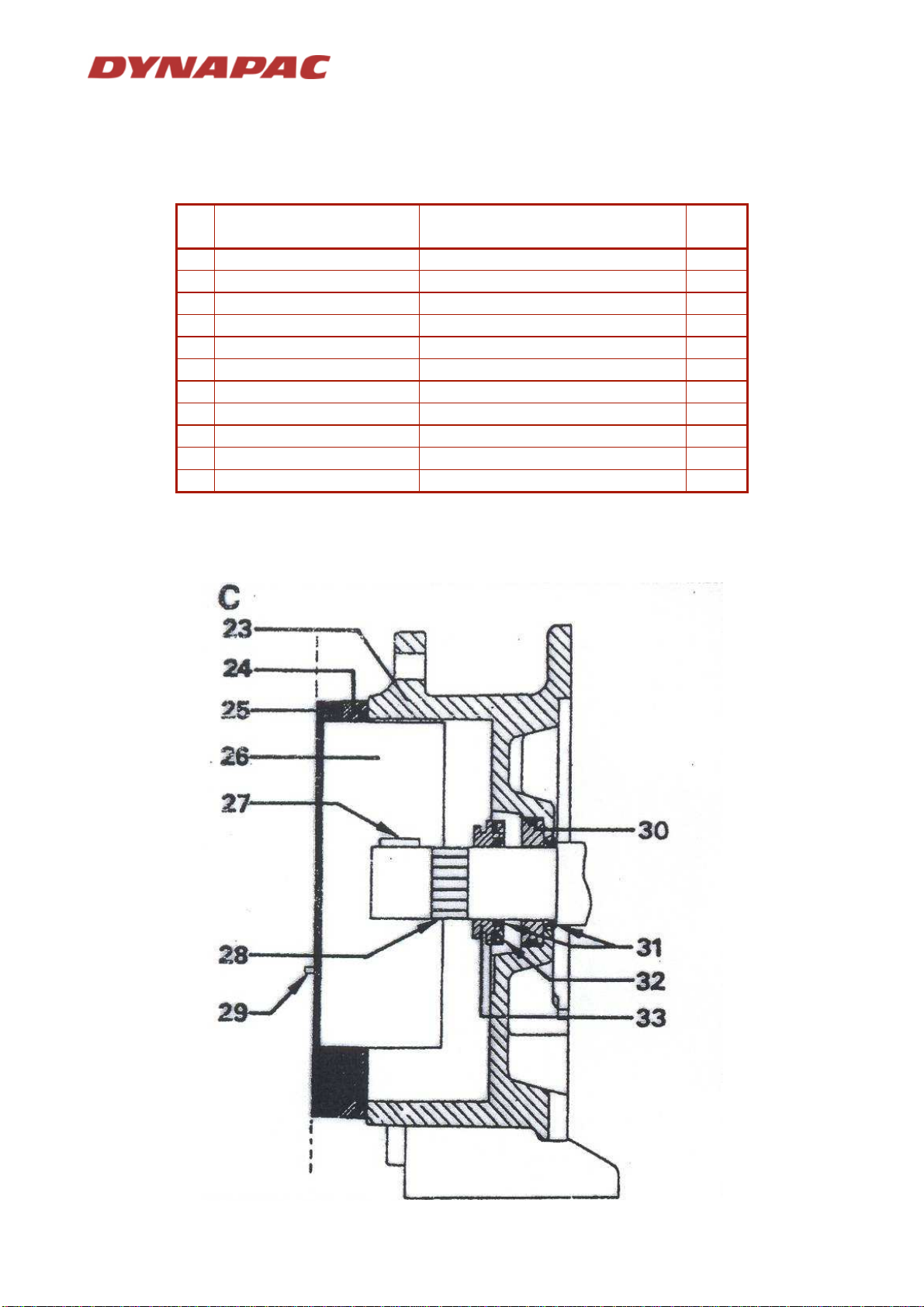

23 Pump body 4700369232 1
24 Pump plate 4700369310 1
25 Pump sealing 4700369311 1
26 Impeller 4700369304 1
27 Key 4700185992 1
28 Tolerance ring 4700369305 1
29 Pin 4700185993 2
30 Sealing 4700369306 1
31 V-ring 4700369307 2
32 V-ring 4700369308 1
33 Seal holder 4700369309 1

INSTRUCTIONS MANUAL – BA41E
File: 4700369943_ENG_NO.doc Page 16 / 25
Ref.
Description BA41E
4700369231 Qty
71 Screw 4700500023 4
72 Coupling 4700369289 3
73 Coupling 4700369330 1
74 Clamp 4700369331 1
75 Hose 4700805115 1
76 Screw 4700185989 4
77 Cover 4700369236 1
78 Label instruction 4700369242 1
80 Cover 4700369235 1
81 Nut 4700185990 2
82 Plug 4700185986 4
84 Bottom plate 4700369240 1
85 Handle 4700369326 1
86 Decal fleche 4700369355 1
87 Nut 4700586002 4
88 Screw 4700500088 4
89 Sealing 4700369356 1
90 Holder 4700369357 1
91 Hose 4700369358 1
92 Collier 4700369359 2
93 Plug 4700369336 1
94 Filter holder 4700369337 1
95 Holder 4700369341 1
96 Wire netting 4700369339 1
98 Filter cpl 4700369340 1
99 Filter 4700369338 1
100 Clamp 4700369342 1
101 Label mini maxi 4700369343 1
102 Tank cover 4700369239 1
103 Tie bar 4700369332 2

INSTRUCTIONS MANUAL – BA41E
File: 4700369943_ENG_NO.doc Page 17 / 25

INSTRUCTIONS MANUAL – BA41E
File: 4700369943_ENG_NO.doc Page 18 / 25
Ref.
Description BA41E
4700369231 Qty
99 Rubber washer 4700369344 4
100 Washer square 4700185991 4
101 Nut 4700586019 4

INSTRUCTIONS MANUAL – BA41E
File: 4700369943_ENG_NO.doc Page 19 / 25

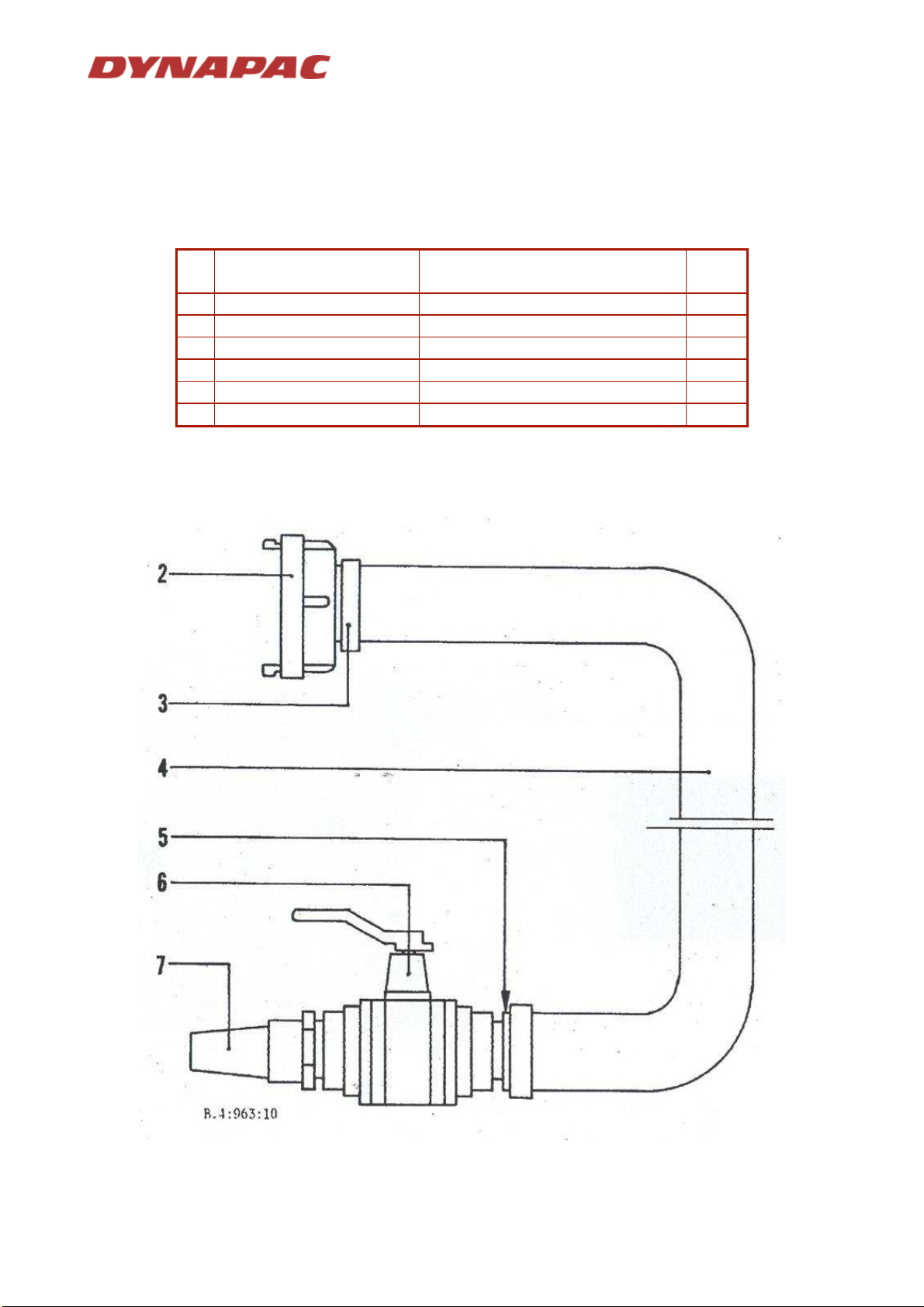

Ref.
Description 4700369286 Qty
2 Coupling 4700369330 1
3 Clamp 4700369331 2
4 Hose 4700805115 1
5 Nipple 4700369345 1
6 Cock 4700369346 1
7 Nipple 4700369347 1

INSTRUCTIONS MANUAL – BA41E
File: 4700369943_ENG_NO.doc Page 20 / 25
Ref.
Description 4700369287 Qty
9 Coupling 4700369330 2
10 Clamp 4700369331 2
11 Hose 4700805115 1
