Instruction Manual
4812314581EN
Operation and Maintenance
Pneumatic Tire Roller
CP2700
Diesel Engine
Cummins QSB 4.5 – Tier III
Cummins QSF 3.8 - Tier IV
Serial number
It is reserved the right to make any changes
Printed in Brazil
10000512KKC009561 -
10000502VMC010959 -

2020-01-06 4812314581EN
TABLE OF CONTENTS
OPERATION Page
Operation - Before starting ................................................................................................. 38
Display and button set ........................................................................................................ 42
Operating the roller.............................................................................................................. 43
Ballast box ........................................................................................................................... 46
Interlock/Emergency Stop/Parking Brake .......................................................................... 50
Long-term storage ............................................................................................................... 53
Jack up the frame, so that the tires do not take any ......................................................... 54
load. ...................................................................................................................................... 54
Lifting ................................................................................................................................... 55
Towing .................................................................................................................................. 56
Transport .............................................................................................................................. 59
Operation instructions - Overview ...................................................................................... 60
Preventive maintenance ...................................................................................................... 61
Preventive maintenance - Symbols and lubricants ........................................................... 62
Specifications ...................................................................................................................... 65
Maintenance and lubrication points ................................................................................... 69
Scheduled maintenance and lubrication ............................................................................ 70
Maintenance and lubrication procedures .......................................................................... 70
Daily (Every 10 hours of operation) .................................................................................... 74
Weekly (Every 50 hours of operation) ................................................................................ 80
Monthly (Every 250 hours of operation) ............................................................................. 86
Quarterly (Every 500 hours of operation) ........................................................................... 90
Semiannually (Every 1,000 hours of operation) ................................................................. 93
Annually (Every 2,000 hours of operation)......................................................................... 97
Special instructions ........................................................................................................... 103
Electrical system ............................................................................................................... 105
Revision .............................................................................................................................. 108

4812314581EN 2020-01-06

Introduction
2020-01-06 4812314581EN 1
Introduction
Dynapac CP2700
Dynapac CP2700 is a 27 tonnes rubber wheel roller, with
5,905 ft (2,300 mm) width.
It has five direction front wheels and four back wheels. The
hydrostatic drivers, the flexible ballast solution and a wide
range of option equipment indicate that the machine has
different settings available. CP2700 is mainly used
together with other asphalt rollers to seal surfaces. Thanks
to its weight, it also serves as a roller for other types of
ground.
Warning symbols
WARNING! Damage to the machine or its
parts.
CAUTION! Risk of death or injures.
Safety information
The Safety Manual
delivered with the
machine shall be read by the operator.
Always follows the safety instructions
and keep the Manual inside the machine.
It is recommended to at least train the operators
on daily handling and maintenance of the
machine, according to the Instruction Manual.
Passengers are not allowed on the machine,
and the operator must be on the seat whenever
he operates the equipment.
Read throughout the manual before starting the
machine and before performing any
maintenance.
Request immediately new manuals if the old
ones are lost, damaged or become illegible.
Make sure there is a good vent (air exhaust)
when the engine is turned on
in closed
facilities.

Introduction
2 4812314581EN 2020-01-06
General Information
This manual contains instructions to operate and
perform the maintenance of the machine.
The machine's maintenance shall be made correctly in
order to obtain the maximum performance and the
equipment shall also be kept clean, so leakage, loosen
bolts and connections can be found as soon as
possible.
Perform a daily inspection in the machine before
starting, so you can find possible leakage or other
failures.
Verify the machine's floor. Leakages are easier
detected on the floor than on the equipment itself.
THINK ABOUT THE ENVIRONMENT! Do
not dispose
oil, fuel or other hazard
substances to the environment. Always
dispose correctly used filters, draining oil
and fuel residues.
This manual contains instructions for periodic
maintenance, which is usually performed by the
operator.
Other engine instructions can be found at the
manufacturer's manual.
CE Marking and Statement of Compliance
(APPLIED TO MACHINES SOLD WITHIN THE
EUROPEAN COMMUNITY)
This machine has a CE Marking. It shows that at its
delivery, it meets all the applicable health and safety
basic directives, according to 2006/42/EC Machinery
Directive, besides attending other directives applicable
on machinery.
Following the machine there is a "Statement of
Compliance" specifying the directive and supplement
applicable, as well as the harmonized norms and other
regulations relevant to the case.

Safety - General instructions
2020-01-06 4812314581EN 3
Safety - General instructions
(you must also read the Safety Manual)
1. Read and understand this Manual before starting and operating the machine.
The operator must be familiar with the equipment contents before operating it.
2. Observe and follow all the Maintenance Section instructions.
3. Only experienced/trained operators are allowed to operate the machine. NEVER
allow the presence of passengers and ALWAYS remain seated while operating
the equipment.
4. Do not operate the equipment if adjustment or repairs are necessary.
5. Use ladders and rails to enter and leave the cab. NEVER enter or leave the
machine while it is moving.
6. The ROPS (Roll Over Protective Structure) should always be used when the
machine is operated on unsafe ground. Always use the seat belt when the ROPS
is on.
7. Use the first gear on sharp turns.
8. Avoid driving close to cliffs or sharp side slopes. Operate the machine on first
gear and always check the brakes.
9. When driving close to edges or holes, make sure at least 2/3 of the wheels are
on the previously compacted materials.
10. Make sure there are no obstacles over your head during the travel. Always look
up and down during the travel. Make sure there are no obstacles in the direction
of travel - on the ground, in front or behind the roller.
11. Drive particularly carefully on uneven ground.
12. Follow all the safety rules and use the protection equipment proper to the work
to be performed.
13. Keep the roller clean. Clean immediately dirt, oil and grease accumulated on the
operator platform. Keep all the signs, lanterns, headlights and decals clean,
visible and legible.
14. Observe the following safety measures before refueling:
- Turn off the engine;
- Do not smoke;
- Do not allow sparks or flame next to the equipment;
- To avoid sparks, ground the filling nozzle.
15. Before performing any maintenance operation, chock the roller wheels and
apply the emergency/parking brakes.
16. Hearing protection is recommended if the machine's noise level exceeds 85 dB
(A). The noise level can vary depending on the work the machine performs.
17. Do not make any changes on the machine, under the risk of affecting the
personal safety as well the equipment's. Any change on the machine demands a
previous written approval by DYNAPAC.
18. Avoid using the machine before the hydraulic oil reaches the normal operating
temperature. The braking distance may be longer than normal if the oil is cold.
Refer to the operation instructions on "Stop", in the "Operation" section.

Safety - General instructions
4 4812314581EN 2019-11-06
19. For your own protection, always wear:
- Helmet;
- Working boots with steel toecaps;
- Ear protectors;
- Reflecting clothing;
- Working gloves.
20. If there is a cab in the machine, operate it always with the doors closed and with
the seat belt.

Safety
2019-11-06 4812314581EN 5
Safety - When operating
Avoid people entering at the danger area, that is, at a
distance of at least 23 ft (7 m) in all the directions from
the machine operating. The operator can allow one
person to be at the danger area, but in this case, care
must be taken and the machine can only be operated
when this person is in a visible place or with clear
indication of where he/she is.
Operating on slopes
The machine must never be operated from the
outside of the cab. The operator shall be seated
when operating.
Slopes
This angle was measured on a flat, hard surface and with the
machine in a stationary position.
The steering angle is zero, the tires pressure is normal and all
the tanks are full.
Always remember that loosen ground, the steering of the
machine, different tire pressures, the operation speed and the
gravity center raising may cause the machine to turn, even on
slopes smaller than the ones stated here.

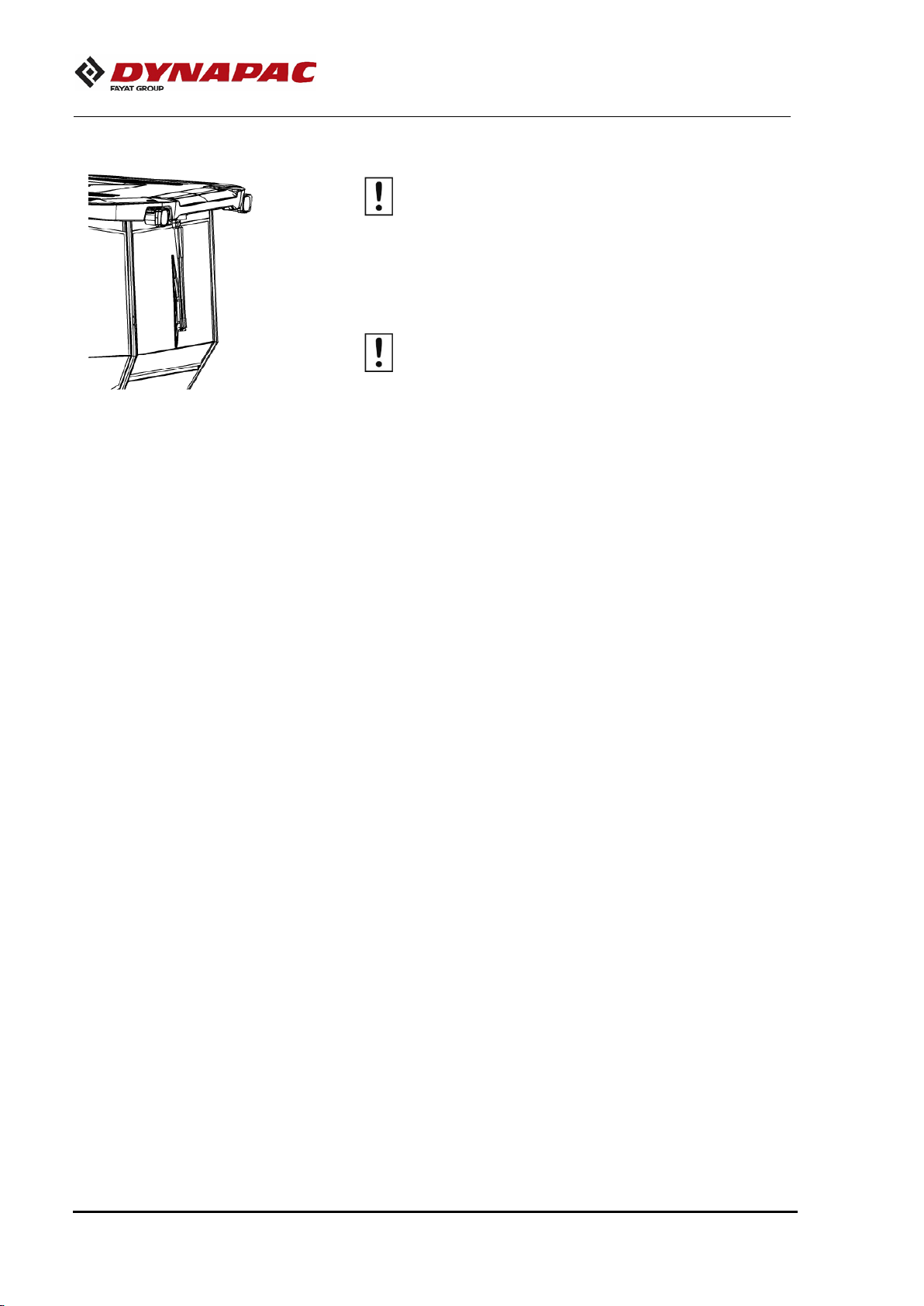

If you need to leave the cab in emergency
situations, take off the hammer at the rear pillar on
the right and break the opening windows that are
also on the right.
It is recommended that ROPS (Roll Over
Protective Structure) is always used when driving
on slopes or unsafe ground.
Whenever possible, avoid driving across slopes.
On slopes, drive straight up and down.
The speed must always be slow when operating
on slopes.
Always operate the machine with the doors
closed and with the seat belt.
Fig.: Operating on downhills.
Max. 20º
or 36%

Safety
6 4812314581EN 2019-11-06

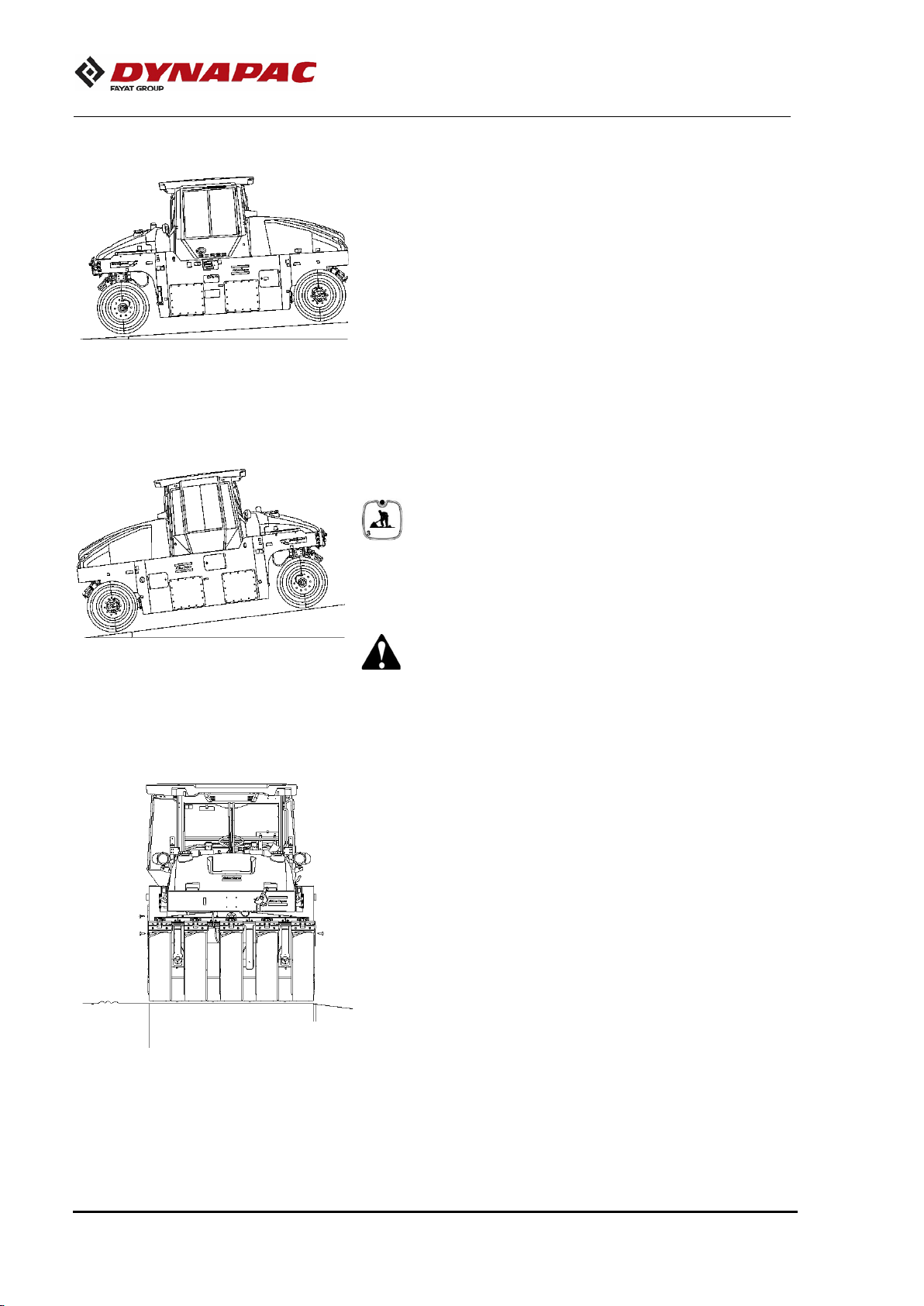

Transport on steep ground
During the transport on steep ground (slope >5%), be careful to
not exceed the roller's maximum speed.
Take your foot off the throttle pedal and use the engine brake
system. Also use the main brake if the speed keeps increasing.
Selecting the low speed will increase the engine brake system
efficacy and also the life of the braking system.
Operation and transport on steep ground
Always drive the machine in slow speed when operating or
during transport on steep ground.
(>15%).
To drive or stop the machine, the rear wheels shall always be
towards the slope, that is, the roller shall go up normally and
shall go down in reverse.
Make sure there are no obstacles both in front or
behind your work area.
Driving near edges
When driving close to edges or holes, make sure that at least
¼ of the tires is on the compacted ground.
>15% (8.5°)
Fig.: Steep slope
Low speed (up to 4.7 mph or 7.5 km/h)
>5% (2.8°)
Fig.: Steep ground
v < max. speed. (9.3 mph or 15 km/h).
At least 1/4
Fig.: Position of wheel when driving near
edges.

Safety – Option items
2019-11-06 4812314581EN 7
Safety - Option items
Air conditioning
The system contains pressurized refrigerant. It is
forbidden to release refrigerant to the atmosphere.
The maintenance of the air conditioning system
shall be carried out only by trained people and
with the proper tools and equipment.
The air conditioning system is pressurized. The
incorrect handling can result in serious personal
injury. Do not loose or disconnect hoses and
connections with the system loaded.
The system must be refilled with approved coolant
when necessary. Refer to the safety decal next to the
replacement and filling place.
Edge cutter
The operator must make sure that nobody is in the
work place when the machine is operating.
The edge cutter has rotating components which
may cause crushing.
Immediately after use, the tool shall always be put
back on the transport position (1) that is, on the raised
position.
If the edge cutter and its components are
dismounted, make sure that it is made with the
machine in a safe position and that it is on the
ground.
Fig. Air conditioning
Fig. Edge cutter
1. Transport position
2. Work position

Safety - Option items
8 4812314581EN 2019-11-06
Working lights - Xenon
CAUTION! High voltage!
The working lights are Xenon type and have a high voltage
auxiliary source of power.
Any maintenance on the lighting system shall be performed by
authorized technicians and the main power source shall be off.
CAUTION! Environmentally hazardous waste!
The xenon lamps of the working lights contain mercury (Hg).
A defective lamp is considered a hazardous waste and shall
be disposed of properly, according to the applicable local
directives.
Contact an DYNAPAC dealer!
Fig. Xenon working lights

Safety – Option items
2019-11-06 4812314581EN 9
Technical Specifications
Vibrations – Operator station (ISO 2631)
The vibration levels are measured according to the operational cycle described in the EU
directive 2000/14/EC on machines equipped for the EU market with the operator’s seat in the
transport position.
The measured vibrations on the whole body are below the 0.5 m/s² action value, as specified in the
directive 2002/44/CE (the limit is 1.15 m/s²).
The measured vibrations on the hand/arm are also below the 2.5 m/s² action value, as specified in the
same abovementioned directive (the limit is 5 m/s²).
Noise level
The sound levels are measured according to the operational cycle described in the EU directive
2000/14/EC on machines equipped for the EU market with the operator’s seat in the transport
position.
Guaranteed sound power level, LwA
103 dB (A)
Sound pressure level at the operator's ear (platform), LpA
85 ±3 dB (A)
Sound pressure level at the operator's ear (cab), LpA
80 ±3 dB (A)
During normal operations, the values abovementioned may differ, depending on the work
specific conditions.
Electrical system
The machines were tested for electromagnetic
compatibility (EMC) in accordance with EN 13309:2000:
"Construction machinery".

Technical specifications
10 4812314581EN 2019-11-06
Technical specifications - Dimensions
Dimensions
Dimensions
mm
inches
A – Between axles
4,300
169
B – Total width
2,360
93
H1 – Height with attachment
3,344
132
H2 – Total height
2,990
118
K – Height from the ground
250
9,8
L – Total length
5,480
216
A
L
H2
H1
B
K

Safety – Option items
2019-11-06 4812314581EN 11
Dimensions
Millimeter
Inch
R – Outer radius
9045
356
r – Inner radius
5711
225
x – Tire width
300
11,8
Dimensions
Degree
O – Vertical oscillation
4,5
D – Direction angle
33
X
O
R
r
D

Safety decals - description and location
12 4812314581EN 2019-11-06
Safety decals - description and location
10
13
15, 16
1
23
15
15 8 7
12
13
2, 3
17,
18
9
14
17,
18,
24
20
4
6
15 21 5 22 15
1
13
15, 16
23
10
11
12
13
19

Safety decals - description and location
2019-11-06 4812314581EN 13
Safety decals - Description and
location (cont.)
Always make sure that all the safety decals are
completely legible and remove the dirt or request for
new ones if they are illegible. Use the part number
indicated on each decal.
1
NOTICE:
Crush zone, wheel.
Keep a safe distance from the crush zone.
2
NOTICE:
Rotating engine components, be careful!
Keep your hands off the danger zone.
3
NOTICE:
Hot surface!
Keep your hands off the surface.
4
NOTICE:
Read carefully the towing chapter before releasing
the brakes. Crushing injury danger.
5
NOTICE:
The operator must read the Safety and Engine
Manuals, as well as the Operation and Maintenance
instructions.
6
NOTICE:
High pressure fluid.
Make sure to release the pressure from the
accumulators before opening the hydraulic system.
7
NOTICE:
Gas shall not be use to start the machine.
8
NOTICE:
Edge cutter (option).
9
NOTICE:
Toxic gas danger.
Refer to the Instruction Manual.

Safety decals - description and location
14 4812314581EN 2019-11-06
Safety decals - Description and
location (cont.)
10
Emergency exit - Cab
11
Fire extinguisher
12
Hoisting plate
13
Tire pressure
14
Diesel oil
15
Securing point
16
Lifting point
17
Hydraulic oil
18
Bio-hydraulic oil (option)

Safety decals - description and location
2019-11-06 4812314581EN 15
Safety decals - Description and
location (cont.)
19
Handbook compartment
20
Master switch
21
Battery voltage
22
Sound power level
23
Water tank
24
Hydraulic oil level

Identification plates
16 4812314581EN 2019-11-06
Identification plates
Machine plate.
The machine plate (1) is on the top step, on the left side of the
operator's platform.
It specifies the manufacturer's name, the type of the machine,
the serial number, the service weight, the engine power and
the manufacturing year (machines delivered outside EU do
not present CE marking and in some cases they also do not
present the manufacturing year).
NOTE: State the machine plate's serial number when ordering
spare parts.
PIN (Product Identification Number) at the frame
The PIN - product identification number (1) is punched on the
right side of the right frame. It is the same number of the
machine plate (serial number).
Fig.: Frame
1
– Machine plate
2
– Engine plate
Fig. Frame
1
– PIN
