DYS Elf User manual

InstructionManualofDYSElfMicroBrushlessDrone
ThanksforpurchasingtheDYSElfMicroBrushlessdrone.ThebrushlesssystemwithhighpowerforRCmodelcanbe
verydangerous,sowestronglysuggestyoureadthismanualcarefully.Anyclaimsarisingfromtheoperating,failureor
malfunctioningetc.willbedenied.Weassumenoliabilityforpersonalinjury,propertydamageorconsequential
damagesresultingfromourproductorourworkmanship.Asfarasislegallypermitted,theobligationtocompensationis
limitedtotheinvoiceamountoftheaffectedproduct.Atthesametime,Wedonotassumeanyliabilityarising
frommodificationsduetounauthorizedproduct.Wereservetherighttochangewithoutnoticeaboutproduct
design,appearance,performanceandoperationalrequirements.
BriefIntroductionofElf:
*ElfmicrobrushlessdroneisspecializedforpeoplewholovesFPVrace,Freestyleetc.
*Thenewdesignconceptofbuilt‐inPCBboardwillcomewiththegreatfunctionalF3,sensor,newgenerationCPU,OSD,
sectionboard.
*ThewideangleHDcamerawillgiveyouclearview.Thebuilt‐in5.8GVTX25‐200MW22CHand3DBIantennacan
extendtherange.
*Thegreathigh‐endcarbonfibercomewiththelighterweight,highstrengthandfirmshape,whichisperfecttomatch
withthebrushlessmotorandESCtogetgreatflightexperience.
*Elfmicrodronehasthepropellerprotectbrackettolowerthedamageofindoor/outdoorflightwhenithitsomething.
Functionintroduction:
*EasycontrolwithpopularOpentxFirmwareinremotecontrol
*Neatdesignofbuilt‐inF3/OSD/Sectionboard
*BetaflightfirmwareFCcaneasilybeprogrammedbyusers’needs
*SupportDshotESC
*D8Rreceiverprotocol,compatiblewithitsprotocolFrskyremotecontrol(includingX9Detc)
*LEDshinyflightforFPVraceandeasyeye‐catchingatnight
*Built‐InBeeperwarning
*VTX25MW‐200mwadjustable,controldistance300M
*2.4Gremotecontrolofferhighspeedandstableconnectionexperiences
*170degreewideanglecamerawithstrongback‐lightingarithmeticcaneasilyhandleallkindofconditions
BasicinfoofElfMicrobrushlessdrone:
Wheelbase:83mm
Weight:80g(withbattery)
FC:F3
Motor:BE1102‐10000KV
ESC:4in1Blheli_SDshotF10A
Prop:Micro5bladesprop(1735)
Camera:170°PAL/NTSCAUTO
VTX:5.8G/22CH/25‐200MW
VTXdistance:300M
Antenna:3DBI
Lipo:2S7.4V25C600mah
Liposize:45*25*15mm
Flighttime:Around6minutes
Remotecontrol:2.4G
Remotecontroldistance:300m

Diagrams

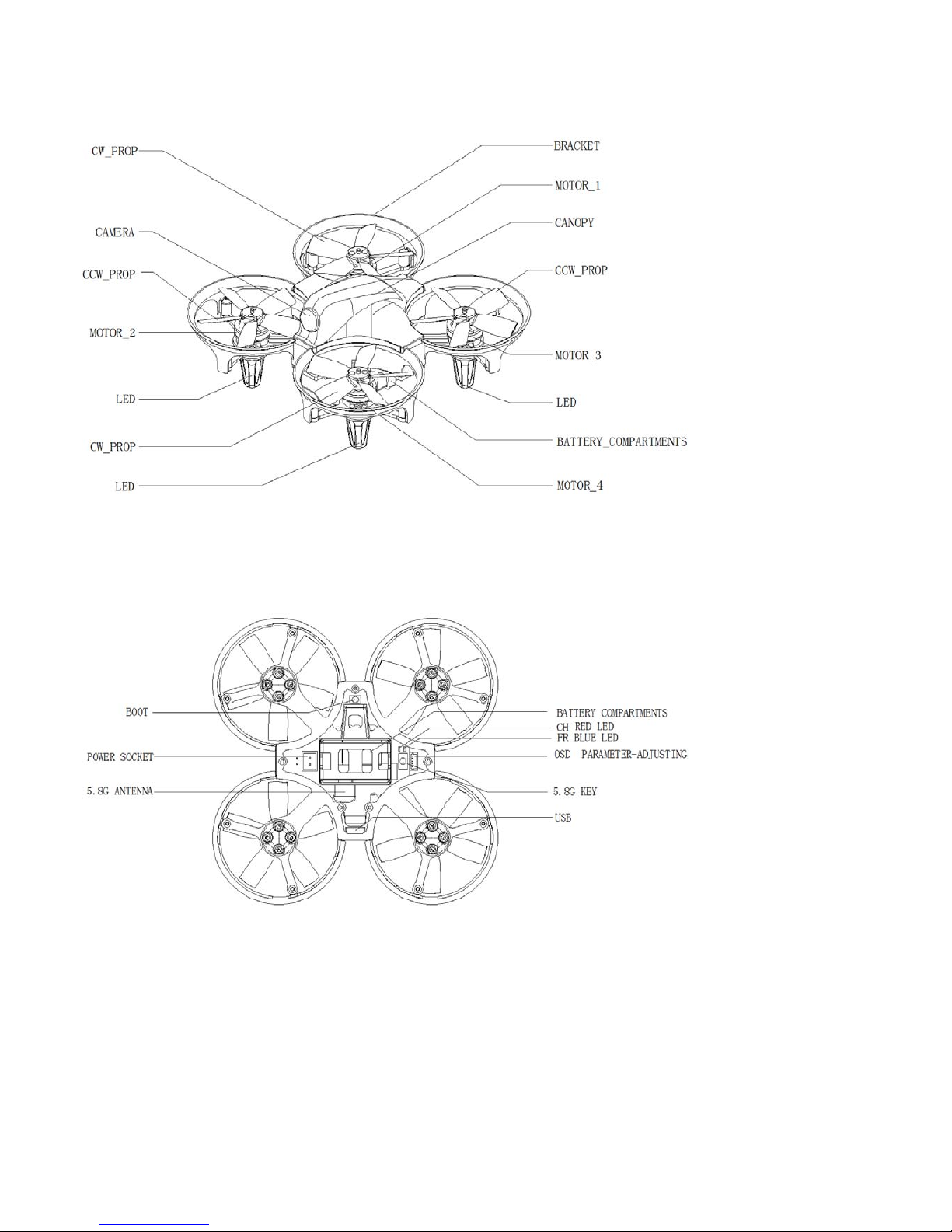

(1)Elffrontview
(2)Elfrearvew

DimensionofElf
DiagramofRemotecontrol
(1)Frontview

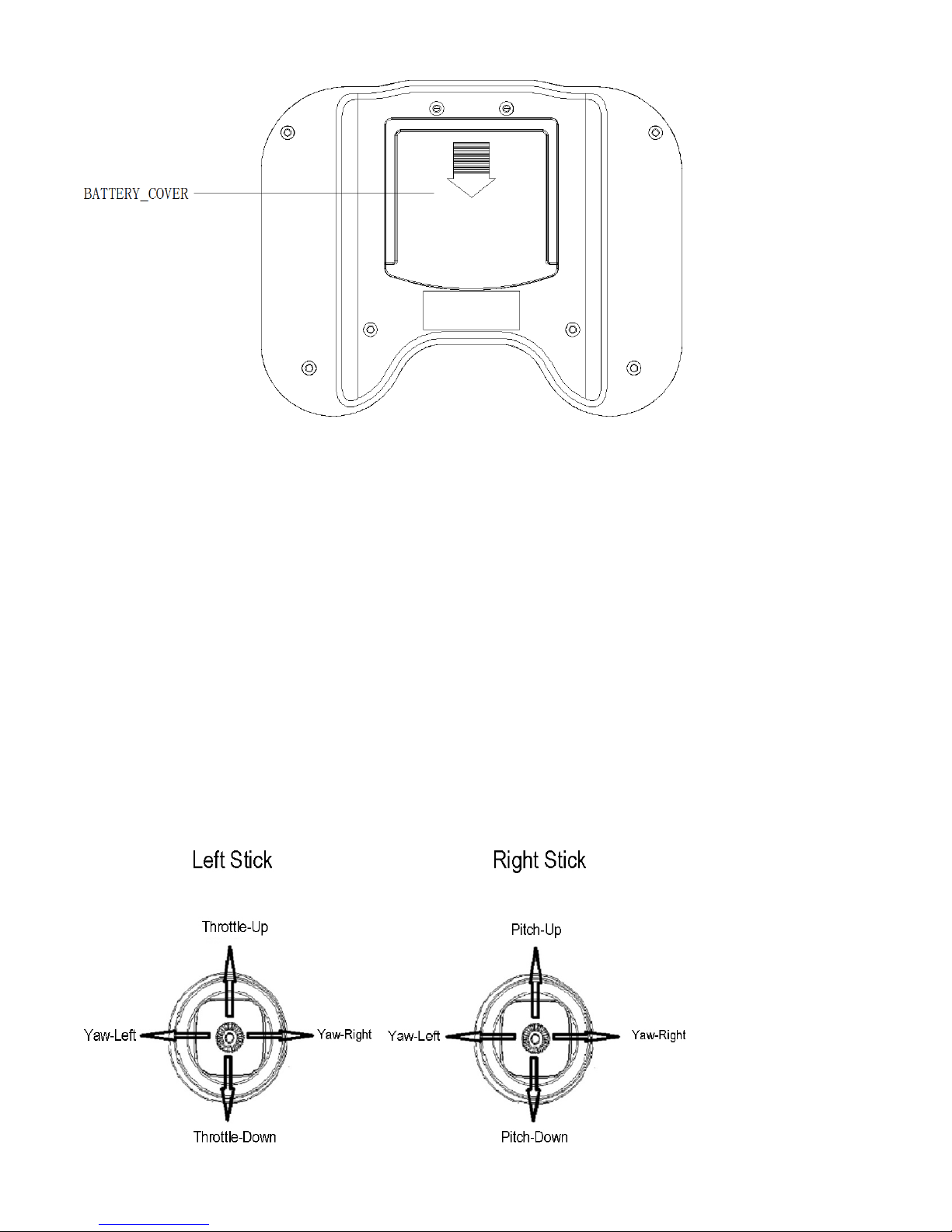

(2)Rearview
RemoteControl:
ItisinusingOPENTXfirmware,compatibleFrskyreceiver(D8R)
FunctionIntroduction:
Switch:(DefaultsettingofSWA,SWB,SWCandSWBstayupwardpositionmeansoff)
(1)SWA:downwardtodisarmthedrone(Forreadytoflightandlanding)
(2)SWB:flightmode:Upward:Angle
Middle:Horizon
Downward:manual
(3)SWC:OSDdisplay,MiddlemeansOn,upwardandbackwardmeansOff.
(4)SWD:Beeper.BackwardforBeepingtosearchthedronewhenyoulosetheversionofit.
Stick:DefaultSettingisMode2(leftthrottle).
1. Leftstick:upanddownisthrottle,leftandrightisdirection(Yaw).
2. Rightstick:upanddownisPitch,leftandrightisRoll.
Battery:Itisusingthe4cellsAAbatteries
Trimming:YouneedtoadjustthetrimmingkeyintheRC,tomakeyourquadhoversteady
Powerswitch:SwitchOn‐Off

BasicOperation:
1.GetReadytofly:
(1)MakesuretheSWA/B/C/D,stick(leftstick/rightstick)inrightposition.
(Defaultsetting:SWA/B/C/Dstayupward,Leftstickstaybackward,rightstickstaymiddle)
(2)Pleasecheckbatteryofdroneandremotecontrolisfullycharged.
(3)Turnontheremotecontrol
(4)Plug‐inthebatteryofElf
(5)VTXChannelsetting
(6)PleaseputtheElfontheflatland
2.Starttofly
(1)SWAgodownwardtodisarmthedrone(WithDiDisound)
(2)Slightlypushthethrottletoslowlyflythedrone
Note:
A.SWBisfortheflightmode.Differentflightmodewillhavedifferentexperience.
B.SWCisforOSDdisplayswitch.OffonlyshowstheCameraview.
C.SWDisBeeperwarningtosearchthedronewhenyouarenotsurewhereitgoes.
3.Landing
(1)Unplugthebatteryanddisconnectthepowerwirewiththedrone.
(2)Turnofftheremotecontrol.
Note:
Beforedisarm,thethrottleneedtostaythelowestandthedroneisatlevelposition.

VTXsetting
ItneedstochoosetherightfrequencytodisplayatFPVequipment(FPVgoggleorFPVscreen)
FrequencybandandchannelisveryimportanttotheVTX.TheFrequencybandABEFRisFRblueLED,Channel12345678is
RedLED.(Forexample,FRblueLEDcontinuetoflash3times,CHRedLEDcontinuetoflash5timesmeansFrequencybandE,
Channel5.)
1.ChannelSetting:Plug‐intheElffirst,IftheCHRedLEDisconstantlyflash.Itmeansthatitisforfrequencypointsetting.
Shortpress5.8Gkey,andCHredLEDwillflashforchoosingthechannelthatyouneed.
2.FrequencyBandSetting:Longpressbuttonfor3secondstillFRblueLEDconstantlyflash,thenshortpresstochange
anotherfrequencyband.TheblueLEDflashtimesisaccordingtothefrequencybandthatyouneed.
3.AtFRblueLEDmode,longpressfor3secondstilltheRedLEDflashtochangetheCHchannelswitchmode.
4.10secondsofnone‐operationat5.8Gkey,itwillautomaticallychangetothechannelsetting.
5.Auto‐saving:Anyoperationwillbesaveautomaticallyafteritsdone,asitiswithnon‐volatilememory.

SketchMap:




OperationinfoofCharger:
1.InfoofBatterywire:
2Pincableispoweroutputwire.3Pincableisforthebalancecharge.
Powercable:plug‐indrone’spowersocket
Balancecharge:for7.4Vchargersocket
2.IntroductionofCharger
Redlightispower,Greenlightisbatterychargingpower
1)Redlight:constantlylightingmeanspowersupplyworkingproperly.
2)Greenlight:slowlylightingmeanscharging,constantlylightingmeansfullycharge.
Whenischargingthebattery,redlightconstantlylightingmeansthechargerisworkingproperly.AftertheGreenlightis
constantlylightingmeansisfullycharged.




Lipo:
1.Pleasedonottearapartthebatteryorthecharger,anddonotcutanybatterywire,asinthiscaseitwillbedamagedand
shortcircuit.
2.Pleaseusedefaultchargertochargethebattery.Anyimproperlywayortheothernone‐recognizedchargerwillprobably
leadtononfunctionalorbreakdown.
3.Pleasestayawayfromtheheat.Itiswrongtochargethebatteryafteritused.Becauseitwilldestroythebattery.Pleasewait
tillitiscooldown,thenyoucanchargethebattery.
4.PleasetakeoutthebatteryoftheRCwhenyouarenotusingit,asitisgoodtoprotecttheRCjustincaseiftheliquidof
batterywouldleakout.
5.Itisforbiddentoputthebatteryintheheat,becauseitwillleadtoexplosionorbigdangerousdamage.

SafetyNote:
1.PleasedonotflytheElfinpublicroadsfornottoeffecttheotherssafety.
2.Toprotectyours&othersproperty,pleasedonotflyitatthecrowd.Also,donotflynearthepeopleandtheanimals.
3.Pleasestayawayfromtheriver,pondandlakeinordernottoloseyourdroneinsidethewater.
4.ItisimportanttomakesurethatthereisnosameVTXchannelofthesamearea.Becauseinthiscaseitwillcausetheoutof
thecontroloftheRCandimagelost.Itcandestroytheequipmentorharmfultothepeoplewhoisnearyou.
5.BeforeyoustarttoflytheElf,Pleasefollowbelowstepstooperate.
(1)StarttheRC
(2)Makesuretheswitches/sticksareallatcorrectposition.
(3)PluginthebatteryoftheElf
6.Afteryoufinishtheflight,pleasefollowbelowsteps
(1)UnplugthebatteryoftheElf
(2)TurnofftheRC
7.Pleasecheckyourbatteryisfullychargedbeforeyoustarttofly.
8.PleasedonottouchtheElfduringtheflight.
9.Pleasedonotflightattherainydayasitwillcauseelectronicfailure.
10.PleasetakeoutthebatteryoftheRC/Elfafteryoudon’tuseitforalongtime,andkeepitingoodcondition.
